CT Sounds Hydro 10" Shallow Mount 10in Subwoofer

The CT Sounds Hydro 10” Dual 4‑Ohm shallow‑mount subwoofer delivers deep, punchy bass from a compact 3.90" mounting depth so you can add powerful low end to tight vehicle spaces.

Designed for installations where depth is limited but bass performance is still a priority, the Hydro 10" pairs a robust cone and motor with dual 4‑ohm voice coils for flexible wiring and reliable power handling. With 500 watts RMS (1000 watts peak) and a tuned frequency response centered near 39 Hz, this subwoofer performs well in both sealed and ported enclosures, offering tight transient response and strong low‑frequency output without requiring a large box.

How will this subwoofer fit into small or custom enclosures?

The Hydro’s shallow 3.90" mounting depth and 9.29" cutout diameter let you mount deep bass in compact or custom boxes and behind limited panels. Its engineering balances cone excursion and motor strength so you still get notable output from a shallower frame.

• Mounting depth: 3.90" for tight spaces
• Cutout diameter: 9.29" for accurate panel preparation
• Shallow basket design minimizes intrusion behind panels

What power and wiring options are best for the Hydro 10"?

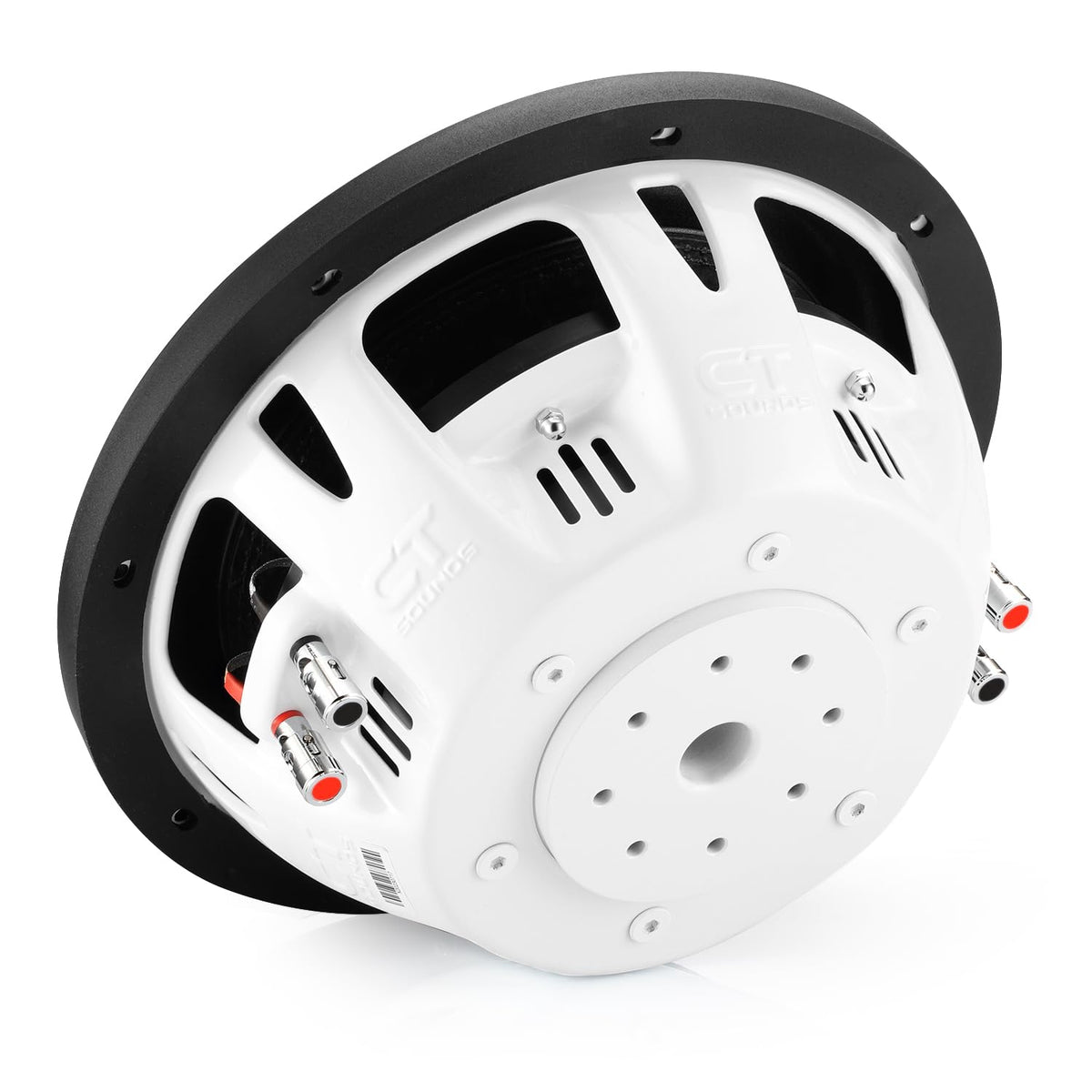

With dual 4‑ohm voice coils you can wire the subwoofer to 4Ω, 2Ω, or use parallel/series configurations to match most mono or multi‑channel amps. The 500W RMS rating gives a reliable continuous power level that suits dedicated sub amps or bridged channels on capable receivers.

• RMS power: 500 W continuous handling
• Peak power: 1000 W for transient headroom
• Dual 4‑ohm coils for wiring flexibility (series or parallel)

How does the Hydro perform in sealed vs. ported enclosures?

This driver is tuned to be responsive in both sealed and ported systems: sealed boxes produce tighter, more controlled bass while ported enclosures deliver louder low‑end extension. The Hydro’s Fs around 39.37 Hz and a Qes of 0.569 help it behave predictably across enclosure types.

• FS: 39.37 Hz — suited for mid‑bass and low‑bass emphasis
• QES: 0.569 — stable transient response
• Performs well in both ported and sealed designs

What installation details should I prepare for?

Measure the 3.90" mounting depth and 9.29" cutout before cutting panels, and plan for secure wiring to each voice coil. The Hydro is intended for vehicle applications where space is limited, so ensure airtight sealing in sealed boxes and proper port tuning in vented designs.

• Plan for 3.90" depth clearance in the mounting area
• Cutout diameter: 9.29" for flush fit and gasket sealing
• Use appropriate amp power and wiring to match impedance

Who this is for: The CT Sounds Hydro 10" is aimed at car audio enthusiasts and installers who need full, controlled bass in vehicles with restricted mounting depth — such as sedans, hatchbacks, off‑road cabs, or custom enclosures. It’s a solid choice for builders who want flexible wiring options and reliable RMS power without sacrificing low‑end presence in a compact package.

Key specifications at a glance:

• Size: 10" shallow‑mount subwoofer
• Voice coils: Dual 4‑ohm
• Power: 500 W RMS / 1000 W peak
• Mounting depth: 3.90"; cutout: 9.29"
• FS: 39.37 Hz; QES: 0.569; EBP: 69.19
