C-MOUNTS Full Motion TV Wall Mount 37–75in 110 lb

The C-MOUNTS Full Motion TV Wall Mount is a heavy-duty, dual-articulating bracket that fits most 37–75" flat and curved TVs, supports up to 110 lbs, and offers tilt, swivel and rotation for flexible viewing.

This full-motion bracket is built to bring your TV closer to the action or tuck it flush against the wall when not in use. Designed with broad VESA compatibility and strong load capacity, the mount supports a wide range of modern LED, OLED and curved screens while providing multiple adjustment points for glare reduction and comfortable sightlines.

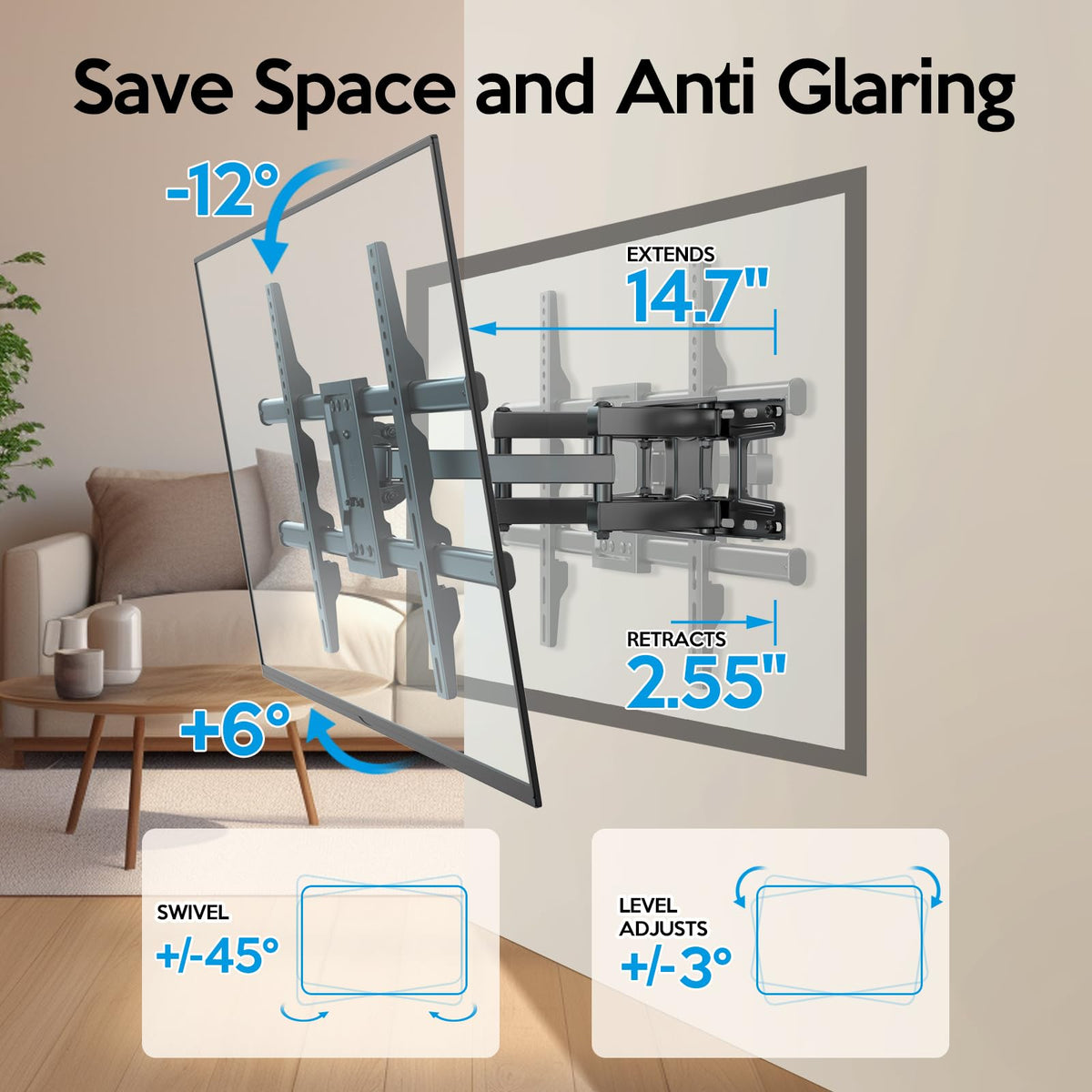

How far can the arm extend and how compact is it when folded?

The articulating arms extend to 14.7 inches from the wall for easy access to ports and cables, then fold back to just 2.4 inches to create a low-profile look. This range makes it practical for rooms where flexibility and space-saving are both priorities.

• Maximum extension: 14.7 inches for cable access and tilt adjustments.
• Minimum profile: 2.4 inches to save space and create a sleek appearance.
• Dual arms allow smooth side-to-side movement and deeper reach when needed.

Will this mount fit my TV and wall studs?

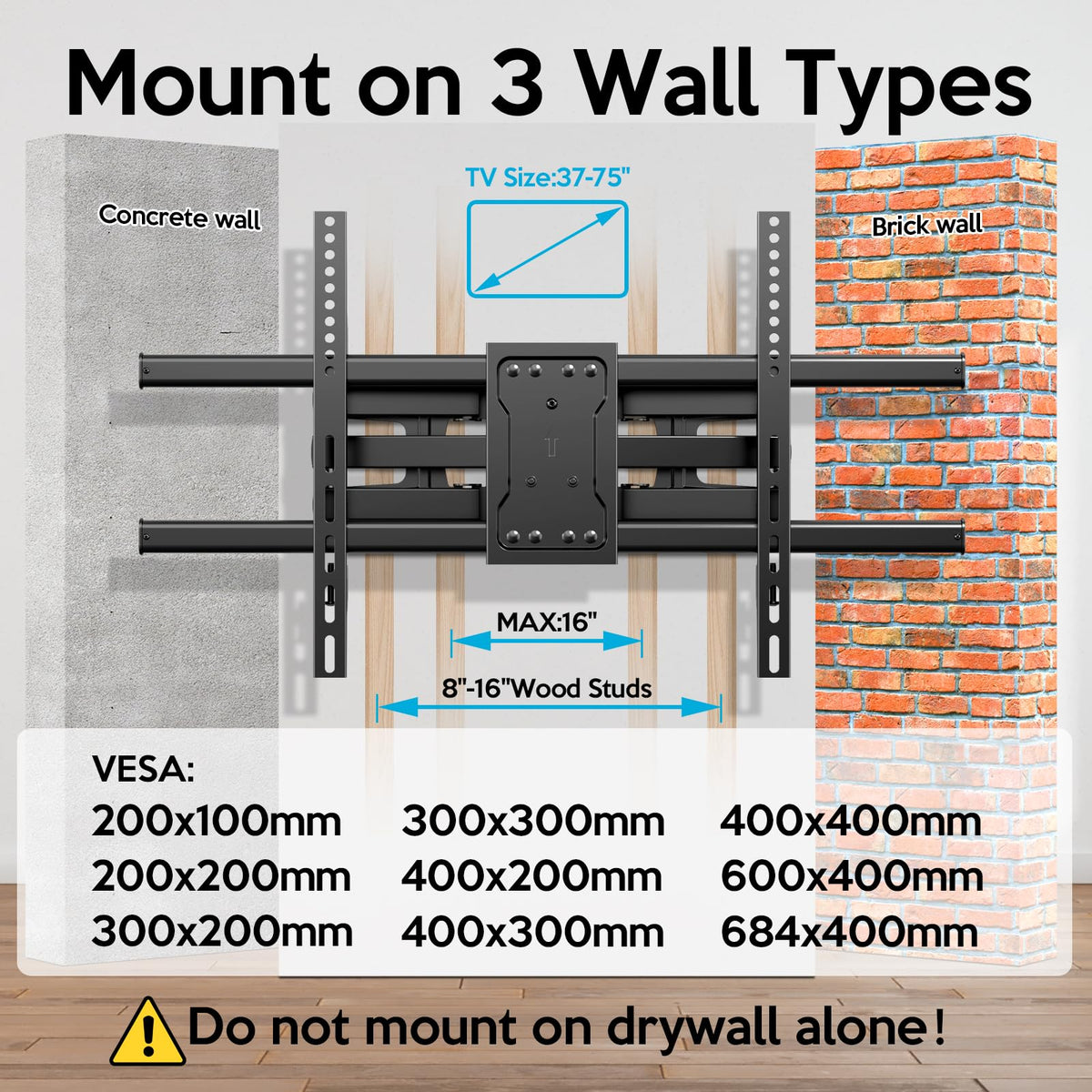

The C-MOUNTS bracket accommodates VESA patterns from 200x100mm up to 600x400mm and supports TVs from 37 to 75 inches weighing up to 110 lbs. It is intended for installation on wood stud walls (up to 16" studs) or solid surfaces like brick and concrete — not suitable for unsupported drywall without reinforcement.

• VESA compatibility: 200x100mm to 600x400mm (8"x4" to 24"x16").

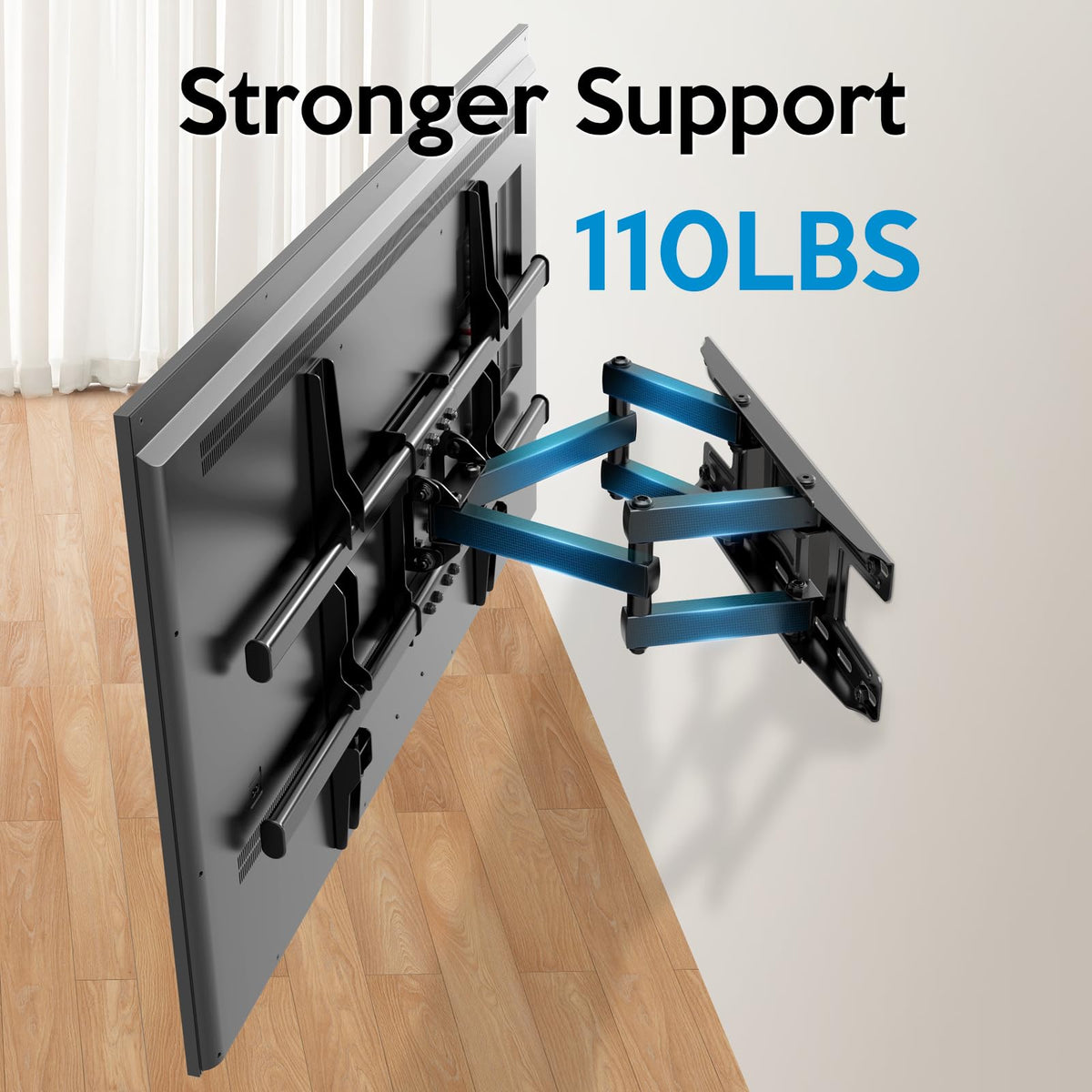

• Weight capacity: up to 110 lbs (50 kg) for most mid- to large-screen TVs.
• Wall types: fits 16" stud layouts, brick, and concrete; avoid unsupported drywall alone.

What viewing adjustments are available to reduce glare and improve angle?

The bracket offers tilt and swivel functions to fine-tune your TV’s position for comfortable viewing and minimized reflections. You can tilt down up to 12° and tilt backward 6°, plus swivel left or right up to 45° to adapt to different seating arrangements.

• Tilt range: down 12° and backward 6° for improved sightlines and less glare.
• Swivel range: 45° left and right for flexible room placement.
• Micro-adjustment: +/-3° leveling without removing the TV after installation.

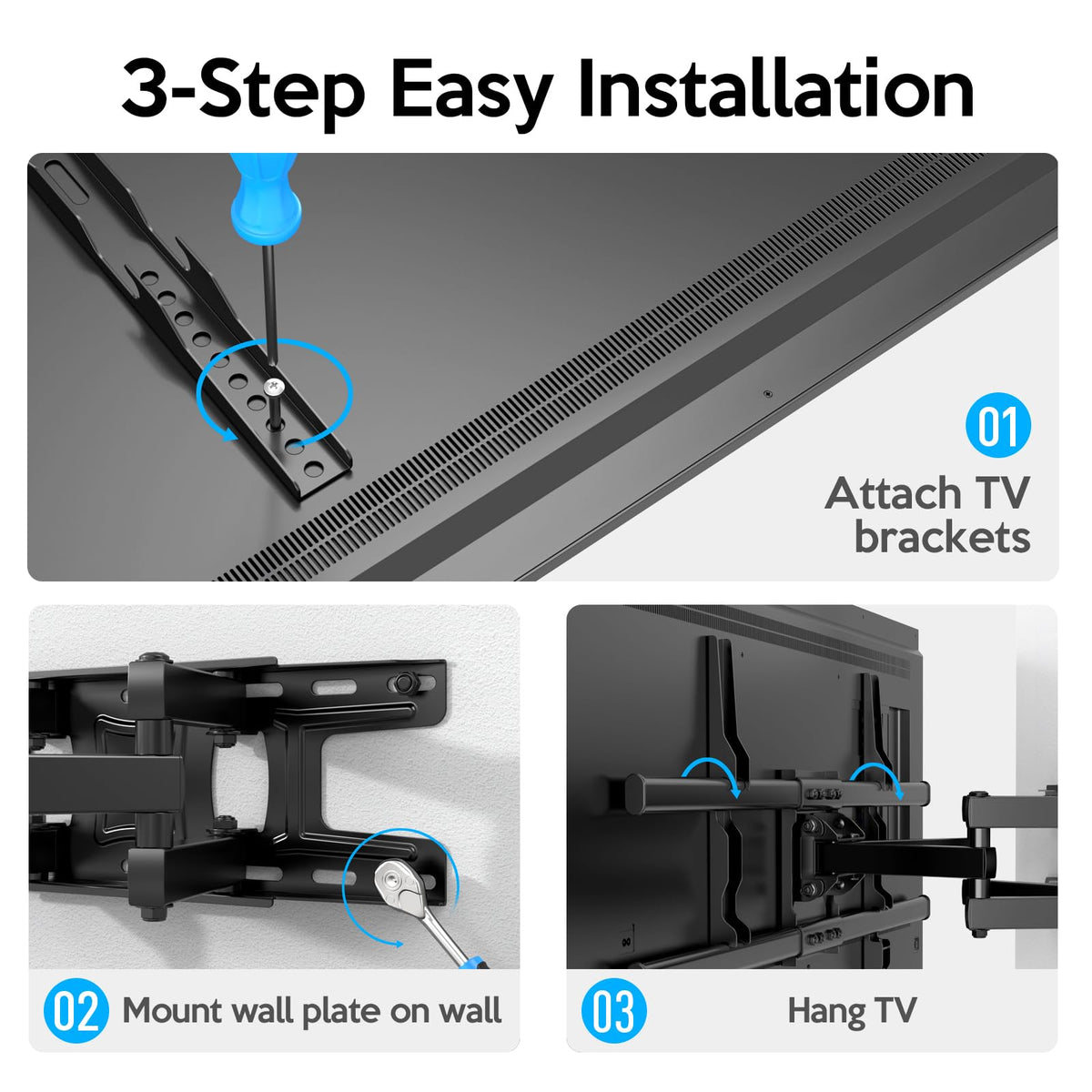

How easy is installation and what hardware is included?

Installation is designed to be straightforward and typically completed in three steps in under 15 minutes with the included hardware. The kit contains a magnetic 3-axis bubble level, cable ties, safety screws to lock the TV in place, and the standard mounting bolts needed for most televisions.

• Quick setup: commonly installed in three steps within 15 minutes.
• Included tools: 6" magnetic 3-axis bubble level, cable ties, and mounting hardware.
• Safety features: locking screws secure the TV to the bracket for added peace of mind.

Who this mount is for: The C-MOUNTS Full Motion TV Wall Mount is ideal for homeowners, renters with reinforced walls, and installers who want strong support and wide adjustability for medium to large TVs. Choose this bracket if you need a robust solution that fits many VESA patterns, offers deep extension for setup access, and provides tilt and swivel for optimized viewing angles. Before purchase, confirm your TV’s VESA pattern, weight, and that your wall construction (stud spacing or masonry) meets the mounting requirements.
