BOSYTRO 12V 480W 40A DC Power Supply

This compact industrial-grade unit replaces older wired-input models with a faster, safer connection method and an integrated safety switch. With three dedicated output channels, broad AC input compatibility (110–240V), and an intelligent cooling fan, it’s built for continuous duty in hobbyist, workshop and light commercial settings. Multiple built-in protections guard attached devices from common electrical faults while an aluminum-alloy case and perforated housing improve heat removal.

How does the upgraded input and safety switch improve installation?

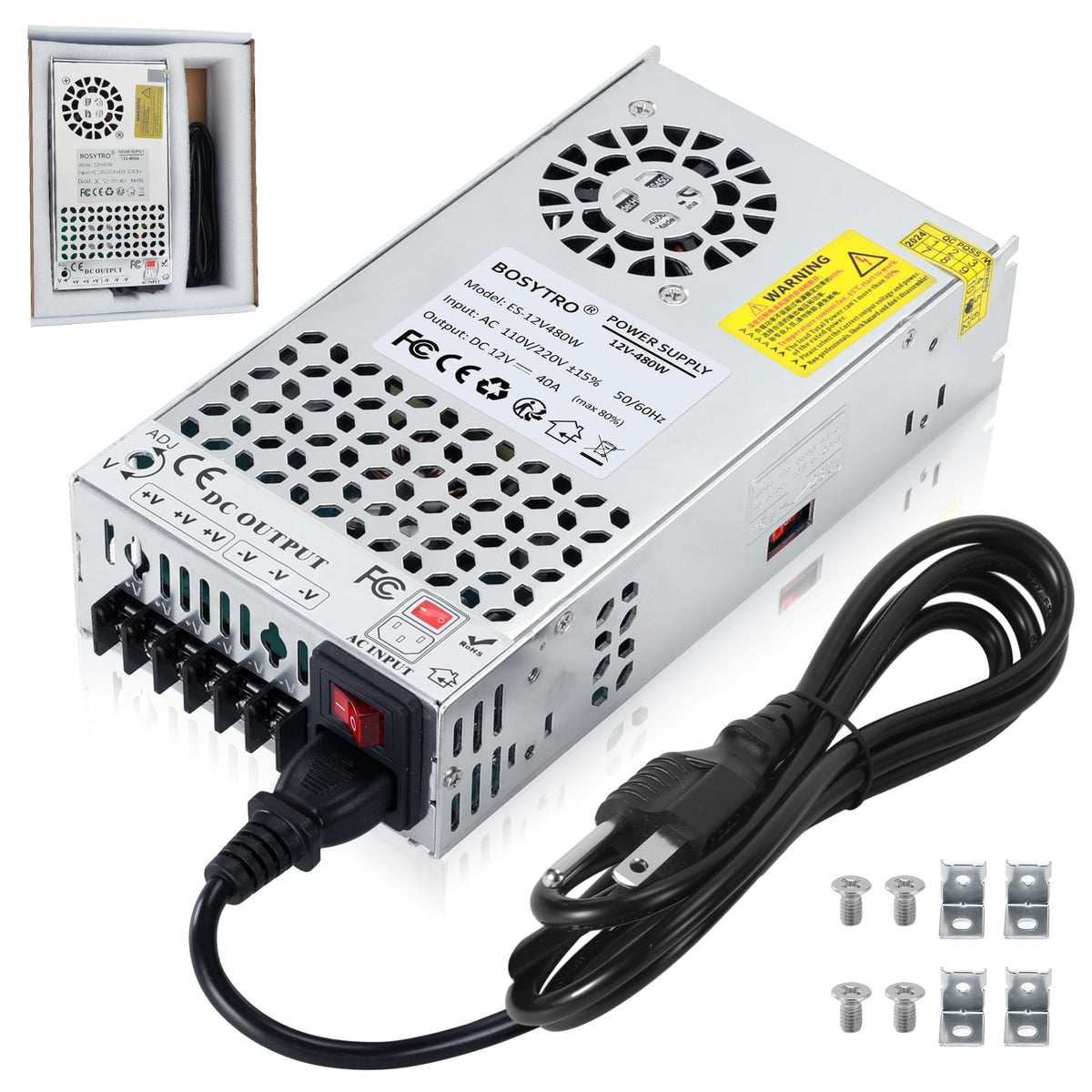

The new design eliminates fiddly hardwiring by offering improved input terminals that speed up setup and reduce installation errors. A front-mounted safety switch lets you power the unit on or off quickly and also serves as a simple health check for the supply.

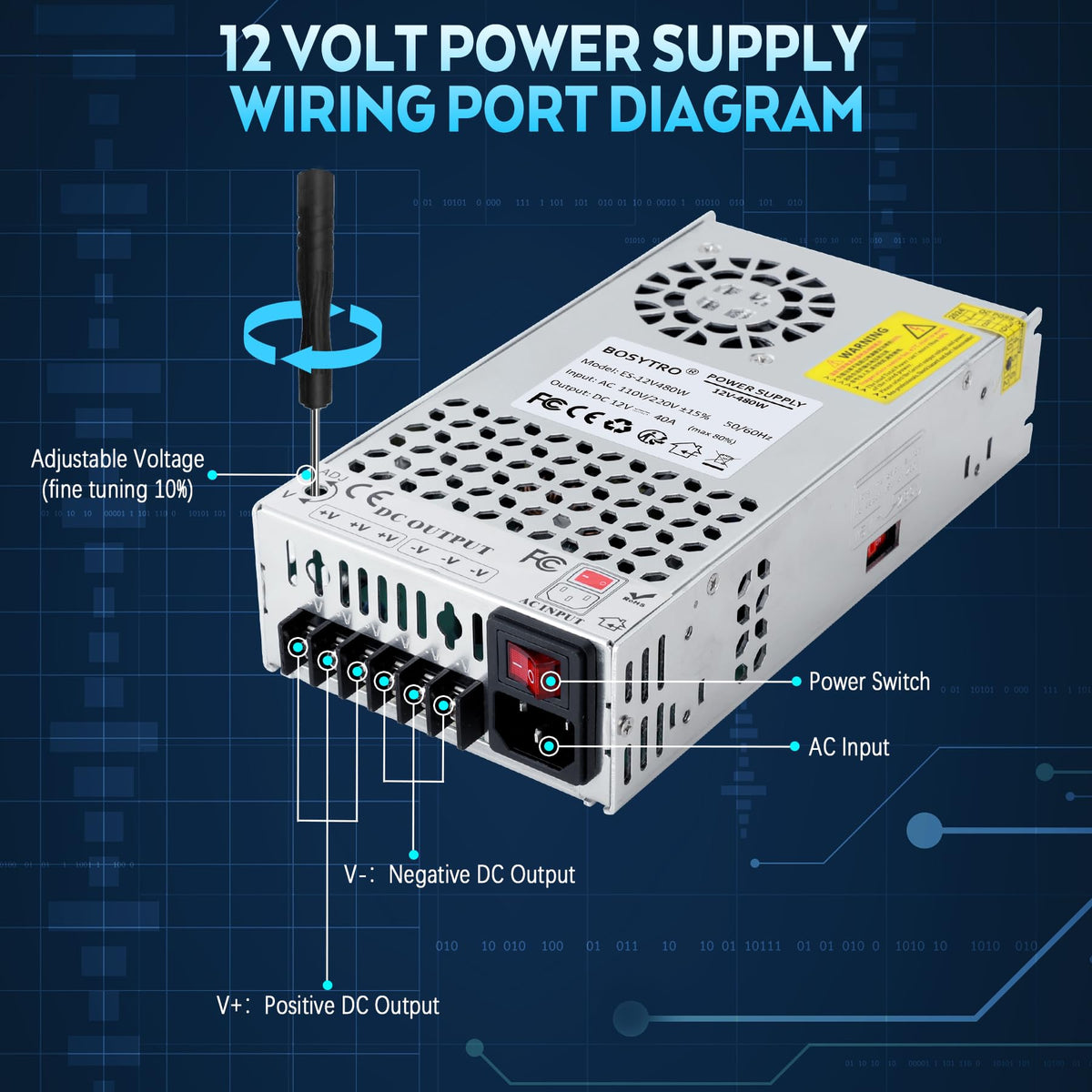

• Upgraded input terminals for faster, cleaner connections
• Integrated safety switch for convenient power control and diagnostics
• Retains three separate DC output channels for versatile wiring
• Clear terminal labeling reduces installation mistakes

What electrical performance and output options does it provide?

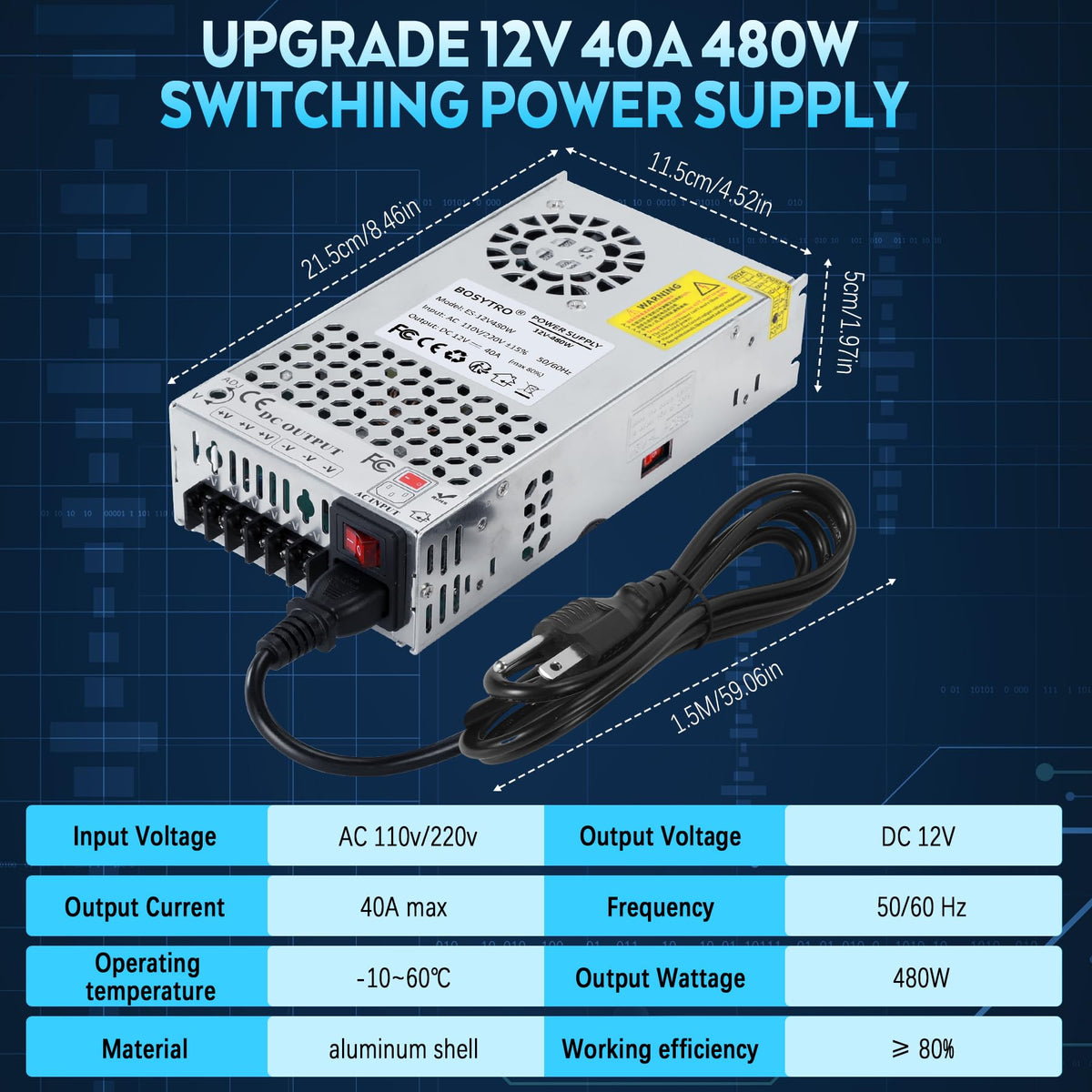

This power supply outputs 12V DC with an adjustable tolerance of about ±10% and delivers up to 40A total (480W peak). For reliable long-term use, devices drawing under 384W are recommended to keep headroom and reduce stress on the converter.

• Input: 110–240V AC (universal mains compatibility)
• Output: 12V DC, selectable channels delivering 10A/20A/40A segments
• Maximum current: 40A; maximum power: 480W
• Recommended continuous load: ≤384W for optimal performance

How does the unit manage heat and protect connected devices?

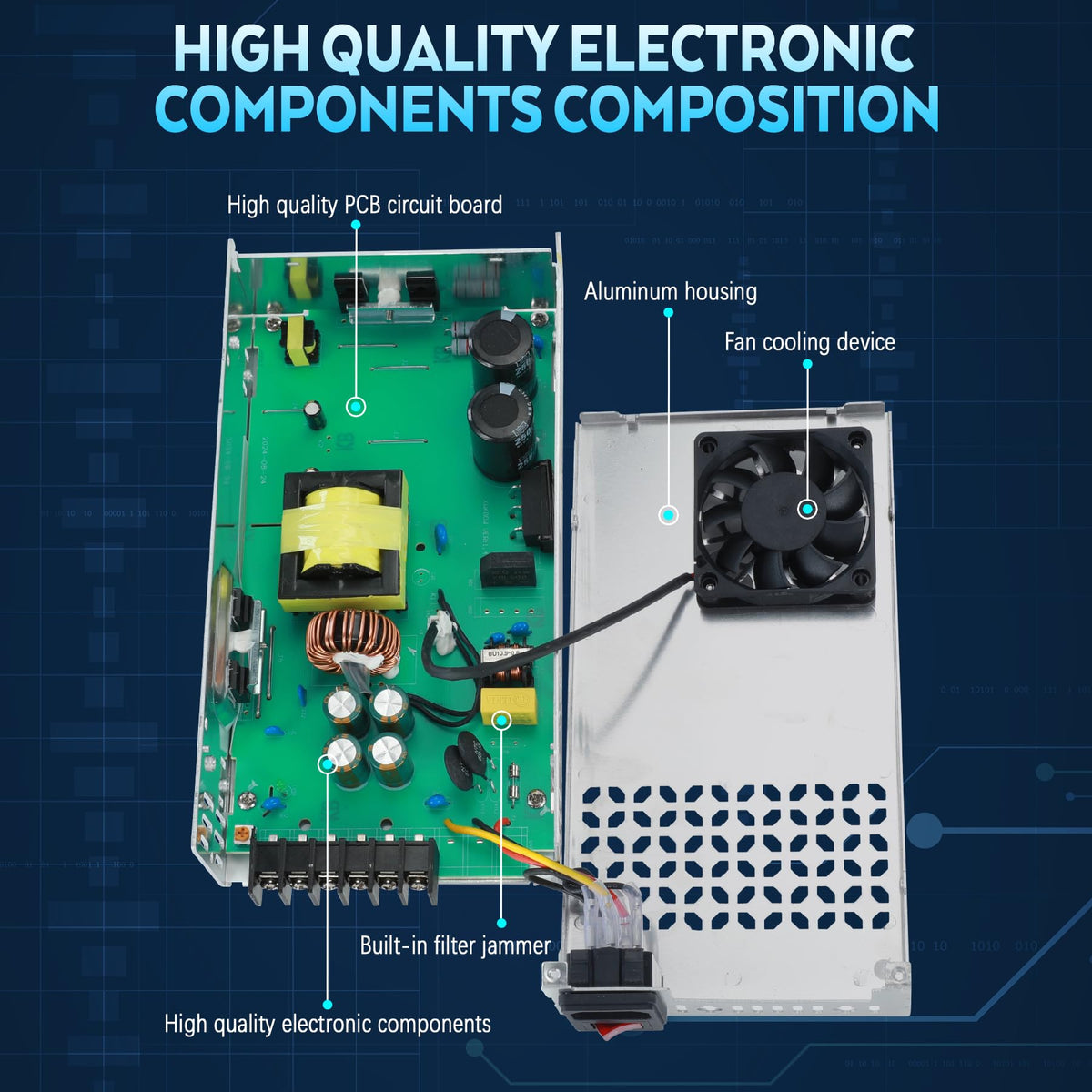

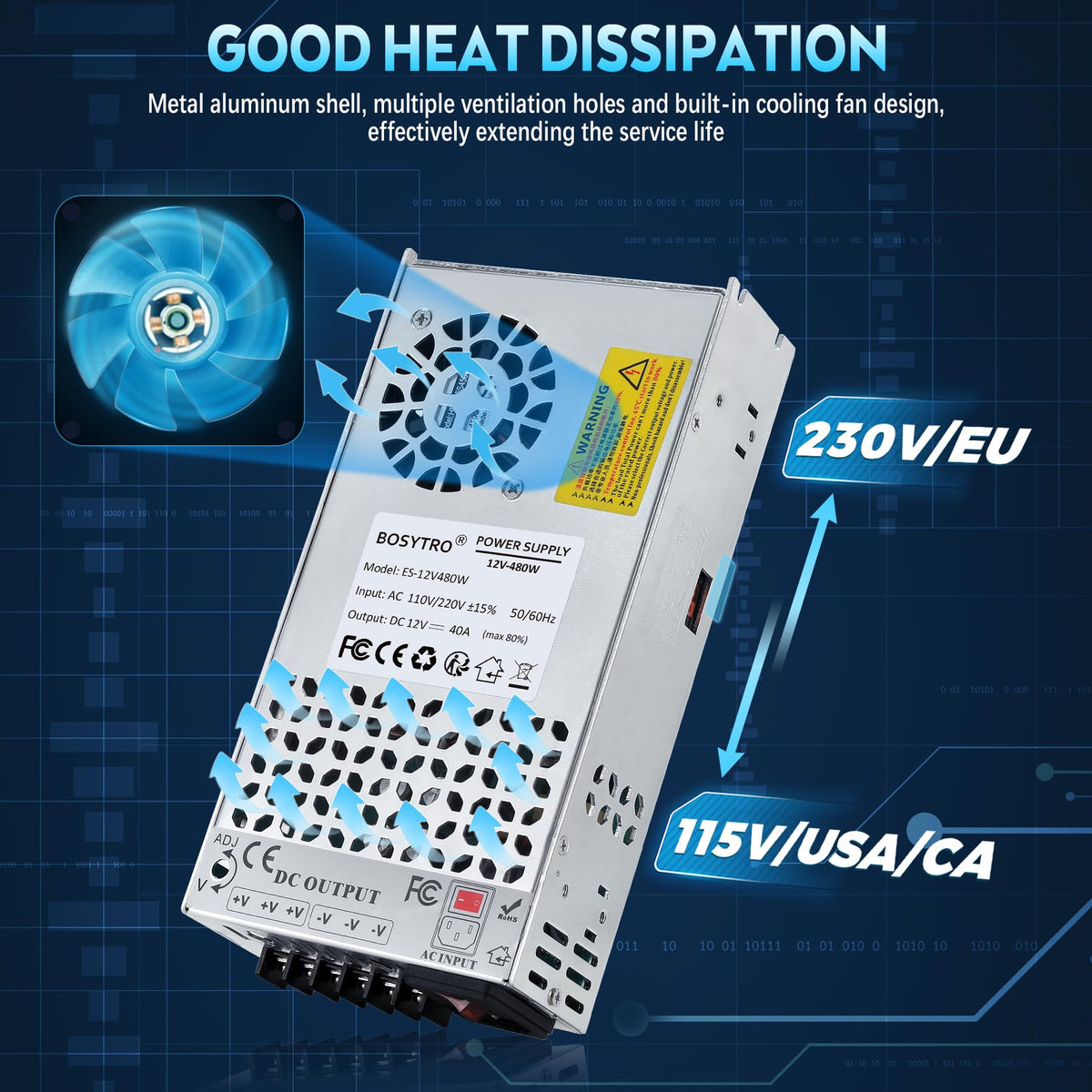

Heat is controlled with an aluminum-alloy housing, perforated vents and an intelligent cooling fan that activates above approximately 45°C (122°F). The supply also includes multiple electronic protections to prevent damage to both the converter and downstream equipment.

• Thermostatic cooling fan engages automatically at higher temperatures
• Aluminum shell and ventilation holes for passive heat dissipation

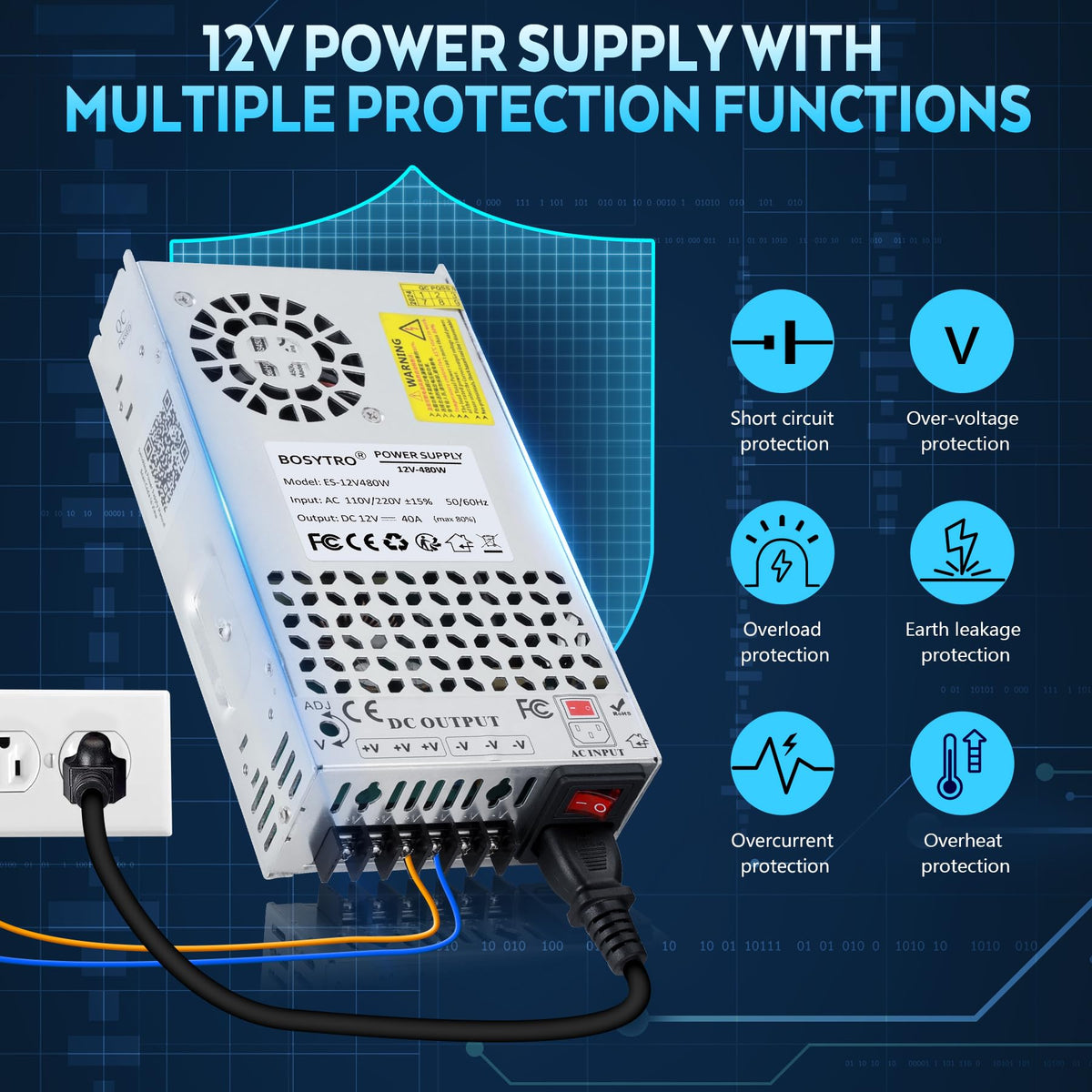

• Built-in overload, over-current, over-temperature and short-circuit protection
• Stable output suitable for sensitive electronics and motors (observe motor startup power needs)

Which applications and devices is the BOSYTRO 12V 480W suited for?

Designed as a general-purpose 12V supply, it fits many projects and systems where steady DC power and safety features are needed. It’s commonly used in lighting, surveillance, printing and lab equipment, but is also appropriate for automotive or RV installs when a reliable stationary converter is required.

• LED strip installations and architectural lighting systems
• CCTV and security camera power for continuous monitoring setups
• 3D printers, computer projects and lab instruments
• Motors and pumps (ensure peak power demands are covered—use >2× peak for motor startups)

Who is this for? The BOSYTRO 12V 480W power supply is aimed at electronics hobbyists, small workshop owners, integrators and technicians who need a durable, easy-to-install AC-to-DC converter with multiple outputs and robust safety features. If you run LED displays, surveillance systems, 3D printers or lab equipment that require steady 12V power and reliable thermal and fault protection, this supply offers a practical balance of power, safety and value.
