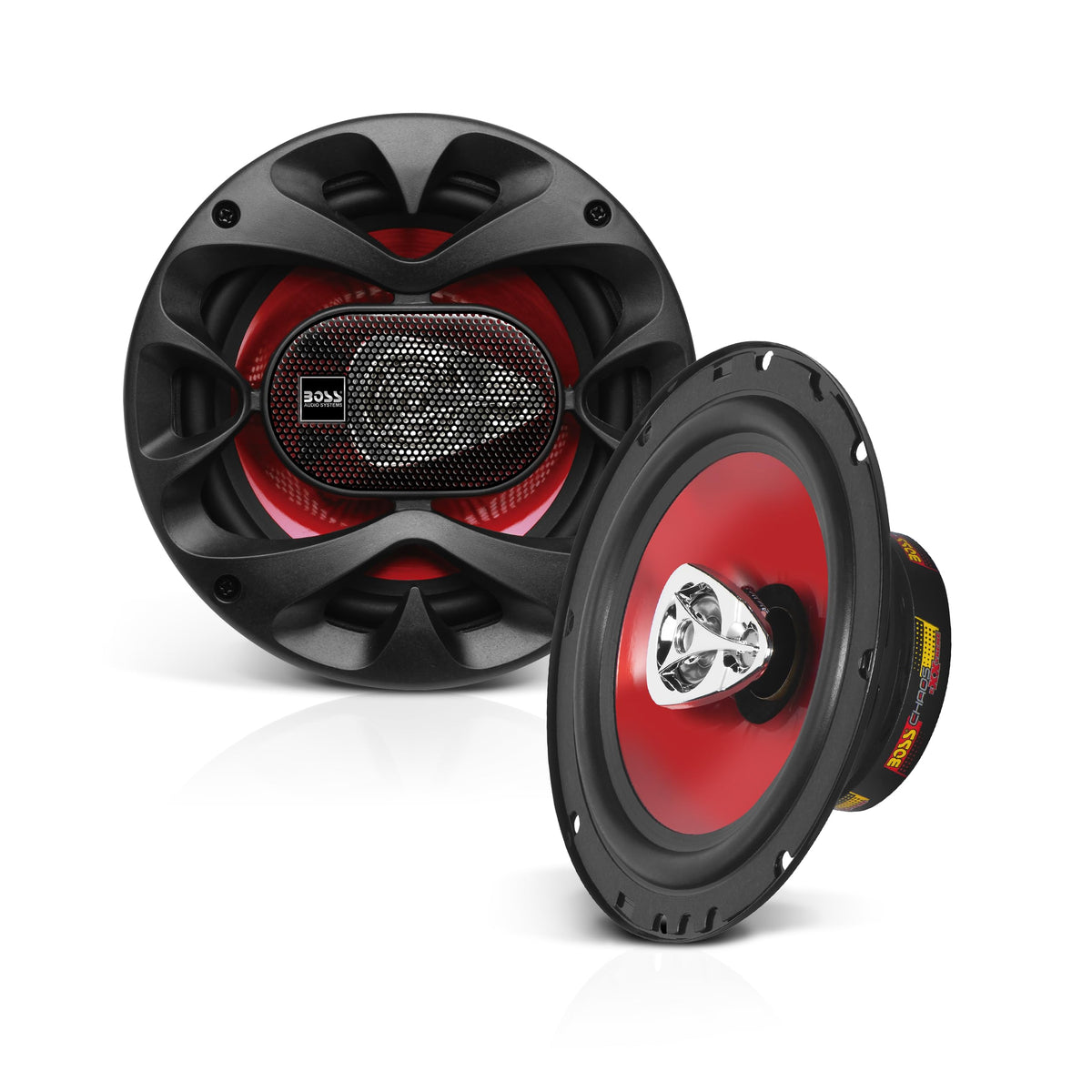

BOSS Audio Systems 6.5-inch 3-Way Car Door Speakers

Compact, coaxial speakers like the CH6530 are built to replace factory door speakers without major modifications while improving clarity and output. The pair combines a poly injection cone, rubber surround and dedicated tweeter and midrange elements to reproduce a balanced range from 100 Hz to 18 kHz. Designed for 4-ohm systems and a 2.1-inch mounting depth, these speakers suit many common vehicle installations.

How will these speakers change my in-car sound?

The CH6530 brings clearer vocals and defined highs compared with basic factory speakers by separating frequency duties across a 3-way design. A dedicated 1-inch midrange dome and a .50-inch piezo tweeter help resolve detail, while the poly cone and rubber surround support controlled low-mid response.

• 3-way coaxial layout for improved frequency separation
• Frequency response 100 Hz–18 kHz for balanced tonal coverage
• 90 dB sensitivity for efficient loudness at low power
• Poly cone with rubber surround for durability and tighter bass

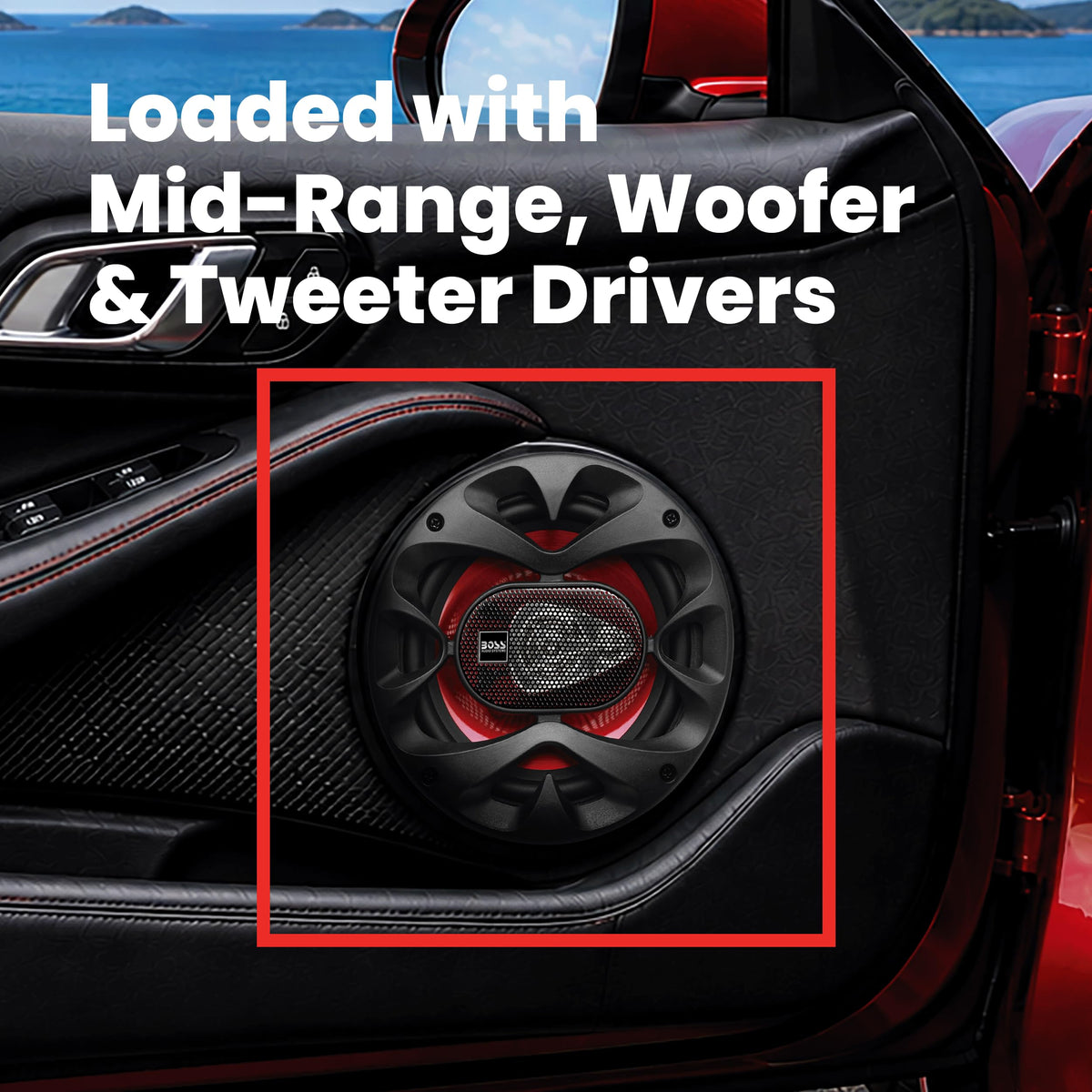

Will these fit my car doors and how easy is installation?

The CH6530 is sized for many standard 6.5-inch cutouts and keeps a shallow profile for tight door pockets. With a mounting hole of 5.5 inches and a 2.1-inch mounting depth, they’re intended to be a drop-in upgrade in many vehicles; professional installation is recommended to ensure secure mounting and correct wiring.

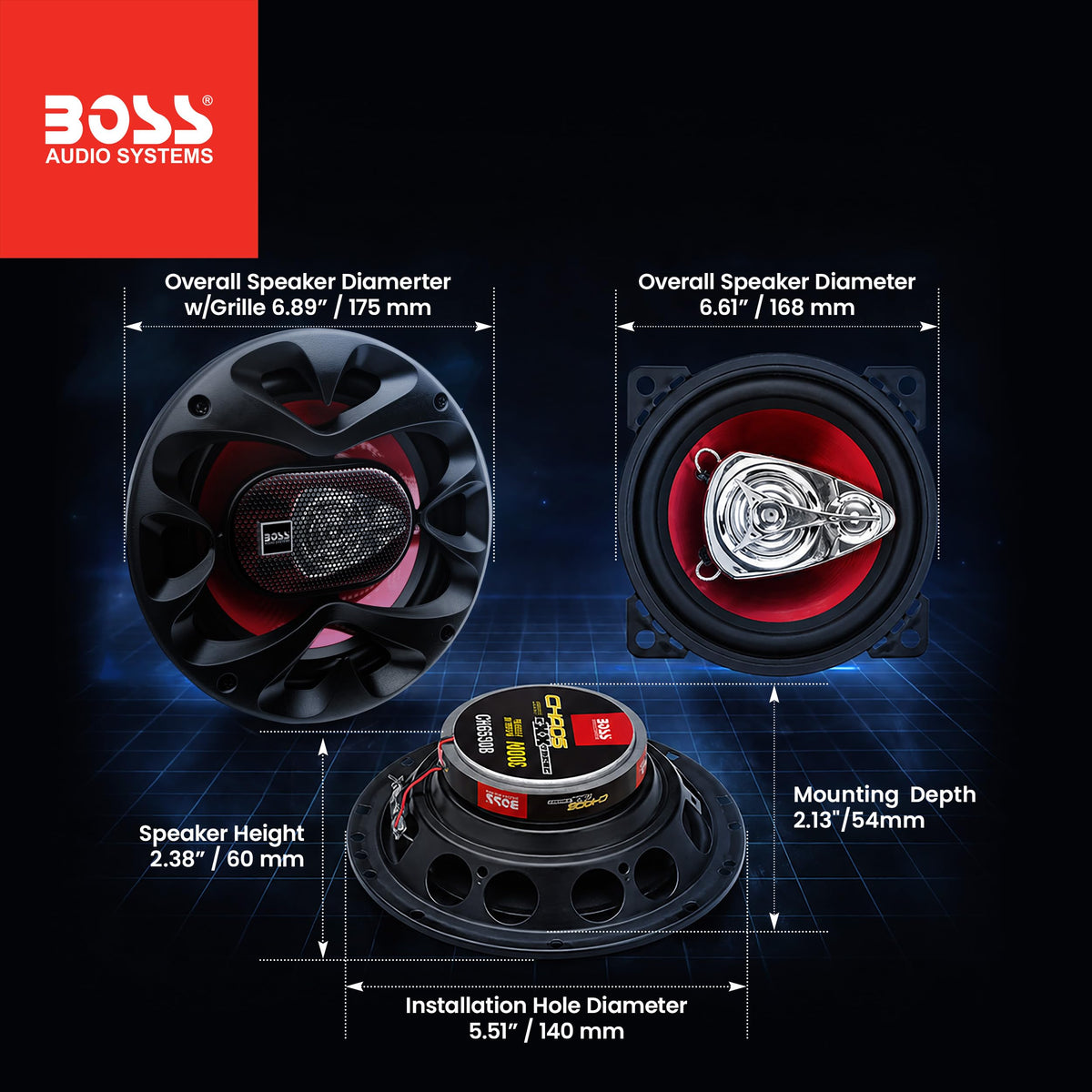

• Overall dimensions: 6.6 x 6.6 x 2.4 inches for compact fit
• Mounting hole diameter: 5.5 inches, mounting depth: 2.1 inches
• Pair weight ~1.3 lbs — easy to handle during install
• Recommended professional installation for best results

What power and impedance should my system have to use these speakers?

The speakers are rated at 4 ohms and designed to handle up to 300 watts (peak) per pair, with a 1-inch voice coil that withstands typical car audio power levels. Use an amplifier or head unit matched to 4-ohm loads and moderate power to get clean output without risking damage from overdriving.

• Impedance: 4 ohms — compatible with most car head units and amps
• Power rating: up to 300 watts (pair, peak) — use conservative RMS power
• 90 dB sensitivity @ 1W/1m — efficient for OEM power outputs
• 1-inch voice coil for reliable thermal handling

What materials and design features improve durability and sound?

Construction choices focus on longevity and steady performance inside a car’s changing environment. The poly injection cone resists warping, rubber surrounds damp unwanted resonance, and a stamped basket keeps the motor assembly secure under vibration.

• Poly injection cone resists moisture and maintains cone integrity
• Rubber surround reduces edge distortion and extends lifespan
• Stamped basket for rigid support in door-mounted locations
• Separate midrange dome and piezo tweeter for clarity and brightness

BOSS Audio Systems backs the CH6530 with a three-year platinum online dealer warranty when bought through Amazon.com. That coverage helps protect your purchase, and the design encourages professional fitting to ensure both performance and safety.

Who is this for? The CH6530 pair is aimed at drivers who want a cost-effective upgrade over factory door speakers without cutting new mounting points — particularly those seeking more vocal clarity and crisp highs from a compact, easy-to-install 6.5-inch solution. It’s well suited for daily drivers, commuters, and budget-conscious audio upgrades where improved detail and reliability matter.
