BOSS Audio Systems 4-inch 3-Way Car Door Speakers CH4230

The BOSS Audio Systems CH4230 Chaos Exxtreme are compact 4" three-way car door speakers built for clear full-range sound and high peak output in tight door and dash spaces.

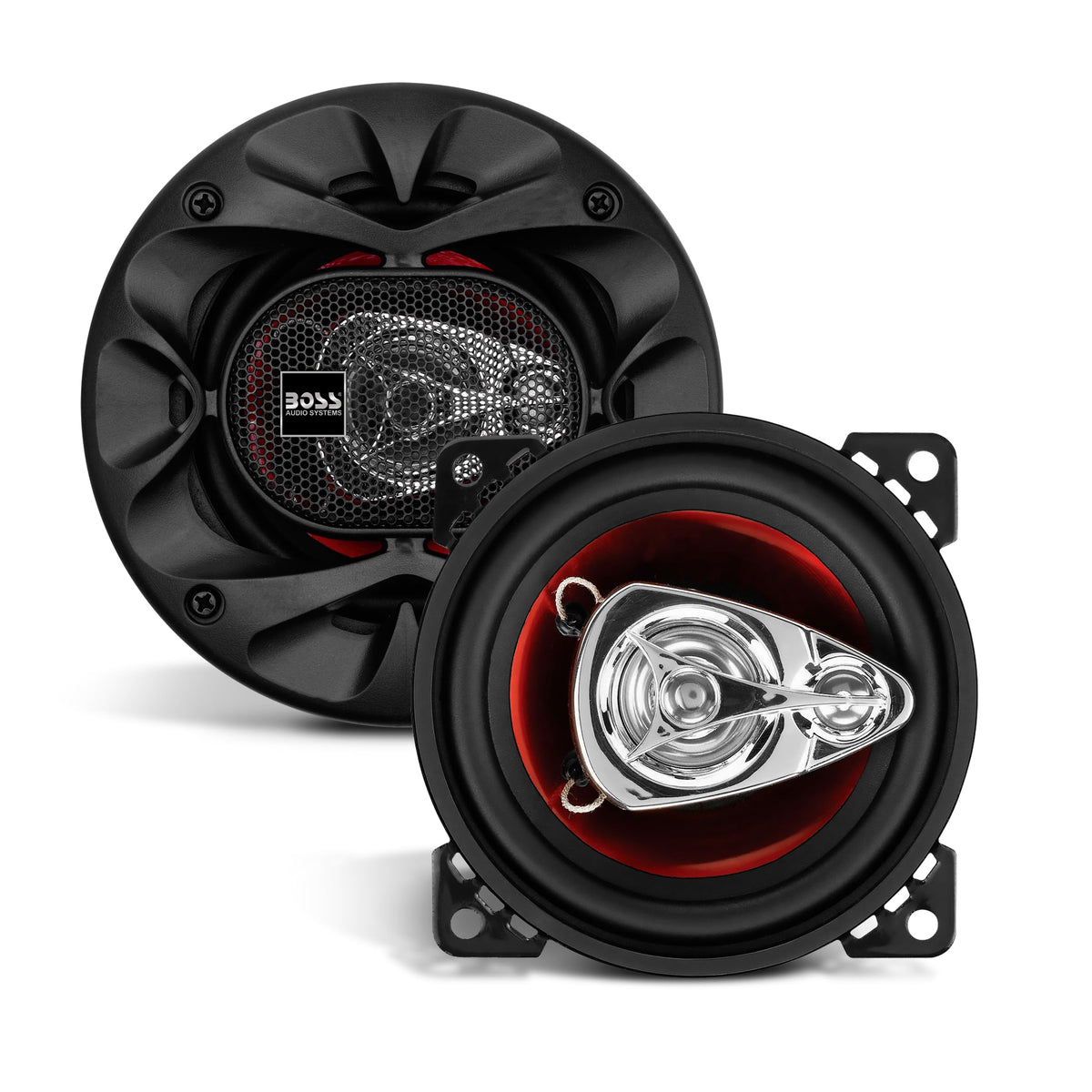

These CH4230 speakers combine a red metallic poly injection cone, a rubber surround and a layered three-way driver stack to deliver punchy mids, crisp highs and dependable low-end presence from a compact frame. With 225 watts peak power handling per pair, a 90 dB sensitivity rating and a frequency response spanning roughly 100 Hz to 18 kHz, they’re designed as an affordable upgrade for factory audio in cars, trucks and SUVs where mounting depth is limited.

How do these 4" three-way speakers improve stock door audio?

The three-way design separates frequencies across a 1" polyimide dome midrange and a 1/2" piezo tweeter, reducing distortion and increasing clarity compared with typical single-cone factory speakers. The poly injection cone and rubber surround are tuned for durability and smoother cone movement under higher excursion.

• Three-way layout: dedicated tweeter, midrange and woofer elements for clearer separation
• Poly injection cone + rubber surround for resilient, controlled cone motion
• 90 dB sensitivity for better output with modest head unit power
• 4 ohm nominal impedance compatible with most factory amplifiers

What are the installation size and electrical specs I need to know?

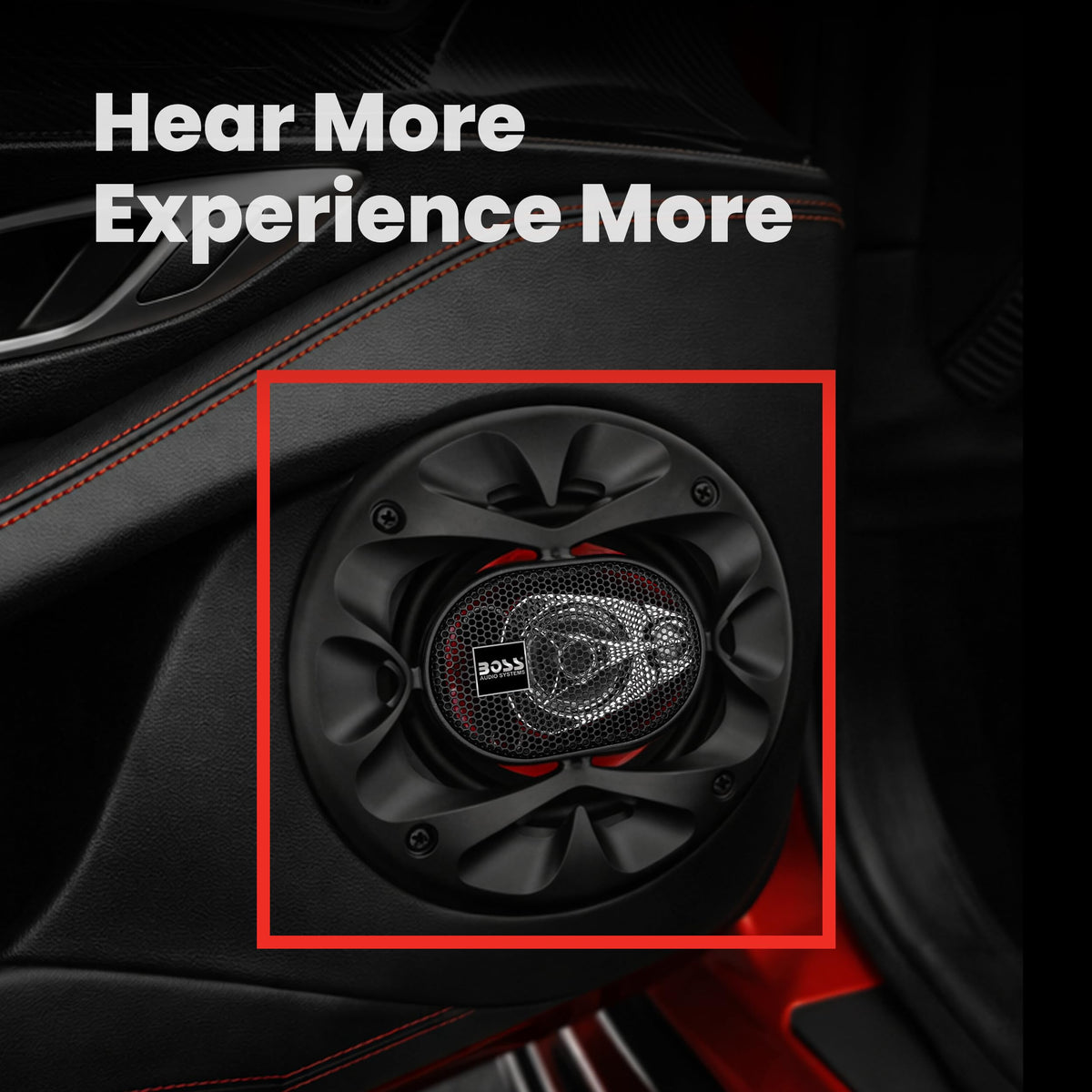

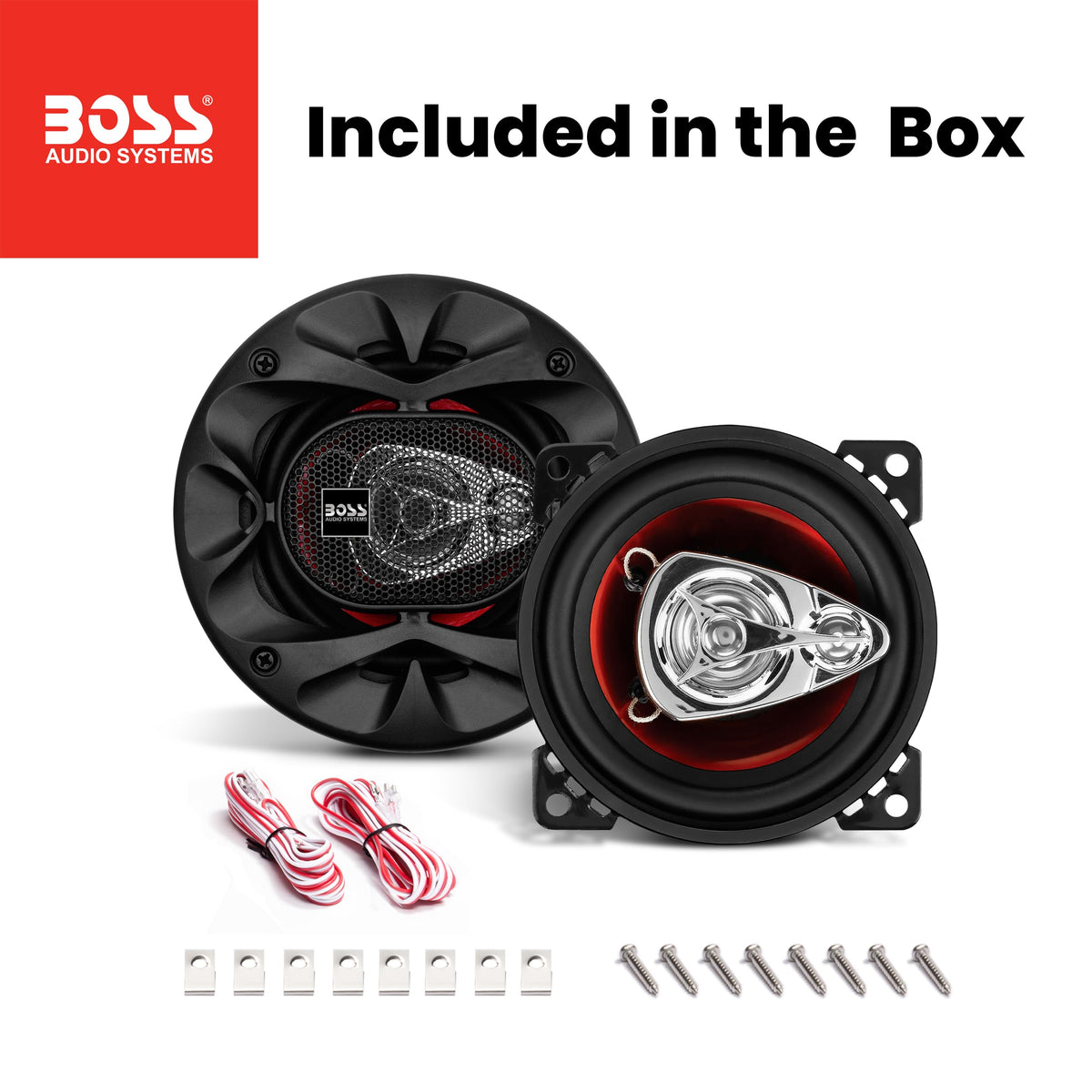

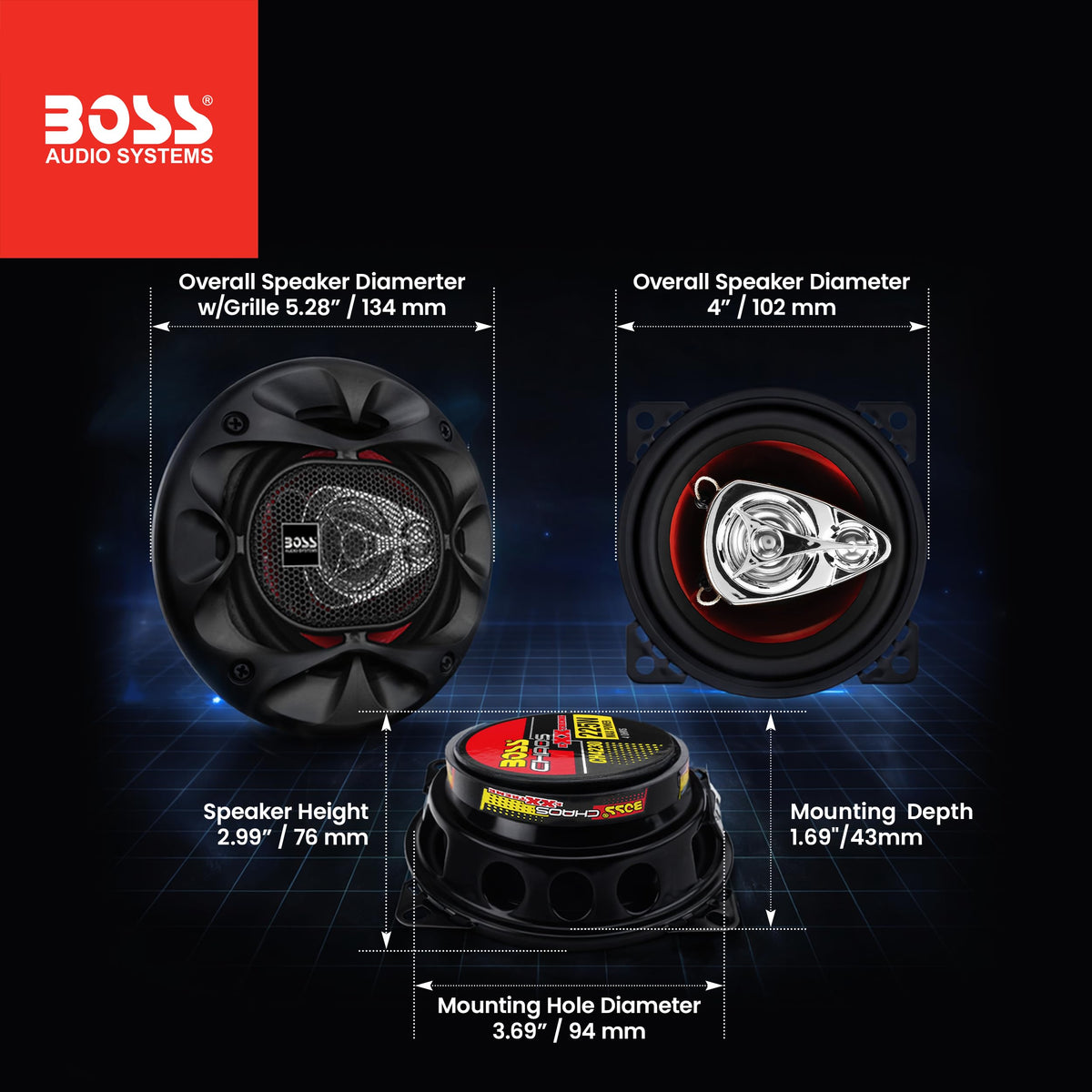

The CH4230 is designed for tight mounting locations: a shallow 1.7" mounting depth and a 3.7" cutout make it suitable for many door panels and dash spots that won’t accept deeper components. The speakers are sold as a pair and weigh about 2.1 pounds combined, making them easy to handle during installation.

• Mounting depth: 1.7 inches (suitable for shallow door cavities)
• Mounting hole/cutout: 3.7 inches
• Impedance: 4 ohms; Peak power: 225 W (pair rated)
• Frequency response: approximately 100 Hz–18 kHz; sensitivity 90 dB

How will these speakers perform with a factory head unit or aftermarket amplifier?

At 90 dB sensitivity and 4 ohm impedance, the CH4230 speakers are efficient enough to sound noticeably louder and clearer than many factory speakers when driven by a stock head unit, while still being compatible with aftermarket amps if you want more power. Peak power handling is 225 watts per pair; for cleaner sustained volume, pair with an appropriate amplifier and use proper crossover settings.

• Good loudness with factory head units thanks to 90 dB sensitivity
• Compatible with aftermarket amplifiers for higher clean output
• Works well with a basic high-pass crossover to protect the midrange
• Recommended professional installation to ensure secure wiring and fit

What materials and components shape the sound and durability?

The speakers use a poly injection cone for consistent stiffness, an aluminum voice coil for heat tolerance, and a rubber surround to resist environmental wear while providing controlled cone travel. A 1/2" piezo tweeter and 1" polyimide dome midrange extend the upper frequencies for articulate vocals and cymbals.

• Red metallic poly injection cone for balanced mid-bass response
• Rubber surround for long-lasting, smooth excursion
• 1" aluminum voice coil for thermal durability
• Dual tweeter/midrange elements for detailed high-frequency reproduction

Who is this for? The BOSS CH4230 Chaos Exxtreme pair suits drivers who need a shallow-mount speaker that upgrades factory audio without complex enclosure work: commuters, weekend drivers and builders on a budget who want clearer highs and tighter mids from a compact 4" footprint. If you have limited door depth but want a noticeable step up in clarity, these speakers are a practical, value-oriented choice. For best results, consider professional installation and, if higher sustained volume is required, add a compatible amplifier and proper crossovers.
