Blue Jeans Cable RG6 3G/6G SDI Cable 50ft Canare BNC

Blue Jeans Cable's 50-foot RG6 SDI cable with Canare BNC connectors is a broadcast-grade video cable built for stable impedance, heavy shielding, and easy handling in professional AV installations.

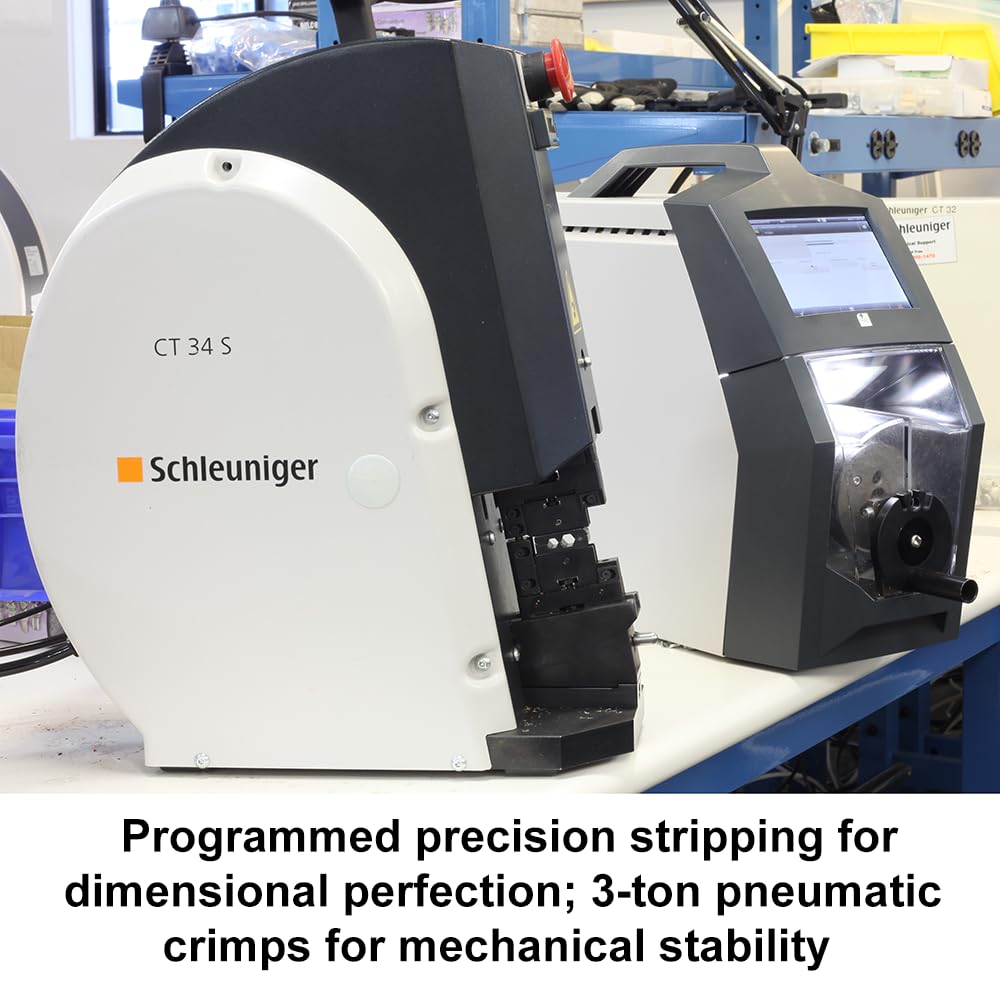

This 50-foot run pairs an 18 AWG solid copper conductor and HDPE dielectric with a dual-layer shield and precision Canare BNC terminations, delivering a tidy, interference-resistant path for 3G/6G-SDI video signals. Assembled in Blue Jeans Cable’s Seattle shop using Swiss stripping and crimping tools and three-ton presses, the cable is designed for consistent electrical performance and dependable mechanical connections in wall, riser, and studio installs.

What makes this RG6 cable reliable for broadcast and studio use?

The cable combines a thick solid center conductor, a stable dielectric, and a two-layer shield for consistent impedance and low signal loss across HD-SDI and 6G-SDI frequencies. Canare BNC plugs help maintain electrical continuity from end to end, reducing reflections and connector-related issues.

• 18 AWG solid center conductor for lower resistance and improved signal transfer
• HDPE dielectric to maintain consistent impedance along the length
• 95% tinned copper braid over 100% foil for superior EMI/RFI protection

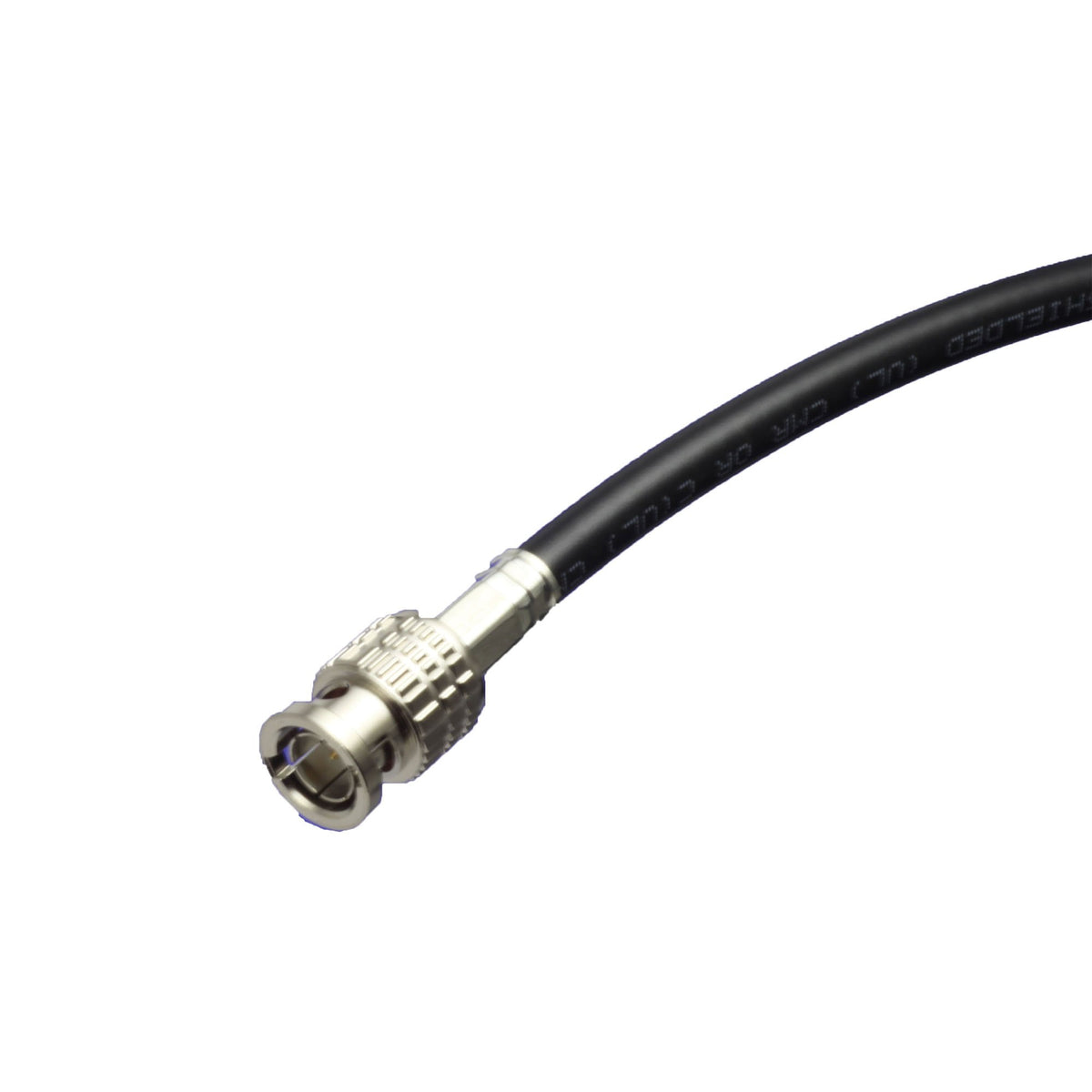

• Canare BNCs with larger knurled bodies for secure, repeatable terminations

How does the shielding improve signal integrity in busy installations?

The cable’s dual shielding — a continuous foil layer plus a high-density tinned copper braid — blocks both high-frequency and low-frequency interference. This shielding reduces hum, radio interference, and cross-talk common in crowded equipment racks and conduit runs.

• 100% foil layer stops high-frequency ingress and egress
• 95% braid coverage provides mechanical durability and low leakage
• Combined shielding delivers consistent performance across SDI bandwidths

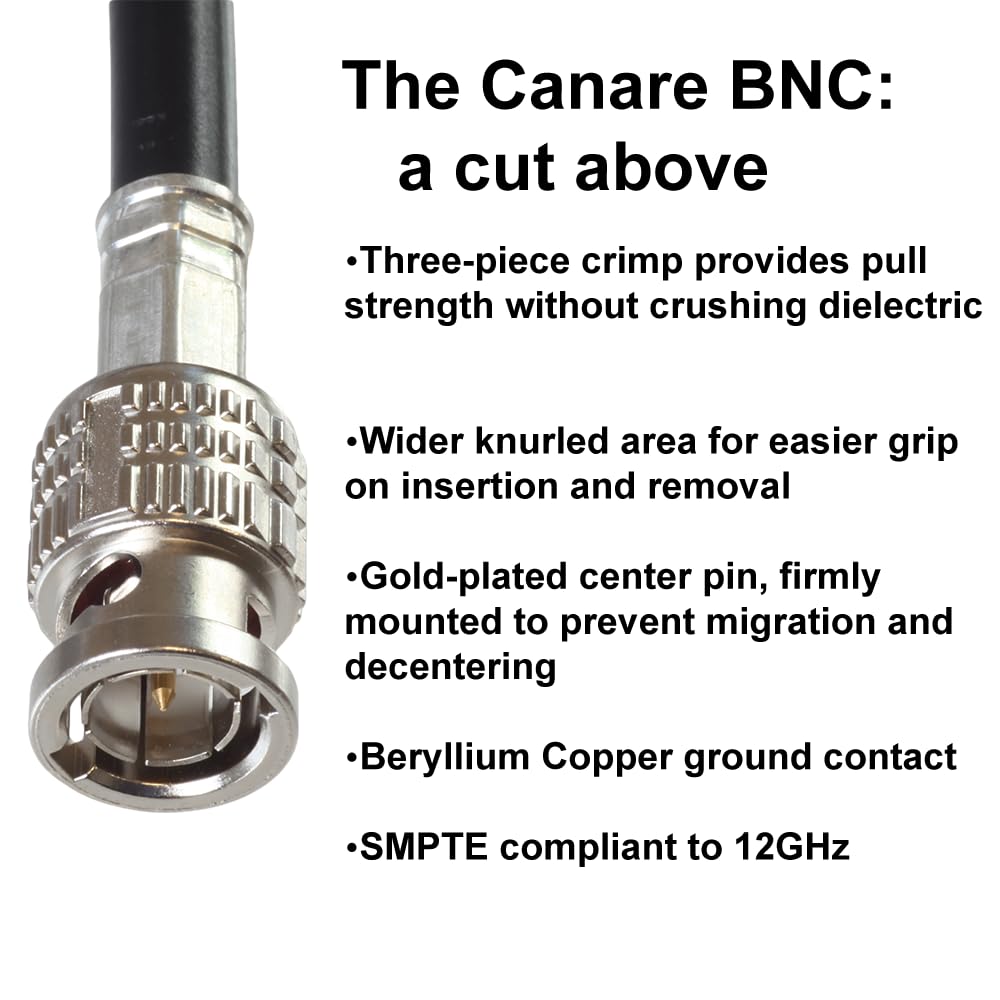

Why are Canare BNC connectors used and how do they help installers?

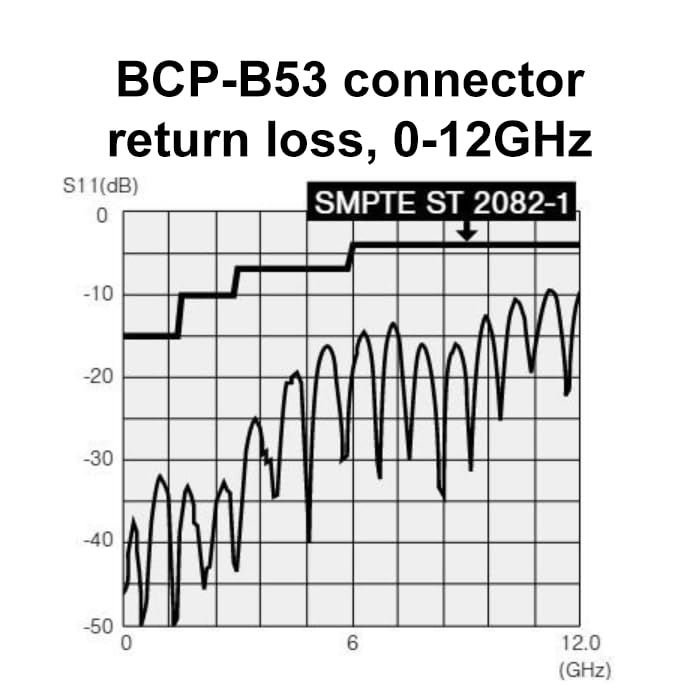

Canare BNCs are selected for their tight impedance control and robust mechanical design, minimizing impedance discontinuities at the connector interface. Their larger knurled bodies make hand-tightening and removal faster and less fiddly during frequent patching or on-site setups.

• Precision-machined contacts for stable electrical connection
• Knurled outer surface improves grip when connecting or removing
• Designed to maintain impedance match through the connector for lower reflections

Can this cable be run inside walls or risers and what are the installation benefits?

The PVC jacket is jacketed and rated CMR, allowing safe installation within walls and vertical riser spaces where that rating is required. The cable’s construction balances flexibility for routing with the mechanical strength needed for long runs and termination work.

• CMR-rated PVC jacket suitable for riser and wall installations
• Sufficient flexibility to route through conduits and behind panels
• Factory-assembled crimps reduce field termination errors and rework

Who is this for: AV integrators, broadcast engineers, post-production facilities, event technicians, and anyone needing a dependable 50-foot SDI run that minimizes signal degradation and interference. If you require a rugged, well-shielded RG6 cable with professional Canare BNCs and consistent, factory-controlled terminations, this Blue Jeans Cable assembly is built for demanding installations and frequent use.
