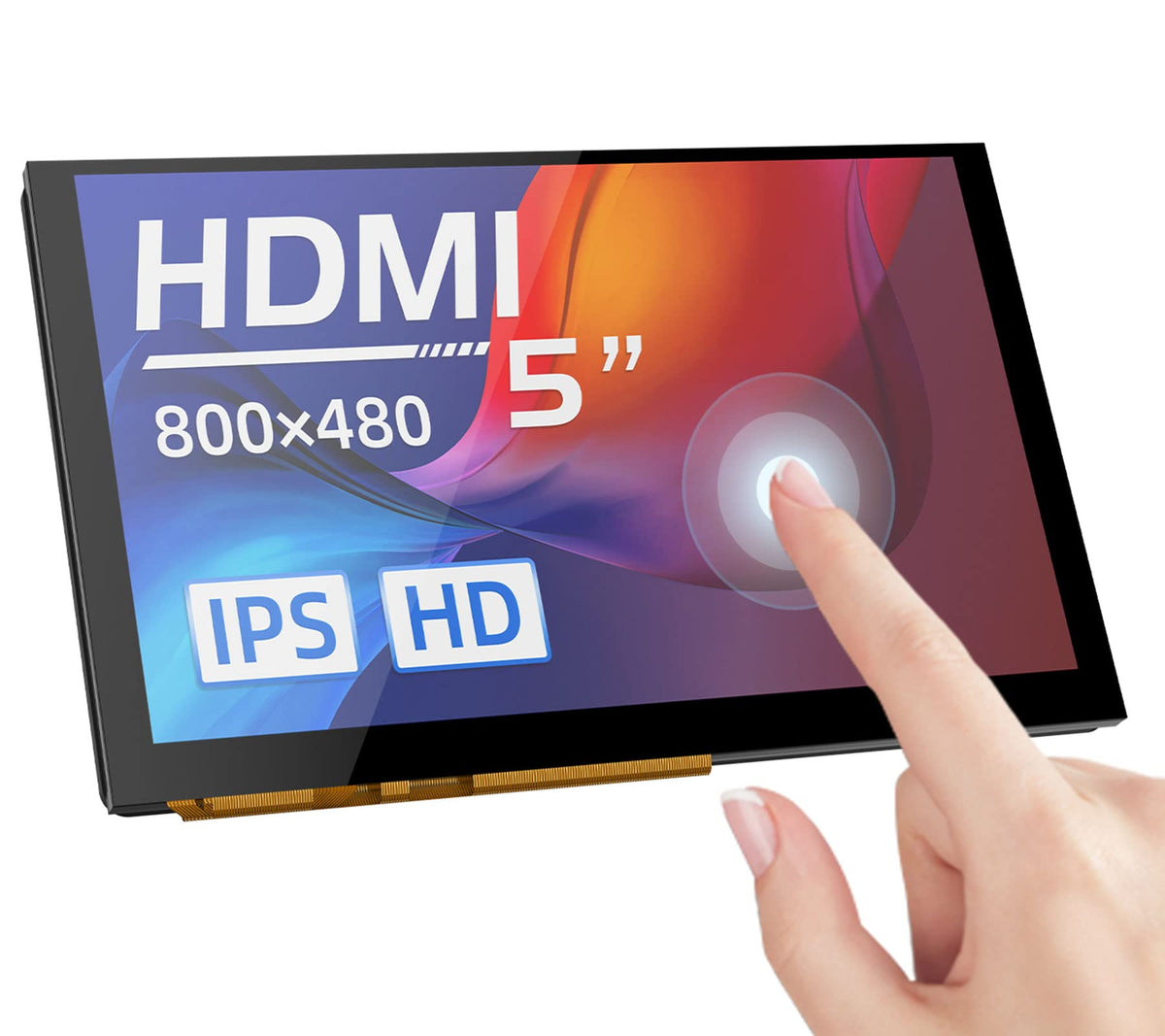

BIGTREETECH 5" HDMI Touch Screen 800x480 IPS

BIGTREETECH 5-inch HDMI Touch Screen is a compact 800×480 IPS display with 5-point capacitive touch, HDMI input, audio output and brightness/direction controls for Raspberry Pi, Sovol printers, and PCs.

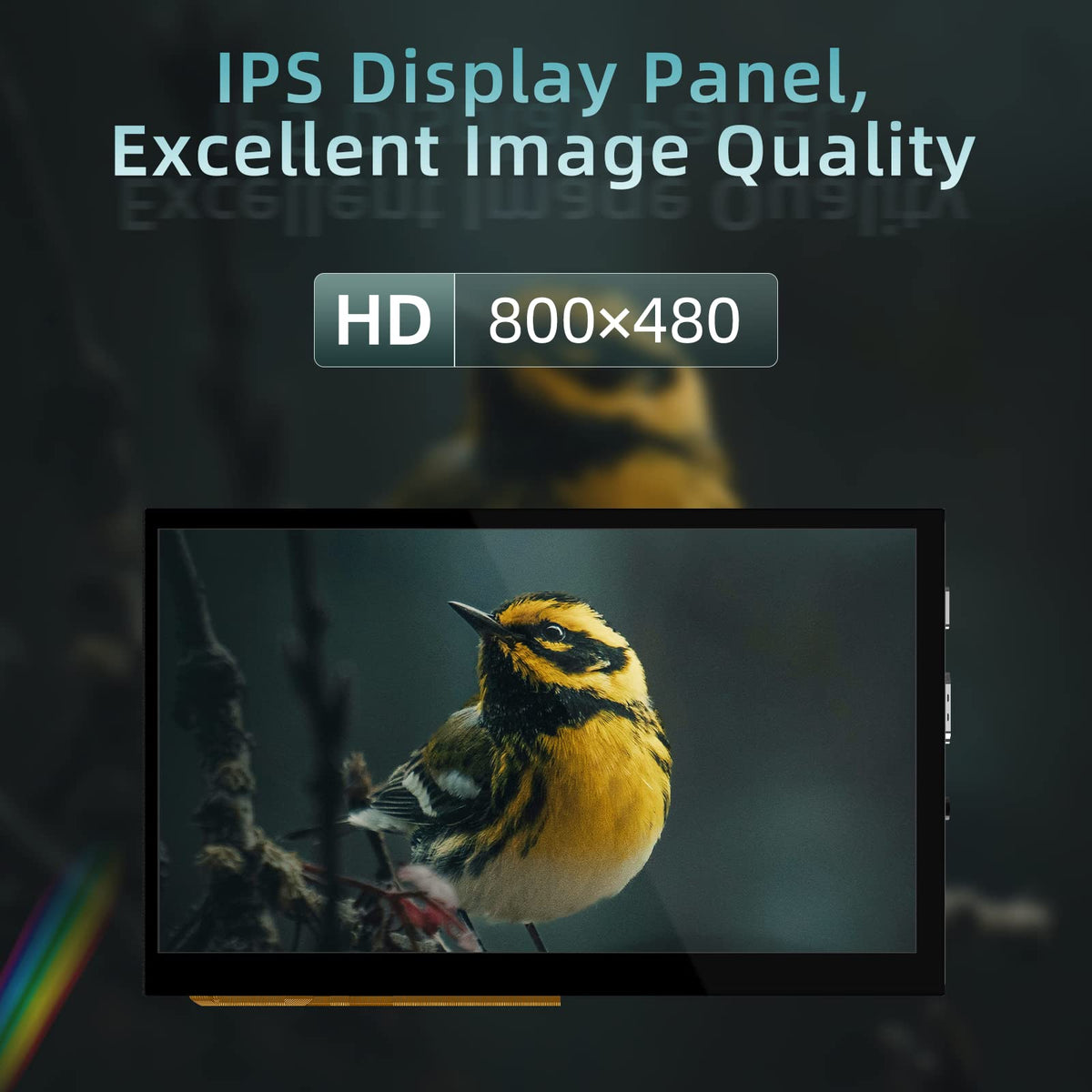

This small-form monitor delivers a crisp 800×480 picture on a 5-inch IPS panel with a 160° viewing angle, responsive multi-touch, and plug-and-play HDMI support. It runs from a 5V power source, reports status with front LEDs, and includes a 3.5mm audio jack for basic sound output. Hardware buttons let you fine-tune brightness and flip the display orientation without software changes, making it a versatile addition to single-board computers, 3D printer controllers, and compact PC setups.

How do I connect this screen to a Raspberry Pi or Sovol-SV08?

Set up is straightforward: use the Type-C data cable or a standard HDMI cable to link the BIGTREETECH HDMI5 to the device’s video output. Most systems automatically detect the display and load the needed drivers; touch input becomes usable once the OS recognizes the touch controller.

• Use Type-C data cable for devices supporting USB-C display (or touch data).
• Use HDMI cable for standard HDMI output; image typically appears within 5 seconds.
• After connection, operating systems usually auto-install the required driver for touch input.
• 3.5mm audio jack available for headphones or external speakers.

What controls and indicators help me manage brightness, orientation and status?

Three front hardware keys let you raise or lower brightness and change horizontal display direction without digging into software menus. Two indicator LEDs show power and operating status so you can quickly confirm the screen and host are functioning correctly.

• Ks1 increases screen brightness for brighter environments.
• Ks3 decreases brightness to reduce glare or power draw.
• Ks2 toggles horizontal display orientation for flipped setups.
• Red D6 LED signals power presence; green D7 flashes to indicate active operation.

Which devices and uses is this monitor compatible with?

The HDMI5 is designed to work with devices that offer HDMI output or USB-C display/data, including Raspberry Pi 4B/3B, Banana Pi, Sovol-SV08 3D printers, and Windows-based PCs. Its compact size and touchscreen support make it suitable for control panels, portable projects, bench-top monitors, and embedded systems.

• Compatible with Raspberry Pi 4B and 3B, Banana Pi and similar SBCs.
• Works as a PC monitor for Windows 10/8/7 with HDMI output.
• Sovol-SV08 3D printer display compatibility for direct printer control.
• Use in kiosks, compact workstations, and maker projects requiring touch input.

Who is this for? Makers, hobbyists and professionals who need a small, reliable touch display for single-board computers, 3D printers or compact PCs will appreciate the BIGTREETECH HDMI5. It fits into tight spaces while offering clear IPS viewing, simple connectivity, built-in audio out, and manual controls for brightness and orientation — ideal for anyone building control panels, portable consoles, or desktop workstations that benefit from a responsive 5-inch touchscreen.
