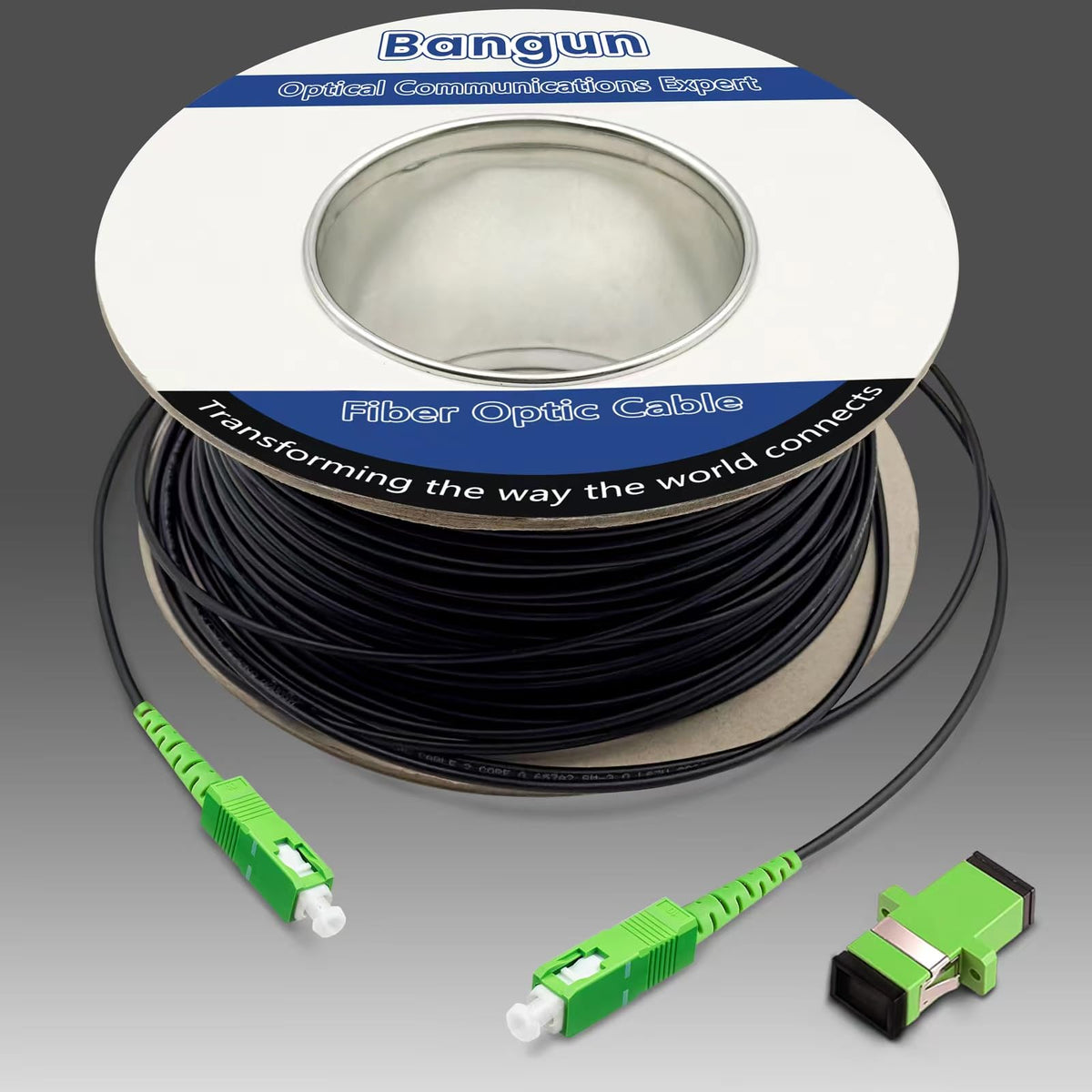

Bangun 50m Armored SC/APC Singlemode Fiber Cable

Bangun 50-meter armored SC/APC to SC/APC singlemode fiber patch cable is a rugged, low-friction simplex jumper designed to protect your fiber run indoors while preserving low-loss OS1/OS2 performance.

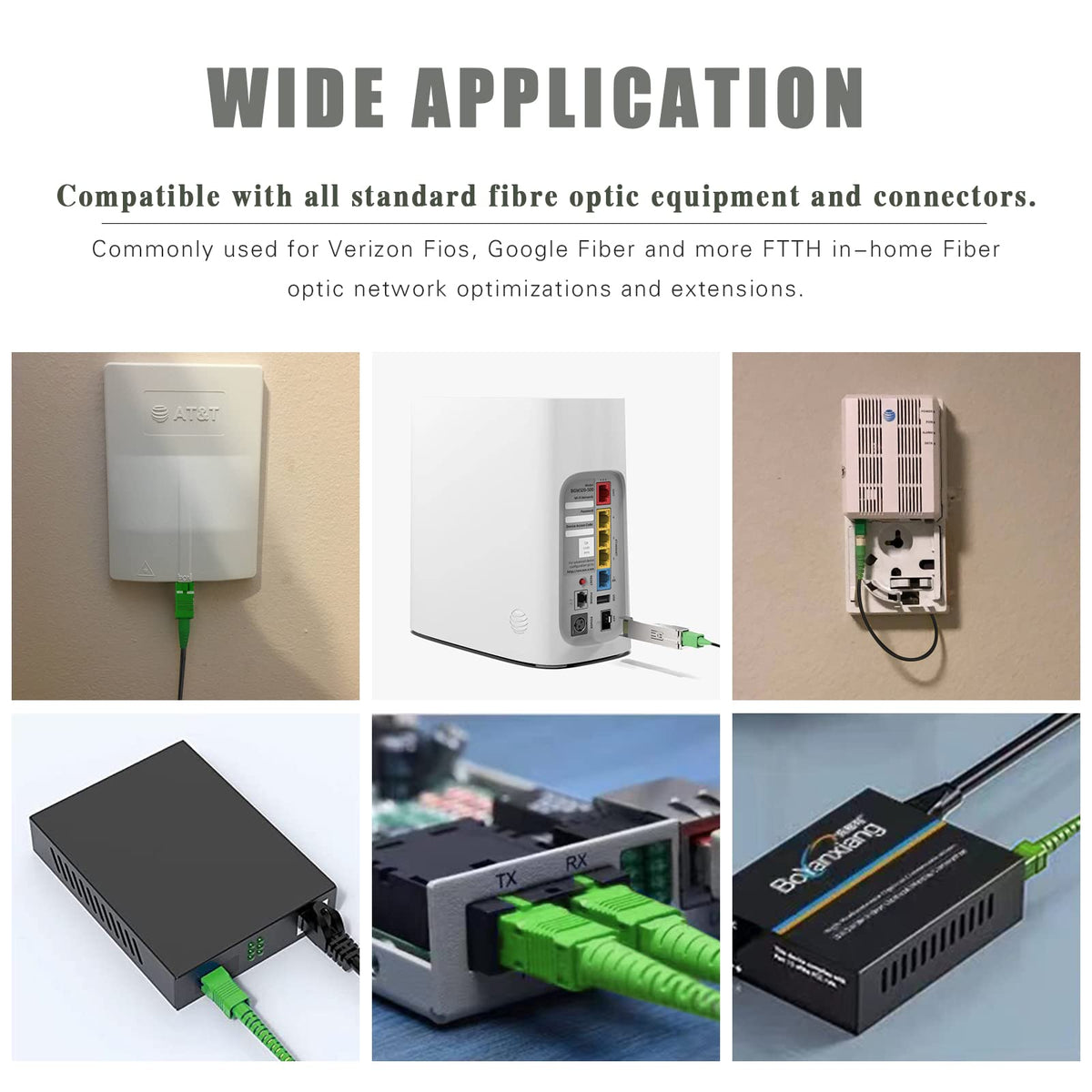

This 50 m optical patch cord pairs SC/APC connectors on both ends with 9/125 μm singlemode fiber inside a stainless-steel armored tube and a low-smoke zero-halogen (LSZH) outer jacket. It’s engineered for in-home or premises fiber networks — including Verizon Fios, AT&T Fiber and Google Fiber — where you need a flexible, pushable cable that resists chewing, abrasion and tight-conduit installations. A free SC-APC coupler is included for quick extension or temporary joins.

How does the armored construction protect my fiber in active homes?

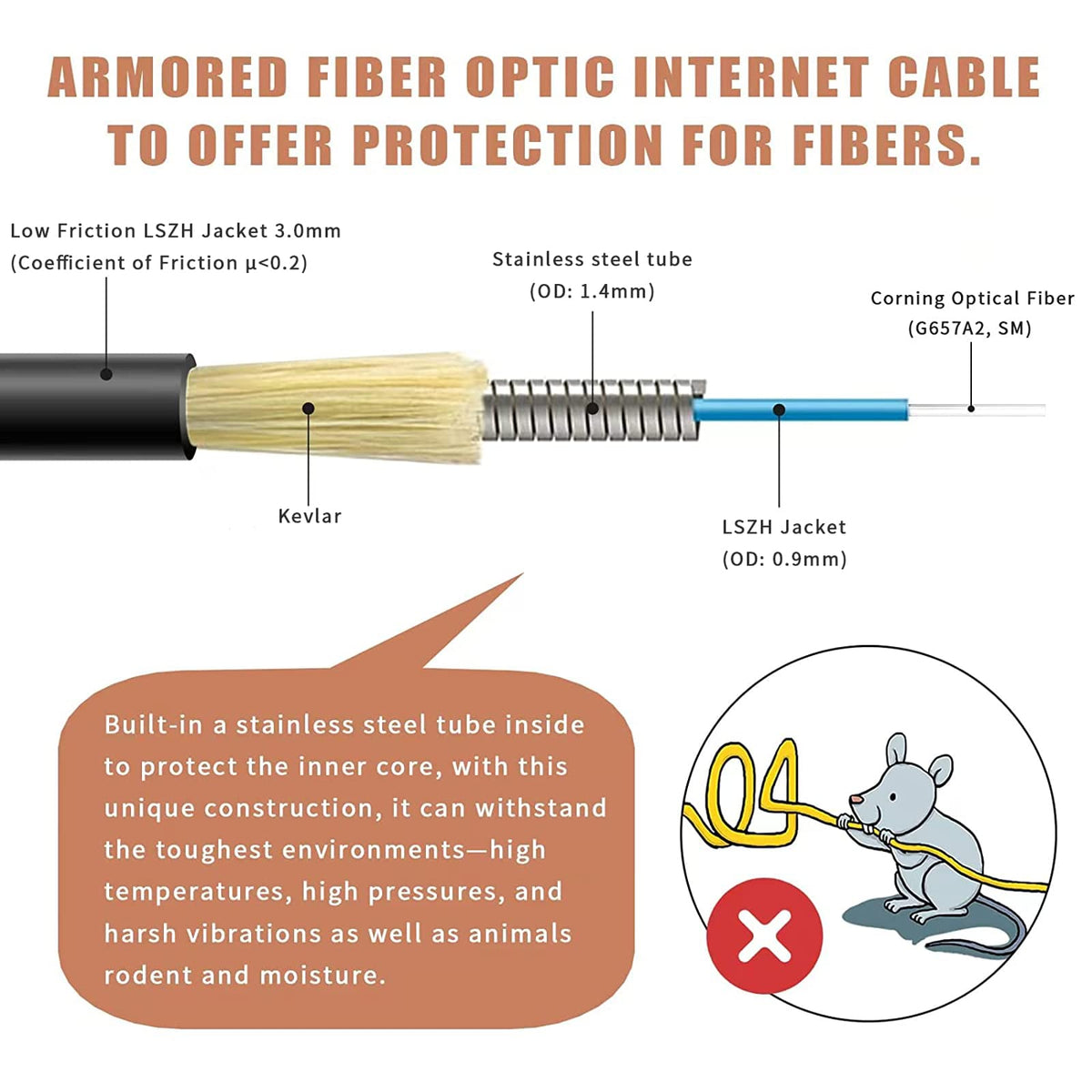

The cable uses a stainless-steel tube around the glass fiber core, preventing bite, crush and pinch damage that commonly breaks unprotected patch cords. The armored core is then covered by an LSZH jacket that resists wear and reduces smoke and toxic gas if exposed to heat.

• Stainless-steel internal tube for chew and crush resistance
• 3.0 mm outer diameter for balanced flexibility and toughness
• LSZH jacket minimizes hazardous emissions and improves abrasion resistance
• Pressure- and wear-resistant construction for longer service life

Will this cable work with my fiber internet equipment?

Yes — the Bangun cable is a 9/125 μm singlemode jumper compatible with OS1/OS2 standards and optimized for common wavelengths (1310 nm and 1550 nm). It uses SC/APC connectors on both ends, the same connector type used by many ONTs and service provider equipment.

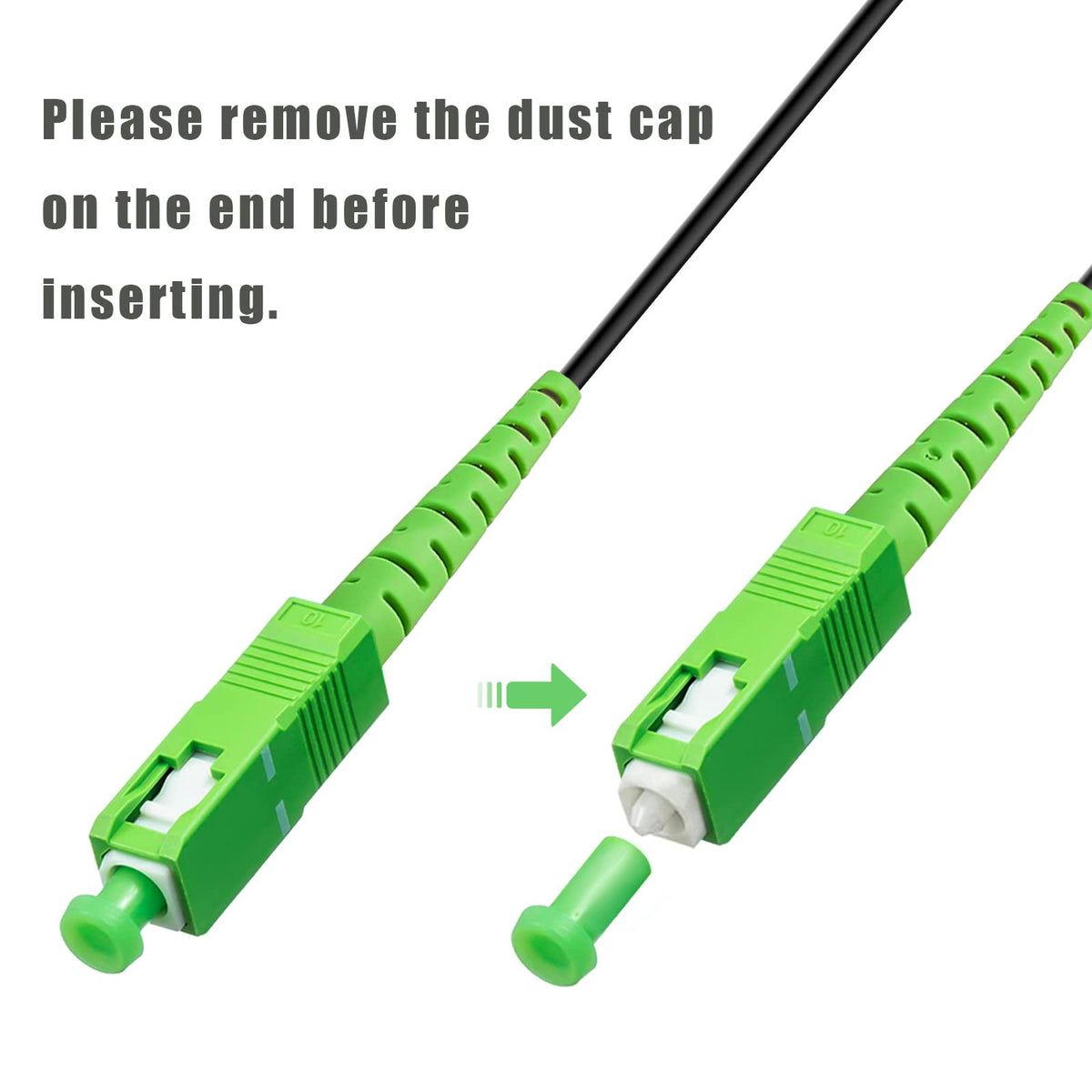

• Connector type: SC/APC to SC/APC (angled physical contact for low back reflection)
• Mode: Singlemode 9/125 μm, suitable for long-distance and indoor FTTH links
• Wavelengths supported: 1310 nm and 1550 nm
• RoHS compliant and resistant to electrical interference

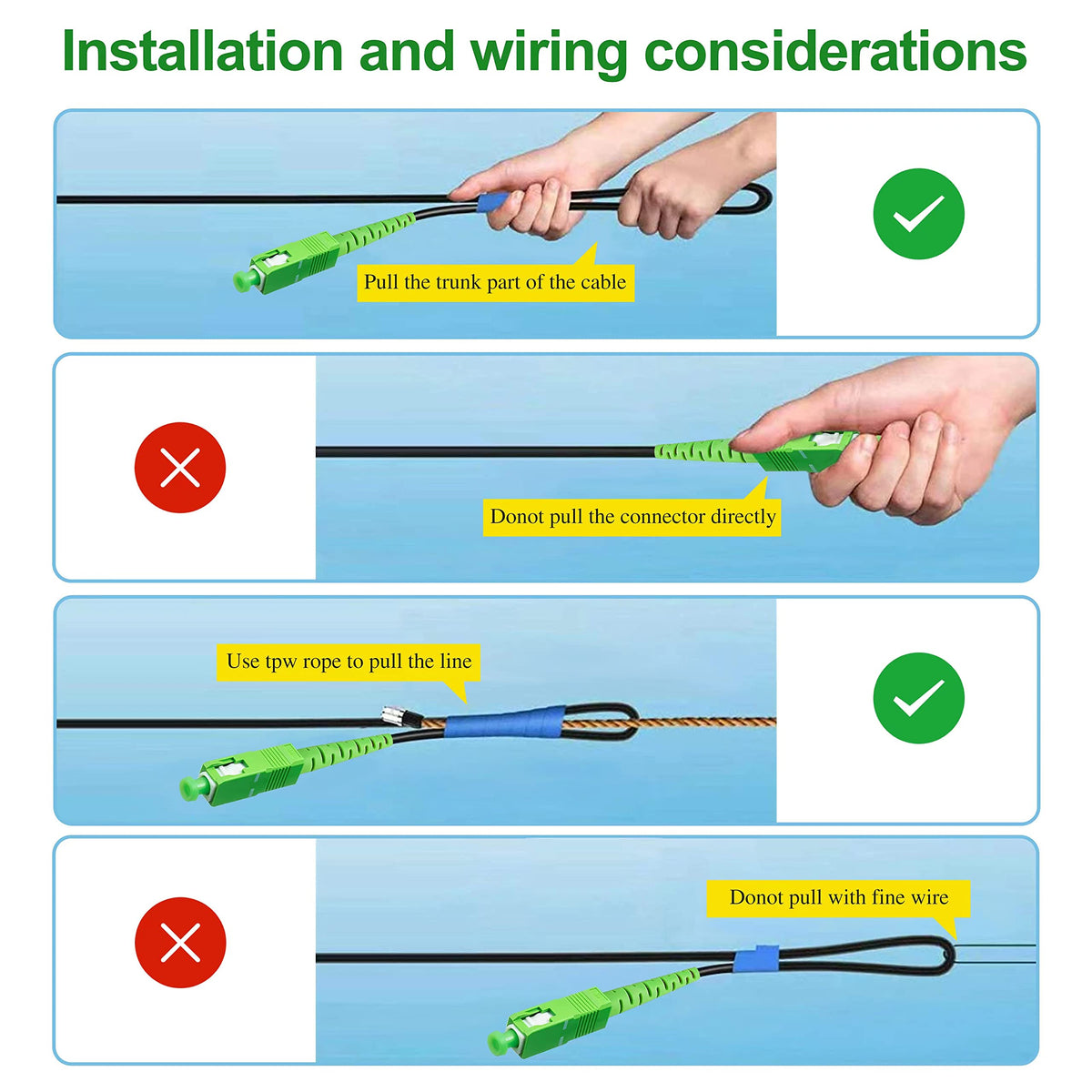

How does the low-friction jacket help during installation?

The Ultra Low Friction LSZH jacket has a coefficient of friction under 0.2, allowing the cable to be pushed through ducts and congested conduits as well as pulled. That low friction simplifies routing inside walls, along baseboards or through tight service channels without snagging or damaging the jacket.

• Ultra-low friction surface for easier pushing and pulling in conduits
• Ideal for congested or existing pathways where re-routing is needed
• Stiffness engineered to maintain shape during installation and prevent kinking
• LSZH material reduces smoke and toxic byproducts in enclosed spaces

What accessories and customization options come with this cable?

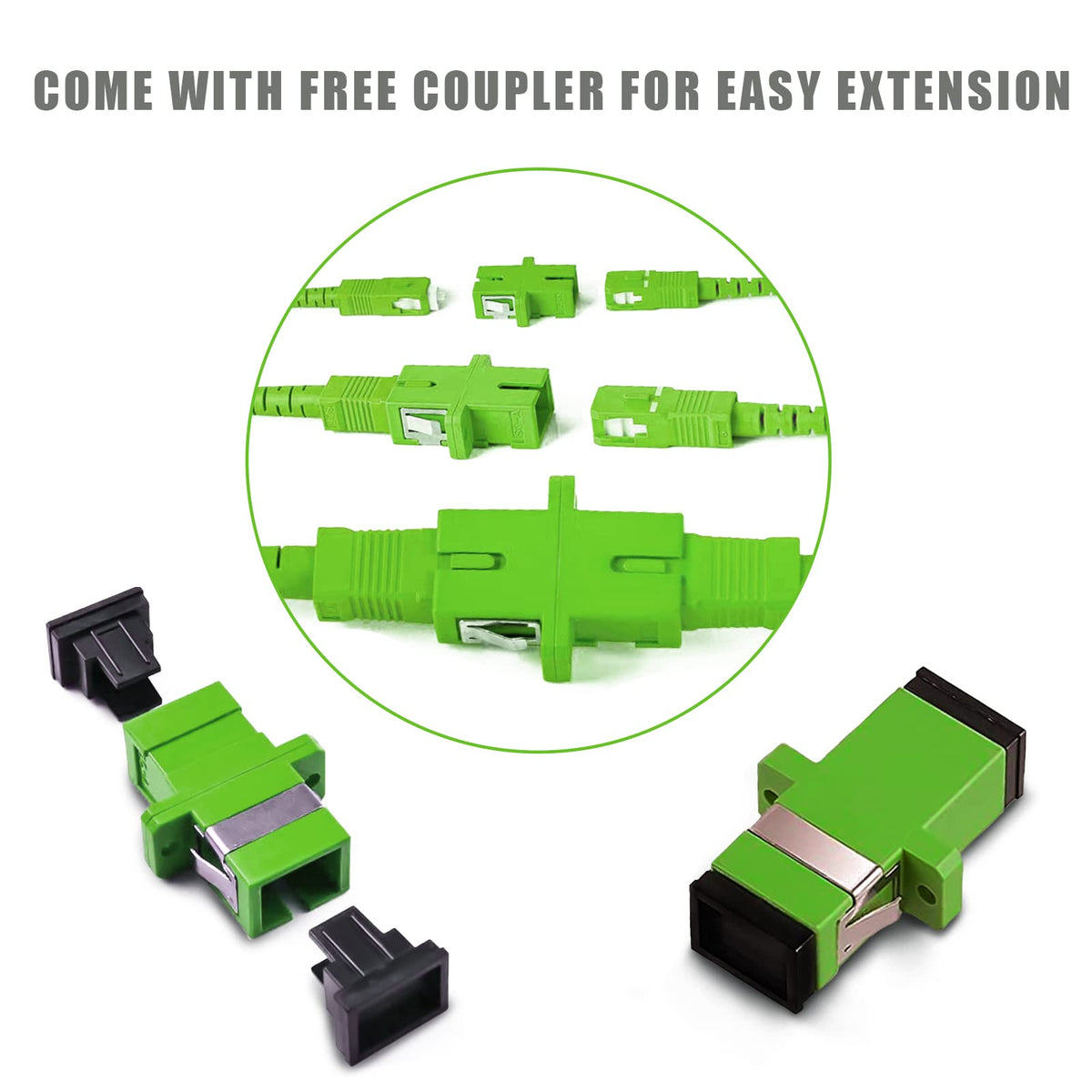

Each cable ships with a free SC-APC coupler so you can extend or temporarily join runs without extra adapters. Bangun offers custom-length and different-connector options on request if your setup requires nonstandard configurations.

• Included: one SC-APC fiber optic adapter/coupler
• Manufacturer accepts custom orders for alternate lengths or connectors
• Standard black LSZH jacket and 3.0 mm outer diameter for typical installations
• Packaged for immediate use with consumer and prosumer ONTs and patch panels

Who this is for: Installers, homeowners and small office users who need a dependable singlemode patch cable that survives real-world hazards — pets, tight conduits and frequent rerouting — while maintaining industry-standard optical performance. If you’re relocating an ONT, extending an FTTH drop, or replacing a fragile jumper with something more durable, this Bangun 50 m armored SC/APC to SC/APC cable provides a practical, low-reflection solution built for indoor premises environments.
