Audiopipe TXX-BDC-V-12D2 12-Inch Subwoofer – 2400W Peak, 1200W RMS, 2×2Ω, 5-Magnet BASV Cone

Premium 12-Inch Subwoofer for Demanding Systems

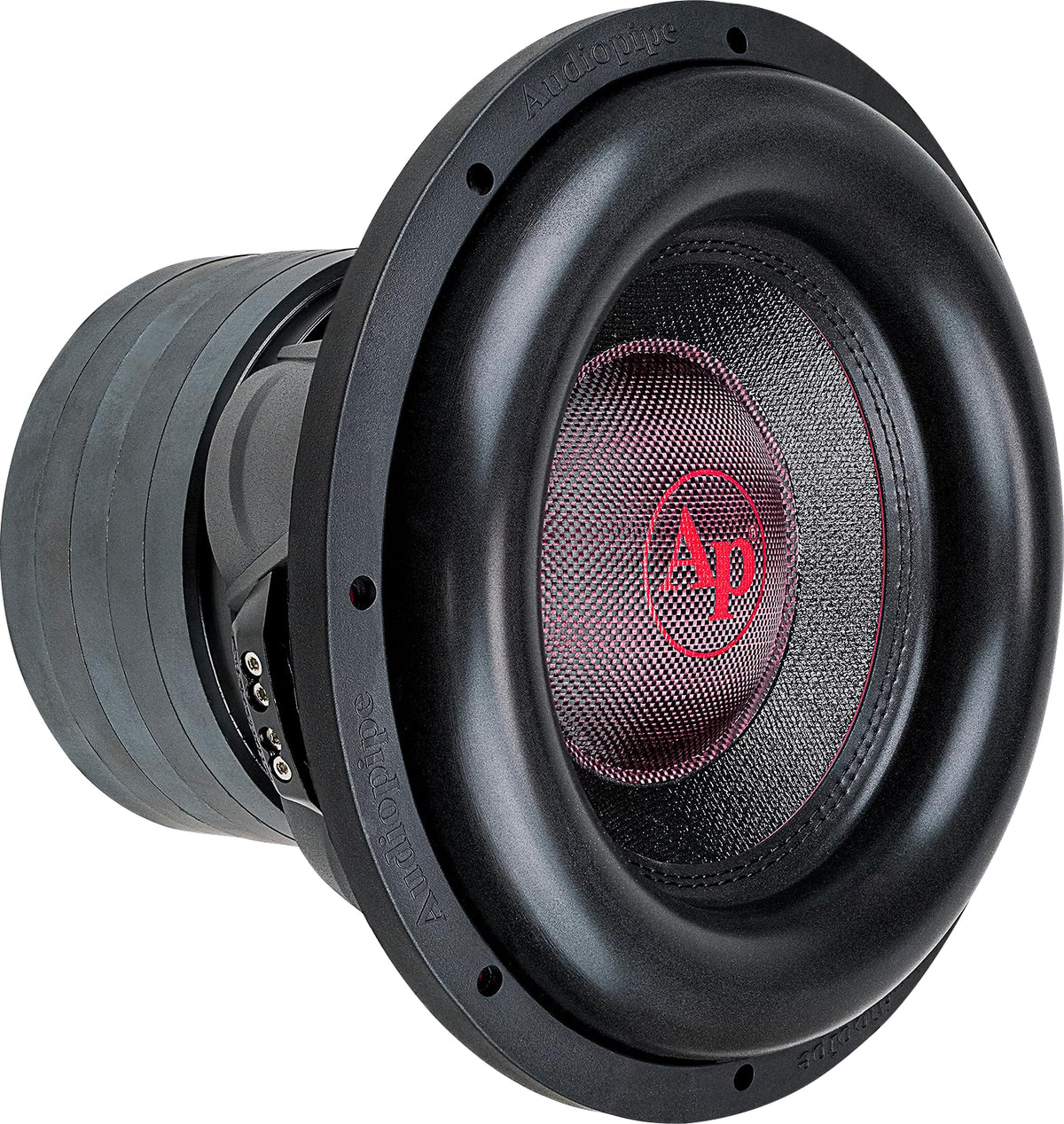

The Audiopipe TXX-BDC-V-12D2 is engineered for serious bass enthusiasts who want reliable, high-output performance without sacrificing clarity. A five-magnet motor structure boosts power handling and improves voice coil ventilation, helping the sub stay cooler during extended playback. The result is a confident in-cabin feel with tight, controlled low end and minimal distortion when pushed hard.

Power, Range, and Efficiency

Peak power reaches 2400 watts with a robust RMS rating of 1200 watts, giving you ample headroom for dynamic crescendos and sustained low-end energy. The driver’s magnet assembly measures 320 oz, delivering strong motor force, while a frequency response of 18–1,500 Hz and a sensitivity of 88 dB enable you to hear bass details clearly across a wide listening window. These specs point to a component designed to reproduce deep bass with authority while remaining responsive to musical transients.

Durable, Precision-Focused Construction

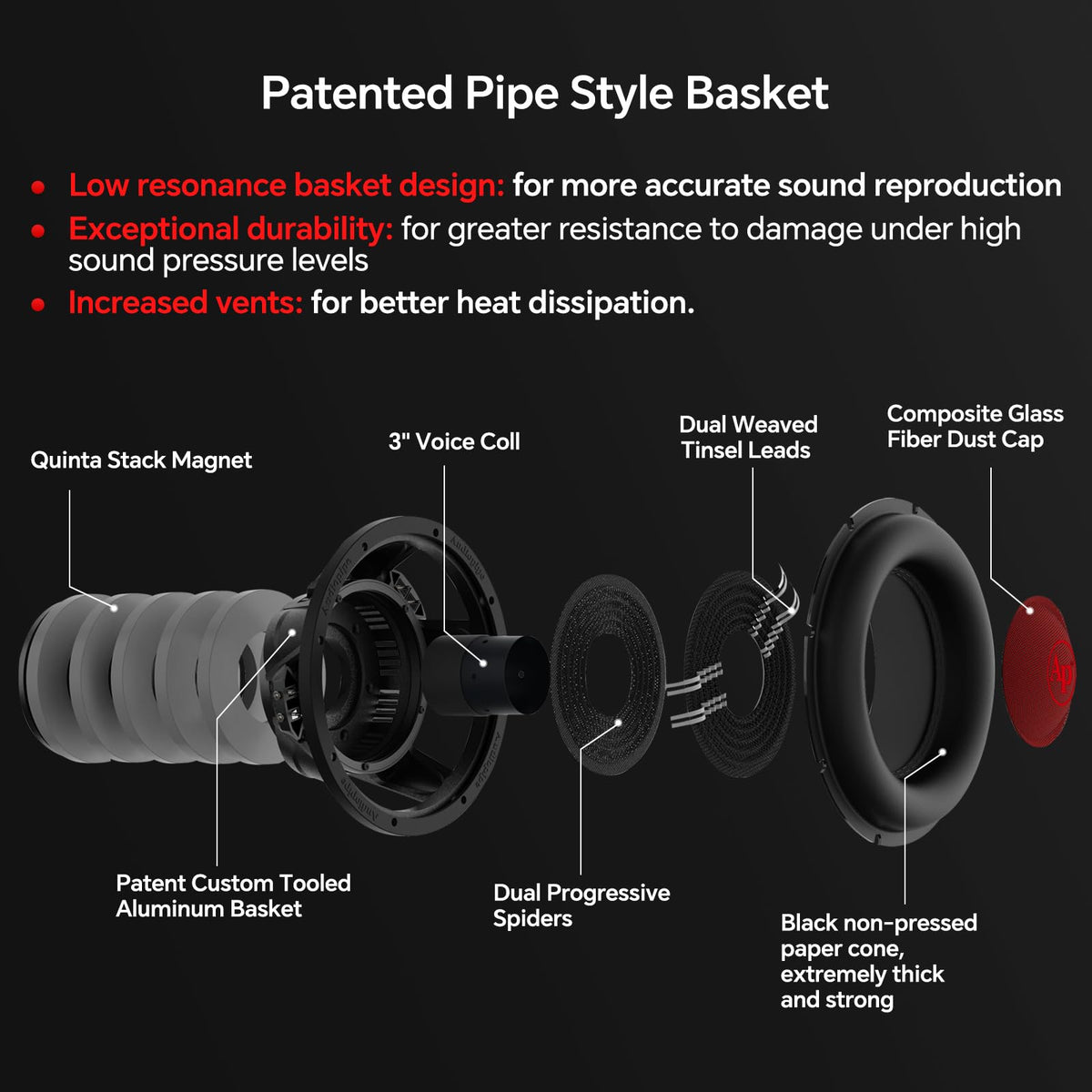

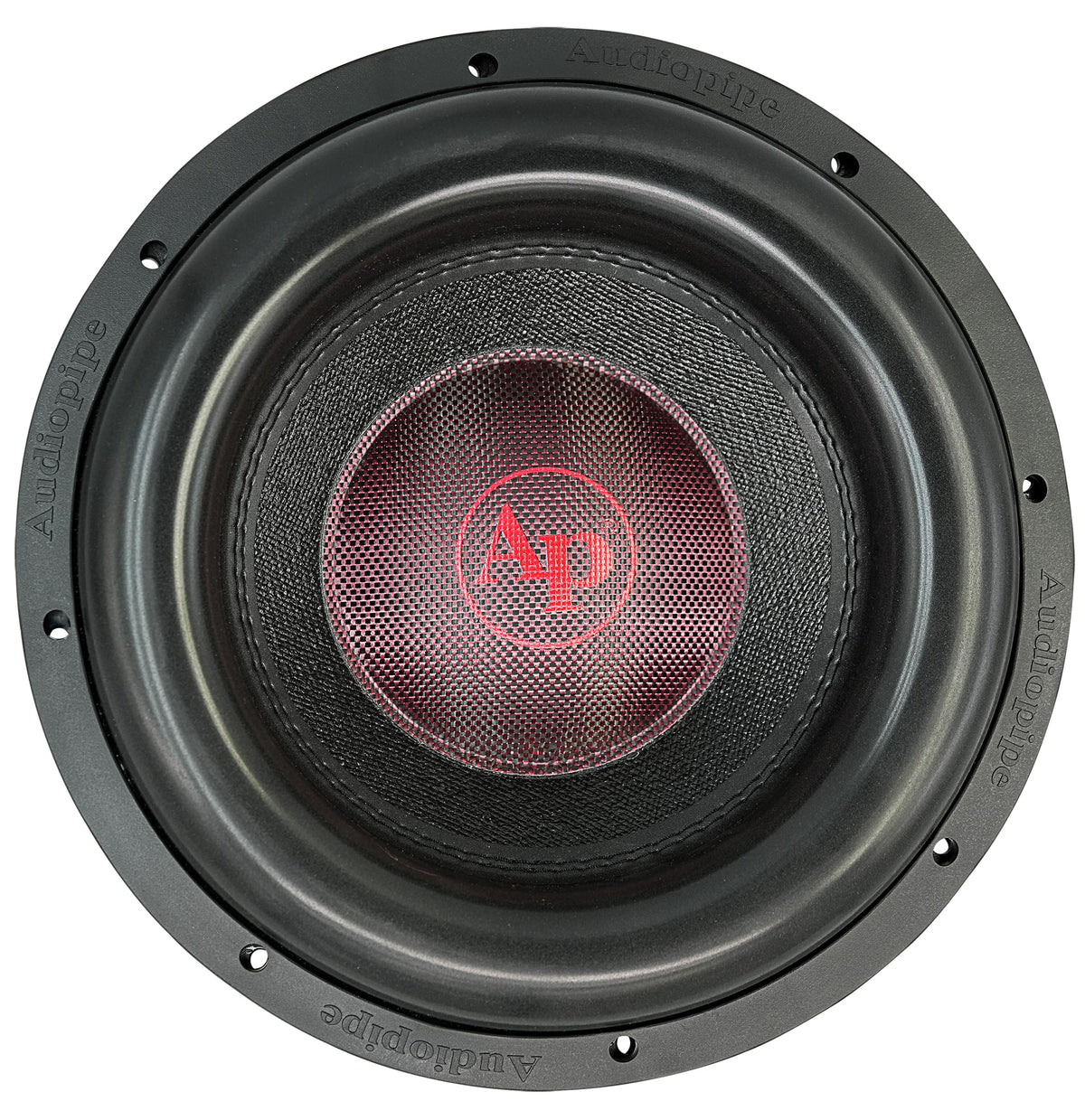

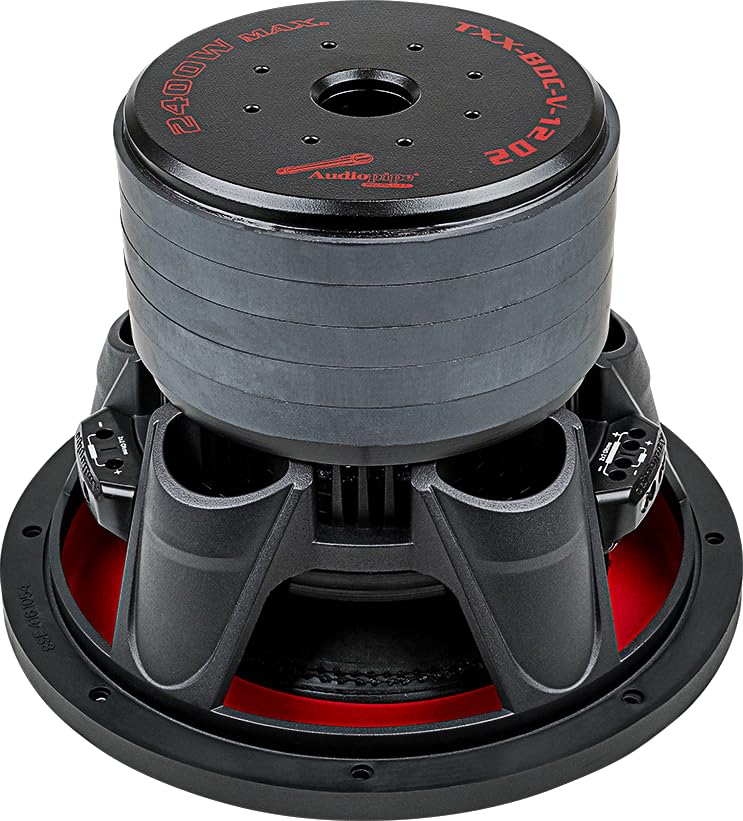

Built around a Kevlar fiber composite non-press paper cone with a texture finish, this subwoofer maintains cone rigidity for consistent performance. The aluminum basket features a dust-proof heat sink, promoting high ventilation for sustained output. Progressive quad-weave tinsel leads further contribute to stable signal delivery and reduced wear over time.

The voice coil is a dual 2-ohm BASV design, engineered for high-temperature endurance and reliable performance under demanding listening sessions. The combination of materials and engineering choices supports a durable, long-lasting listening experience in a variety of setups.

Wiring, Connectivity, and Enclosure Fit

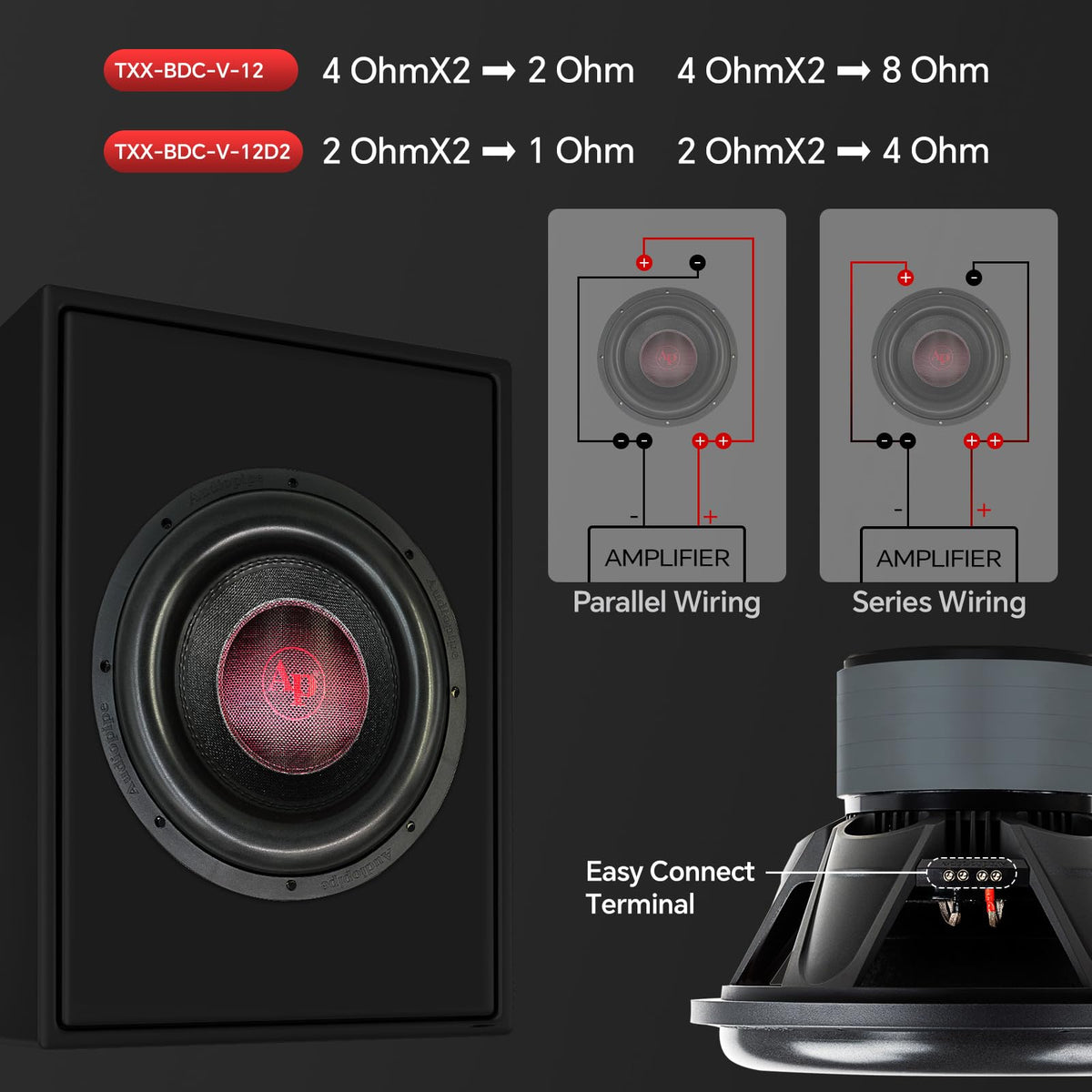

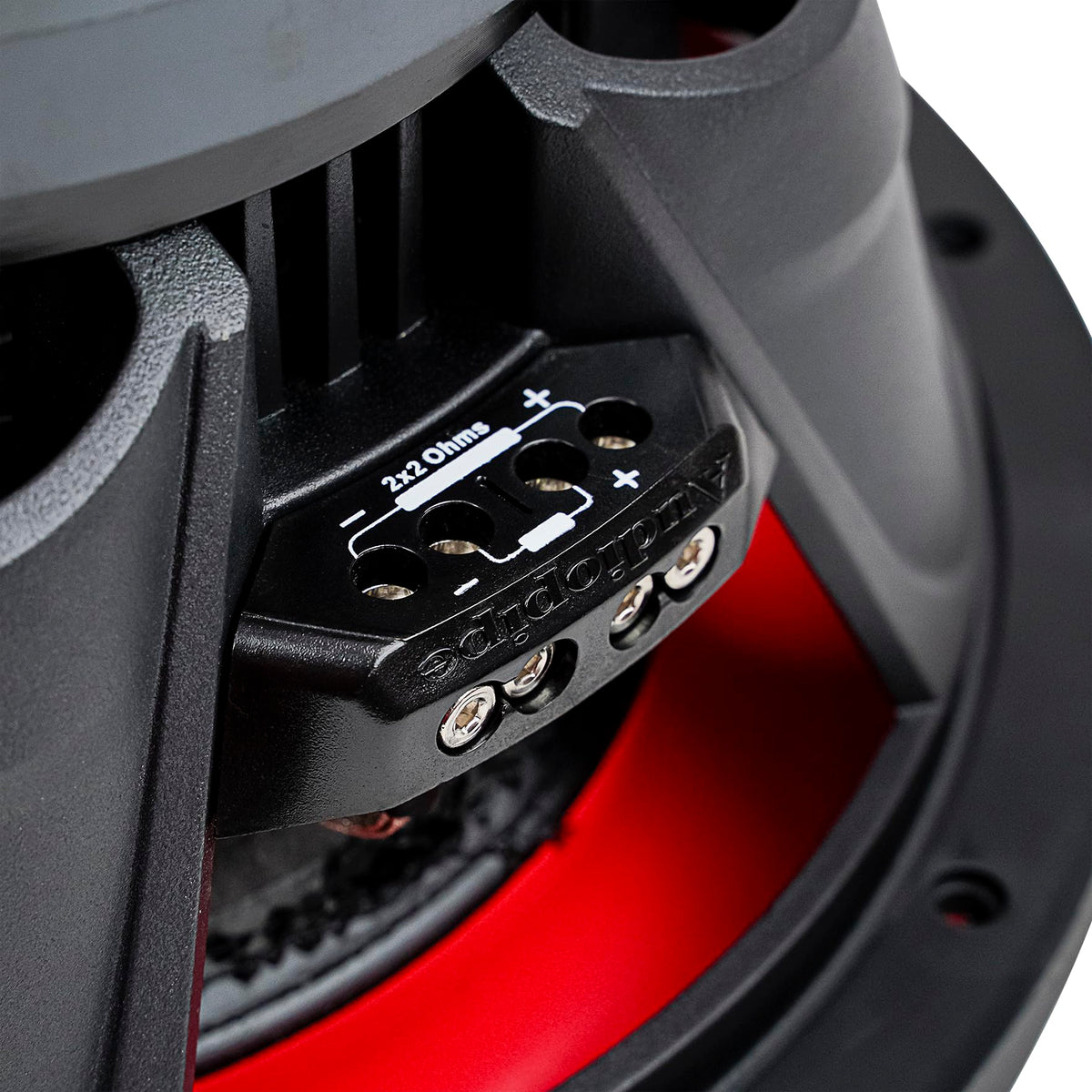

The patent pipe multi-connect terminals simplify wiring for series or parallel configurations, accepting up to 8 AWG speaker wire. With an impedance of 2 x 2 ohms and a mounting depth of 217 mm, the TXX-BDC-V-12D2 offers flexible integration into many enclosure styles and vehicle installations.

Two Practical Lists to Consider

• Key benefits: strong motor force from five magnets; efficient cooling via heat sink; durable Kevlar cone; robust aluminum basket; flexible wiring with up to 8 AWG terminals.
• Installation tips: plan for a 217 mm mounting depth; consider sealed or vented enclosures; use appropriate wiring to achieve desired impedance; verify enclosure air needs for best results.

Note: Real-world performance depends on your system, enclosure, and installation. Use these specifications as a guide to match the sub to your setup for a balanced, satisfying bass experience.
