Audiopipe 6.5" Compression-Horn Midrange Coaxial Speaker — Candy Red, 300W Peak, 72mm Shallow Mount

The Audiopipe APMB-628GH-RED is a 6.5-inch mid-range coaxial loudspeaker with a built-in compression horn driver delivering clear, high-SPL mid frequencies up to 300W peak in a shallow, door-friendly steel basket.

Designed for installers and car-audio enthusiasts who want focused midrange presence without deep mounting depths, this Audiopipe 2-way shallow coaxial combines a separate compression horn driver and a durable KSV voice coil to manage heat and power. Its 72mm mounting depth and flat steel basket make it easy to fit behind many factory panels, while the red finish gives systems a visually striking accent.

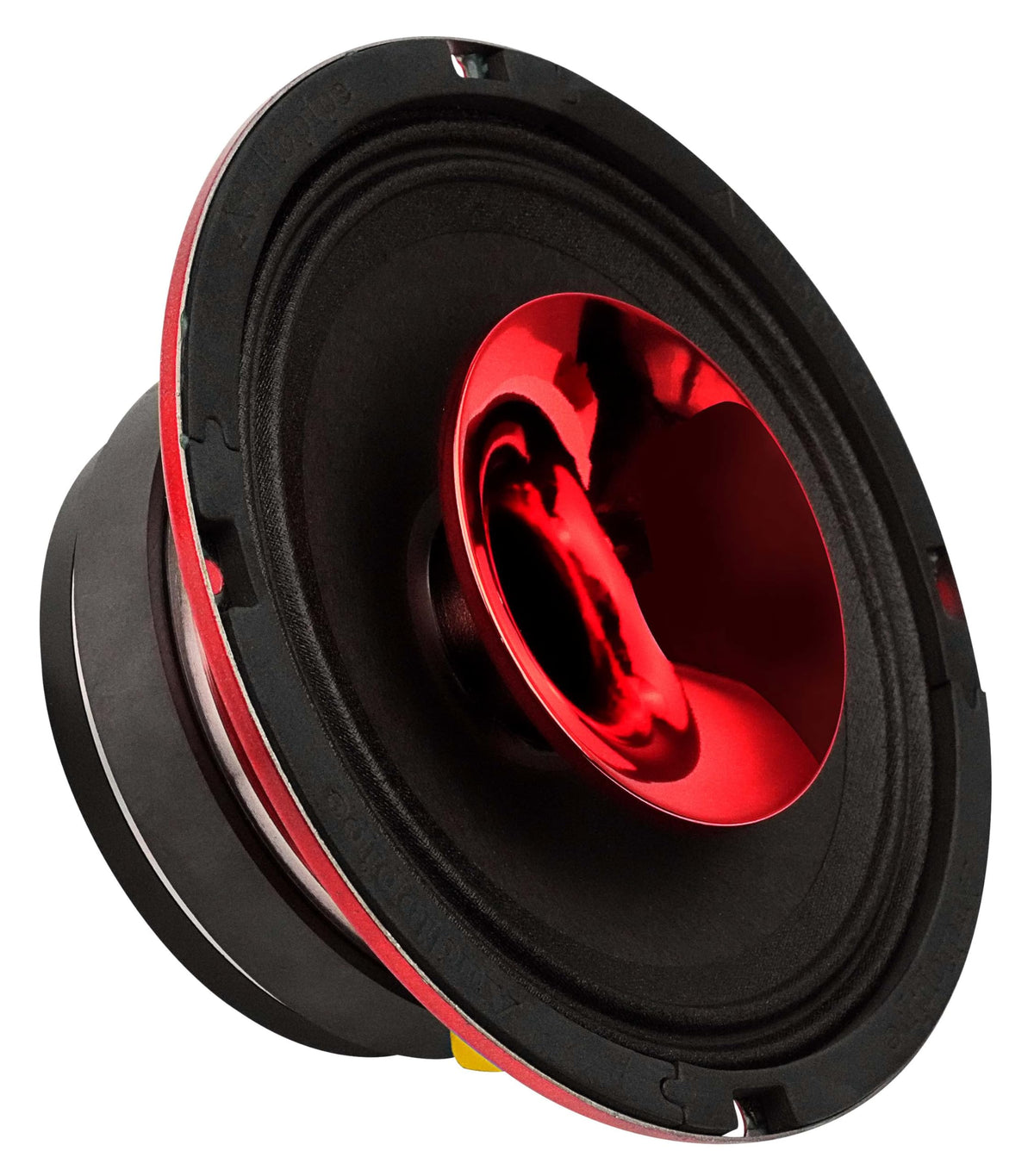

How does the built-in compression horn driver improve mid-range clarity?

The integrated compression horn concentrates and projects mid frequencies for improved articulation and higher perceived loudness. Because the horn driver can be wired or replaced independently, you keep flexibility for tuning or service without removing the entire speaker.

• 3" horn diameter focuses midrange dispersion for better vocal and instrument clarity.
• Driver separable from the woofer for custom wiring or swaps.
• Ferrite and neodymium elements enhance magnetic efficiency and punch.

Will this speaker fit my vehicle door or panel?

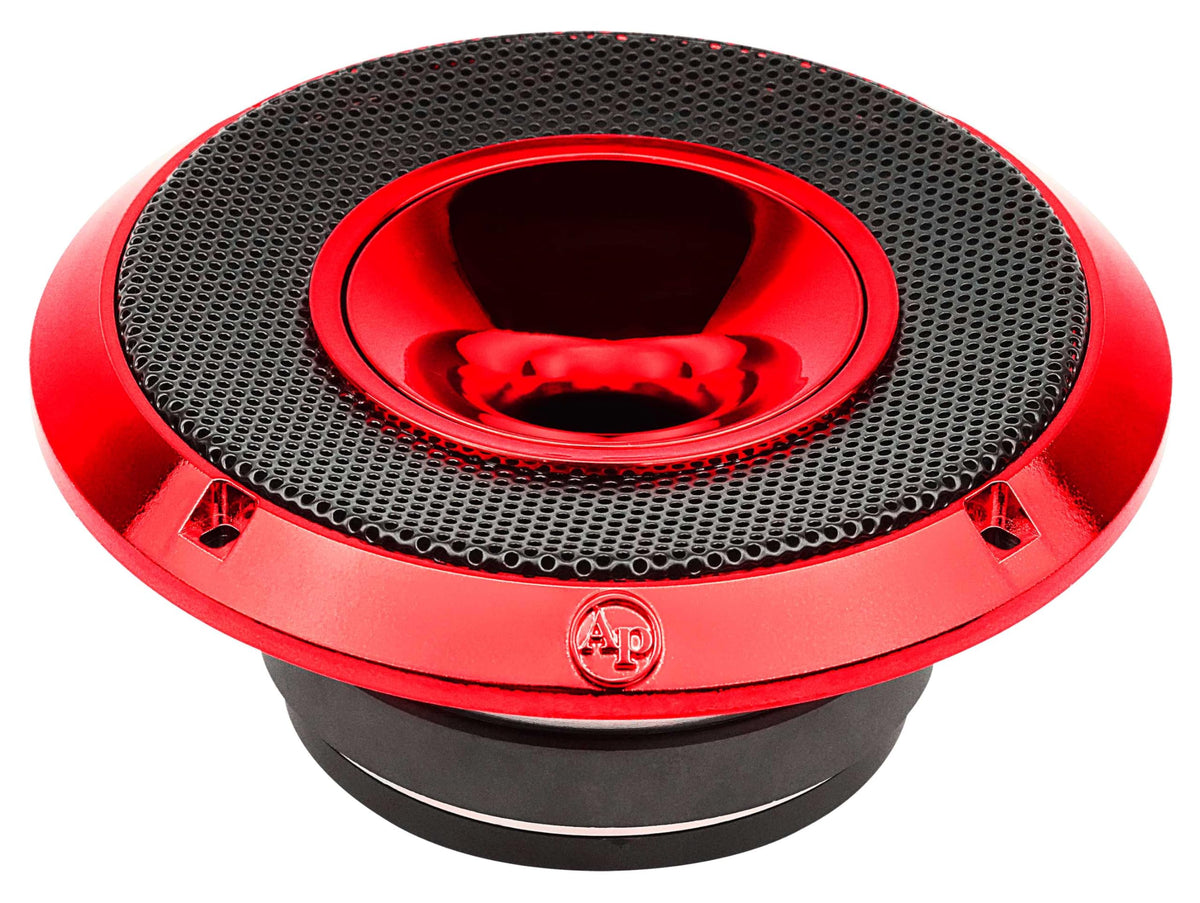

The APMB-628GH-RED uses a flat steel basket and a shallow 72mm mounting depth to maximize compatibility with common door cavities and under-dash locations. The compact depth reduces the need for cutting or panel modification in many cars and trucks.

• 72mm (2-13/16”) mounting depth suits most factory door spaces.
• Flat-steel basket designed to sit flush against panels.
• Coaxial layout keeps overall diameter compact for standard 6.5" cutouts.

What power handling and performance specs should I expect?

This Audiopipe mid-range handles substantial power for its size: 300W peak (PMPO) and 150W continuous (RMS), with 91dB sensitivity enabling efficient output even with modest amplifiers. The frequency response covers crucial midrange details, supporting clear vocals and instruments.

• Peak power: 300W (PMPO); continuous power: 150W (RMS).
• Sensitivity: 91 dB for loud, efficient playback.
• Frequency range: 100–20,000 Hz focuses on mid-to-high clarity.

How durable and serviceable is the speaker for long-term use?

Built with a high-temperature 1.5" KSV voice coil and a protective grill, this loudspeaker resists thermal stress and physical damage during frequent high-output use. The replaceable compression driver design shortens repair time and cost if the horn driver needs service.

• 1.5" high-temp KSV voice coil resists heat degradation under heavy loads.

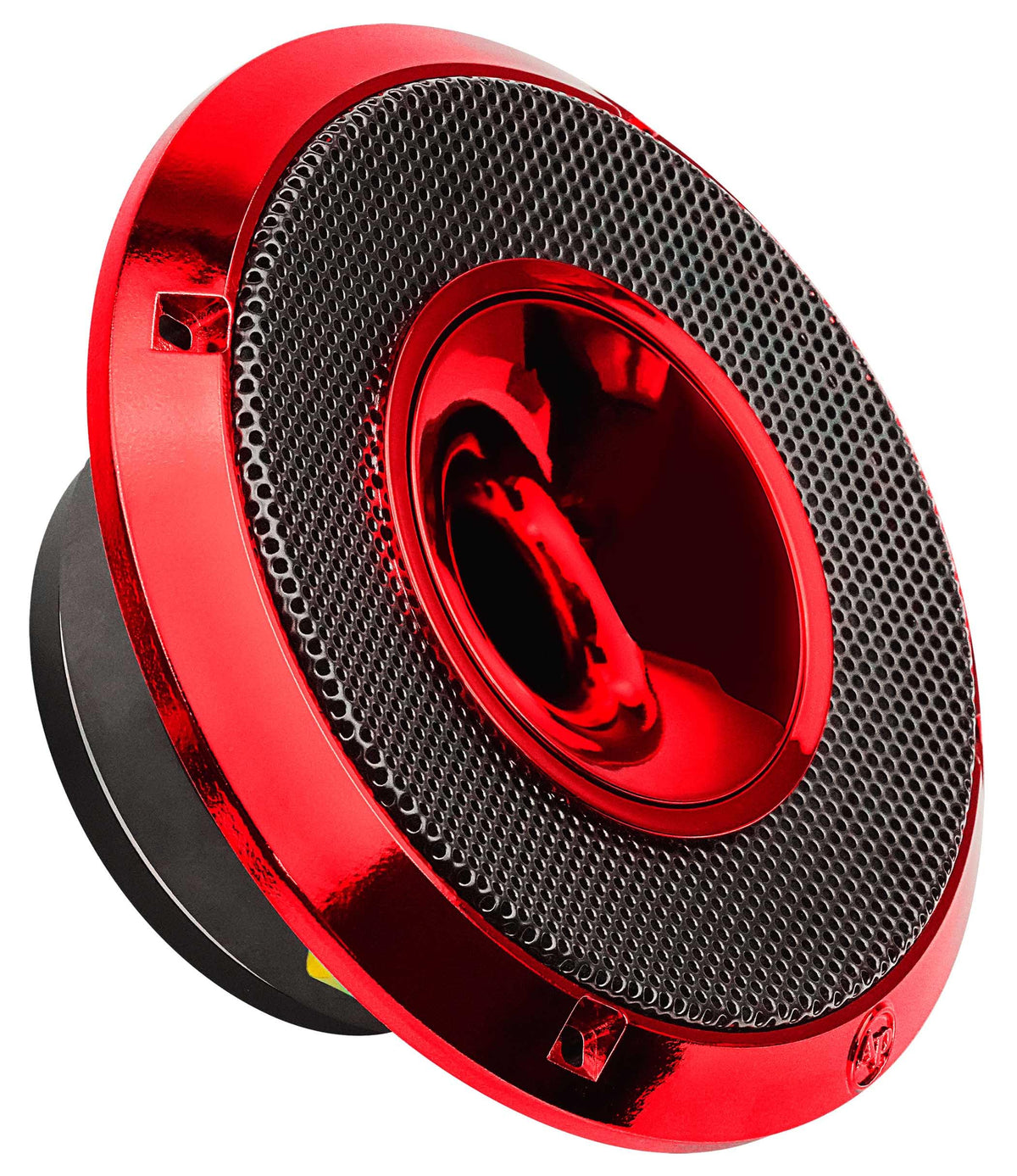

• Included metal grill protects the cone from impacts and debris.
• Separable horn driver simplifies maintenance and future upgrades.

Who this is for: Audiophiles and installers seeking a compact 6.5" mid-range with horn-projected mid frequencies, reliable thermal handling, and easy installation will find the APMB-628GH-RED a solid option. It fits builders who want a bold visual accent (candy red finish) plus replaceable components for flexible system tuning — ideal for custom car audio projects, show vehicles, or anyone upgrading factory mids without complex fabrication.
