AIYIMA DAC-A2 USB Optical Coaxial Headphone DAC Amp

The AIYIMA DAC-A2 is a compact desktop digital-to-analog converter with a built-in headphone amplifier, offering USB, optical and coaxial inputs plus bass and treble controls for clearer, more powerful listening.

Designed for desktop audio systems, the DAC-A2 combines a high-resolution decoding path with a dedicated headphone amp so you can drive a wide range of headphones or feed powered speakers and an external amplifier. It supports PC‑USB up to 24bit/96kHz and optical/coaxial up to 24bit/192kHz, and uses well-regarded chipsets to deliver improved dynamics, lower noise and flexible connectivity without taking up much desk space.

How does the DAC-A2 improve headphone sound quality?

The unit includes a professional headphone amplifier stage capable of driving 16–200 ohm cans, which provides stronger, cleaner output than most laptop or phone jacks. The discrete amp chips reduce distortion and supply consistent current for better transient response and detail retrieval.

• Built-in TPA6120 and OP275 amp chips for robust driving capability
• Dedicated 3.5mm headphone out plus RCA line output for versatility
• Low-noise power design for clearer background and separation

What digital sources and resolutions does it accept?

The DAC-A2 accepts PC‑USB, optical (TOSLINK) and coaxial S/PDIF inputs, so it fits between computers, CD transports, set‑top boxes and game consoles. USB input supports up to 24bit/96kHz, while optical and coaxial handle up to 24bit/192kHz for high-resolution files and external players.

• PC‑USB with SA9023 decoding for 24bit/96kHz playback
• Optical and coaxial S/PDIF paths supporting 24bit/192kHz
• Plug-and-play USB on most PCs and Macs; TOSLINK/coax for media players

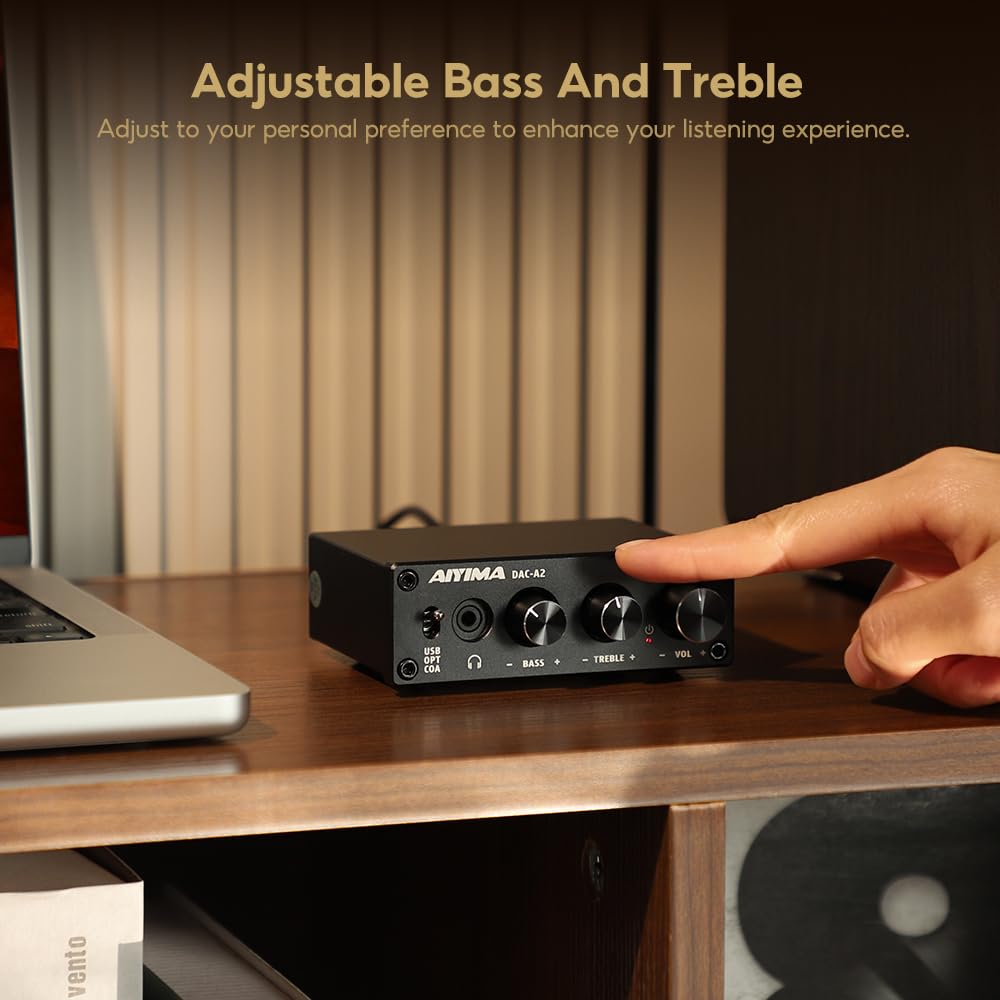

How do bass and treble controls affect my setup?

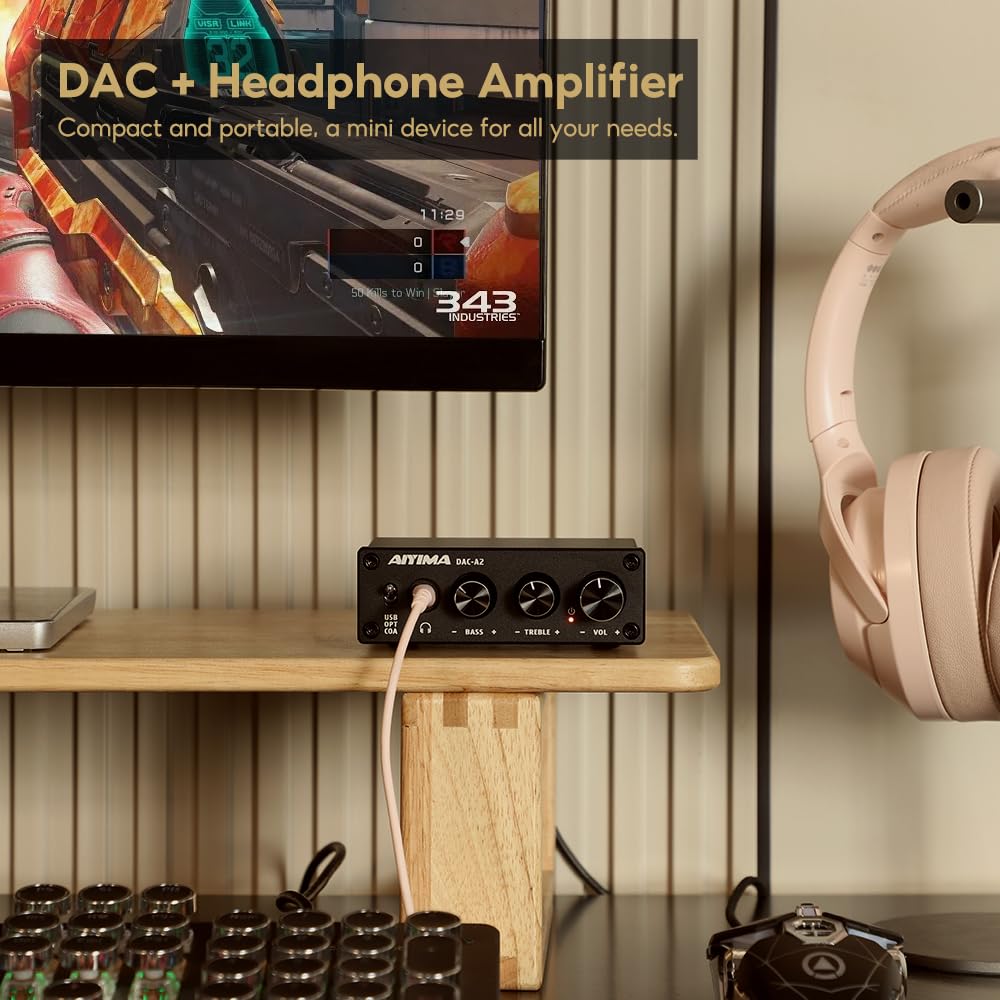

The front-panel bass and treble knobs let you tailor the tonal balance without altering source EQ or system DSP. Small adjustments can tighten bass, clarify mids, or add sheen to vocals and cymbals, making the DAC-A2 useful for personal tuning or compensating for speaker/headphone signatures.

• Independent bass and treble rotary controls for quick tonal shaping
• Works at line level—affects output before headphones or powered speakers
• Useful for matching different headphones or room acoustics

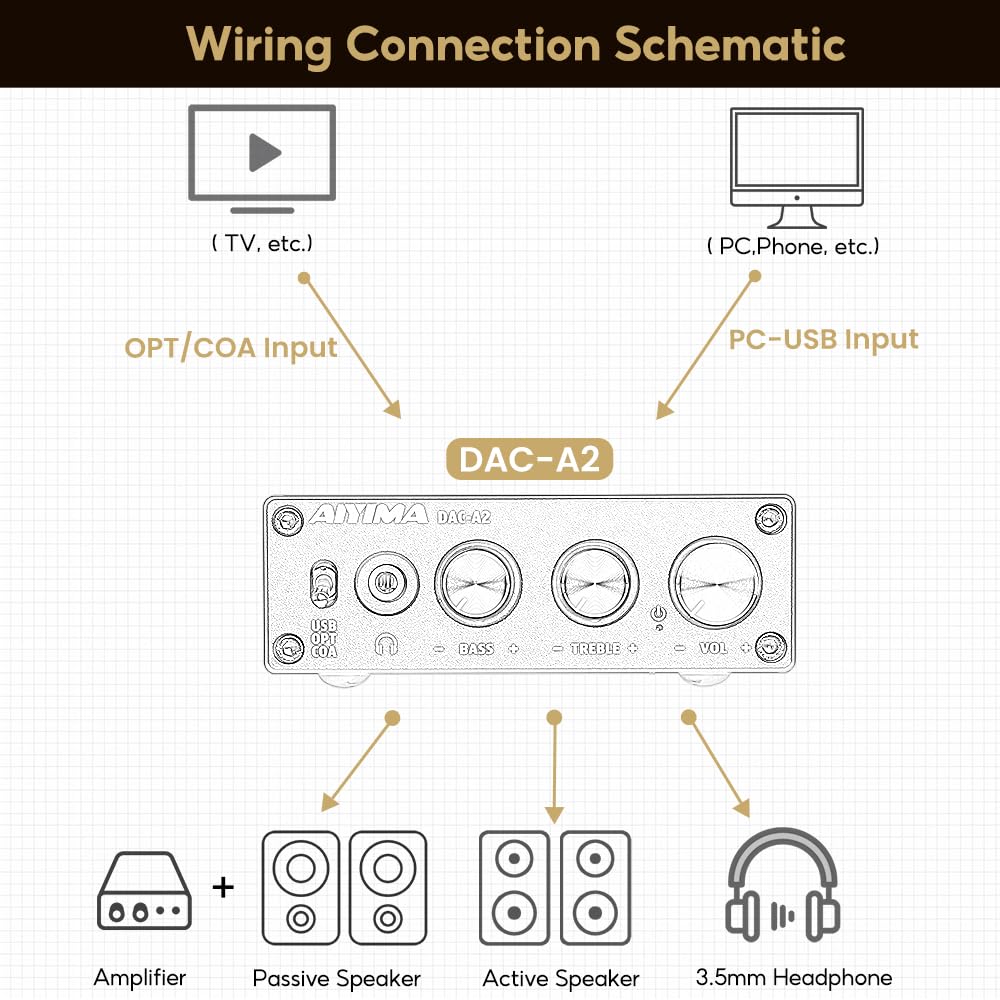

What connectivity and outputs are included?

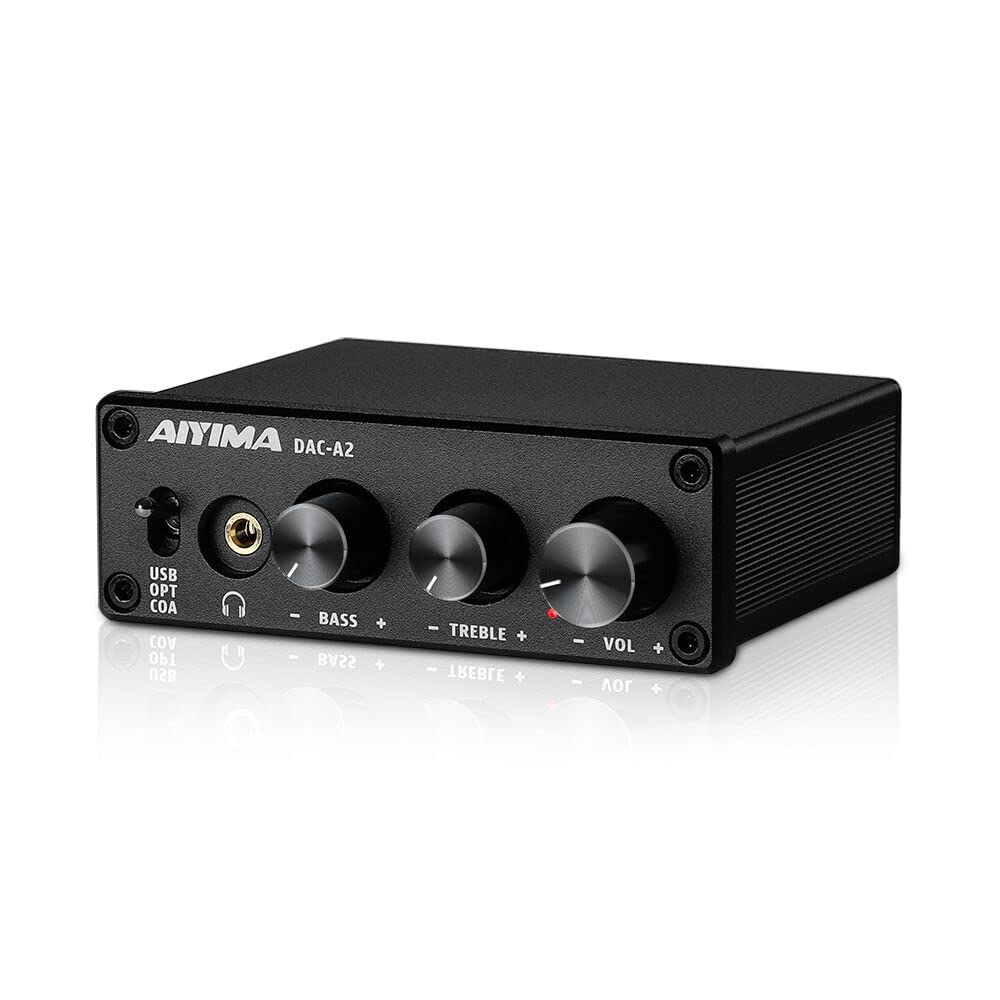

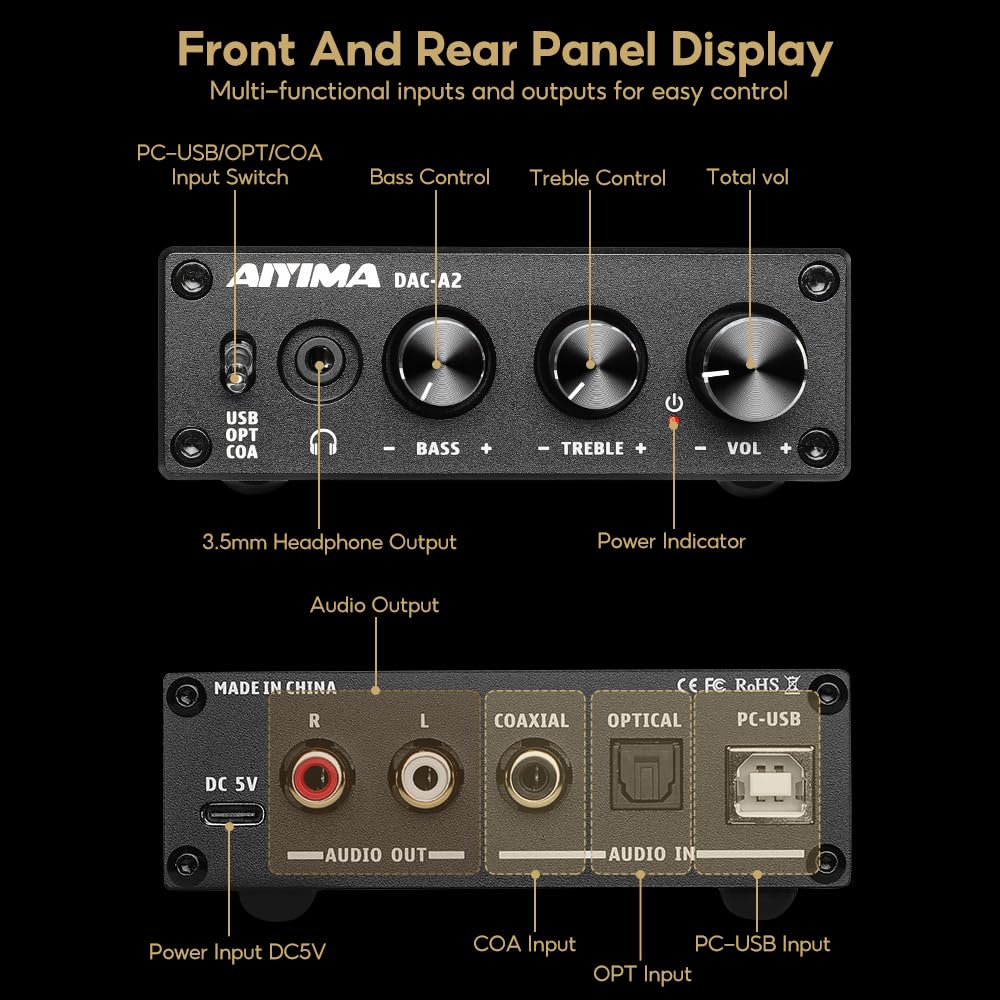

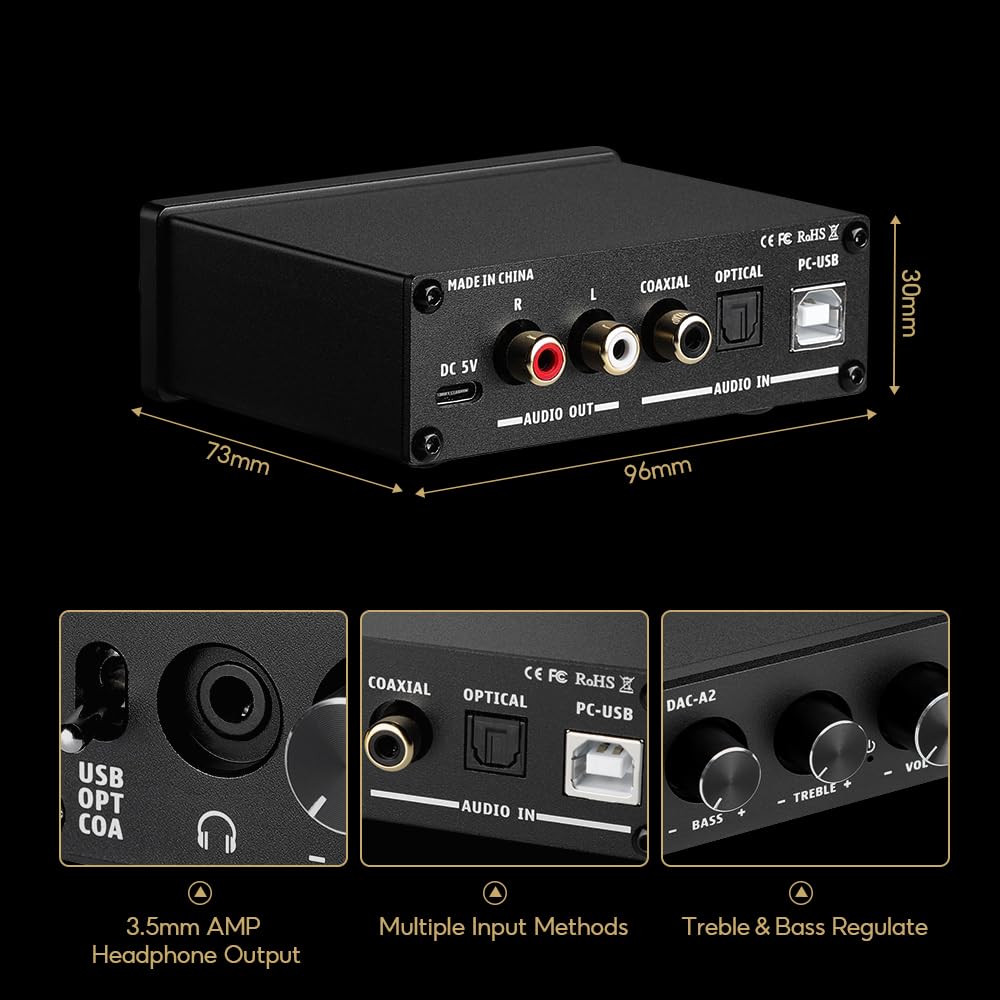

On the rear panel you'll find USB, optical and coaxial inputs plus an RCA line output and a DC 5V power jack. On the front there are both a 3.5mm headphone jack and volume control for easy, immediate listening.

• RCA outputs to feed powered speakers or an external amplifier
• Front 3.5mm headphone out for private listening sessions
• Compact DC 5V supply for portable desktop placement

Who is this for? The AIYIMA DAC-A2 suits music lovers who want to upgrade laptop or TV audio without a large investment: desktop audiophiles, home office listeners, gamers seeking better soundstage, and anyone who needs simple tone controls and multiple digital inputs. It’s also a practical choice for people adding a DAC and headphone amp to small studio or streaming rigs where space and budget are limited.
