ZTOOYO Samsung Galaxy Tab S6 Lite 10.4" Screen

This is a full 10.4-inch ZTOOYO replacement LCD and touch digitizer assembly for Samsung Galaxy Tab S6 Lite (2022) models SM-P610 / P615 in black.

If your Tab S6 Lite shows cracks, dead pixels, unresponsive touch, or a shattered front glass, this ZTOOYO screen assembly provides a like-new visual and touchscreen function when installed correctly. The part arrives without a metal frame, includes a protective film and a repair kit, and is intended for DIY or technician repairs. Follow safe-handling and testing steps before permanently fitting the panel to avoid additional damage.

How do I confirm this screen fits my tablet?

Check your tablet model number on the original device or in Settings > About tablet to verify SM-P610 or SM-P615. The panel is sized for the 10.4-inch 2022 S6 Lite and will not fit other Samsung tablet models.

• Confirm model: SM-P610 or SM-P615 only
• Measure diagonal display size: 10.4 inches
• Compare connector location and cable type with your original part

What are the important safety and testing steps before installation?

Test the replacement before final assembly: keep protective films and tags on, connect the display while the tablet is open, and power on to verify image and touch response. Ground yourself with an ESD strap to prevent static damage and wear eye protection to guard against glass fragments.

• Do not remove protective films until testing is complete
• Use an anti-static strap or grounded workstation
• Power on while components are temporarily connected to confirm function

How should I handle the flex cable and delicate parts?

The LCD flex cable is vulnerable to sharp bends and stress; avoid folding it past 90 degrees or applying excessive force. If the display does not power on during the simulated test, stop and contact support—installing a faulty panel can cause irreversible damage.

• Avoid over-bending the cable; keep bends gentle and supported
• Do not force connectors; align and seat them carefully
• If test fails, do not complete installation—reach out for help

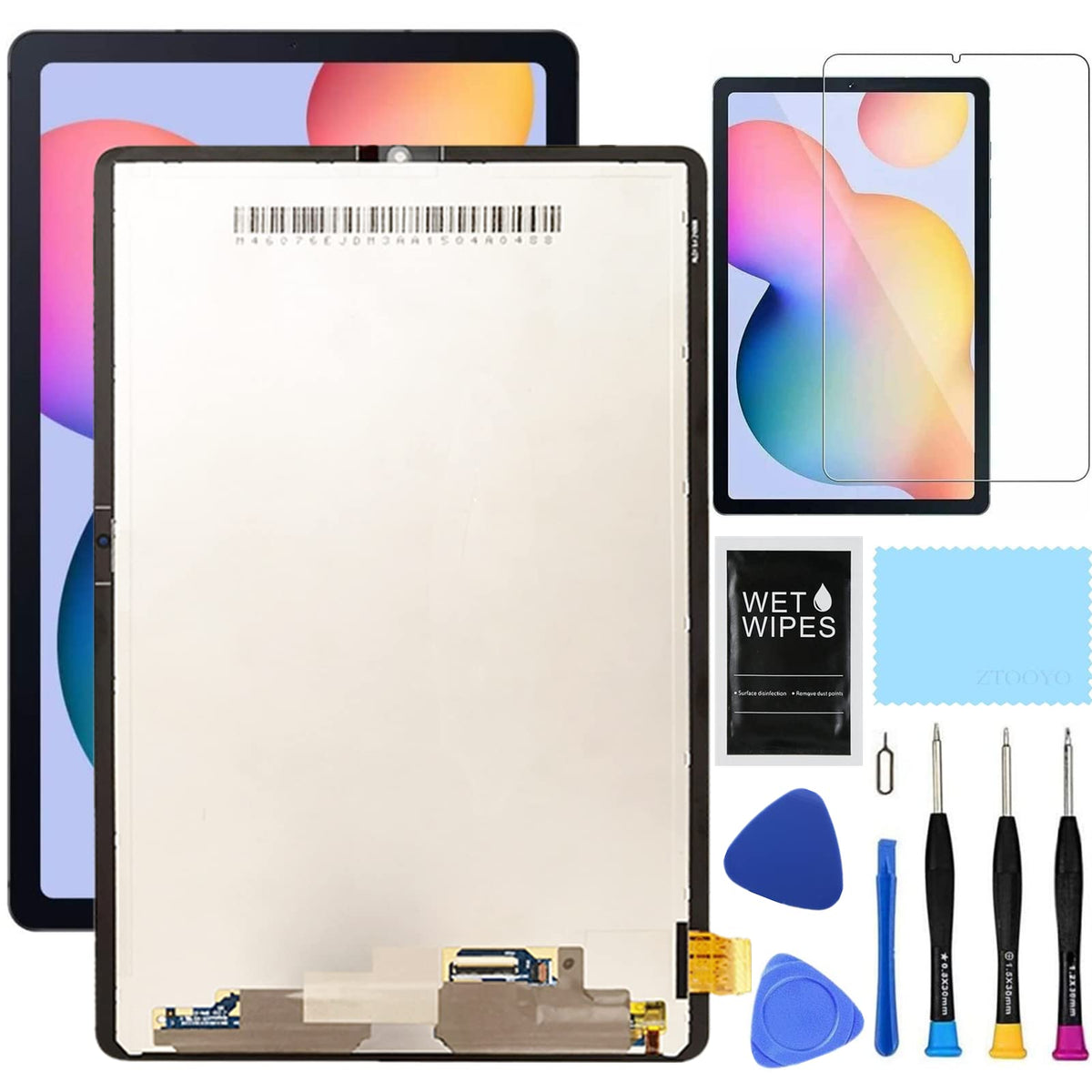

What tools and resources help get a clean replacement result?

The kit includes basic repair tools and a screen protector, but we recommend watching step-by-step repair videos for technique and adhesive guidance. Using proper opening tools, heat to soften adhesive, and a steady workspace will reduce the risk of further damage.

• Use plastic pry tools and a suction cup to separate panels
• Apply controlled heat to soften the adhesive before lifting the glass
• Follow online tutorials such as "S6 Lite Screen Replacement" for visual guidance

Who is this for: This ZTOOYO replacement screen is aimed at DIY repairers and repair shops that service Samsung Galaxy Tab S6 Lite (2022) SM-P610 / P615 units. It's ideal for anyone comfortable with tablet disassembly who wants to restore display clarity and touchscreen function. If you prefer professional installation, take the part to a qualified technician and present the testing notes to ensure proper handling and warranty protection.
