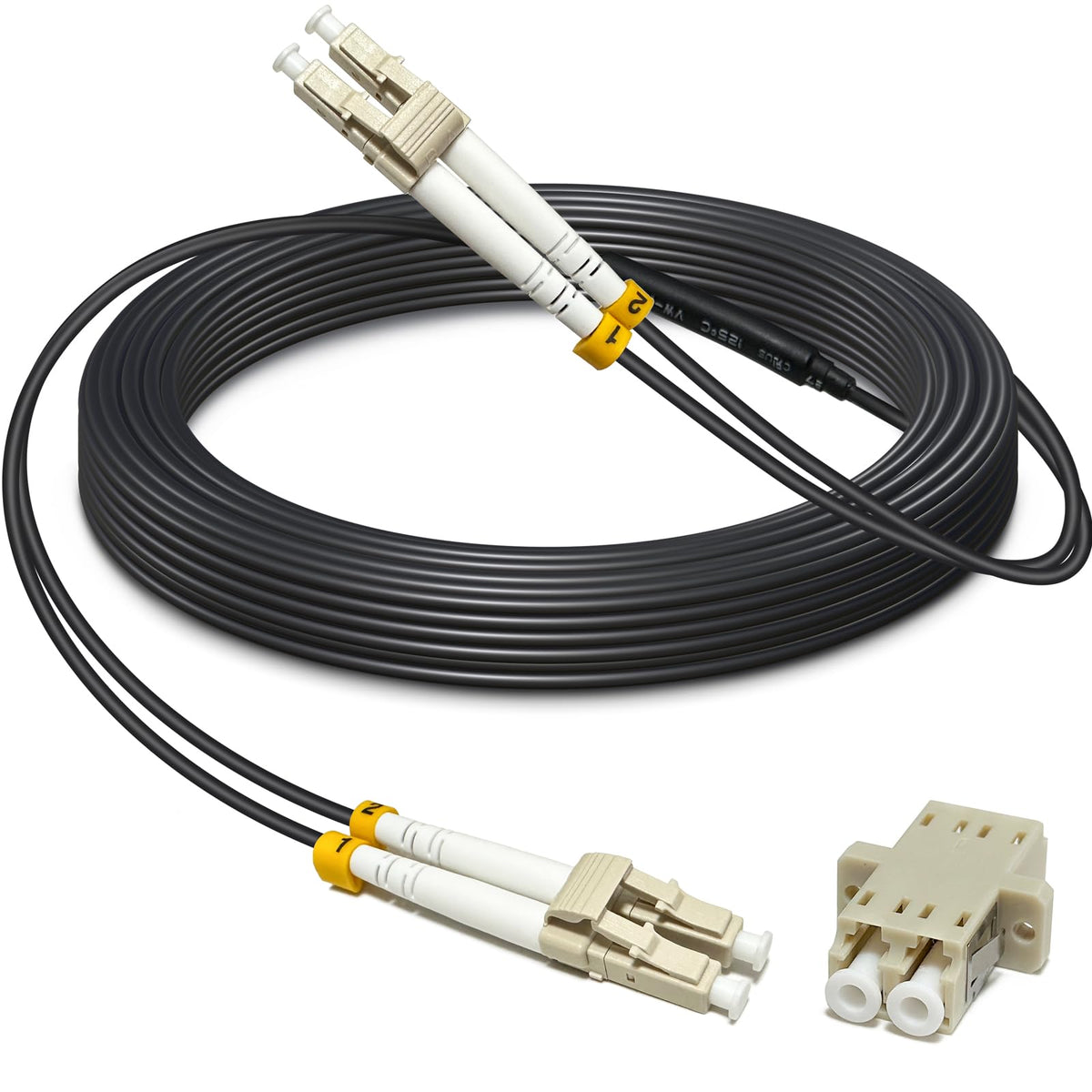

YUTIANHOME OM3 LC‑to‑LC Duplex 30m Armored Fiber Patch Cable

YUTIANHOME’s 30m LC-to-LC duplex OM3 armored fiber patch cable is a pre-terminated, outdoor-rated multimode cable built for reliable 10Gb/40Gb connections with a low-friction LSZH jacket for easy installation.

This 30 meter (100 ft) LC–to–LC duplex OM3 patch cable pairs armored protection with an Ultra Low Friction (μ <0.2) LSZH jacket to deliver high-speed multimode links for campus, CCTV, and data center edge runs where copper isn’t suitable. It’s pre-terminated with LC connectors so you can plug it directly into compatible transceivers or patch panels; the armored construction adds crush and rodent resistance for outdoor or indoor/outdoor transitions.

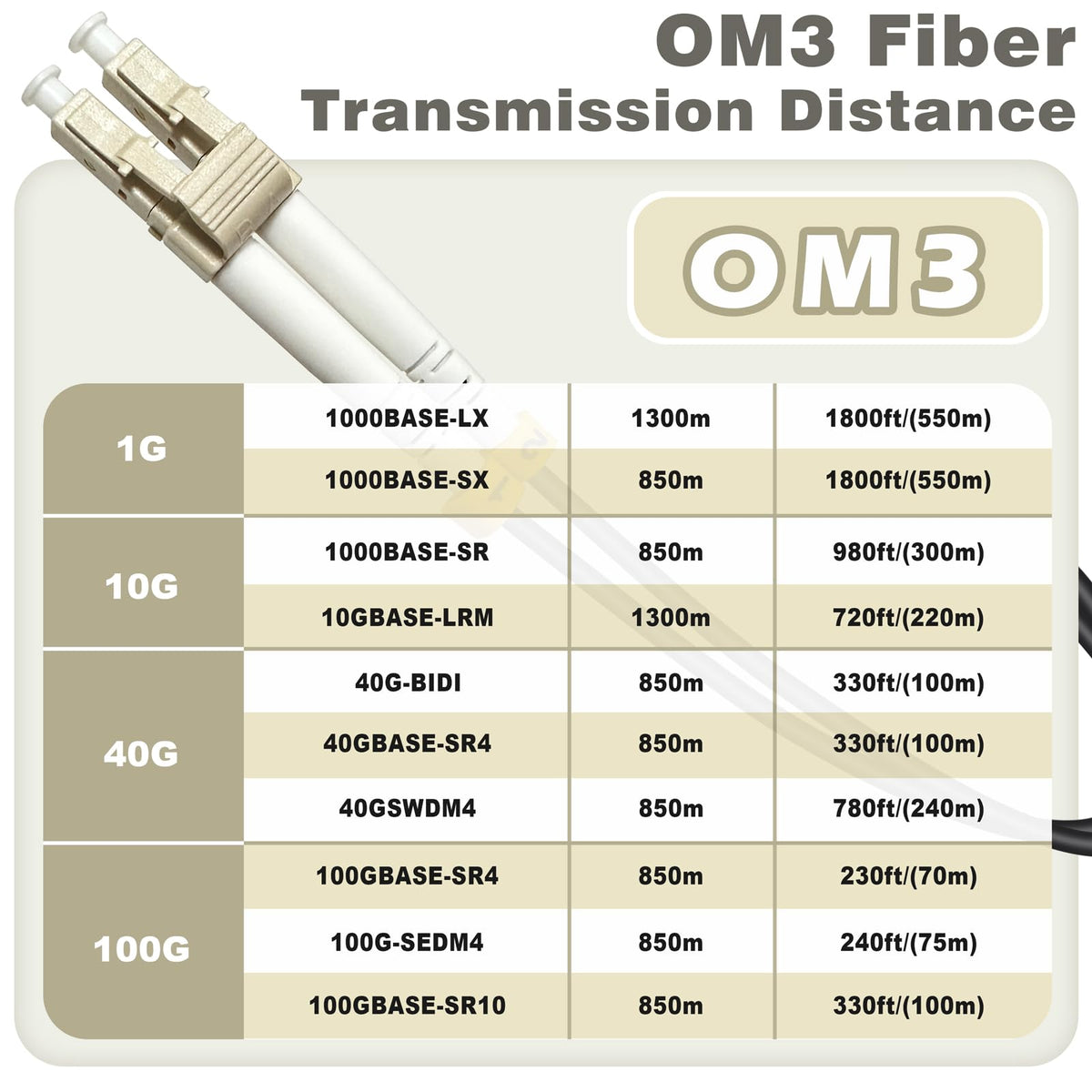

How fast and far will this OM3 cable carry multimode signals?

The OM3 multimode fiber in this cable supports modern multimode transceiver speeds and distances such as 10GbE and short-range 40GbE links when used with the appropriate optics. OM3 is laser-optimized for VCSEL transceivers, providing better reach than OM2 for multimode systems while remaining cost-effective compared with singlemode for short runs.

• Length: 30 meters (100 feet) for moderate building-to-building or campus links
• Speeds: Designed for 10Gb/s and suitable for 40Gb/s short-range applications
• Fiber type: 50/125 μm OM3 multimode for VCSEL-compatible transceivers

What makes the cable suitable for outdoor or mixed indoor/outdoor use?

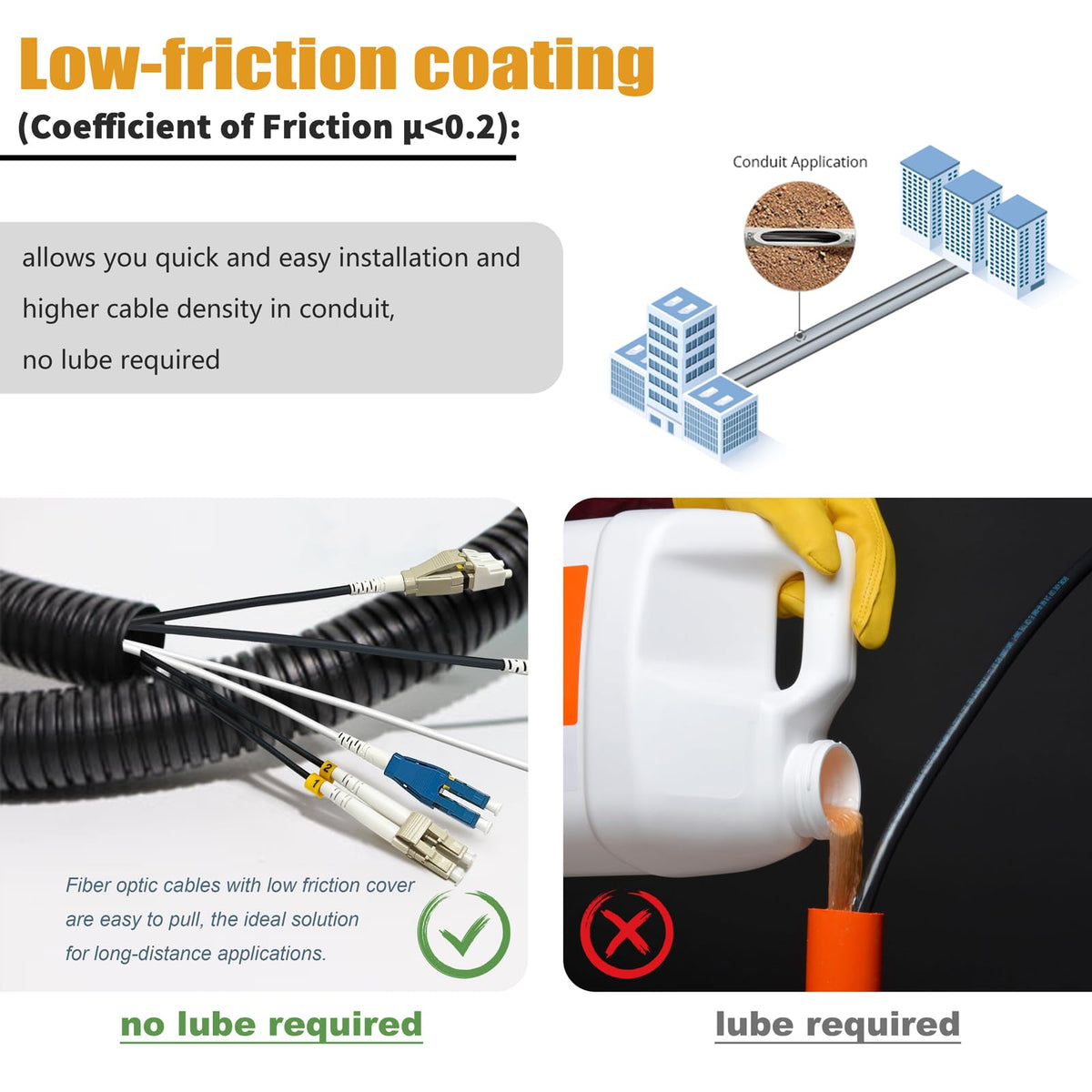

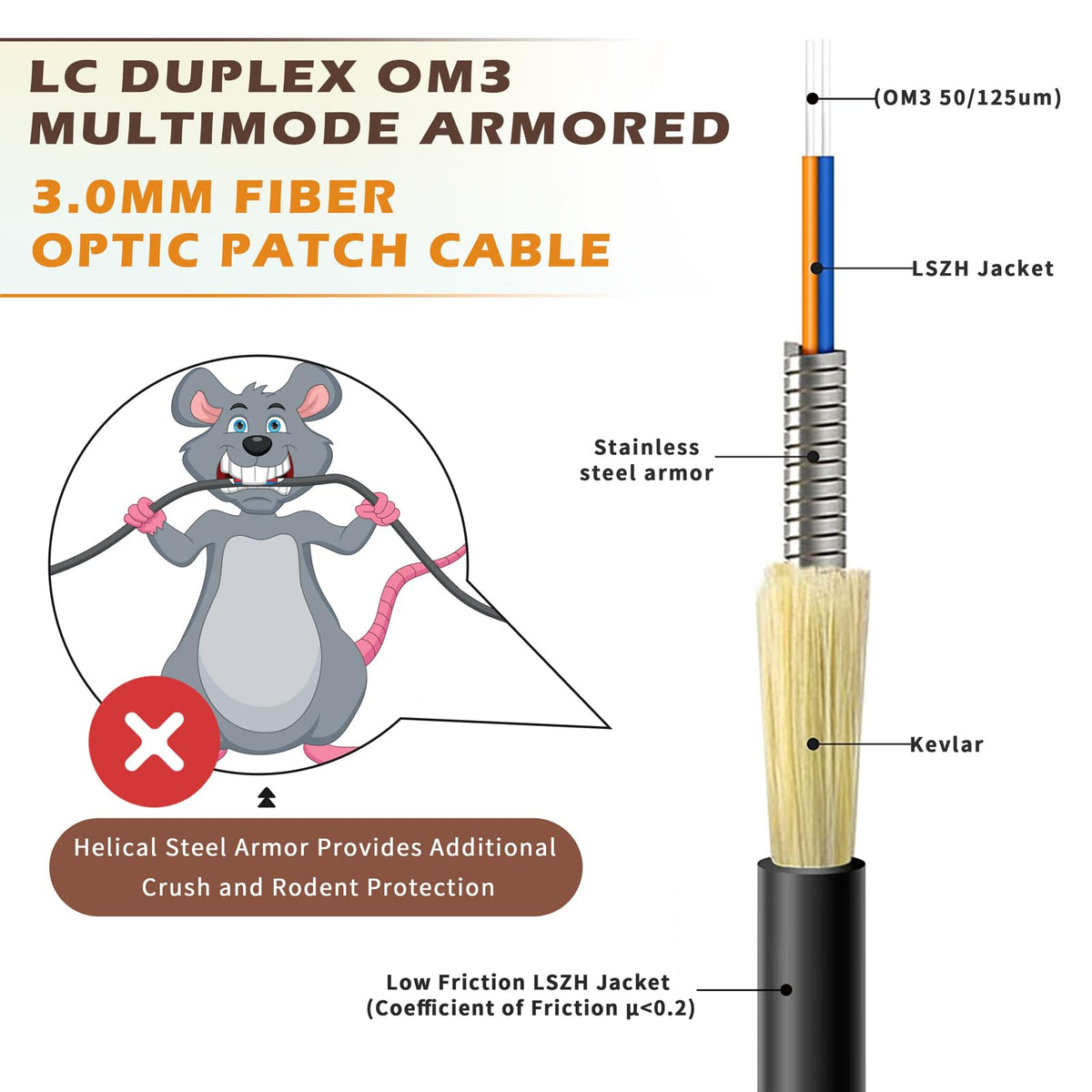

The cable combines a metallic armor layer and a flame-retardant LSZH outer jacket to resist physical damage and limit hazardous smoke if exposed to fire. The low-friction LSZH sheath (coefficient <0.2) eases pulling through conduit and tight pathways while preserving safety standards for indoor installations.

• Armored construction for crush and rodent resistance
• LSZH jacket: low smoke, zero halogen for safer indoor environments
• Low-friction surface reduces installation effort in conduits

How easy is it to install and terminate in real-world networks?

Because the cable is factory-terminated with LC duplex connectors, installation is typically plug-and-play: no field splicing or connector polishing required. The compact 3.0 mm cable diameter and 7.5 mm minimum bend radius allow routing in crowded conduits and equipment racks without compromising performance.

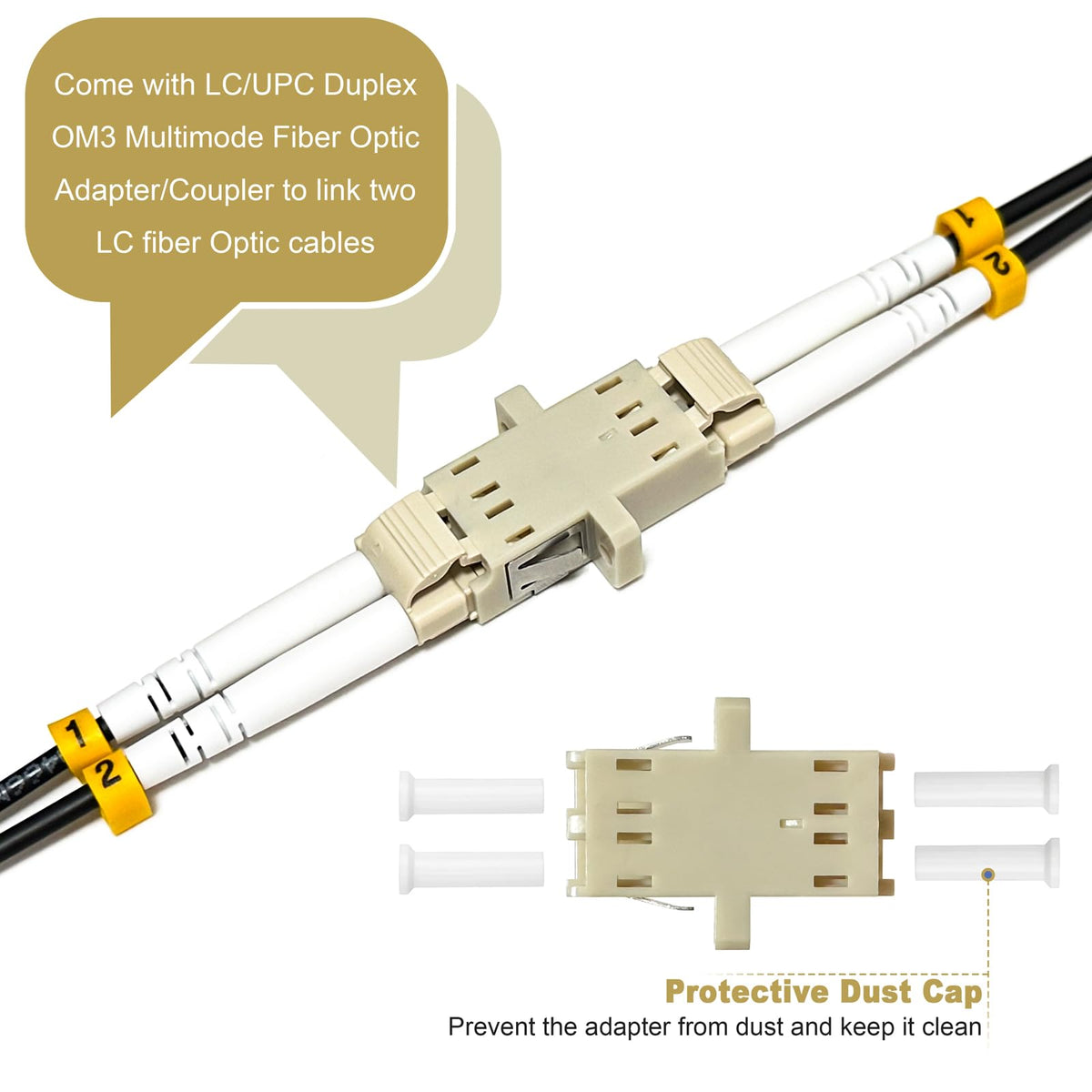

• Pre-terminated LC–LC duplex ends for immediate connectivity
• Cable diameter 3.0 mm and min bend radius 7.5 mm for tight routing
• Plug-and-play setup reduces labor and field termination errors

Who should choose this cable? Network engineers, security camera integrators, and installers handling short to medium multimode runs will appreciate this YUTIANHOME OM3 armored patch cable when they need a robust, pre-terminated solution for indoor/outdoor transitions. It’s ideal where copper cabling cannot reach, where physical protection is required, or where quick deployment with LC connectors is a priority. If you require long-haul singlemode fiber or custom lengths beyond 30 m, consider singlemode options or custom assemblies; for campus links, CCTV backbones, data closet interconnects, and fiber patching to optical transceivers, this cable is a practical, time-saving choice.

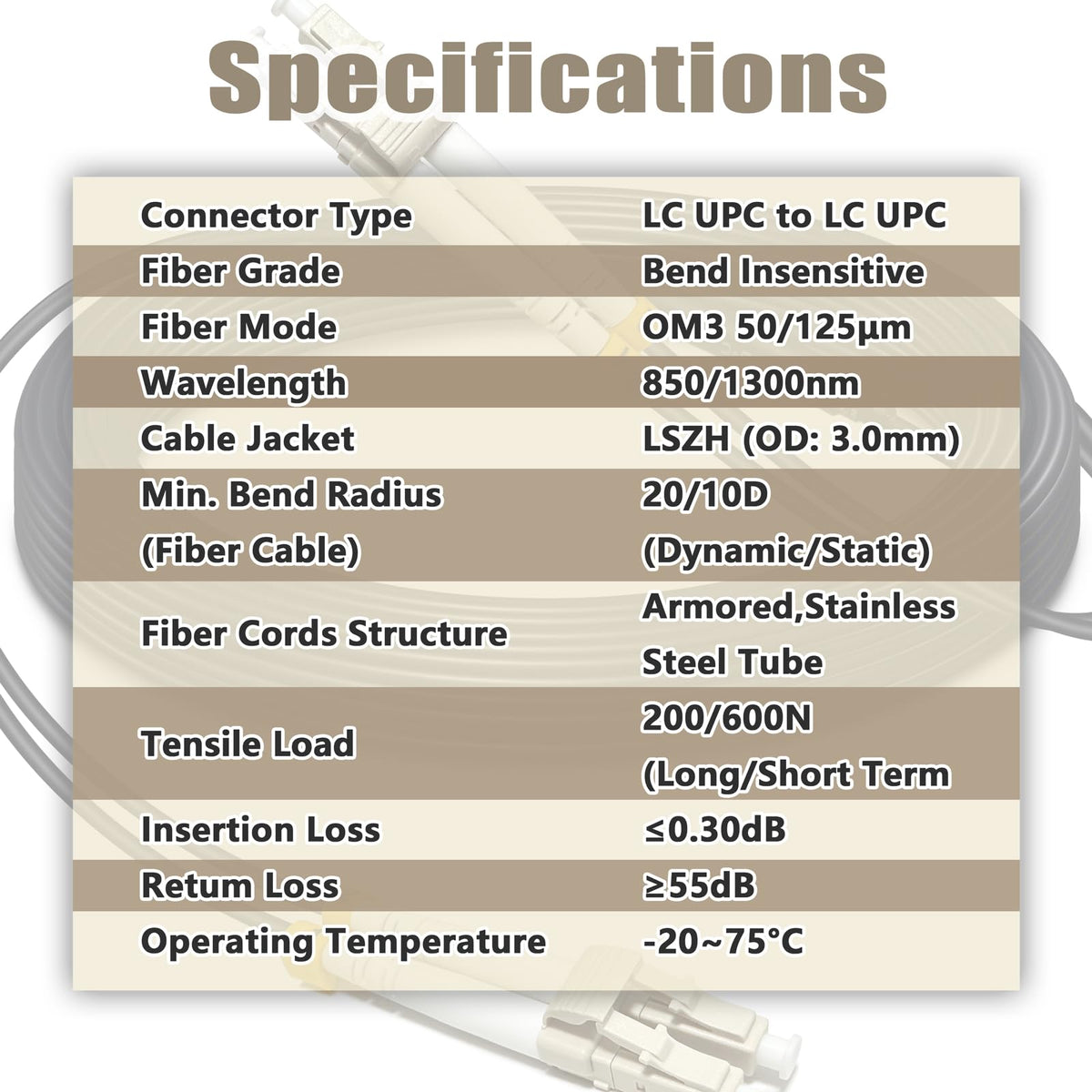

Key specifications at a glance: 30 m (100 ft) length, duplex LC–LC connectors, 50/125 μm OM3 multimode fiber, 3.0 mm armored cable diameter, min bend radius 7.5 mm, low-friction LSZH black jacket, supports 10Gb and short-range 40Gb multimode links.
