YUTIANHOME OM3 10m 4-Core Armored LC-LC Fiber Patch Cable

YUTIANHOME's 10-meter 4-core OM3 armored fiber patch cable is a pre-terminated, LC-to-LC multimode link built for harsh outdoor and industrial installations.

This armored LC–LC fiber assembly combines OM3 50/125µm multimode performance with a rugged TPU outer jacket and steel armor to protect four strands of fiber during direct-burial, overhead, or conduit installations. At 10 meters and pre-terminated on both ends, it supports duplex 10Gb links and is ready to plug in, saving time on field splicing and termination while offering high tensile and crush resistance for demanding environments.

How does this cable hold up in tough outdoor conditions?

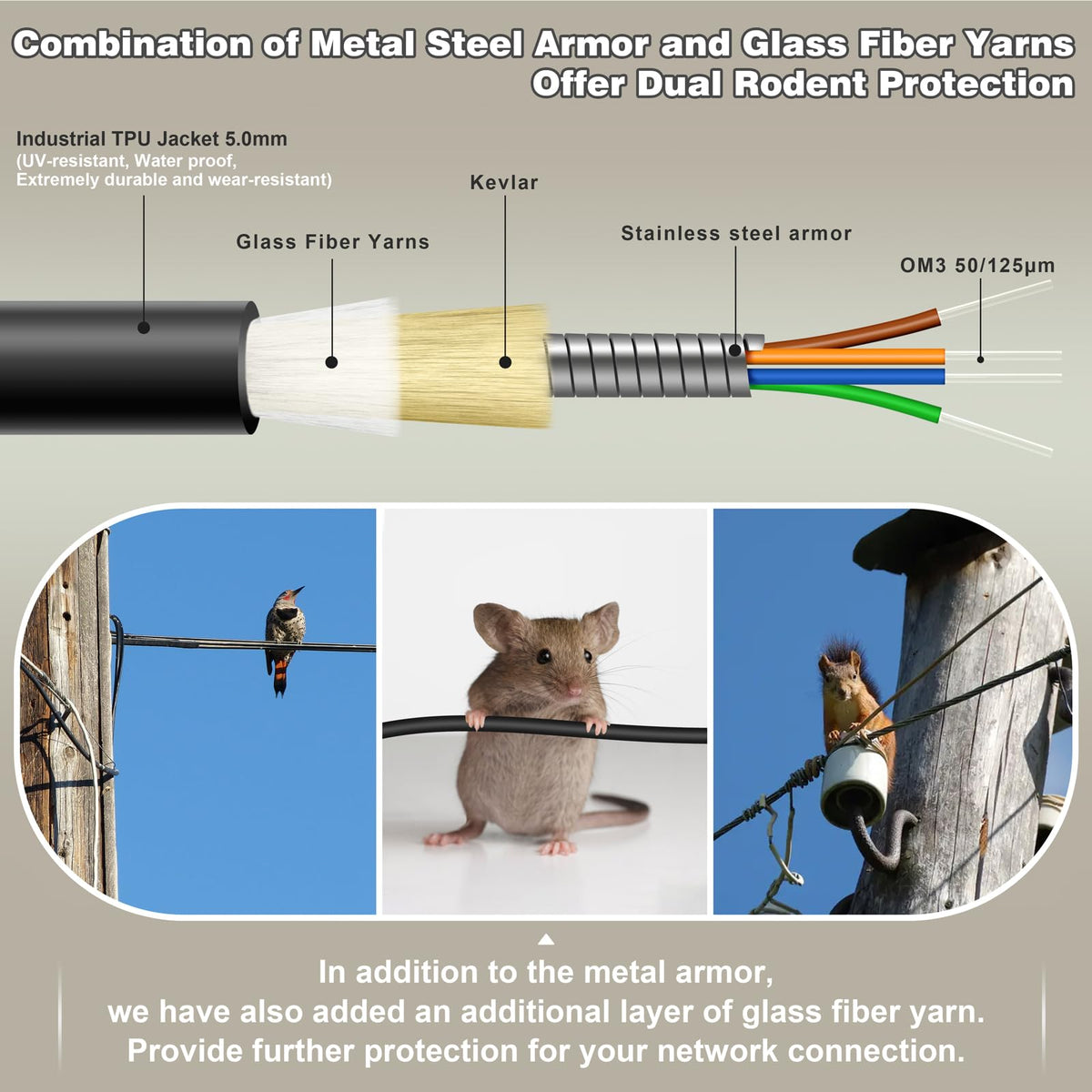

The jacket is made from industrial-grade TPU that resists abrasion, UV, water ingress, and extreme temperatures, reducing the chance of failure in exposed runs. A combined steel armor layer plus glass fiber yarns provide mechanical protection and rodent resistance during direct burial or exposed routing.

• TPU outer jacket: abrasion, UV, water, and temperature resistant
• Metal steel armor + glass fiber yarns: dual-layer mechanical defense
• Rated crush strength up to 3000N and tensile up to 600N

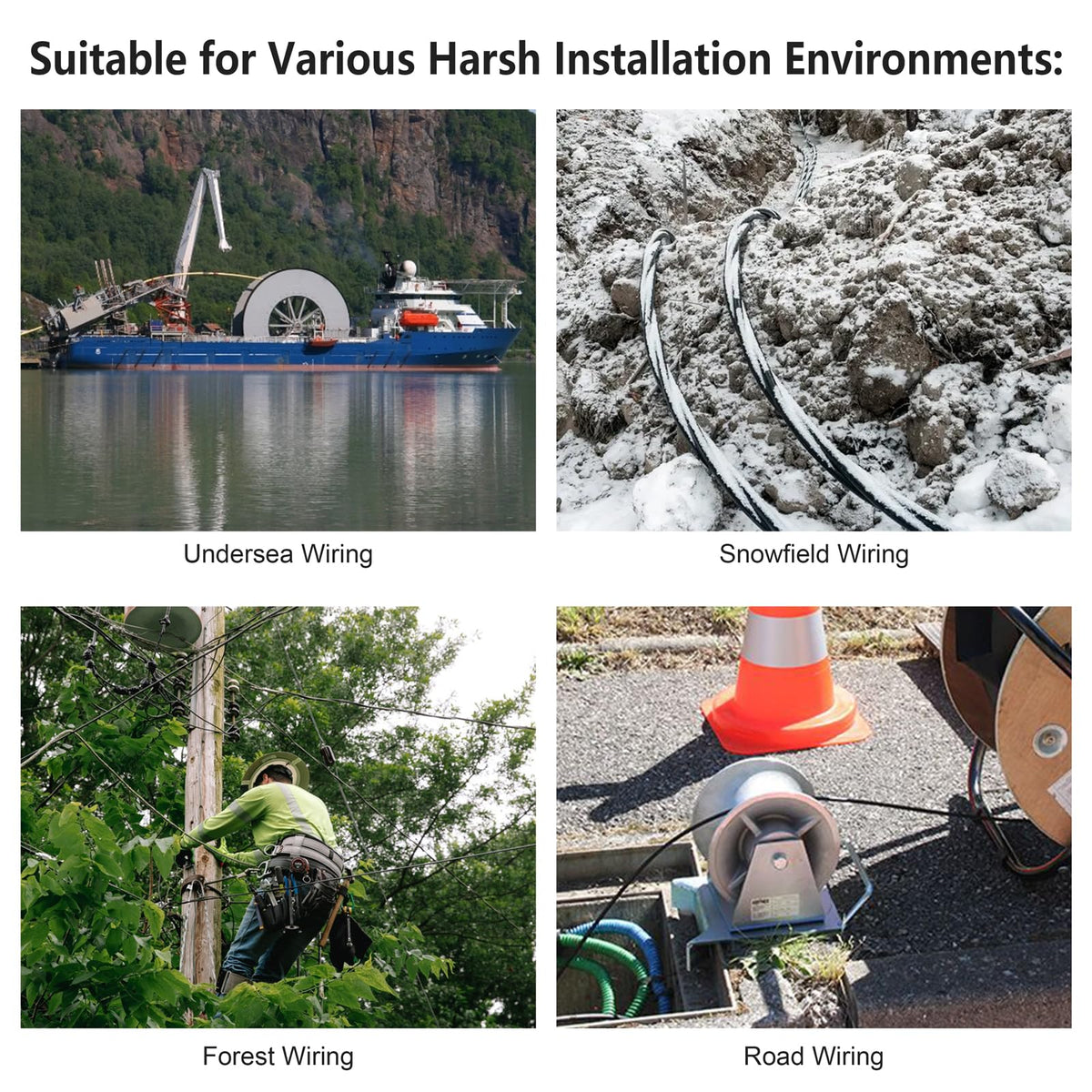

• Suitable for roadsides, industrial sites, snowfields, and construction zones

Will it work for indoor and outdoor networks without splicing?

Yes — the cable comes pre-terminated with LC connectors on both ends for immediate use in patch panels, switches, or transceivers. Pre-terminated ends reduce installation time and lower the need for specialized field tools or skilled splicing.

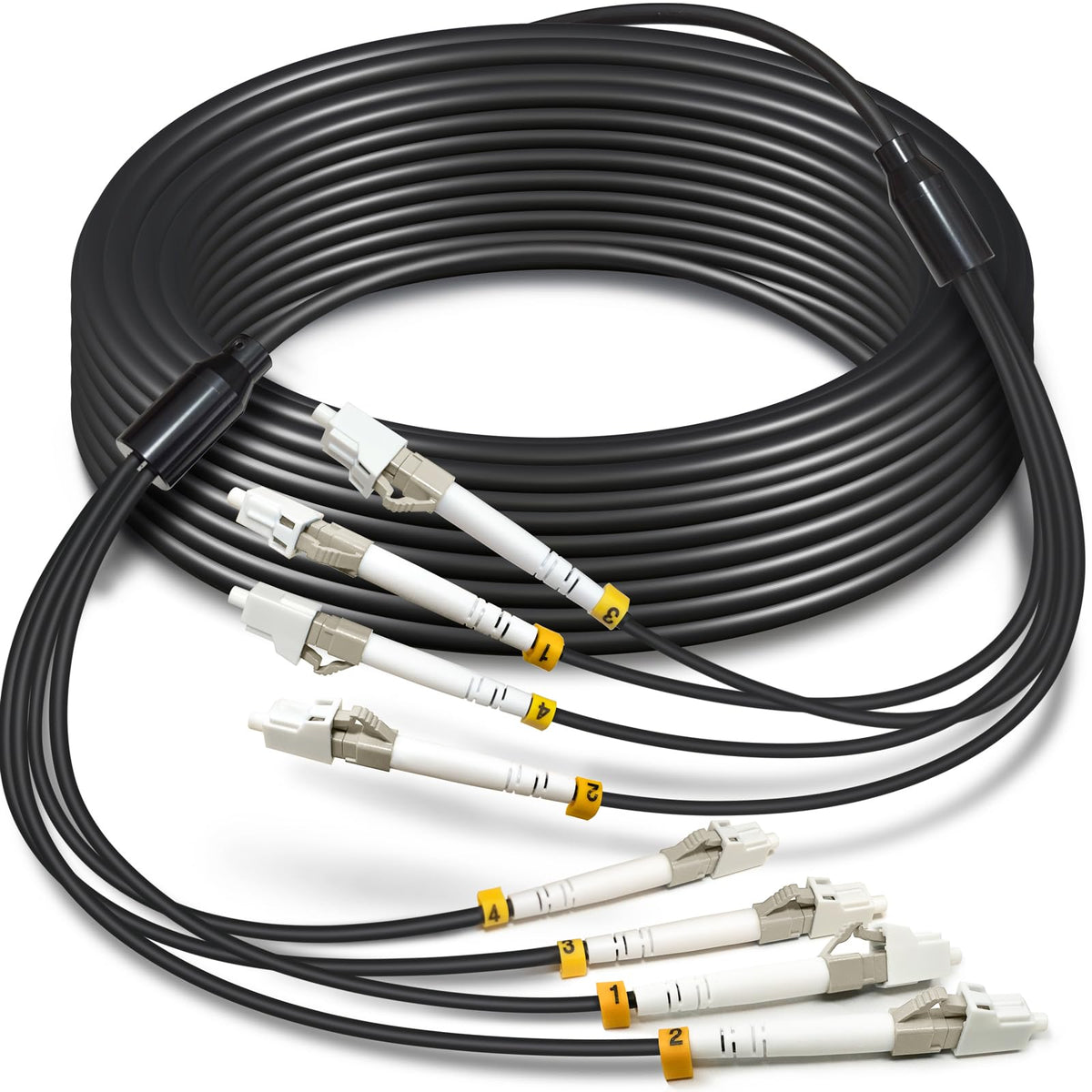

• Pre-terminated LC–LC connectors for plug-and-play deployment
• 10-meter length ideal for short outdoor runs or indoor-to-outdoor transitions
• Duplex-ready OM3 multimode supports common 10Gb transceivers

What performance and fiber type does this cable provide?

The cable uses OM3 multimode fiber with a 50/125µm core/cladding geometry, optimized for short-range 10Gb Ethernet and similar multimode links. OM3 offers improved bandwidth over standard multimode fibers, making it suitable for data centers and enterprise backbone segments where short-to-medium reach multimode links are used.

• OM3 multimode fiber, 50/125µm, optimized for 10Gb applications
• Four fiber strands allow duplex or multi-channel connectivity
• LC connectors compatible with most multimode transceivers and ports

How reliable is this cable mechanically and in installation?

The construction is designed to withstand installation stresses: the TPU jacket and armored core deliver high tensile and crush resistance, while the pre-terminated design reduces handling errors. Whether pulled through conduit, laid underground, or routed overhead, the cable retains mechanical integrity for long-term service.

• Maximum tensile strength: 600N
• Maximum crush resistance: 3000N

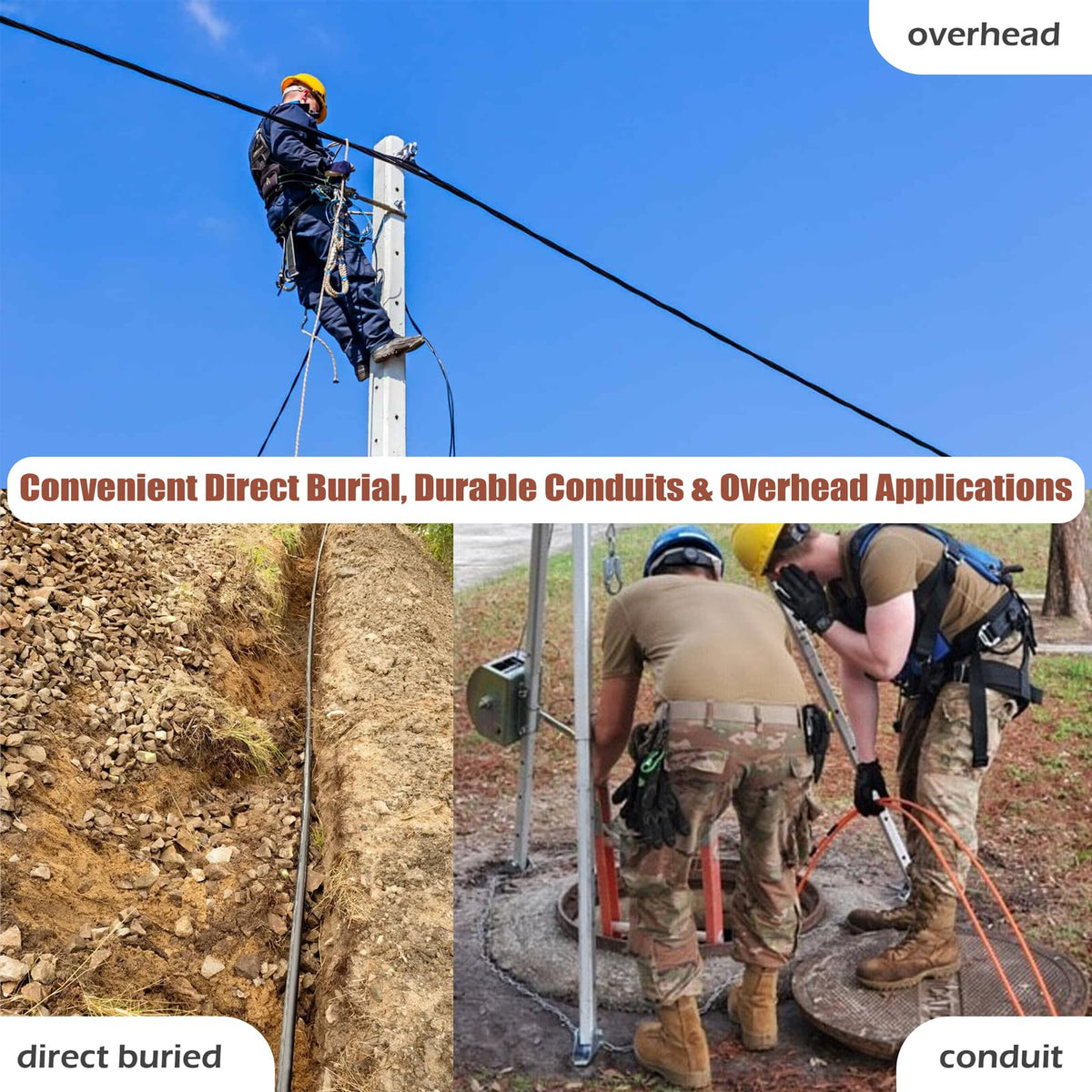

• Installable overhead, direct-buried, or routed through conduits

Who is this for? Installers and network managers who need a tough, ready-to-use multimode link for short outdoor or industrial runs will find this cable practical: field technicians saving time with pre-terminated LC ends, contractors requiring rodent- and crush-resistant assemblies for direct-burial, and enterprises needing plug-and-play OM3 performance for 10Gb connections in exposed environments. It suits applications where durability matters as much as multimode bandwidth: campus links, edge data points, factory networks, and temporary construction-site connectivity.
