YUTIANHOME LC-LC Armored Outdoor Single-Mode Duplex Fiber

This fiber patch cable combines single-mode 9/125µm optics with a helical steel armor layer and an ultra-low-friction LSZH jacket so you can deploy a durable, high-density trunk outdoors or through conduit without sacrificing signal performance. Terminated with precision ceramic ferrules and shipped with an LC adapter, the 30-meter LC-LC jumper supports OS1/OS2 environments and is built for installers who need reliable physical protection and easy handling in challenging installations.

How does this armored LC-LC cable survive outdoor and conduit runs?

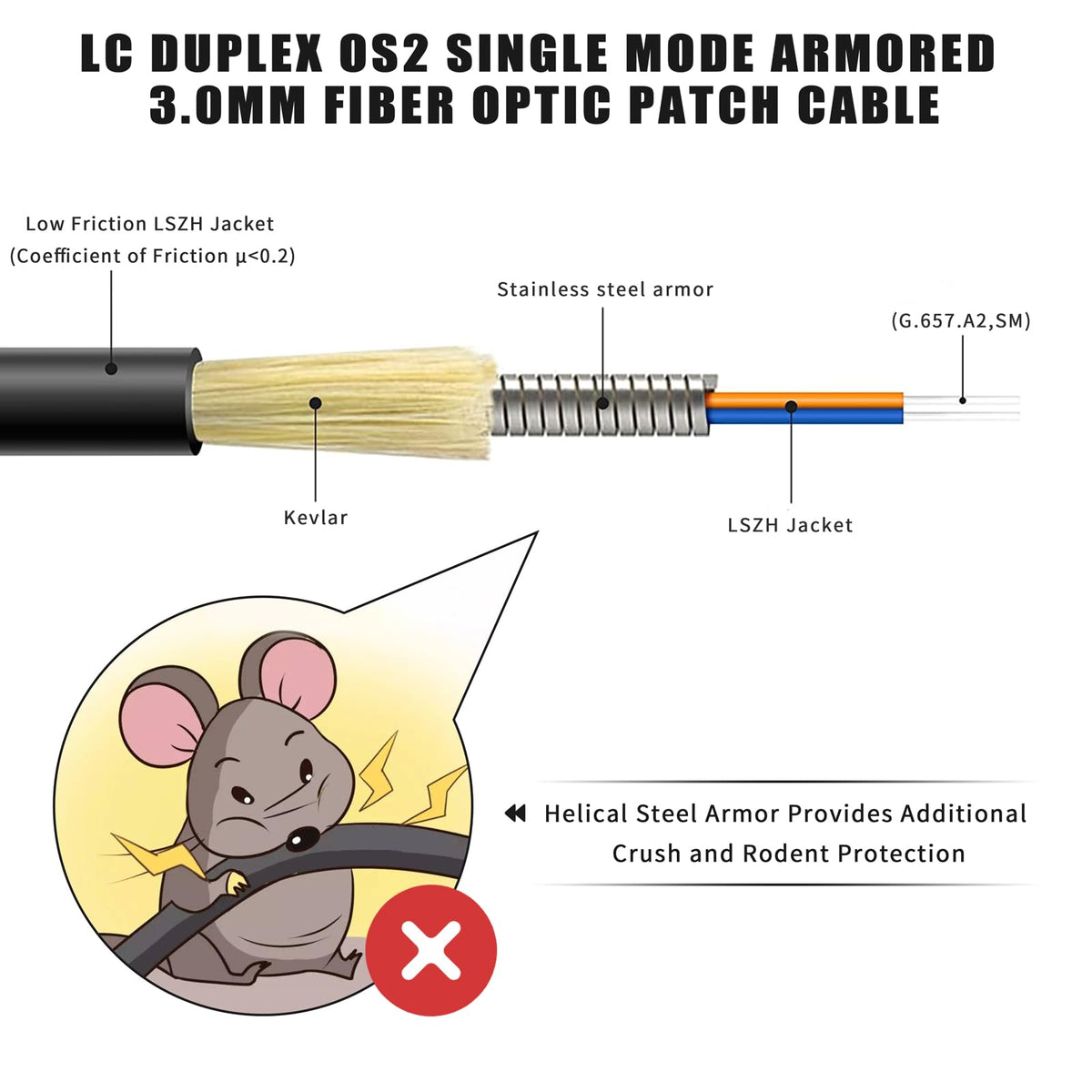

The cable uses a helical steel armor layer beneath the jacket that resists crushing forces and deters rodent damage while preserving fiber integrity. The armored construction protects the fiber core from mechanical stress without adding excessive stiffness.

• Helical steel armor for crush and rodent resistance
• 3.0mm overall diameter balances strength and flexibility
• Minimum bend radius 7.5mm to tolerate tight routing without microbending

Why is the LSZH low-friction jacket important for installation?

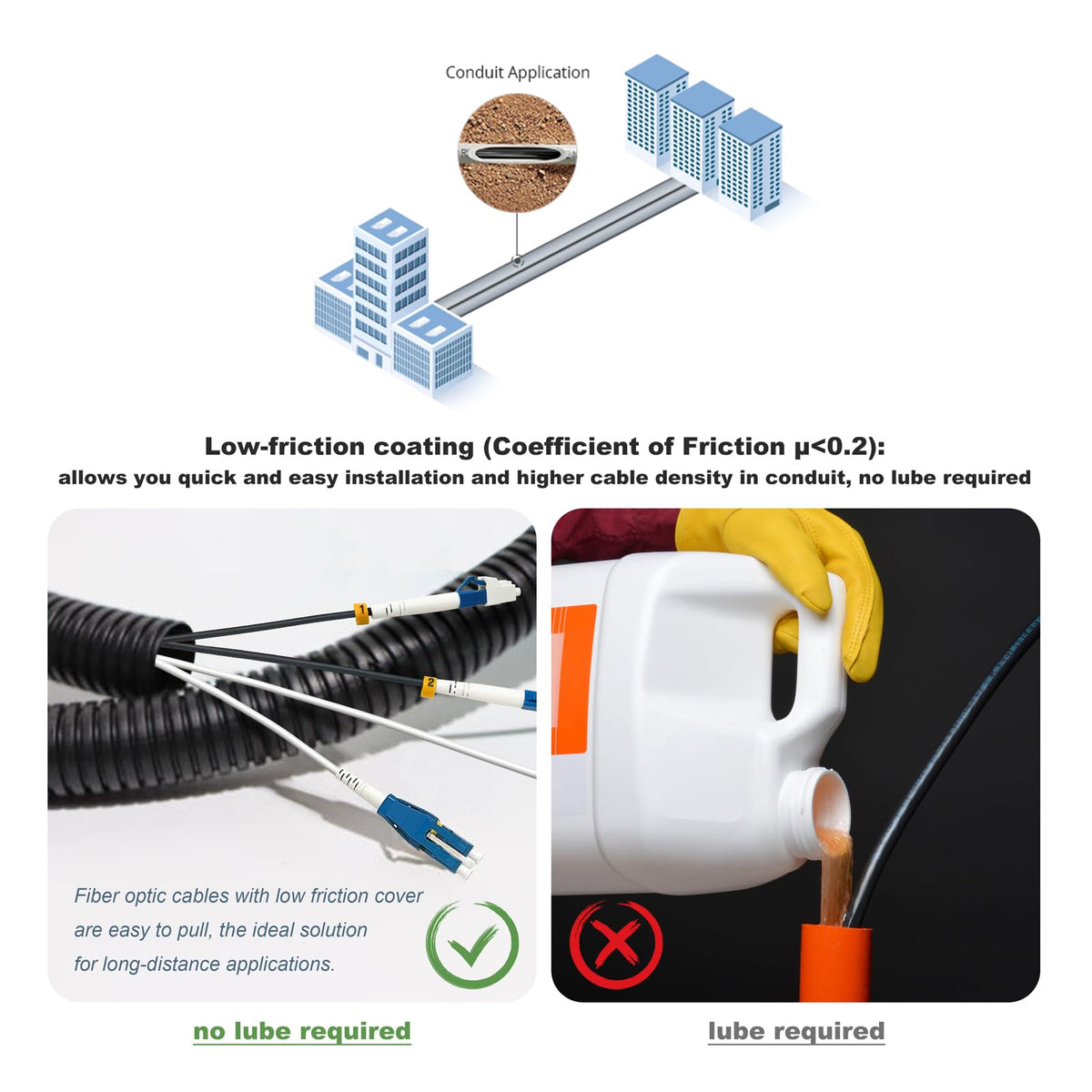

The ultra low-friction LSZH outer jacket (coefficient of friction <0.2) slides easily through conduits and across inner duct surfaces, reducing pull tension and installation time. It also meets low-smoke, zero-halogen requirements for safer indoor transition zones and equipment rooms.

• Low friction reduces pull force and cable wear during installation
• LSZH material minimizes smoke and halogen release in confined spaces
• Smoother jacket supports higher density routing in tight conduits

What performance and connector quality can I expect from this LC fiber jumper?

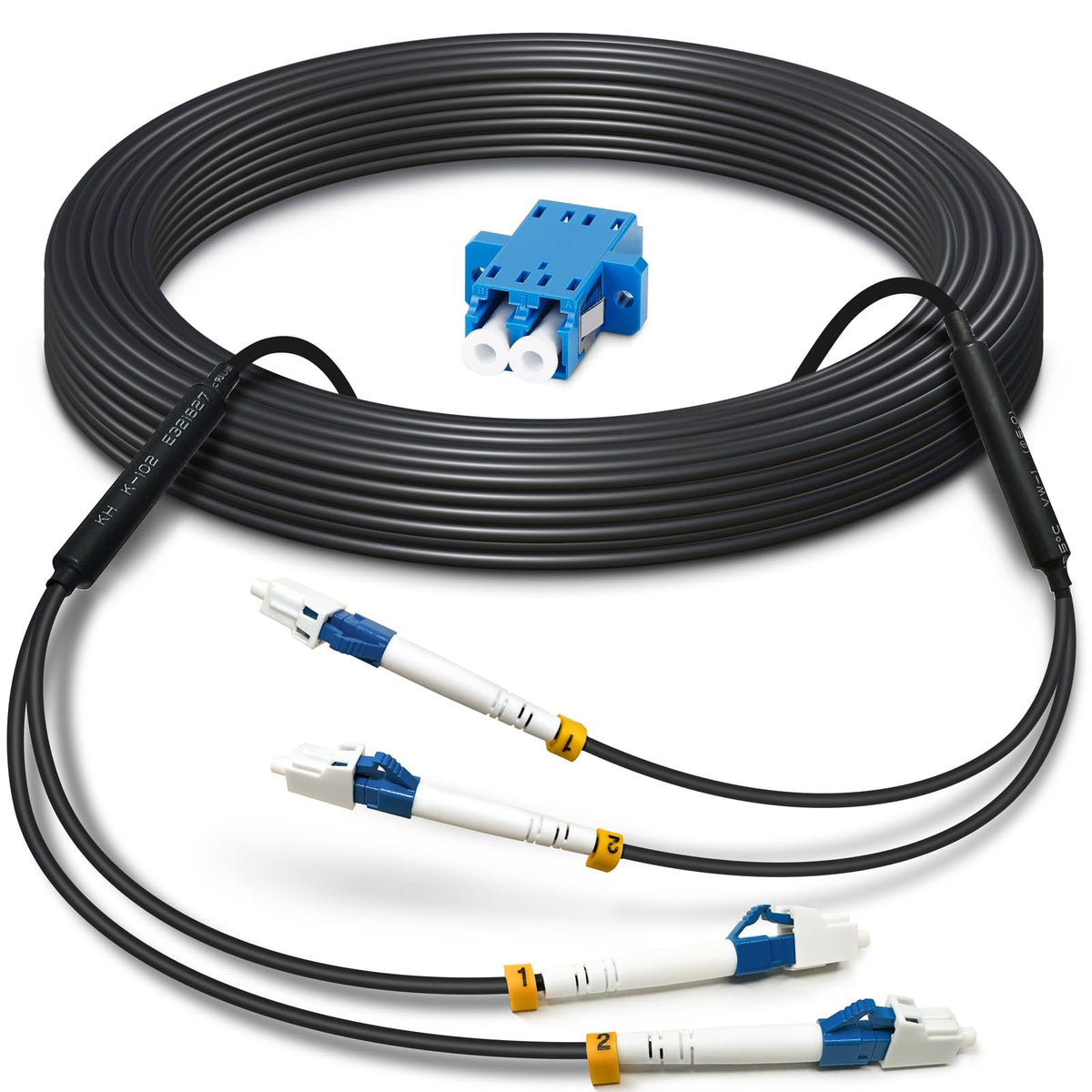

This single-mode duplex cable uses 9/125µm fiber optimized for OS1/OS2 transmission, suitable for long-distance, low-loss links. Both ends feature precision ceramic ferrule LC connectors for repeatable, low-insertion-loss mating to standard LC ports.

• Single-mode 9/125µm fiber for long-distance runs
• Foxconn ceramic ferrules for consistent low signal loss
• Duplex LC-LC termination for straightforward patching and duplex devices

What accessories and sizing details come with the cable?

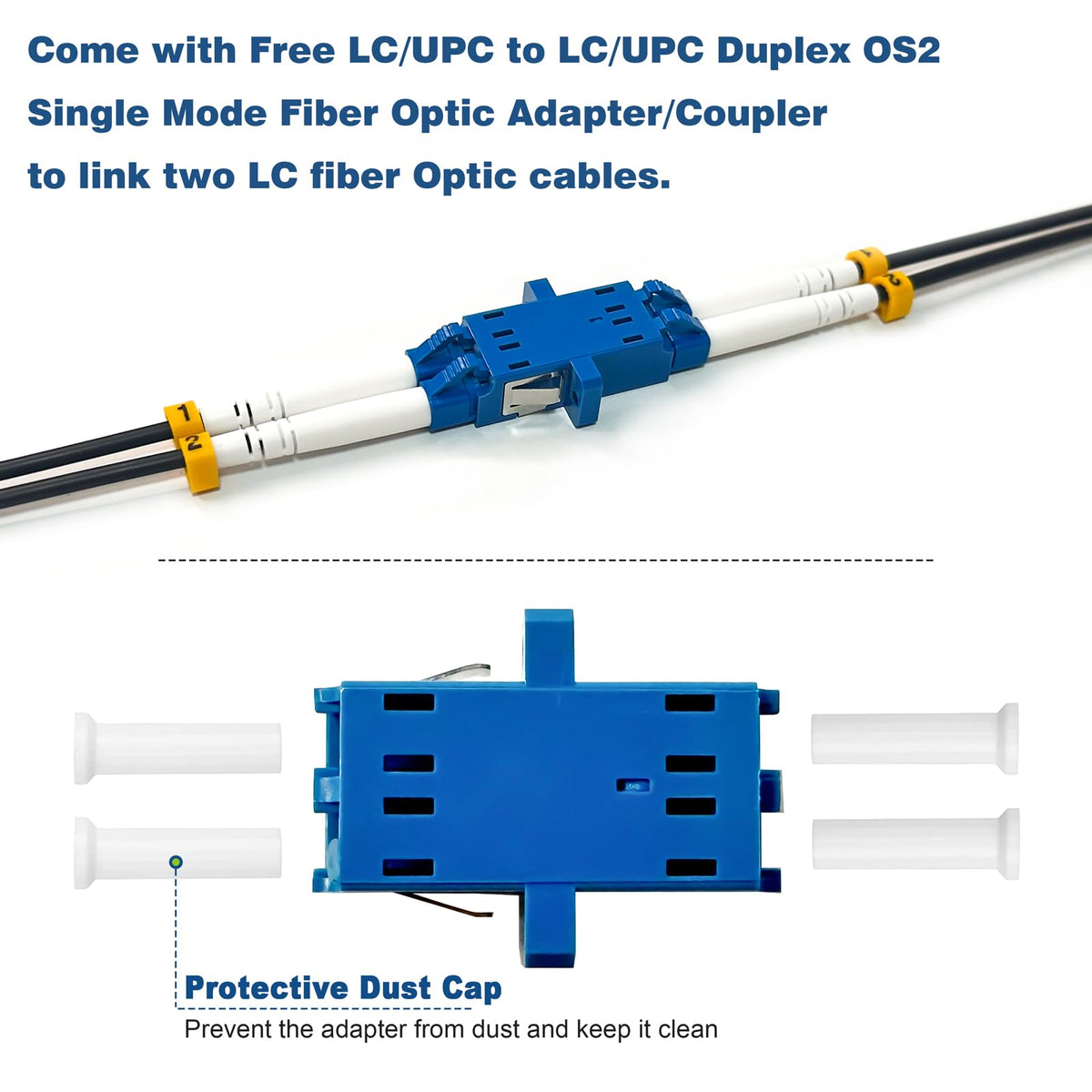

The package includes a removable LC single-mode fiber coupler to extend or temporarily join runs without additional adapters. Physical specifications are compact for an armored design, making it suitable for both outdoor aerial and indoor conduit use.

• Included LC adapter (coupler) for quick extensions
• Cable length: 100ft / 30m — common service loop and routing length
• Cable diameter: ~3.0mm; bend radius: 7.5mm (fiber core)

Who is this for? Installers, network engineers, and integrators who need a dependable outdoor-rated, single-mode LC-LC duplex patch cable that resists crushing and rodent damage while staying easy to pull through conduit will find this YUTIANHOME cable useful. It suits fiber backbone runs, outdoor-to-indoor transitions, and any environment where physical protection plus low-loss single-mode performance matter. If you require different lengths, connector types, or indoor-only low-profile cables, consider alternatives tailored to those needs.
