YUTIANHOME 65ft Armored Outdoor LC‑LC 9/125µm Fiber Cable

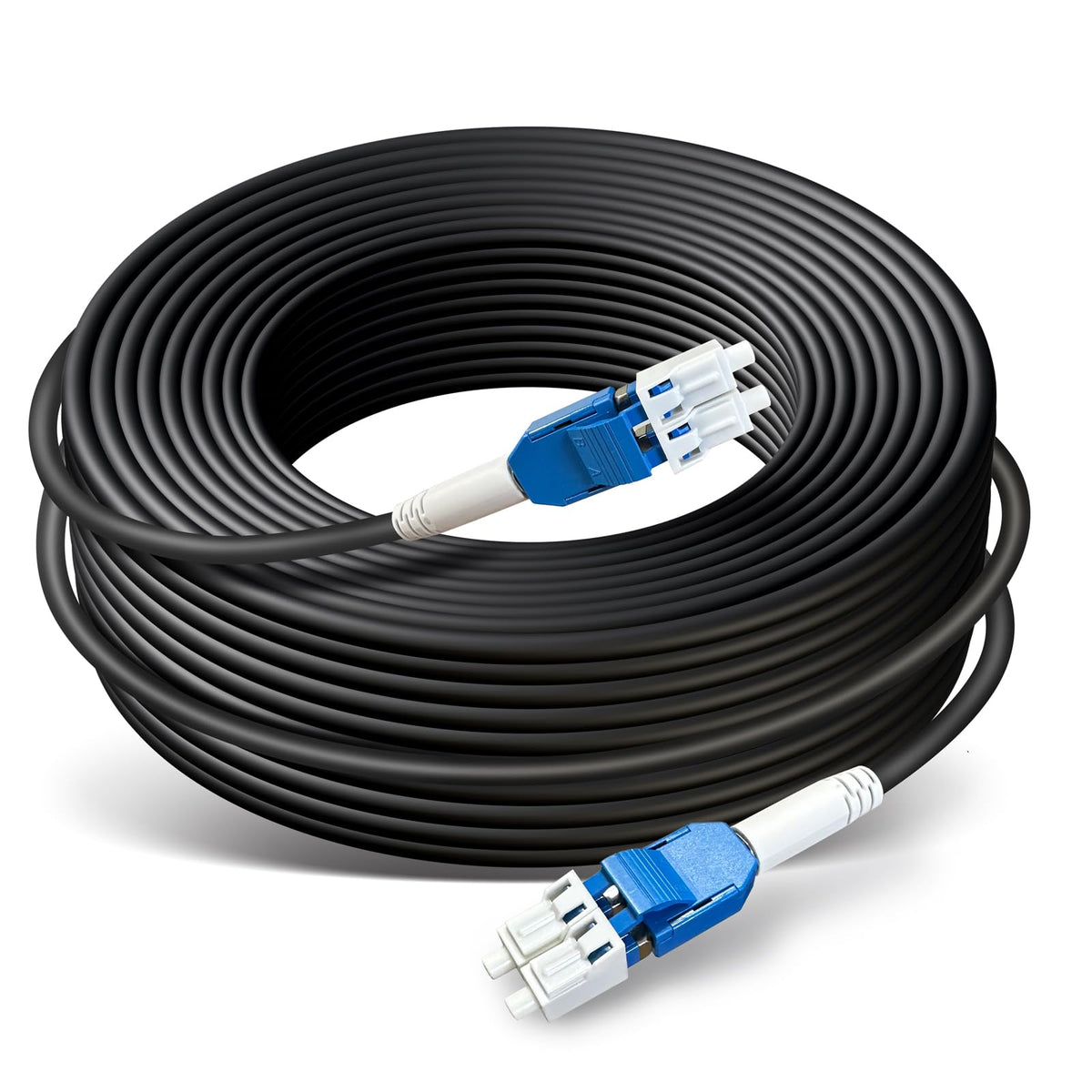

YUTIANHOME's 65ft (20m) OD‑5mm armored outdoor single‑mode duplex LC‑to‑LC fiber cable is a rugged, direct‑bury ready patch line built with TPU jacketing, steel armor and glass‑fiber yarns for long outdoor life.

This outdoor-rated 9/125µm single‑mode duplex patch cable combines a uniboot LC pair with a thicker 5.0mm TPU outer jacket and metal/FRP reinforcement so it tolerates harsher handling, UV exposure, moisture and rodents better than thin indoor patch cords. It’s engineered for aerial, conduit or direct‑bury installations where durability and minimal insertion footprint at the connector end matter.

How is this cable protected for outdoor and industrial use?

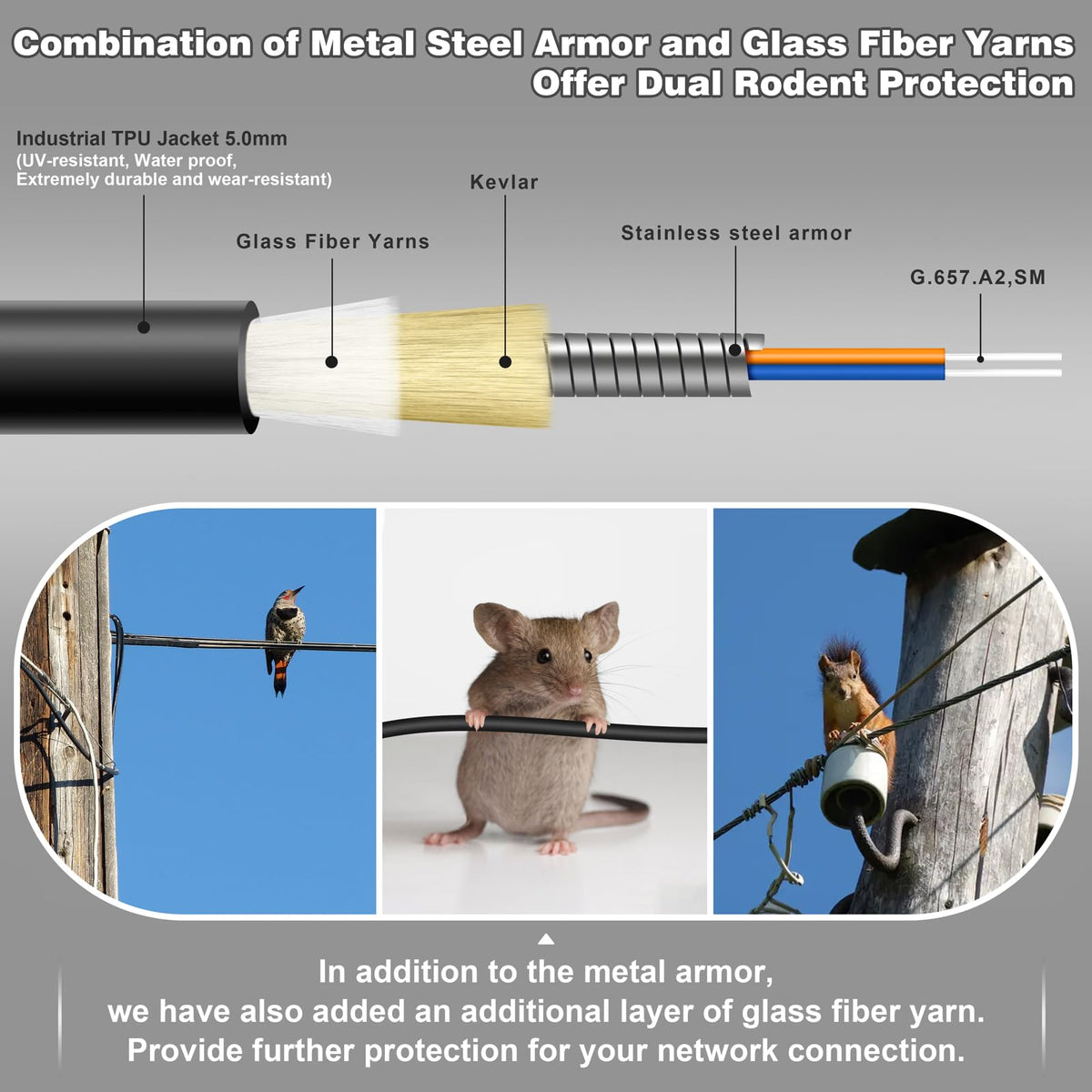

The cable uses a thermoplastic polyurethane (TPU) outer jacket that resists abrasion, oil, UV and a wide temperature range, while a metal steel armor plus glass‑fiber yarns provide mechanical defense against crushing and rodent damage. These layers work together to keep the delicate 9/125µm fiber glass intact during rough installations.

• TPU jacket: high abrasion and UV resistance suitable for roads, construction sites and snowfields.
• Steel armor + glass fiber yarns: dual protection versus rodents and impact.
• 5.0mm outer diameter: thicker wall for extra mechanical durability versus 3.0mm cords.

What connector style and fiber type does it use, and why does that matter?

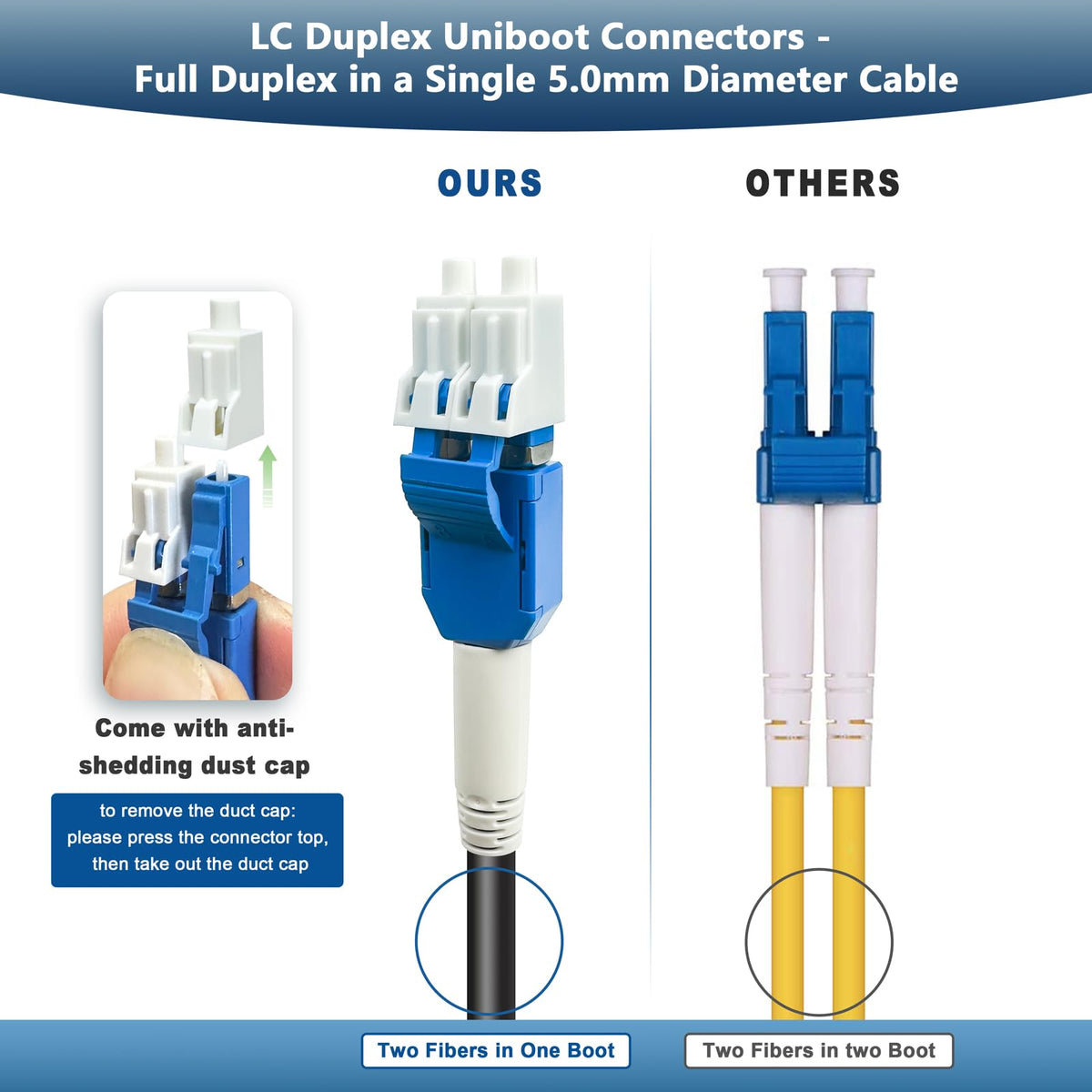

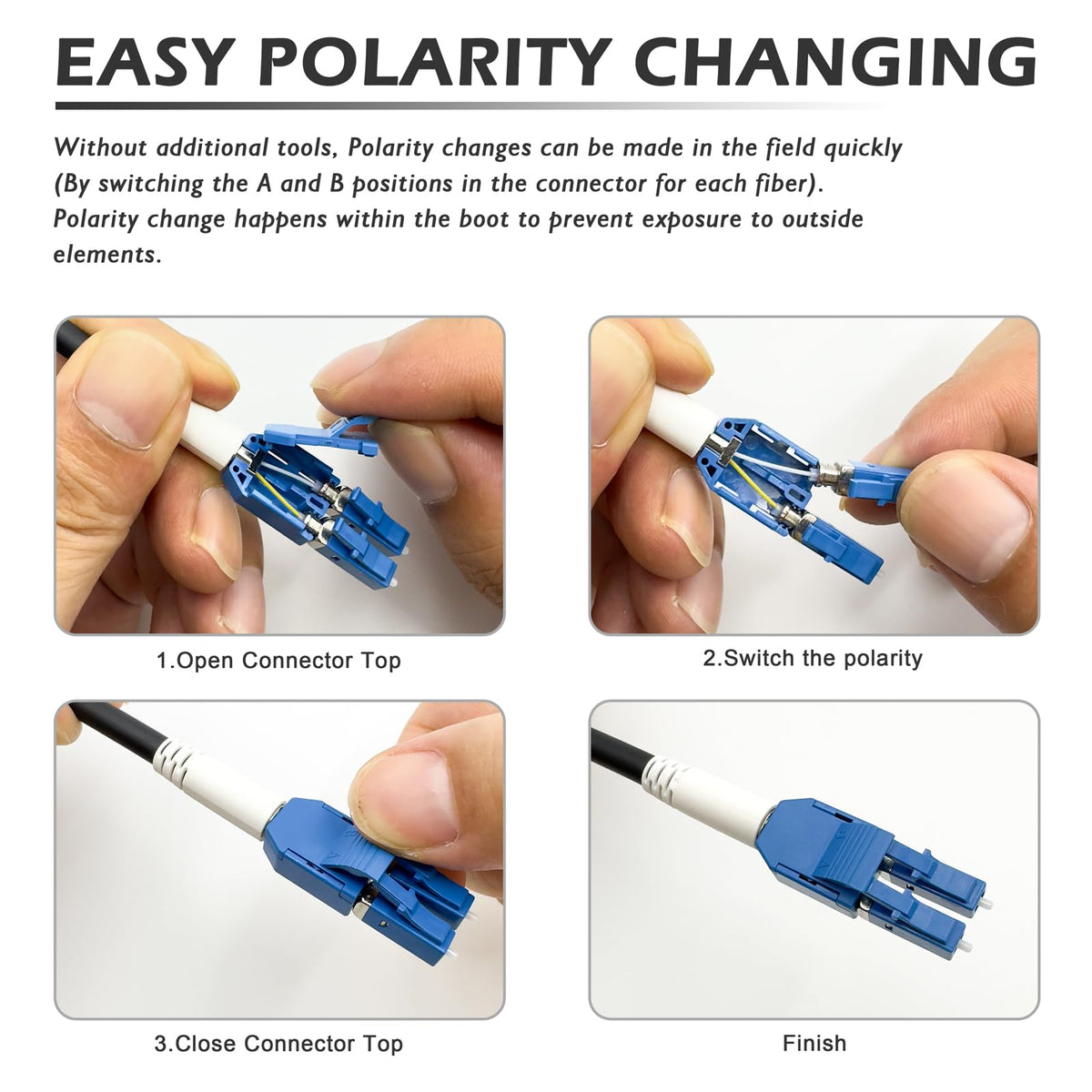

This cable is a single‑mode duplex with LC uniboot connectors on both ends (LC to LC), using 9/125µm fiber optimized for long‑distance, low‑loss single‑mode links. The uniboot LC design keeps two fibers inside one slim boot, simplifying routing through panels and allowing easy polarity corrections without tools.

• Uniboot LC duplex: two fibers in a single compact boot for tidy cable management.
• 9/125µm single‑mode: suitable for long runs and single‑mode equipment.
• LC‑to‑LC termination: common in modern patch panels, SFP and transceiver ports.

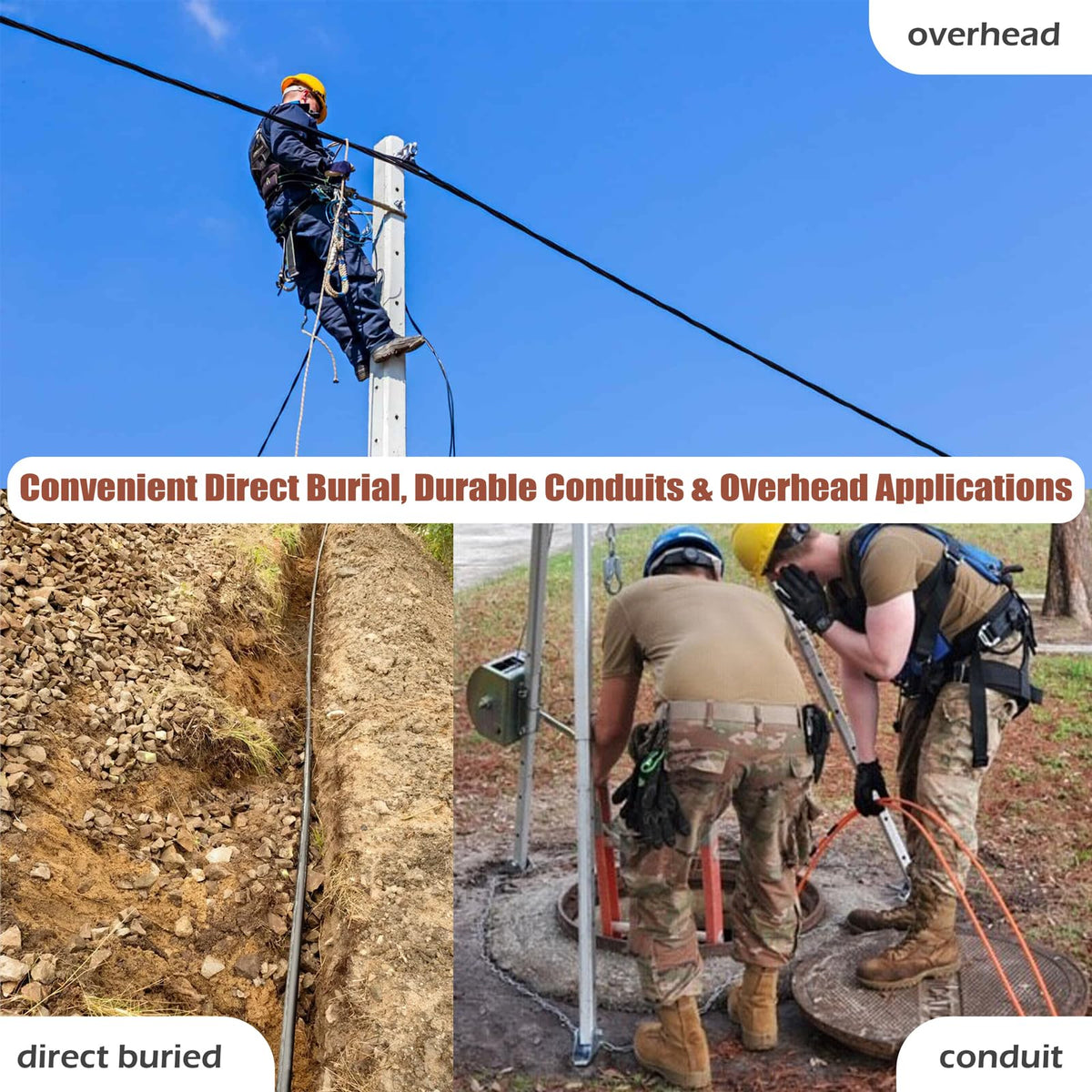

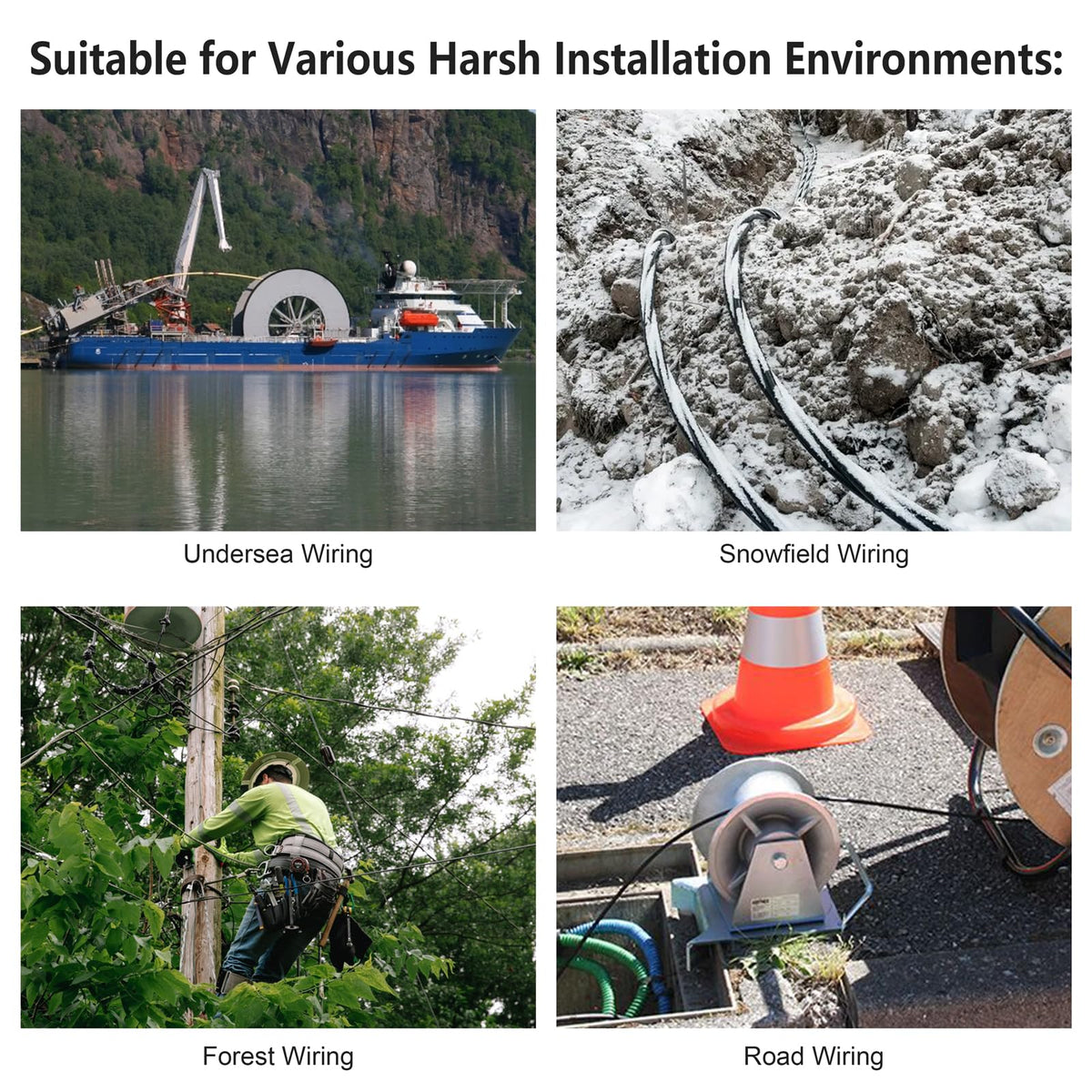

Can I install this cable in different outdoor scenarios like direct bury or aerial runs?

Yes — the construction supports burial, aerial placement and conduit routing. The combination of TPU jacket, armor and reinforcing yarns allows the cable to withstand pulling tension, moisture ingress and ground contact when installed according to local codes and best practices.

• Direct bury capable: armor safeguards fiber during soil contact (follow conduit and warning tape local rules).
• Overhead/aerial: suitable for short aerial spans when properly supported and strain‑relieved.
• Conduit use: 5.0mm diameter balances strength and manageable bend radius for conduit pulls.

Who is this cable for? Installers, network integrators and technicians who need a compact LC‑terminated single‑mode duplex patch cable but with significantly improved outdoor toughness will find this product useful. It’s ideal for small to mid‑scale outdoor splices and patching tasks where a direct‑bury capable, rodent‑resistant line with easy polarity handling is required — for example: CCTV backhaul, remote fibre links to outbuildings, temporary construction site networks, and industrial field runs. Ensure you follow local burial and installation standards for conduit depth, warning markers and bend radius to maximize service life.
