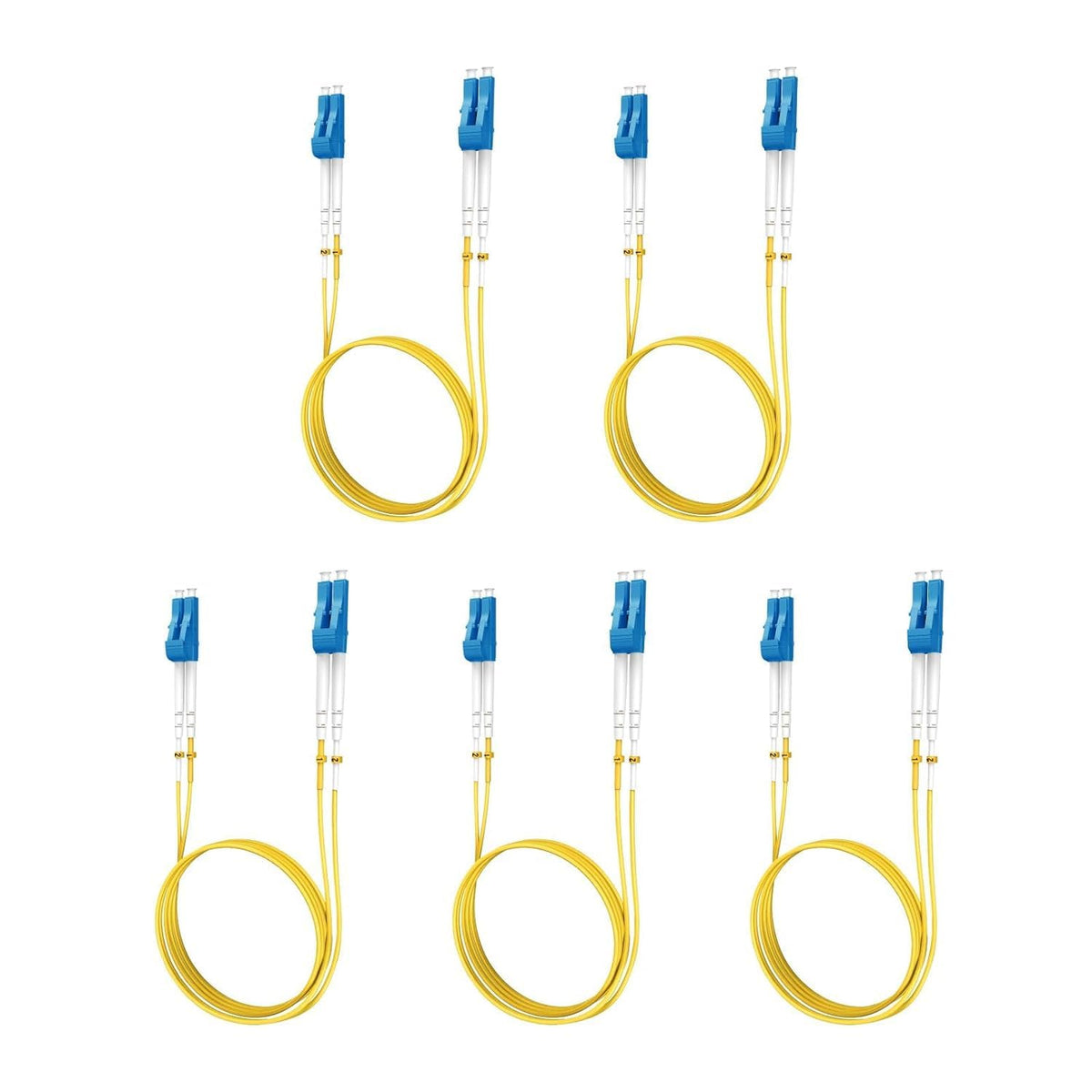

Yonwide OS2 LC‑to‑LC Single‑Mode Fiber Patch Cable 5m 5‑Pack Duplex Yellow LSZH, UPC Low‑Loss

Yonwide 5m OS2 LC‑to‑LC single‑mode duplex fiber patch cables are 5‑pack, LSZH‑sheathed jumpers designed for reliable long‑reach data links and dense network racks.

These yellow Yonwide jumpers provide a compact LC duplex termination on both ends and are tuned for single‑mode OS2 performance. Built with low‑smoke, halogen‑free jackets and precision UPC‑polished ferrules, these 5 m cables are intended for structured cabling, server rooms, and telecommunications closets where space, signal quality, and safety matter.

How far can a 5m OS2 LC‑LC cable carry signals?

While a 5 m cable is short by design for patching within racks or between nearby panels, the OS2 fiber specification supports much longer optical links. This Yonwide cable maintains low attenuation so it can be part of systems rated for kilometers of transmission when combined with appropriate transceivers and equipment.

• Typical attenuation: low dB/km at telecom wavelengths (1310 nm, 1550 nm).
• Suitable for short patch runs in LAN, SAN, and data center fiber trunks.
• Can be used within links that span kilometers when paired with system-grade single‑mode fiber.

What performance and durability features does this Yonwide jumper offer?

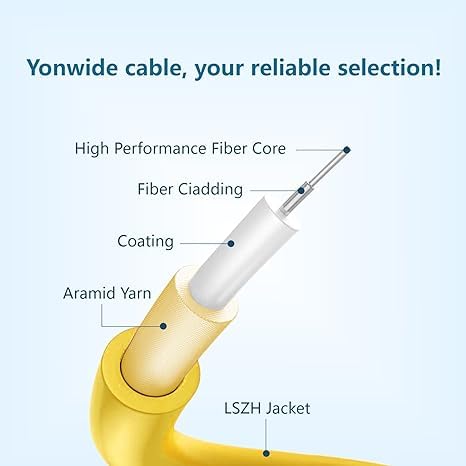

These LC‑to‑LC jumpers prioritize stable optical performance and mechanical resilience. Precision zirconia ferrules and UPC polish reduce insertion loss and reflections, while aramid strength members and a 2.0 mm LSZH jacket protect the glass fiber from strain and abrasion.

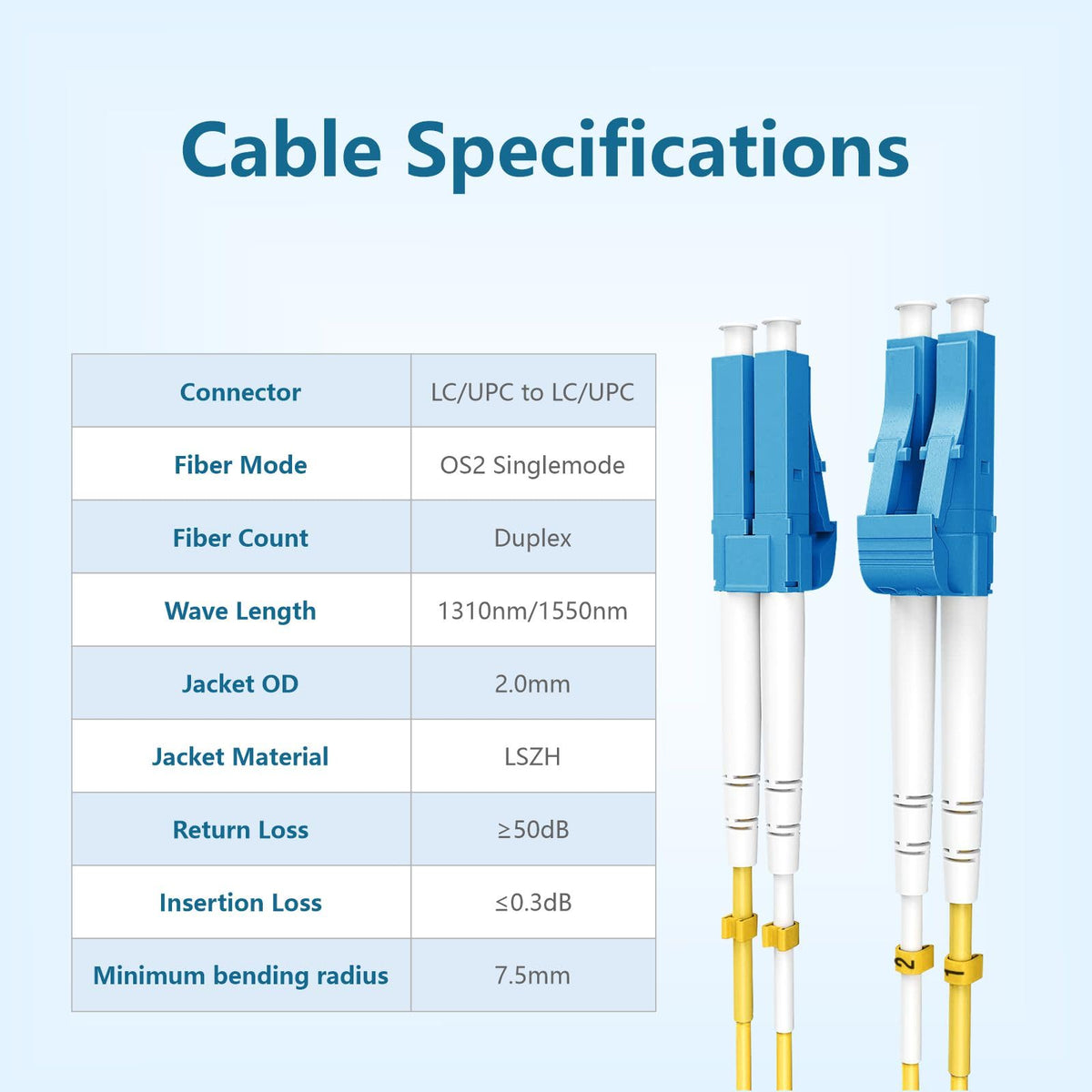

• UPC‑polished connectors with zirconia ferrules for consistent low loss.
• Aramid reinforcement inside the cable for tensile strength.

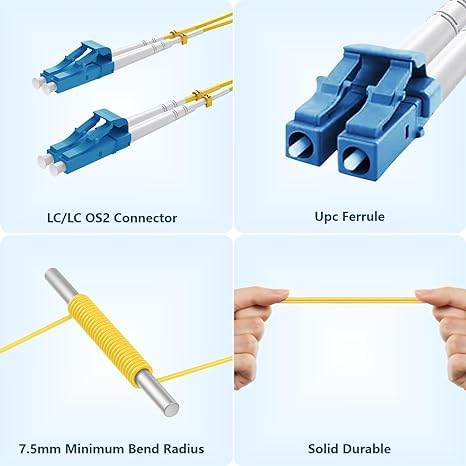

• 2.0 mm diameter LSZH jacket with 7.5 mm minimum bend radius for tight routing.

How do these cables fit into typical network setups?

These 5 m duplex patch leads are made for short interconnects: patch panels to switches, transceivers to network gear, or cross‑connects within equipment cabinets. The LC duplex format conserves panel space and supports high‑density fiber deployments.

• Fits LC ports on switches, SFP/SFP+ transceivers, and fiber patch panels.
• Duplex configuration keeps transmit/receive pairs correctly aligned.
• Yellow jacket denotes single‑mode OS2 fiber per standard color coding.

Who is this for? Network engineers, IT administrators, and integrators who need consistent single‑mode patching in data centers, telecom closets, or enterprise LANs will find these Yonwide 5 m LC‑to‑LC jumpers useful. They are aimed at installations that require tight routing, low insertion loss, and LSZH safety standards for indoor cabling. Choose this 5‑pack when you want readily deployable single‑mode duplex leads for short runs where performance and cable management are priorities.
