Yonwide LC to LC Single‑Mode Fiber Patch Cable 0.5m - OS2 Yellow, LSZH, UPC

Yonwide's 0.5m OS2 LC-to-LC single‑mode fiber patch cable is a short, high‑performance duplex jumper built for reliable 10Gb and higher optical links in constrained spaces.

Designed for data centers, telecom racks, and tight networking cabinets, this Yonwide LC‑LC fiber jumper delivers low loss, strong return loss, and a flame‑retardant LSZH jacket in a compact 0.5‑meter length. The yellow single‑mode cable with UPC‑polished connectors and zirconia ferrules gives repeatable optical performance for SANs, LANs, WANs, and fiber channel deployments where space and signal integrity matter.

How far can a 0.5m OS2 single‑mode cable transmit reliably?

Although this jumper is only 0.5 meters long, its OS2 fiber specification supports long‑distance signaling characteristics when used in an end‑to‑end OS2 link. The cable characteristics meet standard single‑mode attenuation values used for extended optical runs.

• Typical attenuation: 0.36 dB/km at 1310 nm and 0.22 dB/km at 1550 nm
• Practical system reach examples: OS2 fiber supports multi‑kilometer spans in properly designed networks
• 0.5m length is ideal for patching equipment within racks and between adjacent panels

What performance and durability features keep connections stable?

The Yonwide jumper combines precision polish, sturdy ferrules, and internal strength members to reduce insertion loss and preserve alignment through repeated mating cycles. It is engineered to stay stable across common environmental conditions.

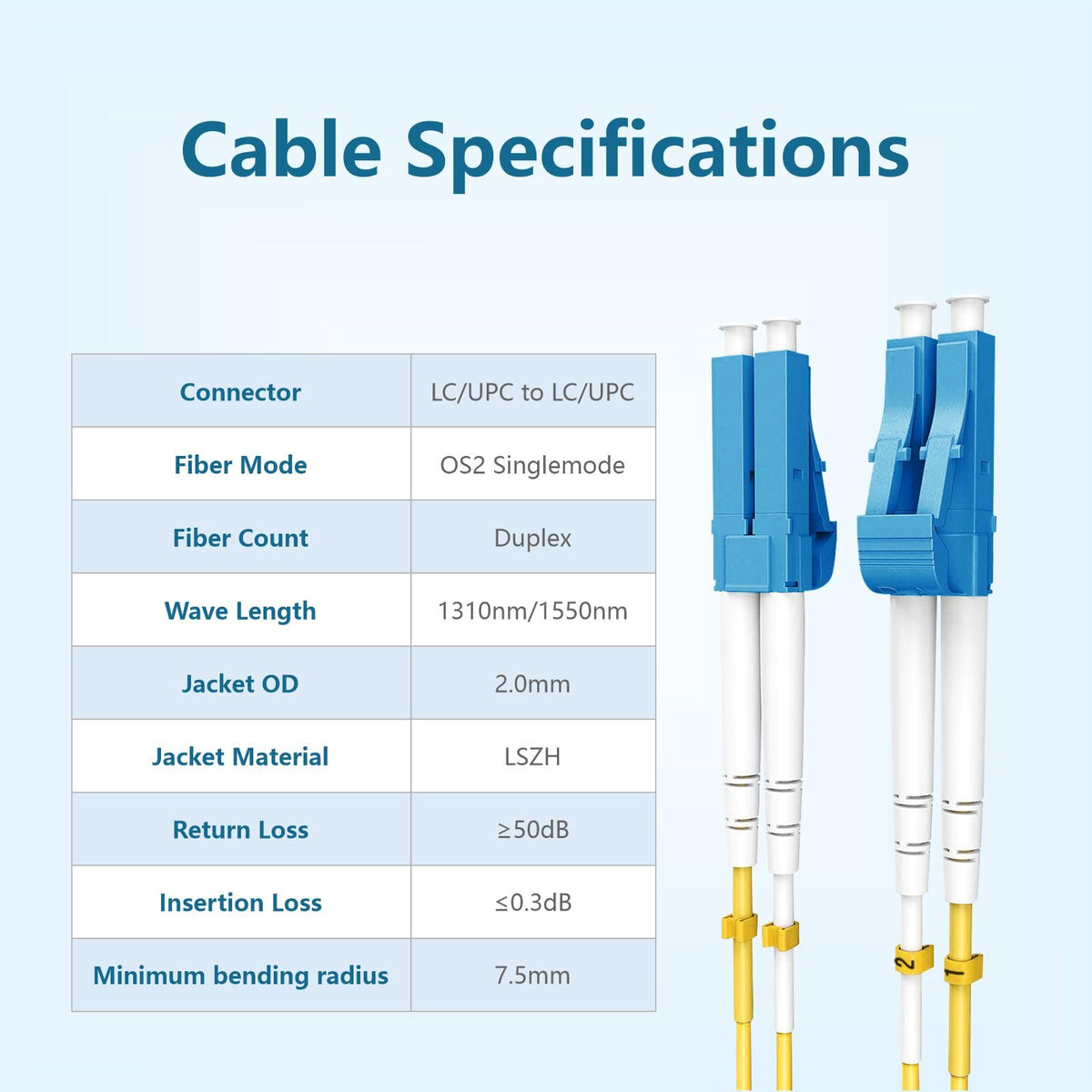

• Insertion loss ≤ 0.3 dB and return loss ≥ 50 dB for dependable signal quality
• Zirconia ceramic ferrules and UPC polish for consistent optical mating

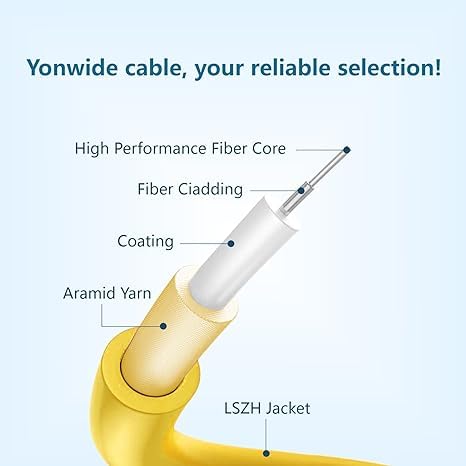

• Aramid fiber reinforcement inside the jacket for strain resistance and longevity

Will this cable fit in tight routing or high‑density panels?

Yes — the compact construction and small outside diameter let you route the cable in confined conduits and dense patch panels without stressing the fiber.

• Jacket O.D.: approximately 2.0 mm for low bulk and easy bend routing
• Minimum bend radius: 7.0 mm, suitable for narrow spaces and cable managers
• LSZH jacket minimizes toxic fumes and smoke in enclosed environments

How simple is it to install and use Yonwide LC‑LC patch cables?

Installation is straightforward: the duplex connectors are teamed with a plastic clip for paired routing, and the connectors can be separated if individual access is needed. The LC form factor is small and compatible with common transceivers and adapters.

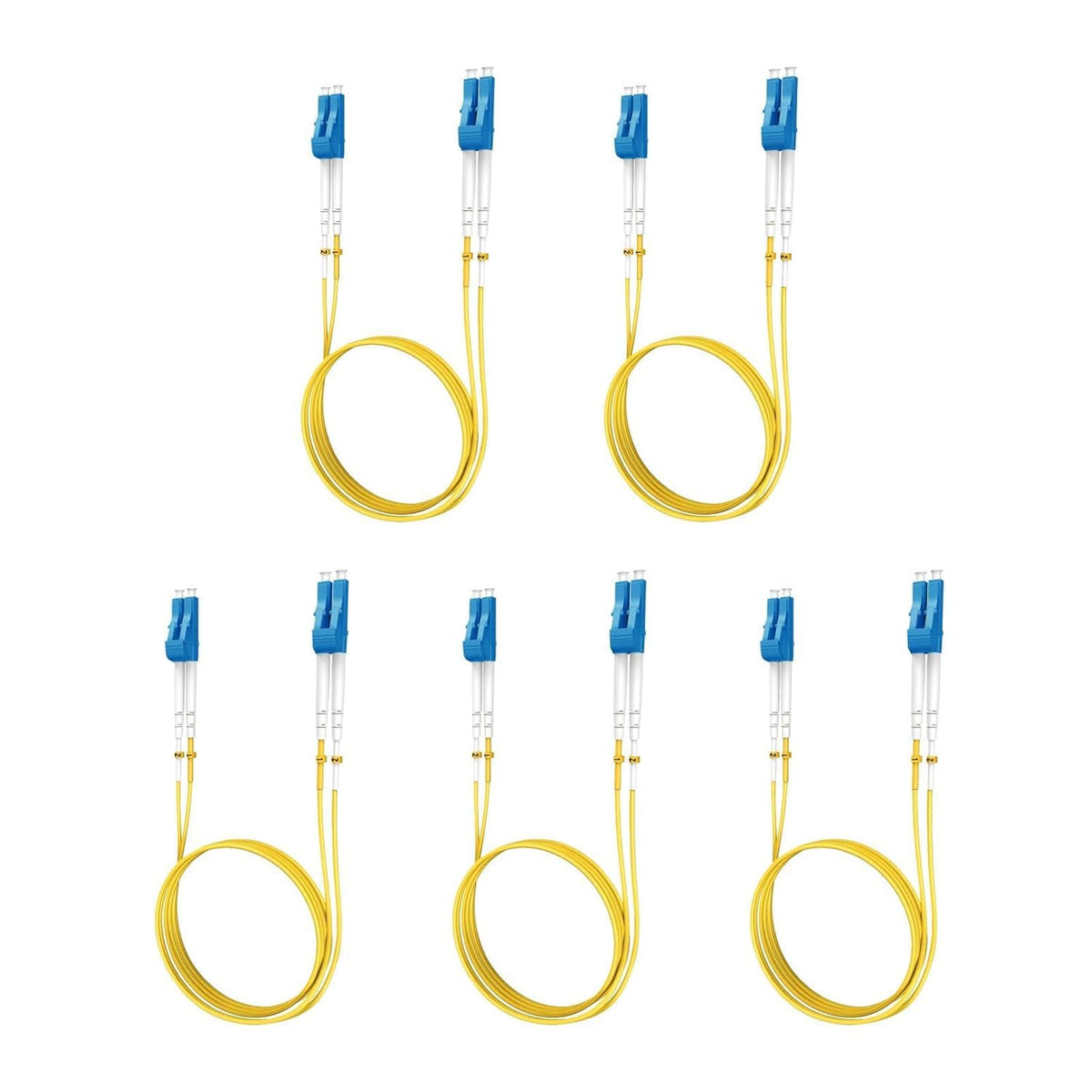

• Duplex LC to LC configuration for simultaneous transmit/receive paths
• Plastic clip holds paired connectors; clips removable for single‑fiber access
• Standard LC interface fits LC adapters, transceivers, and patch panels

Who is this for? Network engineers, data center technicians, and IT professionals who need short, high‑quality single‑mode jumpers for rack patching, switch-to-transceiver links, or high‑density fibre panels will benefit from Yonwide's 0.5m OS2 LC‑LC cable. It’s especially suitable when low insertion loss, strong return loss, limited routing space, and LSZH safety standards are required. Choose this cable when you want compact, repeatable optical connections for 10GbE and other single‑mode applications without excess slack or bulk.
