Yinleader 5000W Voltage Converter Step Up/Down Transformer

The Yinleader 5000W Voltage Converter Transformer safely converts between 110–120V and 220–240V for high‑power household and professional appliances.

This heavy‑duty step up/step down transformer provides a robust, easy‑to‑use solution when you need to run appliances across different mains voltages. Designed for continuous use up to its rated capacity, the unit includes multiple outlet types, a grounded US power cord, and built‑in circuit breaker protection to help prevent overloads. It converts voltage only (not frequency), so check device frequency requirements before use.

How much power can this transformer handle and what about startup currents?

The Yinleader 5000W model supports devices with running loads up to 3400 watts continuous and a higher rated surge capacity to accommodate transient startup draws. For equipment such as motors, compressors, laser printers, or coffee makers that need a strong initial current, account for the higher inrush: use the recommended efficiency multiplier to size the converter correctly.

• Rated for continuous operation up to 3400 W; 5000W name reflects peak/surge handling.
• Recommend 2–4× the appliance’s printed wattage for start‑up motors and heaters; consider 3× for high‑heat devices.
• Built‑in circuit breakers trip on overload to protect both unit and connected equipment.

Which outlets and plugs are available, and where can I use it?

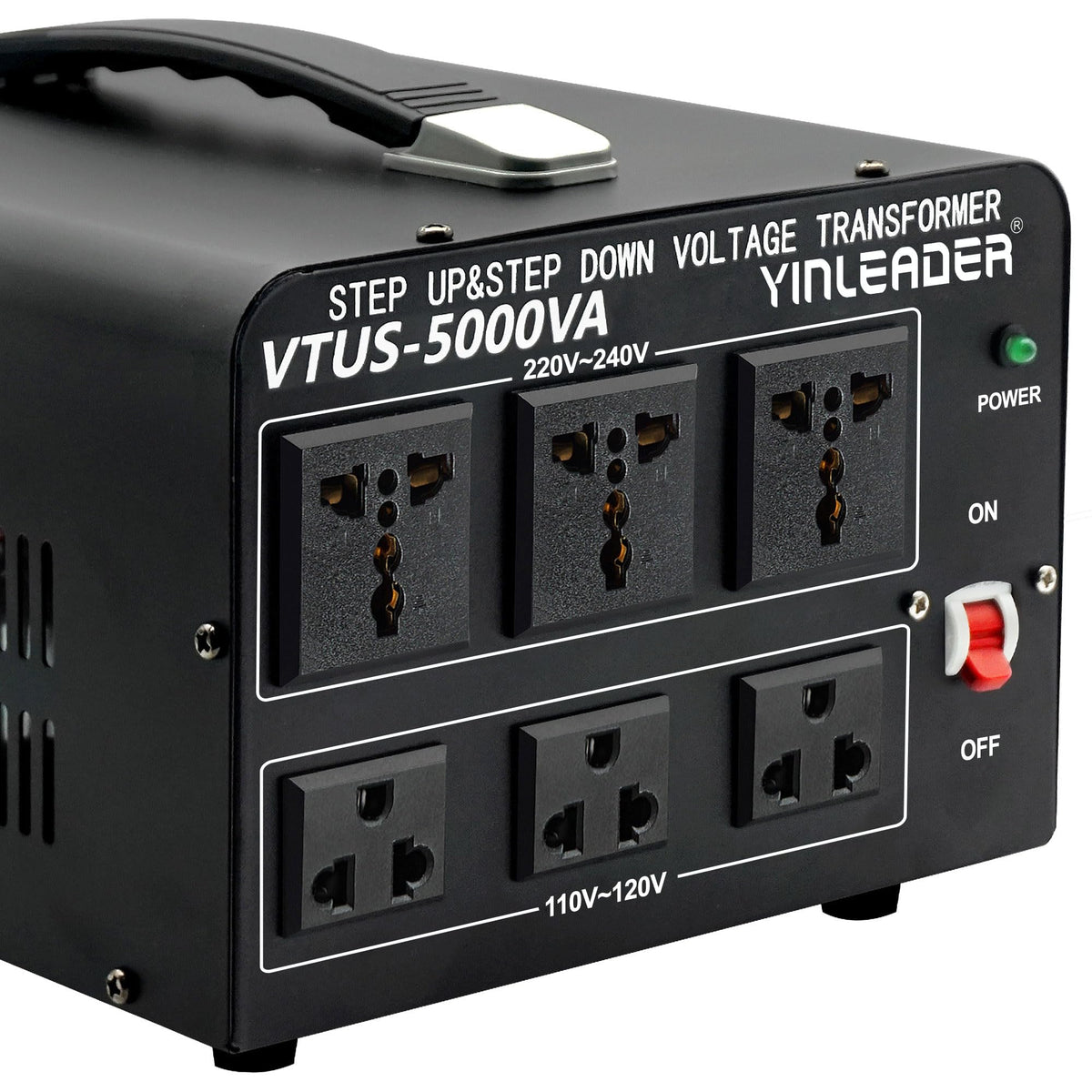

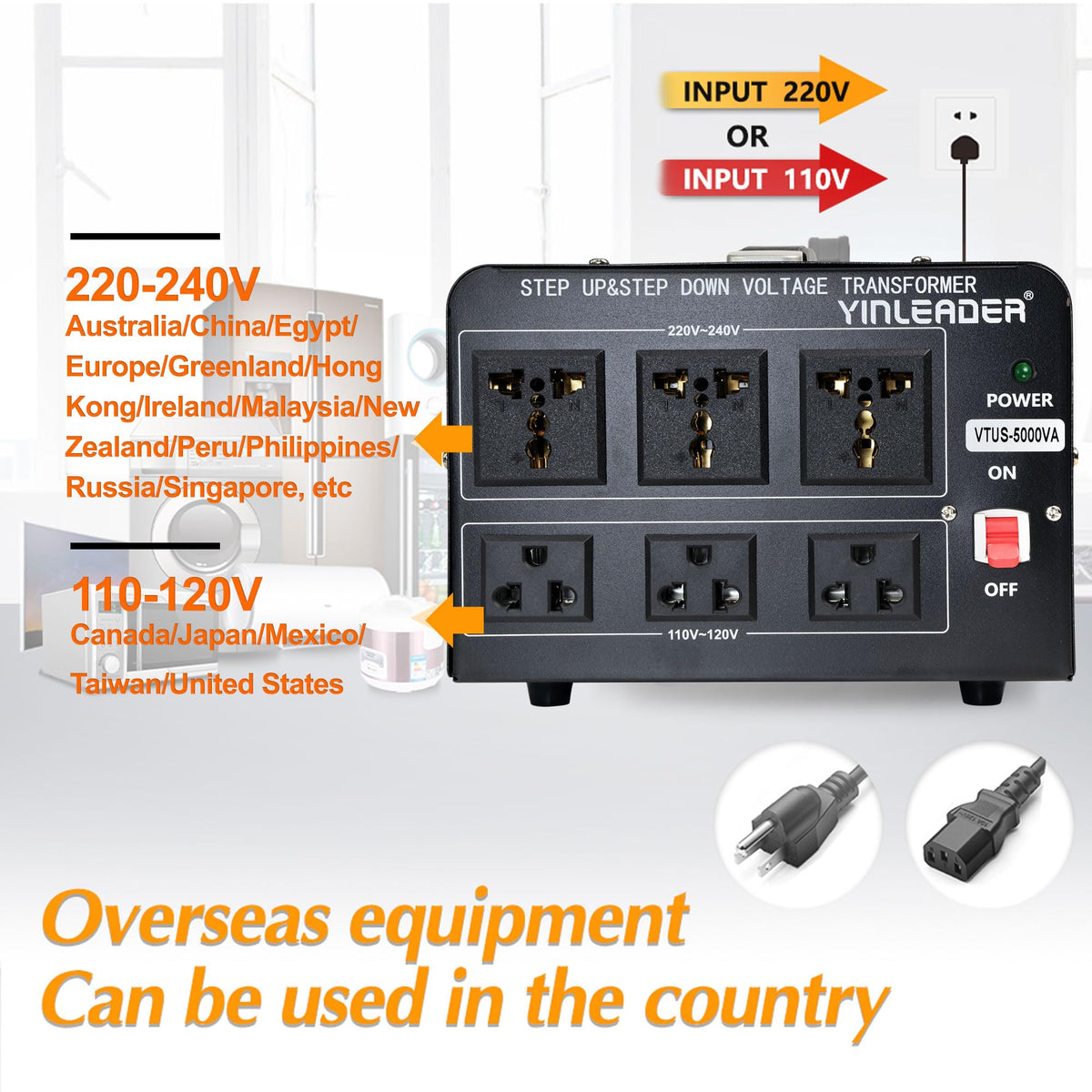

This transformer features three US standard 110–120V outlets and three universal 220–240V sockets to accommodate most plug types except the large South African plug. The included cord is a US grounded 3‑prong lead; if you use the unit in countries with 220–240V mains, pair it with a local plug adapter or replace the power cord with a regional equivalent.

• 3 US standard sockets for 110–120V devices.
• 3 universal sockets accept most 220–240V plugs (not large South African plug type).

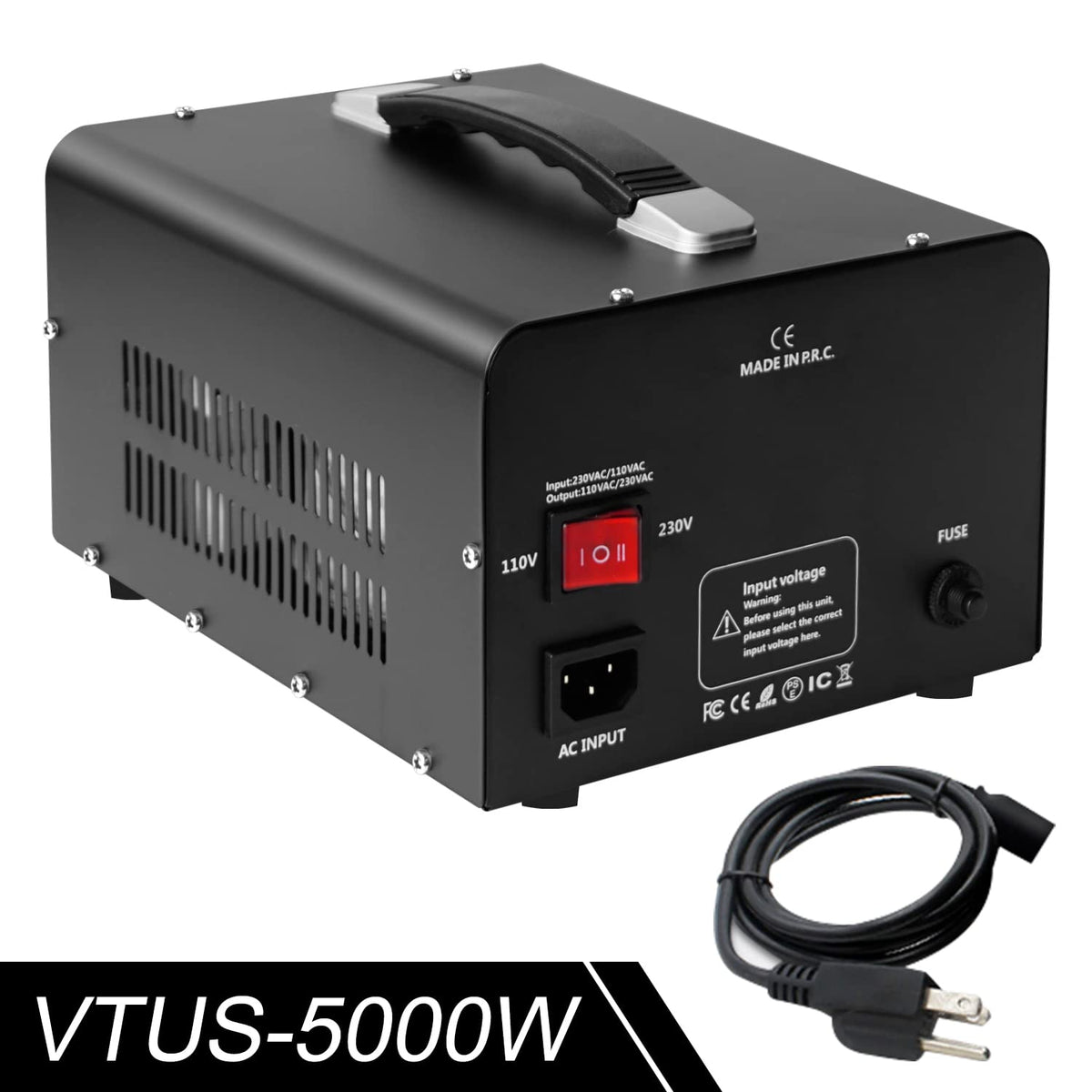

• Comes with US grounded 3‑prong power cord; adapter or local cord needed for non‑US outlets.

What safety features and limitations should I know about?

The transformer includes circuit breaker protection to interrupt current in overload conditions and reduce risk to connected appliances. Remember it changes voltage only — it does not convert frequency (Hz). Devices that require a specific frequency (50Hz or 60Hz) may not operate correctly if mains frequency differs.

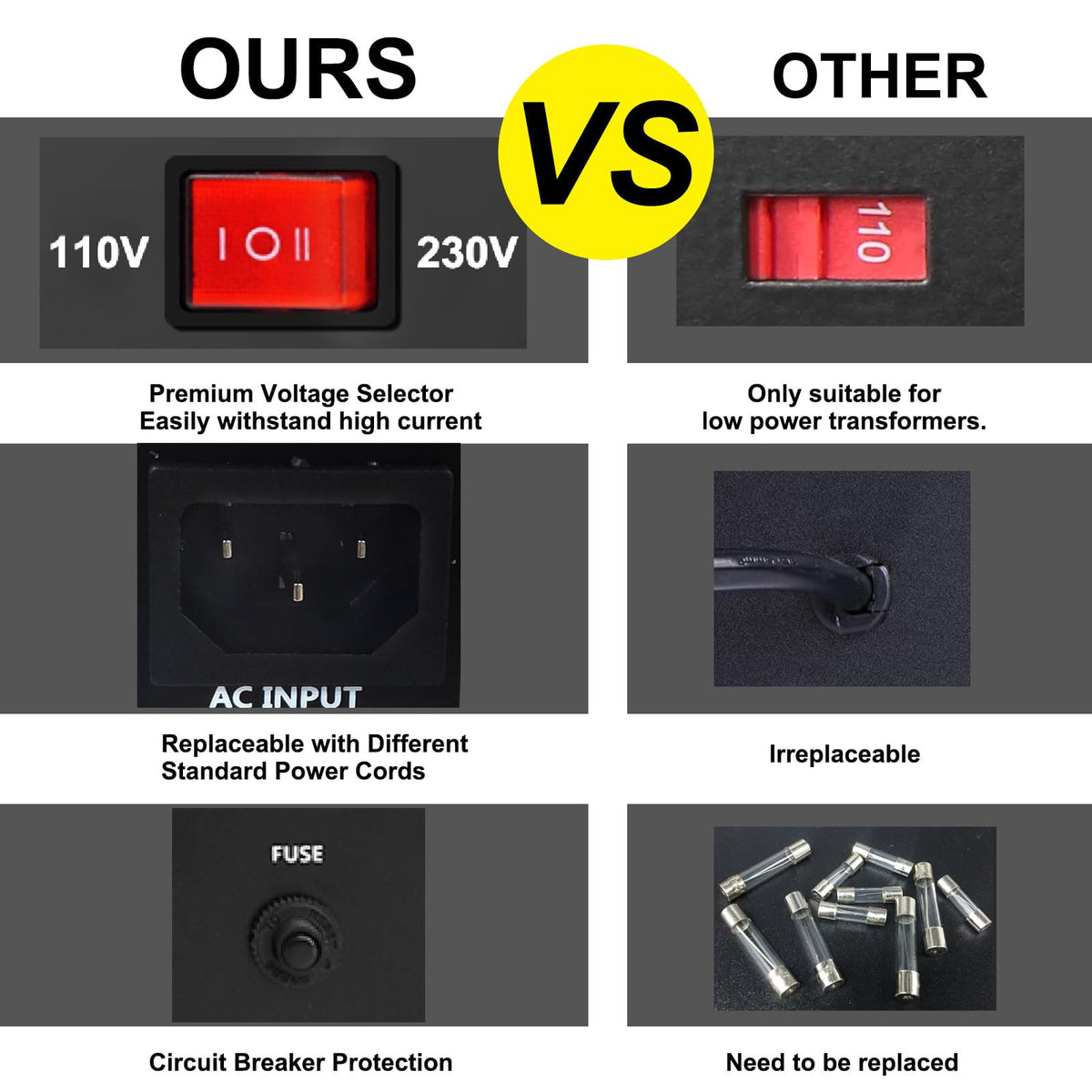

• Separate circuit breaker protection for safe operation under overload conditions.
• Voltage conversion only; no frequency conversion (50Hz/60Hz unaffected).
• Durable metal housing suited for workshop or home use; ensure ventilation during prolonged operation.

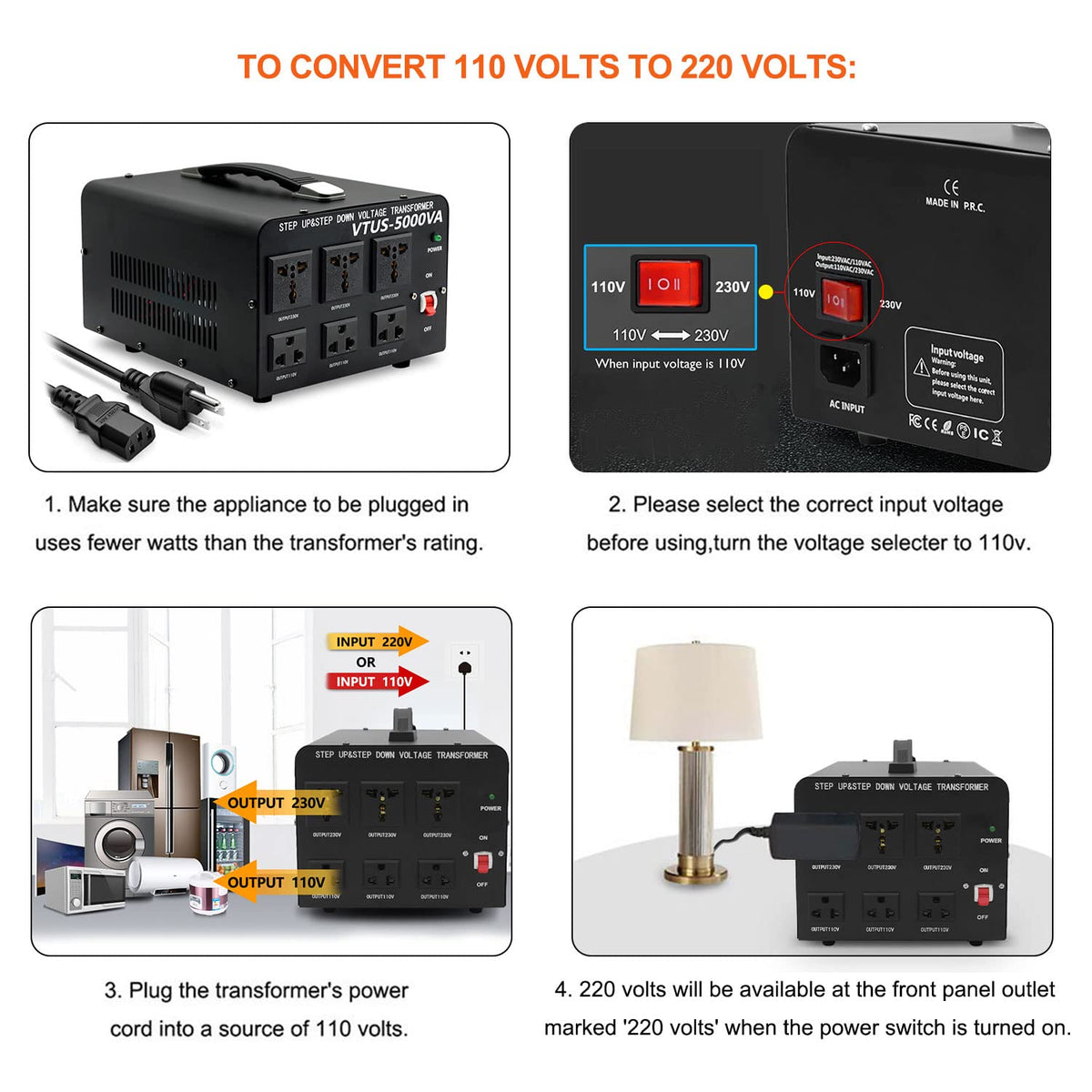

How do I match this converter to my appliance safely?

Check the appliance nameplate for voltage, wattage, and frequency. Add headroom for motor or heating elements by applying a 2–4× multiplier to the rated wattage to cover start‑up current. If the appliance exceeds the converter’s safe operating wattage or requires frequency matching, choose a higher‑capacity transformer or a frequency converter instead.

• Verify appliance running wattage on its label before connecting.
• Use 2–4× multiplier for devices with high inrush currents (3× recommended for many heaters and motors).
• If appliance needs matching frequency, seek a dedicated frequency converter; this unit converts voltage only.

Who is this for: The Yinleader 5000W Voltage Converter Transformer is built for travelers, expats, workshop owners, and small business operators who need a dependable way to run appliances across 110–120V and 220–240V mains. It suits power tools, audio/visual gear, kitchen appliances, and light industrial equipment when wattage and frequency requirements are observed. Choose this unit when you need multiple outlets, grounded protection, and clear overload safeguards — and always confirm your device’s startup wattage and frequency compatibility before use.
