YAXIGE 6V 10A DC-DC Step-Down Converter 60W

The YAXIGE DC-DC step-down converter reliably converts 12V–24V vehicle or solar inputs to a stable 6V DC output at up to 10A (60W) with waterproof protection and built-in safety features.

This compact voltage regulator is designed to feed 6V devices from common 12V or 24V sources such as cars, trucks, golf carts, or off-grid systems. It uses synchronous rectification for high conversion efficiency, a sealed aluminum body for rugged outdoor use, and multiple protections to guard connected equipment. The result is a small, efficient power transformer replacement that performs in damp, dusty, or vibration-prone environments.

How does this converter maintain efficiency and protect connected devices?

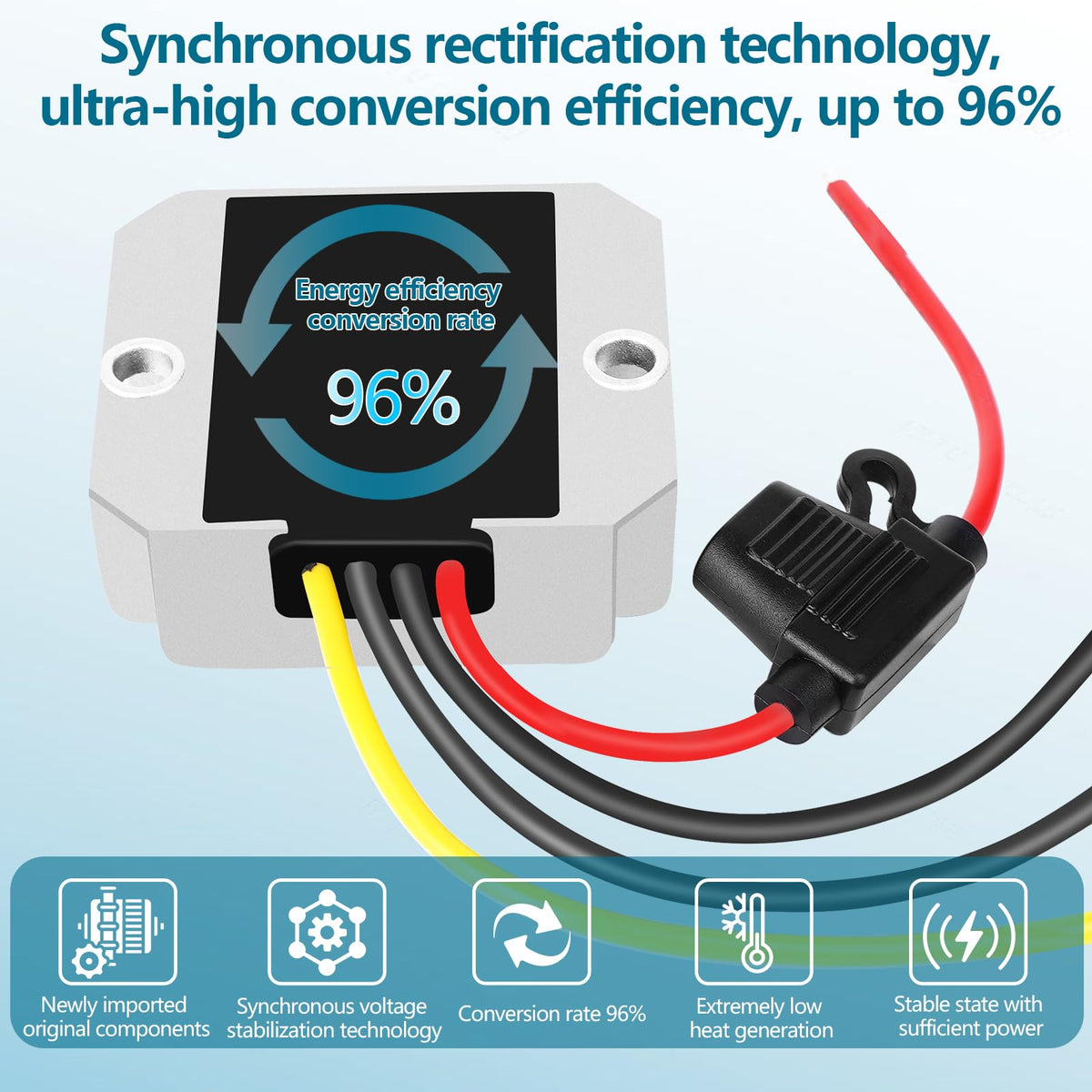

The unit uses synchronous rectification to lower switching losses and keep conversion efficiency high—rated at 95% or higher under typical loads. It also includes intelligent protections that respond automatically to abnormal conditions to protect both the converter and the attached load.

• High-efficiency synchronous MOSFET topology for minimal heat and energy loss.
• Built-in safeguards for overcurrent, overload, short circuit, low-load and thermal events.
• Automatic response and recovery behaviors to prevent repeated trips when conditions normalize.

What environments and devices is the YAXIGE 6V regulator suitable for?

Its epoxy-sealed aluminum housing makes this converter well-suited to rough environments where moisture, dust or vibration are present. Typical uses include vehicle installations, LED lighting runs, advertising signs, and security camera systems that require steady 6V power from a higher-voltage source.

• Automotive and truck power for auxiliary 6V accessories.
• Golf carts and small electric vehicles needing stable 6V rails.
• LED strips, advertising panels, and monitoring equipment powered from 12V/24V batteries.

What are the electrical specs and physical features to check before buying?

Review the specified input range, maximum current, and output capability to ensure compatibility with your device. The converter accepts 12V–24V inputs and delivers a fixed 6V output at up to 10A, with a 60W power limit. Its compact sealed chassis improves heat dissipation and weather resistance.

• Input voltage: 12V–24V DC; output: fixed DC 6V, up to 10A (60W).
• Max conversion efficiency ≥95%; low thermal stress in normal operation.

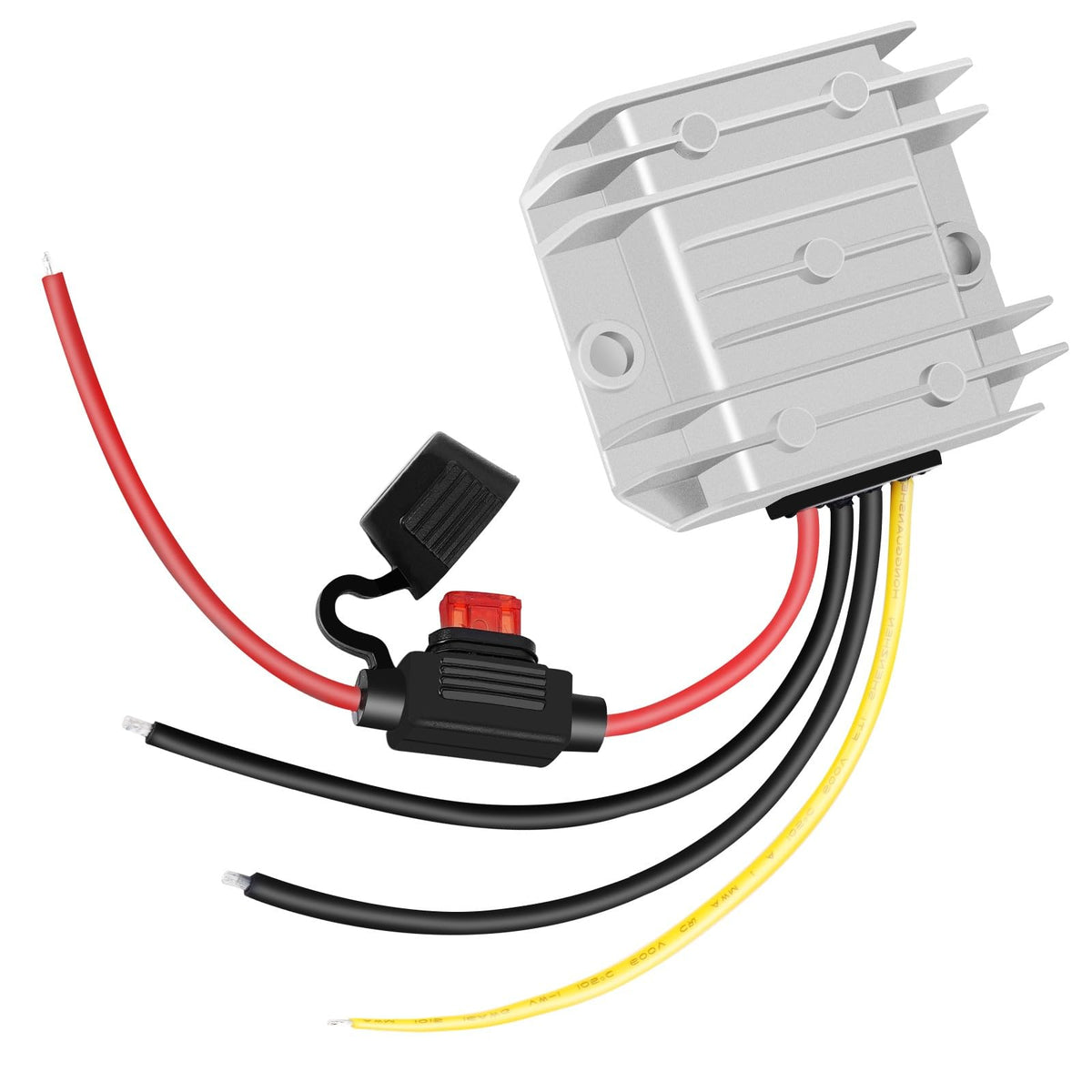

• Aluminum enclosure with epoxy potting for waterproofing, dustproofing, and shock resistance.

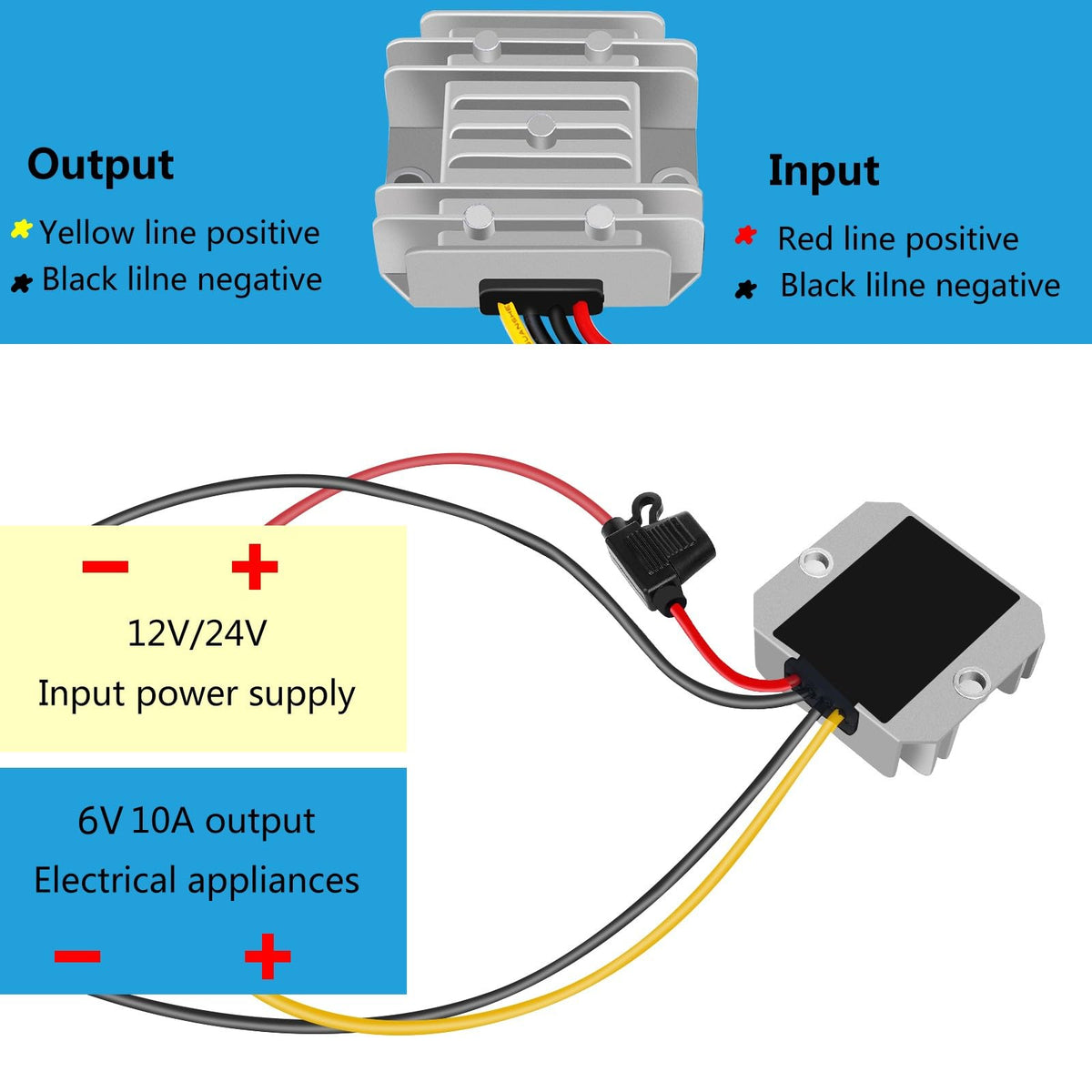

How do I install and maintain this step-down converter safely?

Install the converter in a dry, ventilated location with secure mounting to avoid vibration stress. Use appropriate-gauge wiring and the included fuse; verify polarity before connecting. Periodic visual checks are usually sufficient—look for corrosion, damaged cables, or blocked ventilation.

• Mount on a flat surface away from direct heat sources and heavy splashes.
• Use wire gauge sized for 10A plus safety margin and install the recommended fuse.
• Confirm polarity and secure terminals; inspect connections periodically for wear.

Who this is for: This YAXIGE DC-DC 6V converter is aimed at installers and DIYers who need a robust, efficient way to power 6V equipment from 12V or 24V systems—automotive technicians, RV and boat owners, golf cart maintainers, LED lighting installers, and security system integrators who require weatherproof construction and built-in electrical protections without adding bulk.
