Yaheeda 12V 360W Power Converter 30A AC to DC

Yaheeda's New Version 12V 360W converter is a compact AC-to-DC power supply that converts 110V/220V mains into stable 12V DC up to 30A for pumps, LED strips, monitors, and other 12V devices.

This updated Yaheeda switch-mode transformer is built for applications that need a reliable 12V DC rail with variable current delivery and multiple safety cutoffs. It accepts wide-range AC input (85–145V or 185–265V) and delivers peak output capacity of 360W, with protections against overload, overvoltage, short circuit and overheating. The housing uses aluminum alloy for heat dissipation and includes a red one-key on/off switch plus a set of mounting accessories for fast installation.

How does this converter handle different devices and loads?

The output current adjusts according to the attached device; light resistive loads and electronics draw modest current while motors and compressors require much higher peak current. For resistive or steady electrical loads, allow a 25% headroom; for motor-type loads, plan for at least twice the motor power to cover starting surges.

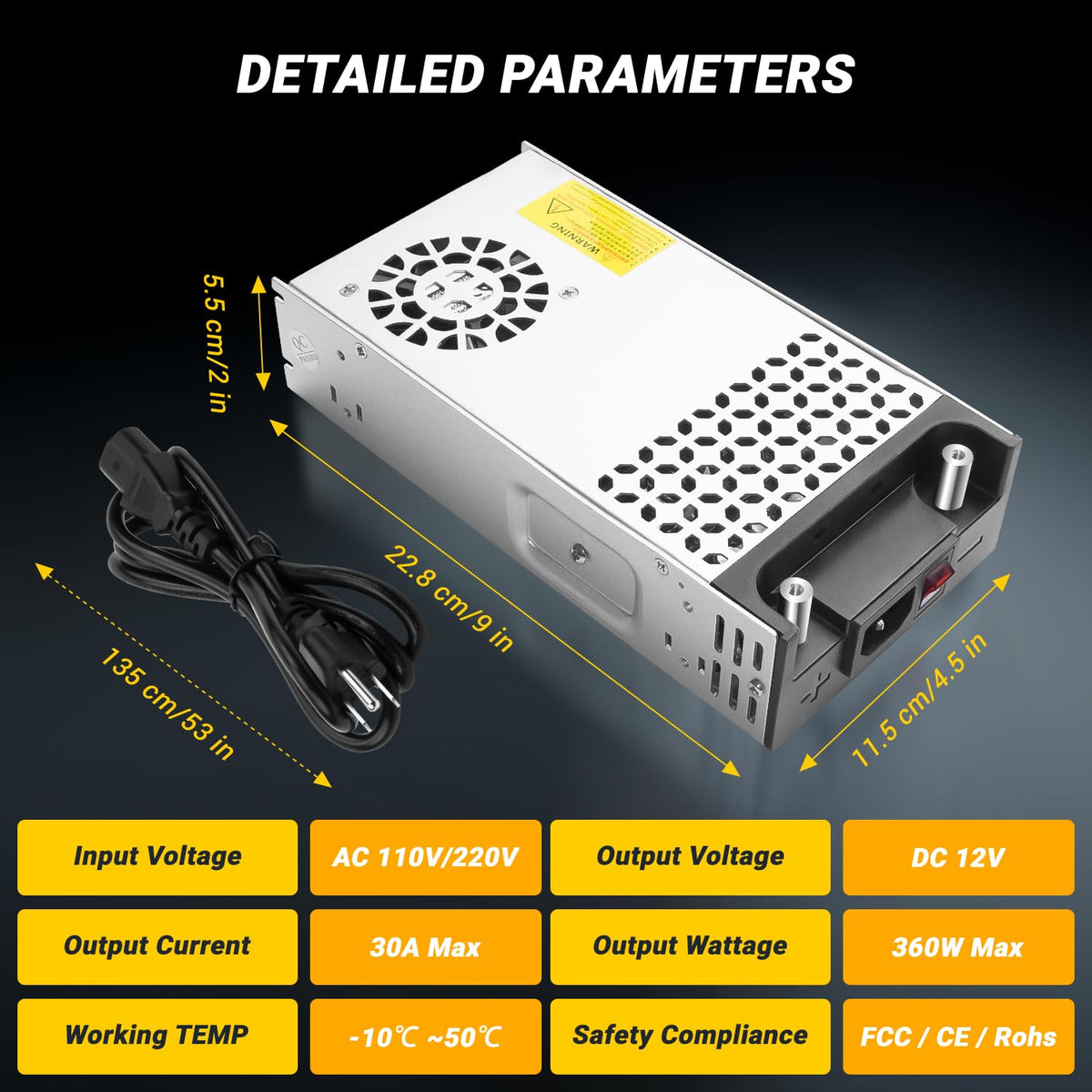

• Output: 12V DC up to 30A continuous, 360W peak capacity.
• Input: Selectable for 110V or 220V mains (wide input tolerance).
• Resistive device guidance: SMPS peak ≥ device power × 1.25.
• Motor device guidance: SMPS peak power should be >2× motor power.

What safety and reliability features are included?

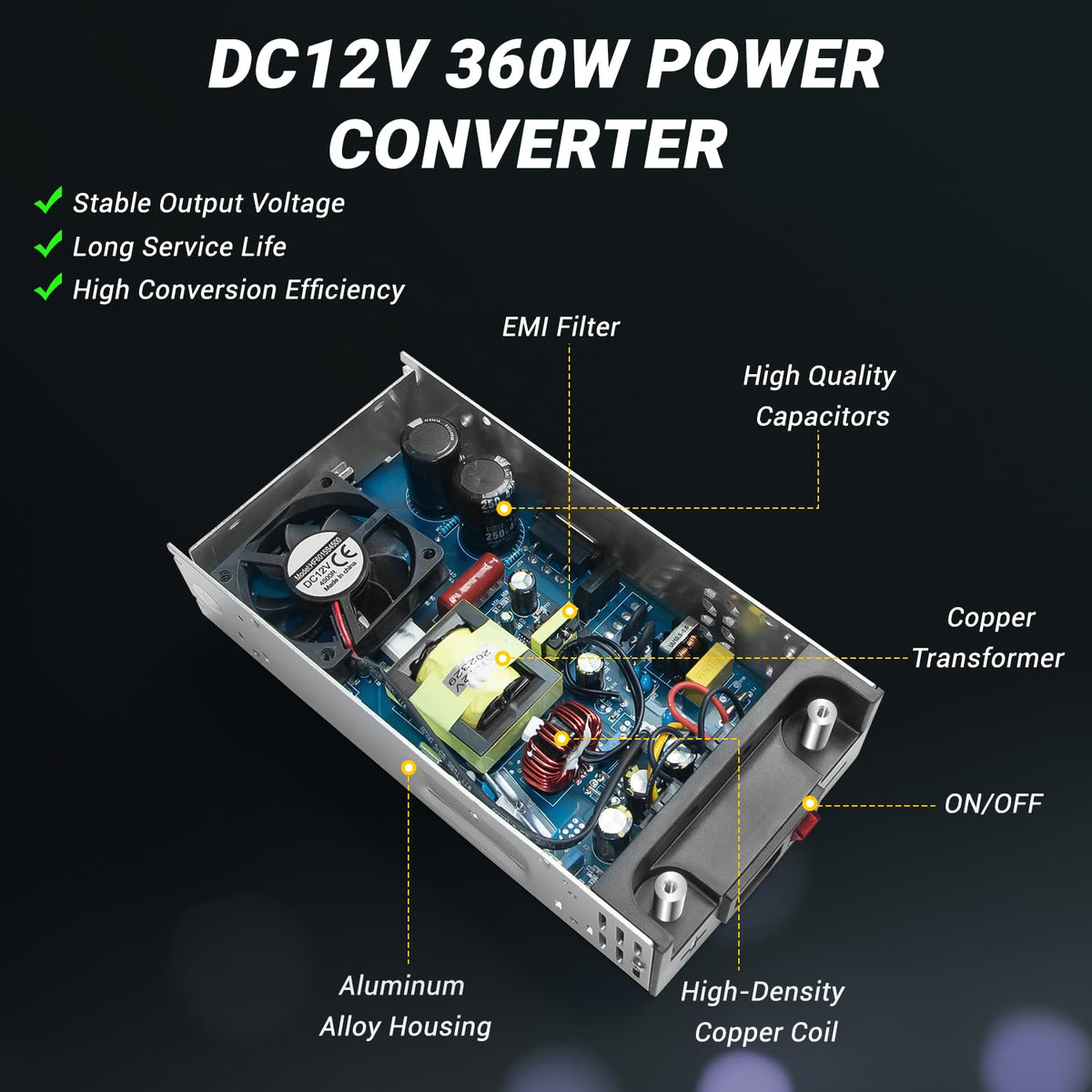

Yaheeda designed this converter with multiple protective mechanisms to preserve both the supply and the connected equipment. Built-in EMI filtering, thermal cut-off, overvoltage and overload shutdowns plus short-circuit protection reduce the risk of failure during irregular conditions.

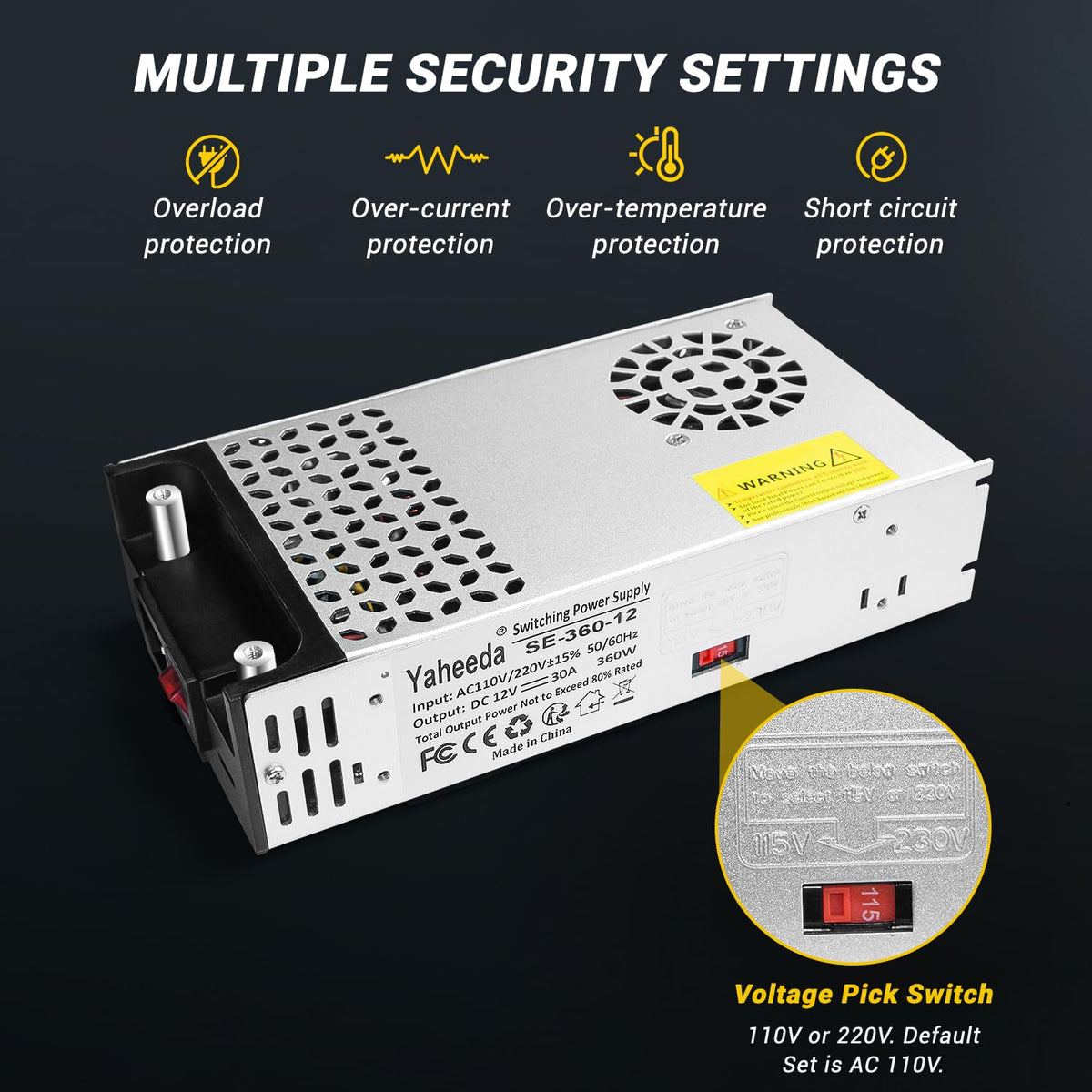

• Automatic overload and over-voltage cut-off functions for fault scenarios.
• Thermal protection to prevent overheating under sustained load.
• 100% full-load burn-in tested to ensure long-term stability.
• Aluminum alloy shell improves cooling and mechanical durability.

How do I install and operate the Yaheeda 12V 360W converter?

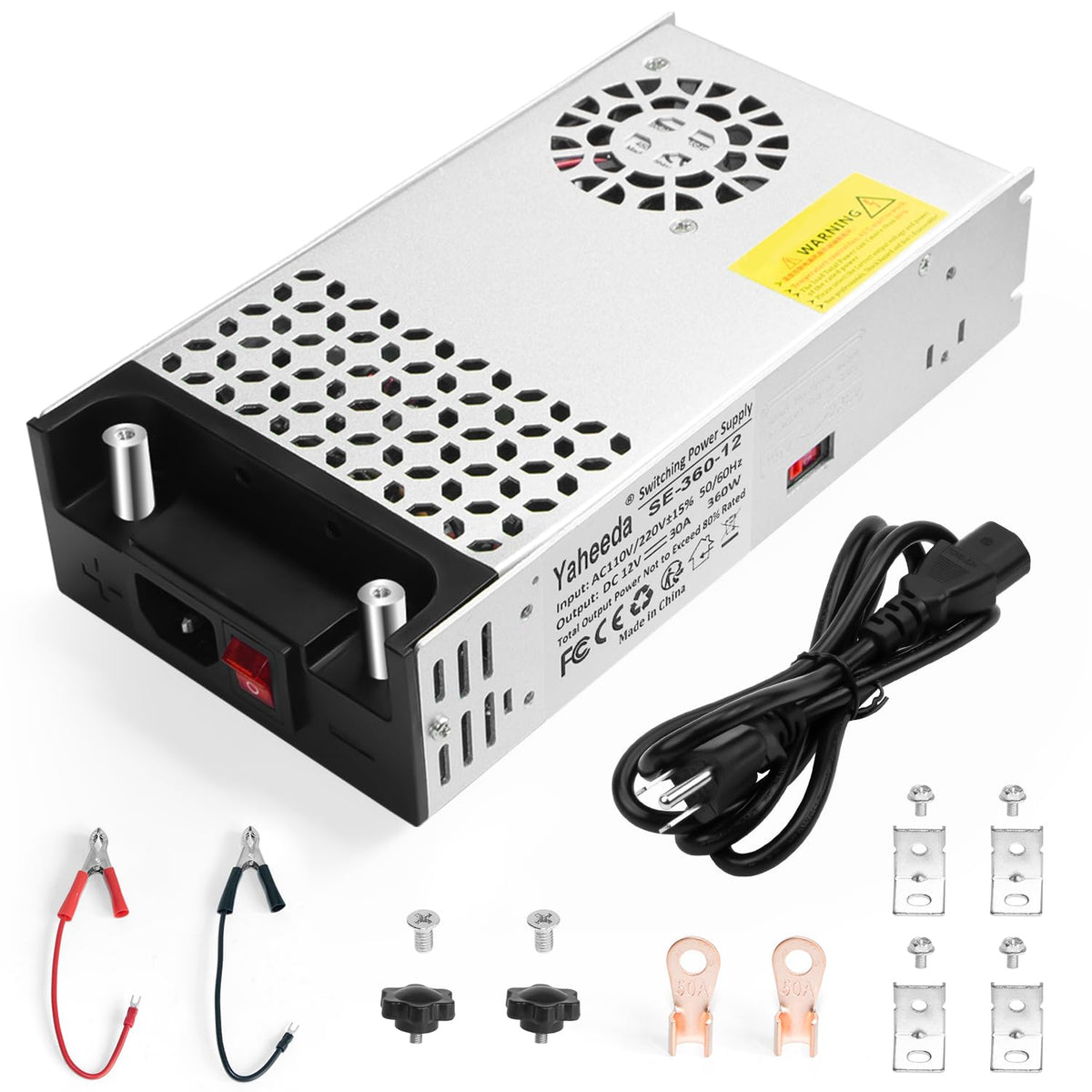

Installation is straightforward: connect the appropriate AC input (110V/220V), attach the 12V DC output wires or provided clamps, and use the red one-key switch to power on or off. Follow polarity and power-off before adjusting or disassembling connections; the unit ships with a UL-rated power cord, wire lugs, metal clip and screws for secure mounting.

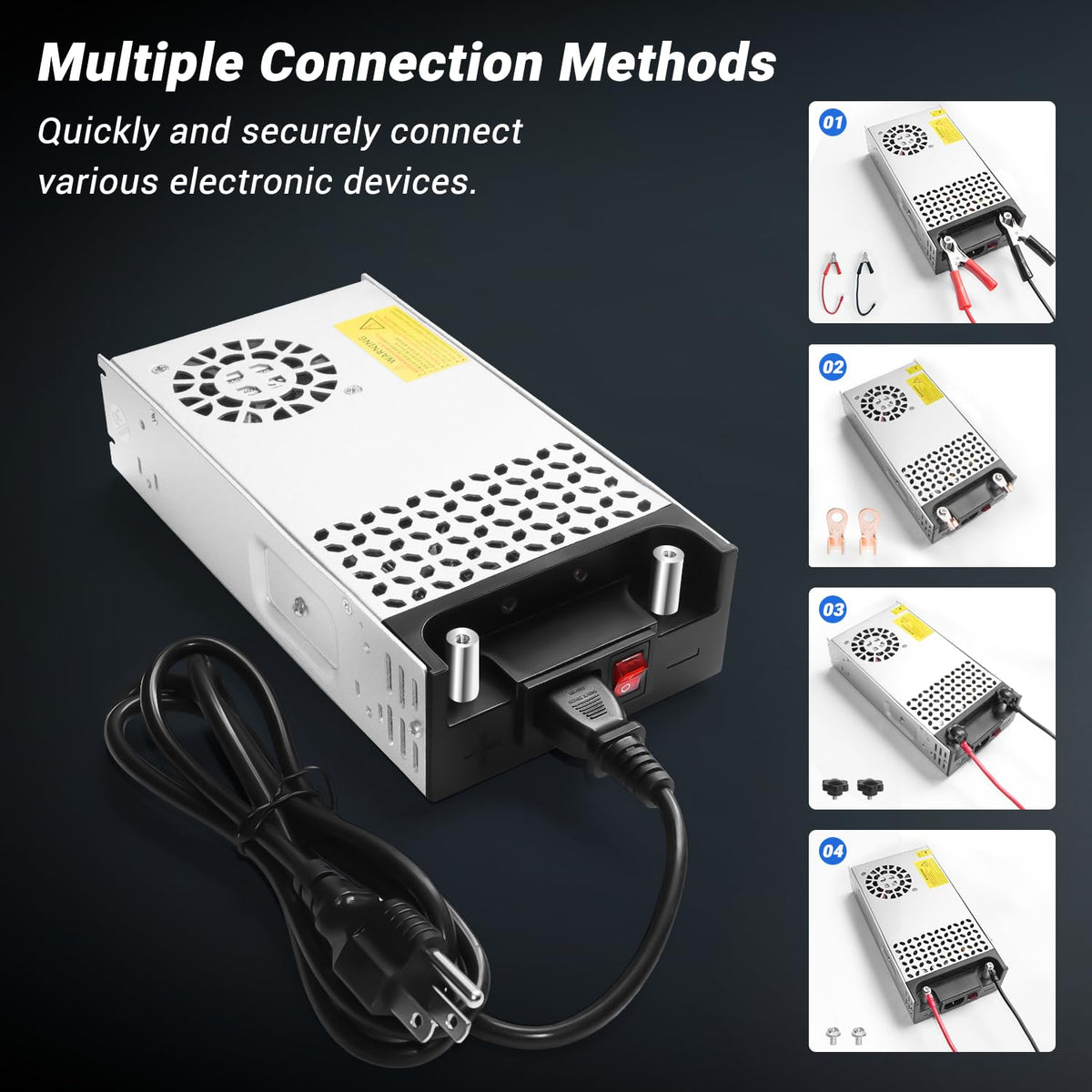

• Dual power connection methods and included wire lugs for reliable contacts.

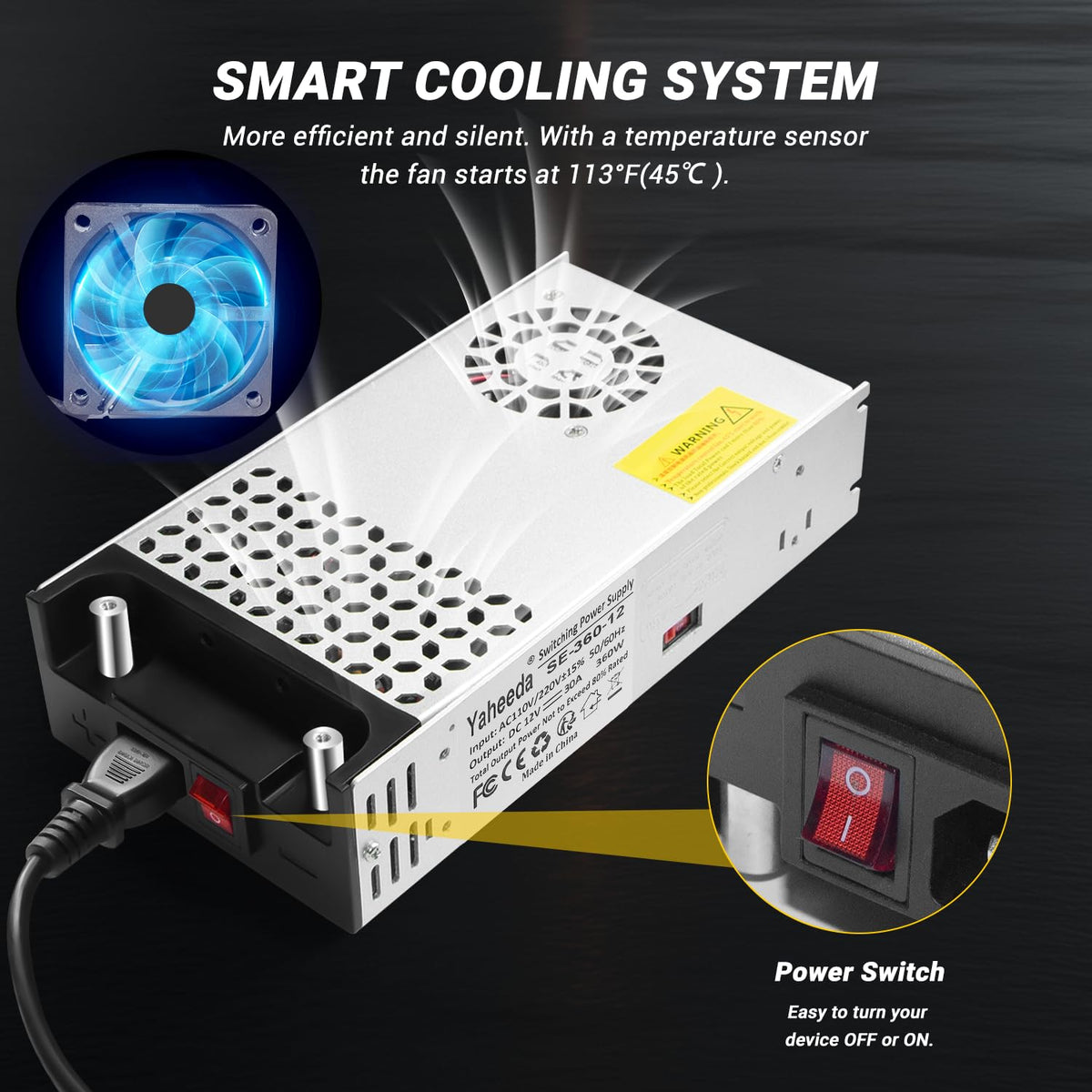

• Red one-key on/off switch for safe, simple control.

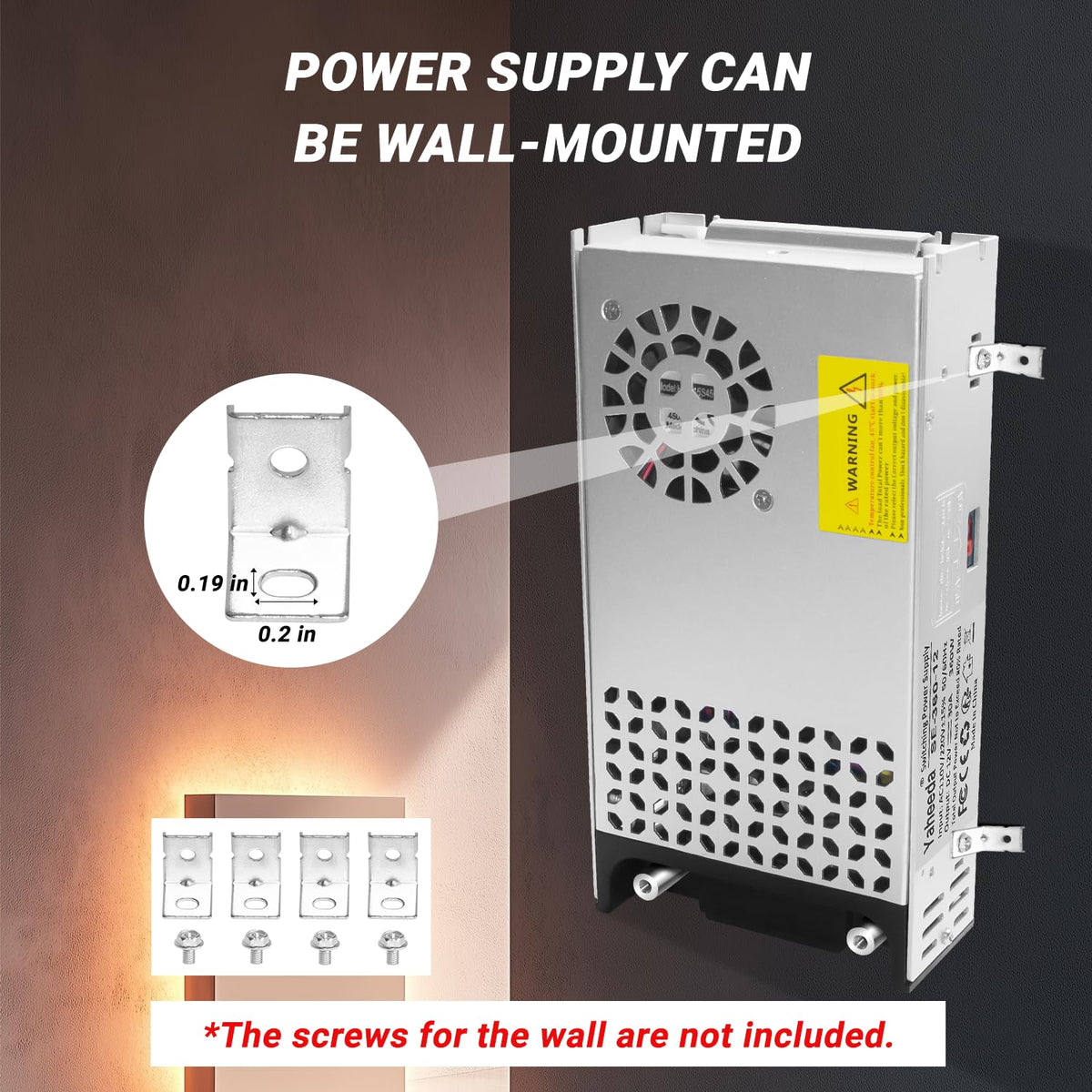

• Mount using the supplied screws and metal clip; observe ventilation clearance.
• Always cut power before rewiring or servicing the converter.

Which uses are appropriate and which should be avoided?

This converter works well for a wide variety of 12V DC equipment like LED strips, pumps, compressors (subject to peak-power planning), car accessories, amplifiers, and automation gear. However, it is not suitable for devices that require adjustable PWM control such as dimming drivers, programmable speed controllers, or certain plant-lighting controllers.

• Good for: LED light strips, DC pumps, compressors, winches, car stereos, servos, small automation systems.
• Not for: Adjustable-speed/PWM motors, dimmable lighting controllers, or programmable motor drives.
• Use recommended peak-power margins when powering motors or high-start-current devices.
• Verify device inrush and continuous power before deployment.

Who is this for: The Yaheeda 12V 360W converter is aimed at hobbyists, RV owners, installers and small workshop operators who need a dependable, high-current 12V DC supply from household AC mains. It suits projects that demand robust protections and quick installation—particularly where compact size, thermal management, and built-in safety cutoffs are important—but it is not intended for PWM-controlled devices or precision dimming systems.
