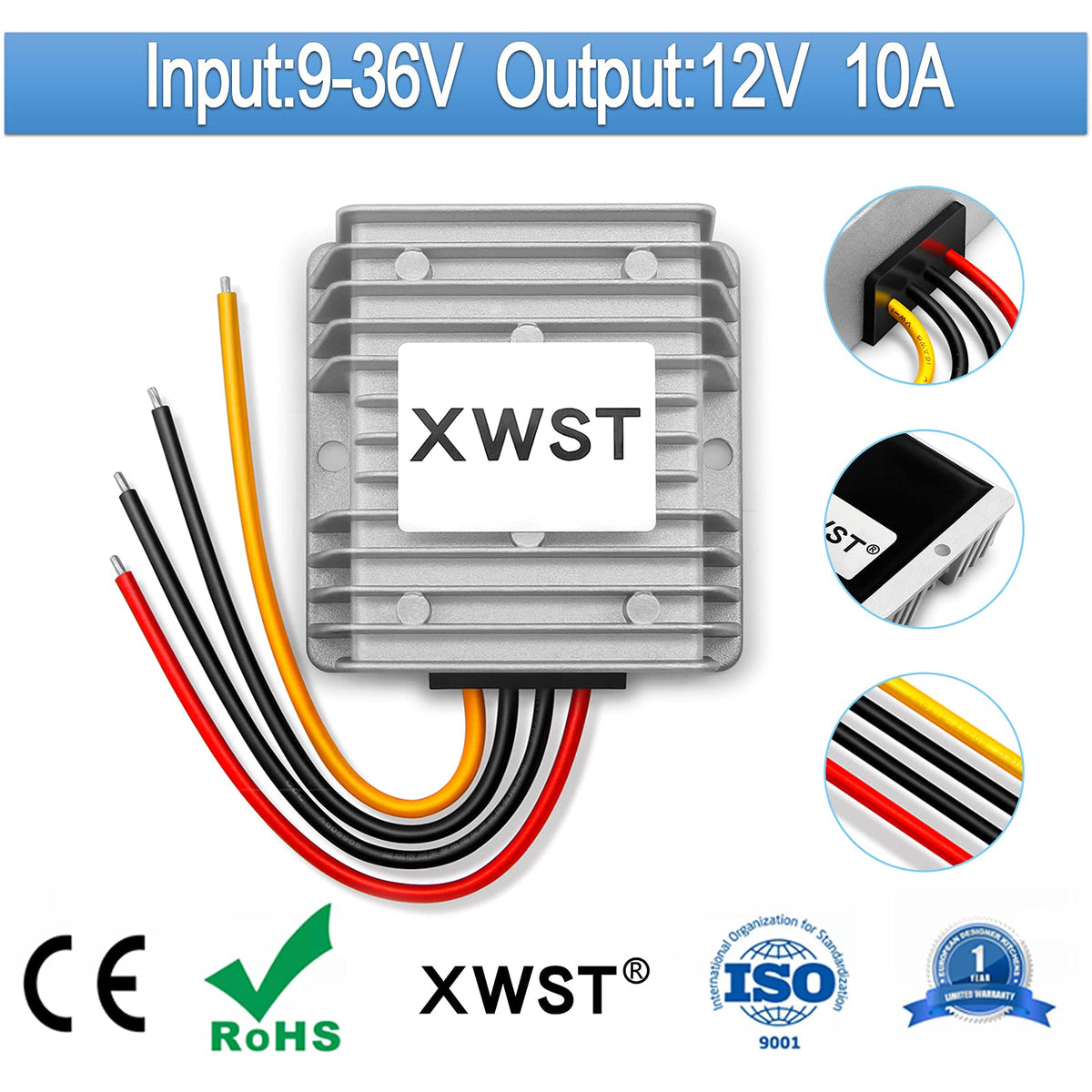

XWST 12V Stabilizer Boost-Buck Converter 10A 120W

XWST’s 9V–36V to 12V stabilizer is a waterproof boost-buck DC‑DC converter that delivers a regulated 12V output at up to 10A (120W) for vehicles and outdoor systems.

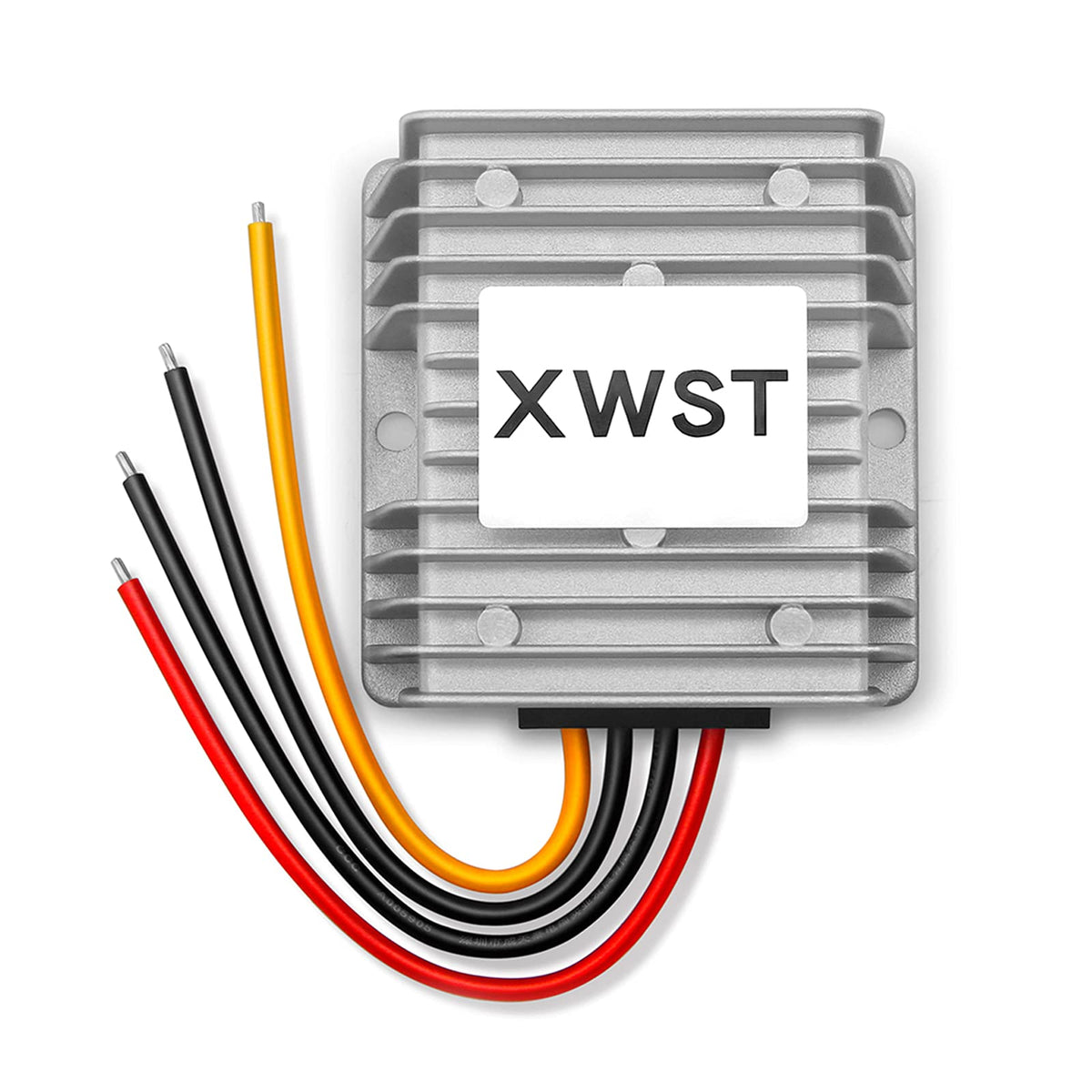

This compact voltage regulator accepts a wide DC input range (9–36V) and produces a stable 12V output using high-efficiency synchronous rectification. Encapsulated with potting material for dust, moisture, and shock resistance, the module is built to run electronics reliably in cars, buses, solar setups, and other harsh environments where voltage can fluctuate.

How does this converter keep 12V electronics safe in variable-voltage environments?

The module actively steps voltage up or down to hold a steady 12V output despite input swings between 9V and 36V. It includes over-current and over-temperature protections that reduce risk to both the converter and the connected devices during fault conditions.

• Input range: DC 9–36V (suits 12V and 24V systems).
• Fixed output: DC 12V at up to 10A (120W max).

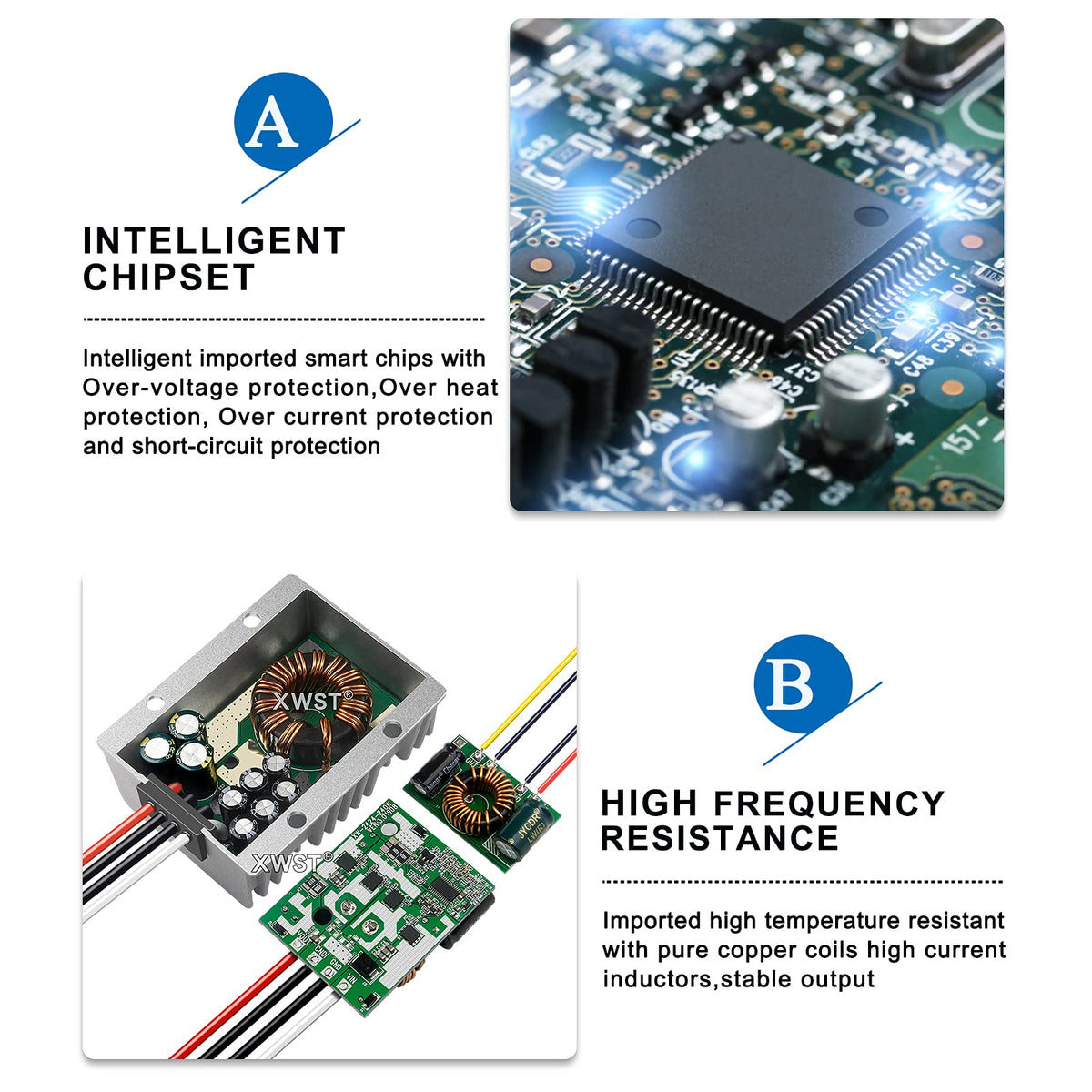

• Built-in protections: Over-current and thermal shutdown.

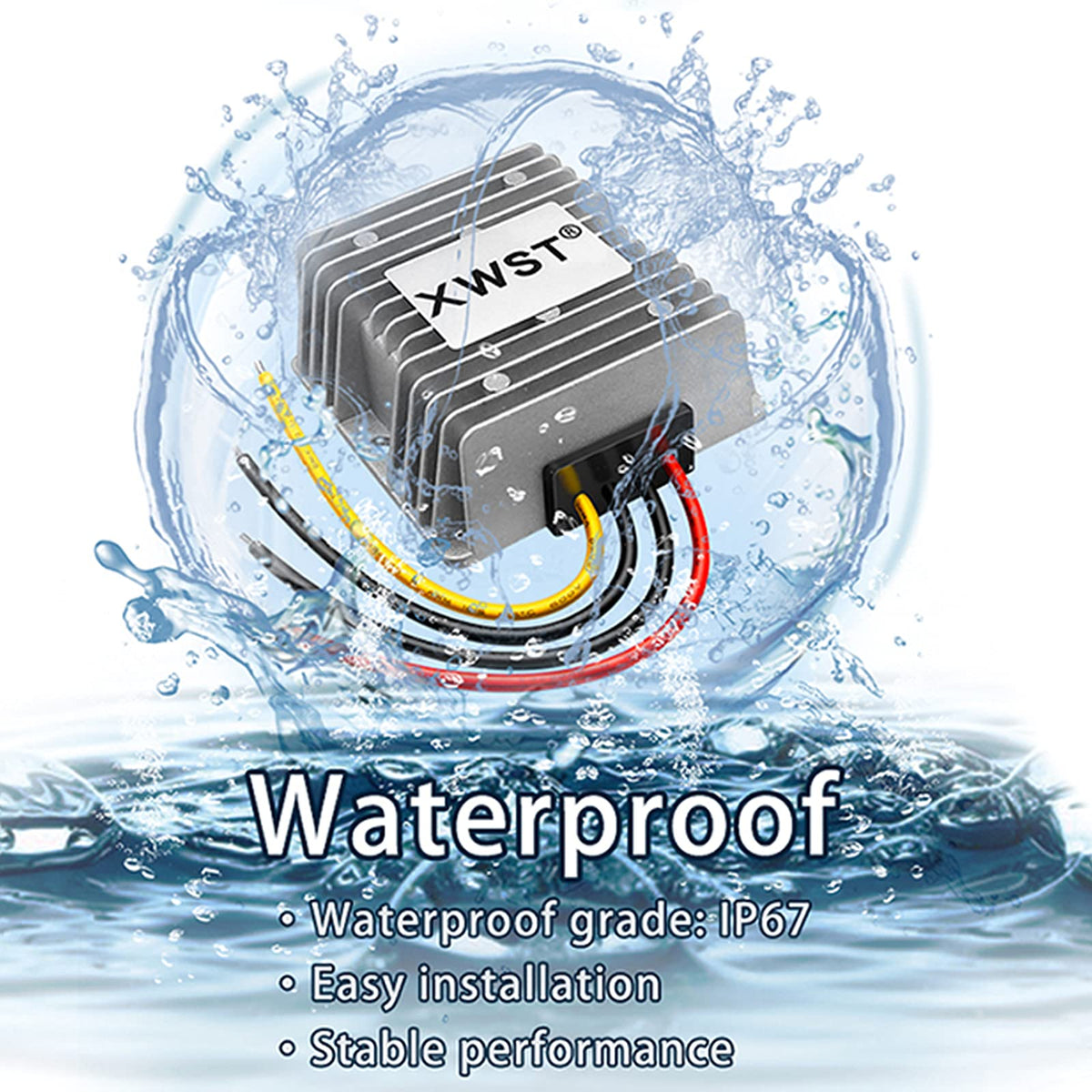

• Potting enclosure: Resists water, dust, moisture, and shocks.

What efficiency and thermal behavior can I expect from the XWST module?

The converter uses synchronous rectification and a high-integration design to reach conversion efficiencies over 93%, which reduces wasted energy and heat. Lower heat generation helps long-term reliability and allows the unit to be used in confined or ventilated installations without large heat sinks.

• Synchronous rectification for >93% conversion efficiency.
• Low heat output under normal load, improving durability.
• Recommended to leave a safety margin on power supply for continuous use.

Where and how can I install this stabilizer module?

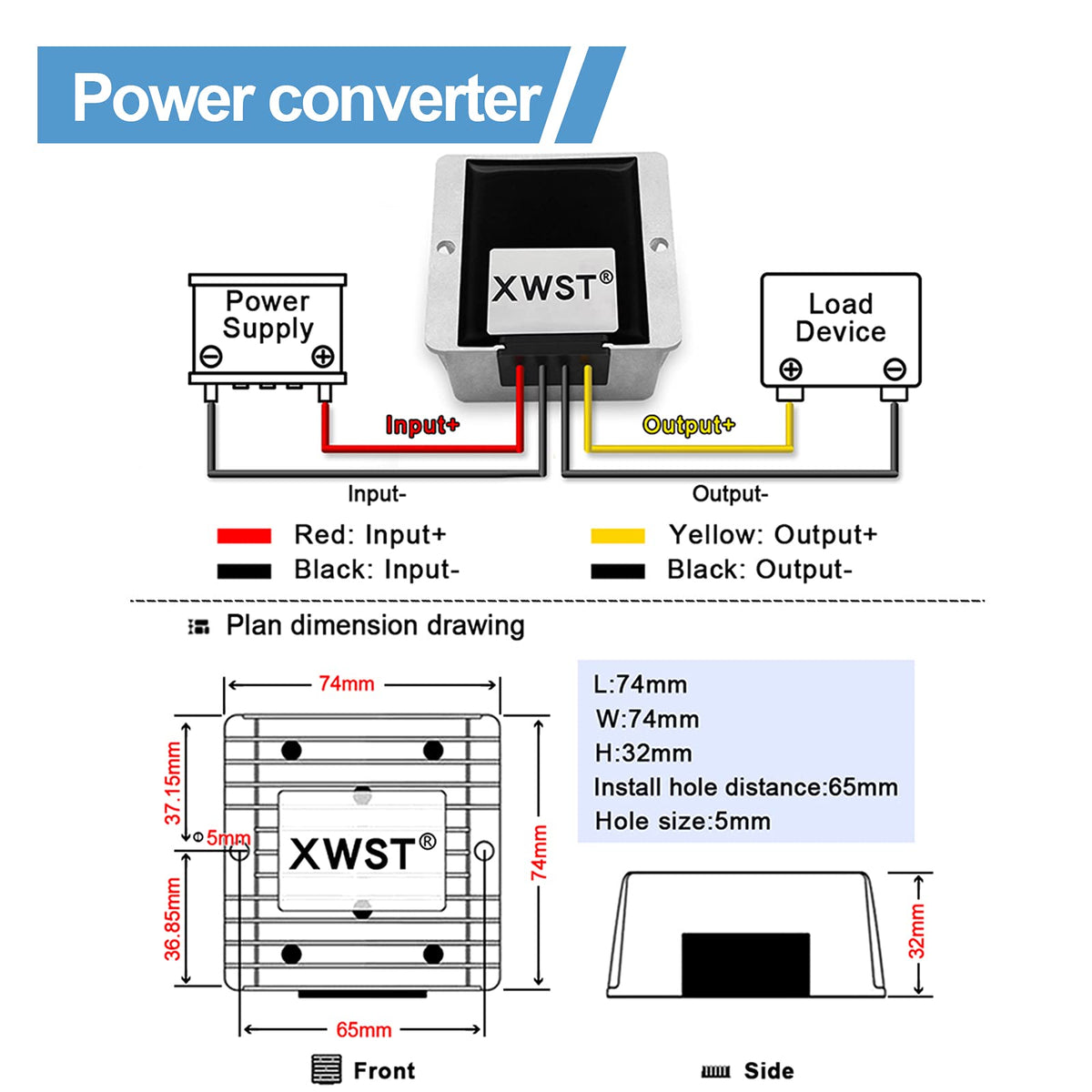

Because of its waterproof potting and robust protections, the module fits vehicle installations (cars, trucks, buses), outdoor electronics, solar systems, and mounted displays. Mount it securely, keep wiring neat, and ensure input polarity and grounding match your system before powering up.

• Typical uses: car audio, vehicle displays, LED/LCD screens, intercoms, and solar arrays.
• Installation tips: firm mounting, correct polarity, and protected cable routing.
• Environment: suitable for outdoor, in-vehicle, underground, and damp locations.

What specifications and limits should I verify before buying?

Check that your system’s maximum load does not exceed 10A and that peak or inrush currents are considered. Ensure the input voltage will stay within the 9–36V window and allow headroom on the source so the power supply isn’t driven to its limits continuously.

• Rated output: 12V DC, 10A, 120W total.
• Input acceptance: DC 9–36V (covers 12V and 24V systems).
• Protection features: over-current and over-temperature shutoff.
• Durability: potting for waterproof, dustproof, moistureproof, shockproof use.

Who is this for: The XWST 9V–36V to 12V 10A stabilizer is made for installers, fleet technicians, and DIYers who need a dependable, compact regulator to protect 12V electronics when supply voltages vary. It’s ideal for automotive audio and display projects, solar-powered equipment, monitoring stations, and any application where rugged, efficient voltage regulation and environmental protection are required. Remember to size the module with a safety margin and follow proper wiring practices for longest service life.
