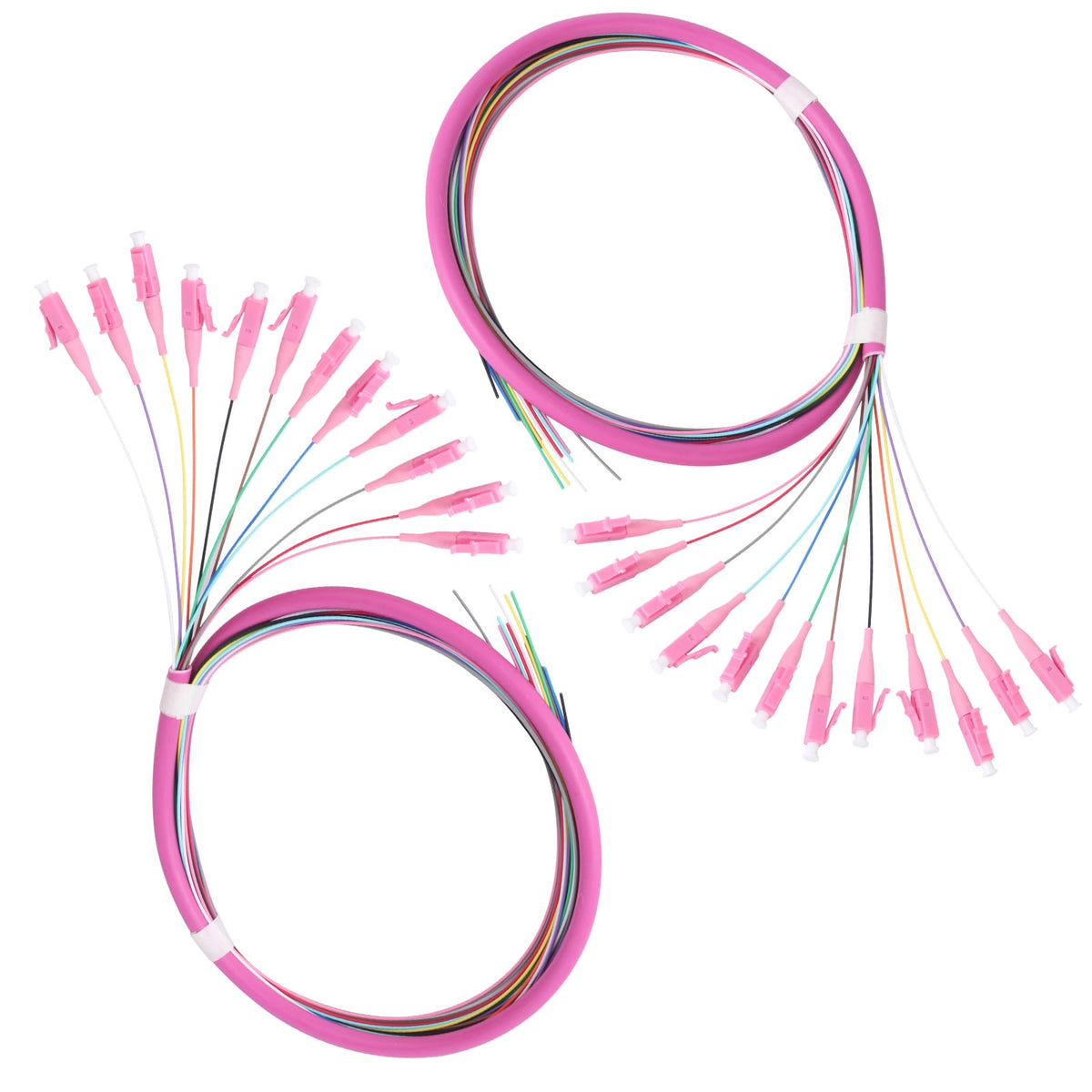

Xunsomten LC OM4 12-Strand 1.2m Multimode Fiber Pigtail

These Xunsomten LC/OM4 12-core fiber pigtails are pre-terminated multimode leads designed to simplify splicing, patch panel hookups, and short-distance backbone runs. Each 1.2-meter pigtail uses OM4 multimode fiber and LC-UPC connectors to deliver consistent transmission at common wavelengths while keeping insertion loss low and return loss high. Packaged in sets of four, they fit data centers, telecom rooms, FTTH enclosures, and equipment racks where compact, high-density connections matter.

How do these pigtails maintain reliable signal performance?

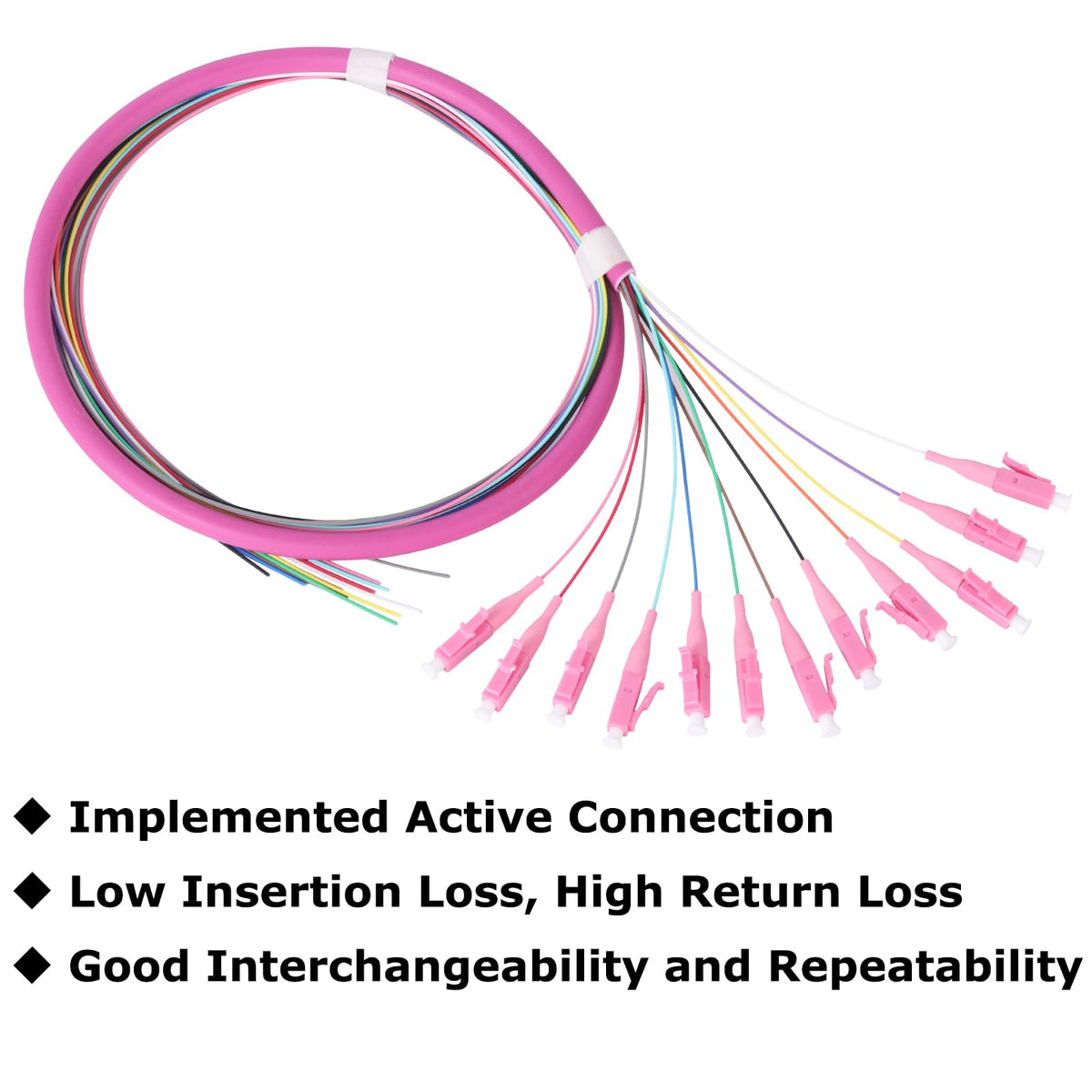

The pigtails use OM4 graded multimode fiber and precision ceramic ferrules to control insertion and reflectance. Specified loss and return parameters help ensure predictable link budgeting for short-range multimode links.

• Insertion loss: ≤ 0.3 dB for minimal signal drop.
• Return loss: ≥ 50 dB to reduce reflections.
• Fiber diameter: 0.9 mm for standard multimode handling.
• Designed for wavelengths including 1310 nm and 1550 nm.

What makes installation and identification faster with these cables?

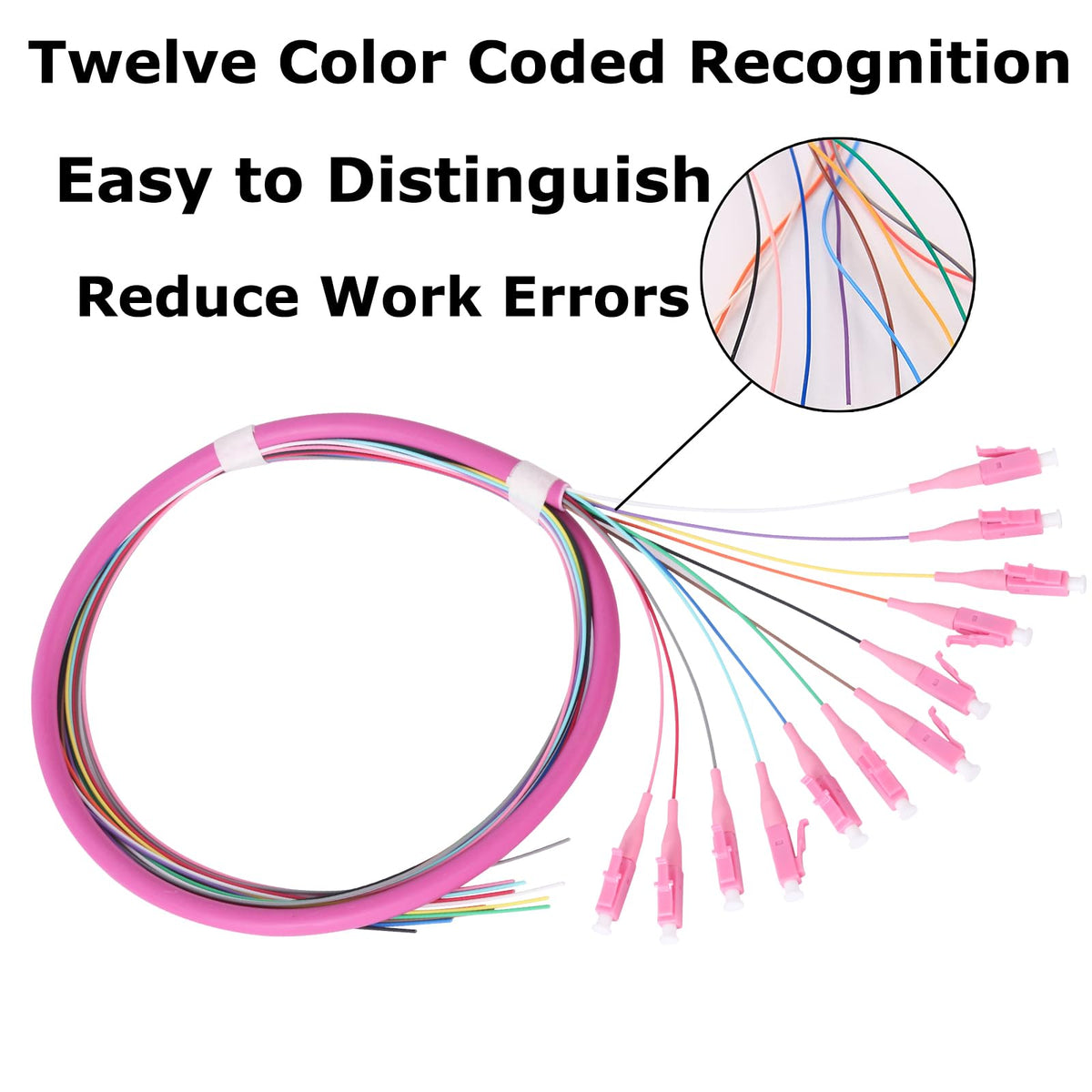

Xunsomten color-codes each of the 12 strands, so technicians can quickly match fibers during splicing and panel termination. The 1.2 m length is long enough to reach patch panels but short enough to keep cable management tidy.

• Each strand is marked in a distinct color to prevent miswiring.

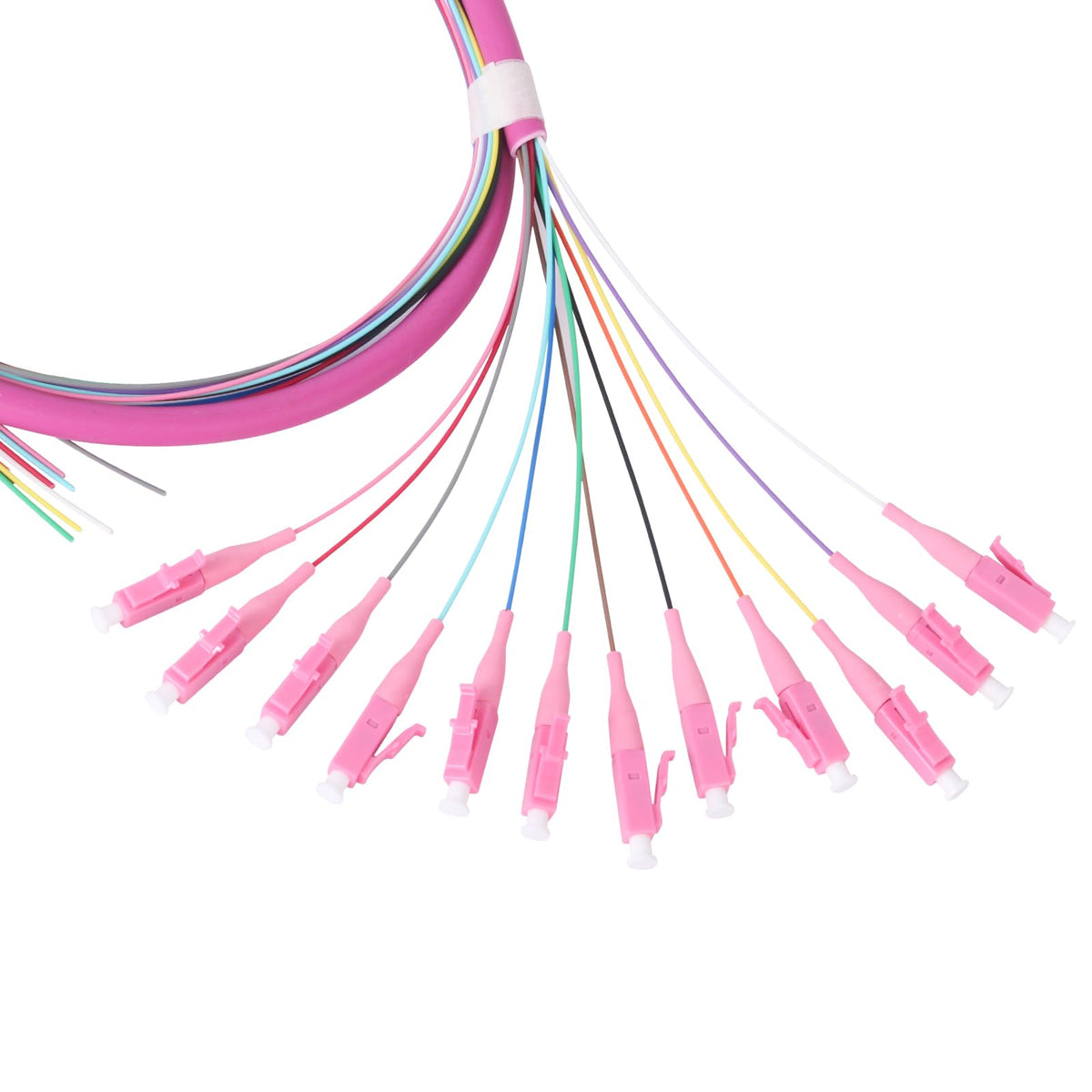

• The compact LC connector supports high-density panels and adapters.
• PVC jacket provides flexibility and straightforward routing in racks.

Are these pigtails durable enough for repeated use and field work?

Yes — the pigtails are built with rugged materials to withstand routine handling and connector mating cycles. The high-quality ceramic sleeve and reinforced jacket improve longevity in both lab and field environments.

• PVC outer jacket resists wear during routing and management.
• Rated for ≥ 200 N tensile strength to survive pulls and moves.
• Connector durability: over 1000 insertion/extraction cycles.

Where are these best deployed and what equipment do they support?

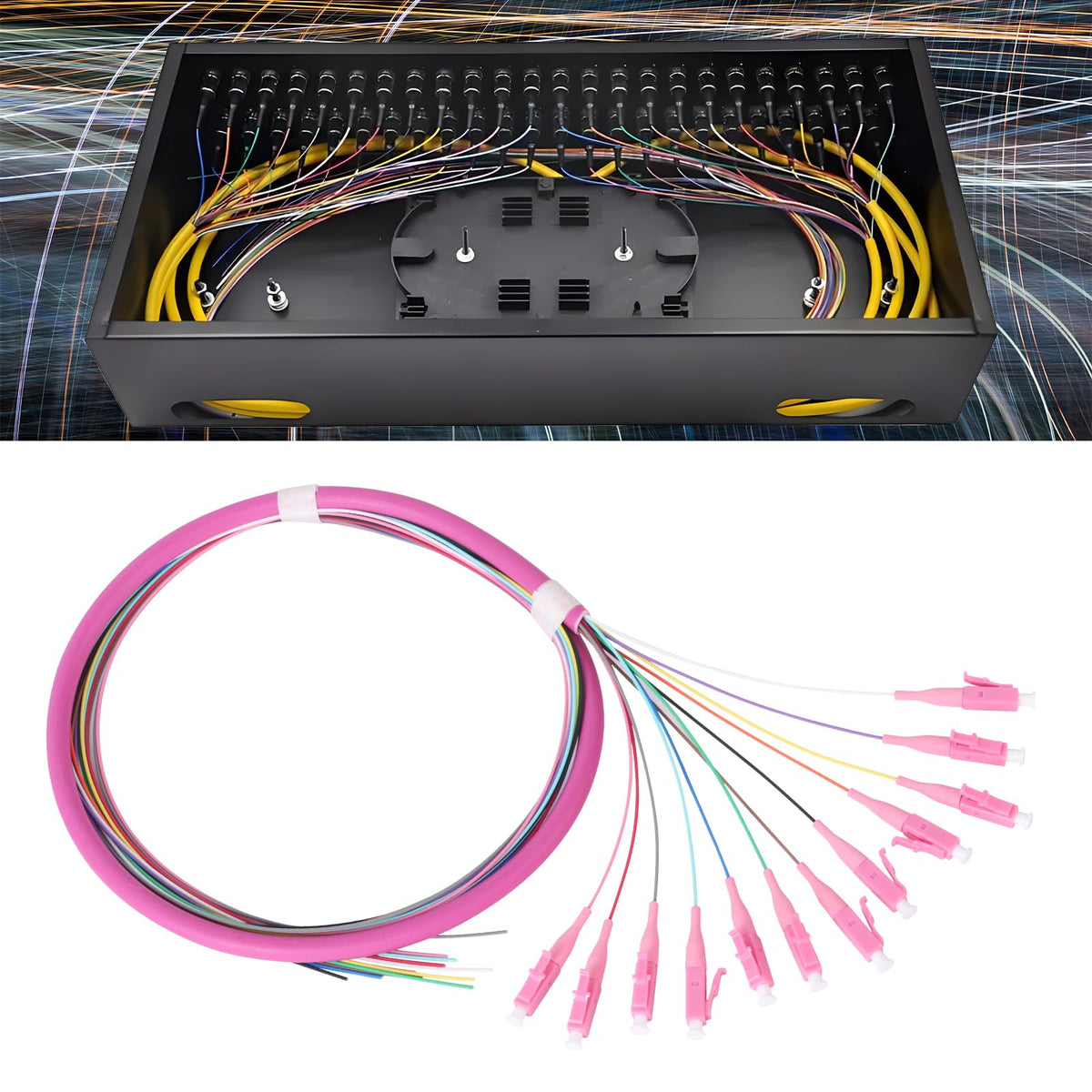

These OM4 LC pigtails are suitable for short- to medium-range multimode links inside buildings and campus networks. They pair with patch panels, fusion splices, media converters, switches, and optical distribution frames in both commercial and industrial settings.

• Ideal for local area networks (LANs) and telecommunications rooms.
• Use with FTTH terminations, surveillance cameras, and street-light fiber runs.
• Compatible with LC adapters, MPO conversions, and multimode transceivers.

Who is this for: Network engineers, installation contractors, and IT teams who need consistent, color-coded multimode pigtails for high-density racks, splice enclosures, or short backbone links. Choose Xunsomten 12-strand LC/OM4 pigtails when you want low-loss, repeatable connections that simplify identification and reduce installation errors across data centers, enterprise closets, or FTTH projects.
