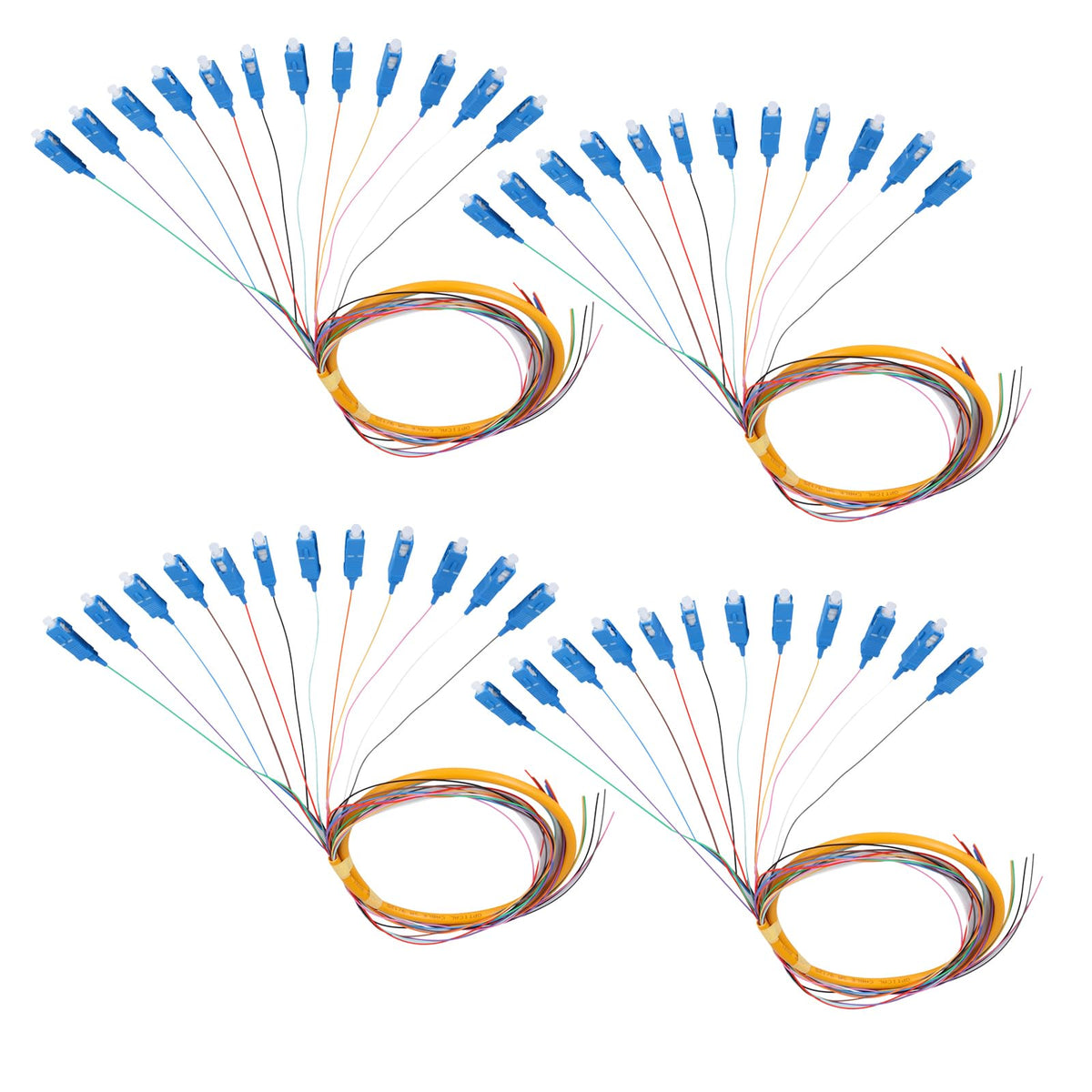

Xunsomten 12-Strand SC/UPC 1.2m Singlemode Fiber Pigtails

Xunsomten 12-strand SC/UPC singlemode fiber optic pigtails are 1.2 m pre-terminated cables designed to deliver low-loss, durable connections for telecommunications and network installations.

These pre-assembled 12-core SC/UPC pigtails simplify fiber terminations and maintenance by providing factory-polished connectors and clearly color-coded fibers. Each cable measures 1.2 meters and is built for repeated handling and stable signal performance across common singlemode wavelengths. The set of four pigtails is intended for splicing, patching, and upgrading fiber panels, camera links, and FTTH or LAN/WAN backbones.

How do these pigtails ensure reliable signal transmission?

The Xunsomten pigtails use singlemode fiber optimized for 1310 nm and 1550 nm operations, keeping insertion loss low and return loss high for consistent links. Factory polishing and ceramic ferrules reduce alignment error at connector interfaces.

• Insertion loss ≤ 0.3 dB, minimizing signal attenuation.
• Return loss ≥ 50 dB, reducing back-reflection.
• 0.9 mm fiber diameter for standard singlemode compatibility.
• Ceramic ferrule sleeves for precise connector mating.

What makes the build quality suited for repeated installations?

Each pigtail is sheathed in PVC for mechanical protection and flexibility during routing and termination. Connectors are designed to withstand frequent mating cycles, so panels and test setups can be reconfigured without premature connector wear.

• PVC jacket for abrasion resistance and bend tolerance.
• Rated tensile strength ≥ 200 N for secure pulls and stress resilience.
• Connector durability validated for over 1,000 insertion/extraction cycles.
• Factory-assembled ends reduce field polishing and potential faults.

Which applications and environments are these pigtails best for?

These pigtails are built to integrate into communication systems, from local and wide area networks to CCTV and smart street lighting links that require fiber patching or splicing. They work well inside distribution frames, splice enclosures, and indoor cable runs where space and predictable performance matter.

• FTTH and building backbone splicing and patch panels.
• Outdoor camera fiber links when routed through enclosures.
• Telecommunications and ISP network distribution points.
• Instrument, TV headend, and smart lighting system connections.

How do the color markings and packaging simplify installation?

All twelve fibers are individually color-coded so technicians can identify strands at a glance and avoid cross-termination. The 1.2 m length gives enough slack for typical patching and splicing work without excess clutter in rack-mounted panels.

• Standard 12-color identification for quick strand tracing.
• 1.2 m (≈59.05 in) length strikes a balance between reach and cable management.
• Four-pack set reduces repeated procurement and supports small multiport jobs.
• Pre-terminated SC/UPC connectors minimize field labor time.

Who is this for: Network engineers, installers, and electricians who need a reliable set of pre-terminated singlemode pigtails for splicing, patching, or upgrading fiber panels will find this 4-pack useful. It suits service providers and in-house IT teams deploying FTTH drops, CCTV fiber runs, telecom demarcation points, or building backbone upgrades where low loss, robust connectors, and clear fiber identification save time on installation and troubleshooting.
