XRDS -RF RG316 100FT Coax Cable 50Ω Flexible

XRDS -RF 100FT RG316 coaxial cable is a thin, highly flexible 50Ω RF cable designed for low loss signal runs up to 6 GHz with a durable Teflon jacket.

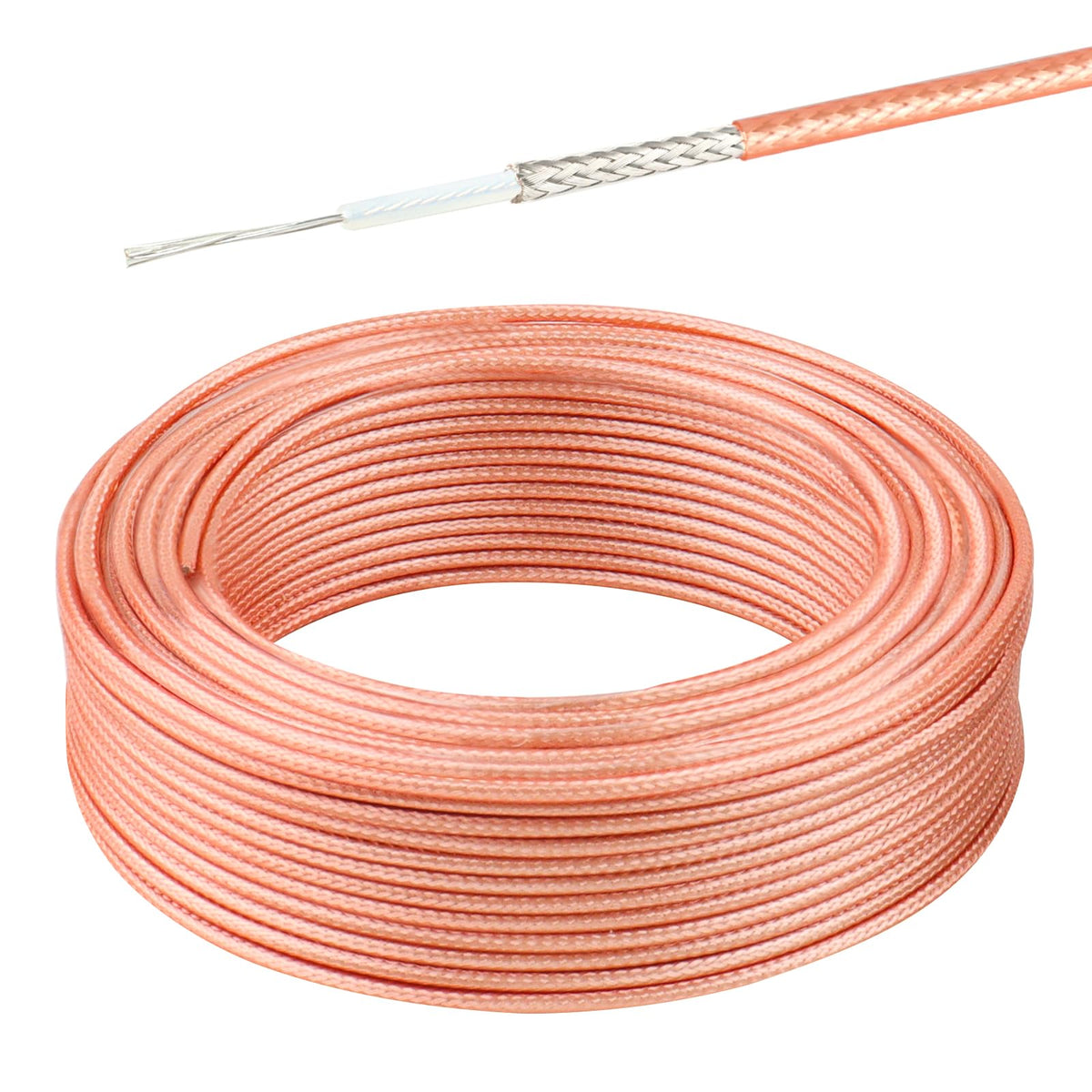

This lightweight RG316 cable provides a compact alternative to thicker coax types when space, flexibility and low attenuation matter. With silver-plated copper conductors and braid, a stranded core for bendability, and a Teflon outer jacket for environmental toughness, it’s intended for antenna leads, radio interconnects, and compact RF assemblies where routing and weight are constraints.

How does this cable perform for RF signal transmission?

XRDS -RF RG316 maintains consistent 50 ohm impedance and low VSWR for clean signal transfer across a broad HF/VHF/UHF range. It’s specified for frequencies up to 6 GHz and shows low attenuation at common bands, making it suitable for many wireless links and test setups.

• Maximum frequency: 6 GHz
• Attenuation: ≤ 0.45 dB/ft at 3 GHz (typical)
• VSWR: ≤ 1.15 for matched systems
• Characteristic impedance: 50 Ω for standard RF equipment

Is this cable easy to route and install in tight spaces?

Yes — the 0.1 inch (approx. 2.54 mm) diameter and stranded inner conductor make the cable exceptionally flexible and easy to route through conduits, behind panels, or inside low-clearance assemblies. Its thin profile reduces strain on connectors when bent and simplifies custom cable runs.

• Thin diameter: ideal where space is limited
• Stranded core: improved bend flexibility over solid conductors
• Lightweight: minimizes mechanical load on antennas and equipment
• Good for hand-crimping SMA/other small RF connectors

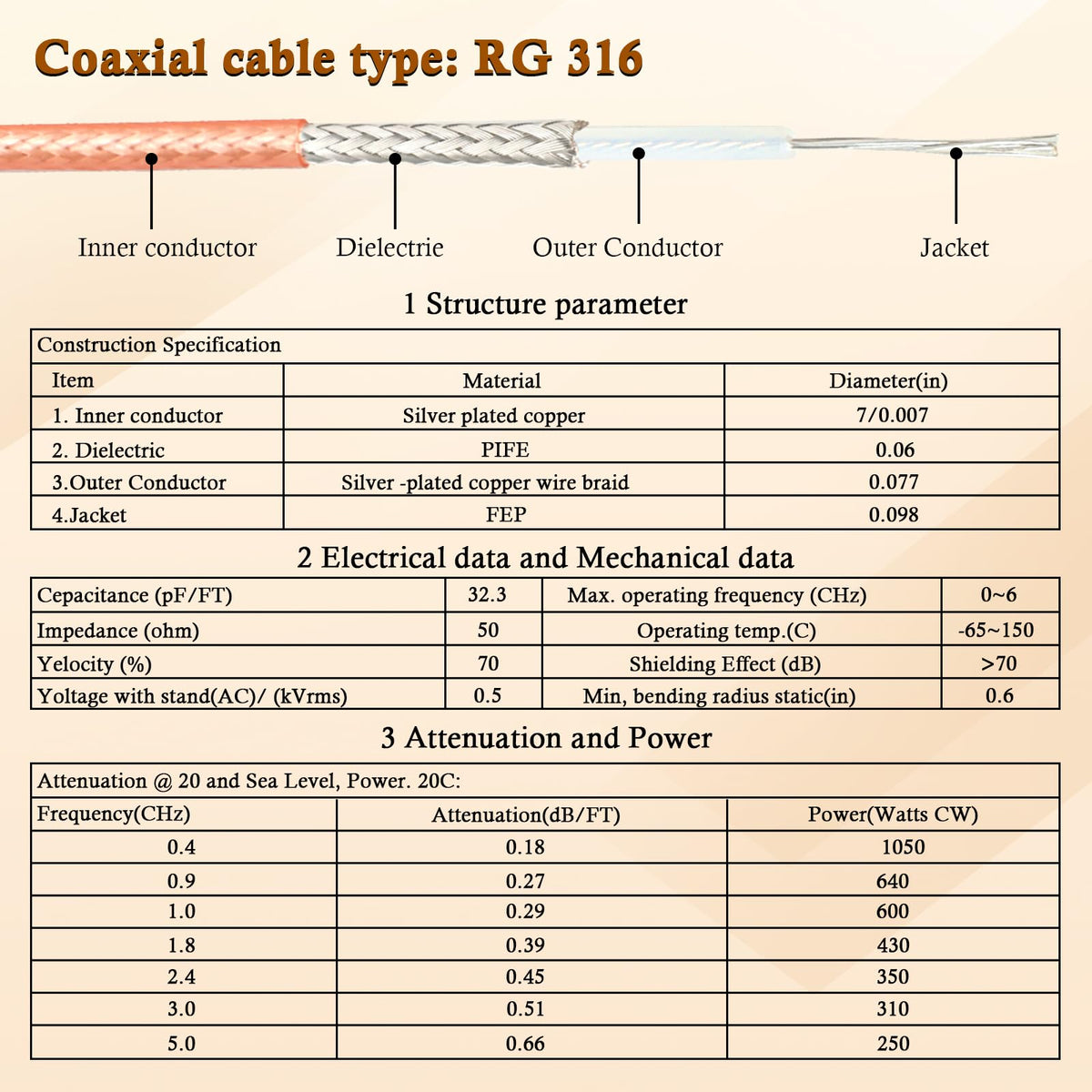

What materials and construction keep signal loss low?

The cable uses silver-plated copper for both the center conductor and braid, improving conductivity and reducing insertion loss compared with plain copper at many RF frequencies. The Teflon (PTFE) jacket and dielectric resist temperature and environmental wear, preserving electrical performance over time.

• Center conductor: silver-plated copper for low resistance
• Braid: silver-plated copper for shielding effectiveness
• Dielectric/jacket: PTFE (Teflon) for stability and durability
• Construction: designed for consistent impedance and low SWR

Which applications is the 100 ft RG316 cable best suited for?

This cable is appropriate for hobbyist and professional RF tasks that require a compact, low-loss connection. Typical uses include antenna leads, ham radio setups, ADS-B receivers, 4G/LTE or Wi‑Fi patch connections, and short-range test interconnects where flexibility and minimal signal degradation are priorities.

• Antenna leads for VHF/UHF and compact installations
• Ham radio and transceiver interconnects
• 4G/LTE, Wi‑Fi patch leads, ADS‑B receiver feeds

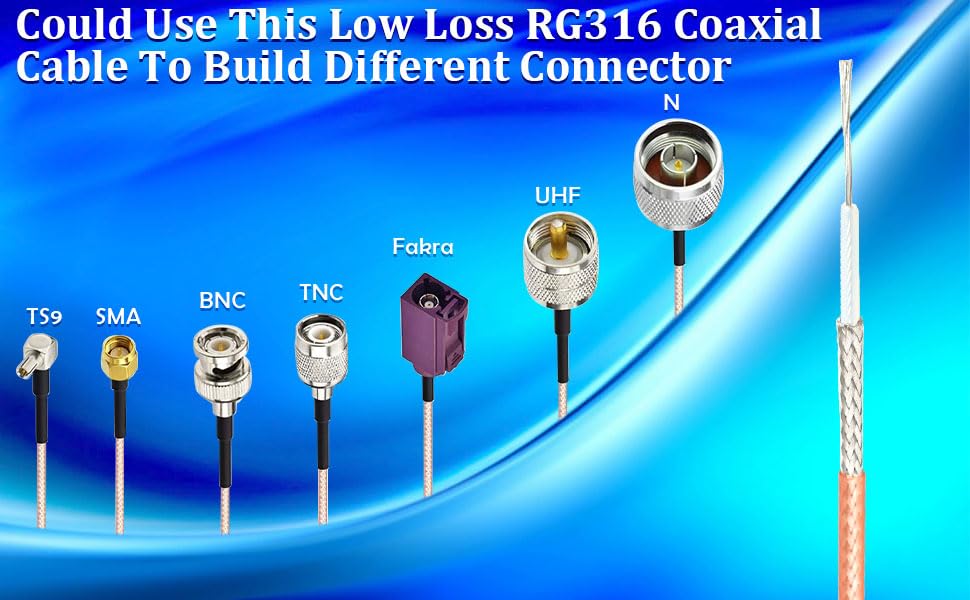

• Custom cables built with crimped SMA or similar connectors

Who is this for: Installers, RF hobbyists, ham radio operators, and electronics technicians who need a slim, flexible 100 ft spool of 50Ω coax that balances low loss with easy routing. If you require heavier-duty outdoor trunk lines or long-distance low-loss feeders for high-power transmitters, consider larger-diameter low-loss coax; if you need compact, flexible runs and convenience for connectorization, XRDS -RF RG316 is an efficient choice.
