XMSJSIY XLR 3-Pin Female to 3-Pin Phoenix Adapter

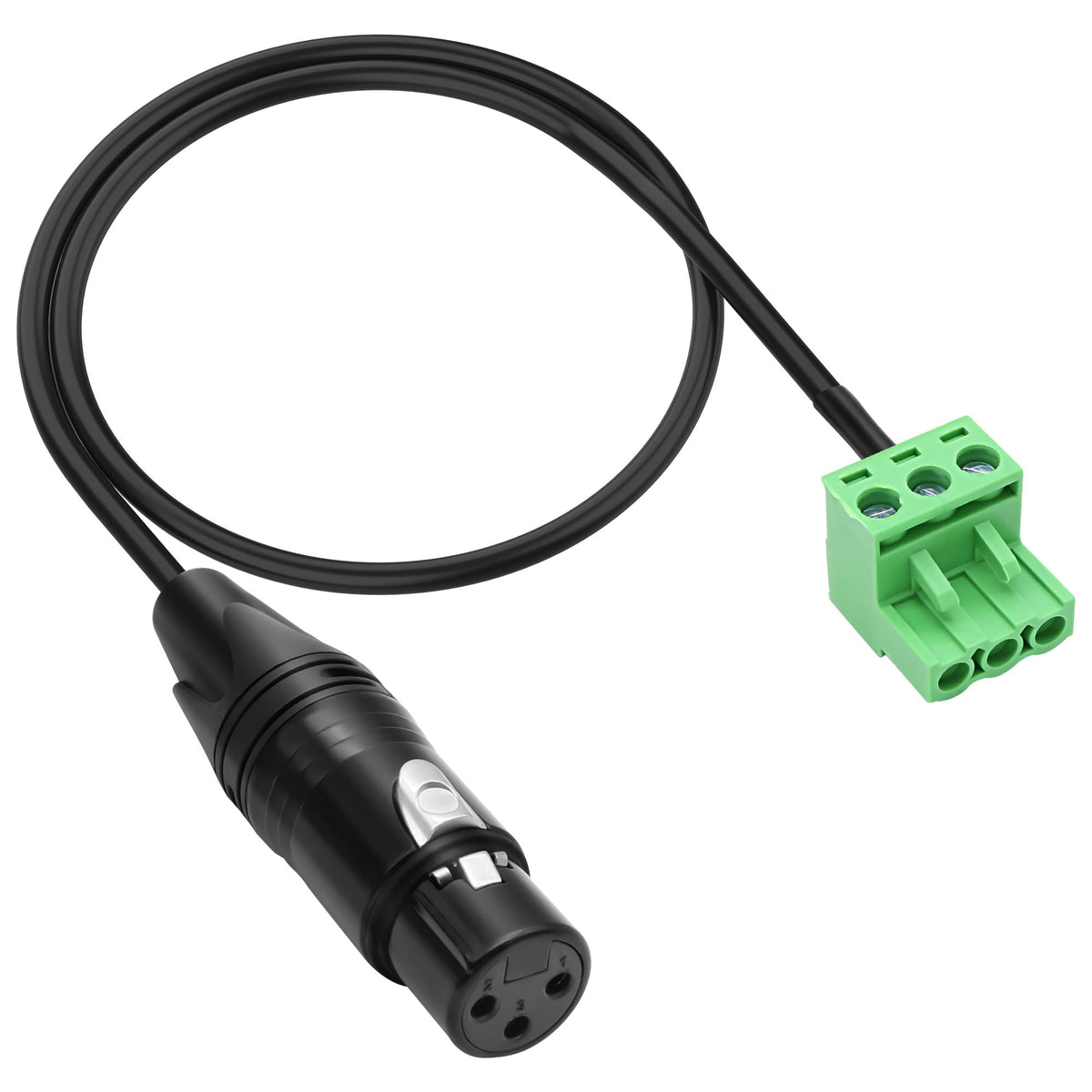

A compact XLR 3-pin female to 3-pin Phoenix (5.08mm) screw-terminal adapter cable that links standard XLR-equipped microphones and speakers to Phoenix-style audio processors and terminal blocks.

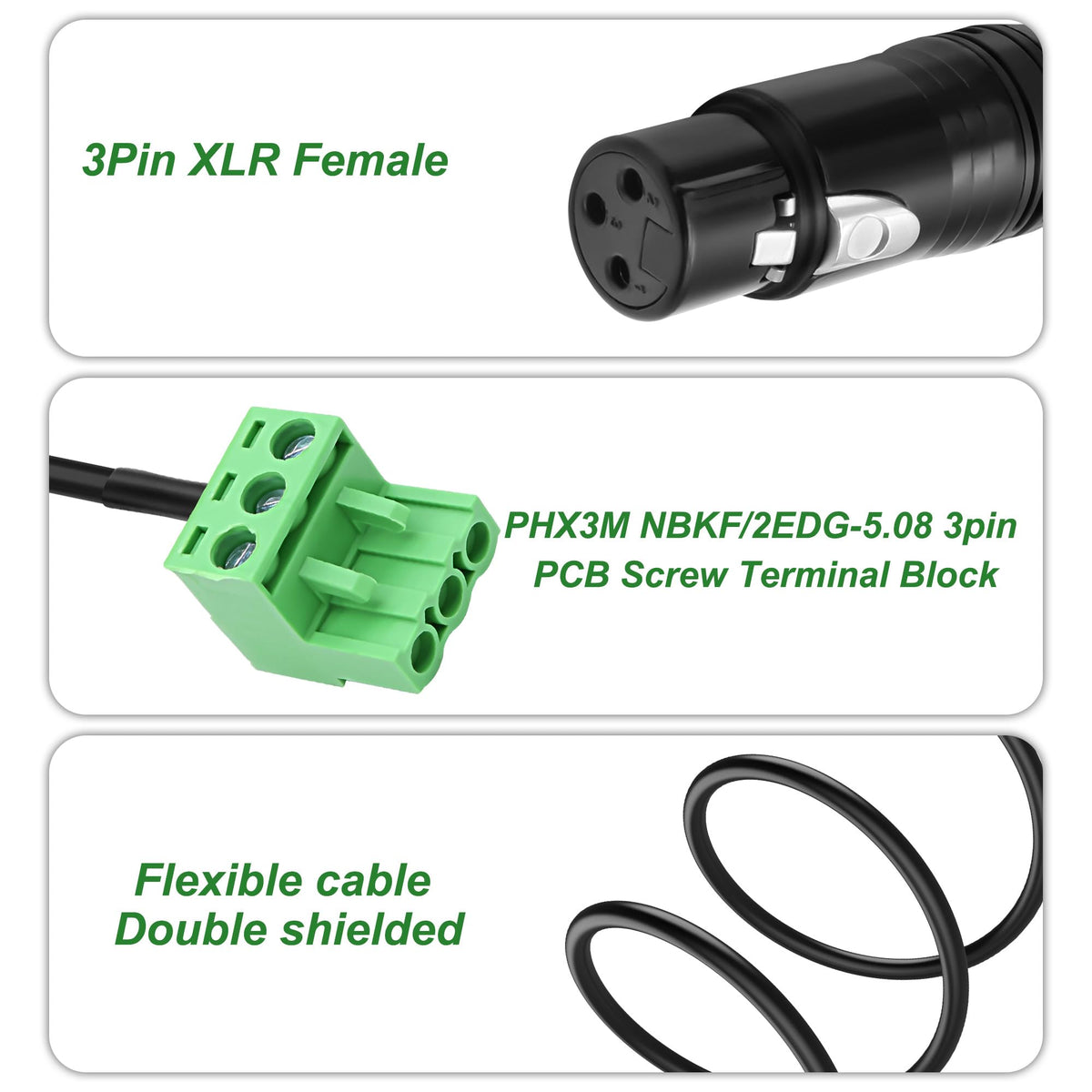

This adapter cable from XMSJSIY solves interface mismatch between pro audio gear by combining a gold-plated XLR 3-pin female connector with a removable 3-pin PHX3M screw terminal block (NBKF/2EDG-5.08). At 0.4 meters (1.3 ft) it’s built for short runs inside racks, on stage, or behind AV furniture where you need a reliable, low-profile conversion without soldering. Materials include a pure-copper core for steady conductivity, flame-retardant Phoenix housing, steel screws with plating for corrosion resistance, and gold plating on the XLR for improved contact life.

How will this cable help when my microphone or speaker has an XLR plug but the mixer accepts Phoenix?

The cable directly mates an XLR female to a 3-pin Phoenix screw terminal, removing the need for bulky adapters or permanent modifications. Insert the XLR into your device and secure stripped conductors into the Phoenix screws for a fast, reversible connection.

• Adapts XLR 3-pin wiring to Phoenix 3-pin (5.08mm pitch) terminal blocks.
• Gold-plated XLR improves connection reliability and oxidation resistance.
• Phoenix block accepts 12–24 AWG wires, rated AC 300V 20A.

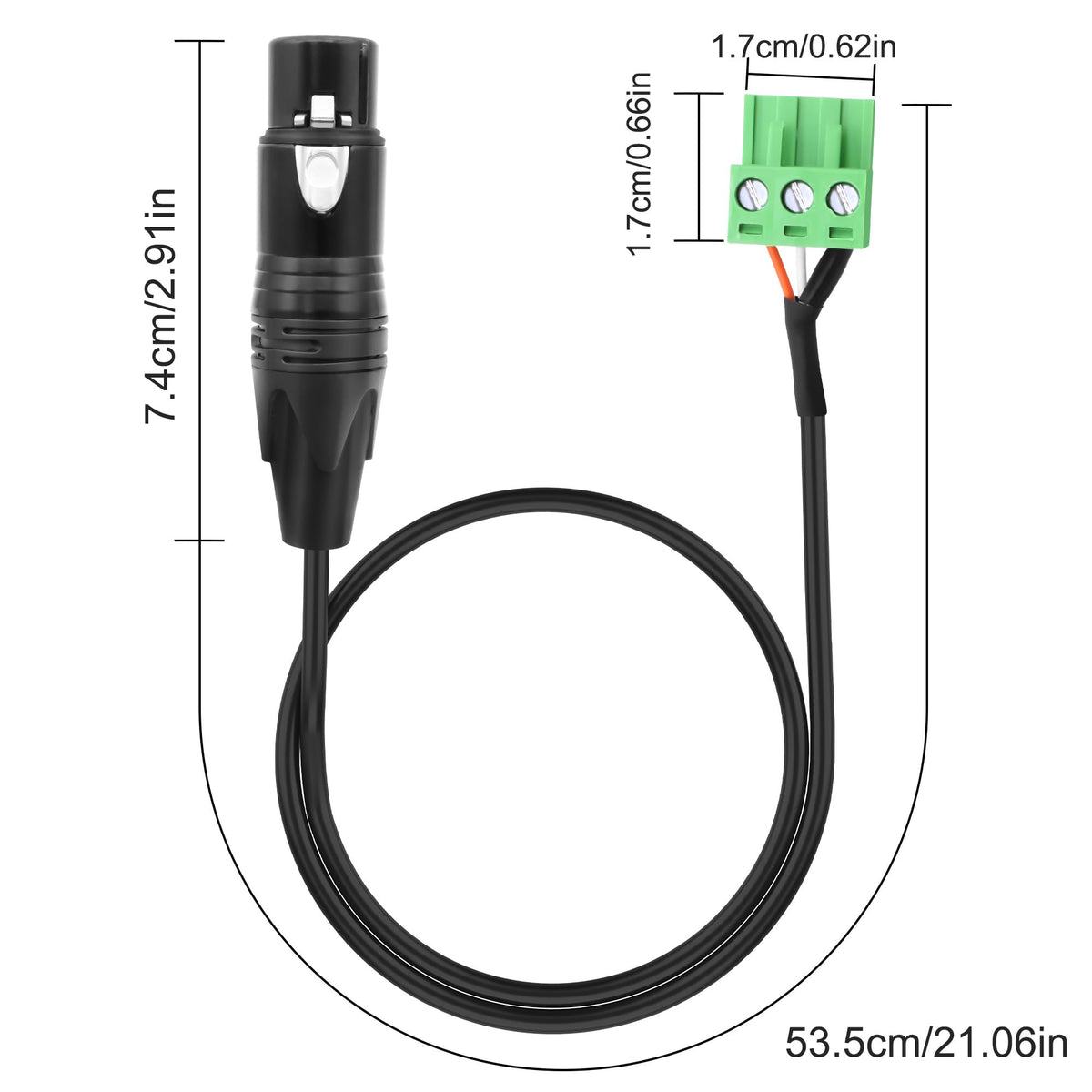

• 0.4 m (1.3 ft) length minimizes excess cable clutter in racks.

What makes the connectors durable and safe for pro audio use?

Both connector ends are built for repeated installation. The XLR housing and pins use corrosion-resistant plating while the Phoenix block combines flame-retardant plastic with plated steel screws to maintain secure clamping without slipping or corrosion.

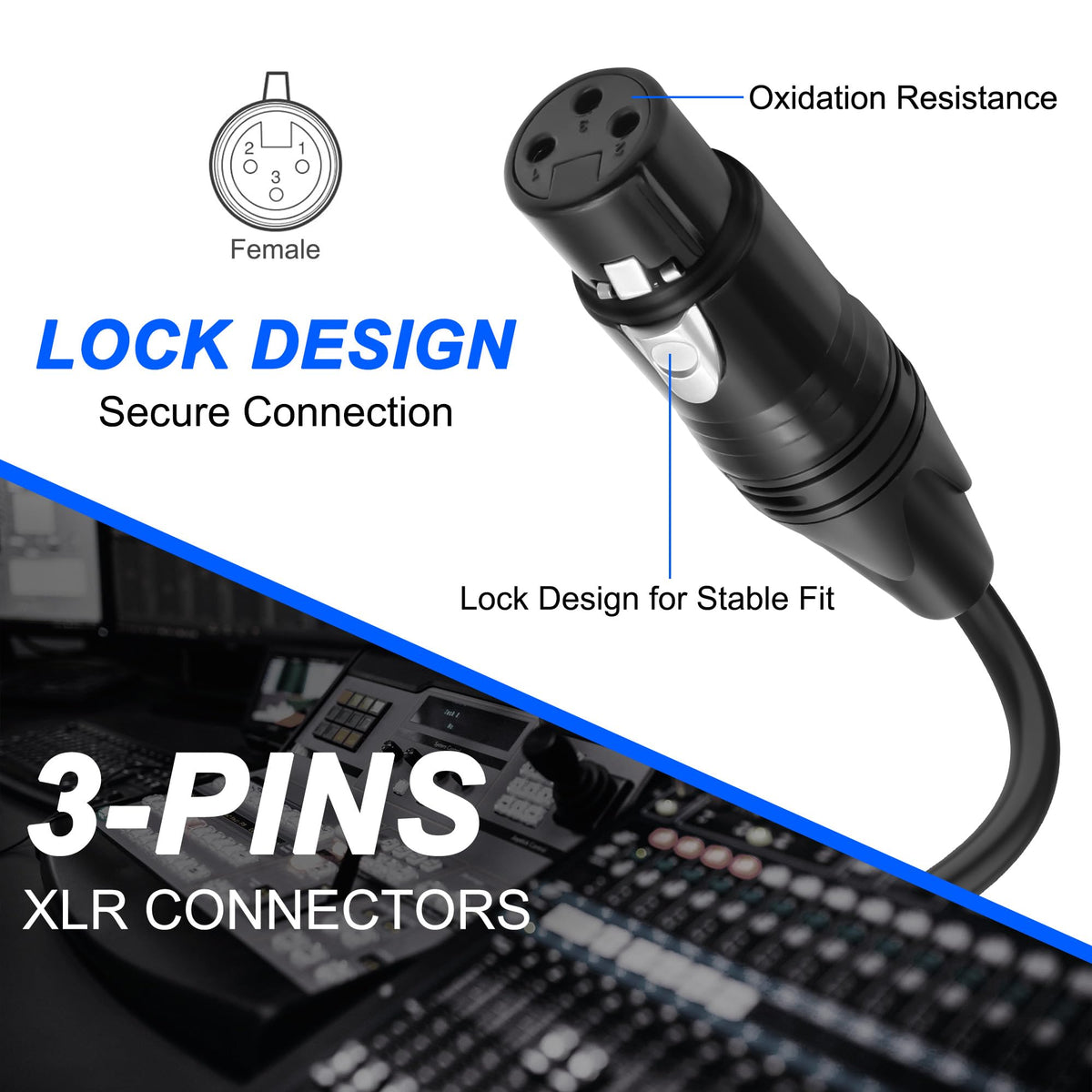

• Gold-plated XLR pins resist oxidation for long-term contact.
• Phoenix housing is flame-retardant for safer installations.
• Plated steel screws prevent thread wear and slippage under torque.
• Pure copper conductor provides stable, low-resistance signal transfer.

How easy is it to install and remove this adapter in a live or studio environment?

Installation is tool-minimal and quick: plug the XLR into the device and tighten the Phoenix screws after inserting stripped conductors. Removal is equally simple — loosen the screws and unplug the XLR — making this cable ideal for temporary setups, troubleshooting, and modular AV racks.

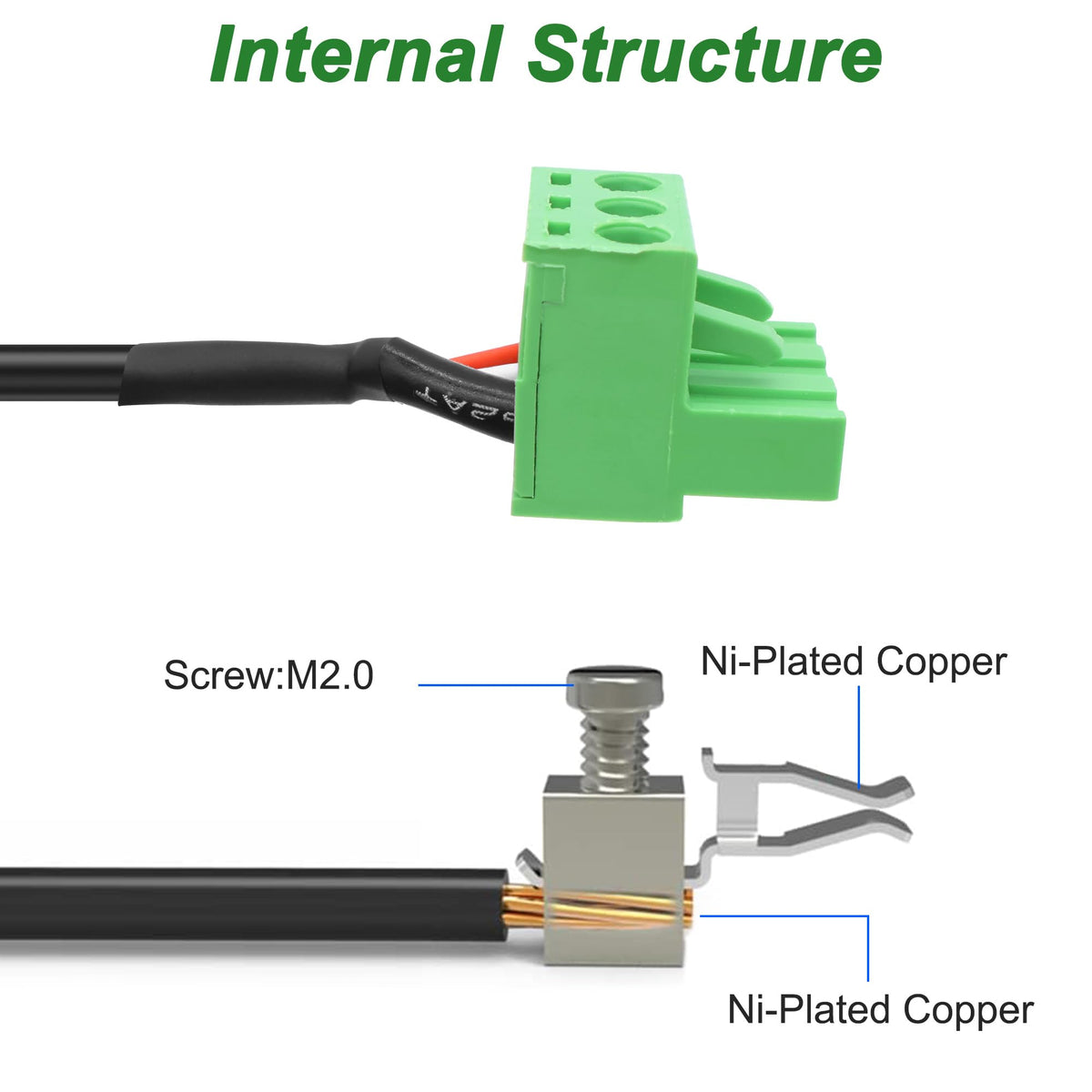

• Strip wire, insert into Phoenix port, tighten screws — no soldering required.
• XLR simply plugs into the corresponding female/male jack like any standard mic cable.
• Reversible connection supports fast equipment swaps and stage changes.
• Compact 0.4 m length keeps cable runs tidy in tight spaces.

What wiring and electrical specifications should I consider before use?

The Phoenix terminal block accepts a range of wire gauges and is rated for typical audio system currents and voltages. Check your system’s pin assignments and use appropriate stranded cable to maintain flexibility and secure clamping in the terminal block.

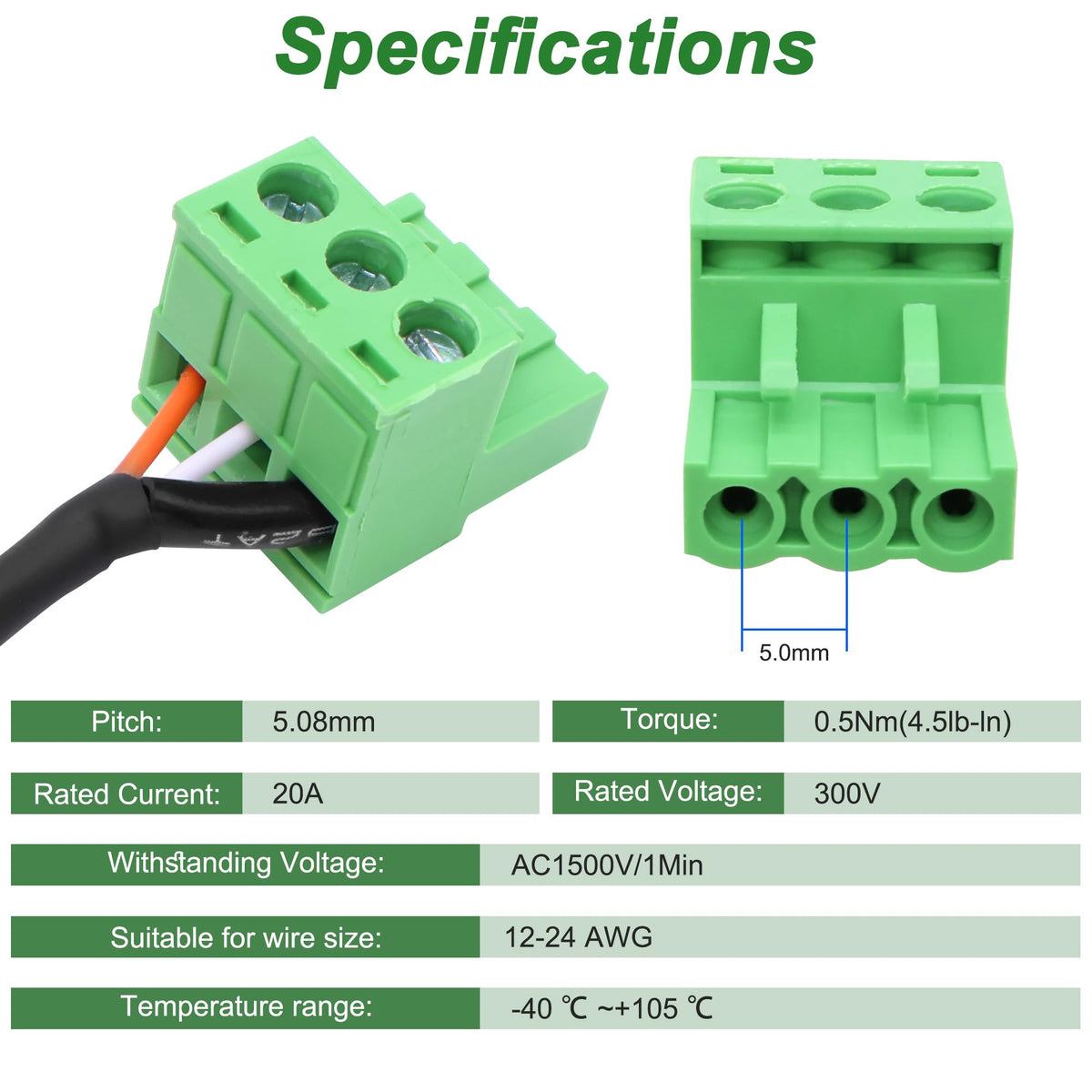

• Phoenix NBKF/2EDG rating: AC 300V, 20A; 12–24 AWG compatible.
• 3-pin layout with 5.08mm pitch matches standard Phoenix blocks.
• Use stranded copper conductors for reliable screw-terminals grip.
• Verify pin mapping (XLR pins 1/2/3) before connecting to processors.

Who is this for: AV technicians, recording engineers, live-sound crews, and anyone running hybrid systems where XLR-equipped microphones, speakers, or amplifiers must interface with Phoenix-style processors, wall panels, or terminal blocks. If you need a short, dependable conversion cable that avoids soldering and keeps rack or stage wiring neat, this XMSJSIY adapter offers a compact, serviceable solution.
