Wiremold In-Wall TV Power & Cable Management Kit CMK70

Wiremold CMK70 is a complete in-wall TV power and cable management kit that lets you hide power and low-voltage cables behind drywall quickly without hardwiring.

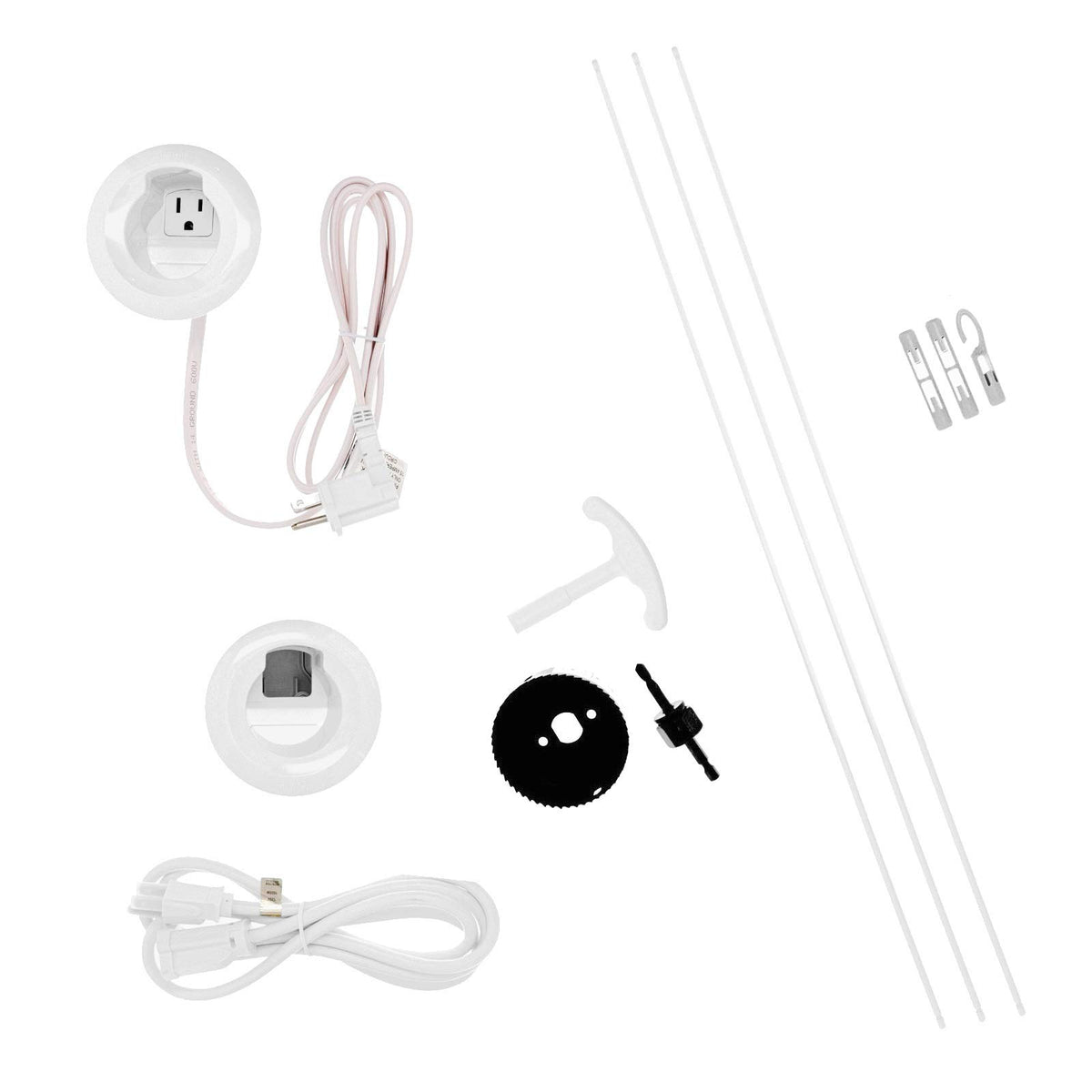

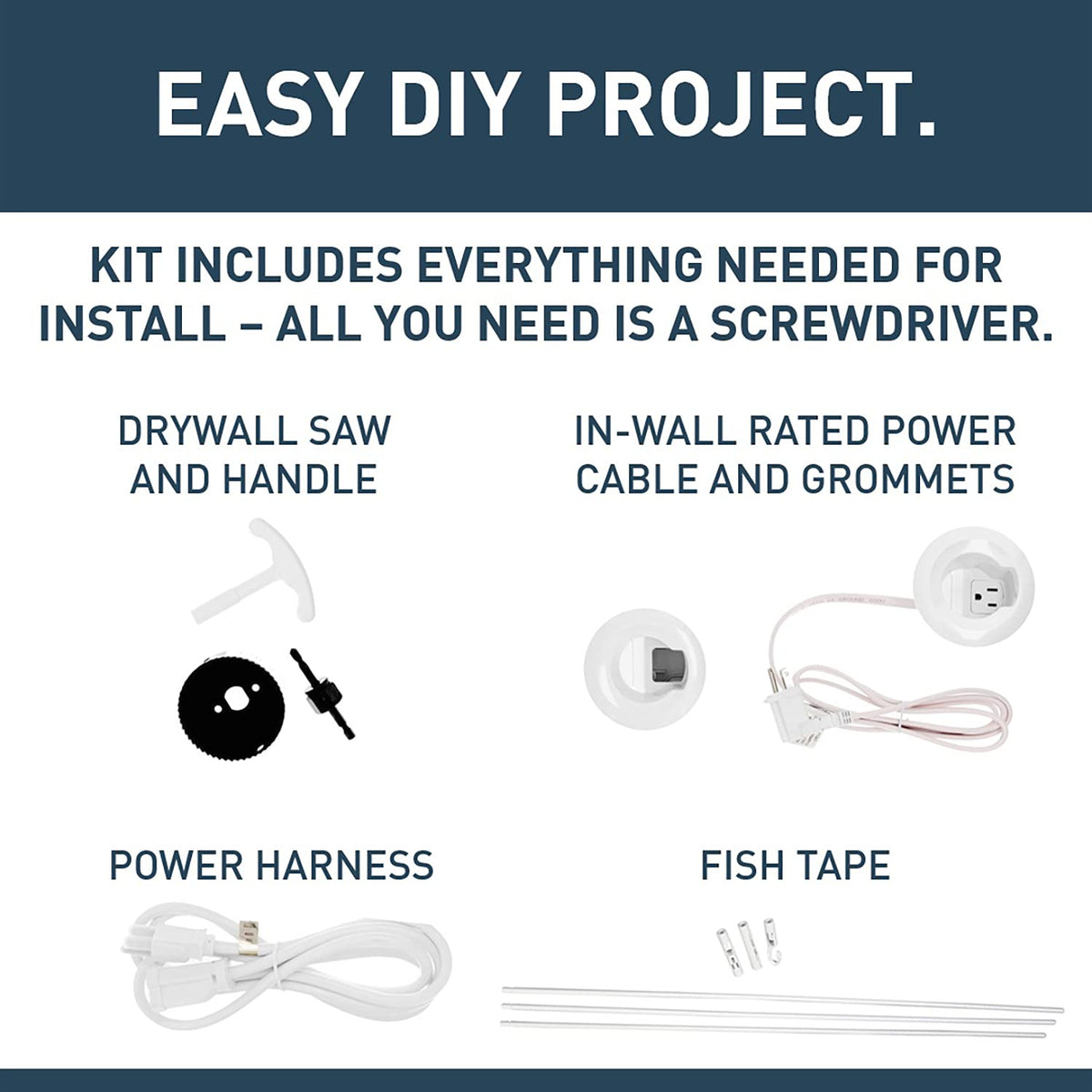

Neat, code-conscious cable routing improves any wall-mounted TV install. The CMK70 supplies two matching grommet modules (upper and lower), a pre-wired power harness, fish tape, a 3" hole saw with handle and a 6 ft extension cord — everything needed to move a TV power connection and AV cables neatly behind a single wall cavity in about half an hour. No electrical termination or electrician is required when used as instructed.

How does the kit keep my TV cables concealed?

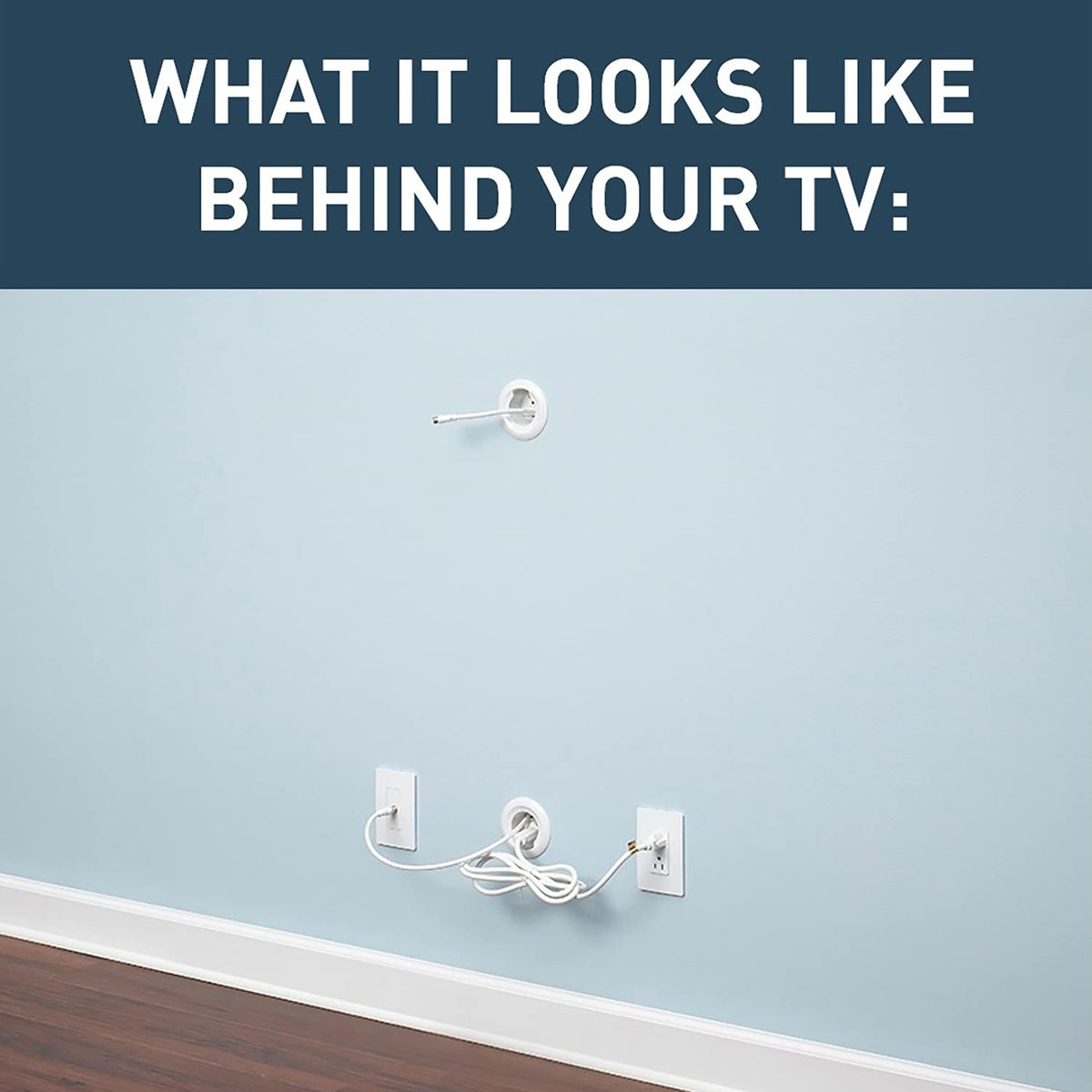

The CMK70 creates two aligned wall openings — one behind the TV and one lower near an outlet — and provides a routed power harness and brush-style pass-through for HDMI and other low-voltage cables. Once installed, power and AV runs are pulled through the wall so cords are not visible.

• Upper module: brush-style HDMI/AV pass-through for tidy cable exits behind the TV
• Lower module: accepts the pre-wired power plug and secures to the wall cavity
• Fish tape: helps pull both power harness and low-voltage cables between openings
• Trim rings: snap-on covers for a finished look at both locations

Will I need an electrician or special wiring?

No electrician is needed when you use the included pre-wired harness and follow the manufacturer instructions. The system is designed for plug-and-play installation that avoids hard electrical termination — you plug the supplied cord into a standard receptacle and the TV plugs into the upper module.

• Pre-wired power harness eliminates in-wall splicing
• 6 ft extension cord included to reach the existing outlet
• No special tools beyond the provided hole saw and fish tape
• Designed for standard 1/2" drywall and minimum 2" x 3" stud construction

How difficult is installation and what tools are included?

Installation is straightforward for a homeowner comfortable with basic drilling and measuring; the kit includes the main tools so little else is required. Expect roughly 20–30 minutes for a single pair install once locations are measured and verified for stud clearance.

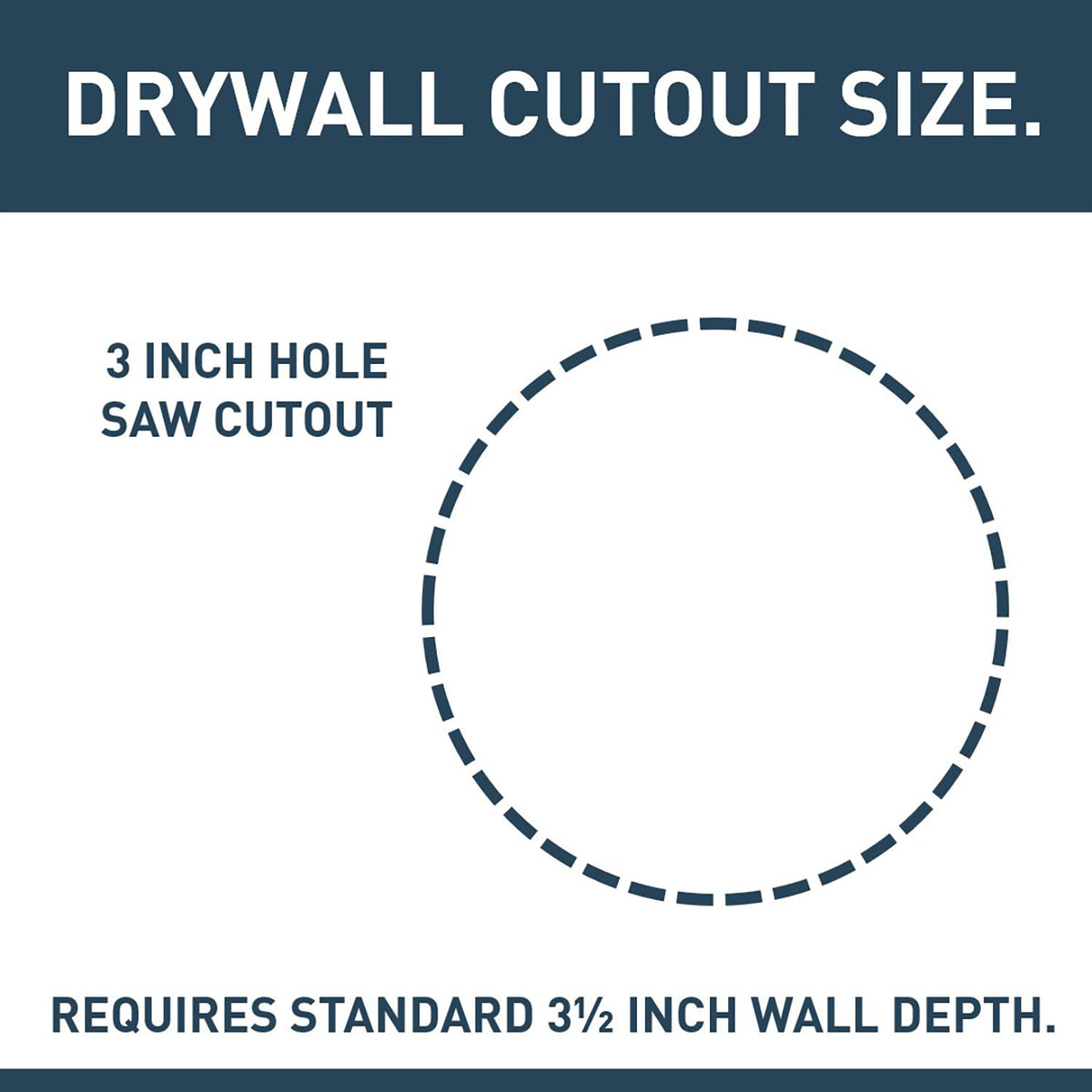

• Included 3" hole saw and handle for precise openings
• Three-piece fish tape with connectors and fish hook for routing cables
• Two pre-assembled module kits with trim rings and mounting screws
• Step-by-step procedure: measure, cut holes, fish harness, secure modules, connect cords

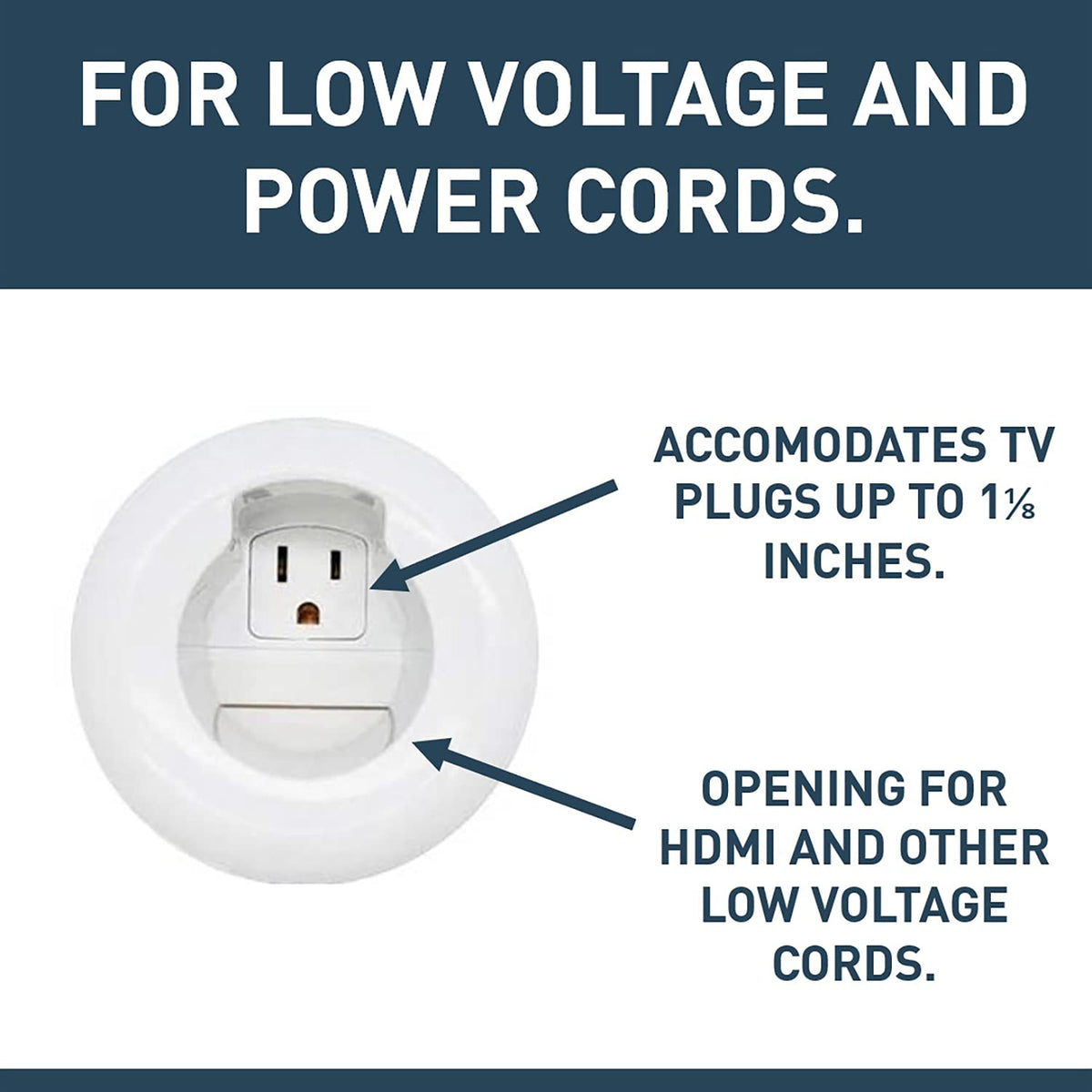

What size TVs and plugs does the CMK70 accommodate?

The CMK70 is built to support most flat-panel TVs and their typical power connectors and AV cables. Larger or unusual power plug profiles should be checked against the kit’s maximum plug width specification before installation.

• Compatible with LED, LCD and plasma wall mounts
• Maximum supported plug width: 1.125 inches
• Upper and lower modules can be spaced up to 5 feet apart in the same wall cavity
• Brush-style pass-through suitable for HDMI and other low-voltage cables

Who is this for: The Wiremold CMK70 is for DIYers, AV installers, and homeowners who want a clean, professional-looking wall-mounted TV without intrusive hardwiring. It’s ideal when you want to hide power and HDMI runs behind drywall in standard stud construction while using the included tools and pre-wired harness to avoid in-wall electrical termination.
