waveshare 5-Inch DSI Touch Screen for Raspberry Pi

This 5-inch TFT panel uses the Raspberry Pi MIPI DSI connector to deliver a wide-angle 800×480 picture and up to 60Hz refresh, plus a five-point capacitive touch layer for smooth input. It arrives with the FPC cable and mounting screws so you can fasten many Pi models to the screen’s rear and get a usable desktop, kiosk, or handheld interface without installing separate drivers on supported OS images.

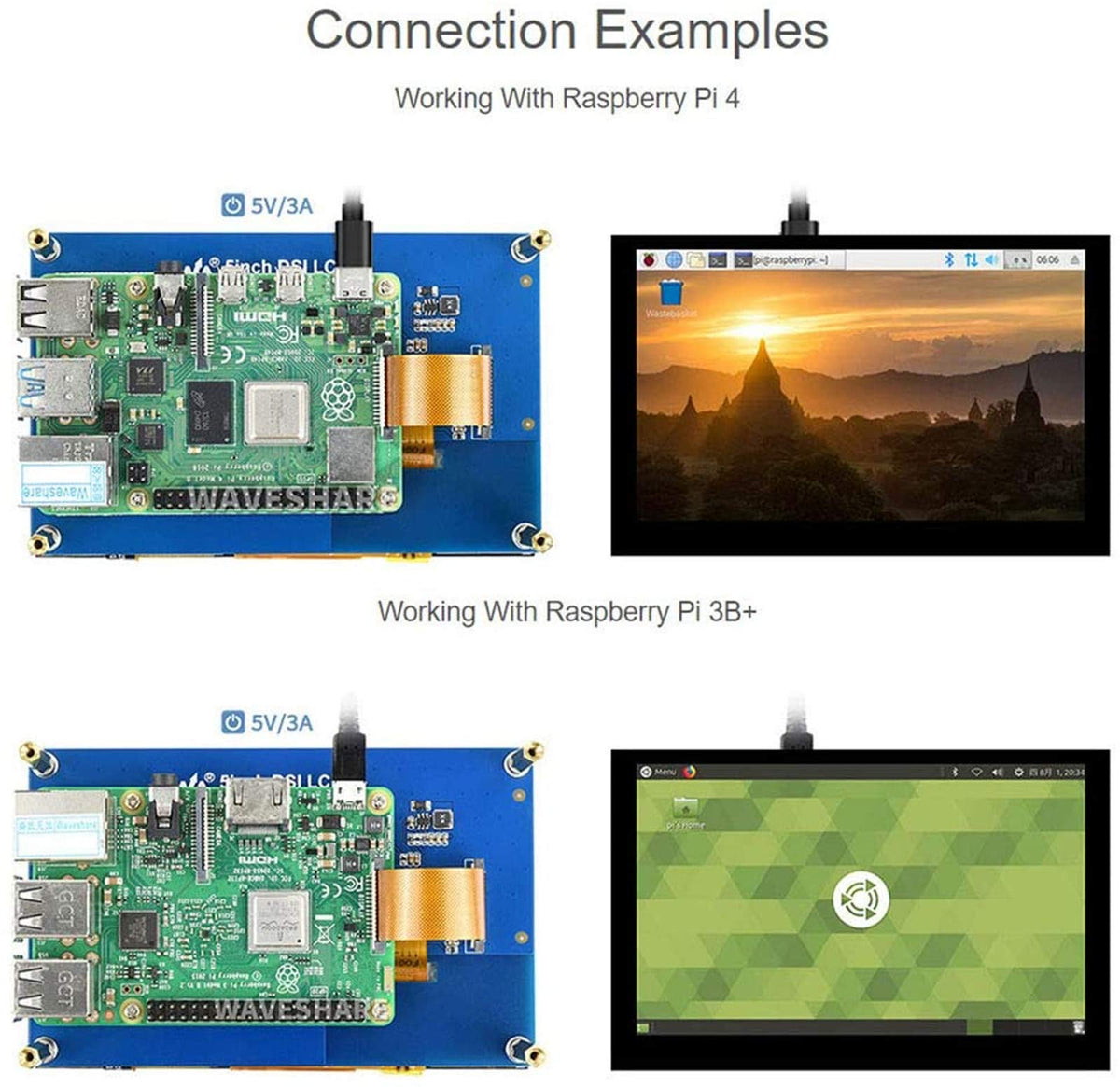

How do I connect this Waveshare display to my Raspberry Pi?

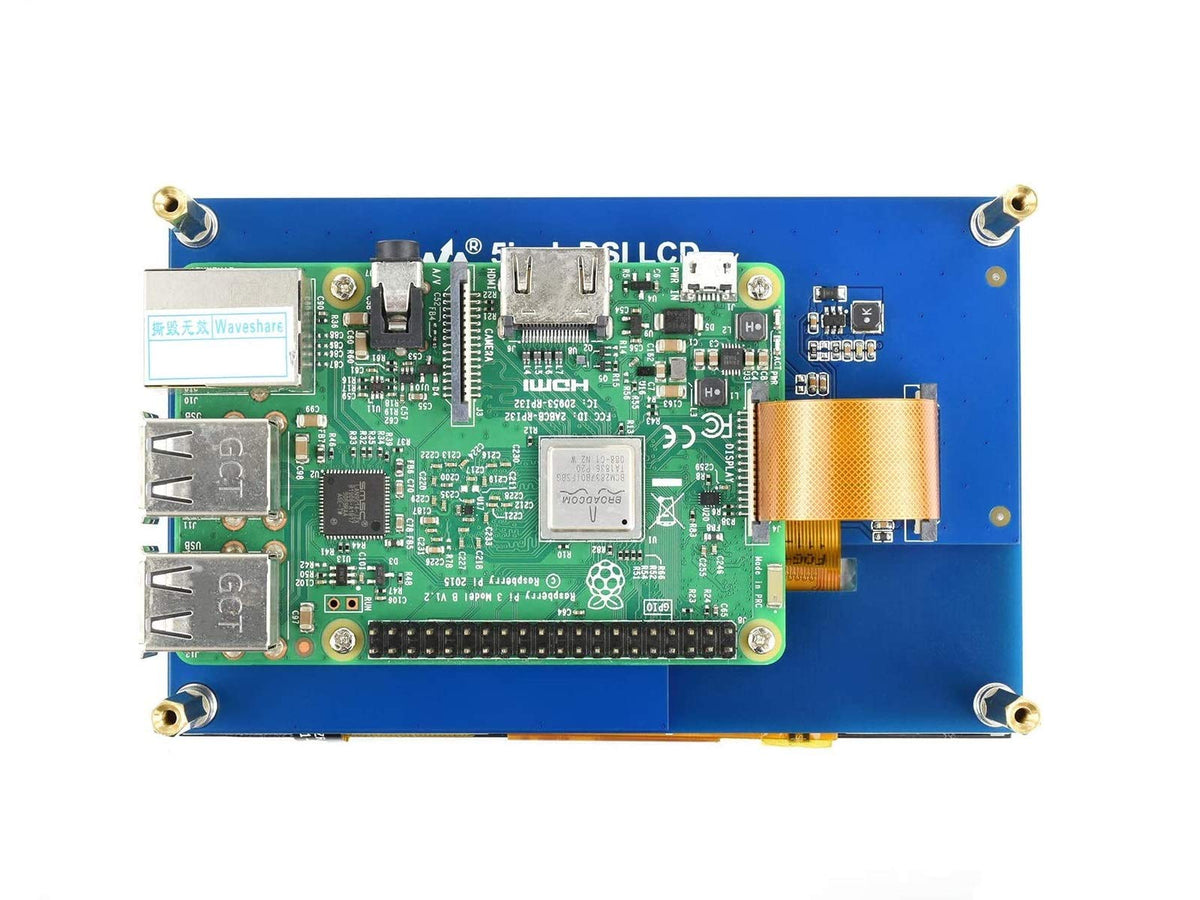

Physical hookup is simple: plug the included FPC cable between the screen’s DSI socket and the Pi’s DSI connector, then secure the Pi to the display back with the supplied screws if desired. The display uses the Pi’s native DSI interface, so no extra video adapter is required for most Pi models.

• Attach FPC 15-pin cable between screen and Pi DSI port
• Align and secure Raspberry Pi to screen using included screws
• Power the Pi normally via its USB-C or micro USB supply
• CM3/CM3+ needs an additional adapter board (not included)

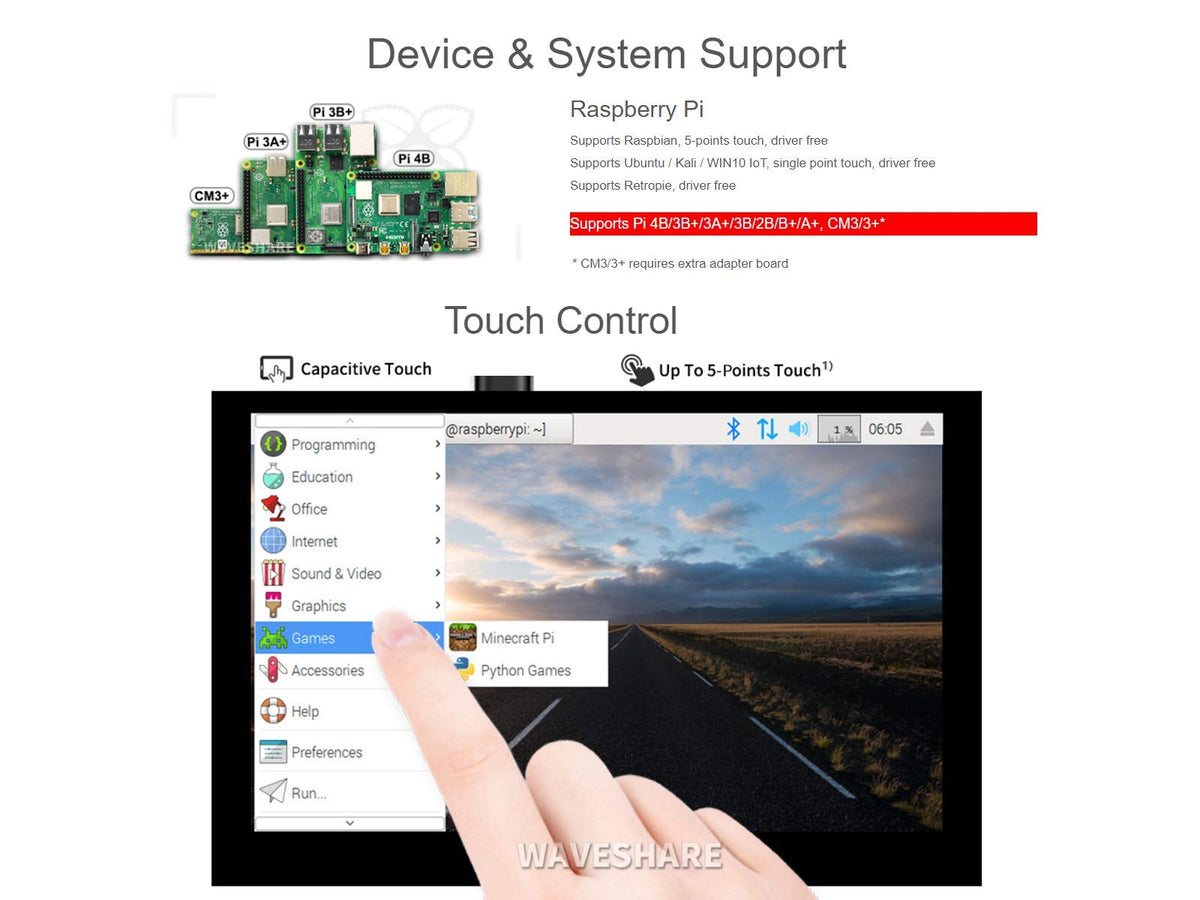

Which operating systems and Pi models will work without extra drivers?

The panel is plug-and-play with common Raspberry Pi images: Raspbian (Raspberry Pi OS), Ubuntu for Raspberry Pi, Kali, and Windows 10 IoT in most cases. It lists compatibility with Pi 4B, 3B+/3A+/3B, 2B, B+, and A+; compute modules require a separate adapter board.

• Driver-free support for Raspbian, Ubuntu, Kali, Win10 IoT
• Confirmed on Pi 4B, 3B+/3A+/3B, 2B, B+, A+
• CM3/3+ requires extra adapter board to access DSI pins
• Touch works after the OS boots; no manual driver install typically needed

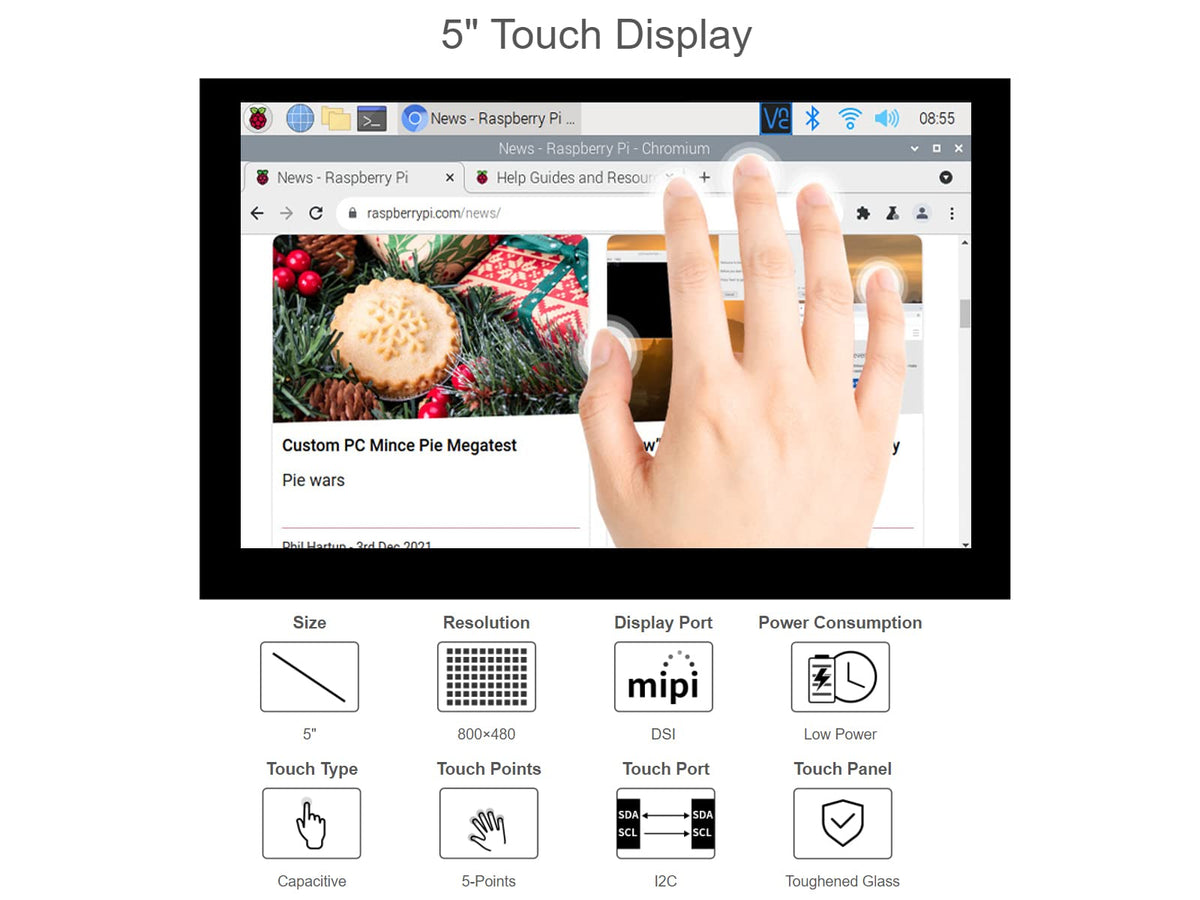

What display and touch performance can I expect?

The TFT panel produces a clear 800×480 image across a wide viewing angle and supports software-adjustable brightness. Its capacitive touch glass recognizes up to five simultaneous touches, making it suitable for multi-touch interfaces and responsive control panels.

• 800×480 hardware resolution with wide-angle TFT matrix
• Capacitive 5-point touch for gestures and multi-finger input
• MIPI DSI interface enables refresh rates up to 60Hz

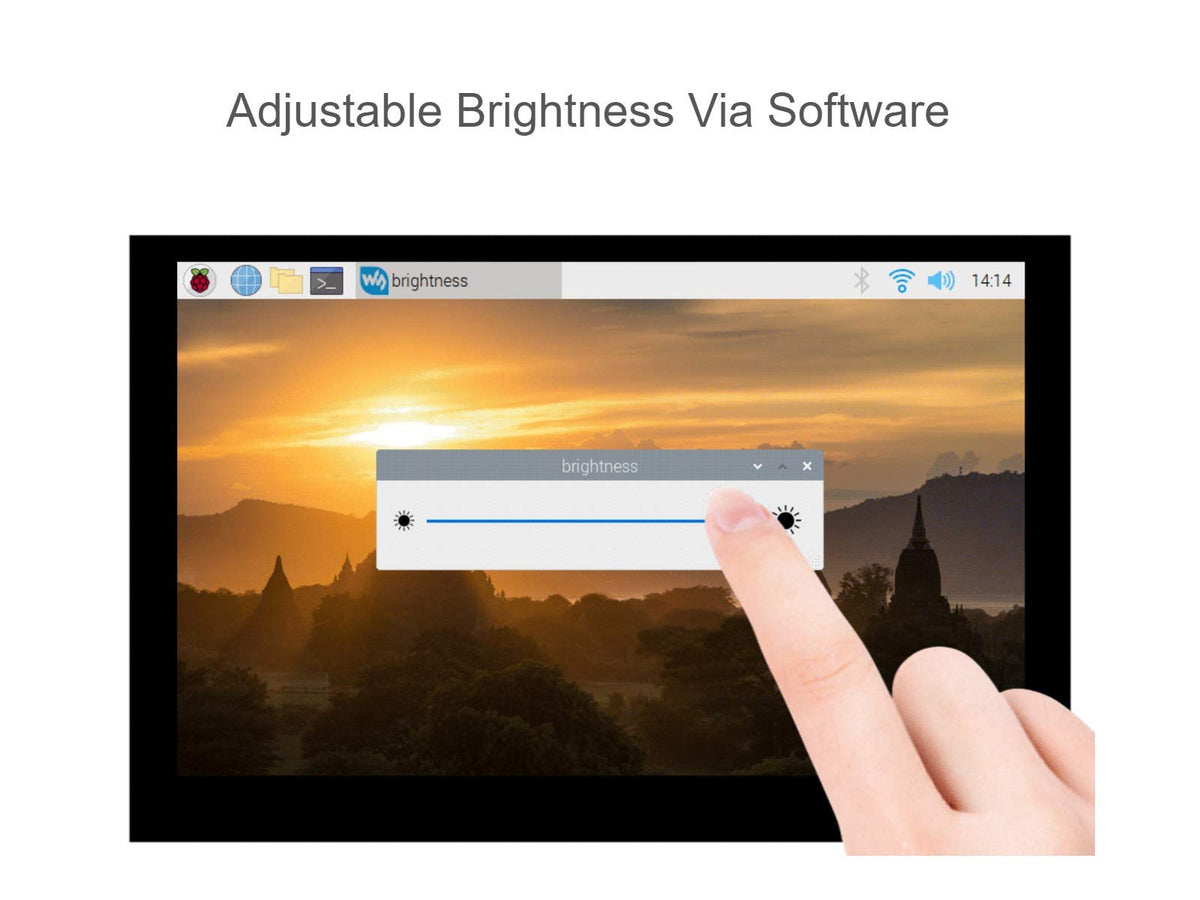

• Brightness adjustable through software commands (may need root permission)

What comes in the package and where can I find setup resources?

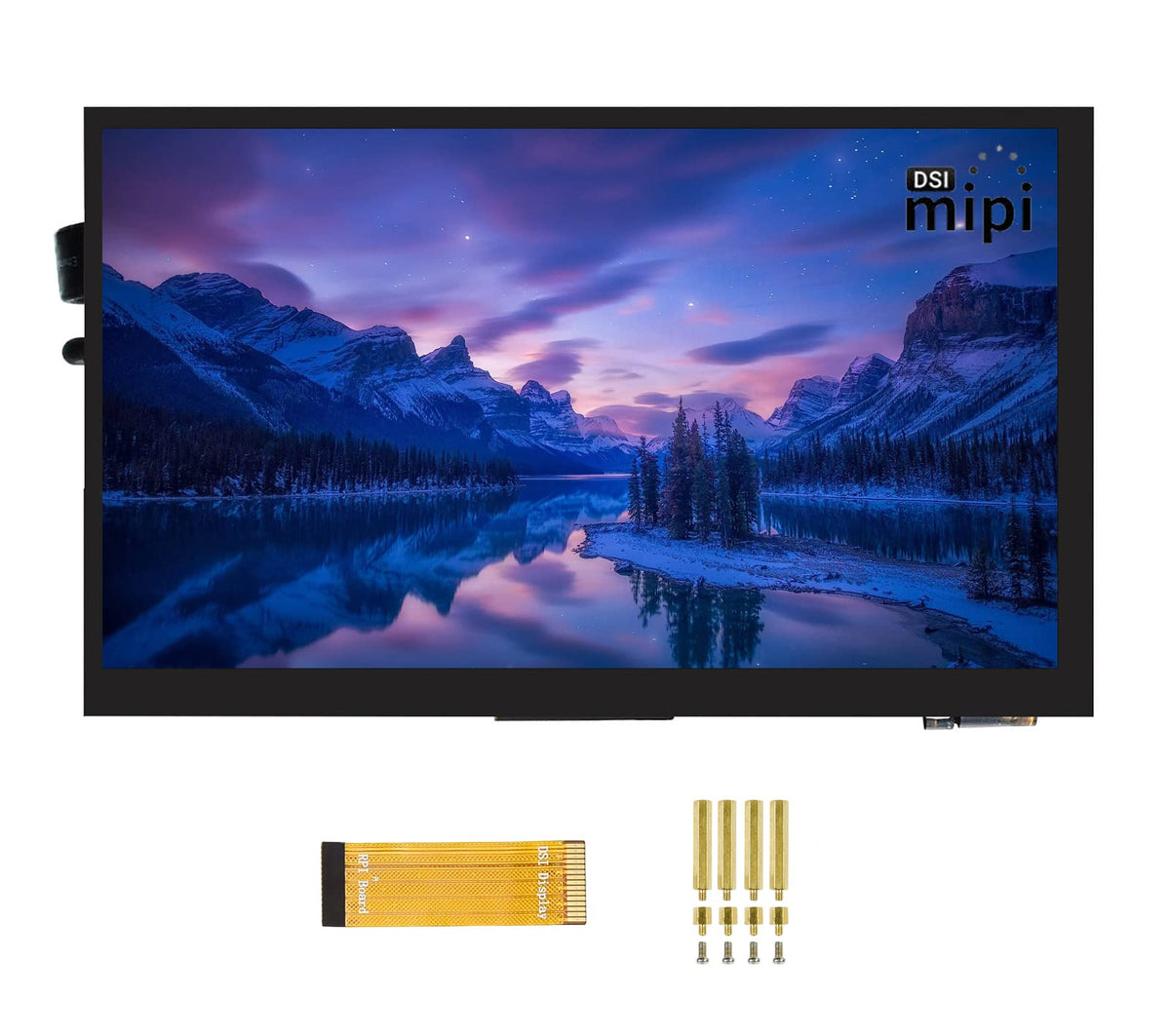

The box contains the 5-inch DSI LCD, a 15-pin 50mm FPC cable, and screws for mounting a Raspberry Pi to the display back. Waveshare maintains a product wiki with wiring diagrams, troubleshooting notes, and software setup guidance for preparing SD images and enabling the screen.

• Included: 5-inch DSI LCD, FPC 15PIN 1.0 pitch 50mm cable, screws
• Step-by-step image writing and SD card preparation instructions available
• Online Waveshare wiki provides driver, brightness, and touch notes
• Typical boot shows display and enables touch without manual driver install

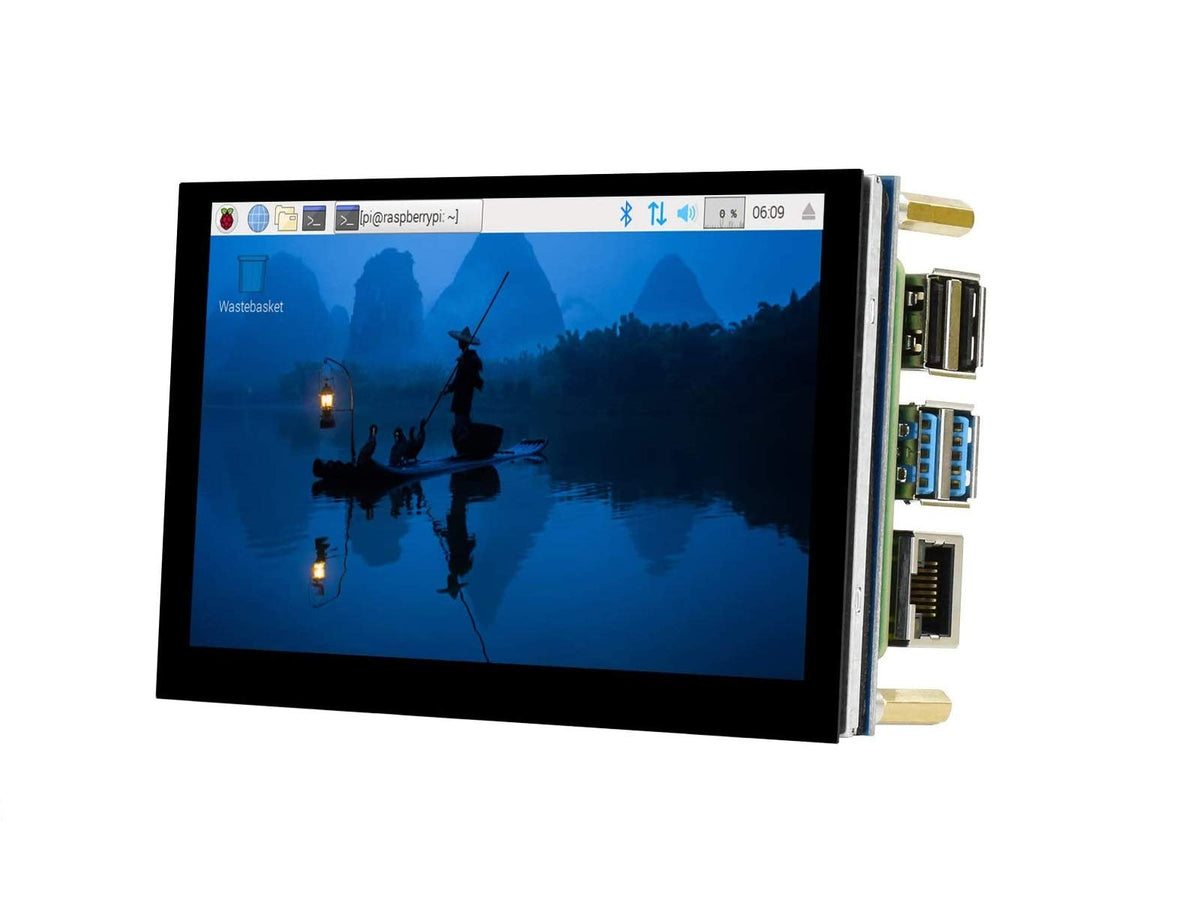

Who is this for? This Waveshare 5-inch DSI touch screen is aimed at makers, educators, hobbyists, and product developers who want a compact, integrated display for Raspberry Pi projects — from portable emulation consoles and smart controllers to kiosks and compact GUI prototypes. If you need a small, reliable screen with native DSI connectivity and multi-touch support that works with standard Pi OS images, this display is a practical choice.
