waveshare 4.3" DSI LCD Touch Screen 800×480 IPS

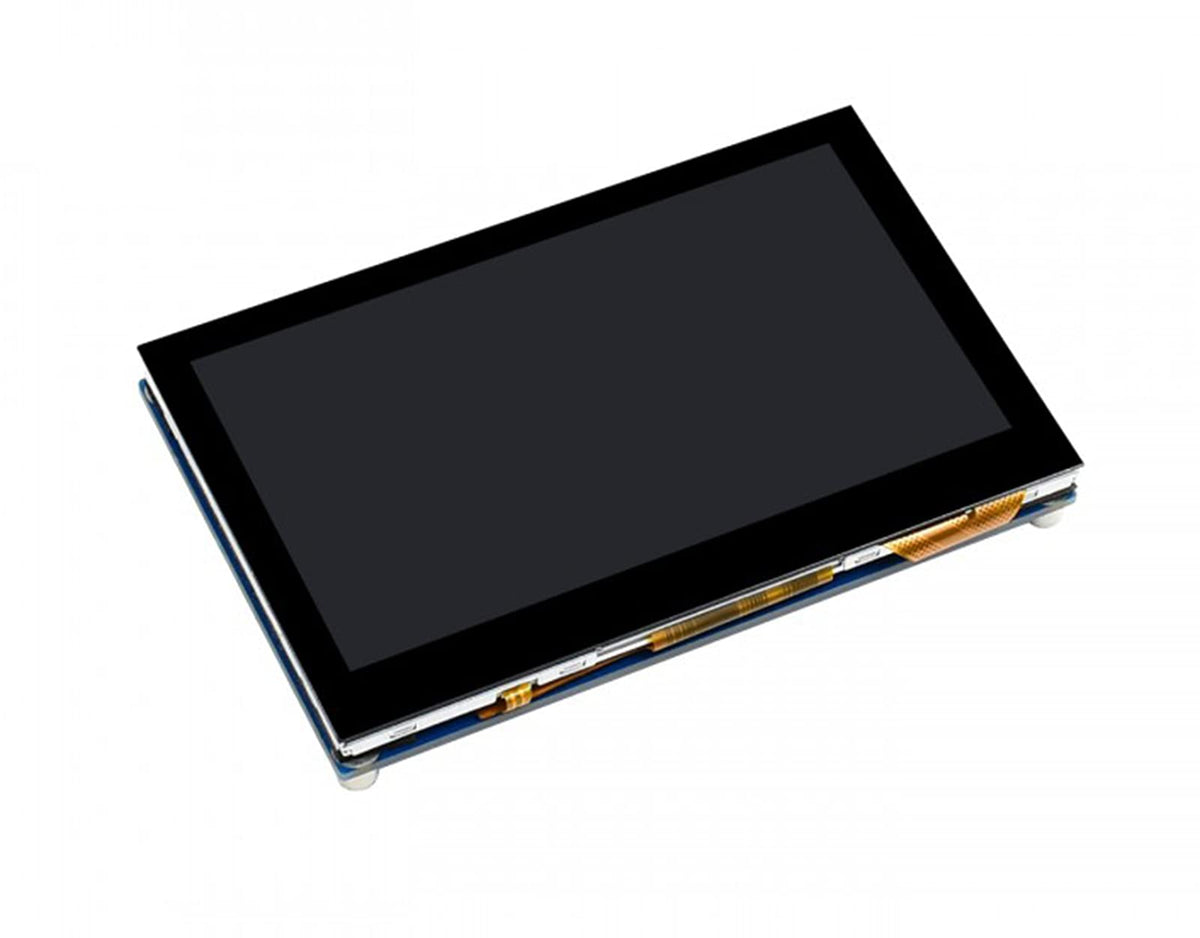

The Waveshare 4.3-inch DSI LCD is a compact capacitive touch display made for Raspberry Pi boards, offering an 800×480 IPS panel with MIPI DSI connectivity and up to five-point touch input.

This small-format monitor is designed to attach directly to Raspberry Pi models that expose the DSI connector so you can add a vibrant, responsive touchscreen without extra drivers. It combines a hardened glass touch surface, wide viewing angles from an IPS matrix, and native MIPI DSI support to deliver smooth video at up to 60Hz. The display is suitable for projects like portable consoles, control panels, kiosks, and embedded interfaces where space is limited but visual clarity matters.

Which Raspberry Pi models work with this 4.3" DSI screen?

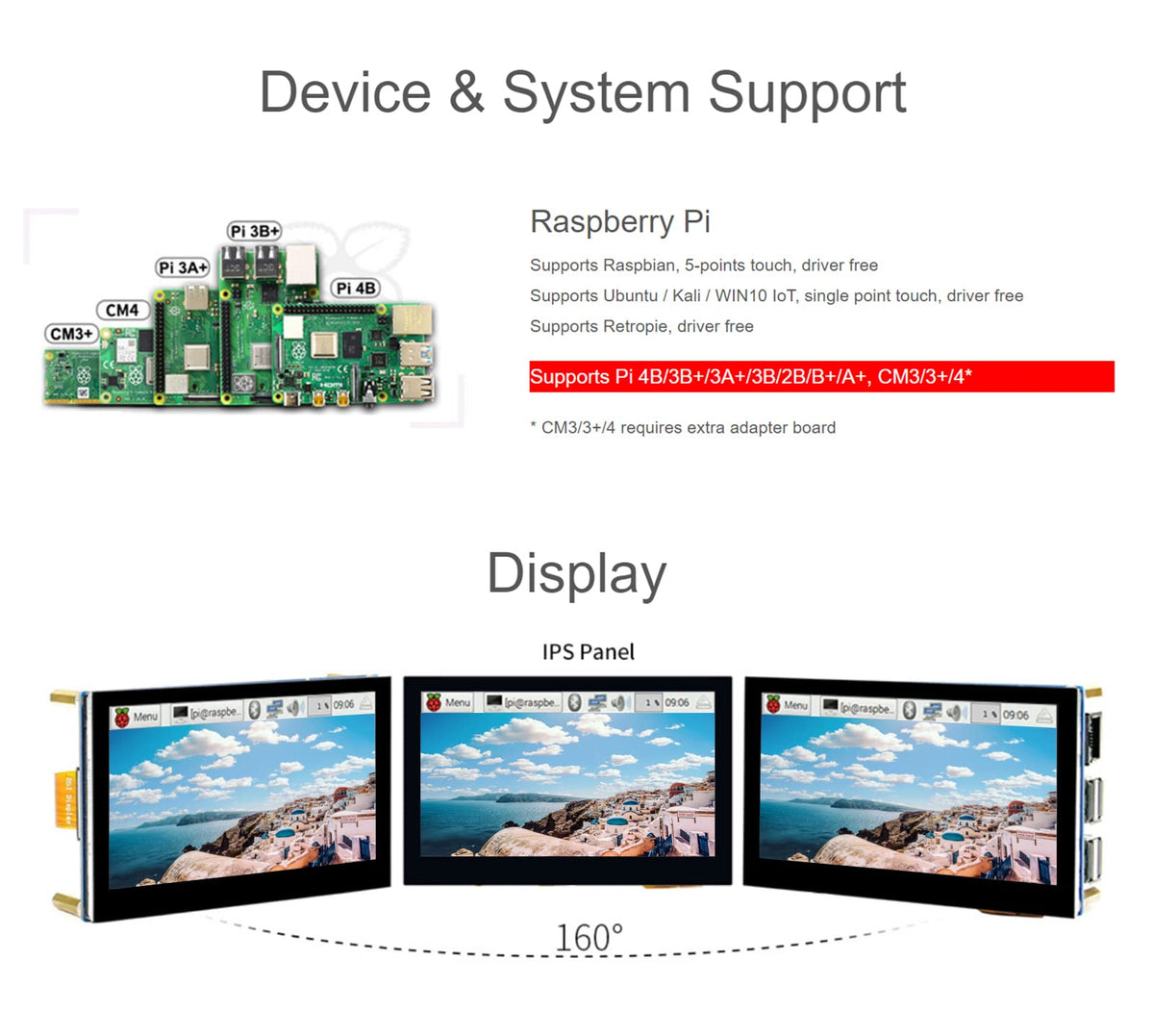

The panel supports Raspberry Pi 4B, 3B+, 3A+, 3B, 2B, B+, and A+ using the board’s native DSI connector. Compute Modules CM3 and CM3+ (as well as CM4) can be used as well, but they require a separate adapter board to connect the DSI ribbon.

• Direct plug-in for Pi 4B/3B+/3A+/3B/2B/B+/A+ via the Pi DSI port.
• CM variants need an adapter board to access the DSI header.
• No extra kernel driver required for Raspbian, Ubuntu, Kali, or Win10 IoT.

How good is the image and touch response for small projects?

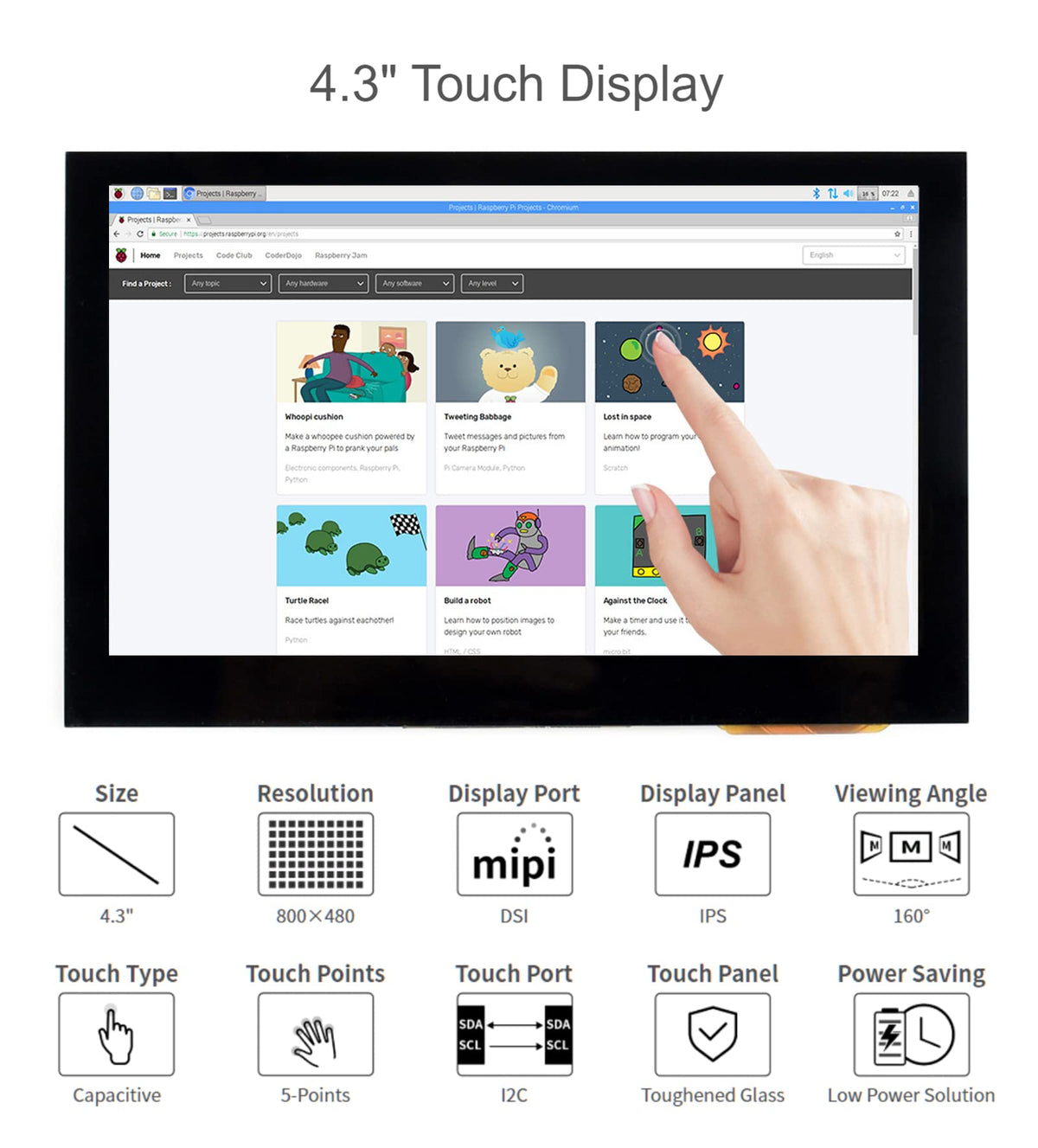

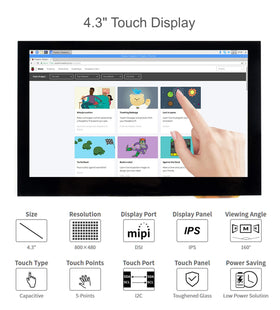

The 800×480 hardware resolution on a 4.3" IPS panel gives clear text and crisp icons at close viewing distances. The capacitive glass supports up to five simultaneous touch points for gestures and multi-touch controls, and the MIPI DSI link handles video at up to 60Hz for smooth animation.

• IPS wide-angle display for consistent color from different viewing positions.
• Capacitive touch with up to 5-point recognition for multi-finger input.
• MIPI DSI interface delivers stable, low-latency graphics at up to 60Hz.

What comes in the box and what cables or mounting hardware do I need?

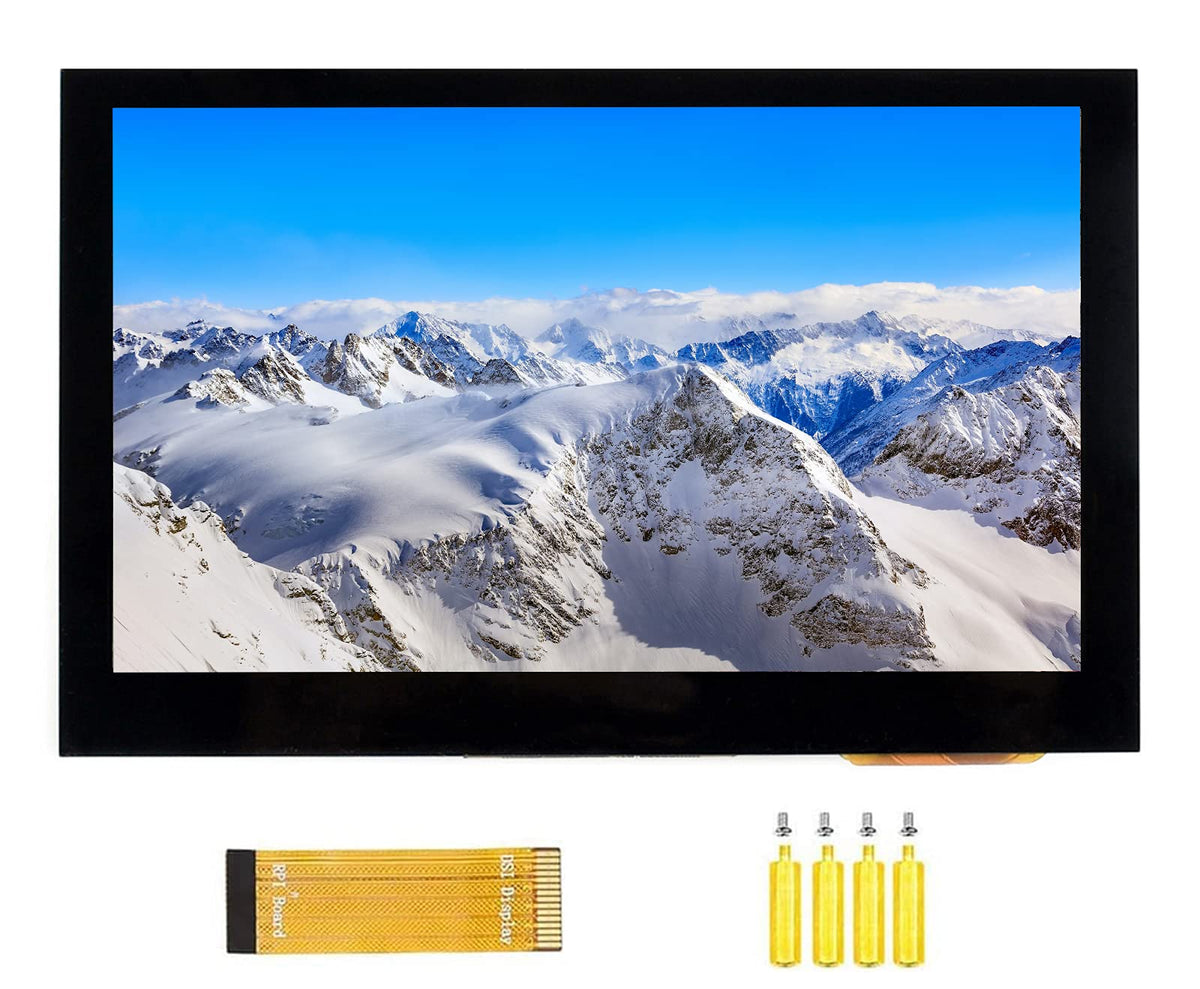

The package includes the 4.3" DSI LCD, a 50mm FPC 15-pin cable, and a screws pack for securing the module. For many Raspberry Pi boards, that’s all you need to get a working display; for Compute Modules, add the appropriate adapter. Depending on your enclosure, you may want standoffs or a custom frame.

• Included: 4.3" DSI LCD, 15-pin 50mm FPC cable, screws pack.
• Optional: CM adapter board for Compute Modules, standoffs, or a custom bezel.
• Software: compatible with Raspbian, Ubuntu, Kali and Win10 IoT without extra driver installs.

How easy is it to install and integrate into a project?

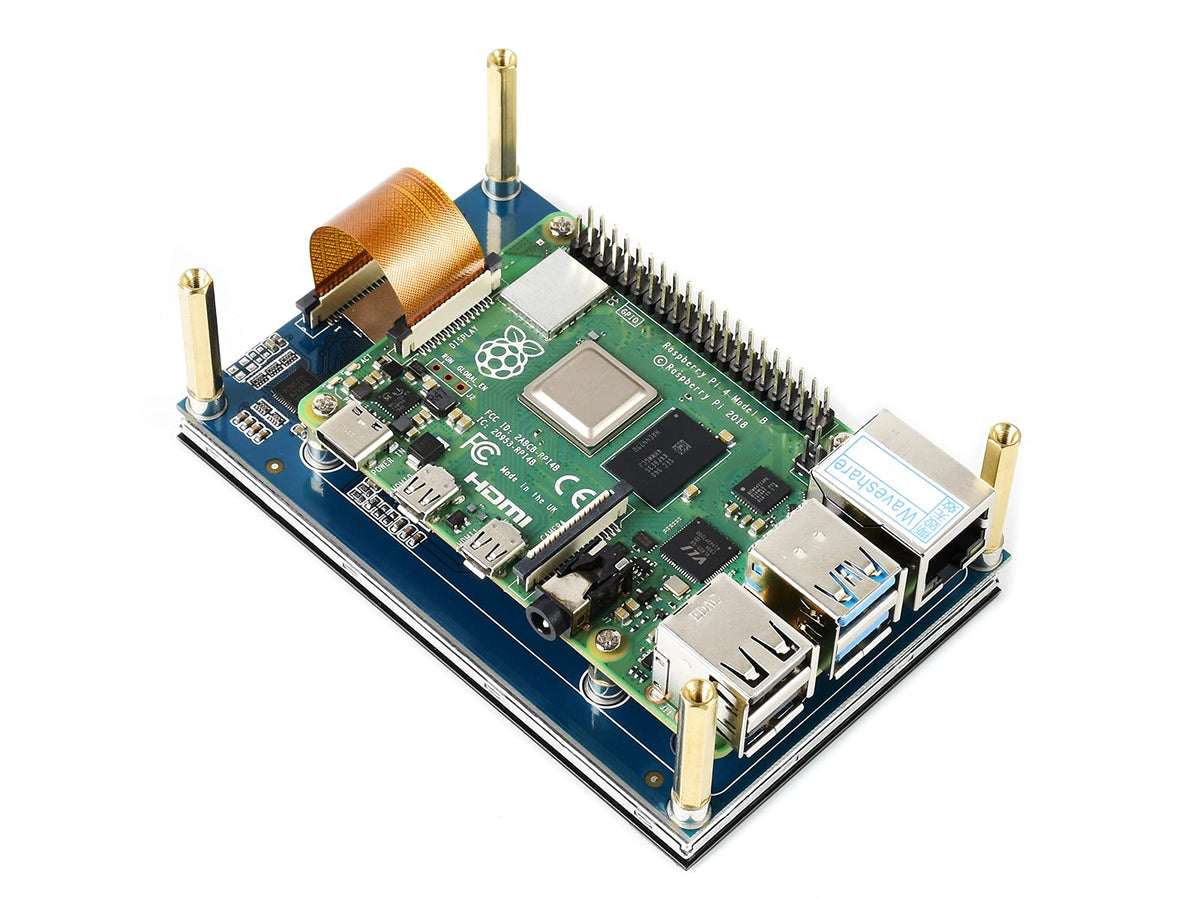

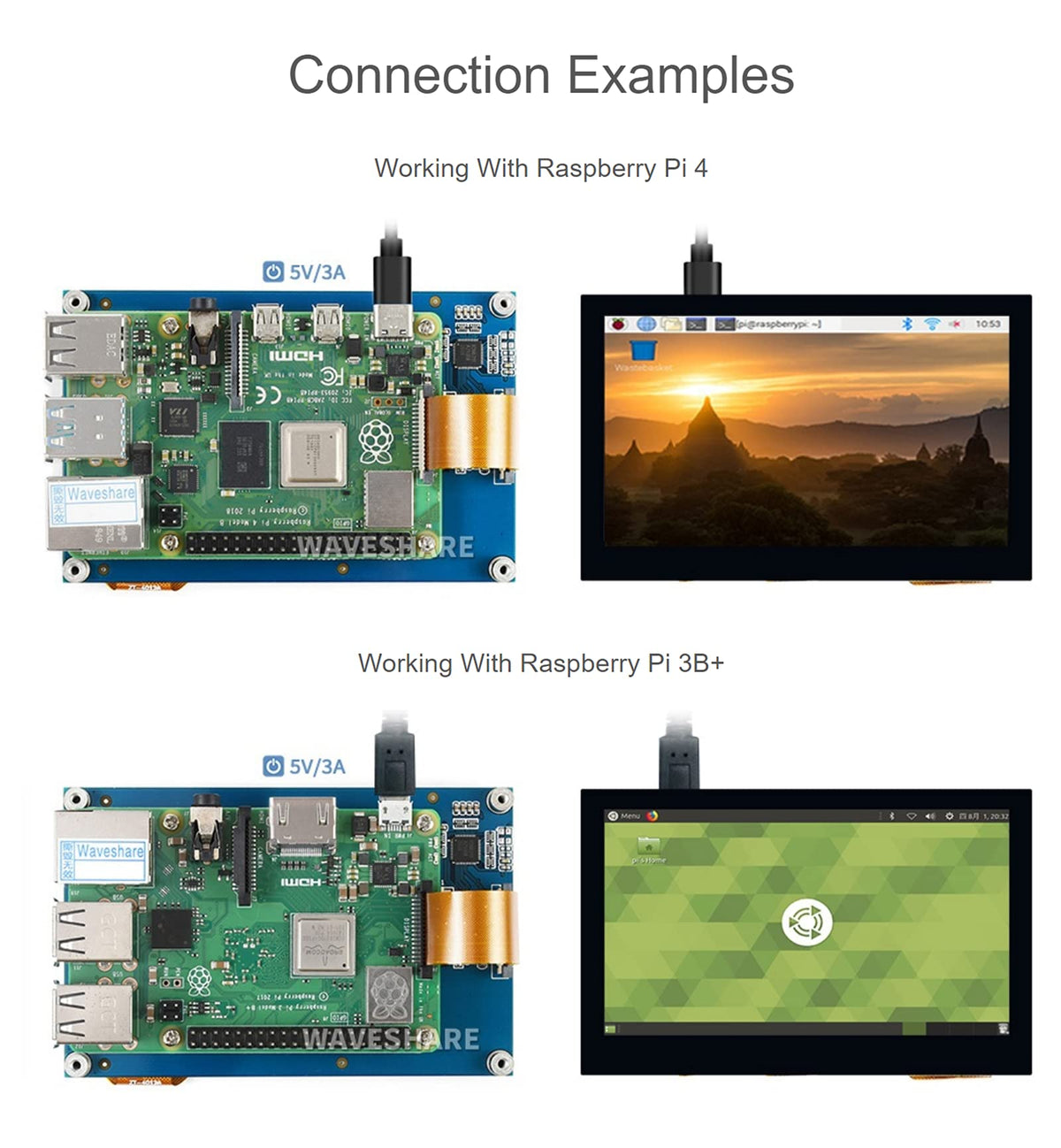

Installation is straightforward for most Pi models: attach the ribbon cable to the DSI port, tighten the connector, and secure the display. The screen is driver-free on supported OS images, so after connecting it will be recognized and ready to use for GUI applications, retro gaming frontends, or custom touch interfaces.

• Plug-and-play on standard Raspberry Pi OS builds — no driver download typically required.
• Works with GUI apps, kiosks, touchscreen dashboards, and Retropie setups.
• Physical mounting via included screws; compact footprint fits many enclosures.

Who this is for: the Waveshare 4.3" DSI LCD is ideal for makers, educators, hobbyists, and embedded developers who need a compact, high-quality touchscreen for Raspberry Pi projects. It suits portable devices, control panels, IoT dashboards, retro gaming handhelds, and lab prototypes where native DSI connectivity, multi-touch support, and an IPS display are priorities. If you plan to use a Compute Module, factor in the adapter board; otherwise this display offers a quick, reliable way to add a responsive touchscreen to your Pi-powered designs.
