VPFET HDMI Extender Splitter Over CAT6 – 165ft, 4 Outputs, EDID Presets, POC TX Power, 1080p

Overview

The VPFET HDMI Extender Splitter lets you distribute one HDMI source to four displays over CAT6/7 cables up to 165 feet away. It performs a fourfold, identical signal output without compressing the video or audio, making it a flexible solution for classrooms, boards rooms, galleries, or home theaters.

Key capabilities

• 4 identical HDMI outputs from a single source, enabling synchronized viewing across multiple displays
• Long-distance transmission up to 165 ft on CAT6/7; up to 130 ft on CAT5e; up to 100 ft on CAT5
• POC (Power over Cable) design: TX powers the link, RX can operate through the same CAT cable, reducing clutter

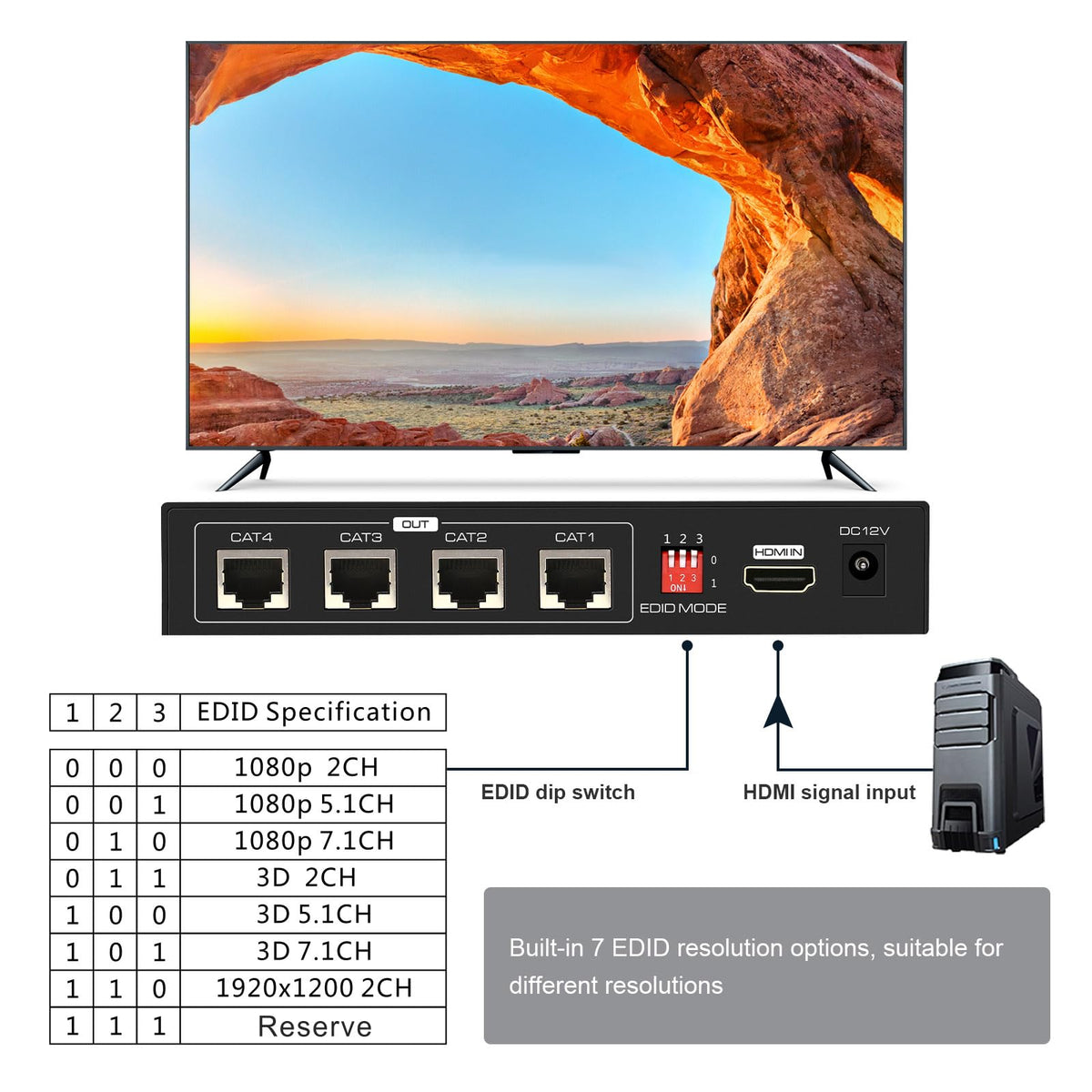

• EDID presets to improve compatibility between source and display, helping you get a stable picture with diverse gear
• No compression during transmission, supporting resolutions up to 1920x1200 at 60 Hz and 1080p at 60 Hz
• Supported audio formats include PCM, DTS, and DSD for a fuller AV experience
• Auto EQ technology avoids manual tuning, delivering stable performance across varying cable lengths

Practical uses and benefits

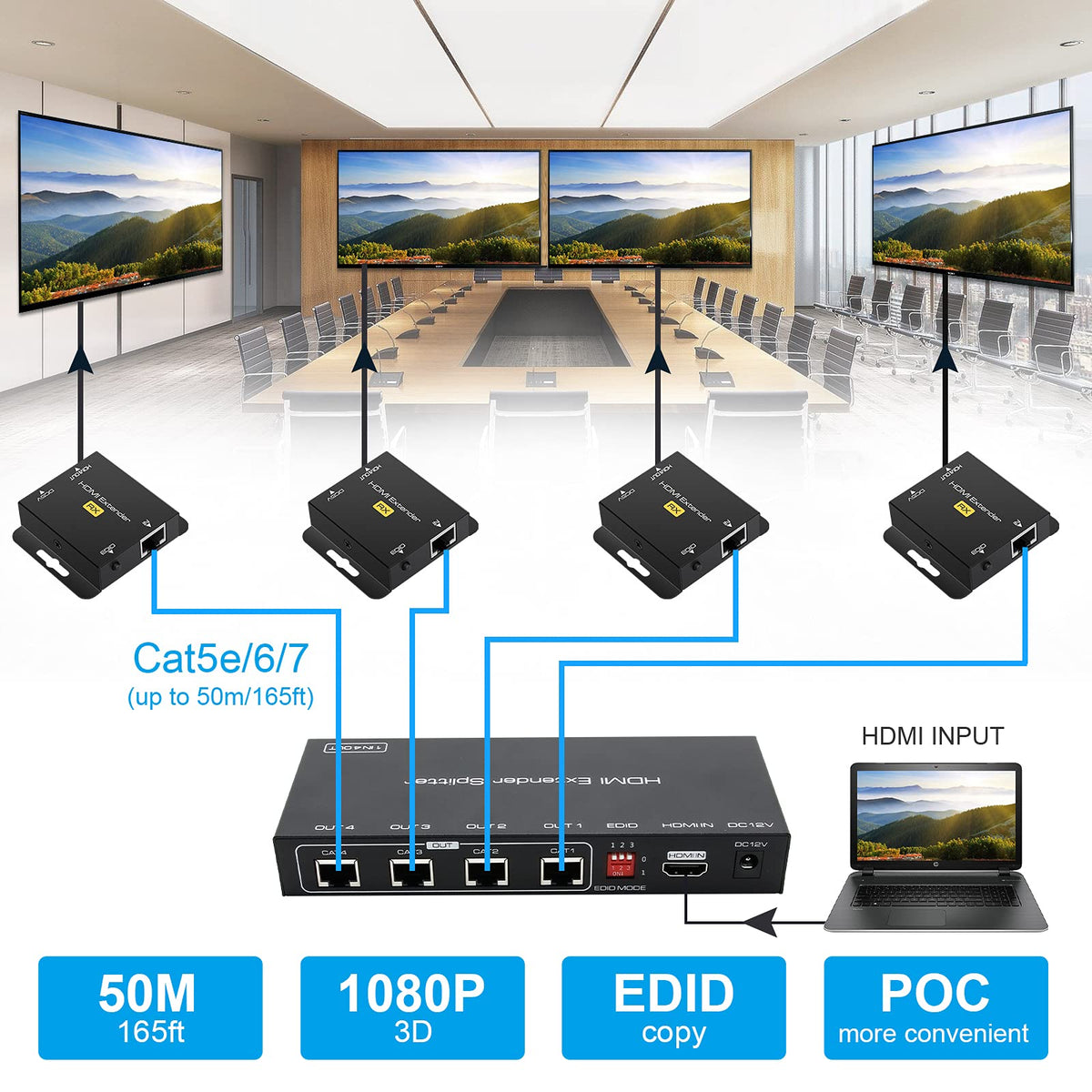

Imagine a lecture hall where a single laptop feeds four projectors, a digital signage setup in a lobby, or a home theater arrangement where one source drives multiple displays without signal loss. The device is designed to fit education environments, corporate meeting spaces, places of worship, and immersive home theaters, offering reliable distribution without complicated wiring.

What you gain is flexibility and ease of installation. The EDID presets adapt to different configurations, the auto EQ helps maintain signal quality over your chosen CAT6/7 run, and the POC approach minimizes power adapters and cable clutter. It’s a capable option when you want to broadcast a single source to several displays with synchronized audio-visual output.

What’s included and considerations

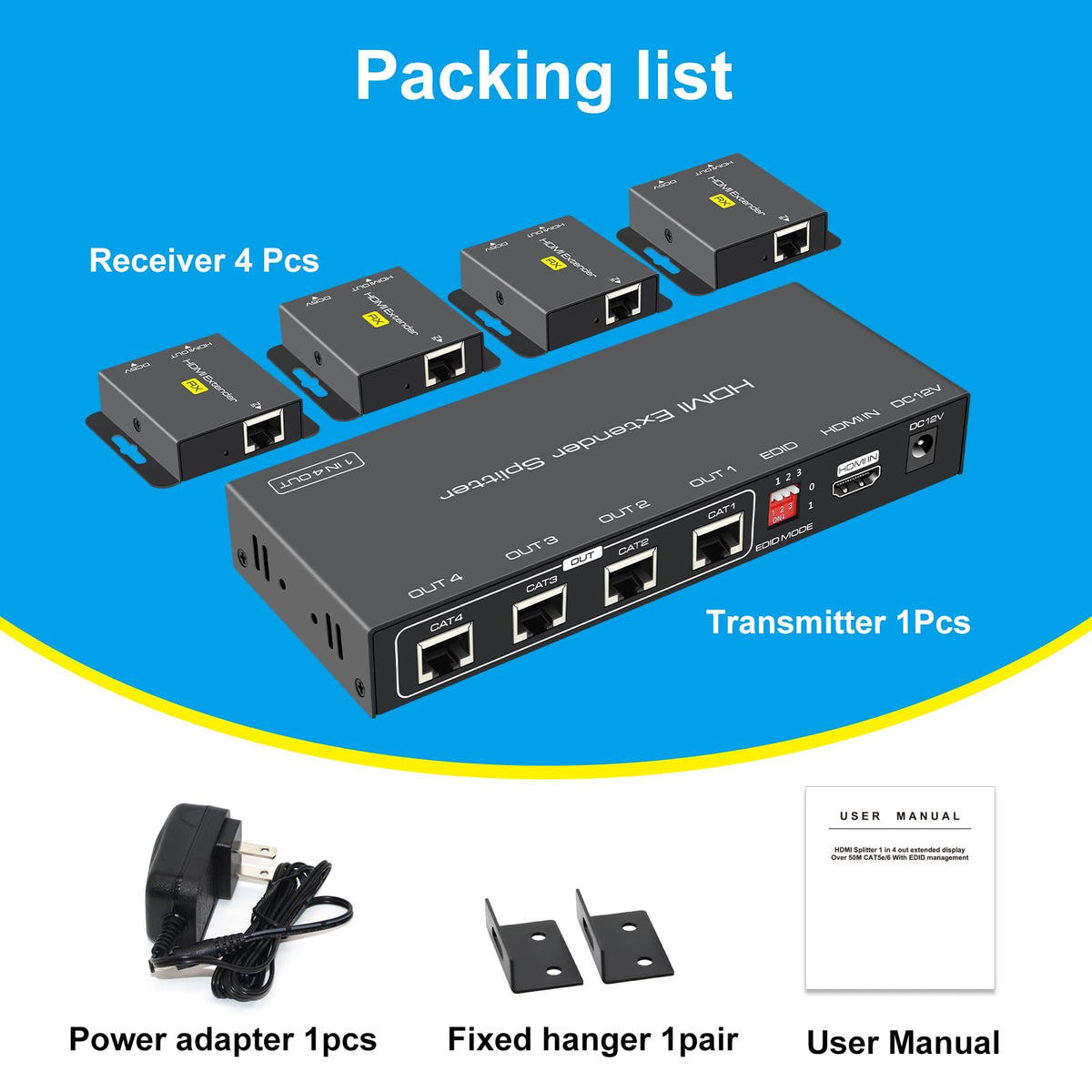

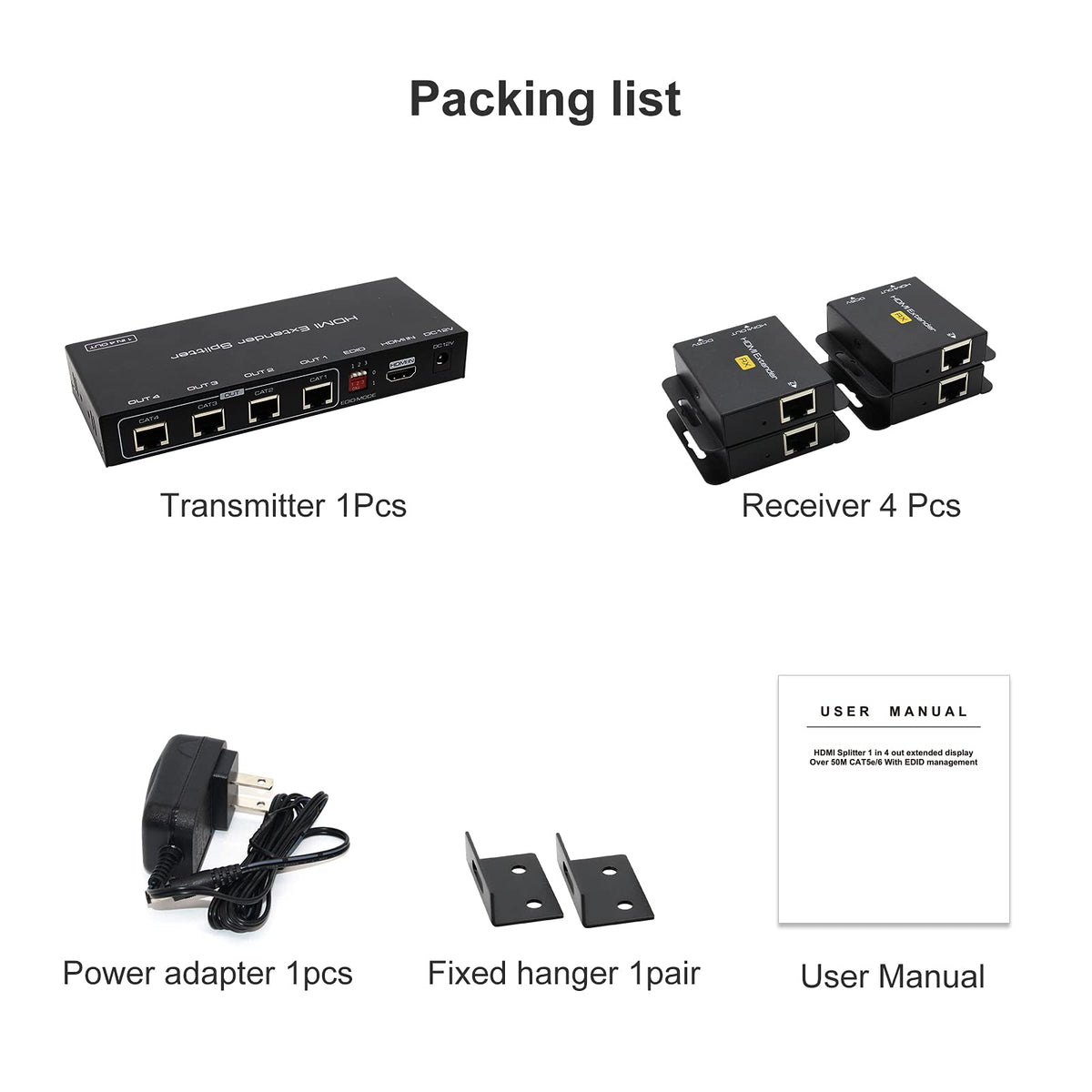

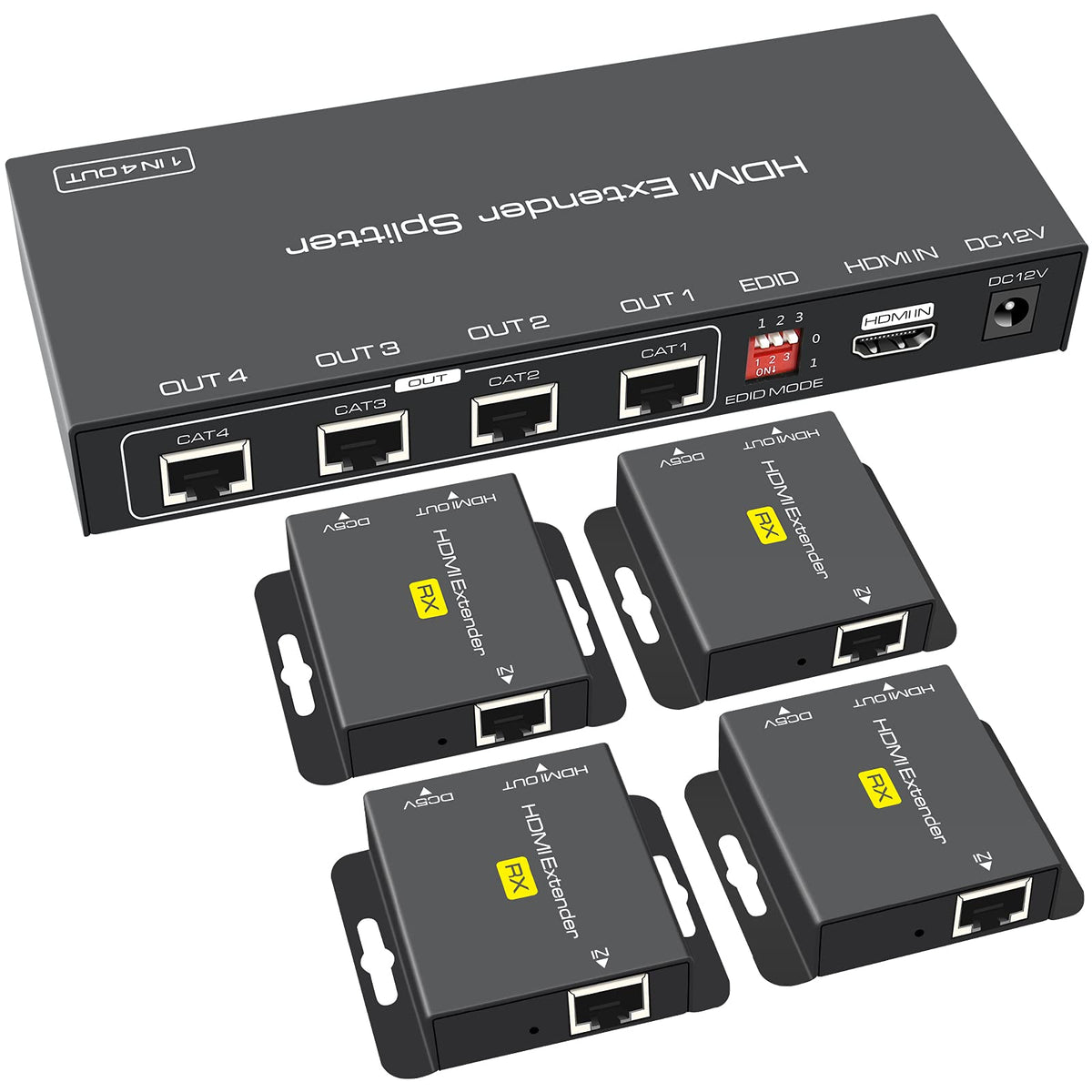

• TX and RX units to establish a four-out distribution link
• Appropriate CAT6/7 cable recommendations for your distance needs

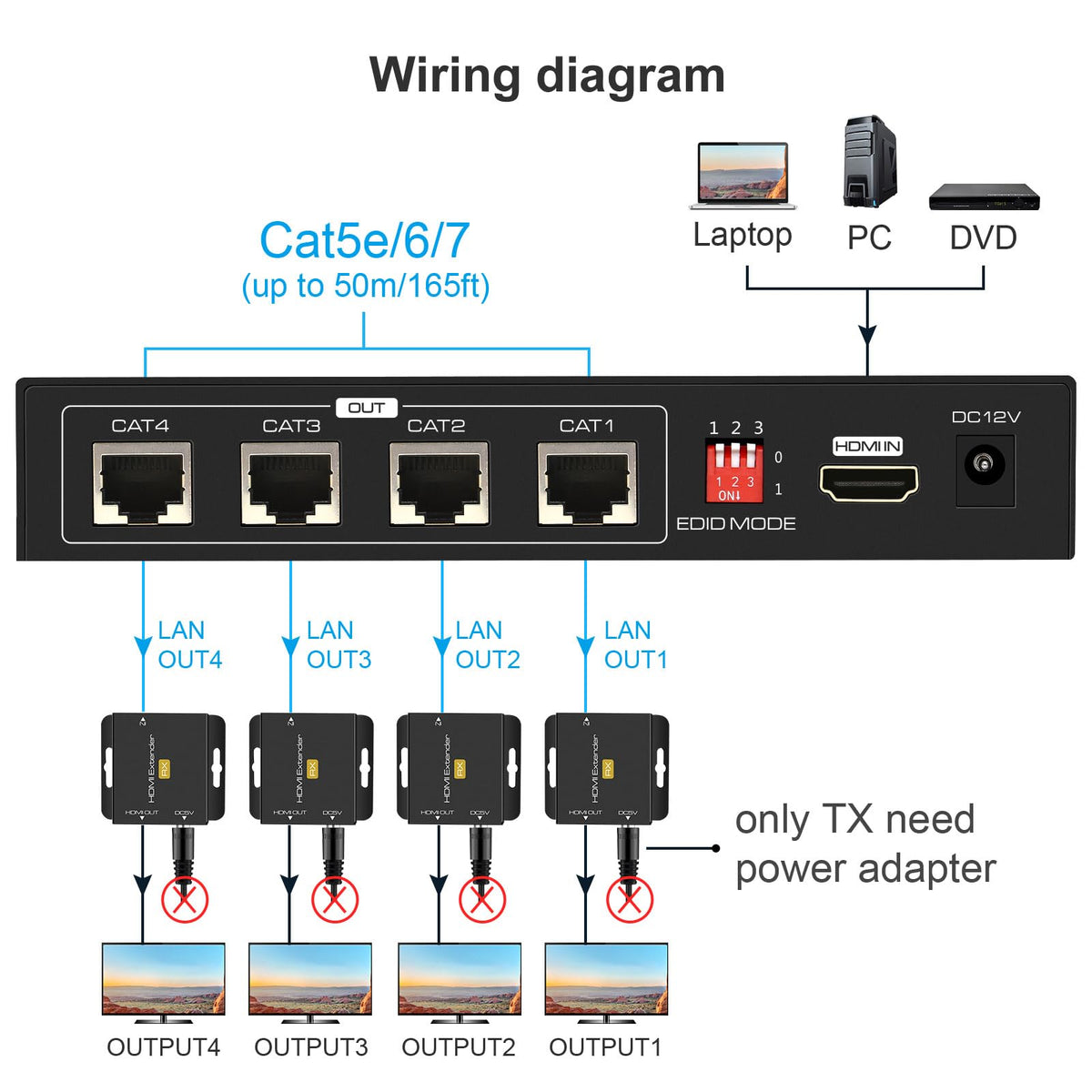

• Notes: connect a 12V power supply to TX; RX can run via the CAT cable as part of the POC setup
• Use cases include education, digital signage, conference rooms, gaming setups, and multimedia presentations

The VPFET extender is designed to offer reliable, non-proprietary HDMI distribution with the practical benefits of EDID customization, long-range capability, and a tidy power approach. While results vary with equipment and cabling, the design aims to present a solid base for multi-display setups without overpromising outcomes.
