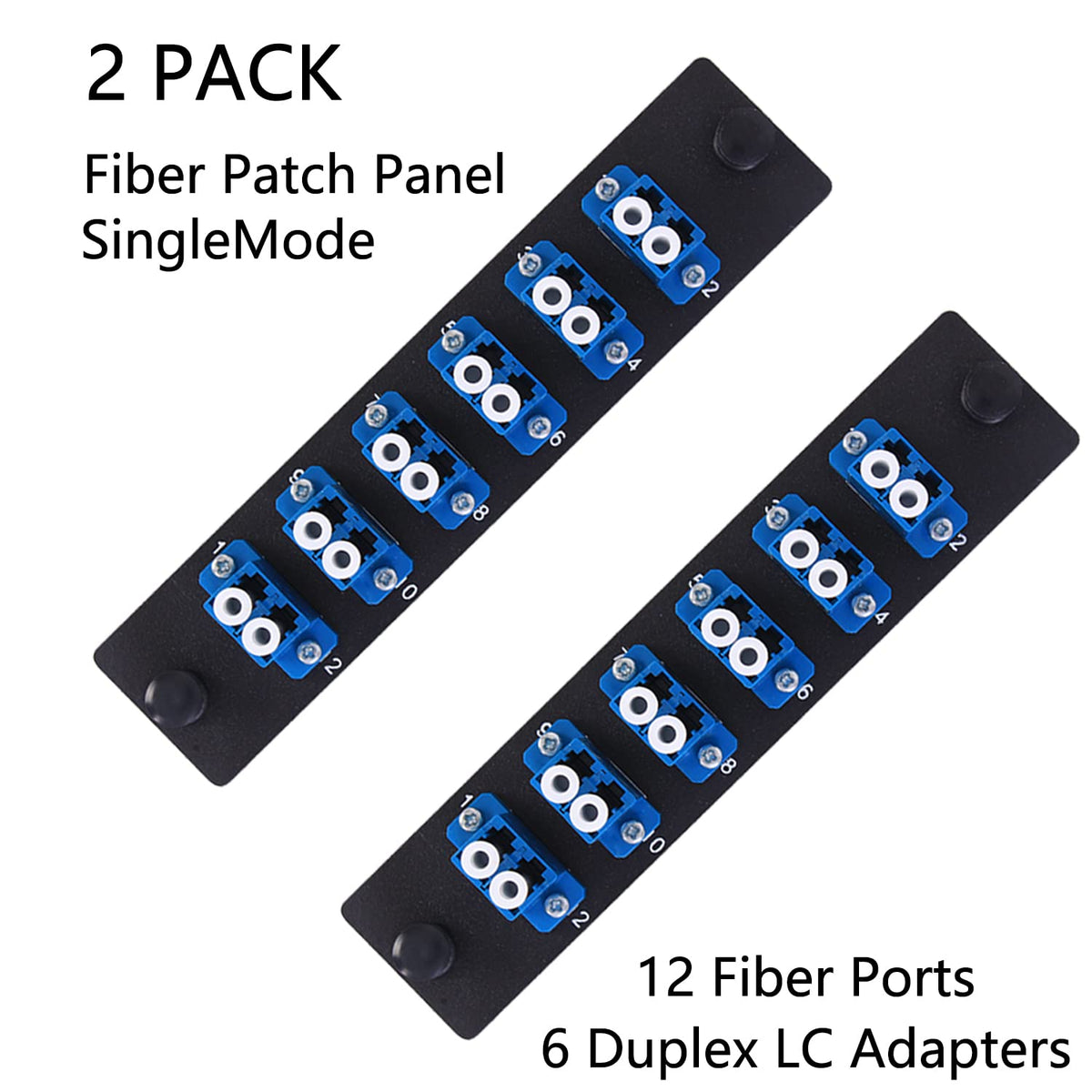

VFLTOOL LGX Footprint Patch Panel – 2PCS Loaded with 6 Duplex LC Adapters | 12 Ports | OS1/OS2, OM1/OM3 | Blue UPC

The VFLTOOL LGX footprint fiber patch panel arrives in a compact, robust enclosure designed to streamline high-density patching. Built from steel with a durable electrostatic powder finish, it ships as a 2-piece assembly that is pre-loaded with six duplex LC adapters, delivering a ready-to-deploy solution for rack-mounted networks. The blue-accented markers help identify OS1/OS2 singlemode compatibility at a glance, while the rugged construction supports reliable, long-term use in demanding environments.

Durable design and space-efficient layout

• Sturdy steel construction with black electrostatic powder coating for rack-ready resilience.
• LGX footprint is optimized for dense patching, housing 6 duplex LC adapters across 12 fiber ports.

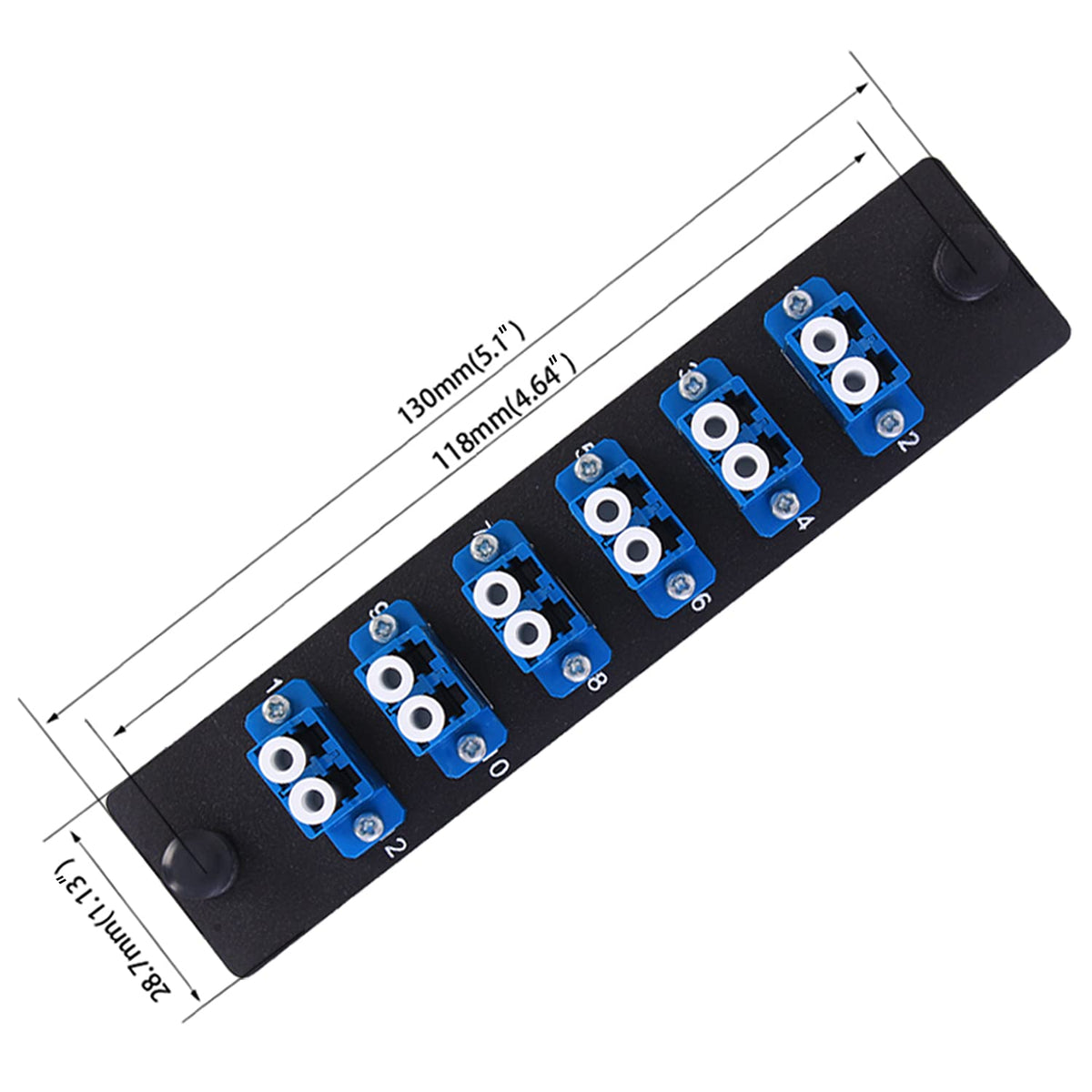

• Removable dust caps protect connectors during maintenance and field work.

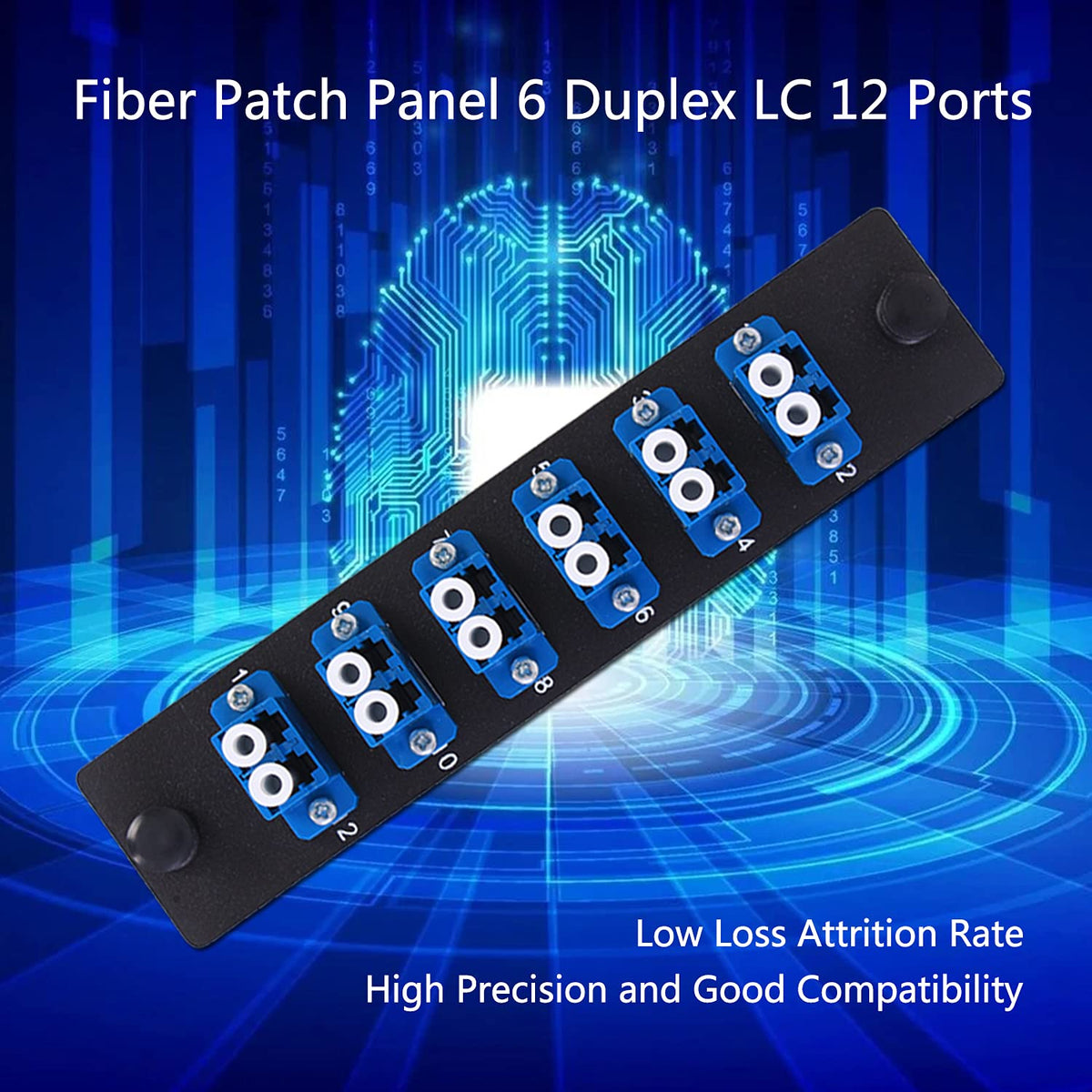

• Blue-marked ports provide quick visual guidance for singlemode/multimode setups without slowing assembly.

Plug-and-play deployment for faster field work

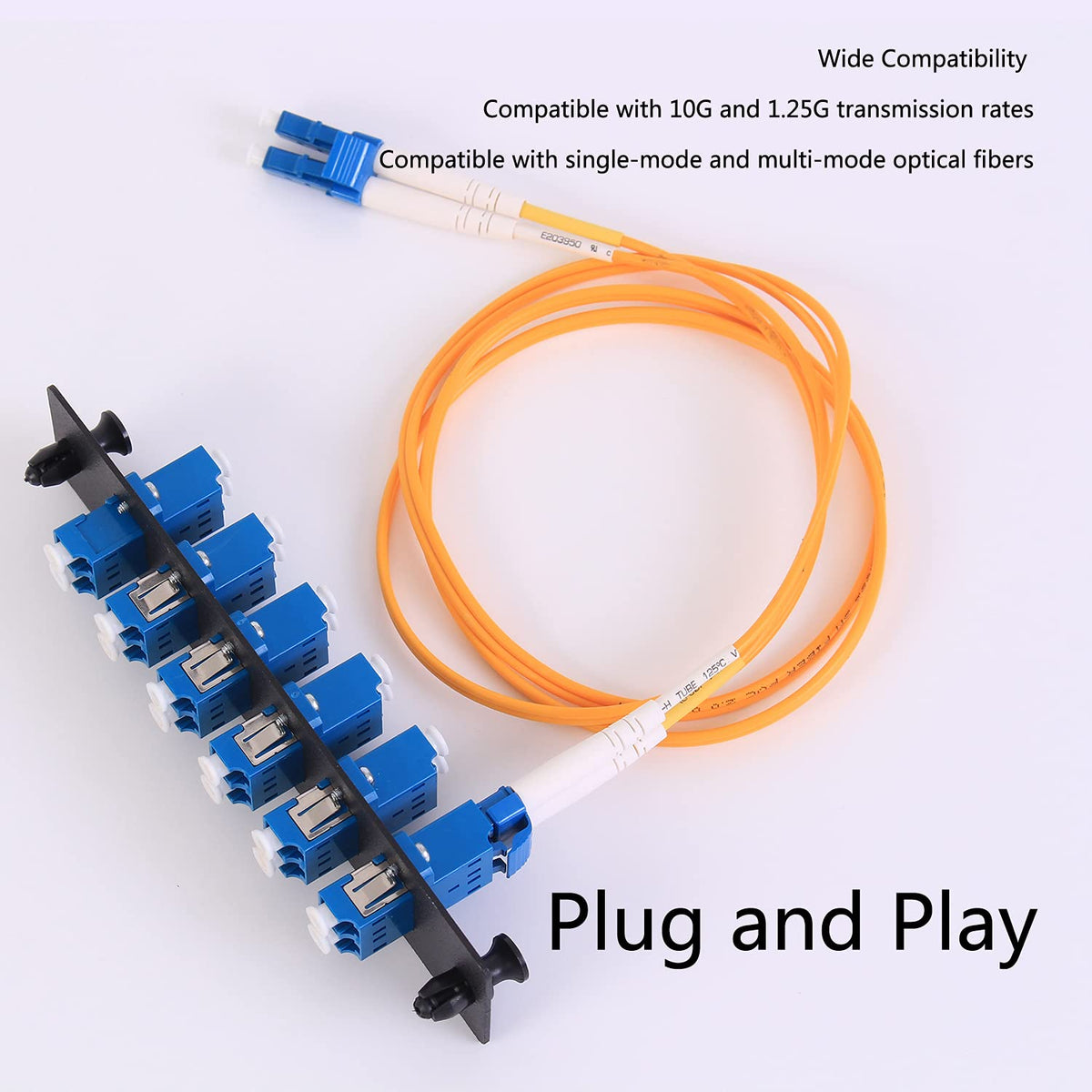

• Simple snap-in mechanism enables tool-free installation, reducing in-situ termination time.
• Pre-installed duplex LC clips simplify management and keep fibers organized during upgrades.
• Removable clips and mounting hardware support secure, tidy patching in cabinets or enclosures.

Performance, compatibility, and standards

Designed to support both singlemode and multimode fiber setups, the panel accommodates OS1/OS2 and OM1/OM3 configurations, aligning with common network standards. The connectors use ceramic ferrules with LC duplex adapters for robust optical performance, while the overall design emphasizes signal integrity and durability.

• Insertion loss typically ≤ 0.3 dB and return loss ≥ 50 dB, contributing to dependable patch connections.
• Low attenuation and compact form factor suit high-density environments like data centers, campuses, and telecom rooms.
• Compliant with IEC 61754-4 and IEC 60784-14, as well as TIA 604-3, with RoHS standards observed.

Real-world use cases and applications

These LC-to-LC, LGX-footprint panels are well suited for telecommunications backbones, enterprise networks, and controlled lab environments where clear port labeling and quick reconfiguration are valuable. They can support fast Ethernet, Gigabit Ethernet, and related fiber interconnects, making them a practical choice for network upgrades, routine maintenance, and staged deployments in data centers or field cabinets. While performance will vary with overall system design, users may experience smoother management of fiber layouts and a reduced risk of mispatching thanks to the organized, pre-loaded design.

Summary of benefits

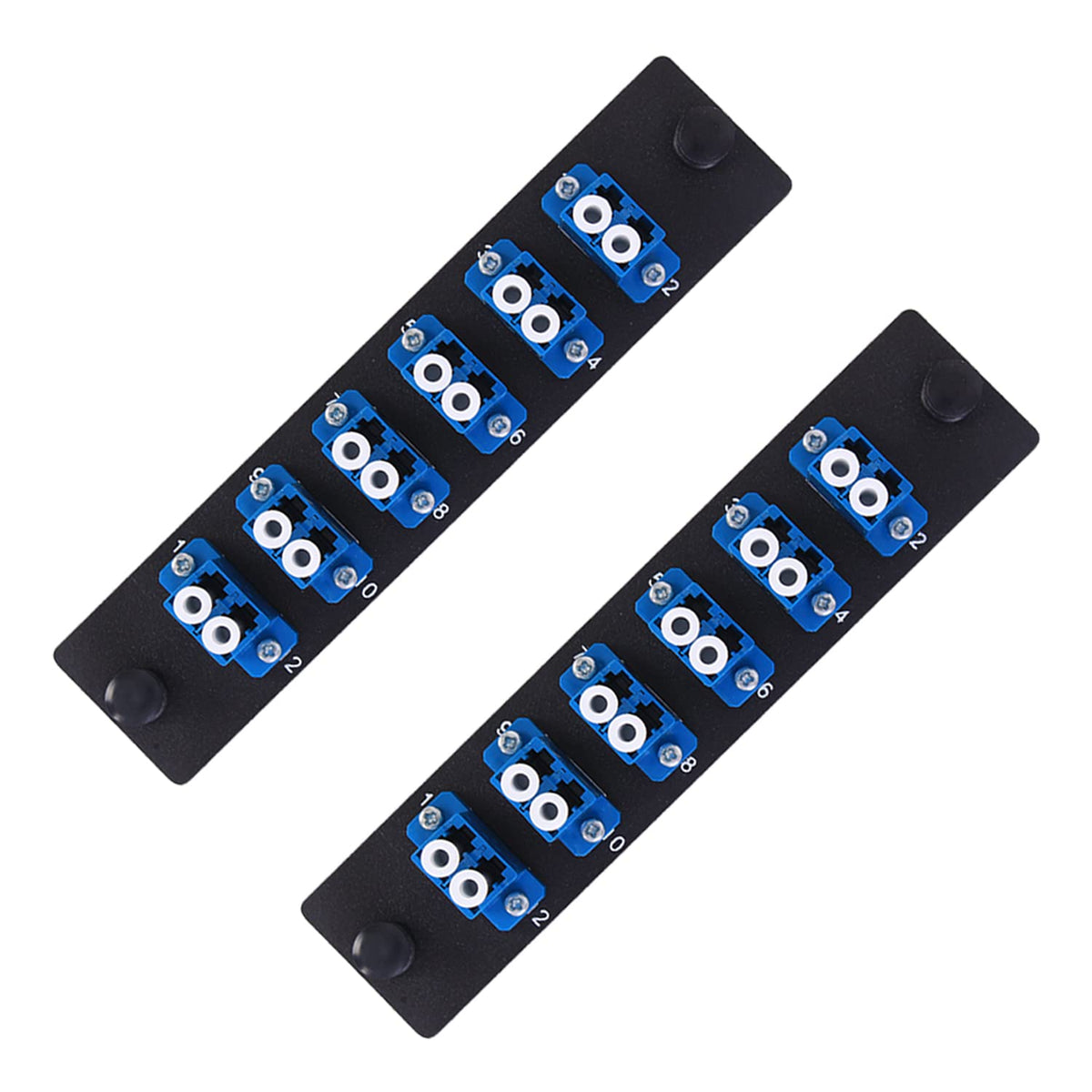

• Two-panel set with six duplex LC adapters provides 12 fiber ports in a compact LGX footprint.
• Durable steel construction with powder coating stands up to rack environments.
• Tool-free, snap-in installation accelerates field deployment and reduces downtime.
• Low insertion loss and high return loss support reliable optical links across OS1/OS2 and OM1/OM3 fibers.
• Blue markers and removable dust caps aid maintenance and clarity during ongoing network operations.
• RoHS-compliant with IEC/TIA standards for broad compatibility in professional networks.
