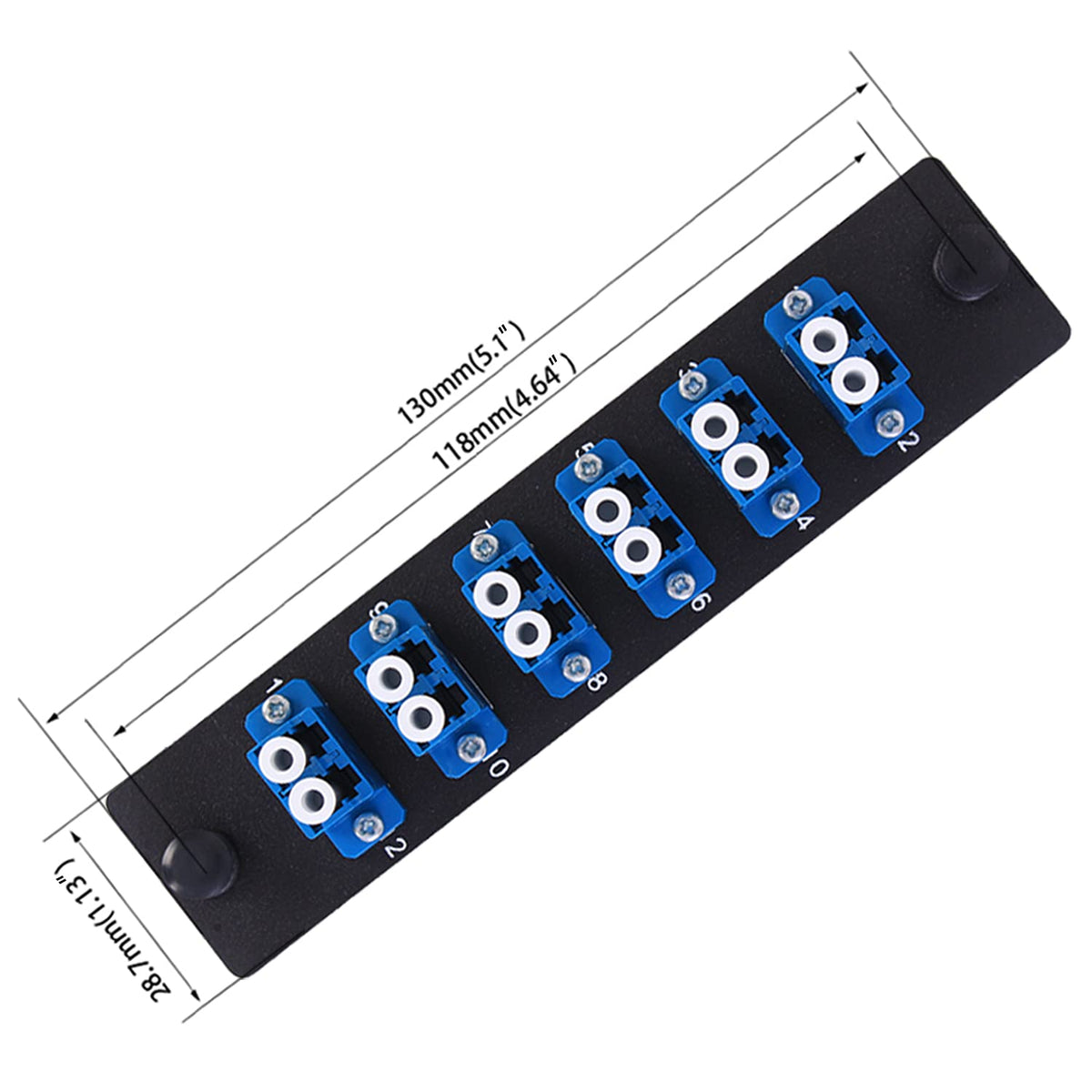

VFLTOOL Fiber Patch Panel Enclosure — 12-Port LC UPC (LGX)

This steel, LGX-footprint plate integrates ceramic-sleeved duplex LC adapters in UPC polish—offering low insertion loss and high return loss for organized rack or enclosure deployments. Designed for quick snap-in installation, the set eliminates field terminations and speeds up both new installations and routine maintenance. It supports 1.25G and 10Gb networks across OS1/OS2 singlemode and OM1/OM3 multimode fibers while staying compatible with common telecom, data center, and enterprise components.

How does this panel reduce installation time?

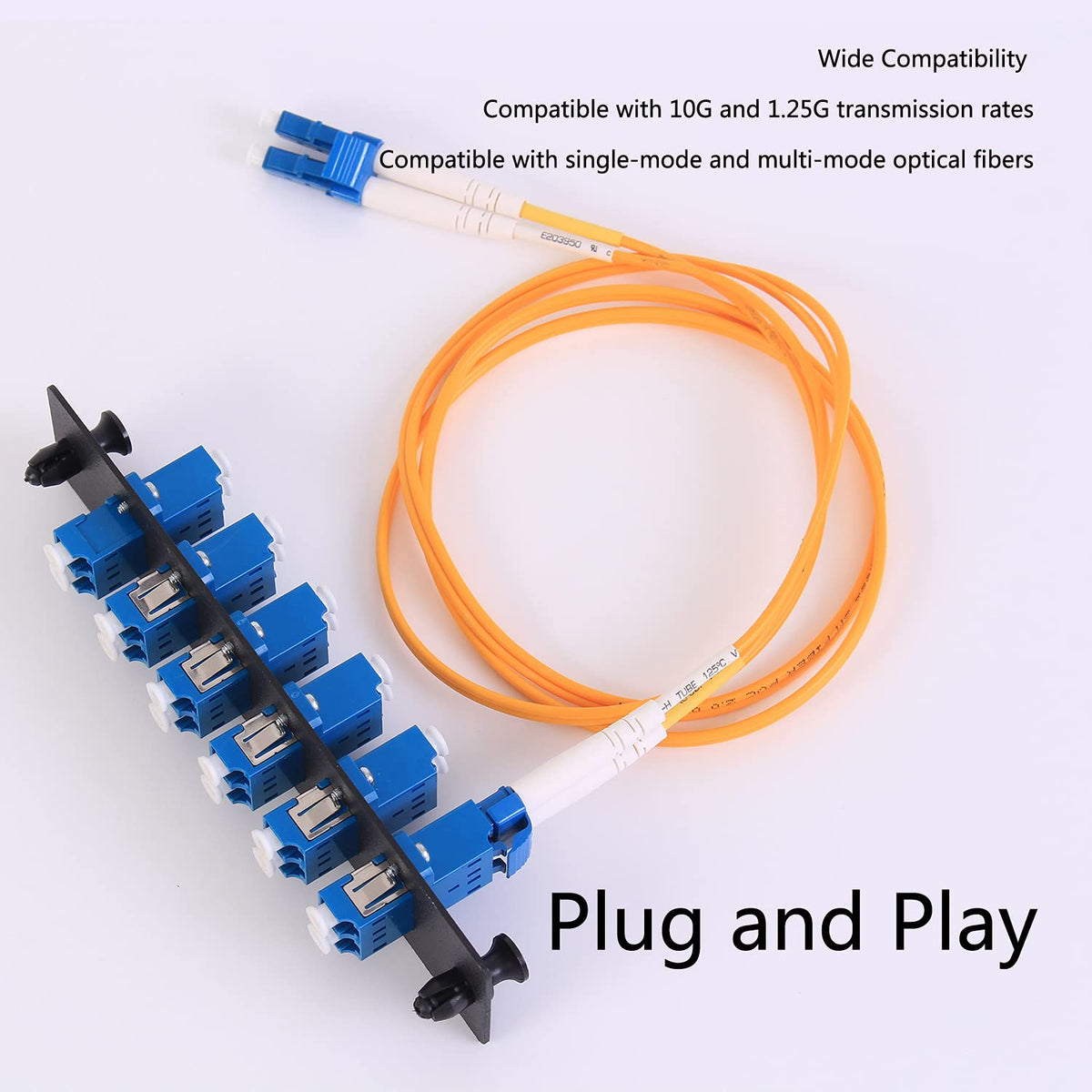

The VFLTOOL plates use a simple snap-in mounting system and arrive fully loaded with LC duplex adapters so you don’t need to terminate fibers on-site. That plug-and-play approach cuts labor, reduces the risk of mistakes, and shortens deployment windows for racks and wall-mounted enclosures.

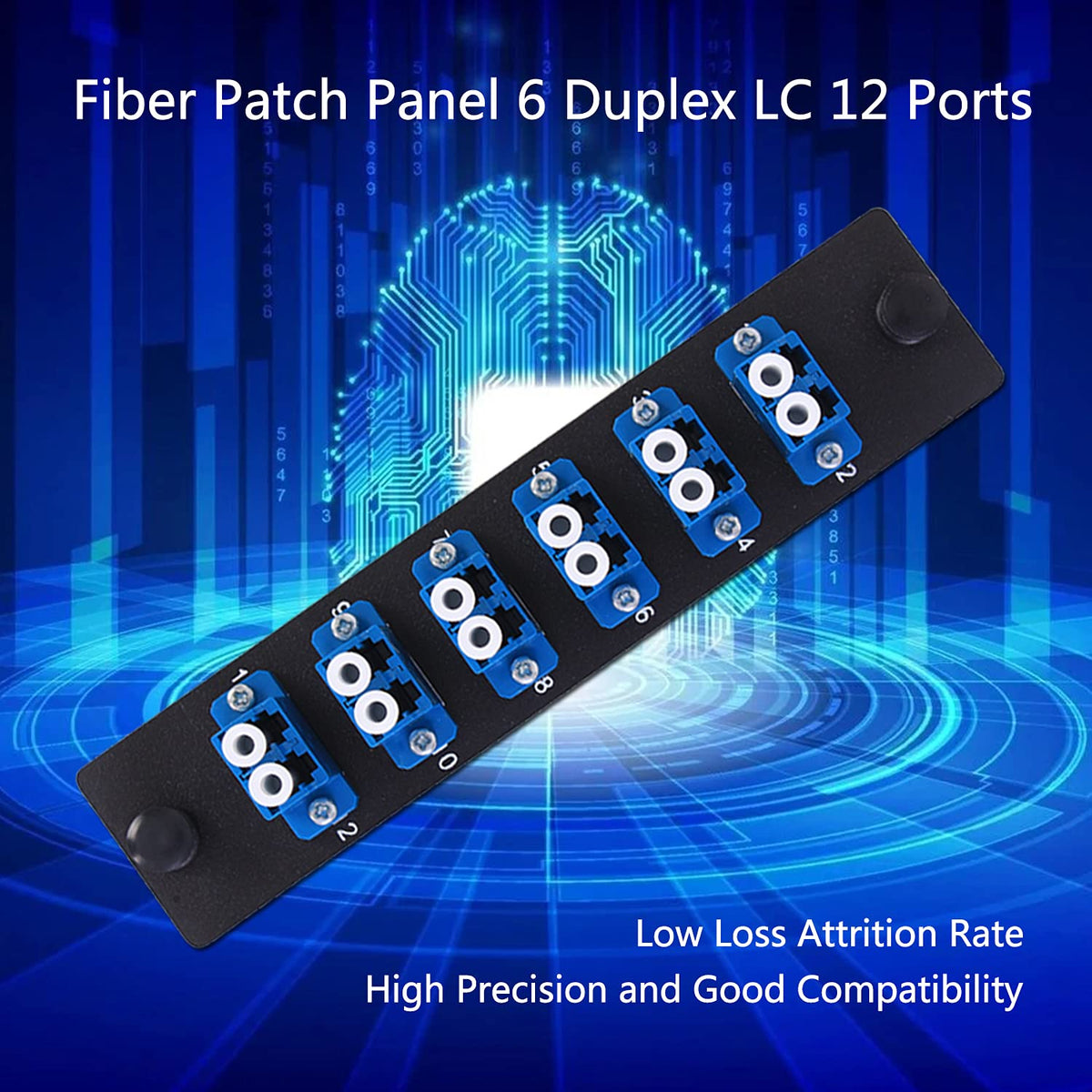

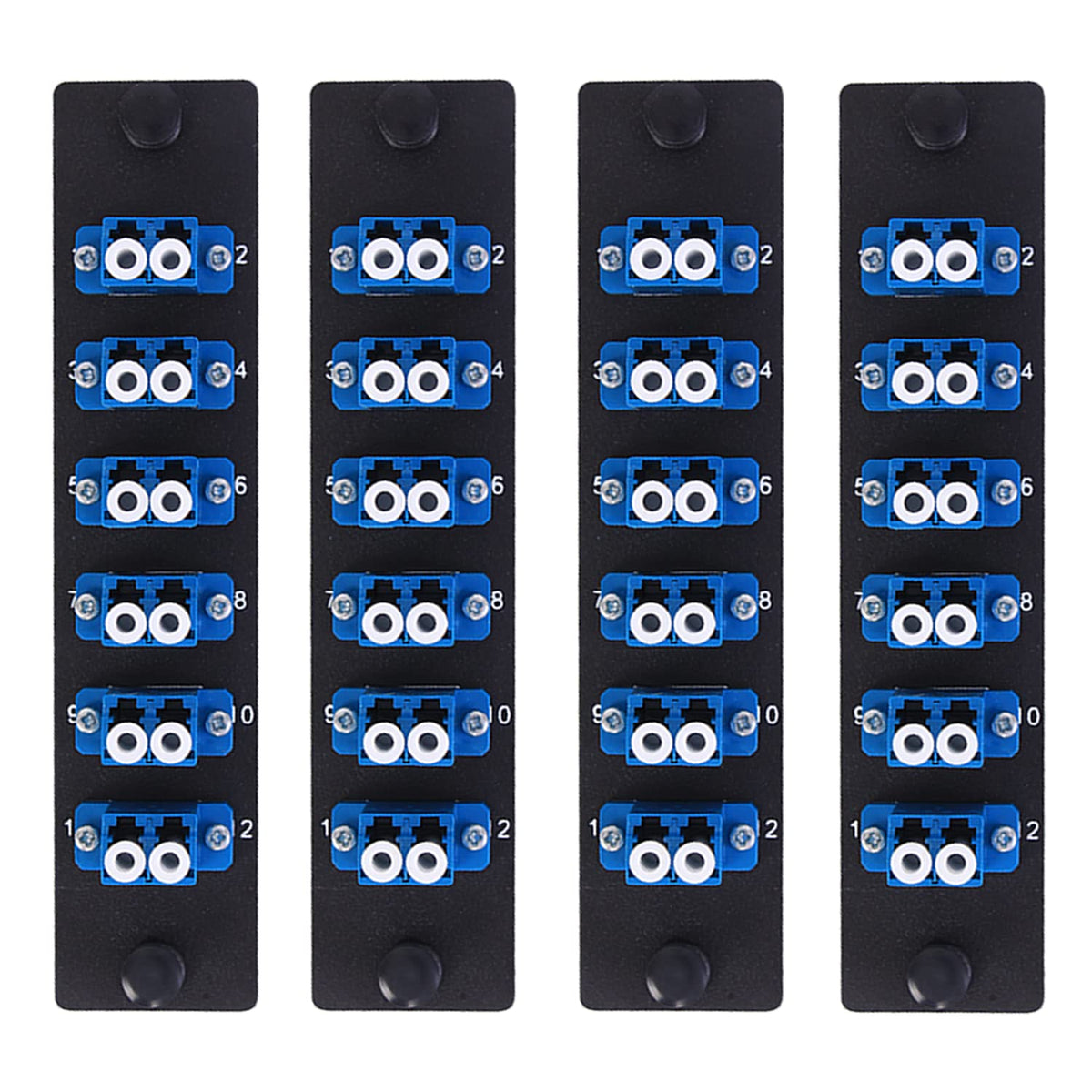

• Preloaded with 6 duplex LC (12 ports) per plate — no field termination required

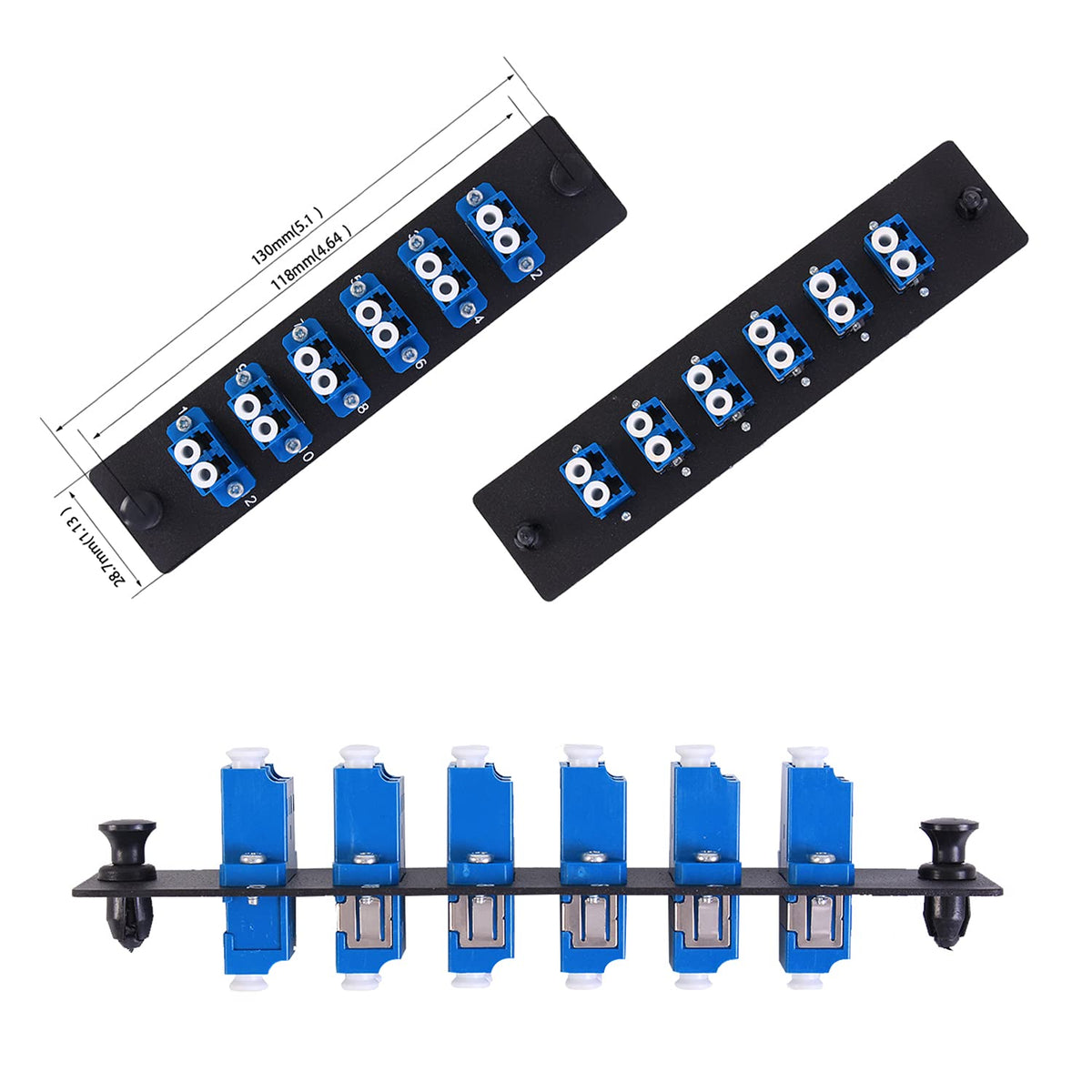

• Snap-in mounting clips for tool-less installation
• Removable dust caps protect ferrules during installation

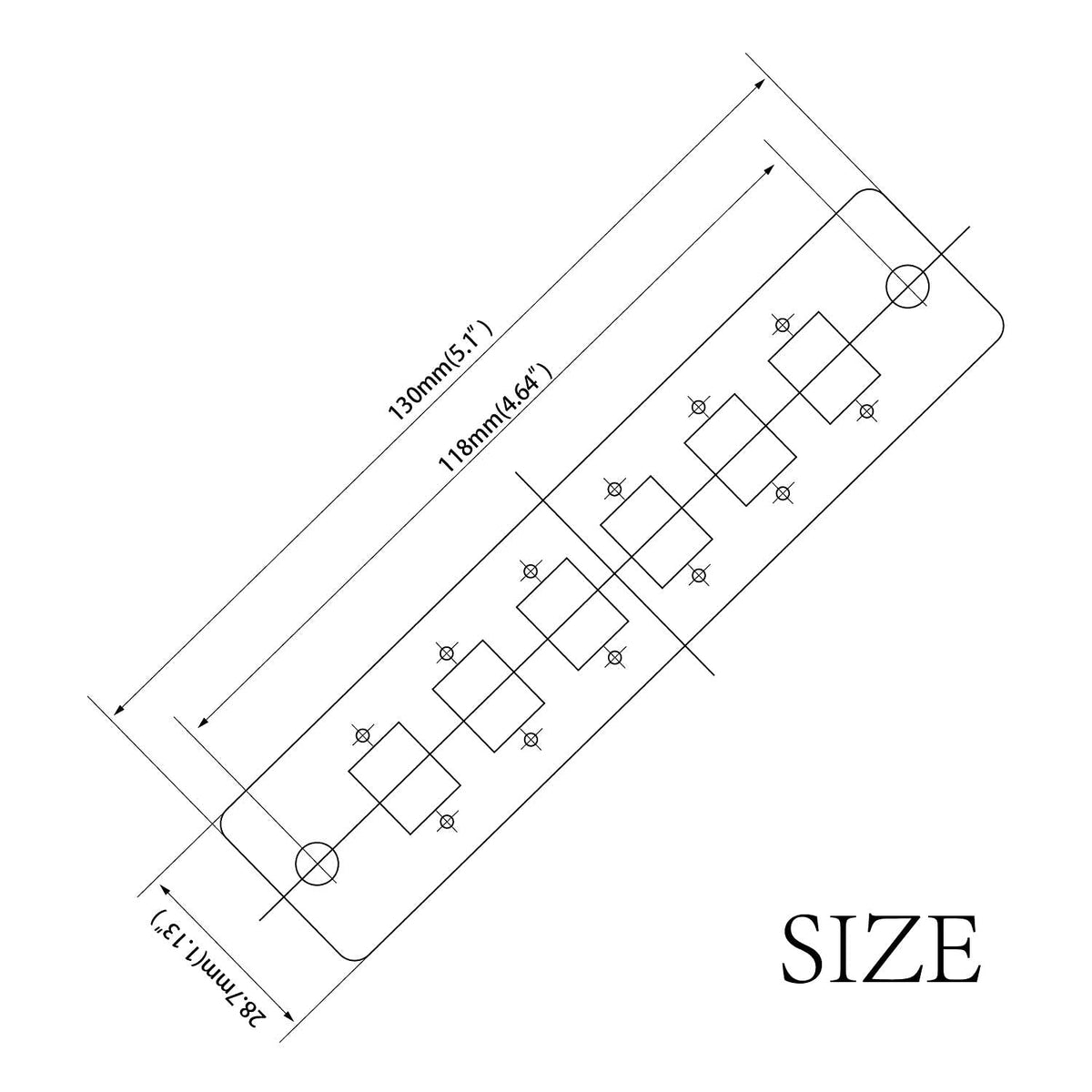

• LGX footprint fits standard LGX panels and enclosures

Will it work with my singlemode or multimode equipment?

Yes — the adapters are ceramic-sleeved LC duplex couplers in UPC polish, compatible with both 9/125 singlemode and 50/125 or 62.5/125 multimode fibers. They meet common industry interface standards so they mate reliably with patch cords, transceivers, and existing rack components.

• Supports OS1/OS2 singlemode and OM1/OM3 multimode
• Compatible with 1.25G and 10Gb transmission speeds
• Complies with IEC 61754-4, TIA 604-3 and RoHS guidelines
• Works with SFP transceivers, switches, media converters and patch cords

What performance can I expect from the LC adapters?

Each duplex LC adapter uses a 1.25 mm ceramic ferrule sleeve to minimize insertion loss and maintain high return loss, preserving signal integrity across the connection. The blue color coding helps identify UPC singlemode ports in mixed environments for faster troubleshooting and standardized cabling.

• Low insertion loss (≤0.3 dB typical) for minimal signal attenuation
• High return loss (≥50 dB) to reduce back-reflection
• Ceramic mating sleeves for stable, long-term alignment
• Blue UPC polish color for easy visual identification

How is this product best deployed in real networks?

The compact LGX-compatible plates are designed to maximize rack space and tidy fiber runs in equipment rooms, MPO transition racks, or wall-mounted distribution boxes. They work well as termination points, cross-connects, or front-facing patch panels where quick access and organized labeling matter.

• Ideal for data centers, telecom closets, and campus backbone connections
• Useful in enterprise LANs, service providers, and military/commercial installations
• Pairs easily with standard LGX panels and enclosure frames

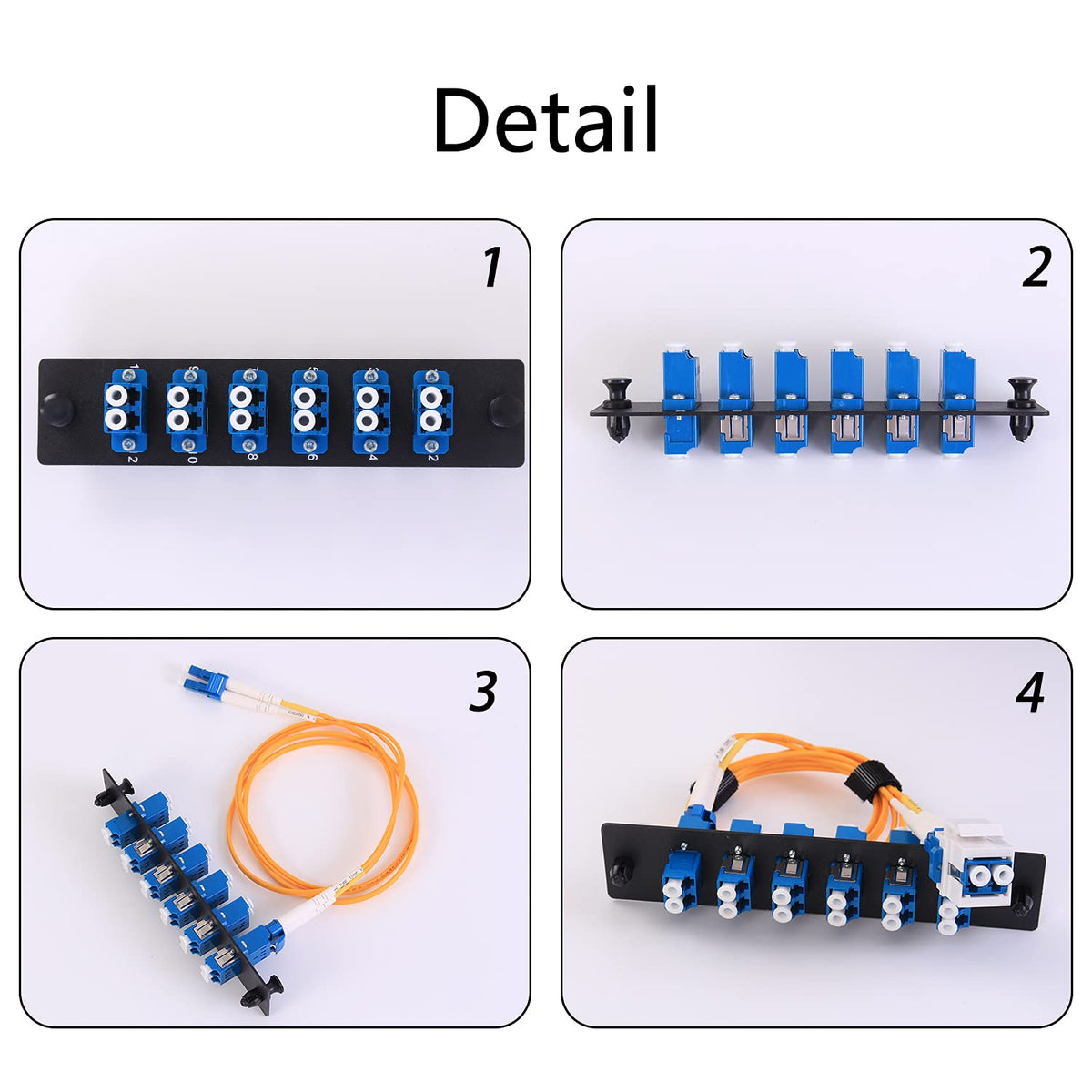

• Supports patching for SFP modules, switches, and fiber media converters

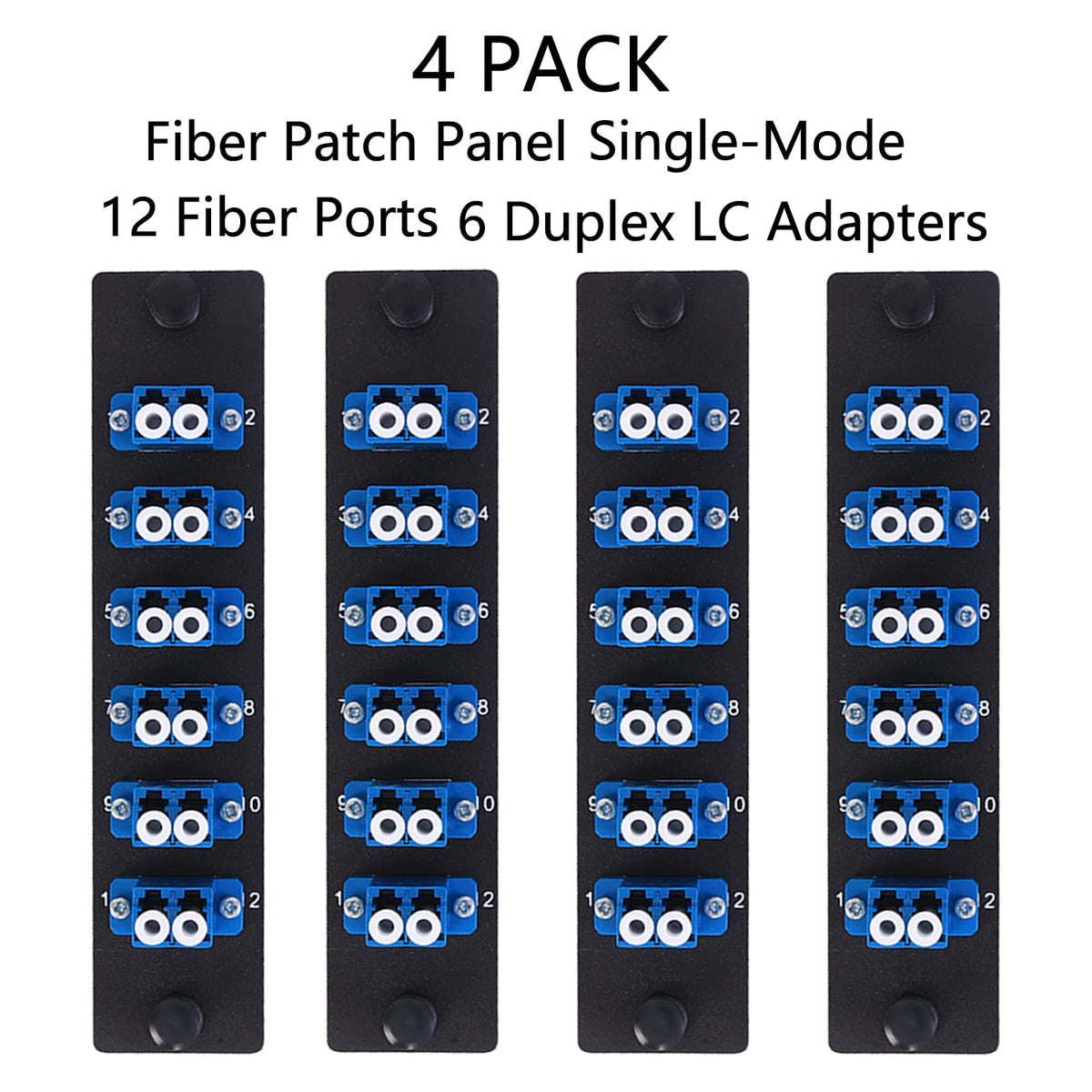

Who is this for: network engineers, telecom installers, IT teams, and systems integrators who need a durable, space-efficient way to deploy and manage both singlemode and multimode fiber connections. If you want a cost-effective, preloaded, standards-compliant solution to reduce field work and keep rack cabling neat and serviceable, this VFLTOOL 4-pack provides immediate, repeatable patch points compatible with common network equipment and speeds.
