uxcell 24V to 12V 40A (480W) DC Voltage Converter

uxcell's big-size DC voltage converter steps down 24V input to a stable 12V output at up to 40A (480W) in an IP68-rated, die-cast aluminum housing.

This heavy-duty buck regulator is built for vehicles and solar systems that require reliable 12V power from a 24V source. Designed with multiple protections and an efficient conversion circuit, the converter aims to deliver clean, temperature-managed power for displays, motors, pumps, lighting and other 12V loads commonly found in buses, large trucks and off-grid setups.

How does this converter protect my equipment from electrical faults?

The unit integrates multiple protection mechanisms to reduce the risk of damage from common electrical problems. It will respond to overloads, over-current events, short circuits, excessive temperature and over-voltage conditions, and is designed to auto-recover once normal parameters return.

• Built-in short-circuit shutdown and auto-recovery when the fault clears
• Over-current and overload detection to limit damaging currents
• Over-temperature protection to prevent overheating under heavy loads
• Over-voltage guard to keep the 12V output within safe range

What makes this model suitable for outdoor and vehicle use?

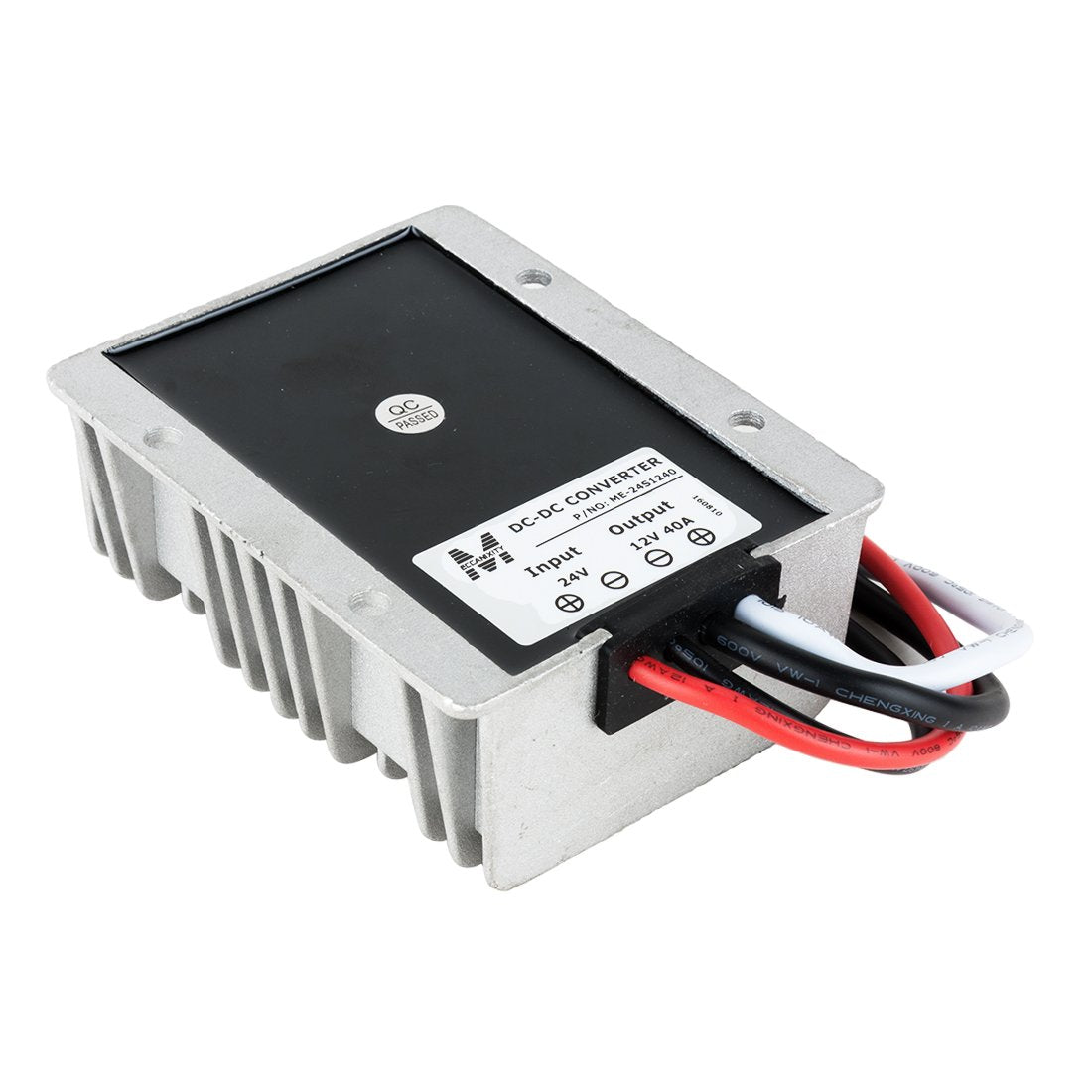

The converter’s IP68-rated construction plus a die-cast aluminum shell make it resistant to moisture, dust and mechanical shocks. Its rugged enclosure and compact footprint help it withstand the stresses found in transportation and outdoor power installations.

• IP68 waterproof rating for heavy-duty outdoor exposure
• Die-cast aluminum case provides heat dissipation and impact resistance
• Moisture-proof finish reduces corrosion risk in wet environments
• Simple mounting points for secure installation in vehicles or panels

How efficient is the power conversion and what load practices should I follow?

Conversion efficiency can reach up to 95% under favorable conditions, meaning less wasted energy and lower heat generation compared with less efficient converters. Still, continuous operation at full rated load is discouraged because sustained maximum loading increases temperature and can shorten the unit’s life.

• Typical peak efficiency around 95% for reduced energy loss
• Avoid continuous full-load operation to prevent overheating
• Allow ventilation and follow recommended derating under high ambient temperatures
• Verify wire gauge and secure connections to minimize voltage drop

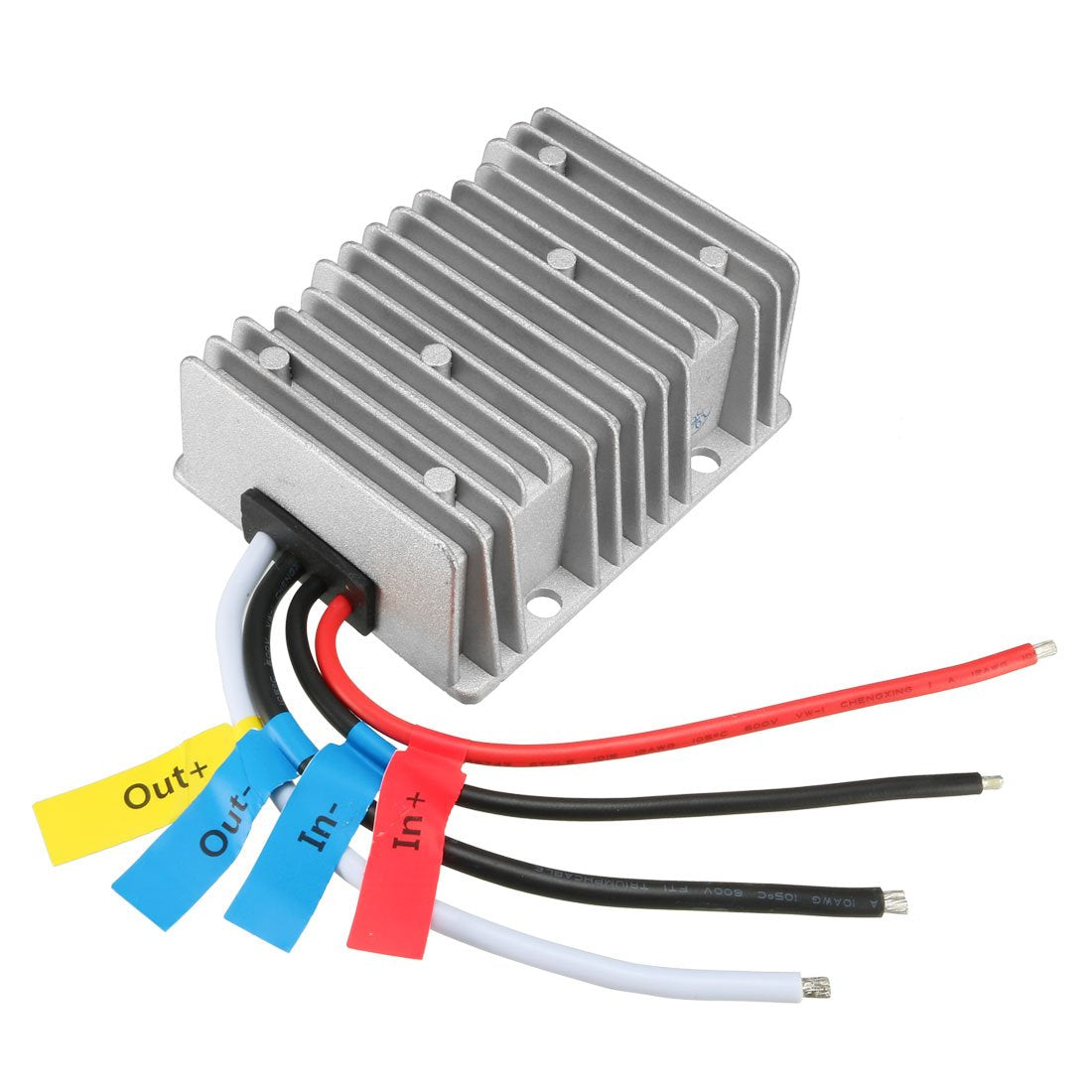

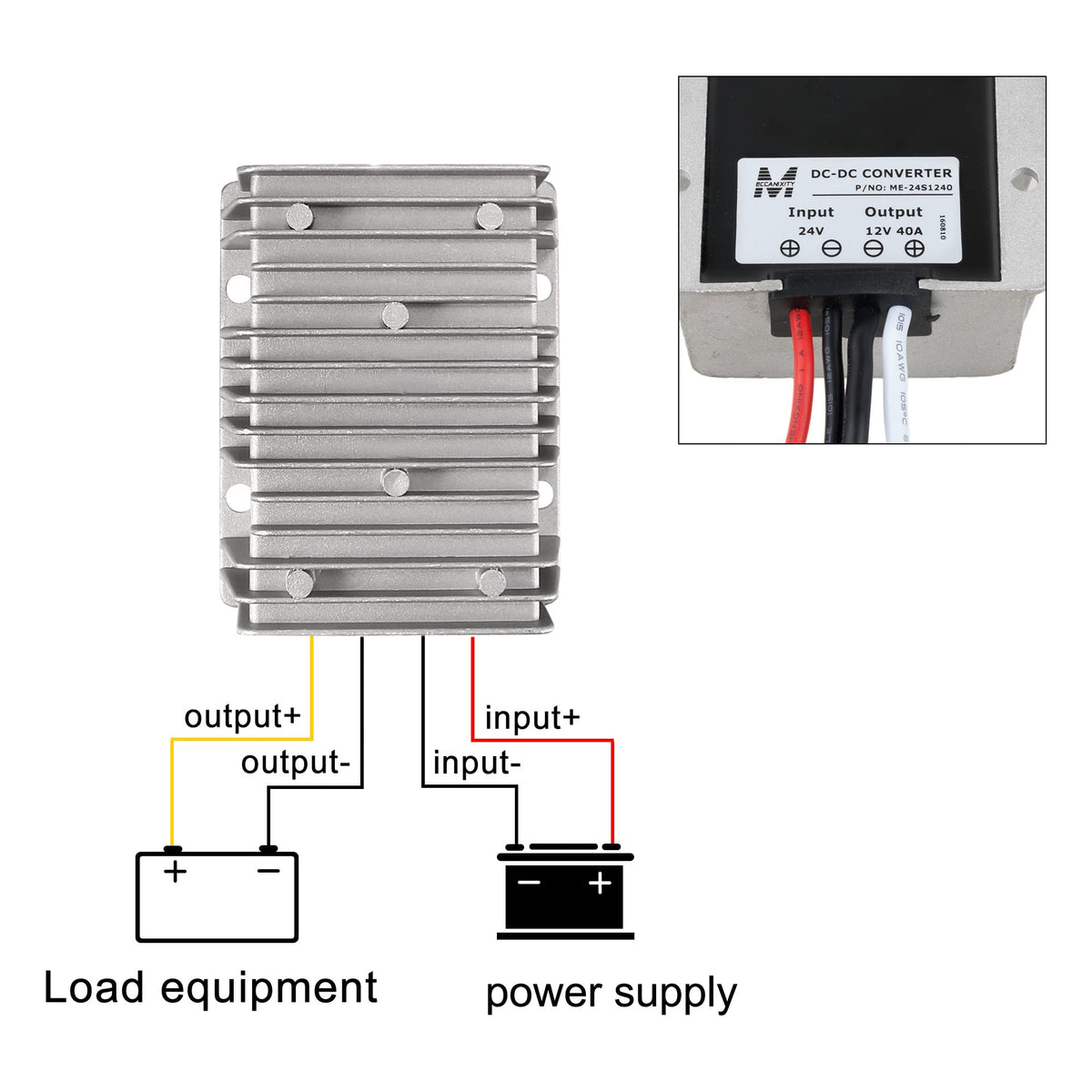

How should I install and wire the converter safely?

Correct wiring and installation are essential for reliable performance: confirm wire identification, use appropriate gauge cables, and mount the converter where air can circulate. Incorrect wiring or prolonged misuse at full load can damage the unit, so follow labeling and instructions carefully.

• Match input 24V polarity and secure connections before powering up

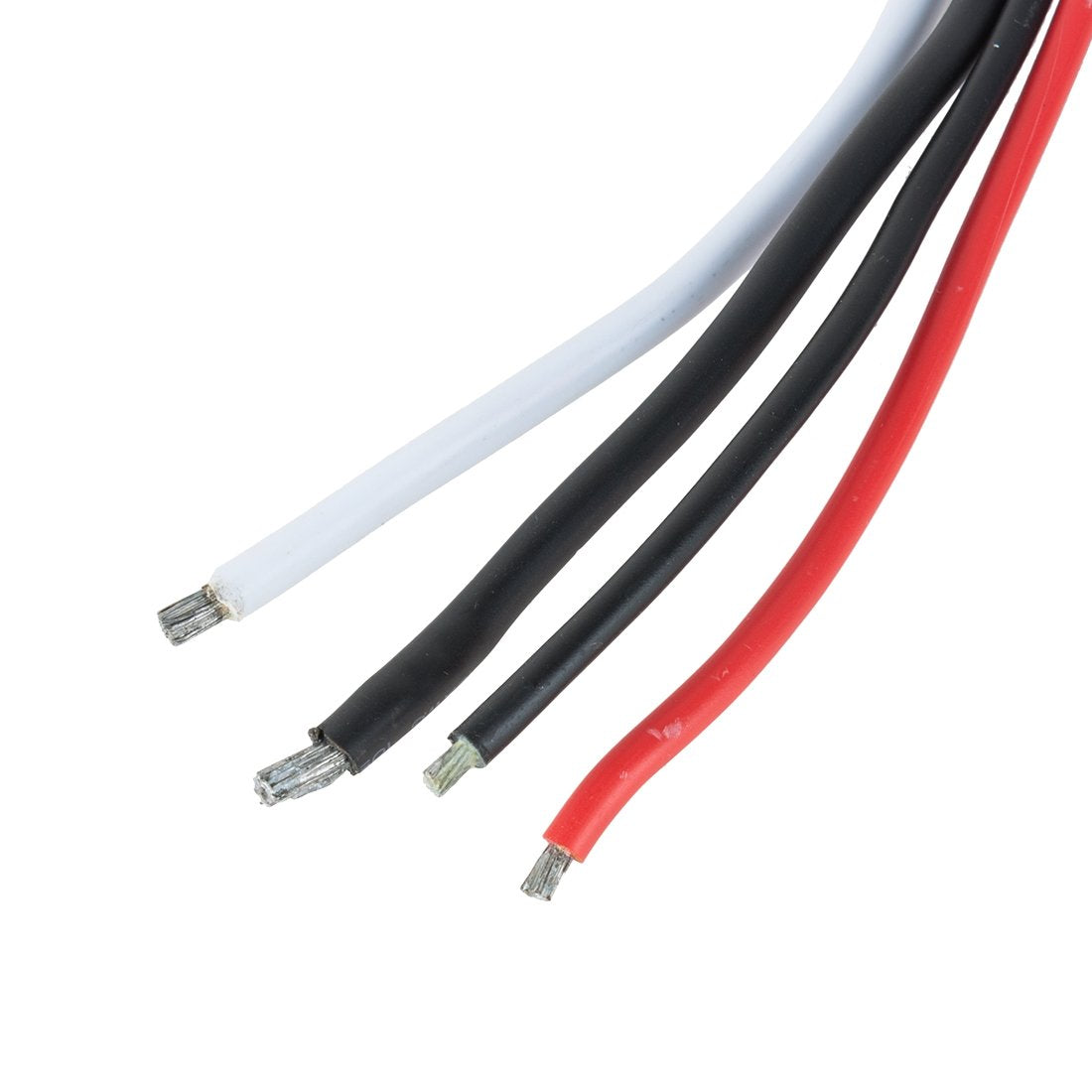

• Use recommended wire gauges to handle up to 40A safely
• Mount on a non-flammable surface with clearance for airflow
• Inspect wiring and connectors periodically for wear or corrosion

Who is this for: technicians, fleet operators and DIY installers who need a robust, high-current DC step-down solution for vehicles, buses, trucks, solar arrays or industrial equipment. It’s intended for projects that require a weatherproof, high-efficiency regulator capable of delivering 12V at substantial currents, provided users respect wiring best practices and avoid prolonged continuous full-load operation.
