UwayKey 220W+220W Bluetooth Amplifier Board 2.0

UwayKey 220W+220W Bluetooth amplifier board is a compact 2.0-channel digital amp module powered by the TI TPA3251D2 chip, delivering high-fidelity stereo output with Bluetooth, USB and AUX inputs and adjustable bass/treble controls.

This amplifier board combines modern connectivity and robust power handling in a single PCB designed for DIY audio projects, car installs, and compact home speaker systems. It accepts 12–36V DC, supports Bluetooth 5.2 wireless streaming (AAC and SBC), plus USB playback of WAV/FLAC/APE/MP3 files. The design centers on low-noise preamplification and efficient power conversion, using high-quality inductors, capacitors and replaceable op-amps to preserve clarity at higher volumes.

How does this amp board improve audio clarity compared with typical modules?

The UwayKey board uses the TI TPA3251D2 class-D amplifier core together with four NE5532 low-noise operational amplifiers to reduce distortion and keep background noise low. That combination yields more detail and cleaner dynamics than many generic amplifier boards.

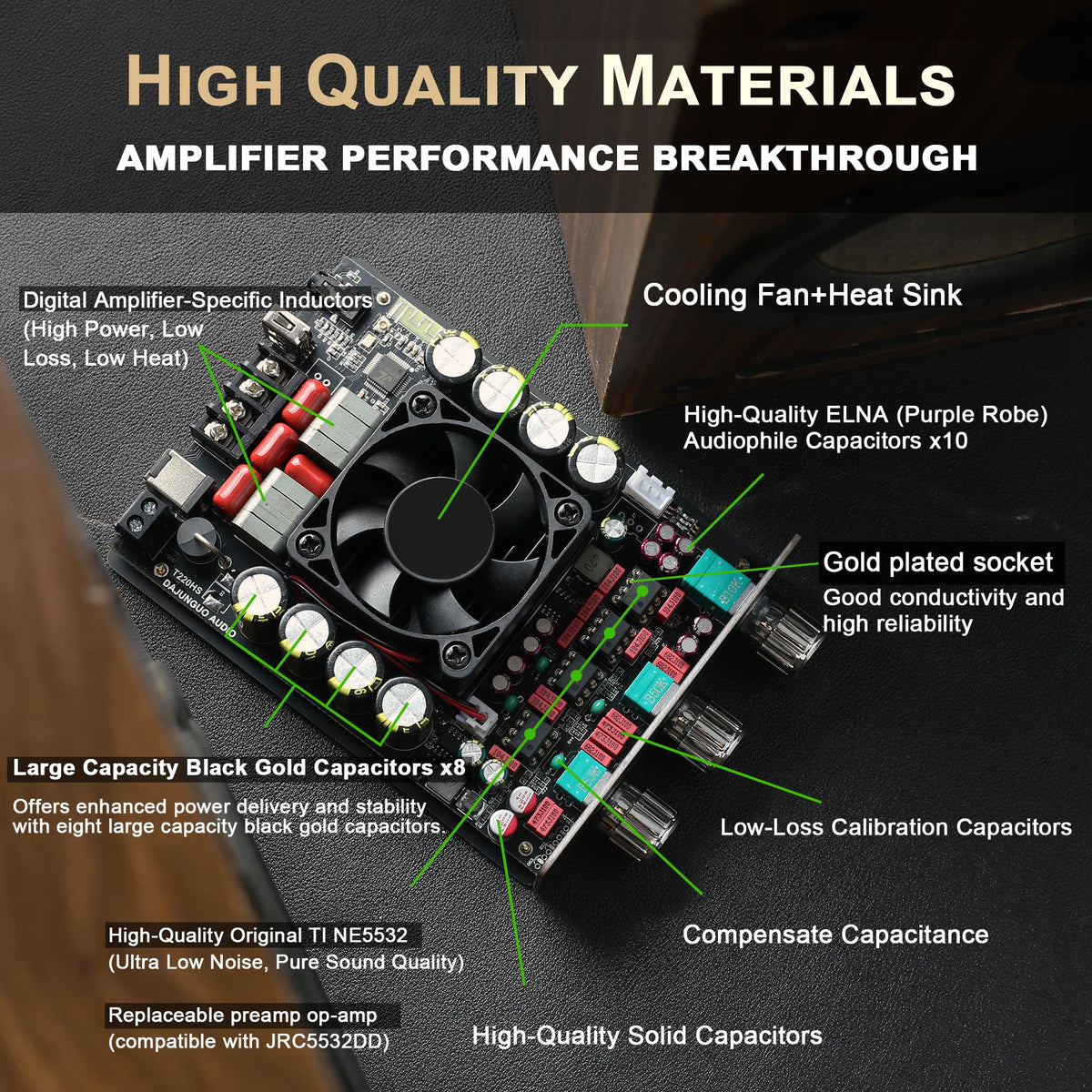

• TPA3251D2 HiFi class-D chip for high-definition output

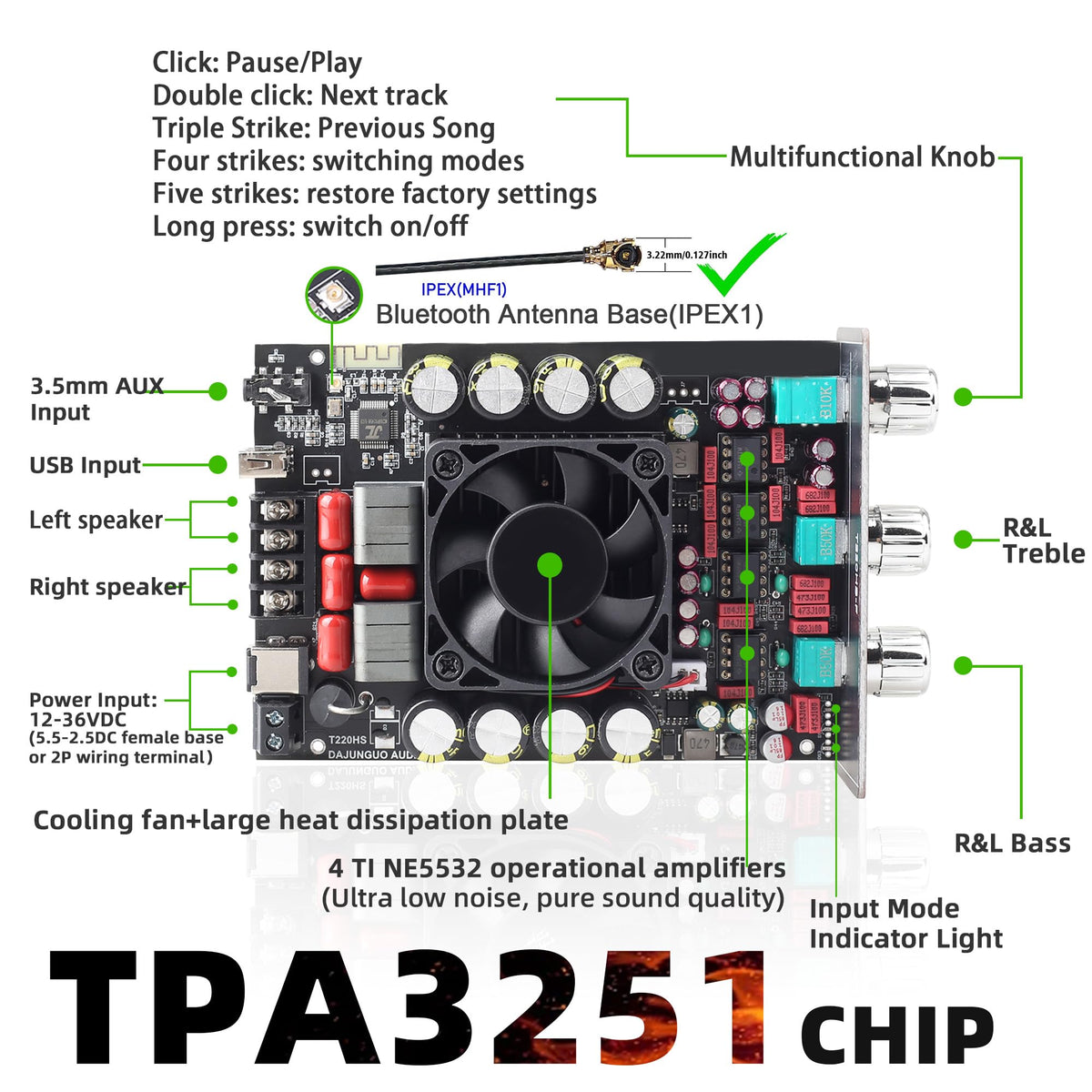

• Four NE5532 op-amps in gold-plated sockets for low noise and easy replacement
• High-capacity and low-loss capacitors for stable voltage delivery
• Dedicated inductors for efficient power handling and minimal heat

What connectivity and audio formats does it support for music playback?

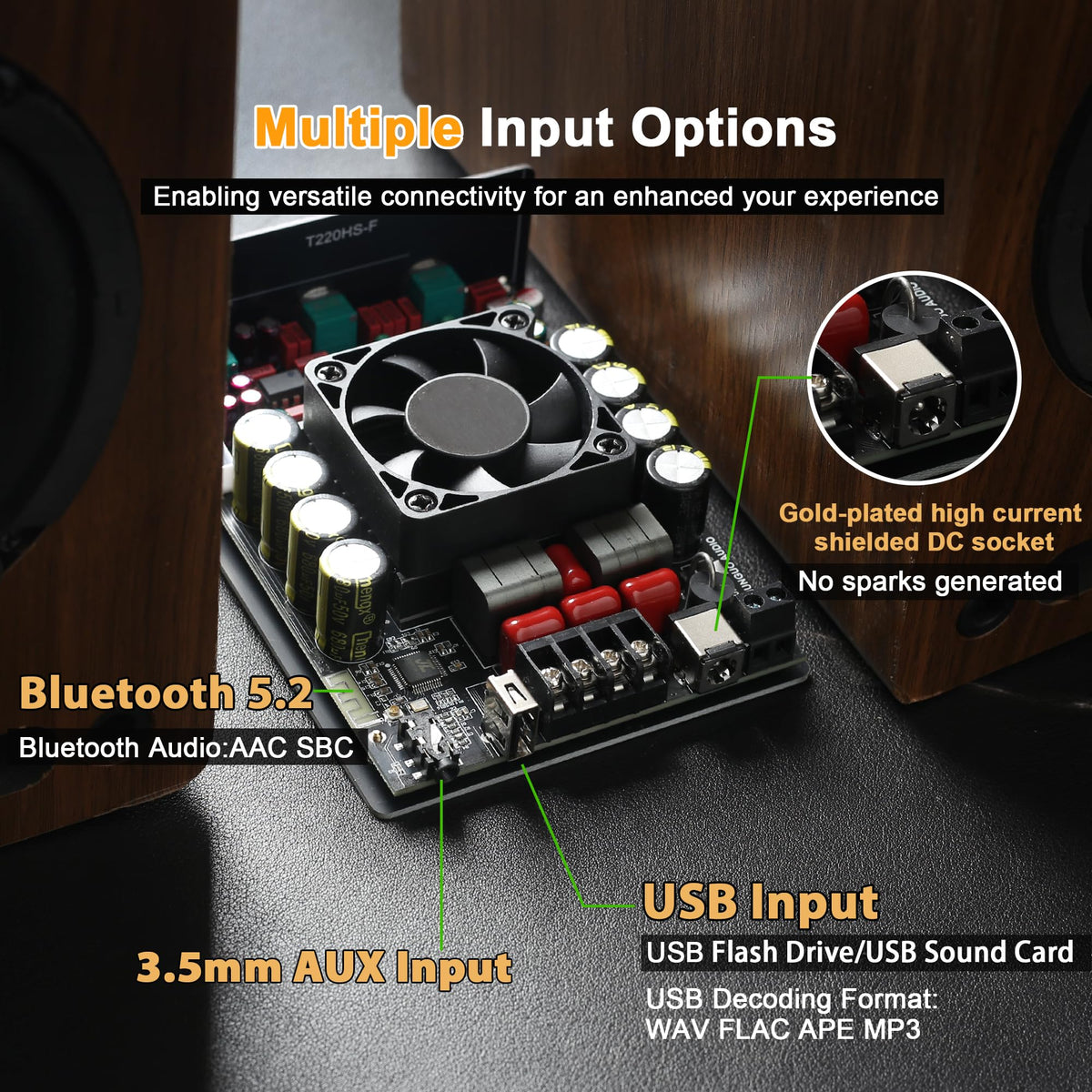

The board offers flexible inputs to suit different setups: Bluetooth 5.2 for wireless streaming, a USB interface that decodes common lossless and lossy formats, and a 3.5mm AUX jack for wired sources. Bluetooth supports both AAC and SBC codecs for broad device compatibility.

• Bluetooth 5.2 with AAC and SBC playback
• USB decoding for WAV, FLAC, APE and MP3 files
• Analog AUX input for legacy devices
• Simple input-selection controls for quick switching

Can this amplifier run from automotive or varied DC power supplies?

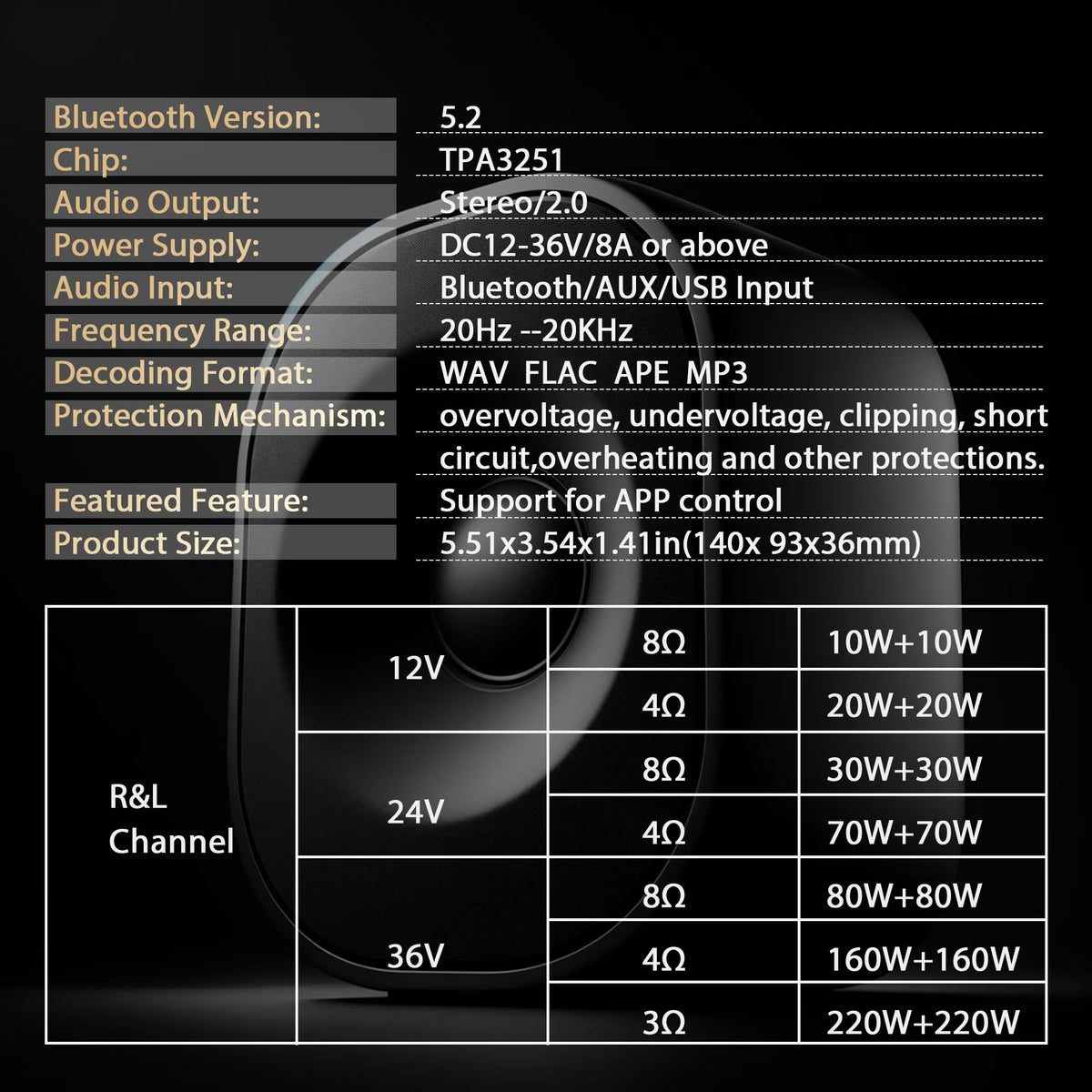

Yes — the amplifier accepts a wide DC input range from 12V up to 36V, making it suitable for 12V car systems, 24V setups, and many desktop or DIY power supplies. The design balances efficiency and thermal behavior so it performs reliably across that voltage span when properly cooled.

• Wide 12–36V DC input range for flexible installation
• Efficient class-D topology minimizes heat during operation
• High-power inductors and capacitors built for stability under load
• Recommended use with adequate ventilation or heatsinking

How do bass and treble controls and component choice affect sound tuning?

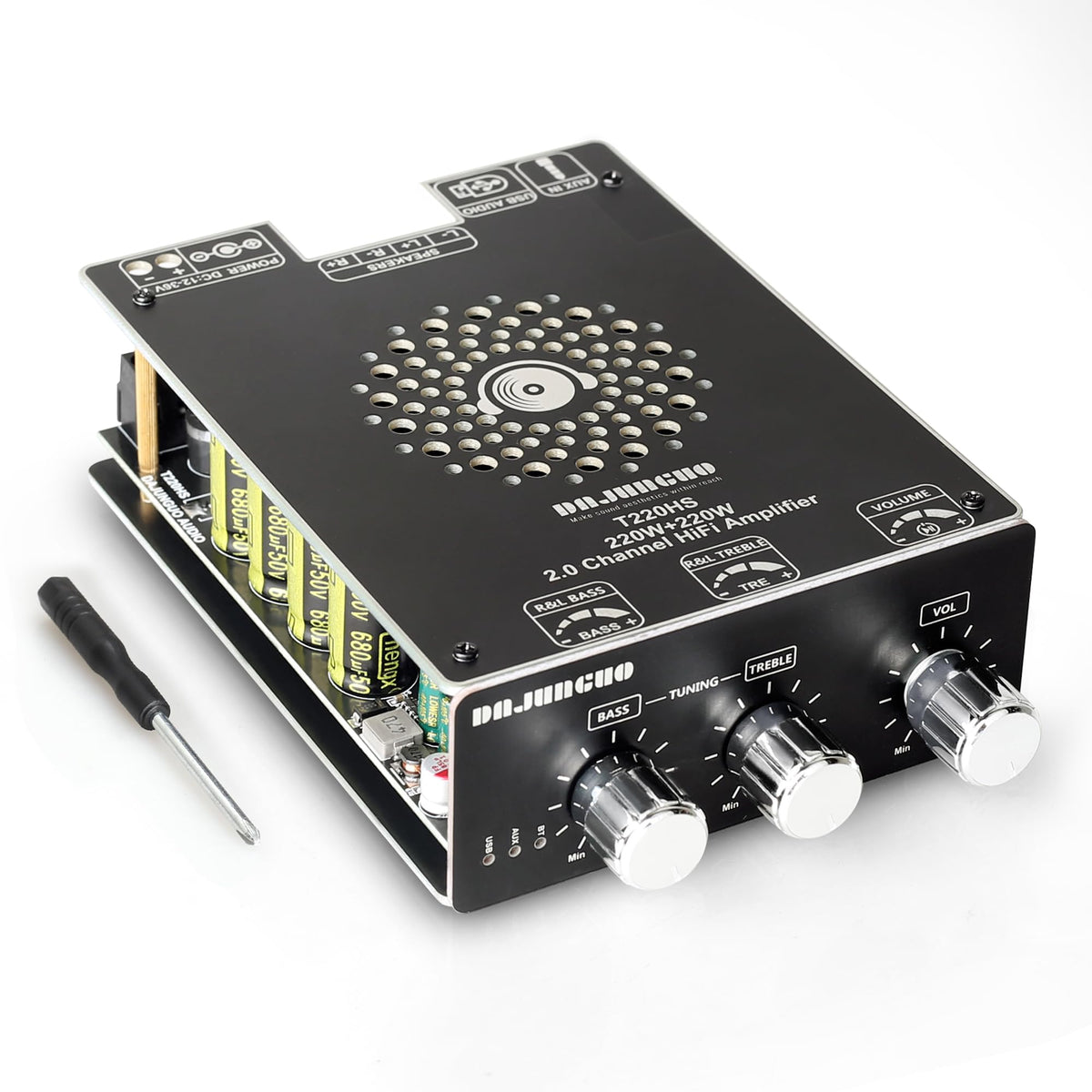

Front-panel treble and bass controls let you tailor tonal balance without changing hardware or using DSP. The replaceable NE5532 op-amps and premium passive parts give hobbyists room to fine-tune both noise floor and tonal character via component swaps.

• Dedicated bass and treble knobs for quick tonal adjustments
• Gold-plated op-amp sockets support easy NE5532 or compatible upgrades
• Quality capacitors and inductors help preserve frequency response
• Physical tuning avoids compression common to some digital EQs

Who is this for: The UwayKey 220W+220W amplifier board fits audio hobbyists, DIY speaker builders, and integrators who want a high-power, small-footprint stereo solution with modern wireless options. It’s a strong choice for car audio upgrades, compact home stereo projects, and anyone who values upgradeable analog front-end components and flexible power compatibility.
