UU TOJOIN 2-Way N-Type 0.7–2.7GHz Power Splitter

This UU TOJOIN PS-2NM-0727 splitter is built for antenna, RF test bench, and microwave measurement setups where you need to feed two loads from one source while preserving signal integrity. It’s a 50-ohm passive device with female N connectors made to operate across common VHF/UHF and cellular bands. The unit focuses on low insertion loss (≤3.5 dB), good isolation (≥20 dB) and a tight VSWR (≤1.3) to keep reflections and mismatch loss to a minimum.

What performance can I expect across the 0.7–2.7 GHz range?

The splitter maintains predictable behavior across the entire specified band: insertion loss stays below 3.5 dB, isolation between the two outputs is at least 20 dB, and VSWR does not exceed 1.3. Those figures mean most of the source power is handed off to outputs with limited cross-coupling and modest reflection.

• Insertion loss: ≤ 3.5 dB (typical passive split loss plus internal losses)
• Isolation: ≥ 20 dB to reduce port interaction
• VSWR: ≤ 1.3 for minimized return loss

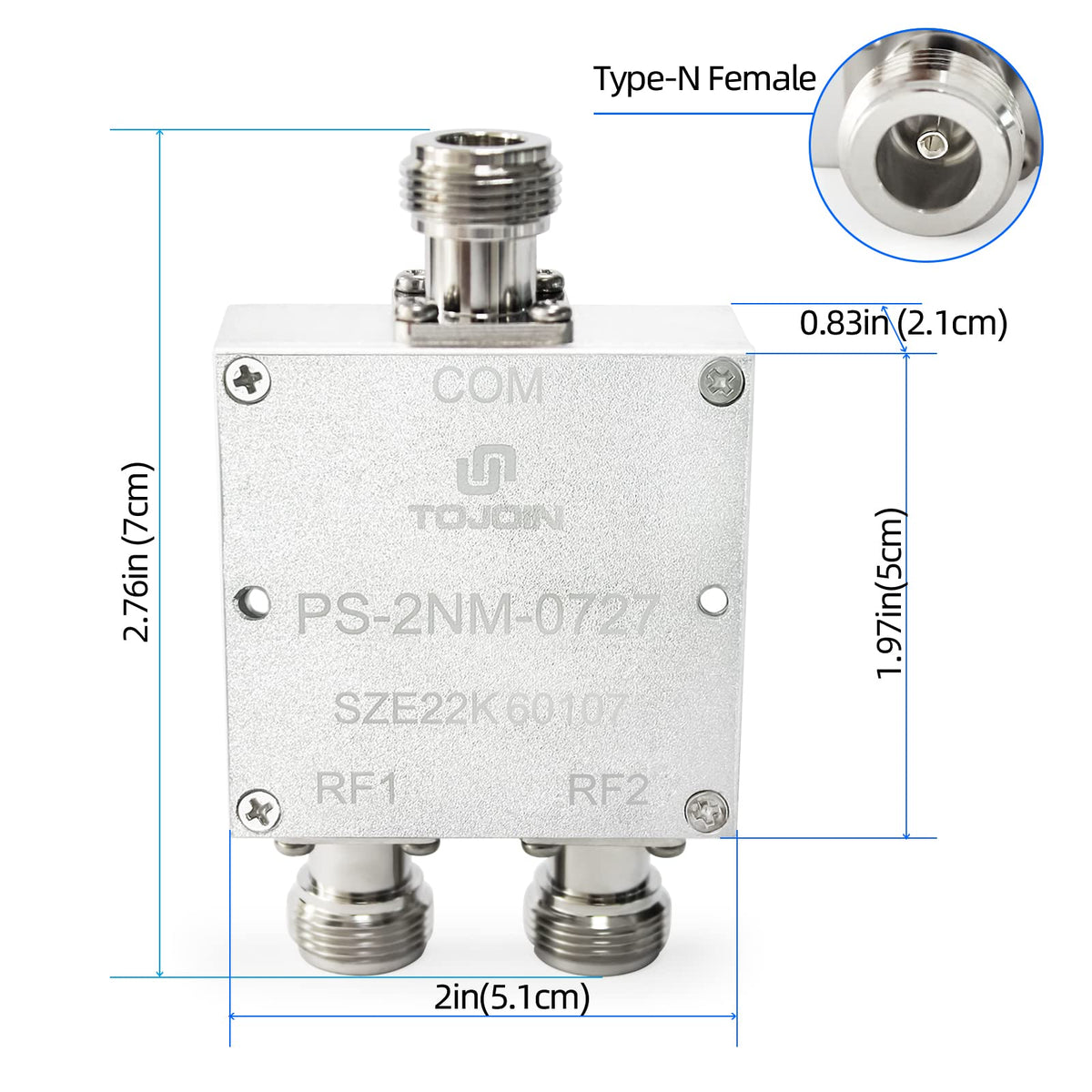

• Connector type: Female N, 50Ω system compatibility

How does the TOJOIN splitter fit into an antenna or lab setup?

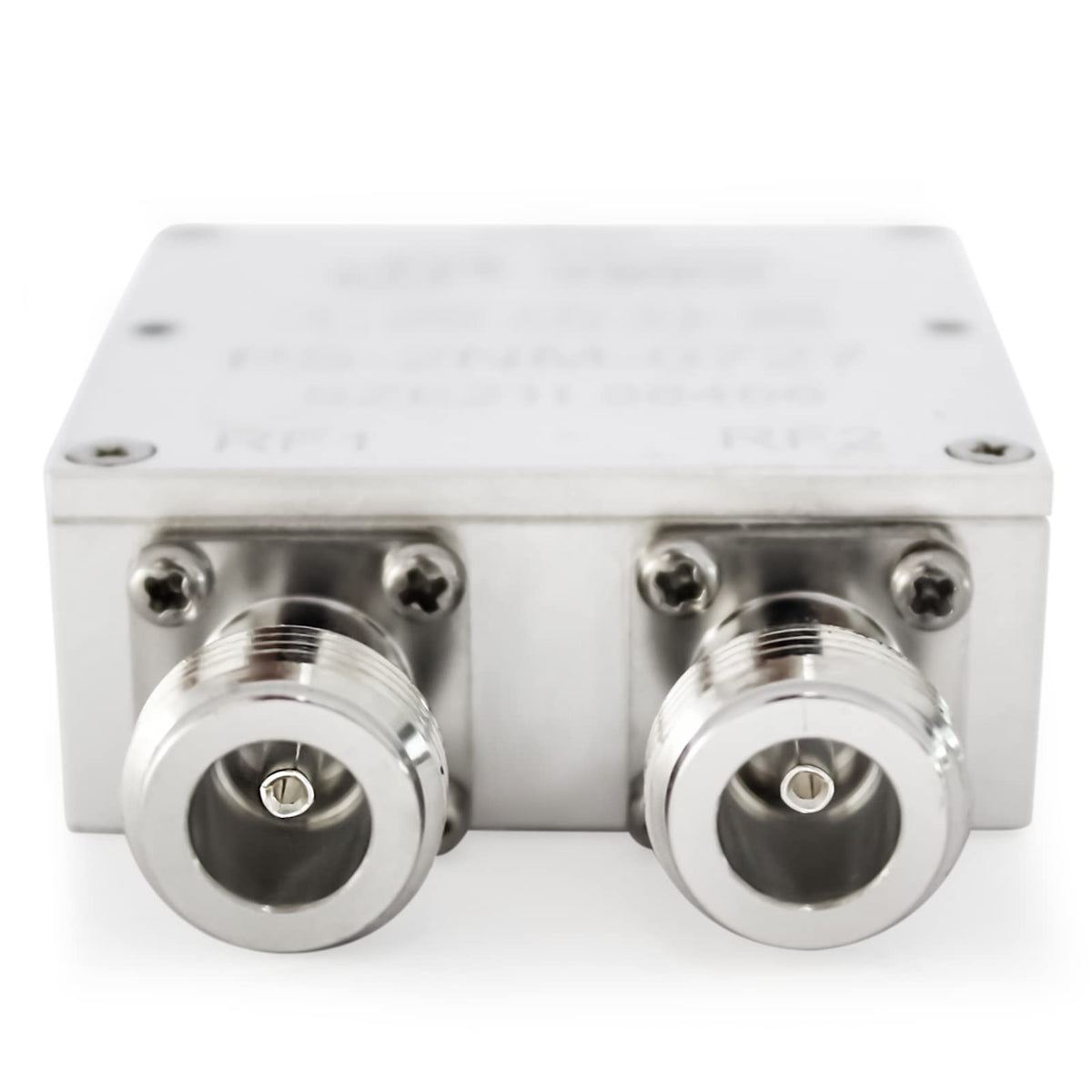

It’s designed to route one amplified or generator output to two antennas, receivers, or test instruments with minimal rework. Install it inline with N-type cables and secure connections; the plug-and-play layout simplifies integration in bench and field deployments.

• Use with 50Ω coaxial systems and N-type termination
• Split signal to two antennas or two measuring instruments
• Works with amplifiers, signal generators, and receivers within spec
• Quick installation—no calibration required for basic splitting tasks

Is the construction durable enough for field use?

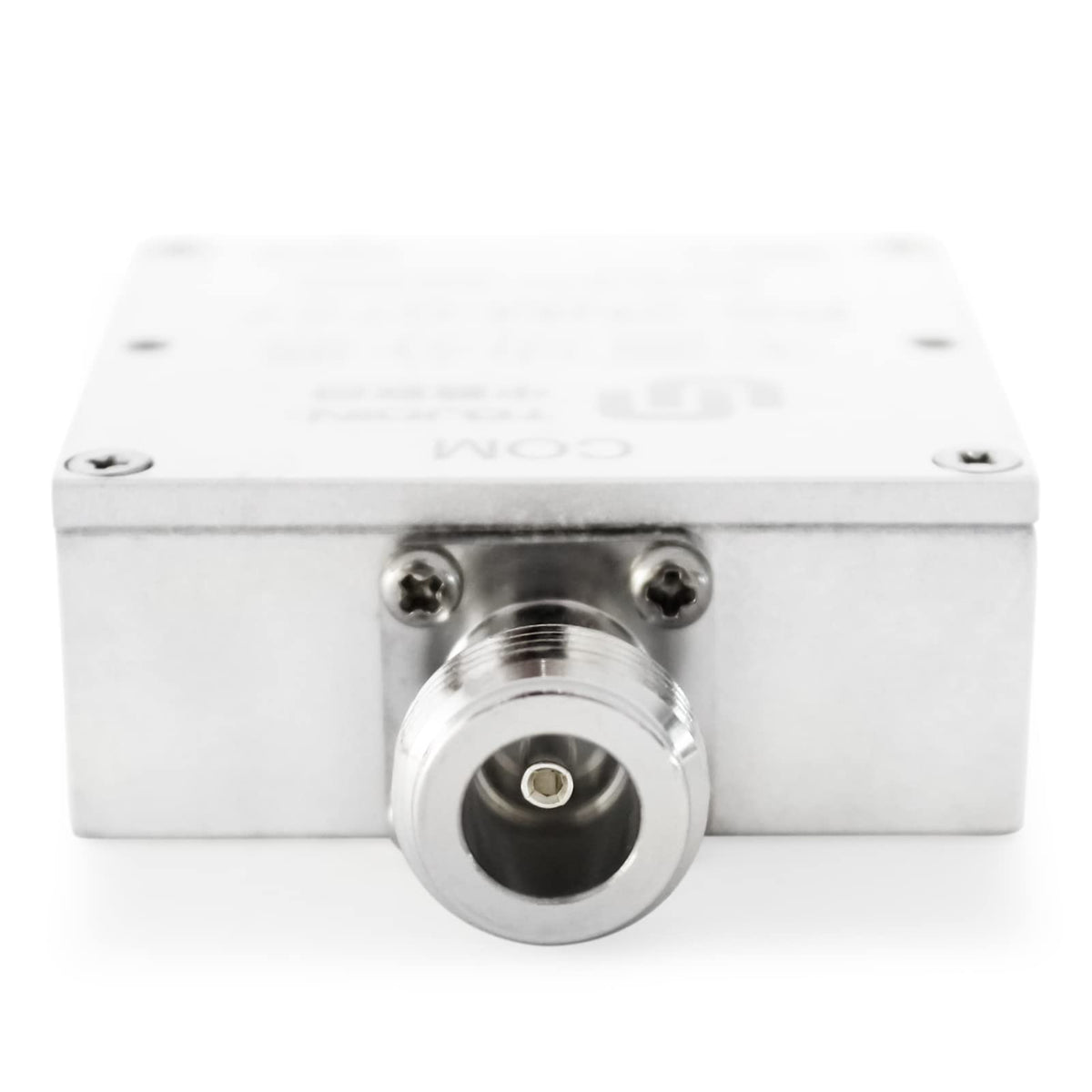

The housing and connectors are made from corrosion-resistant materials intended to hold up in typical indoor and protected outdoor environments. Proper cable strain relief and weatherproofing when used outdoors are recommended to maintain long-term reliability.

• Durable metal housing and plated N connectors
• Corrosion-resistant finish for rugged conditions

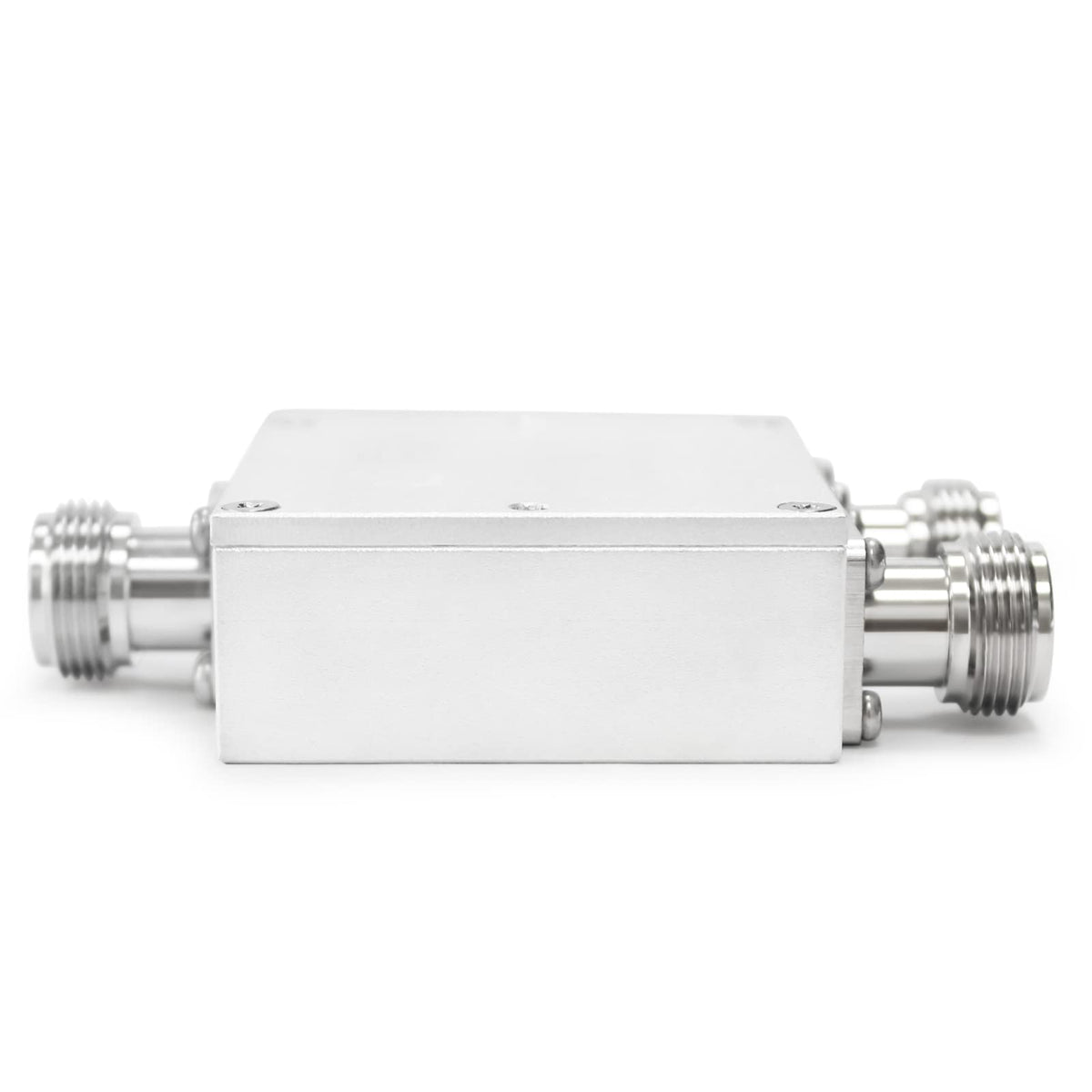

• Compact form factor for easy mounting in racks or enclosures
• Not intended as a weather-sealed outdoor unit without additional protection

Who this product is for: engineers, RF technicians, hobbyists, and installers who need a reliable, low-loss method to split an RF signal across 0.7–2.7 GHz into two 50Ω outputs. The TOJOIN PS-2NM-0727 is suited to lab test benches, antenna distribution where matched impedances are essential, and temporary field setups. It is not designed for TV distribution systems and should be used only where the specified frequency and impedance match the application.
