USX MOUNT Full-Motion TV Wall Mount 42"–85"

The USX MOUNT full-motion TV wall mount securely holds most 42"–85" flat-panel TVs up to 110 lbs with wide VESA compatibility and flexible articulating arms.

If you want a sturdy bracket that fits various stud layouts and lets you tilt, swivel, extend and level your large TV, this model is built for that purpose. It accepts VESA patterns from 200x100mm to 600x400mm and accommodates common stud spacings including 16", 18" and 24". Designed for both stability and reach, the mount offers smooth movement and a compact low-profile when stowed.

How does this mount handle different TV sizes and VESA patterns?

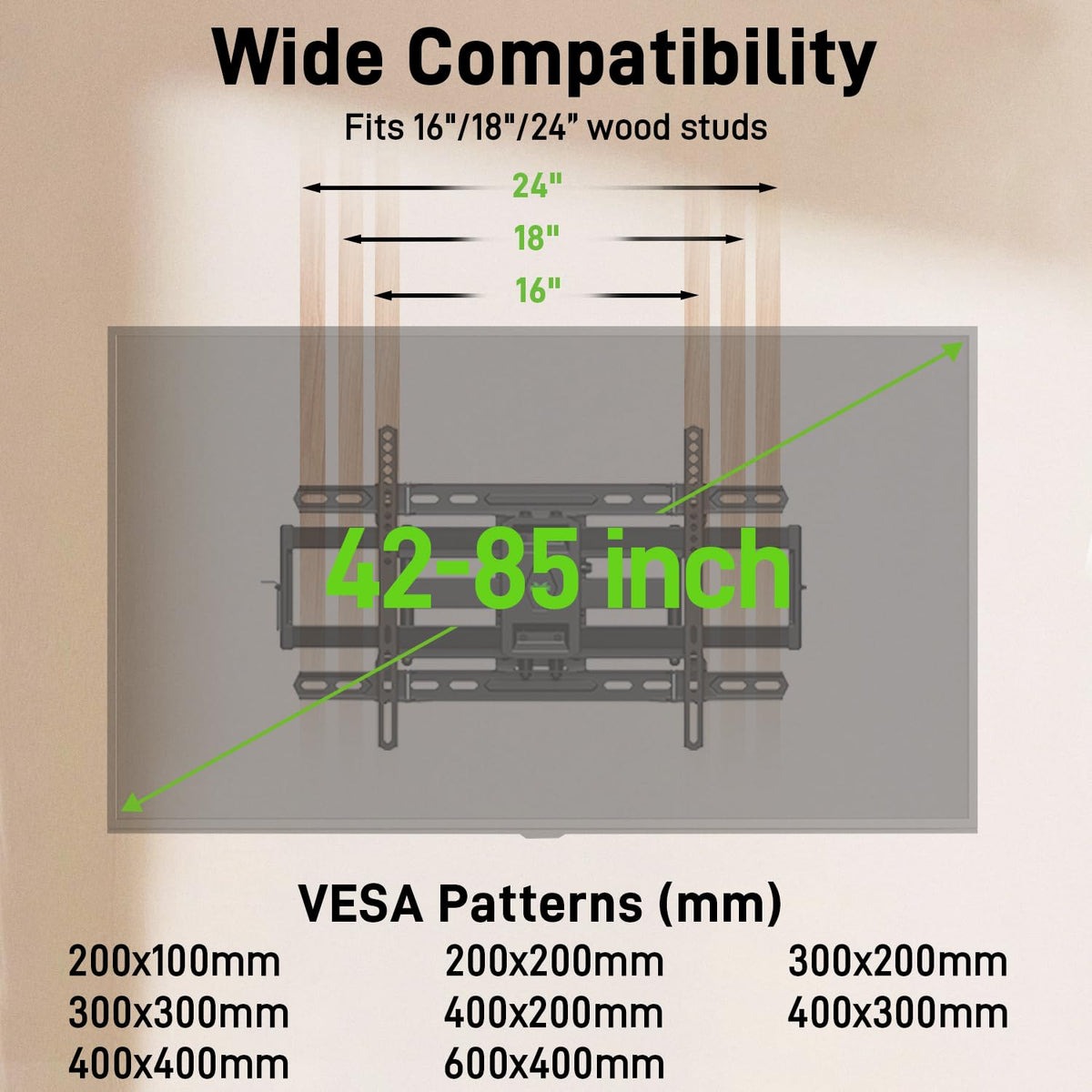

The USX MOUNT supports a broad range of modern TV dimensions and mounting hole configurations. It’s engineered for 42" to 85" screens and covers VESA up to 600x400mm so most living-room and home-theater TVs will fit without adapter plates.

• Compatible with VESA 200x100mm through 600x400mm
• Rated for TVs between 42" and 85"

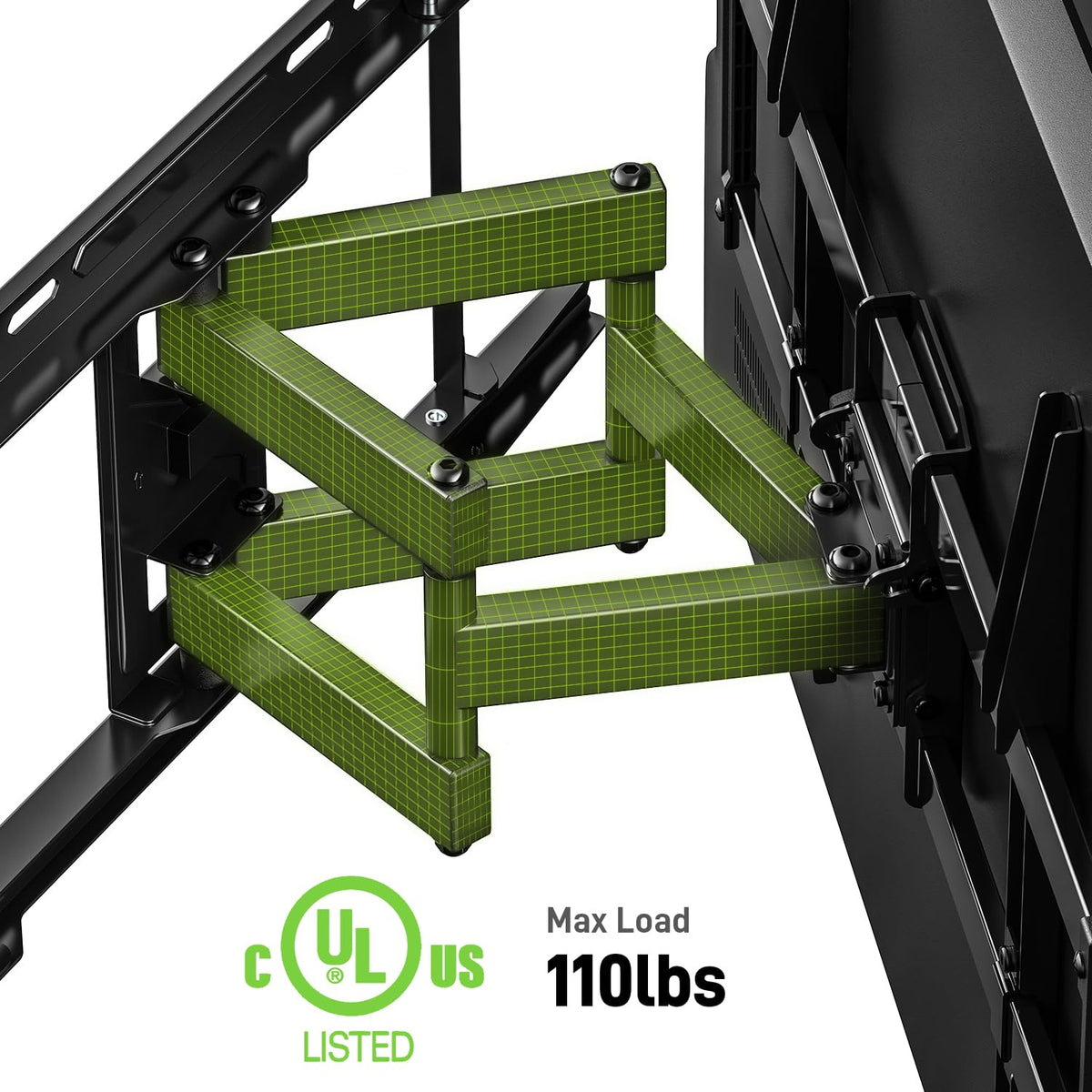

• Maximum load capacity: 110 lbs (50 kg)
• Includes all standard mounting hardware for typical TV installations

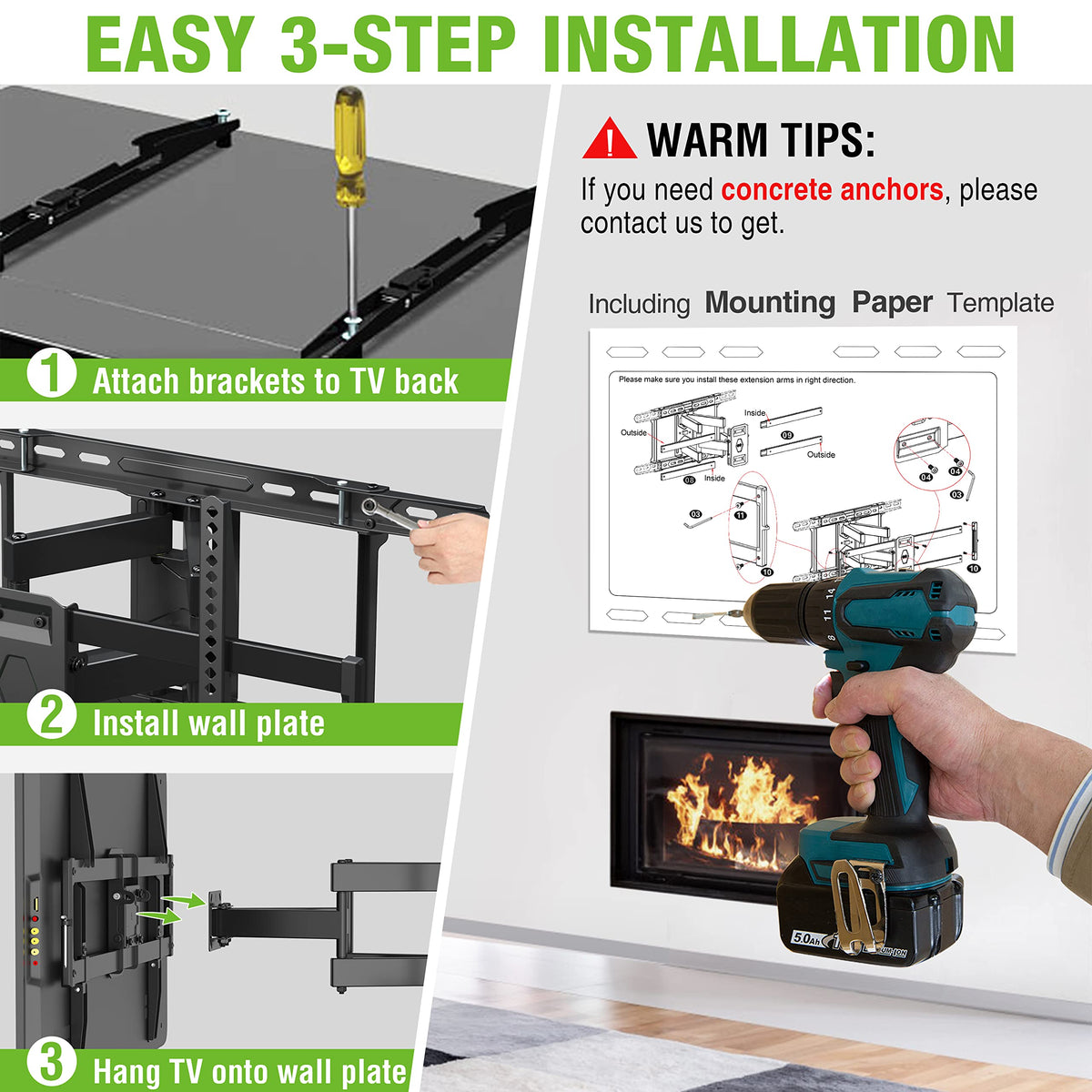

Will it fit my wall studs and how easy is installation?

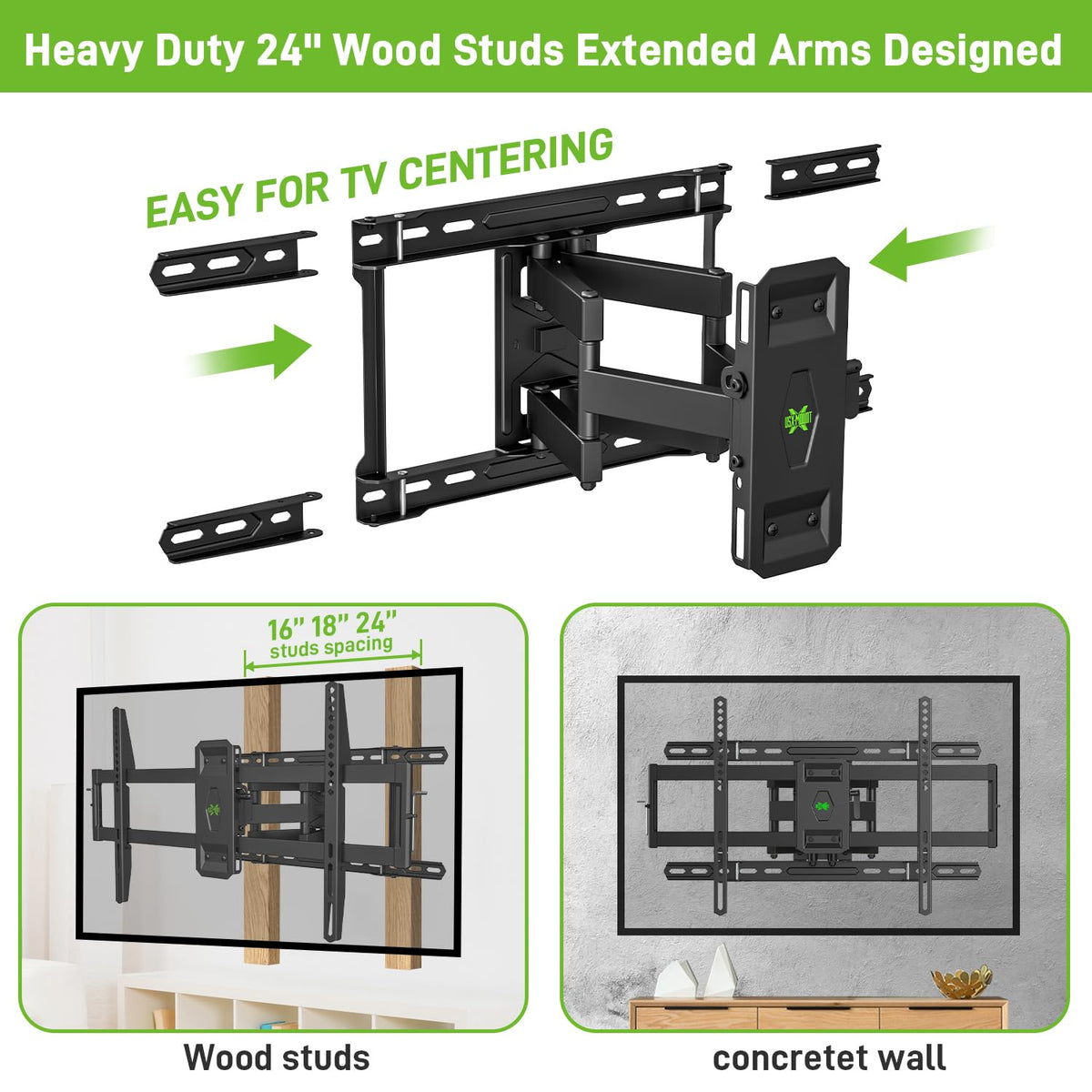

This bracket accommodates multiple stud layouts and comes with a clear mounting template and labeled hardware to streamline installation. It’s drilled to fit 16", 18" or 24" stud centers so you can center your TV even when studs aren’t in standard positions.

• Works with 16", 18" and 24" stud spacing
• Includes bubble level and mounting template for accurate alignment
• Pre-labeled hardware packs reduce confusion during setup
• Contact support for optional 10x50mm concrete anchors if mounting to masonry

What range of motion and viewing adjustments does it provide?

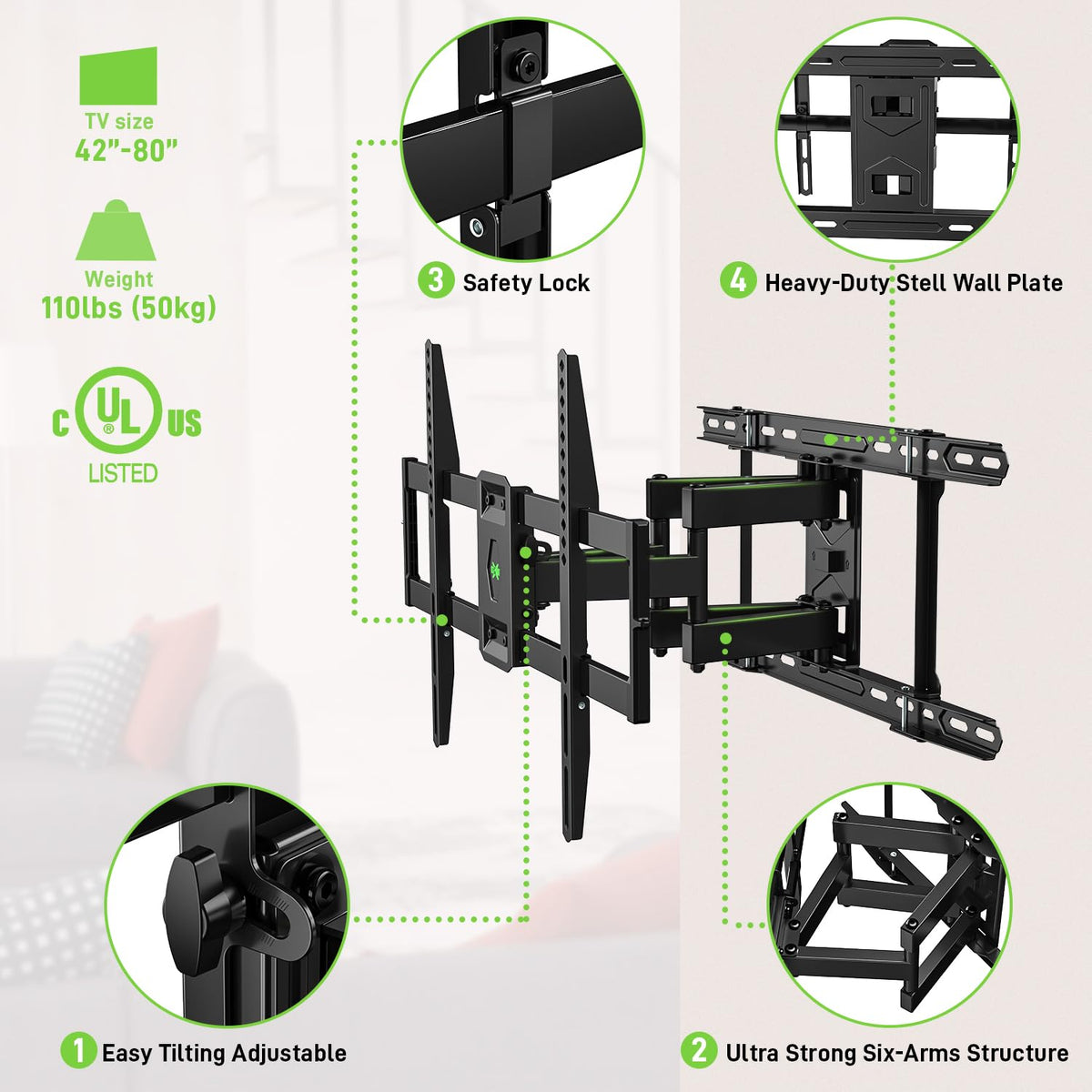

The articulating arms give you flexible positioning so you can reduce glare, share the screen across the room, or tuck the TV flat against the wall. Movements are smooth and lock into place to maintain the desired angle.

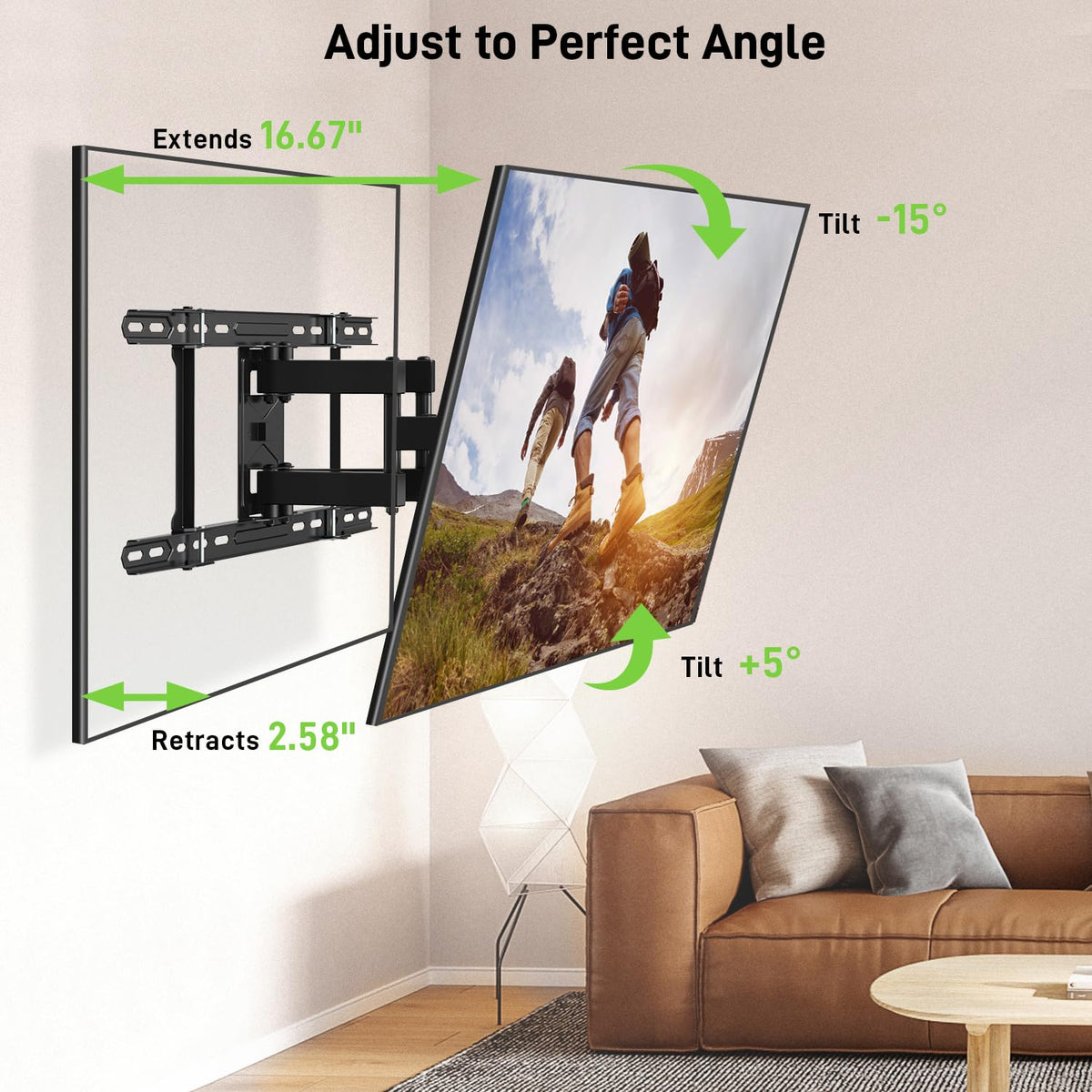

• Tilt range: +5° up / -15° down to help reduce reflections

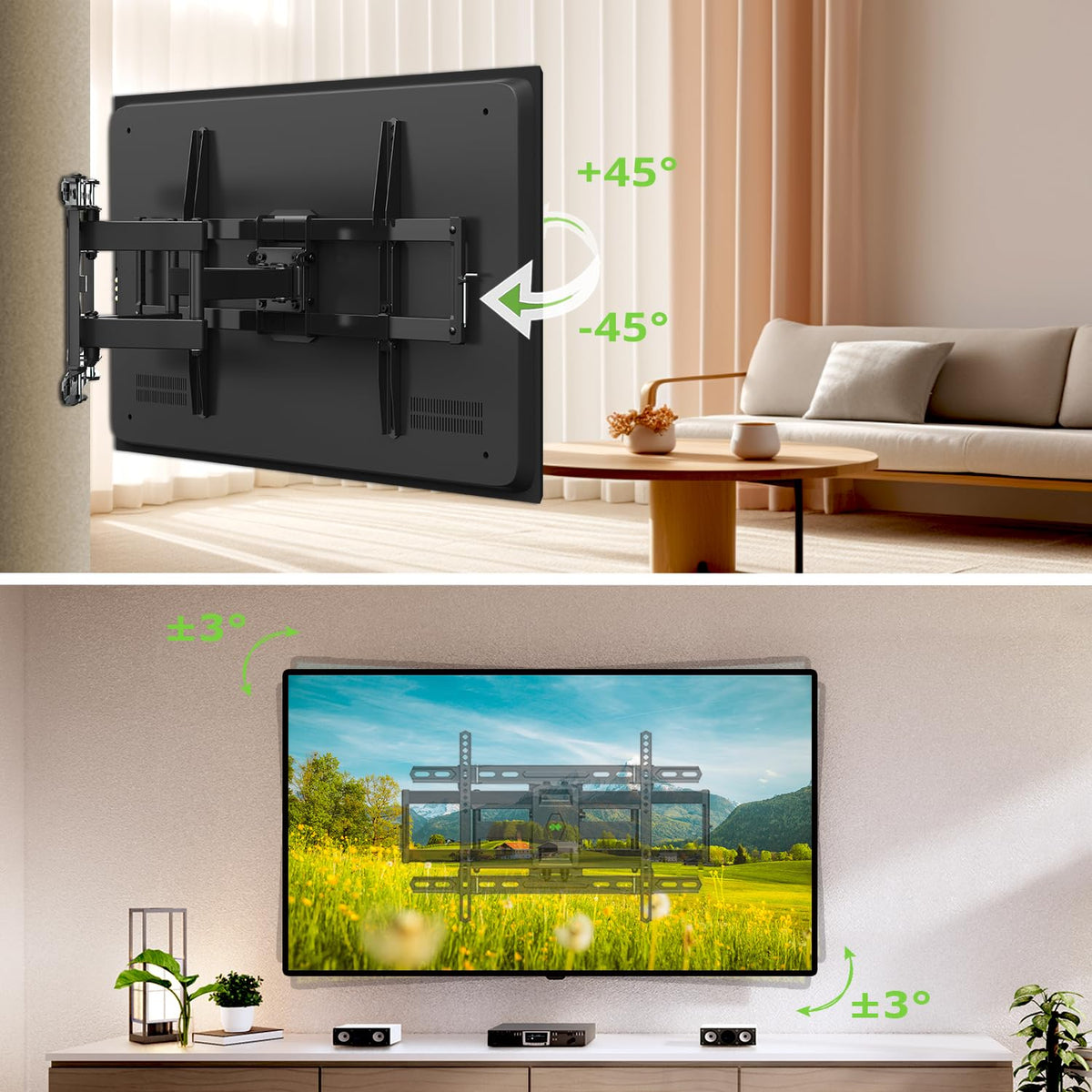

• Swivel range: ±45° for side-to-side viewing adjustments
• Leveling: ±4° post-install fine-tuning for perfect alignment
• Extension: up to 16.67 inches; retracts to a low profile of 2.58 inches

What comes in the box and where can I get help if needed?

The package includes the mount assembly, mounting hardware, and a few extras to make installation straightforward. USX MOUNT offers customer support based in the US to answer installation or compatibility questions.

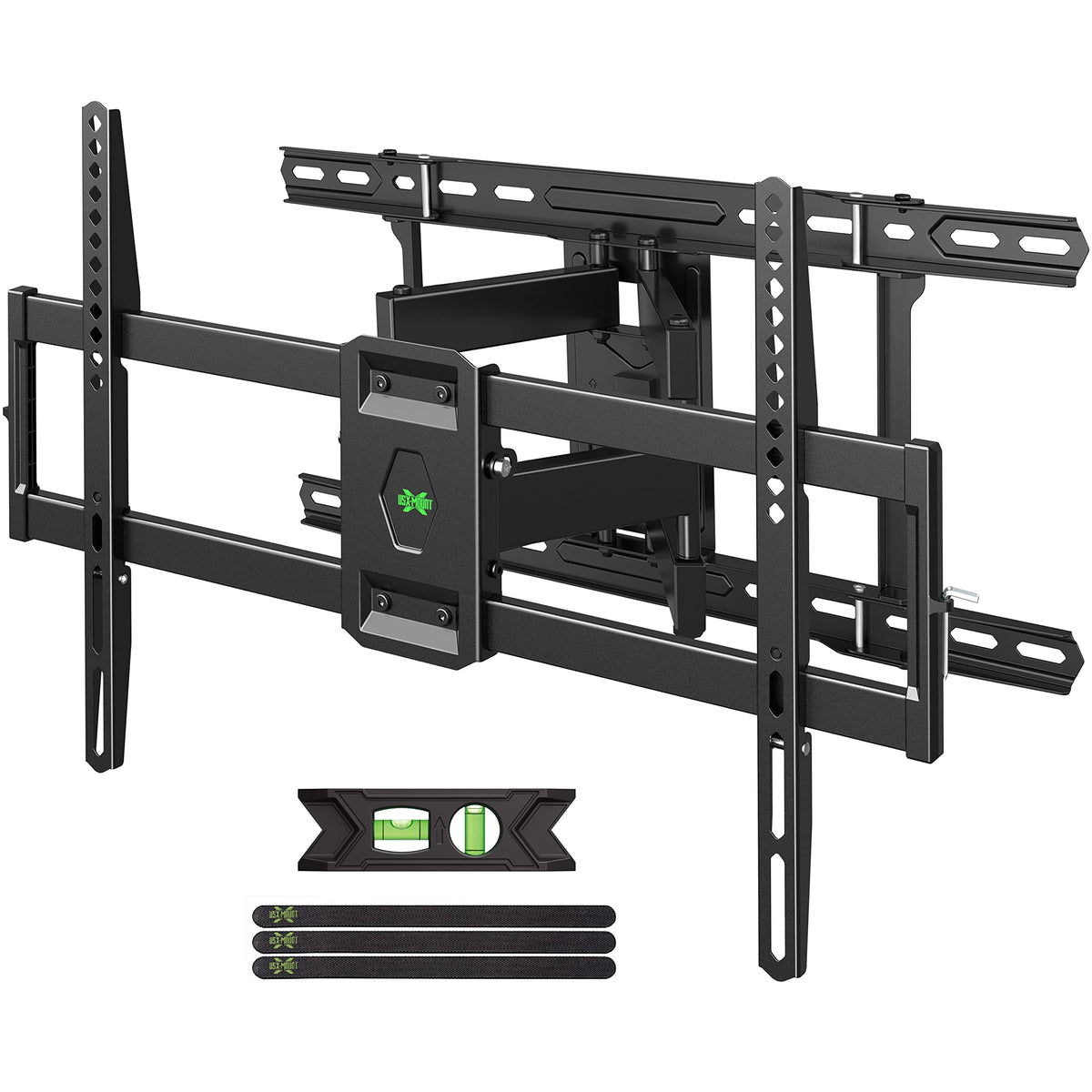

• Wall mount bracket with dual articulating arms
• Bubble level, mounting template, and cable ties (3-piece pack)
• All standard screws, bolts and spacers pre-labeled for easy use
• US-based customer support available daily for assistance

Who is this for: If you own a medium-to-large flat-screen TV and need a reliable, adjustable mounting solution that fits a range of stud layouts, this USX MOUNT model is a strong match. It’s ideal for homeowners and renters who want cleaner sightlines, improved viewing angles, and a more professional wall-mounted setup without custom carpentry. Installers and AV hobbyists who require robust load capacity and broad VESA compatibility will also appreciate the engineering and included hardware. For masonry walls, request the appropriate concrete anchors from support before starting installation.
