USX MOUNT Full Motion TV Wall Mount 42-82in 120lb

The USX MOUNT full-motion TV wall mount securely holds 42–82 inch screens up to 120 lbs while providing wide swivel, tilt, extension and leveling to optimize viewing from any seat.

If you want a heavy-duty, flexible bracket that tucks a large TV tightly to the wall yet extends and pivots for better sightlines, this articulating mount is built for living rooms, bedrooms and home theaters. Constructed from welded steel and engineered for VESA patterns from 200x100mm to 600x400mm, the design balances strength with reach: retract it close for a low profile or pull it out to position the TV where you need it.

How does this mount improve viewing angles throughout a room?

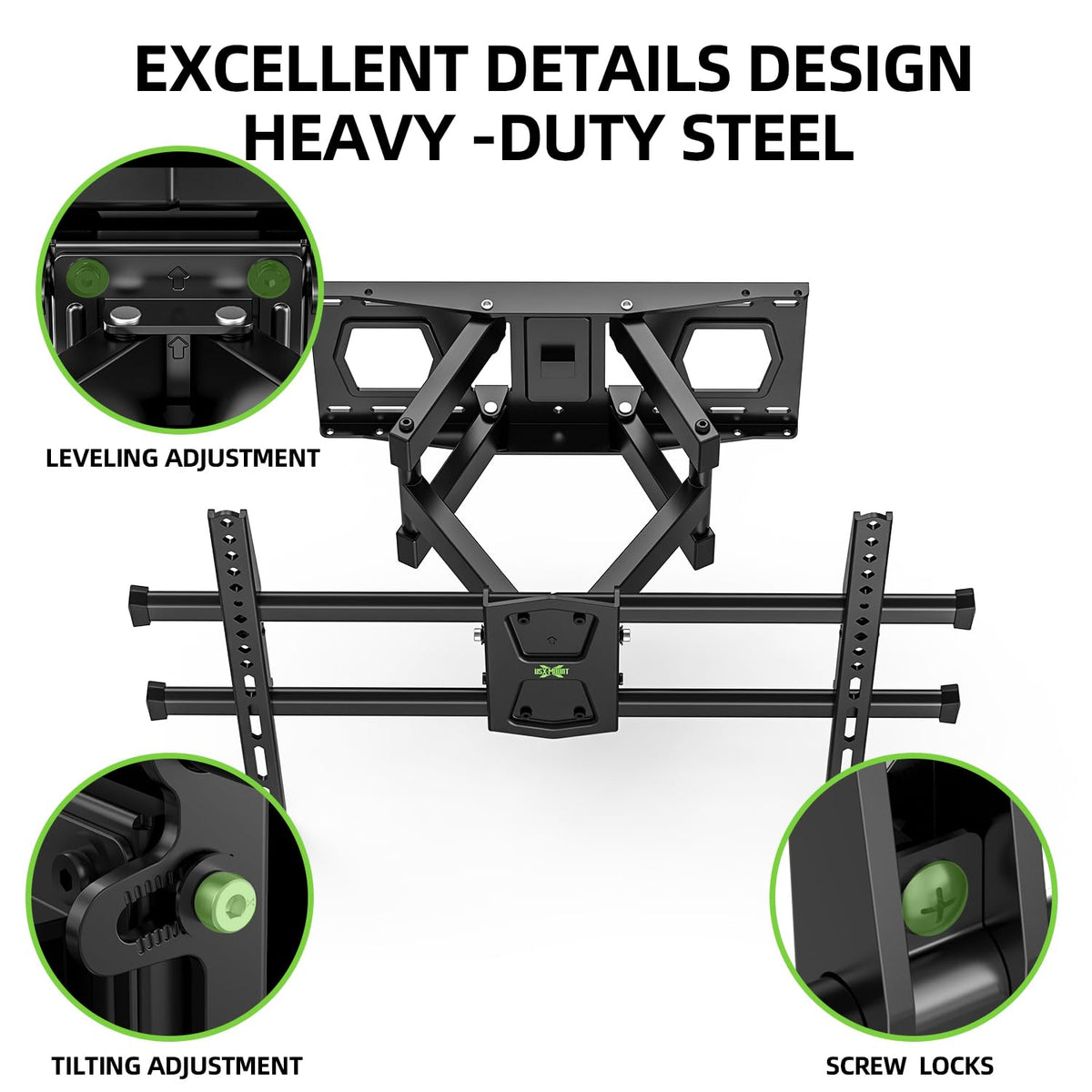

The mount offers +/-45° swivel and +5°/-15° tilt so you can reduce glare and aim the screen toward seating areas without moving furniture. A slight leveling adjustment (+/-4°) lets you square the display after installation for a straight picture.

• Swivel range: up to 45° left and right to serve wide seating arrangements.
• Tilt range: +5° upward, -15° downward to cut reflections and improve contrast.
• Micro-leveling: +/-4° adjustments to eliminate slight installation errors.

Will this mount fit my TV and wall construction?

It supports most 42–82" TVs that weigh up to 120 lbs and have VESA mounting holes between 200x100mm and 600x400mm. The bracket is intended for secure attachment to 12" or 16" wood studs; it is not rated for mounting to drywall without proper anchors.

• TV size range: compatible with 42"–82" displays.

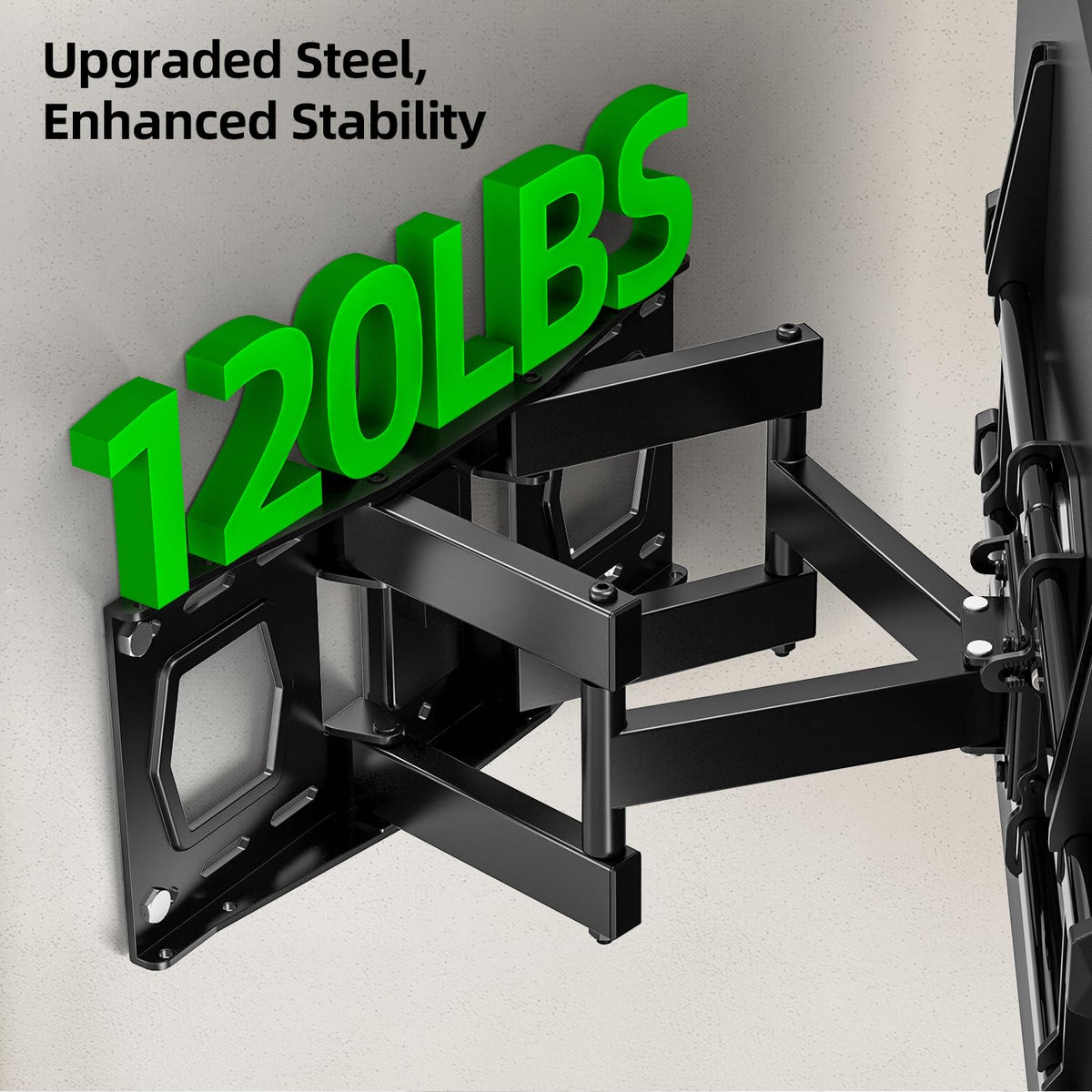

• Weight capacity: supports TVs up to 120 lbs (54 kg).

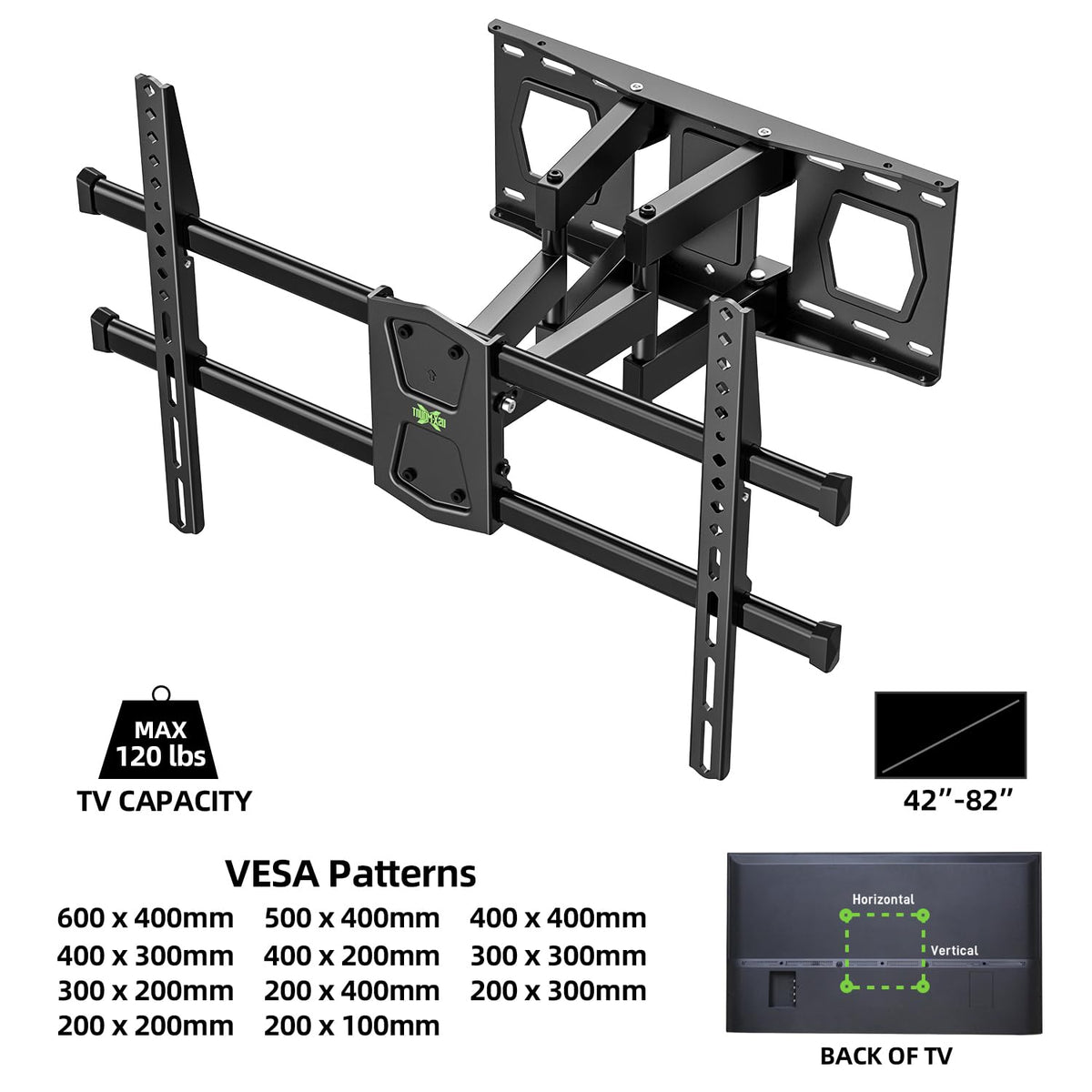

• VESA compatibility: 200x100mm through 600x400mm patterns.
• Stud spacing: designed for 12" and 16" wood studs; concrete anchors available on request.

How far does the arm extend and how compact is it when retracted?

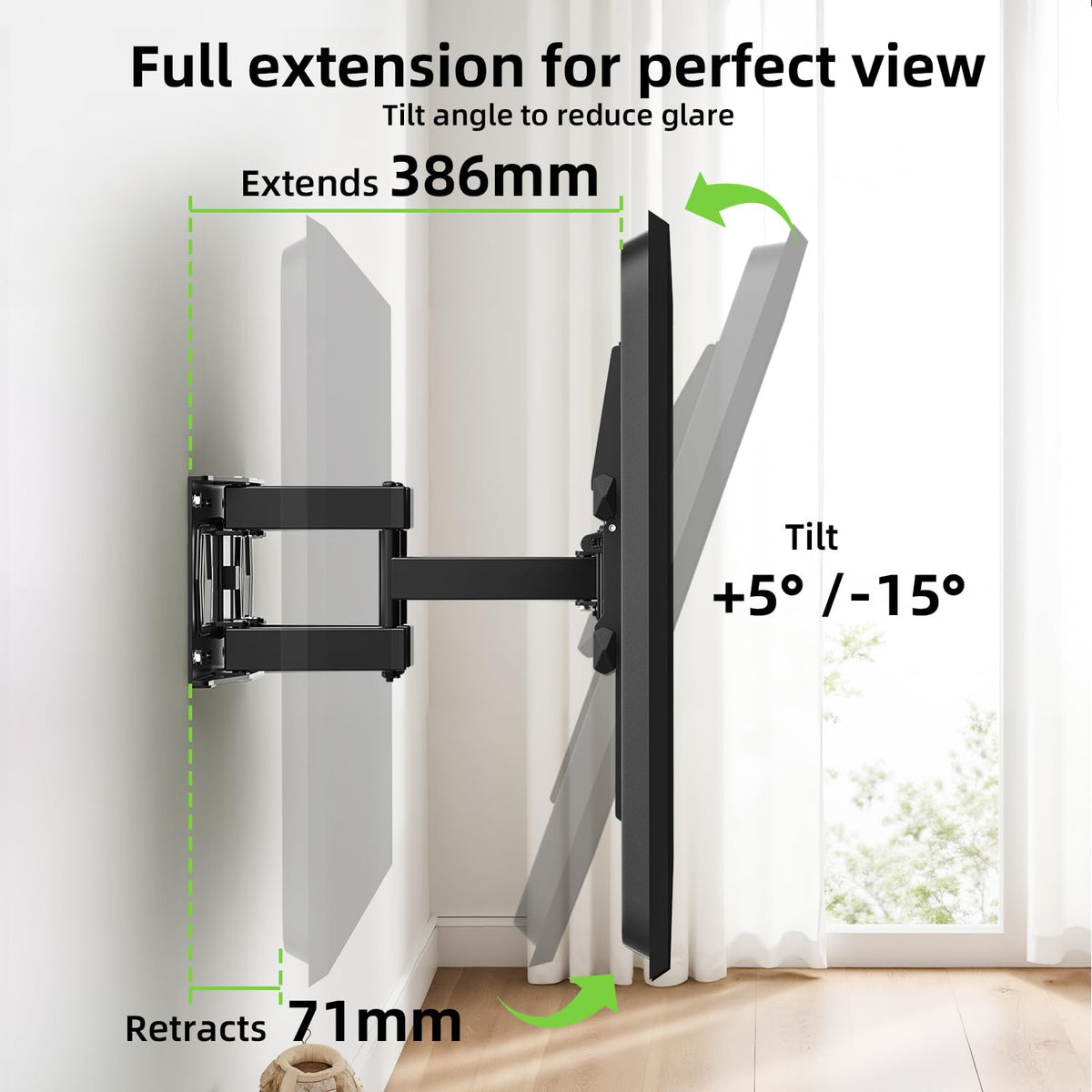

The articulating dual-arm design pulls the TV out to a maximum extension of 15.2 inches so you can swivel and angle it for different seats. When you want a low-profile installation, the bracket folds back to just 2.8 inches from the wall for a clean, space-saving appearance.

• Full extension: 15.2 inches for maximum range and access behind the TV.
• Minimum profile: 2.8 inches when fully retracted for a slim look.
• Six-arm mechanism: smooth, stable movement with balanced support.

What comes in the box and how easy is installation?

The mount ships with all standard hardware sorted into labeled bags and includes a bubble level to simplify alignment. Clear instructions reduce guesswork; however, if your wall requires concrete anchors, specify 10x50mm anchors when you order or contact support for guidance.

• Included: pre-labeled hardware packs, installation manual, bubble level.
• Support tip: contact USX MOUNT for 10x50mm concrete anchors if mounting to masonry.
• Note: not suitable for unsupported drywall—always secure to studs or proper anchors.

Who is this for? This USX MOUNT articulating bracket is aimed at homeowners and renters with large flat-panel TVs who need strong, adjustable support for optimal viewing—people installing screens in living rooms, open-plan spaces, media rooms or bedrooms where angle, glare reduction and a tidy appearance matter. Choose this mount if you want heavy-duty construction, broad VESA compatibility and the ability to pull your TV away from the wall for cable access or swivel it for multiple seating areas.
