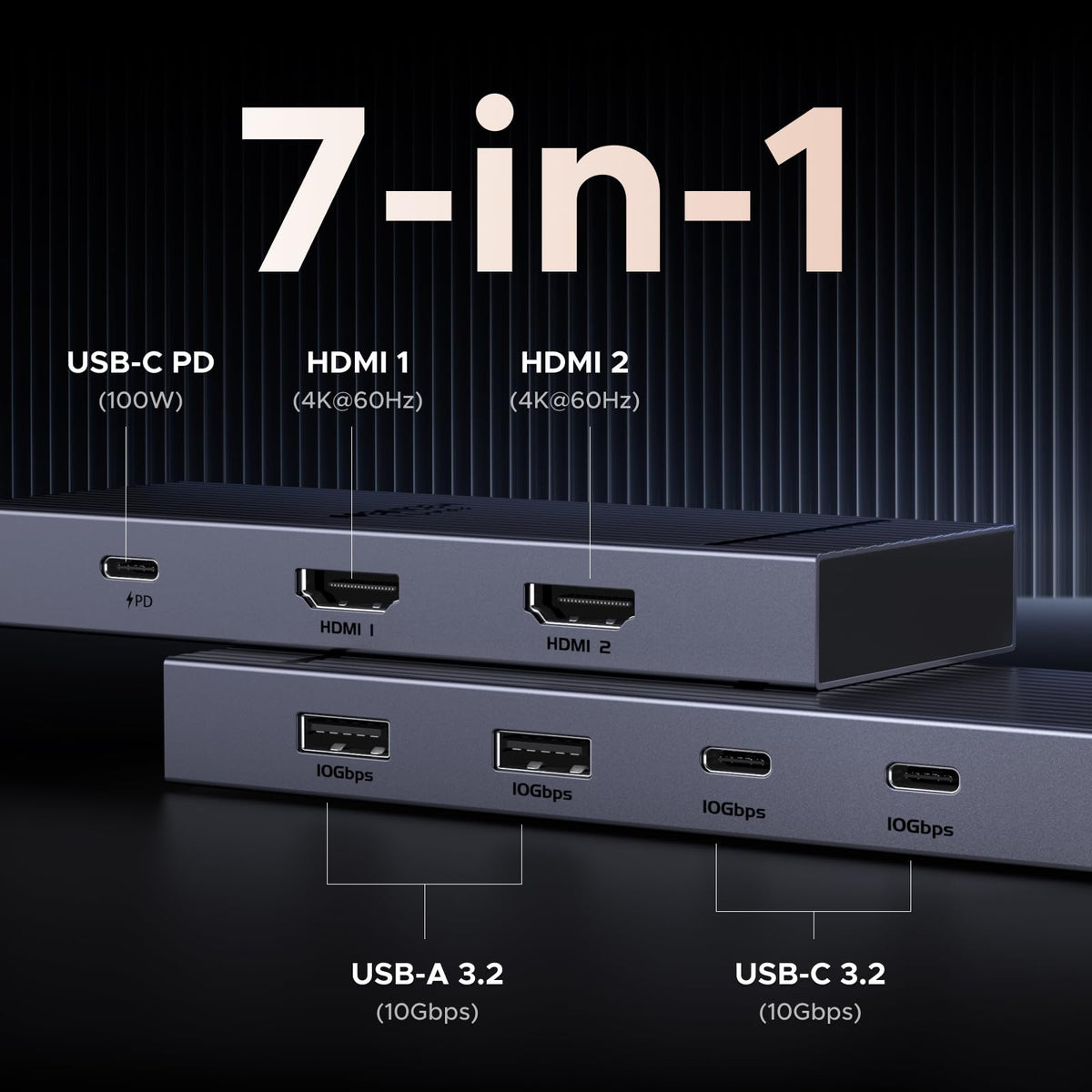

UGREEN 7-in-1 Docking Station Dual 4K@60Hz HDMI USB-C Hub

Designed for professionals and power users, this UGREEN docking station turns a single USB-C/Thunderbolt port into a versatile workstation. It combines dual 4K HDMI outputs, dual 10Gbps USB-A and USB-C data ports, and a PD 100W charging pass-through inside an anodized aluminum shell. The hub is tailored for laptops that provide full USB-C functionality or Thunderbolt 3/4, and it includes clear compatibility notes for Windows and macOS users.

How does the Revodok Pro handle dual external displays?

The dock offers two HDMI outputs capable of 4K at 60Hz when connected to a host that supports DisplayPort 1.4 over USB-C or a Thunderbolt port. It enables either extended or mirrored displays depending on your laptop’s graphics support; macOS users will see mirrored screens due to system limitations.

• Two HDMI ports with up to 4K@60Hz each when host supports DP1.4.
• Extended dual-screen on most Windows laptops; mirrored on macOS.
• Use high-quality HDMI cables to maintain 60Hz performance.

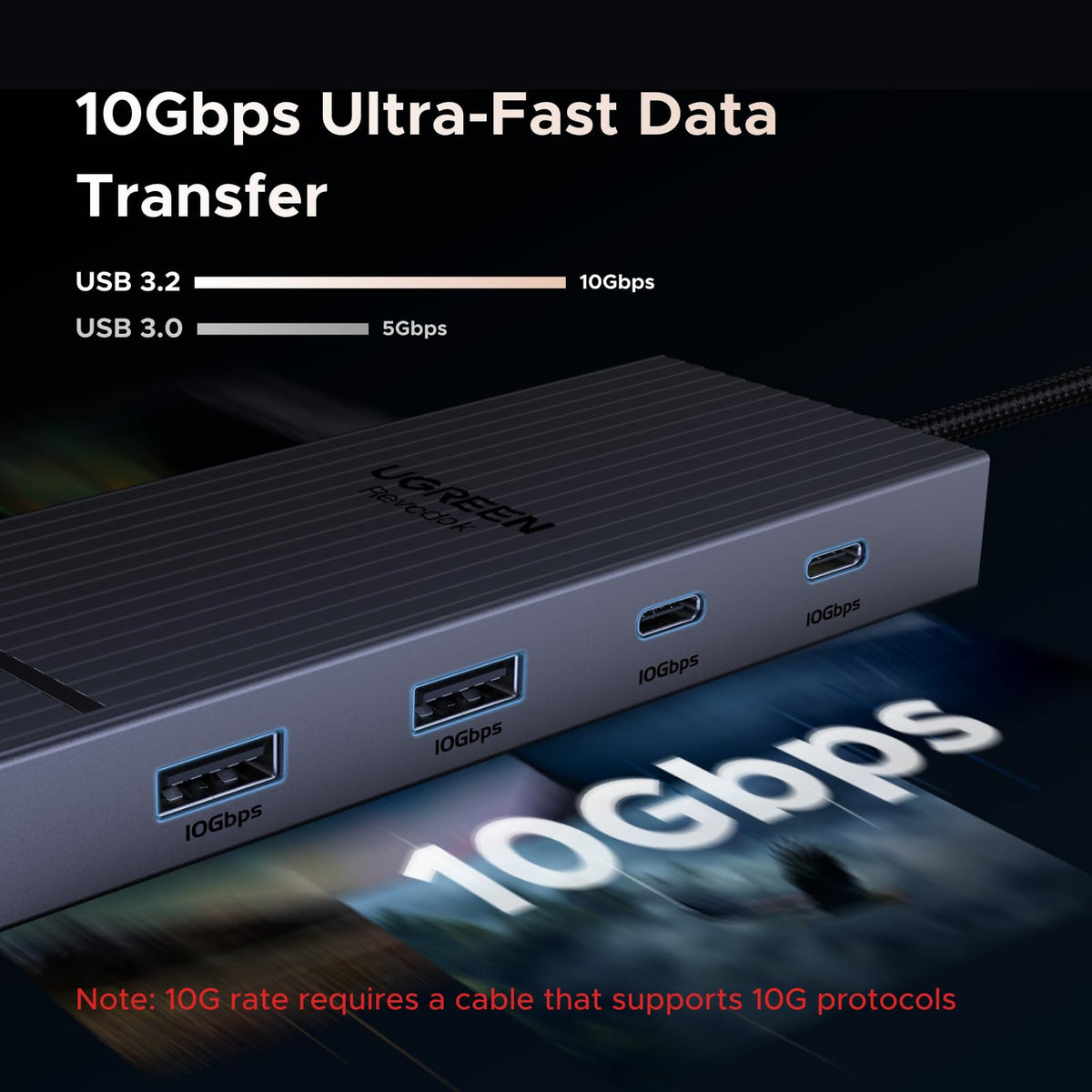

What data and peripheral speeds can I expect from the hub?

UGREEN built this dock with high-throughput ports for fast file moves and responsive peripherals. Two USB-A and two USB-C ports support USB 3.2 data rates up to 10Gbps, suitable for external SSDs, wired peripherals, and fast transfers — note these high-speed ports do not carry video or charging functions.

• Two 10Gbps USB-A ports for fast data transfer and peripherals.
• Two 10Gbps USB-C data ports for high-speed drives and accessories.
• 10Gbps speed requires compatible cables and devices that support 10G rates.

How much power can this dock deliver to my laptop?

The Revodok Pro supplies up to 100W of pass-through Power Delivery to charge laptops at high speed through its dedicated PD port. Charging only; this PD port does not carry data or video. To reach the full 100W rate, use a 100W (or greater) USB-C power adapter and compatible cable.

• Single PD pass-through port rated up to 100W for laptop charging.
• Requires a 100W+ USB-C power adapter (not included) to achieve full wattage.
• PD port is dedicated to power — no data or video over that connector.

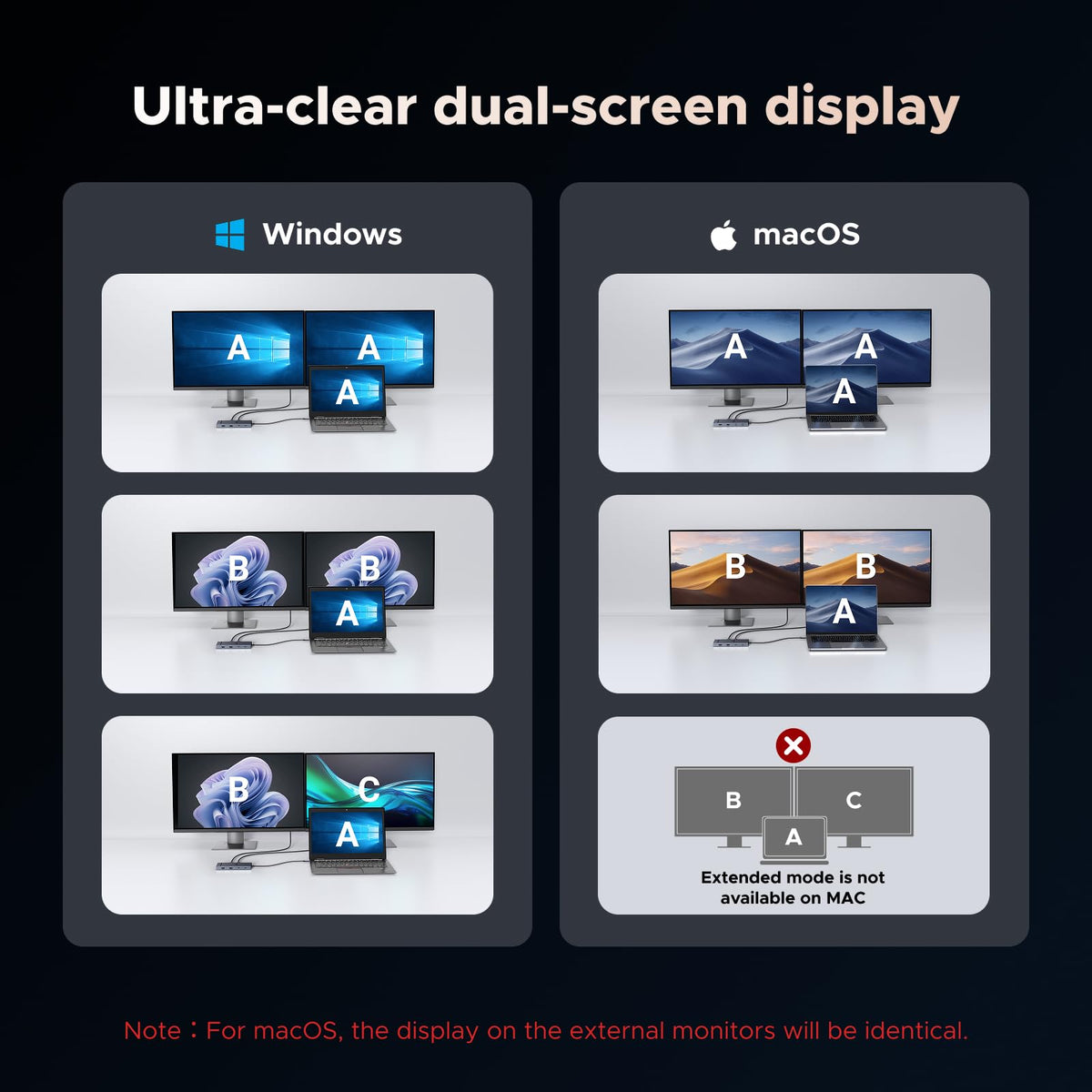

Which laptops and setups work best with this docking station?

The dock is broadly compatible with many modern laptops that offer full USB-C or Thunderbolt ports, including ThinkPad, HP, Dell, Surface, Chromebooks, and certain Ultrabooks. For full dual-monitor extension and highest video performance, choose a Windows machine with DP Alt Mode or Thunderbolt 3/4. macOS users should expect mirrored external displays rather than extended desktops.

• Works with Thunderbolt 3/4 and full-function USB-C ports on many laptop brands.
• Windows machines typically support extended dual displays; macOS mirrors both screens.
• Verify your laptop’s USB-C capabilities and use quality cables for best results.

Who is this for? The UGREEN Revodok Pro docking station is aimed at remote workers, content creators, and anyone building a compact multi-monitor workstation from a single USB-C connection. It suits users who need fast external storage access, multiple USB ports for accessories, and substantial laptop charging without swapping adapters. If you need mirrored displays on a Mac, this dock will do that reliably; if you require independently extended monitors on macOS, consider a different solution.
