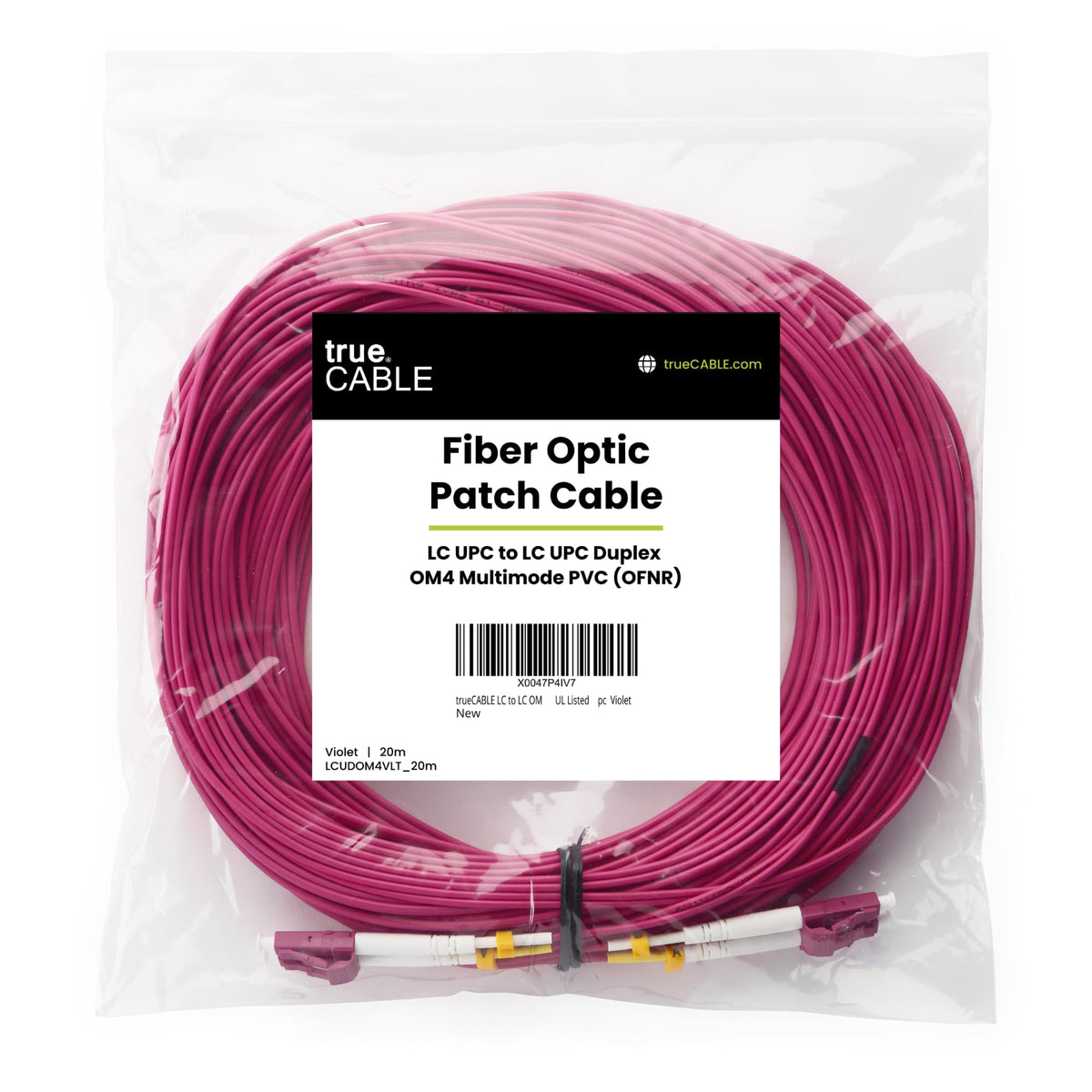

TRUE CABLE LC to LC OM4 20m Fiber Patch Cable

TRUE CABLE's 20m LC-to-LC OM4 multimode fiber patch cable delivers high-density, low-loss 100GB connectivity for indoor LAN and data center links.

Designed for demanding multimode applications, this 50/125 µm OM4 duplex cable uses laser-optimized glass and UPC-polished LC connectors to minimize insertion loss and support high-speed transceivers. The violet jacket and 2.0mm tight-buffer construction make it easy to identify and route in racks, while OFNR riser-rating and UL listing mean it’s ready for standard interior installations.

How does this cable support 100GB multimode networking?

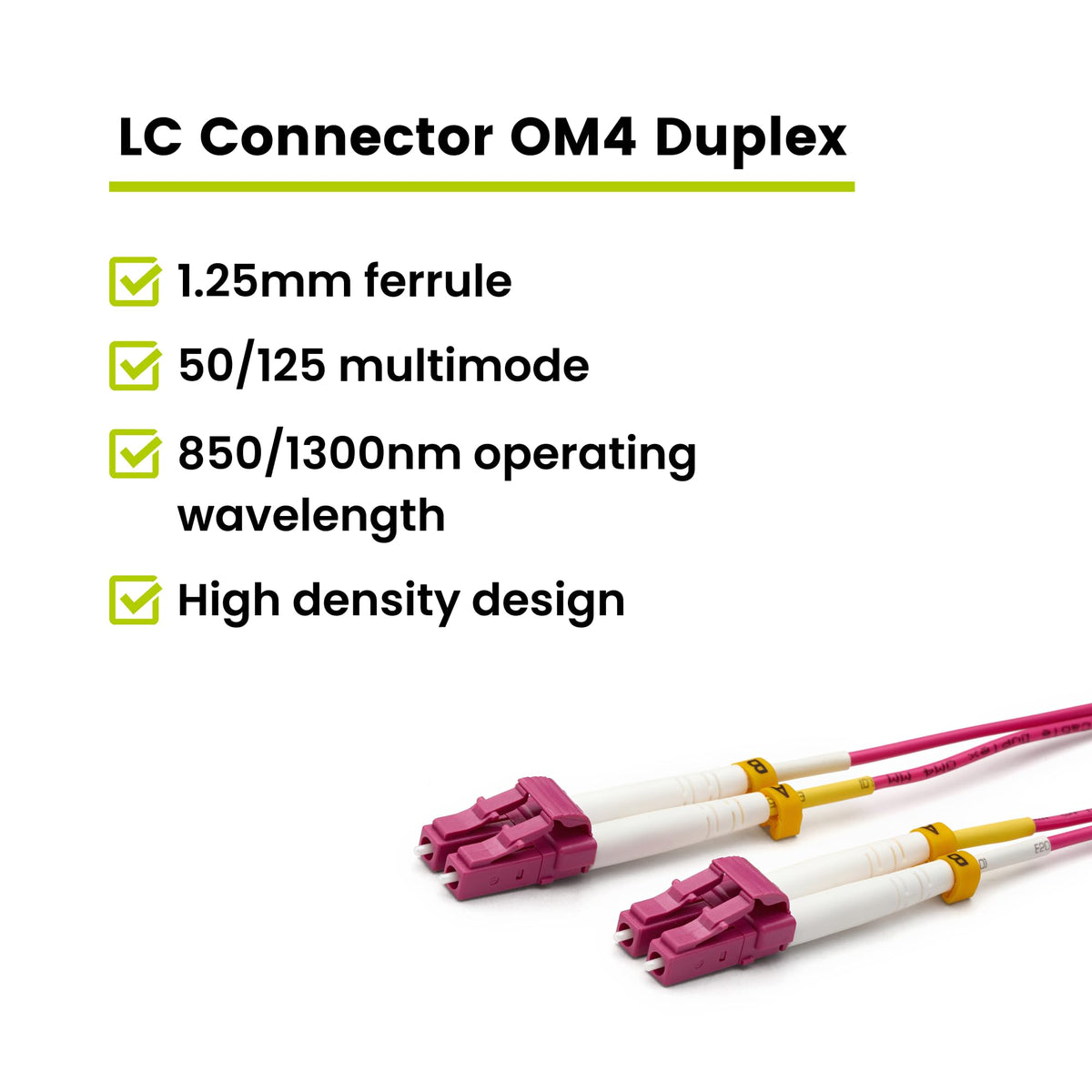

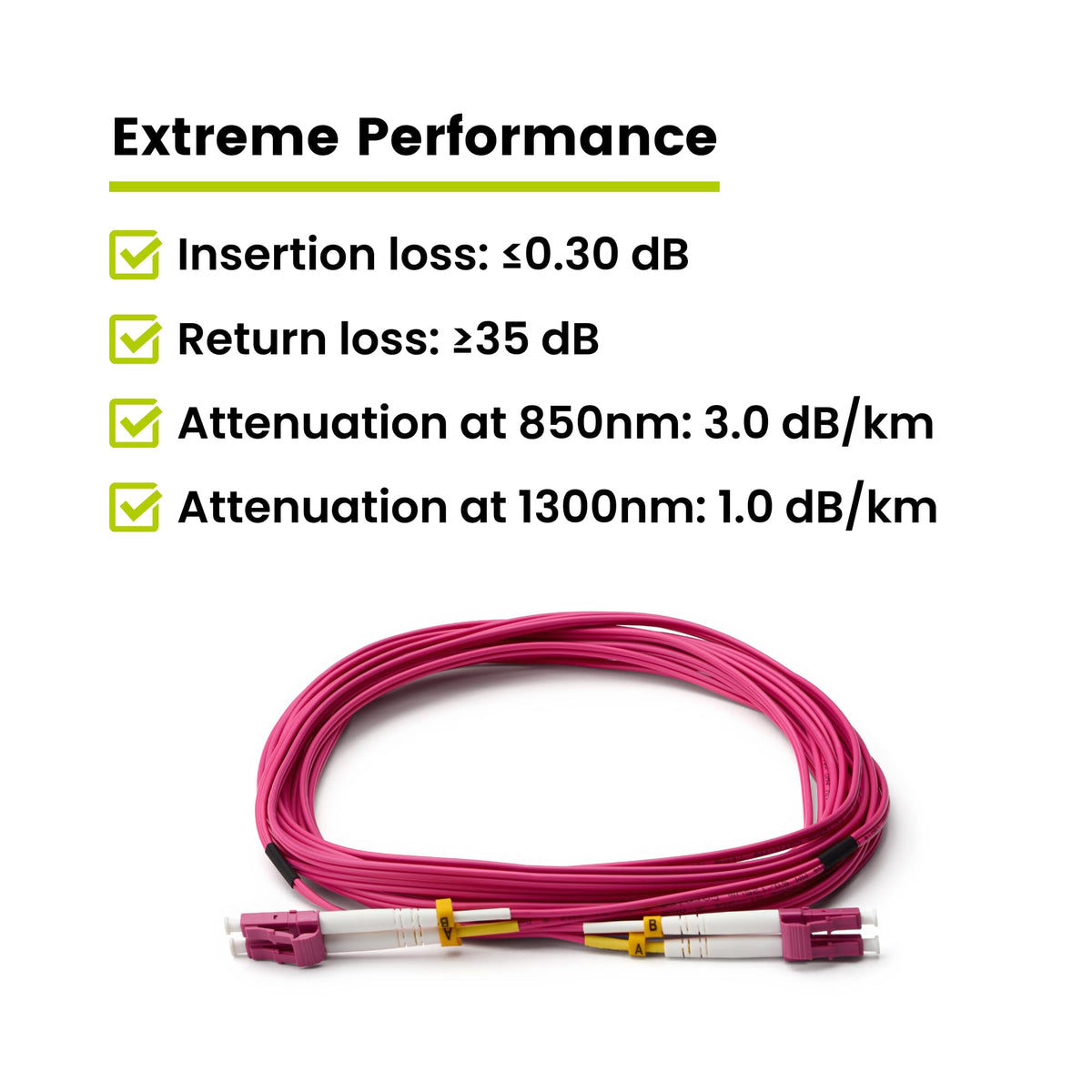

The OM4 multimode core and cladding are optimized for 850/1300 nm wavelengths, enabling higher bandwidth over typical short-reach transceivers. UPC-polished LC connectors and precision ceramic ferrules keep return loss and insertion loss low for reliable 40Gb/100Gb links.

• OM4 graded multimode fiber for extended modal bandwidth

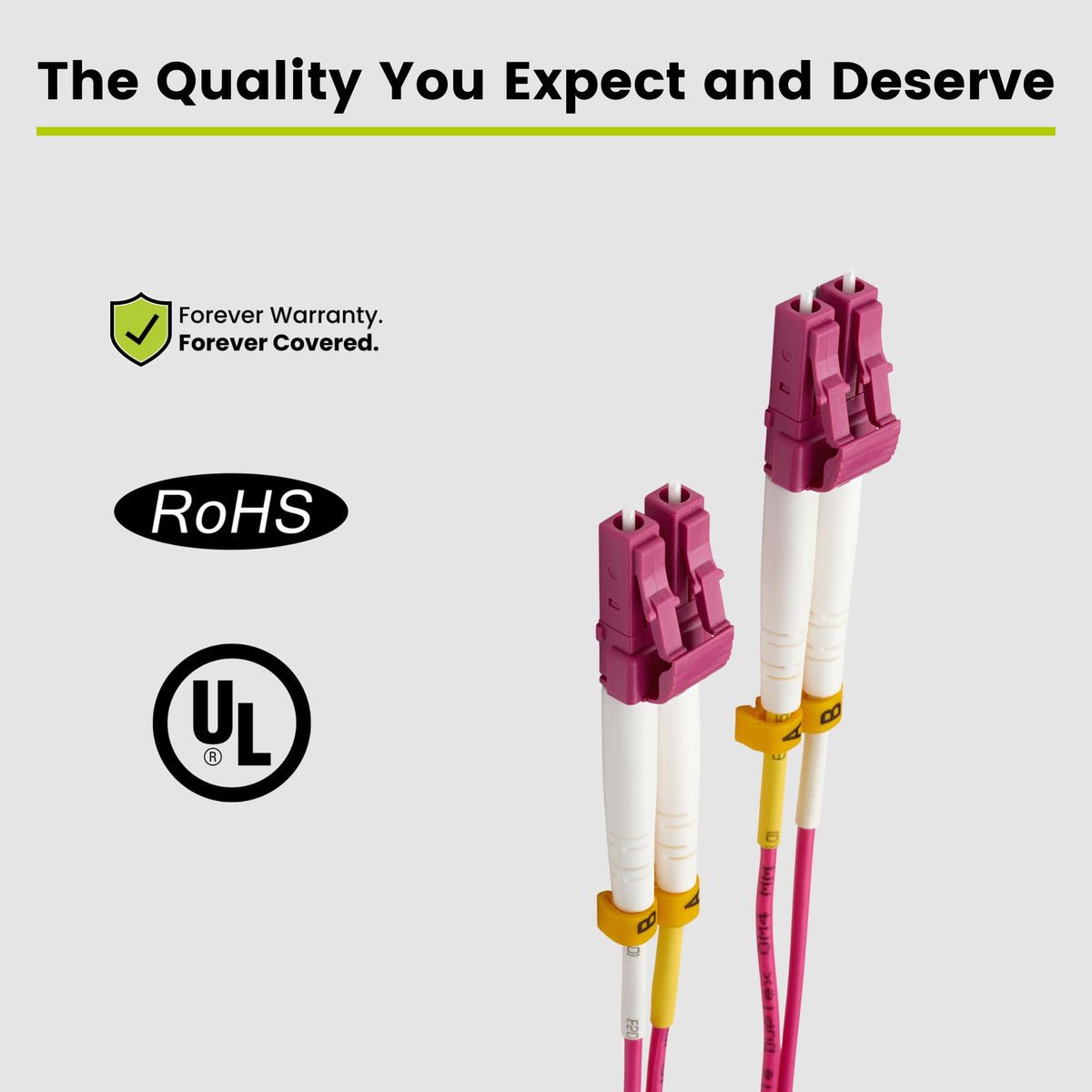

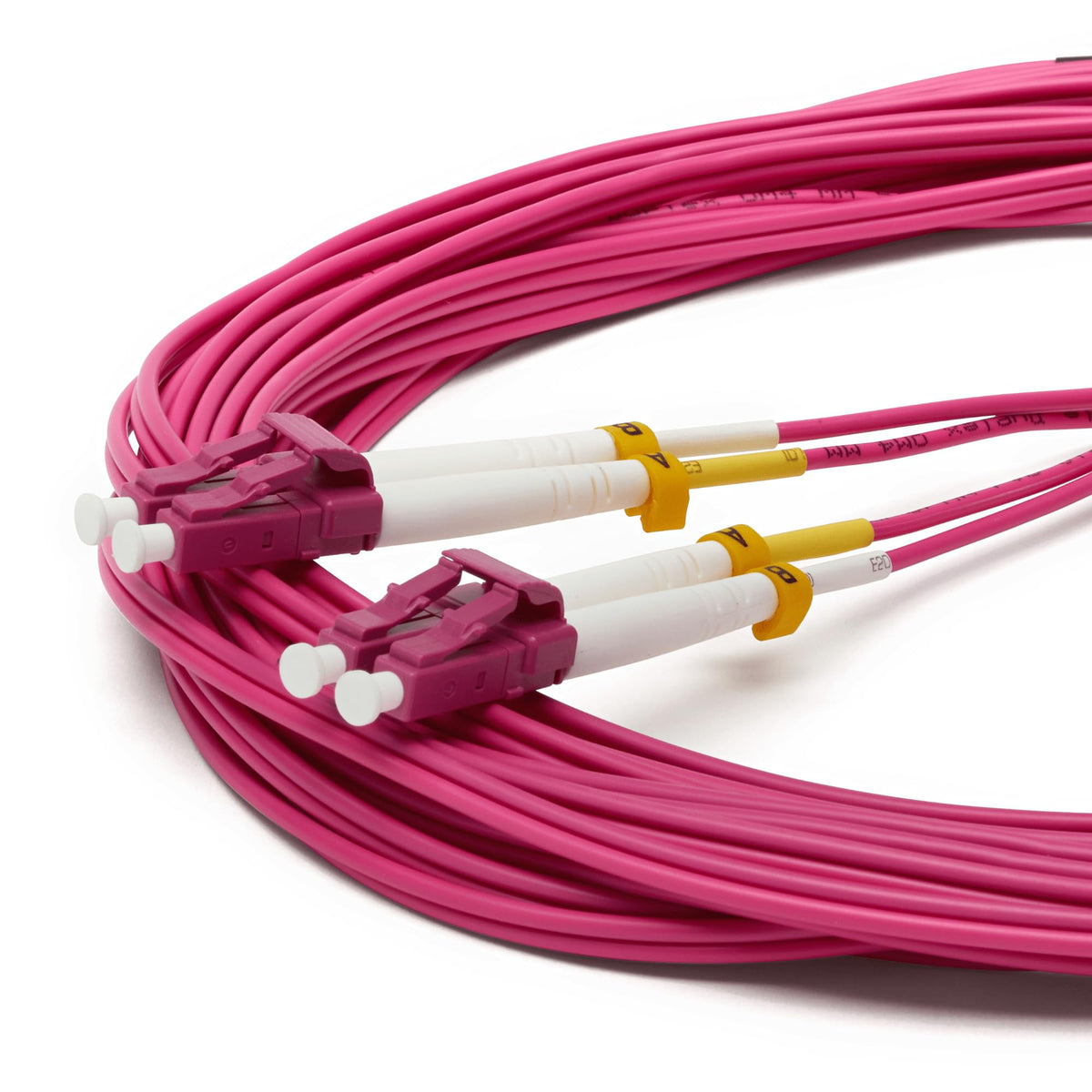

• UPC polish on LC ends for consistent optical contact
• Zirconia ceramic 1.25 mm ferrules for precise alignment
• Tested to ANSI/TIA 568.3-E and IEC end-face certification

Is this cable durable enough for tight routing in racks and cabinets?

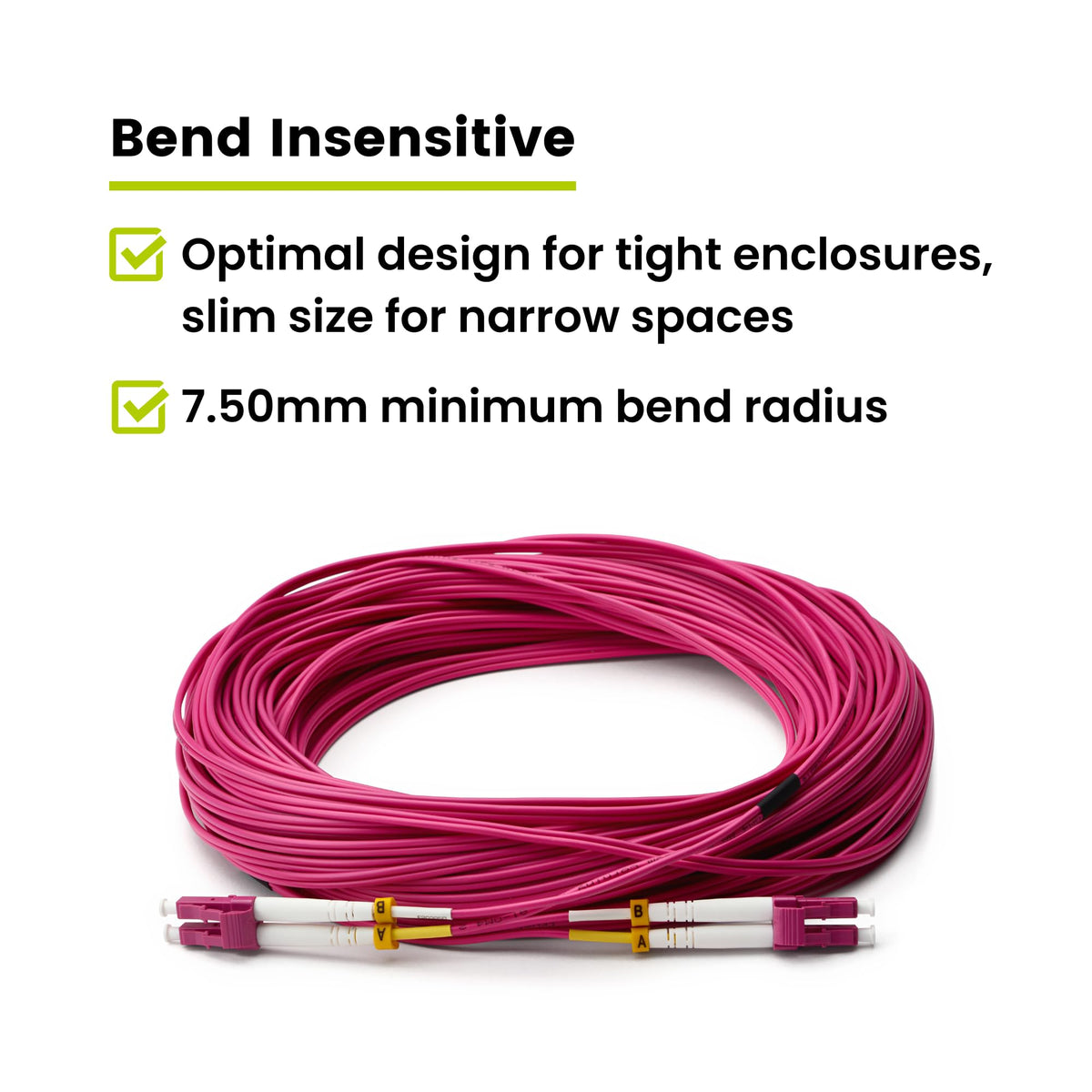

Yes — the cable features bend-insensitive glass and a tight-buffer build reinforced with aramid yarn to withstand sharp turns without compromising signal integrity. A 7.50 mm minimum bend radius rating helps protect performance when run through congested trays or patch fields.

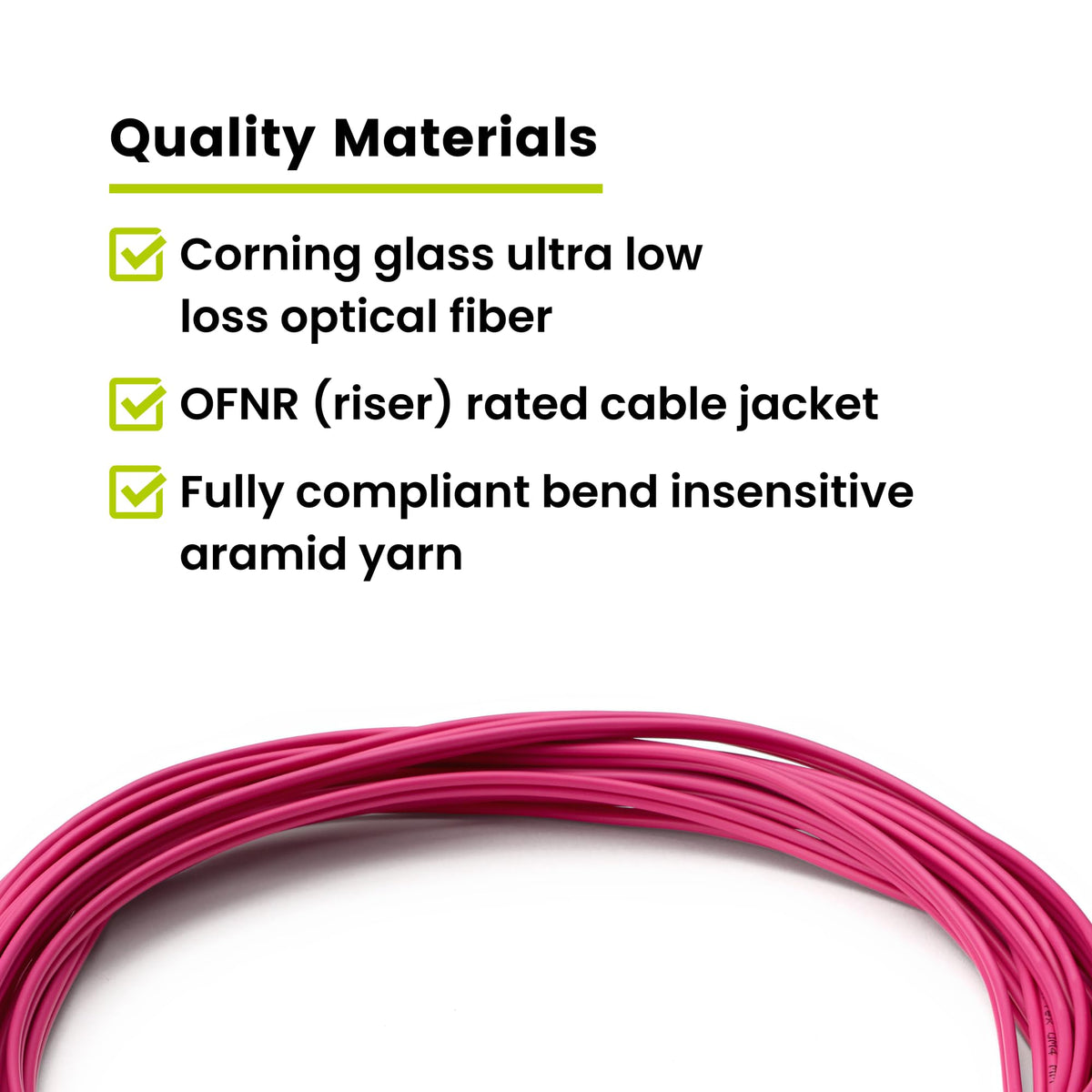

• Aramid yarn reinforcement for tensile strength
• Tight-buffer 2.0 mm outer diameter for high-density routing
• 7.50 mm minimum bend radius for tight enclosures
• Violet jacket for quick visual identification in bundles

Can I install this cable in standard indoor building spaces?

The TRUE CABLE OM4 patch cord carries an OFNR (riser) jacket and is UL listed, making it suitable for vertical shafts and general interior use where plenum-rated jackets are not required. It is intended for in-building runs, data center cabinets, and LAN patching environments.

• OFNR riser-rated jacket for non-plenum interiors
• UL listing confirms product safety and compliance
• Single-piece 20 meter length reduces need for intermediate splices

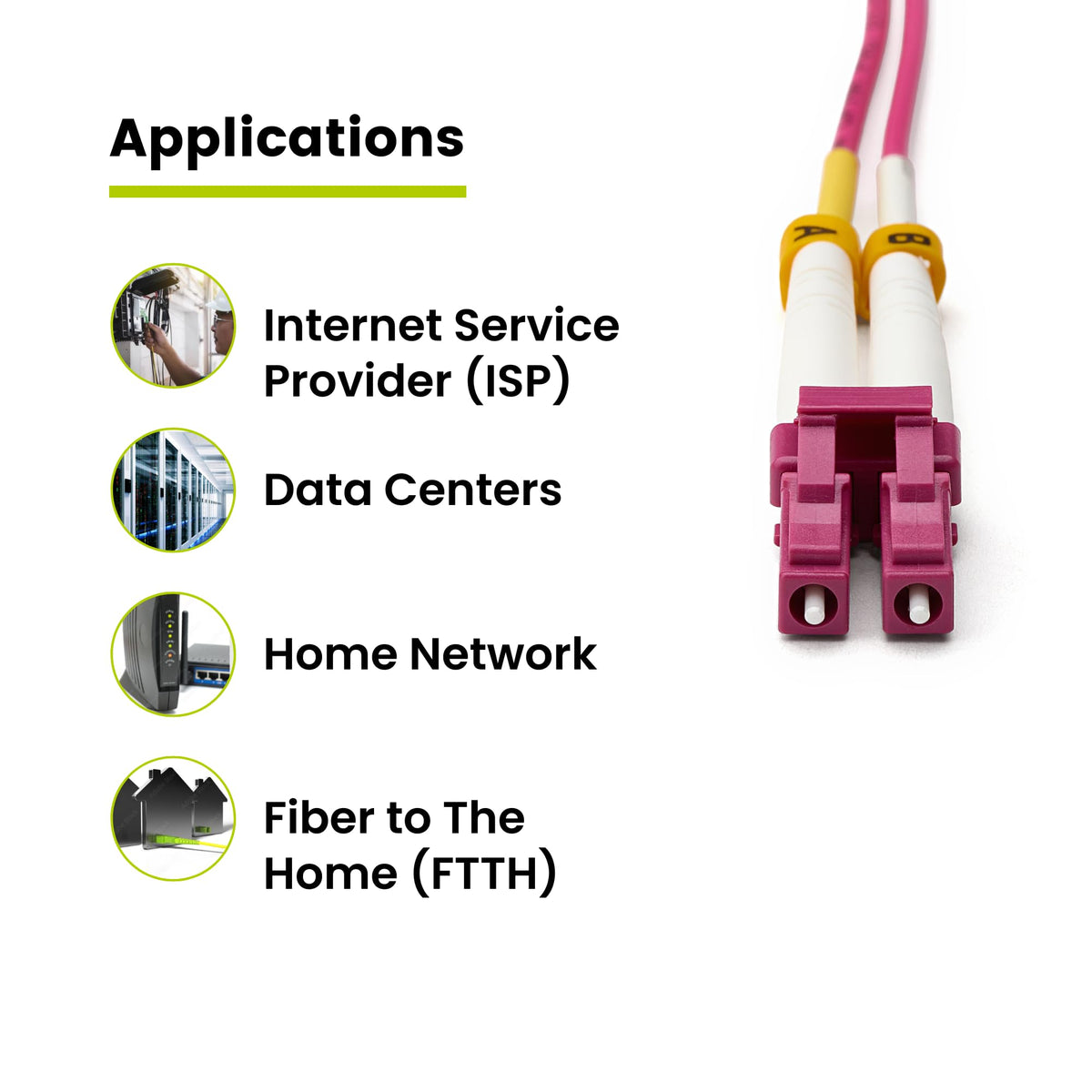

• Designed for indoor LAN and data center applications

What testing, standards, and warranty come with this cable?

TRUE CABLE tests each patch cord to industry performance and end-face cleanliness standards. The cable meets ANSI/TIA specifications and has been end-face certified to IEC 61300-3-35, with manufacturing QA including Versiv DSX-8000 test verification.

• Performance tested using Versiv DSX-8000 CableAnalyzer
• Complies with ANSI/TIA 568.3-E multimode fiber requirements
• End-face certification to IEC 61300-3-35 ED.2 MM
• Backed by TRUE CABLE’s Forever Warranty for peace of mind

Who this cable is for: Network engineers, data center technicians, and IT teams who need reliable, high-speed multimode patching for racks, switches, and short-reach transceivers will appreciate this 20m LC-to-LC OM4 cord. It’s ideal when consistent optical performance, compact routing, and compliance with indoor riser applications are required.
