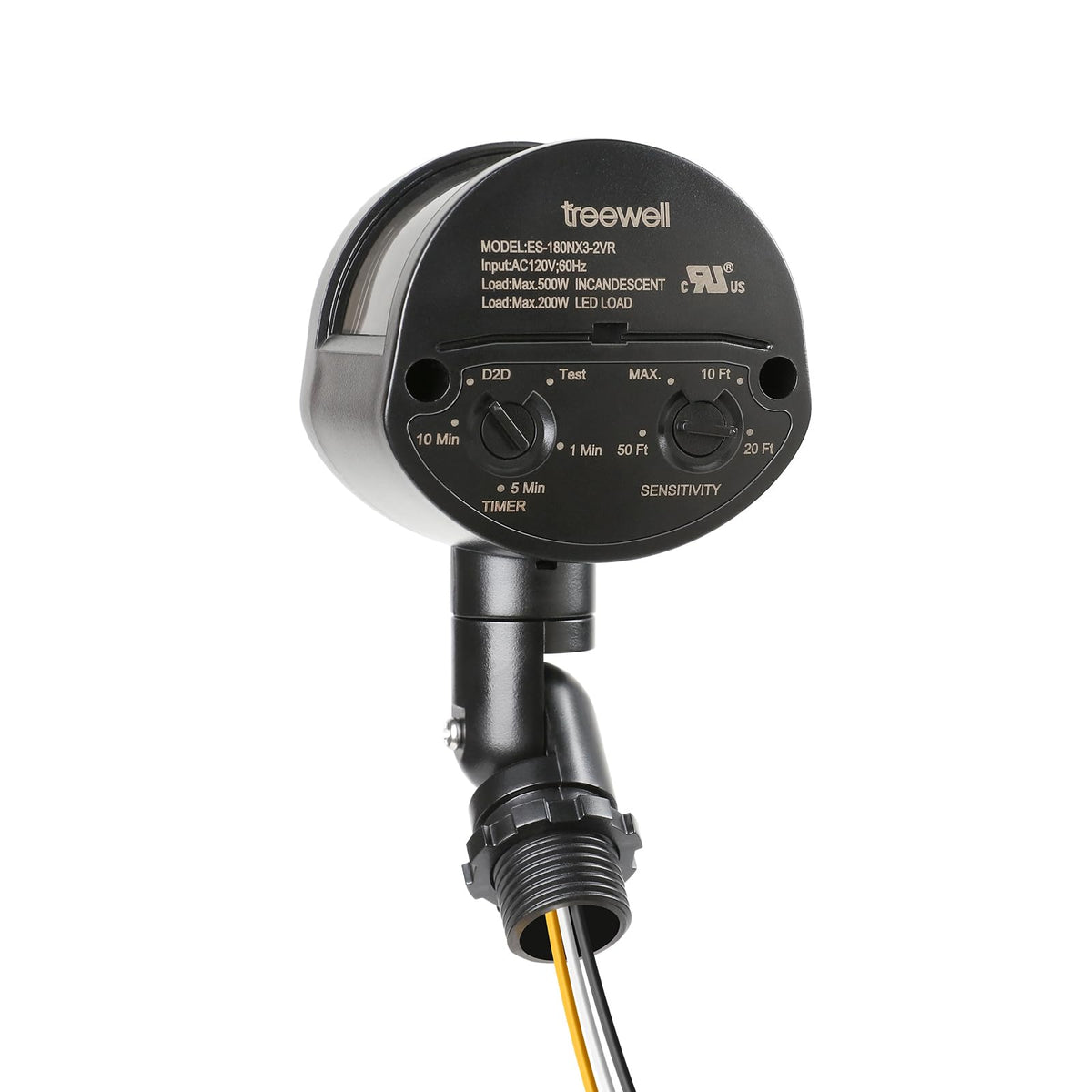

treewell Motion Sensor 180-Degree Replacement PIR 60ft

TREEWELL Motion Sensor is a versatile 180° replacement detector that upgrades outdoor and indoor floodlights with three selectable modes, stepless time and sensitivity controls, and an adjustable swivel head for targeted coverage up to 60 feet.

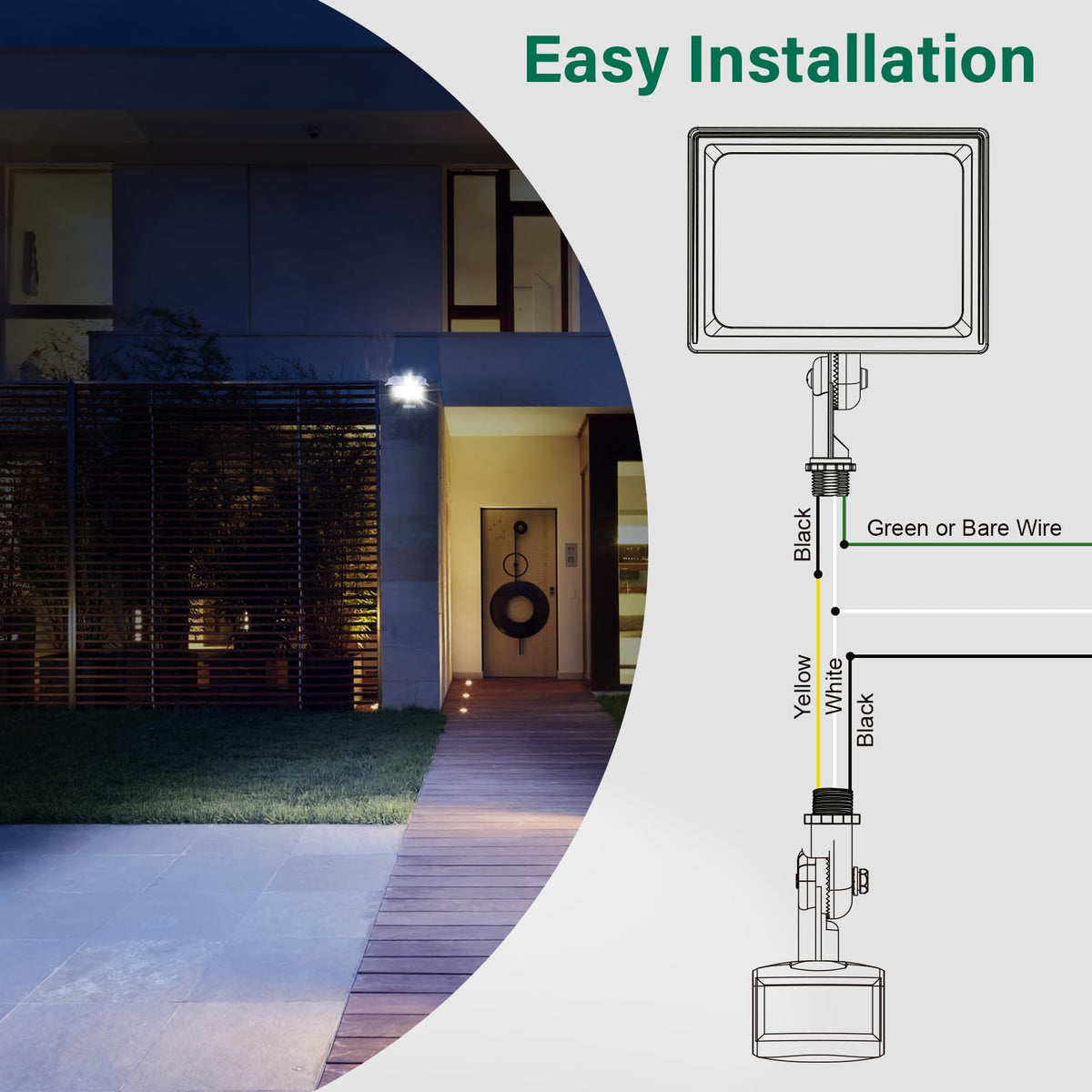

This compact, UL-listed PIR motion sensor is designed as a drop-in upgrade for existing security floodlights. It accepts common wiring, supports up to 500W incandescent or 200W LED loads, and gives you manual override plus automatic night-only behavior. The aim is to extend the usefulness of a current fixture without a full light replacement, saving time and cost while improving detection performance.

How does the TREEWELL sensor detect movement and how far will it reach?

The unit uses a passive infrared (PIR) element to sense heat-motion across a wide field of view. You can expect reliable detection across a 180° vertical sweep and a sensing distance adjustable up to about 60 feet depending on mounting height and environment.

• 180° detection arc for broad coverage
• Sensing distance up to 60 ft when mounted optimally
• PIR technology responds to body heat and moving objects

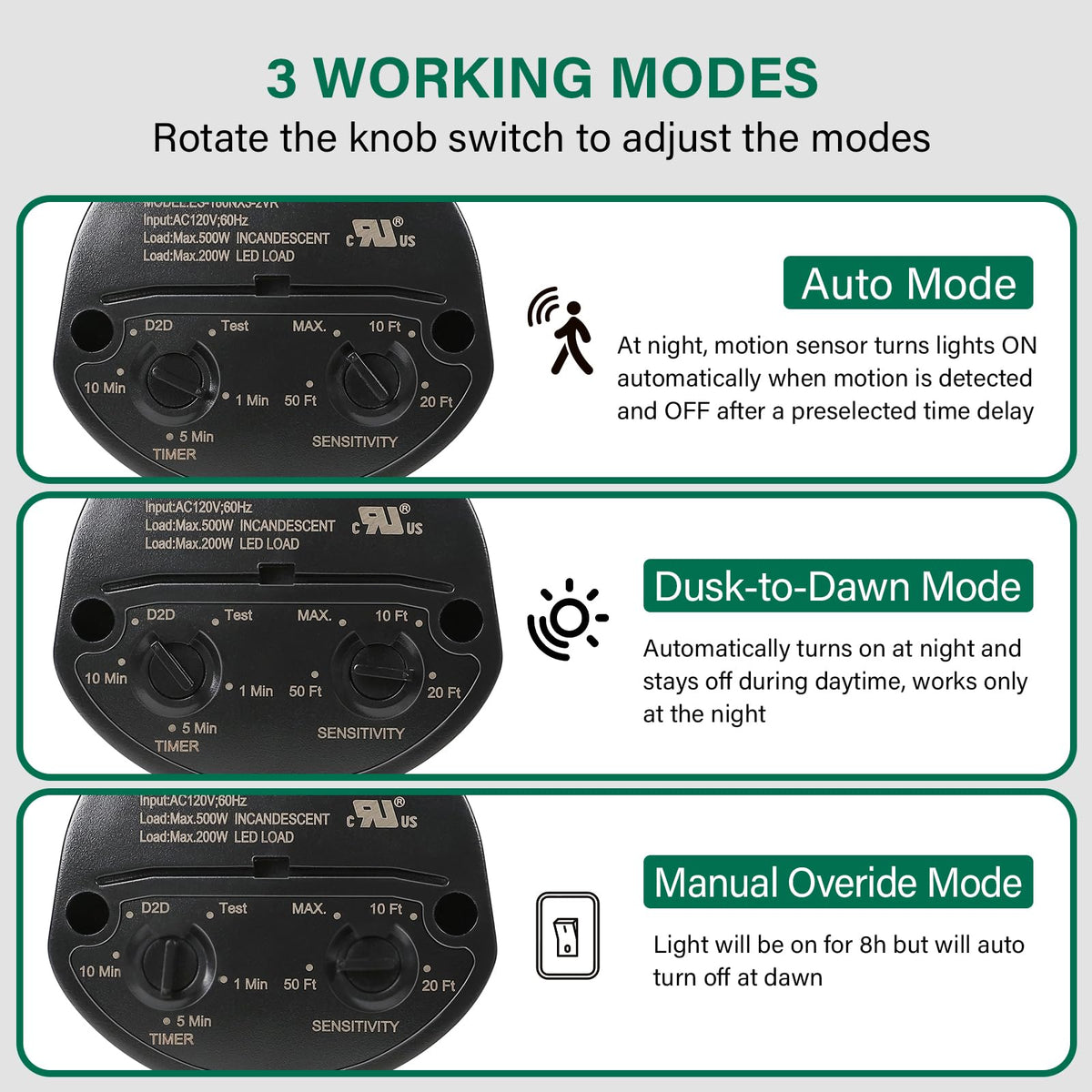

What control options and settings are available?

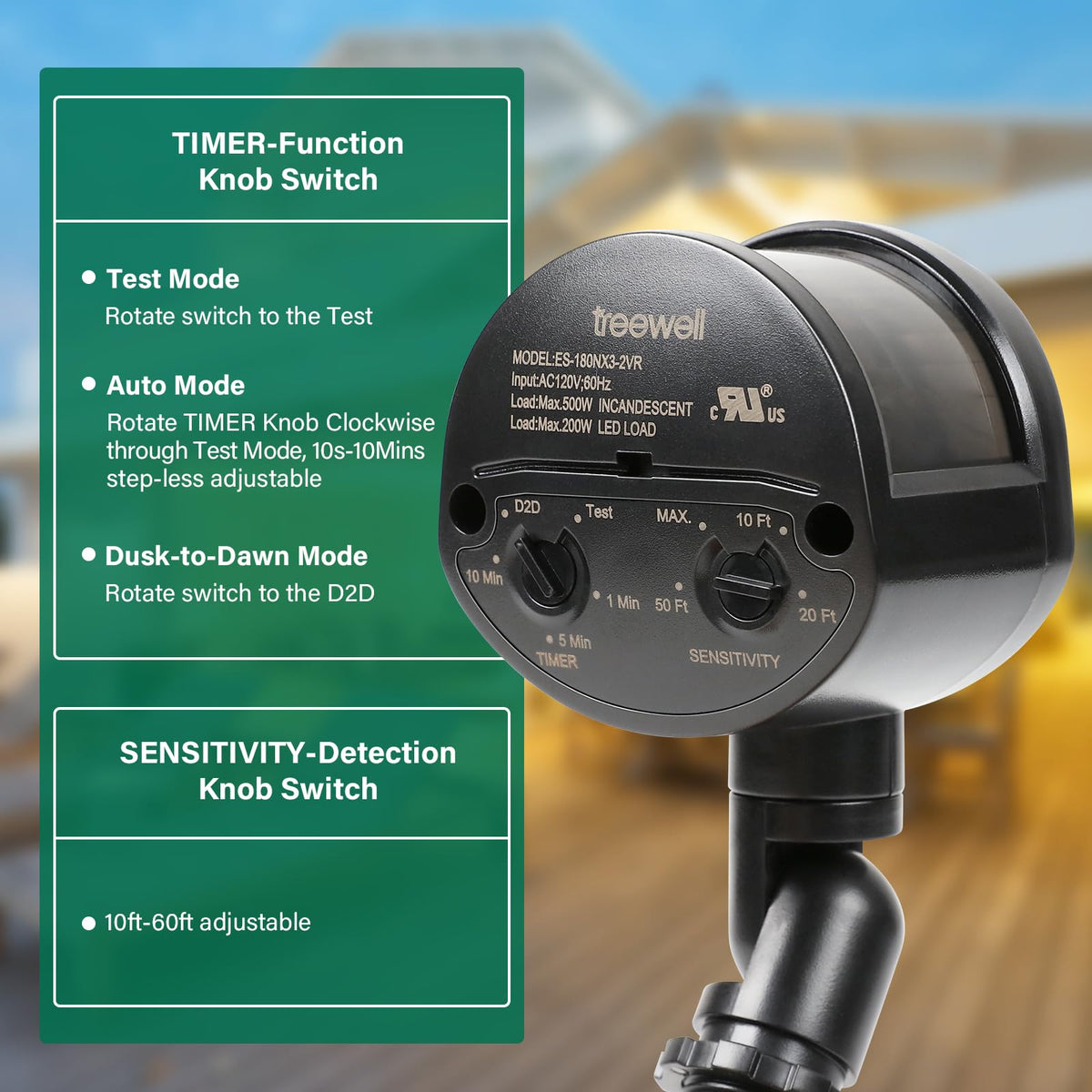

There are three operating modes so you can tailor behavior to your site: fully automatic in darkness, night-only activation, or a manual override that keeps lights on through the night. Time delay and sensitivity are continuously adjustable so you can fine-tune how long lights stay on and how easily the sensor triggers.

• Auto Mode: activates in low light, adjustable delay 10s–10min
• D2D Mode: dusk-to-dawn operation, stays off during daytime
• Manual Override: forces lights on for up to 8 hours, shuts off at dawn
• Stepless sensitivity knob to reduce false triggers

Can I aim the sensor to cover a specific area?

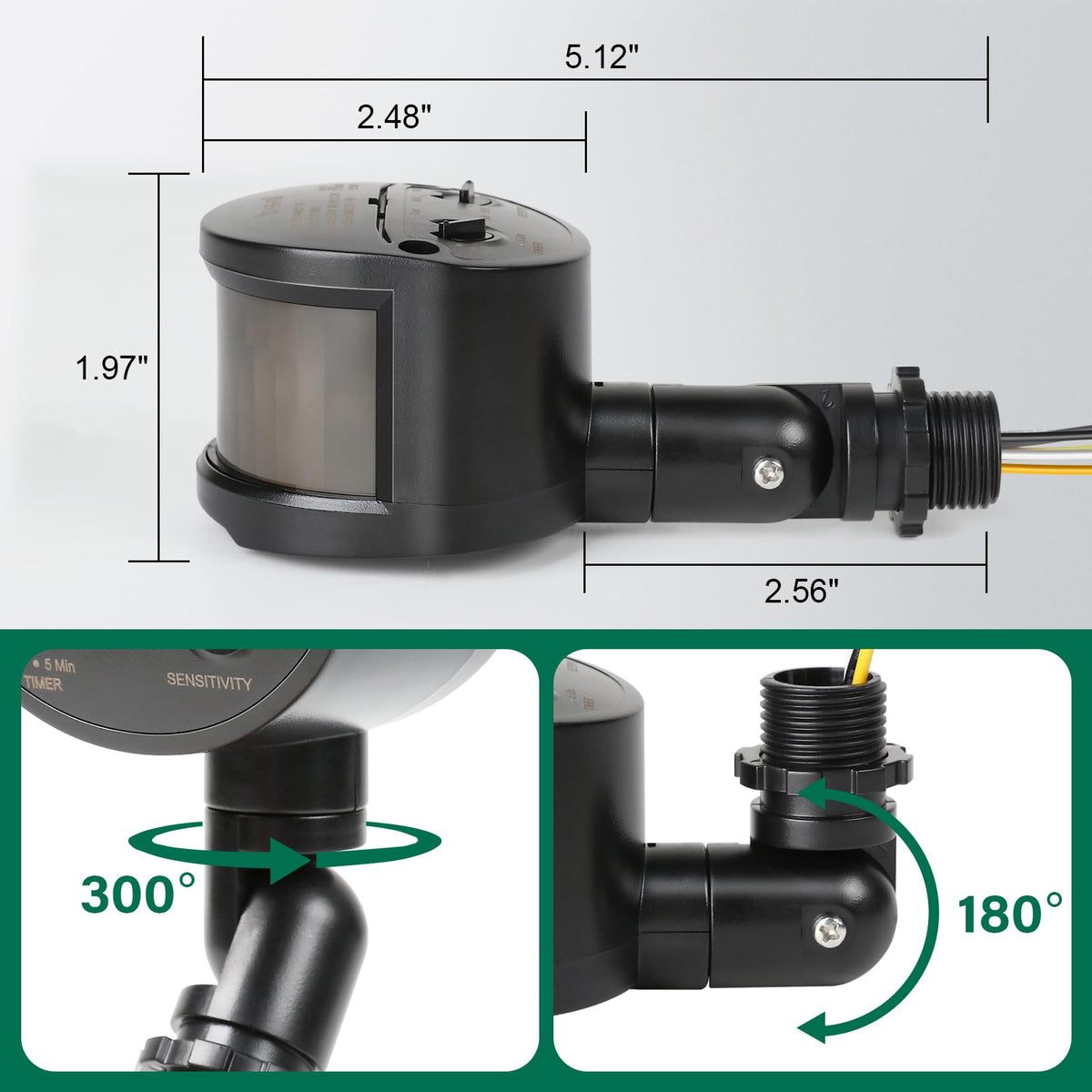

Yes — the sensor head is built with a long pivot arm and wide articulation so you can precisely direct the detection zone. It rotates horizontally and tilts vertically to target pathways, driveways, porches, or other critical areas where coverage matters most.

• 300° horizontal rotation for side-to-side alignment
• 180° vertical tilt for up/down aiming
• Works for wall or eave mounting on most fixtures

Who this is for: The TREEWELL replacement motion detector is aimed at homeowners, landlords, and DIY installers who want to improve or repair existing outdoor and indoor lighting without replacing fixtures. It fits people who need flexible motion control — from energy-conscious users seeking night-only operation to property owners wanting temporary manual override for events. Suitable for porches, garages, walkways, driveways, steps, and other usual mounting points, it’s a budget-friendly way to upgrade a security floodlight’s intelligence and range.
