Timpano 7-Band Car Graphic Equalizer TPT-EQ7 10V Line Out

The Timpano TPT-EQ7 is a compact 7-band car graphic equalizer with a 10V high-voltage line driver, six RCA outputs, and dedicated subwoofer level and crossover controls for precise in-vehicle sound tuning.

Compact yet powerful, the TPT-EQ7 puts detailed tonal shaping and amplifier-ready outputs within easy reach. Designed to accept high-level factory headunit signals and convert them to clean RCA outputs, this 1/2 DIN-footprint unit fills the gap between consumer radios and aftermarket amplifiers. Use it to shape mids and highs for clarity, tame boominess in your bass, or drive multiple amps with a low-noise 10-volt line output.

How does the TPT-EQ7 improve my car stereo clarity?

The seven-band graphic EQ lets you dial in specific frequency ranges so vocals, instruments, and road-noise masking can be reduced or enhanced. With +/-12 dB adjustment per band, you get broad corrective range for both subtle and dramatic changes. The high-voltage RCA output maintains signal integrity over long cable runs, helping prevent hiss and preserving dynamics.

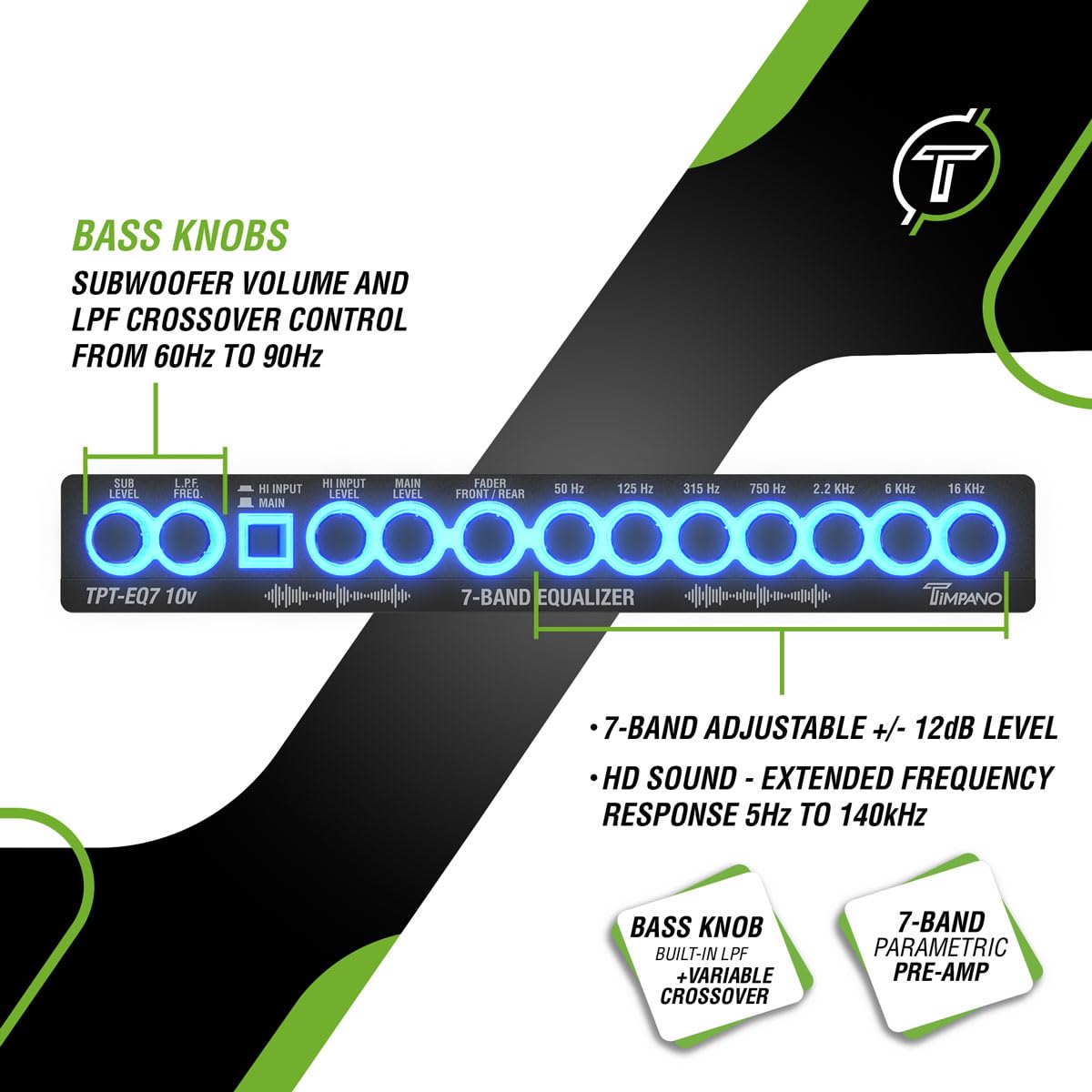

• Seven adjustable bands: 50Hz, 125Hz, 320Hz, 750Hz, 2.2kHz, 6kHz, 16kHz
• Each band offers ±12 dB of boost or cut
• 10V RCA line outputs for lower noise and better headroom
• Improves clarity when paired with aftermarket amplifiers

Can I add amplifiers to a factory radio with this unit?

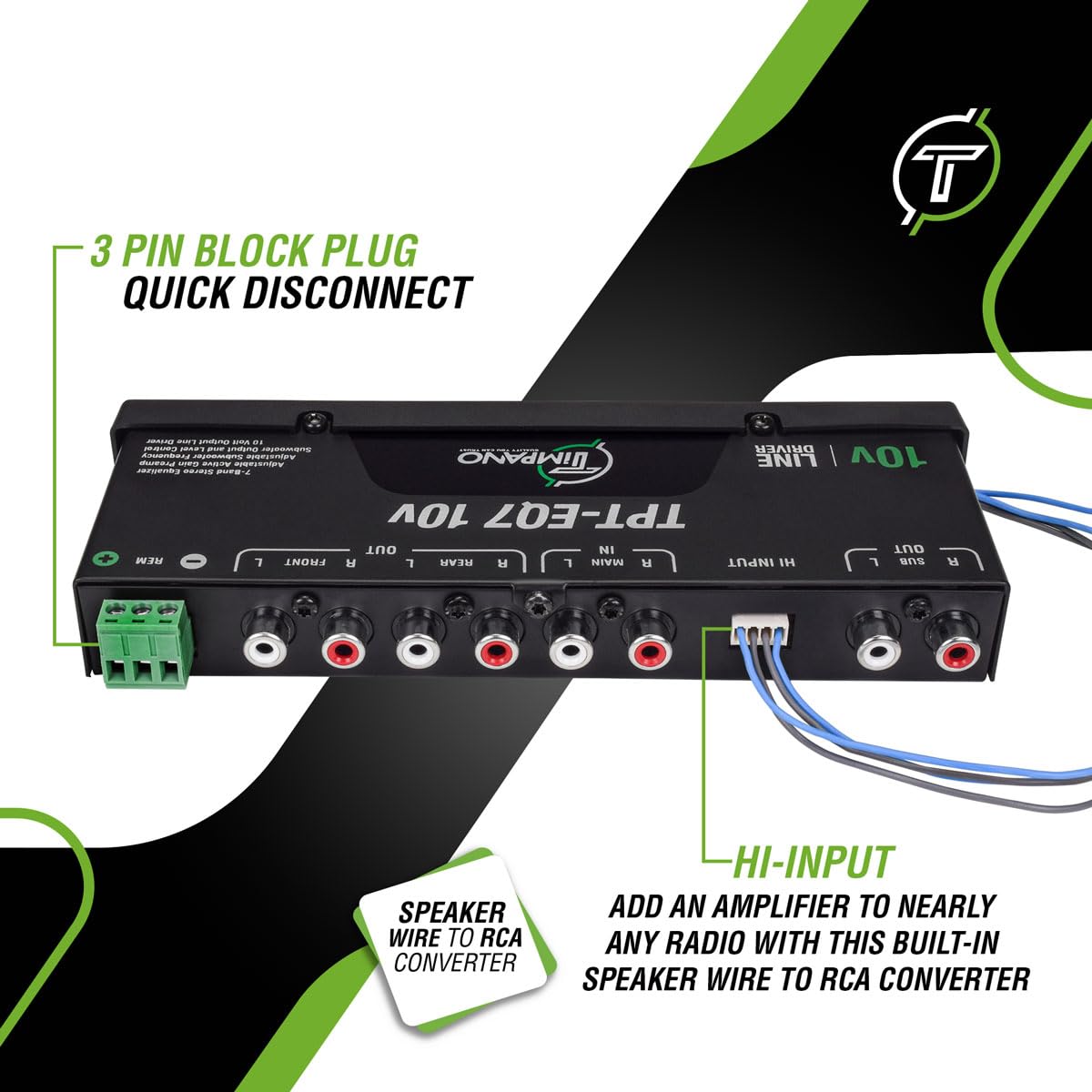

Yes — the TPT-EQ7 includes a high-level input (speaker-wire to RCA conversion) so you can tap factory speaker outputs without running a new headunit. That converter supplies a safe, preamp-level signal to downstream amplifiers and the internal equalizer circuitry. This makes upgrading the system much simpler and keeps sound quality high when using OEM radios.

• Built-in high-level input converts speaker-level signals to RCA
• Preamp outputs feed aftermarket amplifiers directly
• Maintains ground-reference stability for cleaner sound

How do I manage bass and subwoofer integration?

The TPT-EQ7 has a dedicated subwoofer level control and a selectable crossover so you can set the bass roll-off point and blend the sub with door speakers. Adjust the sub level independently to avoid overpowering midrange frequencies and to achieve tight, controlled bass. The crossover prevents low frequencies from sending distortion-prone content to smaller speakers.

• Independent sub level adjustment for precise bass balance
• Adjustable crossover lets you define the sub’s cutoff
• Prevents low-end distortion on non-sub speakers

Where will the slim housing fit in my vehicle?

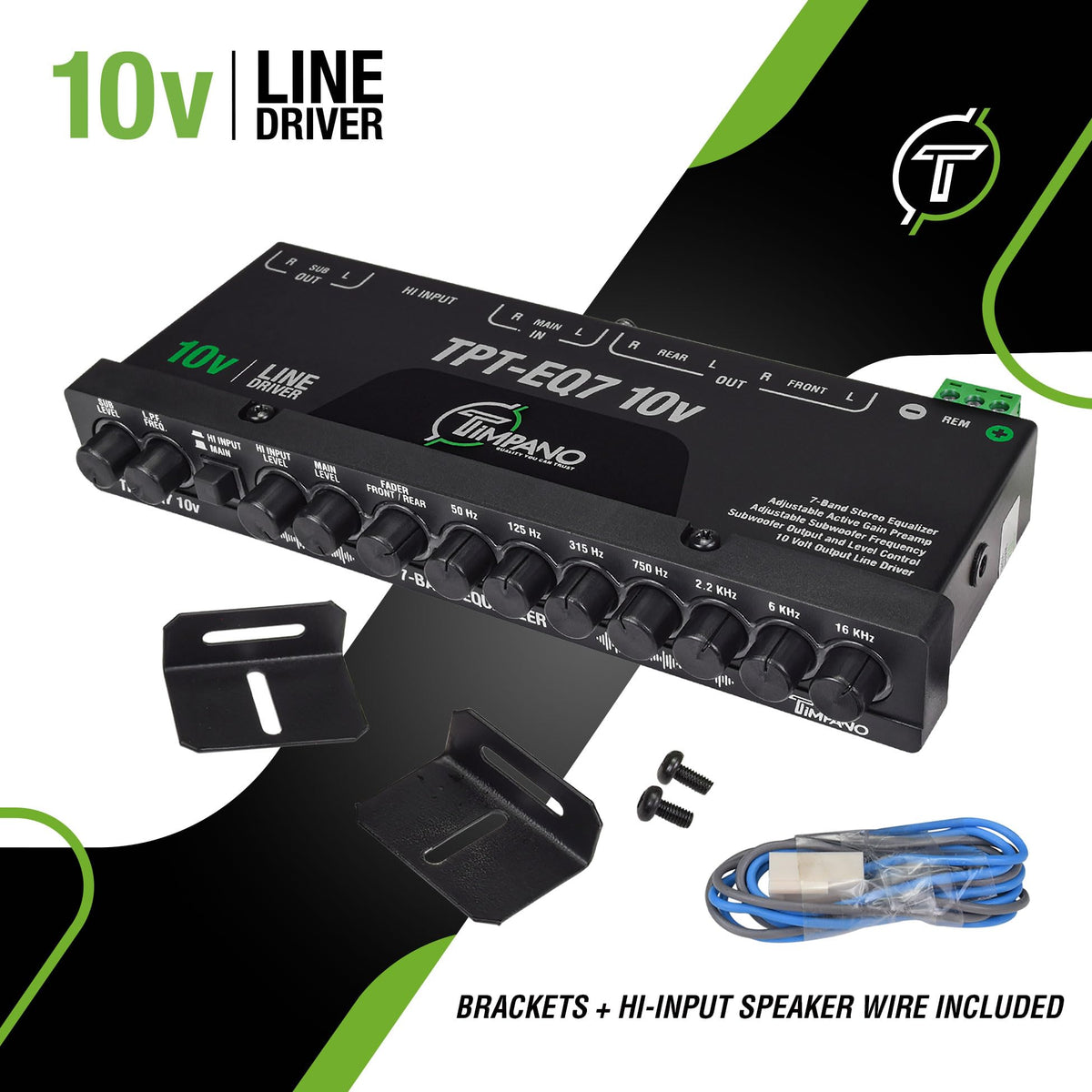

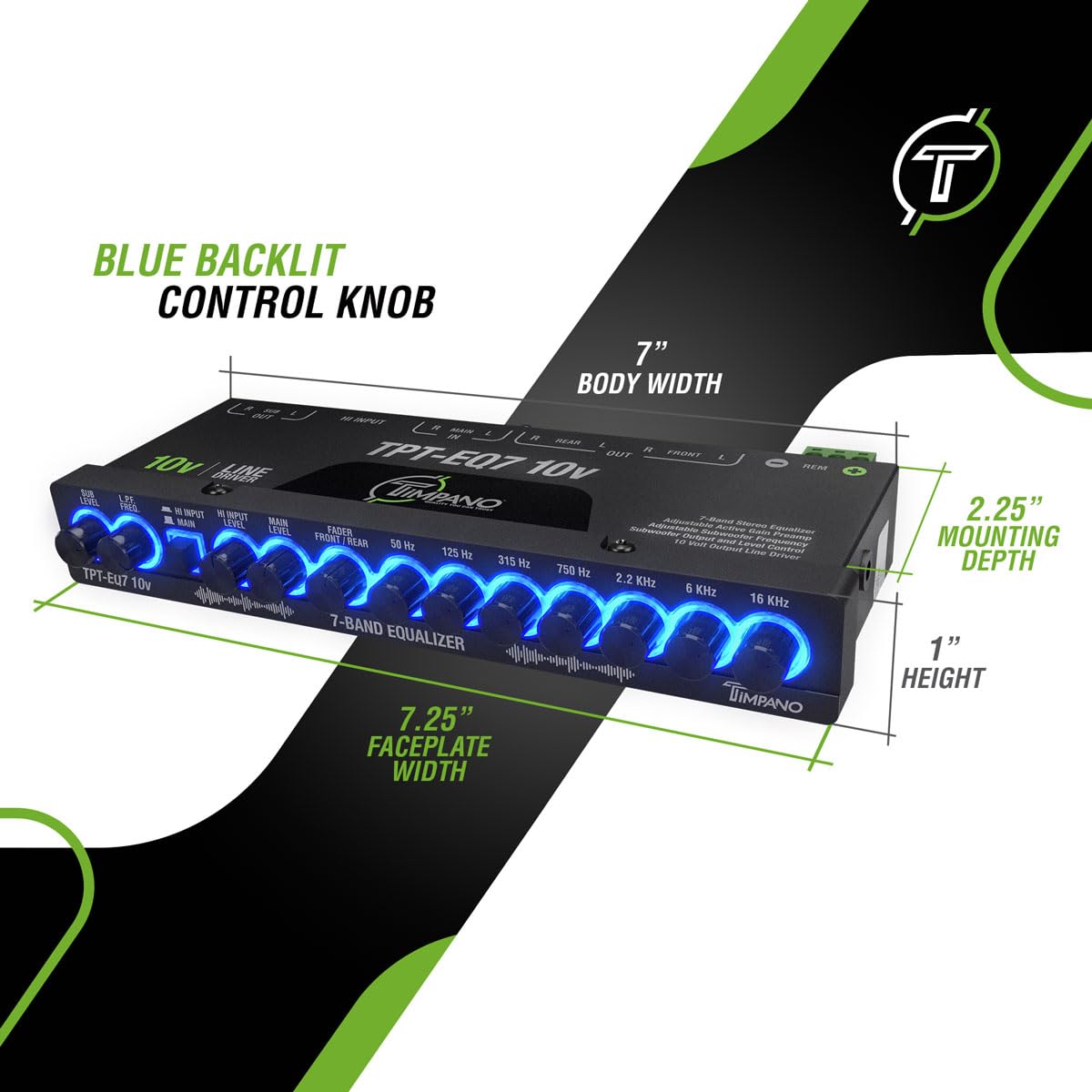

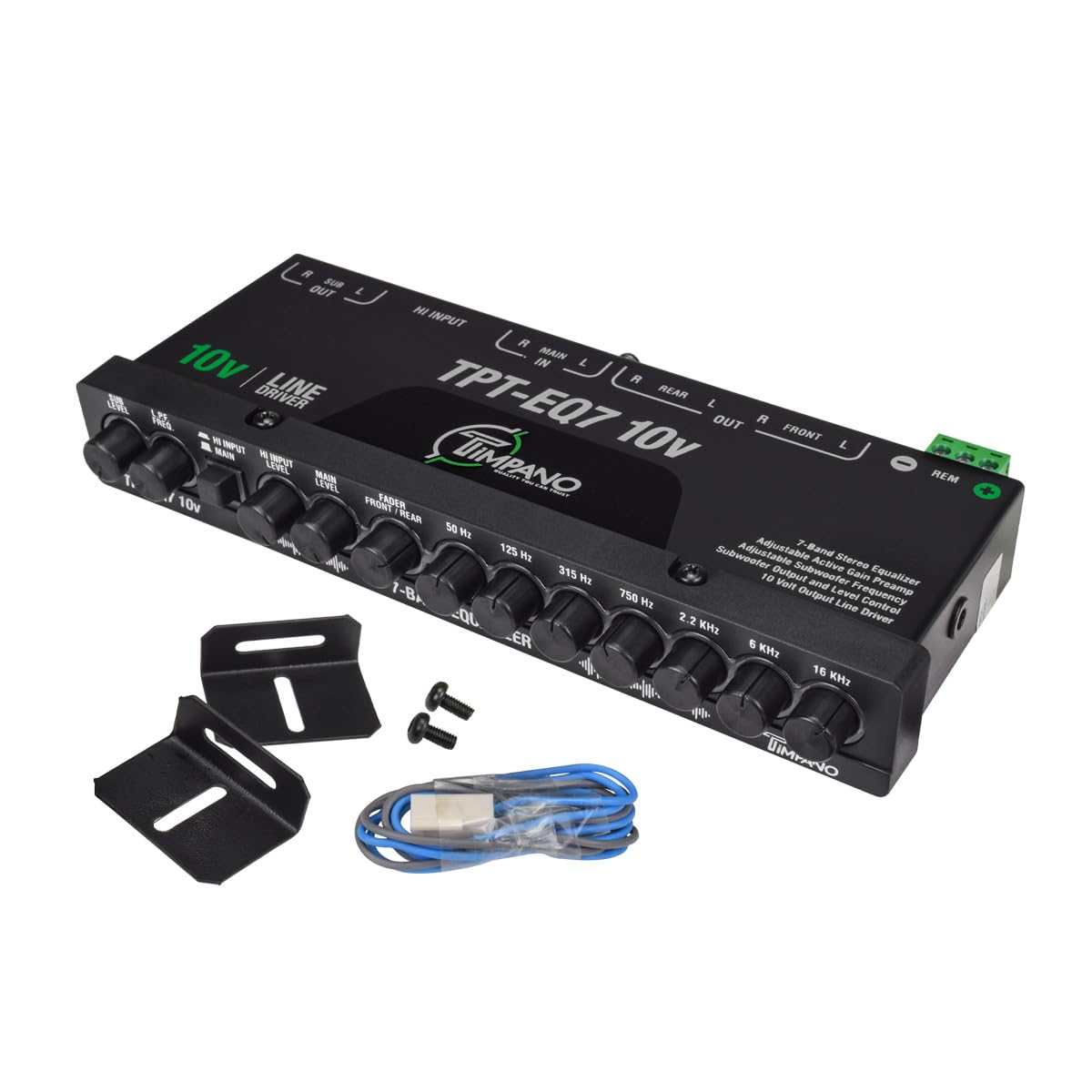

This half-DIN style unit is engineered for tight spaces; its low profile makes mounting under dash panels or inside console cavities straightforward. The compact footprint (7.25” x 1” x 2.25” mounting depth) preserves cabin space while still providing physical controls you can access when needed. Installation often requires only basic mounting hardware and wiring knowledge.

• Half-DIN compact footprint fits small dash pockets
• Mounting depth: 2.25 inches for slim installations

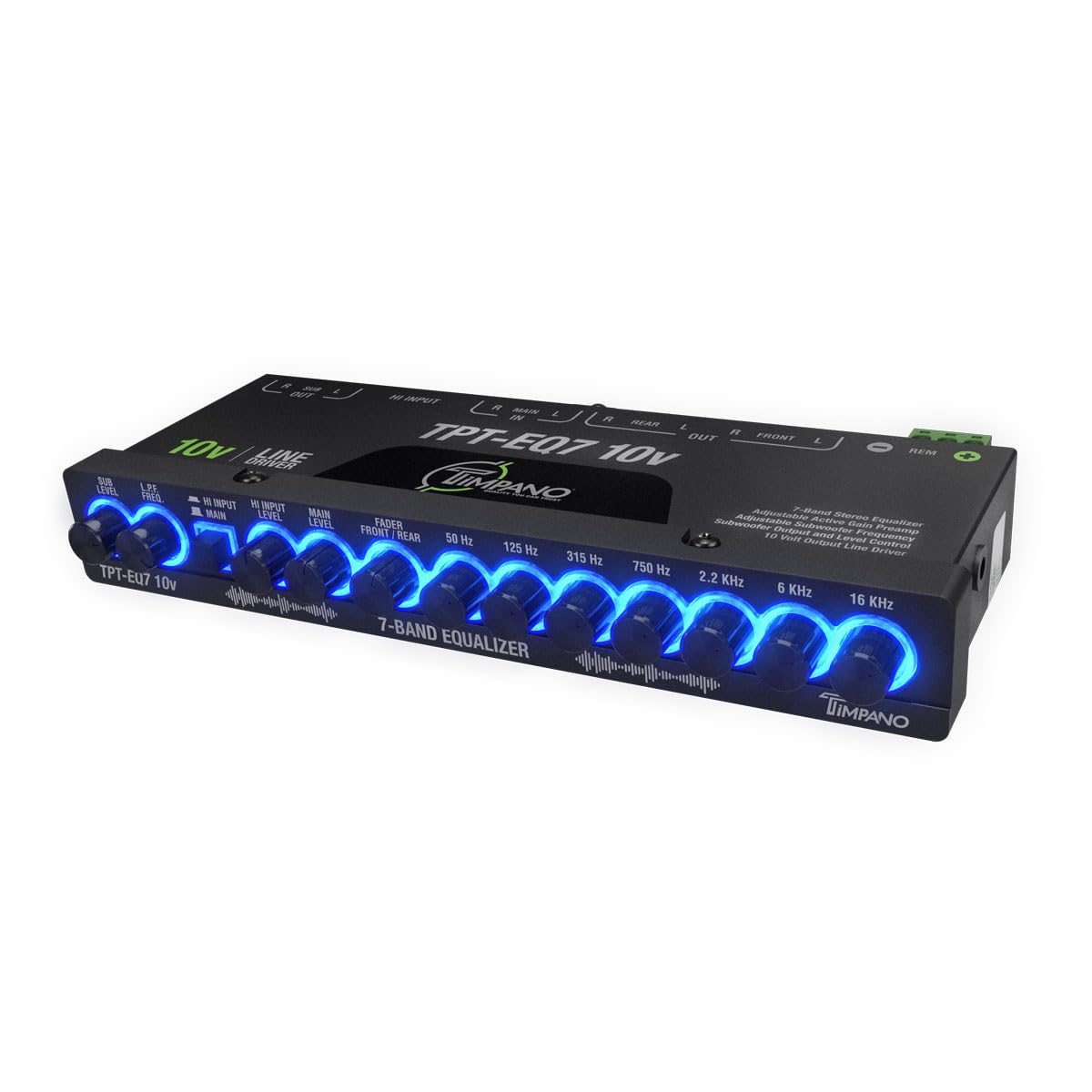

• Accessible front controls for on-the-fly tuning

Who is this for: The Timpano TPT-EQ7 is ideal for drivers who want precise tonal control and amplifier-ready outputs without replacing a factory stereo. It's suited to audio enthusiasts upgrading with external amps and subwoofers, installers who need high-level input conversion, and anyone seeking a slim, professional-grade EQ to tame or refine in-car sound.
