THE CIMPLE CO RG11 F81 Compression Coax Couplers, 75Ω

These are weatherproof one-piece F81 compression connectors for RG11 coax that deliver a 75Ω, watertight F-type coupling for satellite, cable, antenna and modem connections.

If you need durable, low-loss coax couplers for indoor or outdoor use, THE CIMPLE CO Compression Connectors for RG11 are engineered to maintain signal integrity across satellite, CATV and antenna systems. Machined from corrosion-resistant metals and fitted with dual O-rings, each F81 coupler accepts the standard "prepared coax tip" (1/4" braid and 1/4" exposed center) and compresses with any 21mm closed-gap compression tool to form a uniform 360° seal.

How do these connectors protect signal quality outdoors?

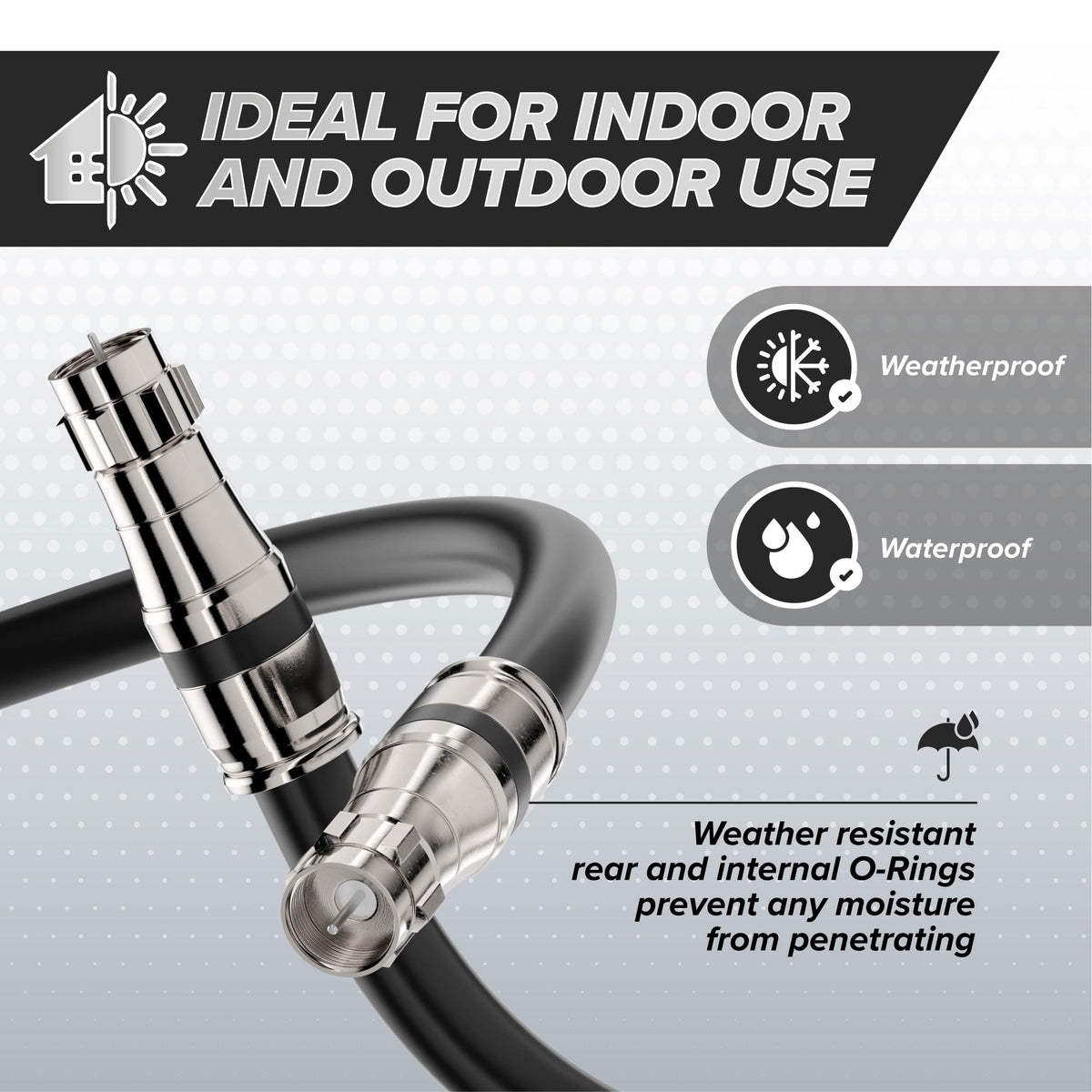

The connectors use a compression-style fit and internal O-rings to create a watertight jacket seal that prevents moisture migration and corrosion. That physical seal plus precision machining reduces insertion and return loss, preserving video, audio and data across the cable run.

• Weatherproof rear with dual internal O-rings for long-term outdoor exposure
• Precision machined metal bodies for low insertion loss and consistent impedance
• Rated up to 3 GHz and tested to SCTE, ANSI and ASTM standards
• Superior shielding effectiveness (greater than -90 dB) to reduce interference

Will these work with my RG11 cable and tools?

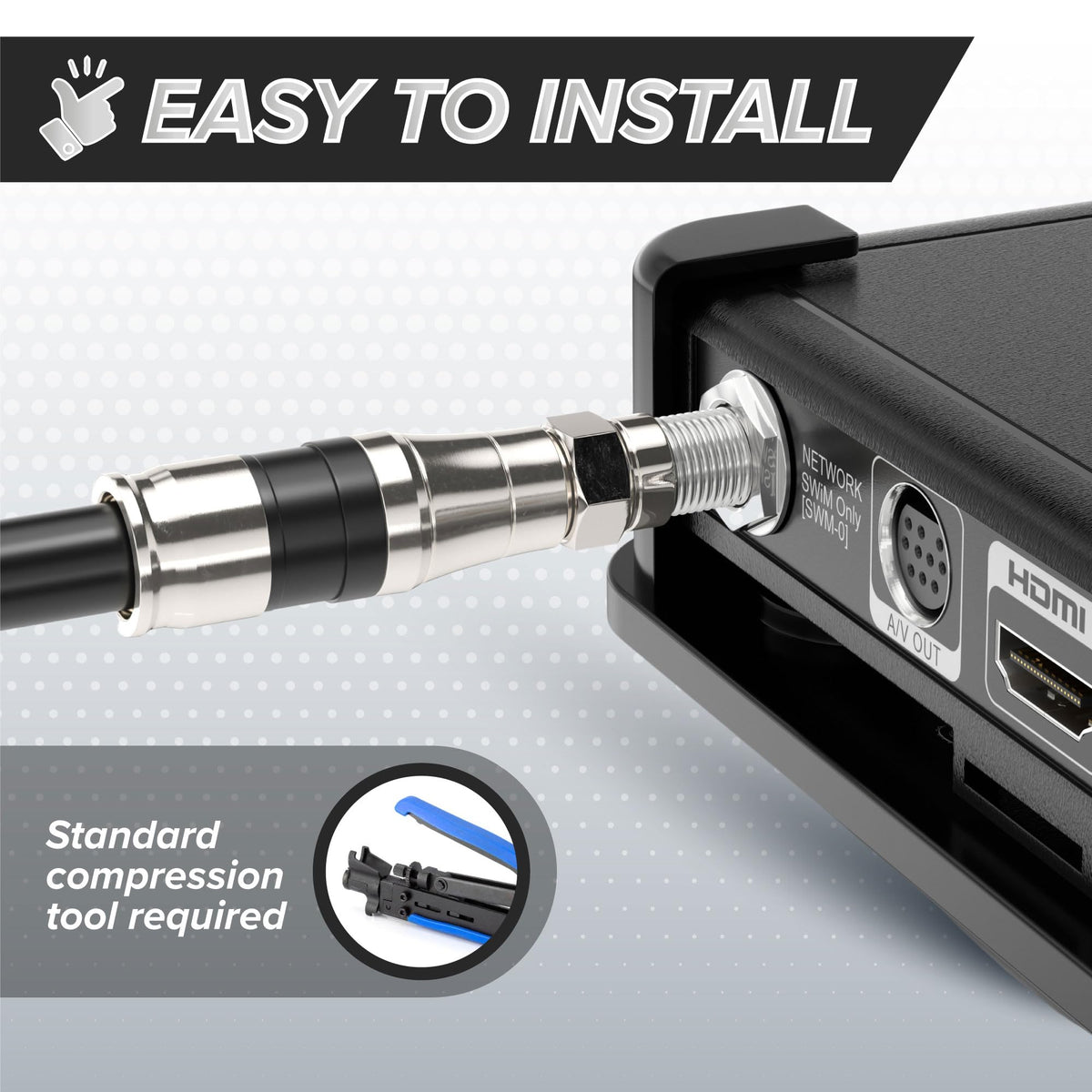

Yes — the couplers are sized for standard RG11 prepared tips (1/4" braid, 1/4" center) and are compatible with any 21mm closed-gap compression tool. THE CIMPLE CO recommends its own 21mm tool but the connector functions with all standard compression tools meeting that gap specification.

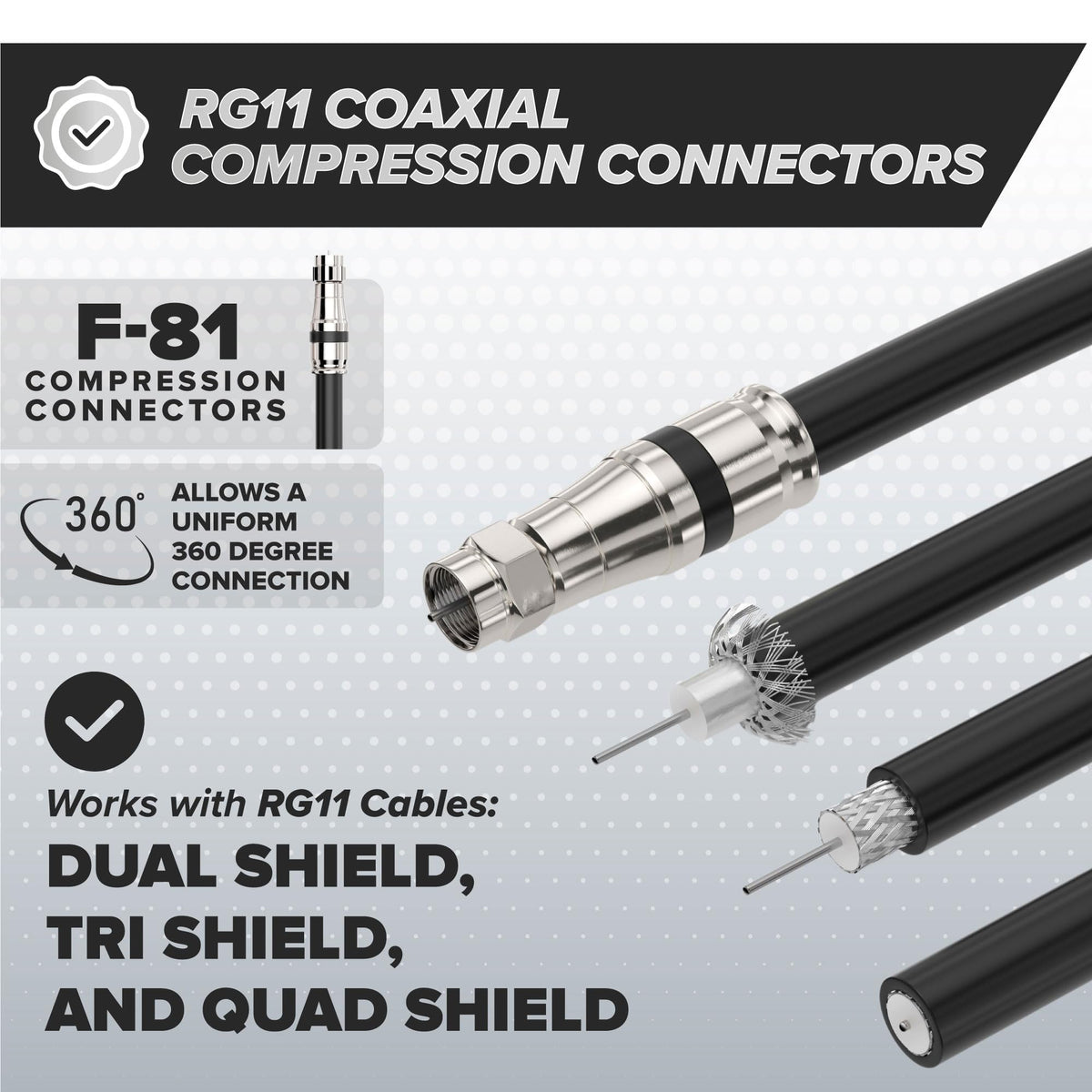

• Compatible with single, dual, tri and quad-shield RG11 cable types
• Designed for standard 21mm closed-gap compression tools
• Uses the F-pin connection (F81) common on U.S. cable and satellite systems
• Simple one-piece installation reduces assembly errors versus multi-part fittings

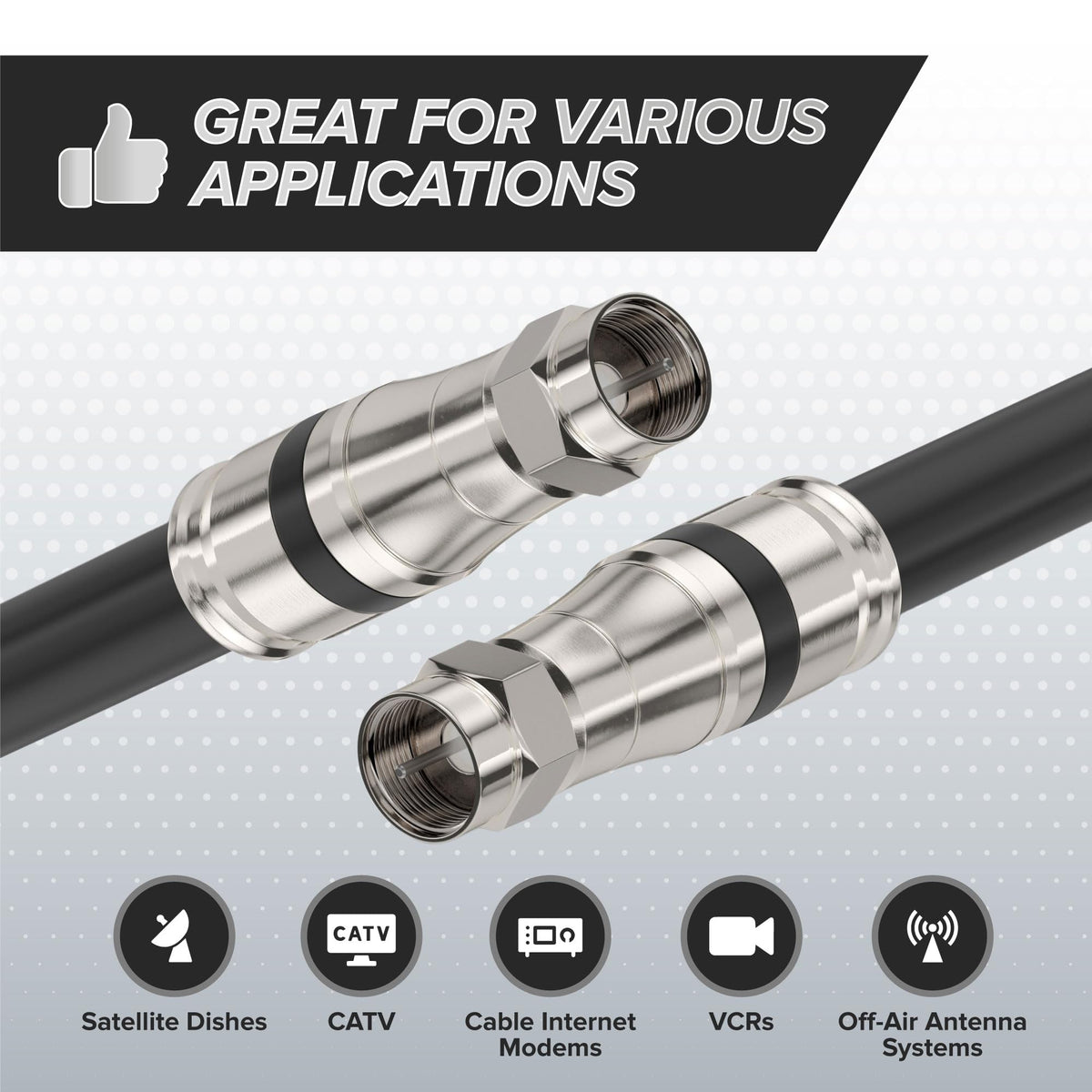

What devices and systems will these couplers support?

These F81 compression connectors pass the full range of signals used by DIRECTV/satellite, CATV providers (Comcast, Cox, Charter), cable modems, antennas, and set-top or DVR devices. They maintain 75Ω system impedance for digital and analog transmissions.

• Satellite dishes and receivers (including DIRECTV and other providers)
• Cable TV and internet modems from major providers
• Off-air/OTA and HD antennas, radios, and RF equipment

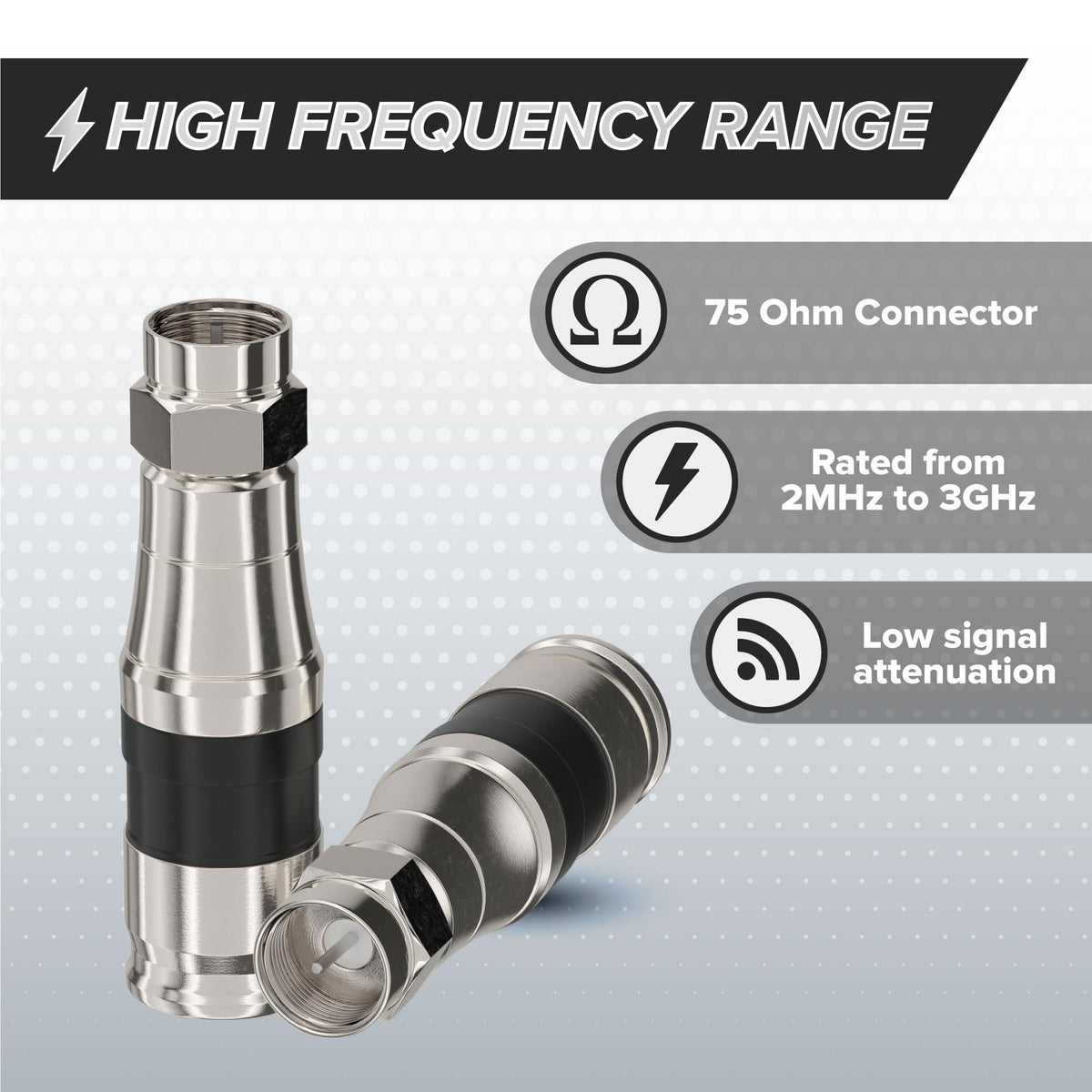

• Works across 2 MHz to 3 GHz for broad compatibility

How durable and tested are these connectors?

THE CIMPLE CO couplers are corrosion-protected and have passed industry durability tests for moisture, salt spray, axial pull, UV degradation and electrical performance — meeting multiple SCTE, ANSI and ASTM standards. That testing supports long-term reliability in harsh environments.

• Passed ANSI/SCTE moisture migration, return loss, and shielding tests
• Salt spray and UV degradation resistance to withstand outdoor exposure
• Axial pull and insertion force testing for secure mechanical performance
• Manufactured to tight physical tolerances for consistent fit

Who is this for: Installers, satellite and cable technicians, homeowners running outdoor antenna or satellite feeds, and system integrators who need high-quality, weatherproof RG11 couplers. This 4-pack is suited to residential and light-commercial installs where reliable 75Ω connections, low signal loss and long-term weather resistance are required. THE CIMPLE CO supports the product with customer and technical assistance plus easy returns if issues arise.
