SUBFIX Gen 3 Roof Ridge Mount for Starlink Standard 4/4X/V3

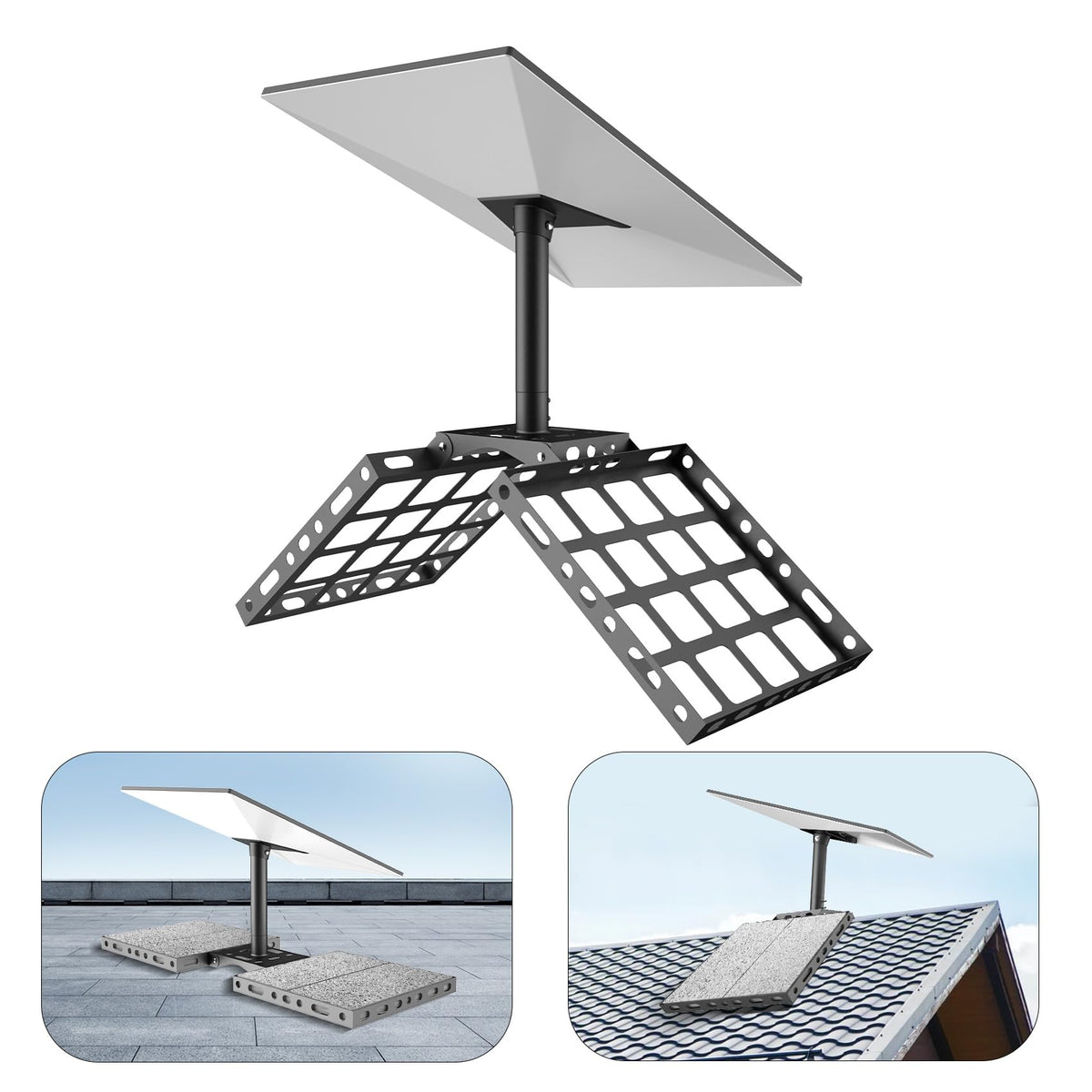

This rooftop mounting solution combines weather-resistant aluminum components with a ballast-based design so you can place a Starlink Standard 4/4X/V3 dish on a roof ridge without penetrating roofing material. The mount includes a Gen 3 pipe adapter that accepts the Starlink pole, a rotatable joint for aiming, and recessed trays sized for standard concrete blocks or bricks to lock the assembly in place.

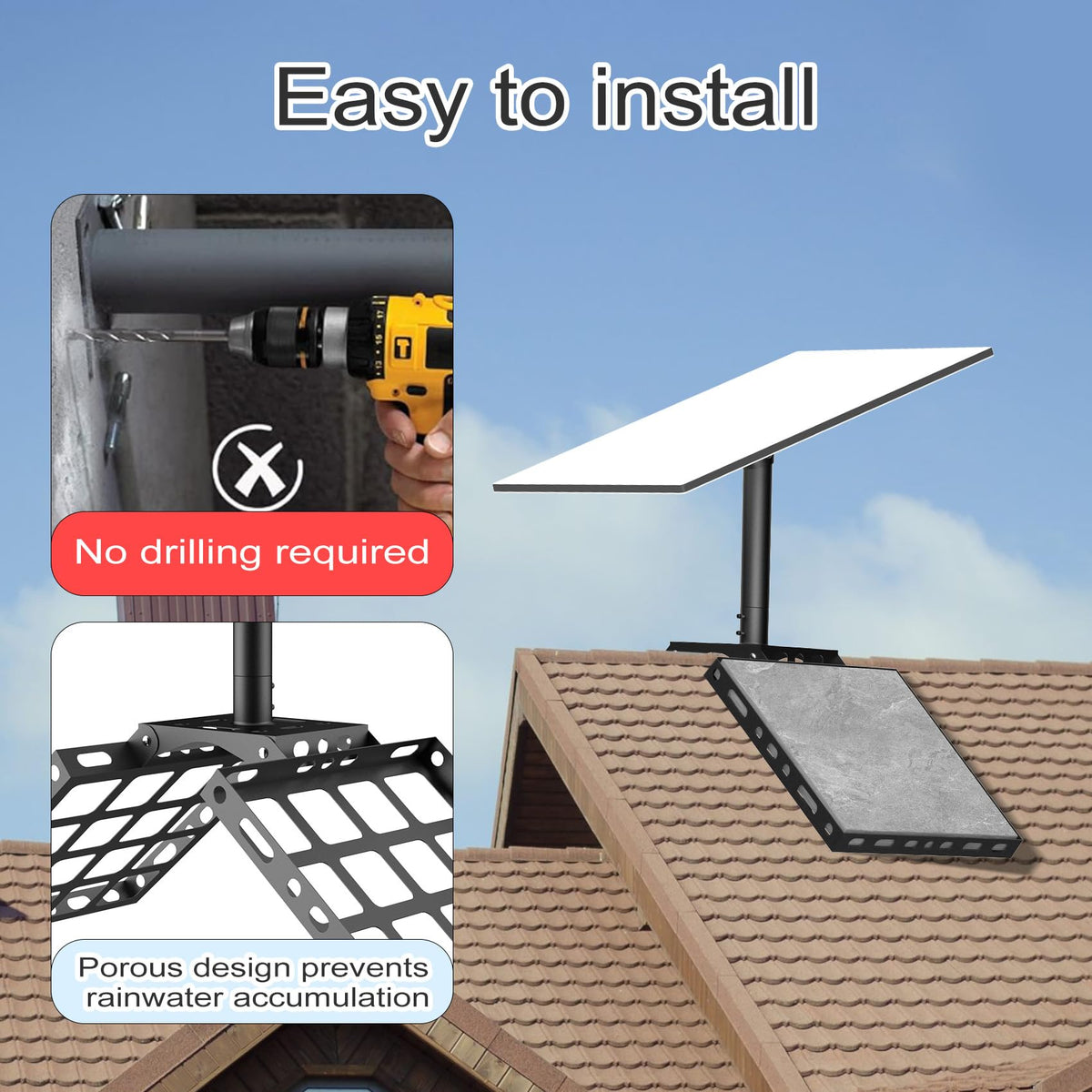

How does the no-drill installation protect my roof?

The SUBFIX ridgeline mount sits on top of the roof peak and uses heavy ballast instead of screws through shingles, reducing the risk of leaks and roof-penetration damage. It’s designed to distribute load across the ridge and to be removable if needed for maintenance or roofing work.

• No drilling through shingles or ridge caps required.
• Recessed ballast trays fit standard blocks or bricks to secure the mount.

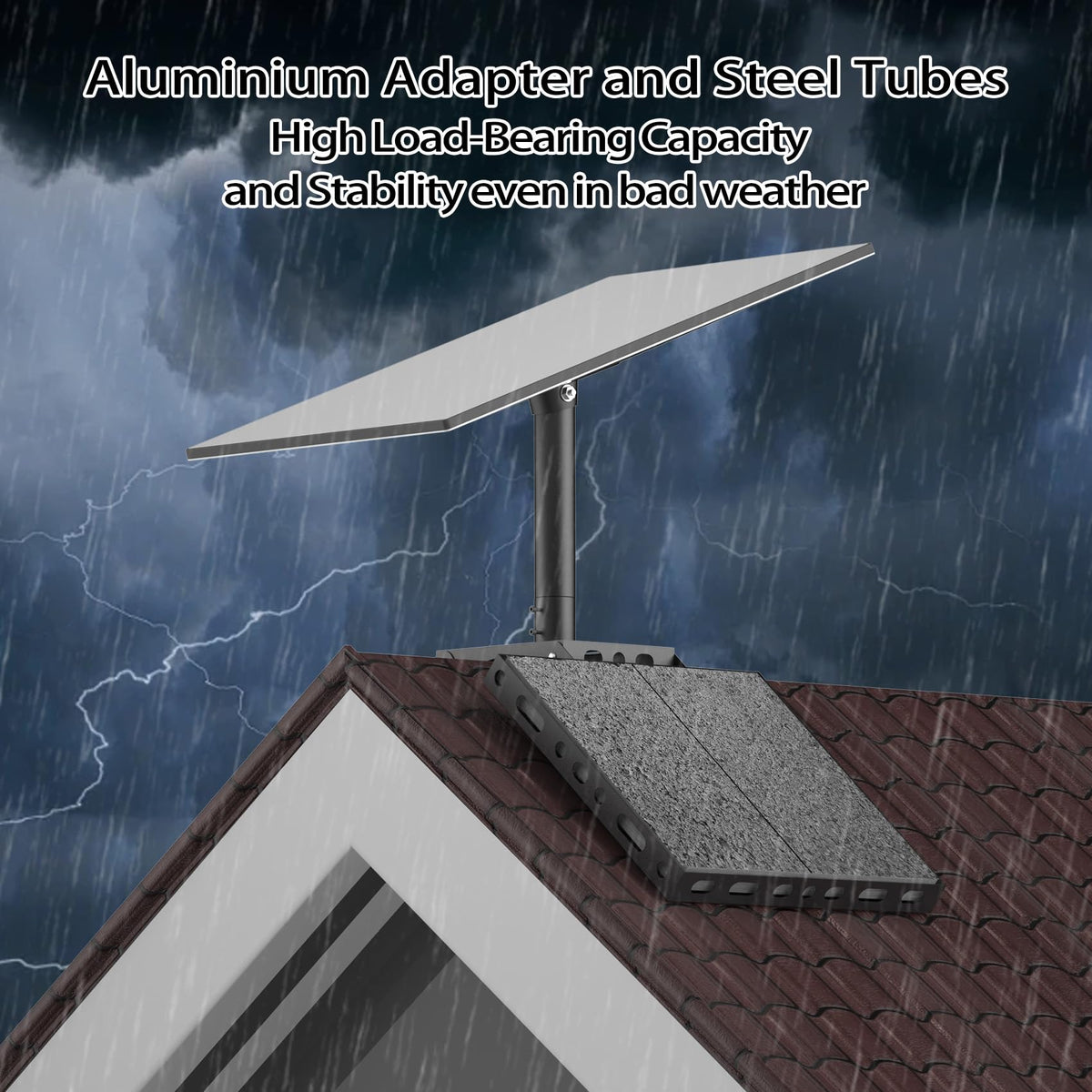

• Polished aluminum parts resist corrosion and minimize contact wear on roofing materials.

Will my Starlink dish fit and point where it needs to?

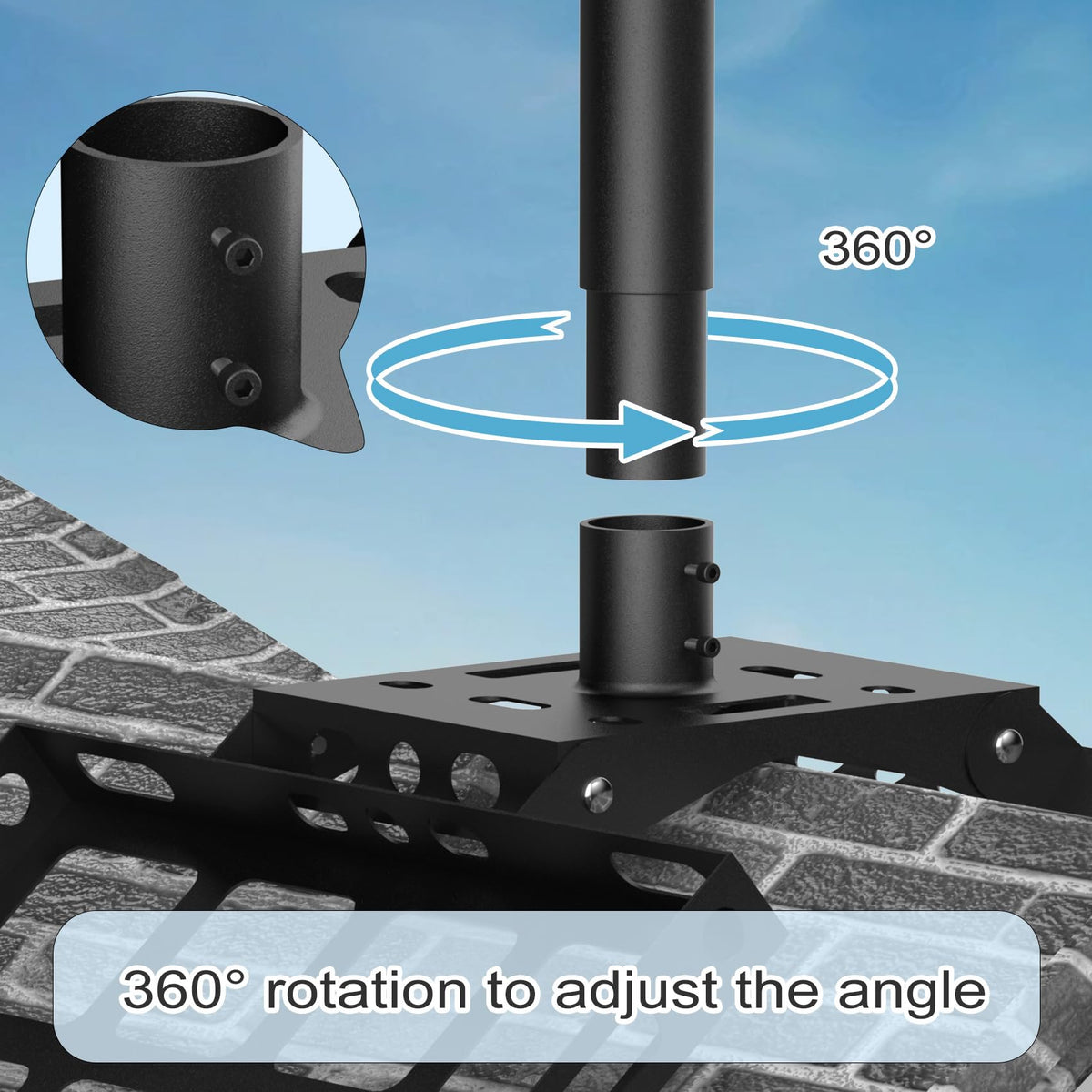

The included Gen 3 aluminum pipe adapter is sized for Starlink Standard 4/4X and V3-style poles, providing a snug, secure fit. A 360° rotatable collar and approximately 20° tilt let you fine-tune azimuth and elevation to avoid obstructions and optimize signal direction.

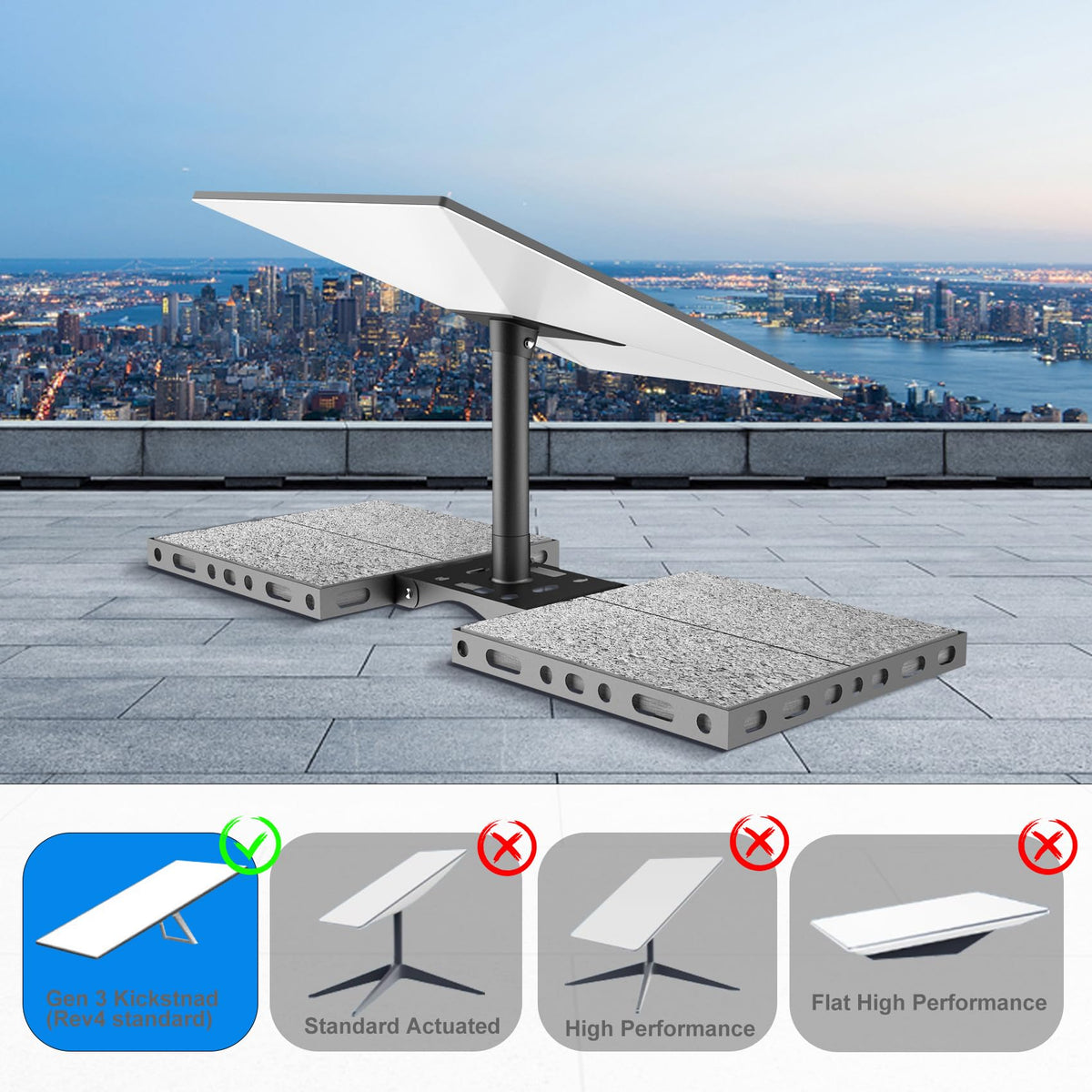

• Compatible with Starlink Standard 4, Standard 4X, and Gen 3/V4 Standard dishes.
• Full rotation for easy alignment from the roof ridge without relocating the mount.
• 20° tilt capability for small elevation adjustments during setup.

How is the mount stabilized and what ballast do I need?

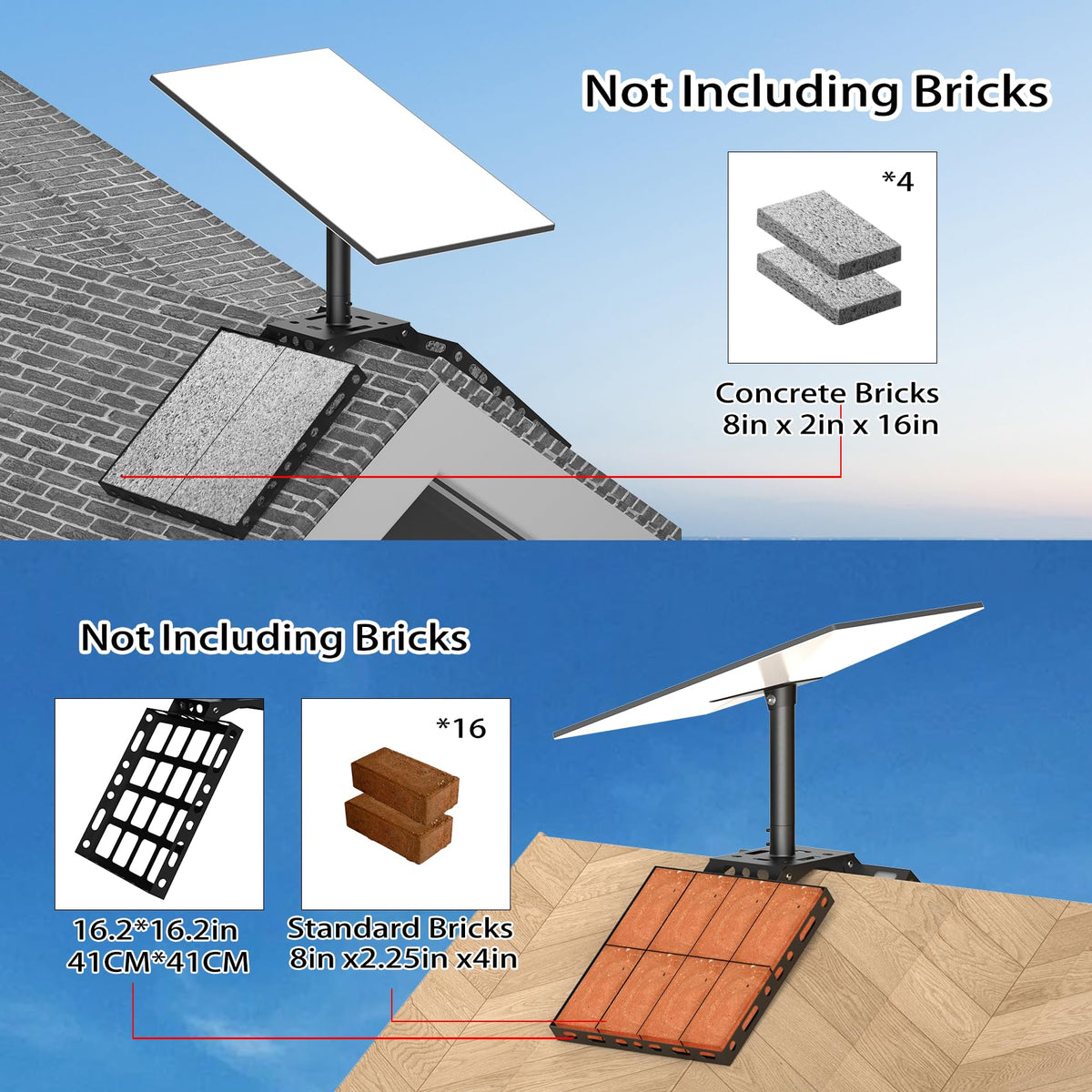

Stability comes from concrete blocks or bricks placed into four recessed pockets on the base. The recess size and pocket layout are sized to accept four 8 x 2 x 16 inch concrete blocks or up to sixteen standard bricks; you must supply the ballast separately for safe use.

• Recess dimensions: 16.2 x 16.2 in total recess area for ballast placement.
• Accepts four 8 x 2 x 16 in concrete blocks or sixteen 8 x 2.25 x 4 in bricks.
• Ballast must be installed before leaving the dish unattended in wind-prone conditions.

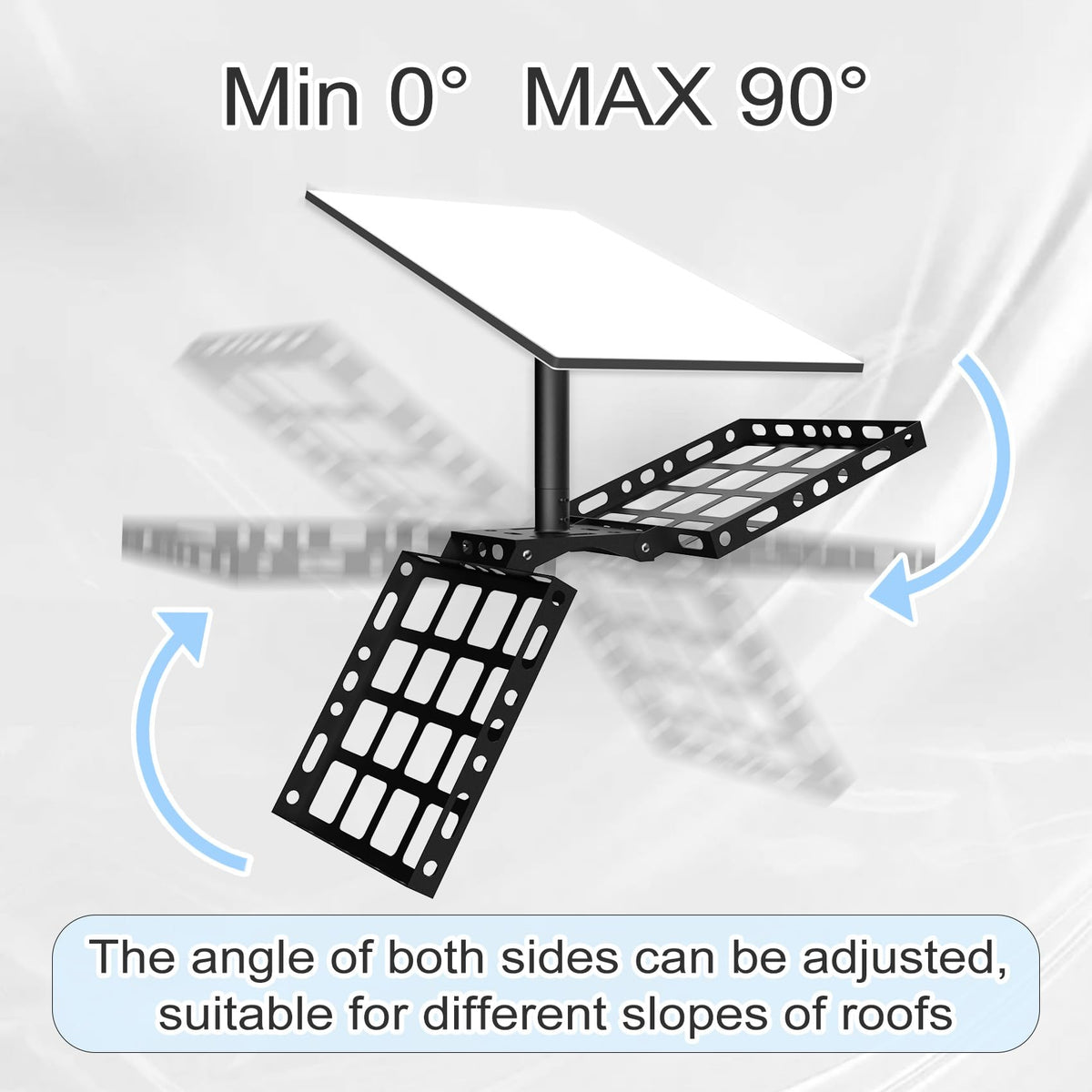

Will this mount work on my roof shape and slope?

The ridgeline mount is engineered for a wide range of roof slopes and ridge profiles, adapting to typical residential peaks and shallow to medium pitches. The base conforms to many ridge geometries, but extremely steep or irregular ridge caps may need measuring before purchase.

• Designed for common roof slopes and ridge peak scenarios.
• Pole length approximately 15.7 in to elevate the dish above the ridge line.
• Check your ridge dimensions and clearance to confirm fit before install.

Who is this for: The SUBFIX Gen 3 Roof Ridge Mount is ideal for homeowners, renters with permission, and installers who want a non-penetrating option to mount a Starlink Standard dish on a roof ridge. It suits people prioritizing roof integrity, easy dish aiming, and a stable ballast solution rather than through-roof brackets. If you need to drill into rafters or require a permanent bolted installation, consider alternative roof or pole mounts; otherwise, this kit offers a practical, removable way to place a Starlink dish high and clear on a roof peak.
