Suacopzar 9-Band Car Audio Equalizer with Sub Control

The Suacopzar 9-band car audio equalizer is a compact in-dash processor that gives you precise tonal control across 9 frequency bands plus dedicated subwoofer adjustment for clearer, fuller in-vehicle sound.

Designed for cars, boats and custom audio installs, this Suacopzar graphic equalizer fits into most dash or rack locations and routes CD and AUX signals through a 6-channel output stage (front left/right, rear left/right, dual sub outputs). It combines a metal housing, white backlighting and tactile rotary knobs so you can make swift adjustments while reducing noise and preserving signal strength with an 8V RMS line driver.

How does this equalizer improve my car audio system?

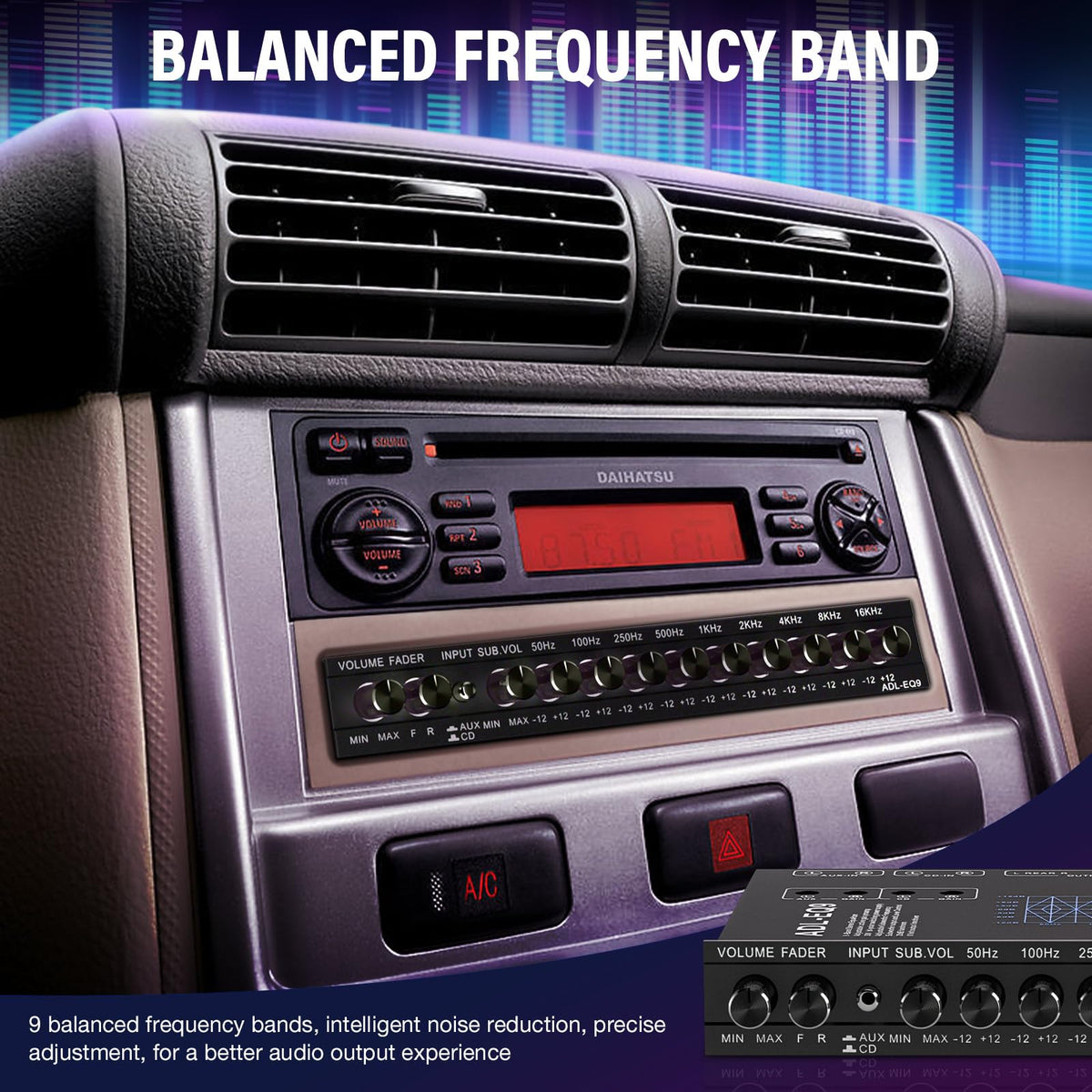

The equalizer lets you shape the tonal balance of your system across nine specific bands from 50 Hz to 16 kHz, and it adds a separate subwoofer frequency and level control for low-end precision. Instead of overdriving speakers, you can reduce problematic bands and boost those that need presence, improving clarity and stage imaging.

• 9 bands: 50 Hz, 100 Hz, 250 Hz, 500 Hz, 1 kHz, 2 kHz, 4 kHz, 8 kHz, 16 kHz.
• Subwoofer frequency adjustable between 30 Hz and 120 Hz for tight or deep bass tuning.
• Gain and fader controls to balance front/rear and source levels.
• Built-in noise reduction keeps signal clean when boosting frequencies.

Which inputs and outputs are included, and how do I connect them?

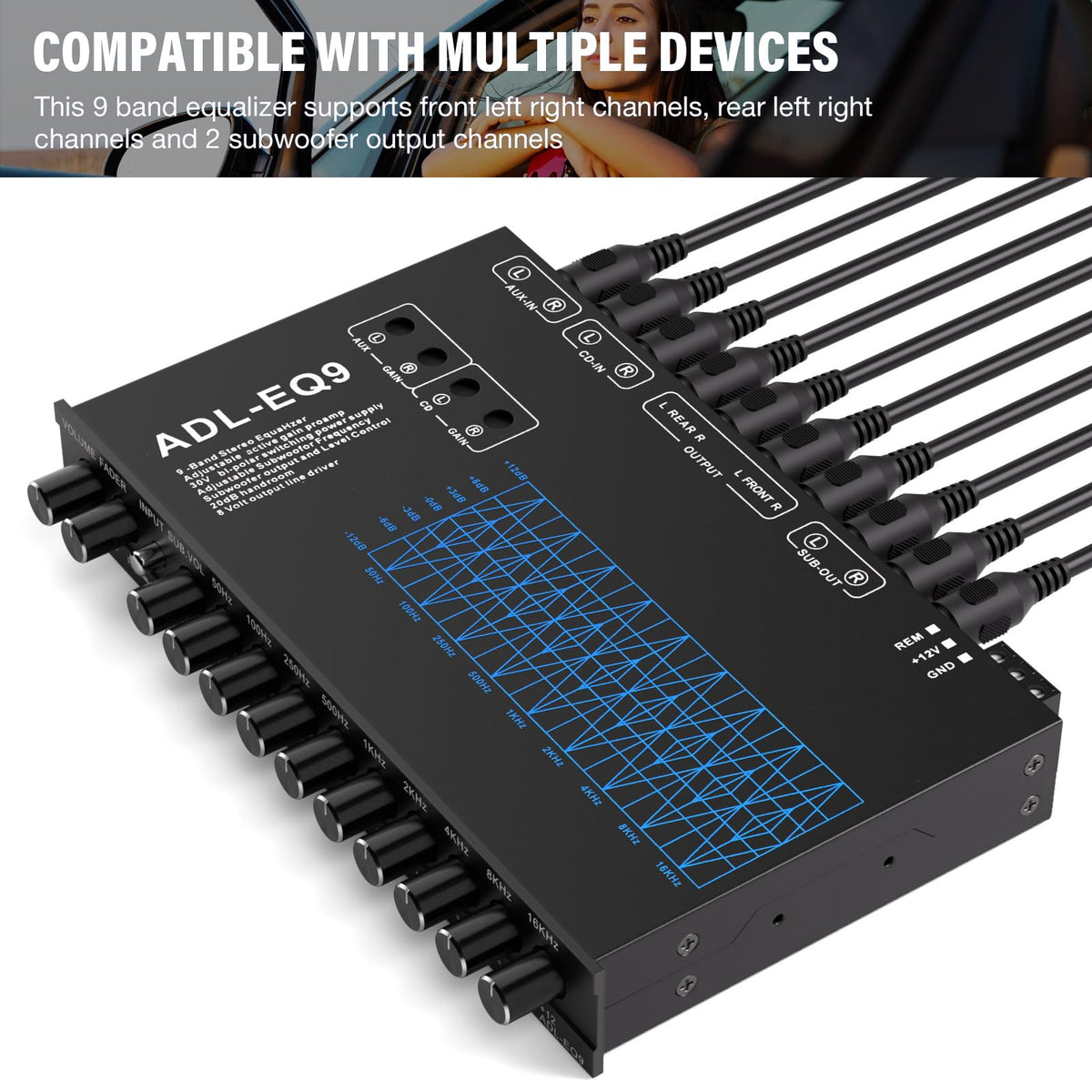

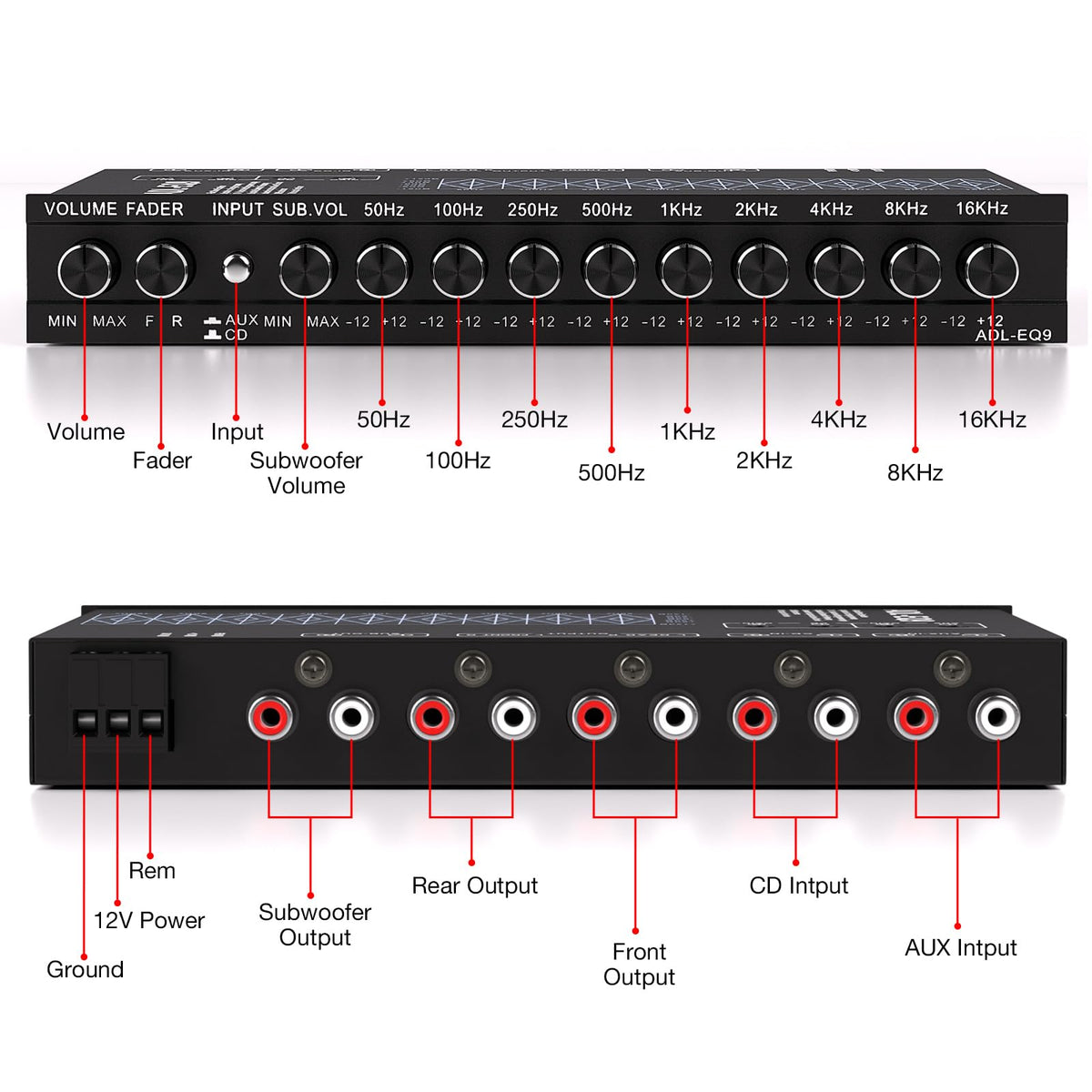

Connection is straightforward: two stereo inputs (CD and AUX) selectable by button, plus six stereo outputs to feed front and rear channels and two amplified sub outputs. The unit runs on 12V DC and provides line-level outputs compatible with most aftermarket amplifiers and head units.

• Input options: CD and 2-channel AUX with selectable source button.
• Outputs: front L/R, rear L/R, subwoofer L/R (dual sub outputs).
• Gain knob for auxiliary input volume matching to other sources.
• Powered from the vehicle 12V supply; compatible with boats and cars.

How easy is it to operate and install this EQ?

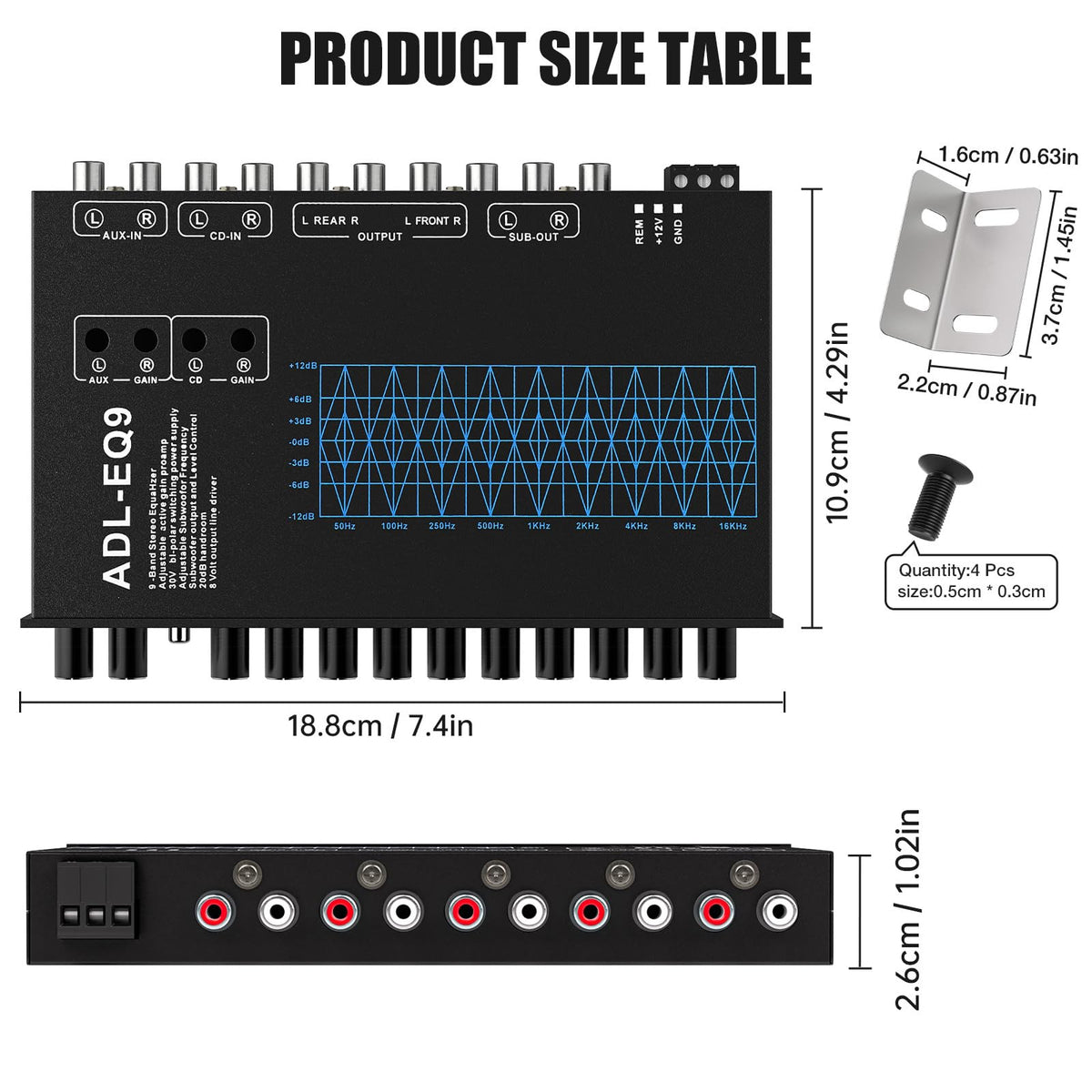

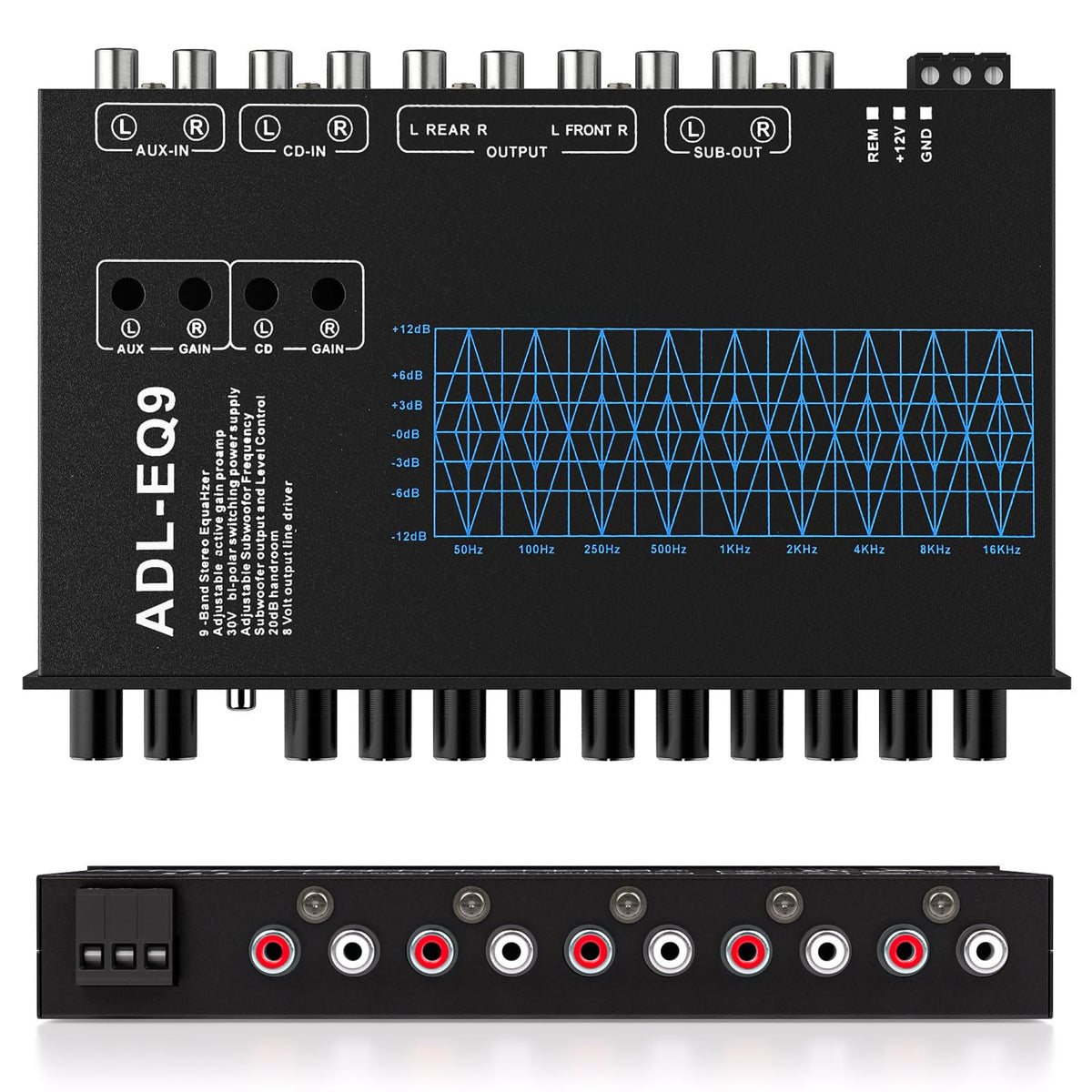

The Suacopzar EQ uses individual rotary controls for each frequency band and dedicated knobs for sub volume, sub frequency and fader, so adjustments are intuitive and fast. Its metal shell and standard-size footprint make mounting in many installations simple, while white illumination enhances visibility at night.

• One knob per band: quick tactile control without menu diving.
• White backlit knobs for nighttime readability.

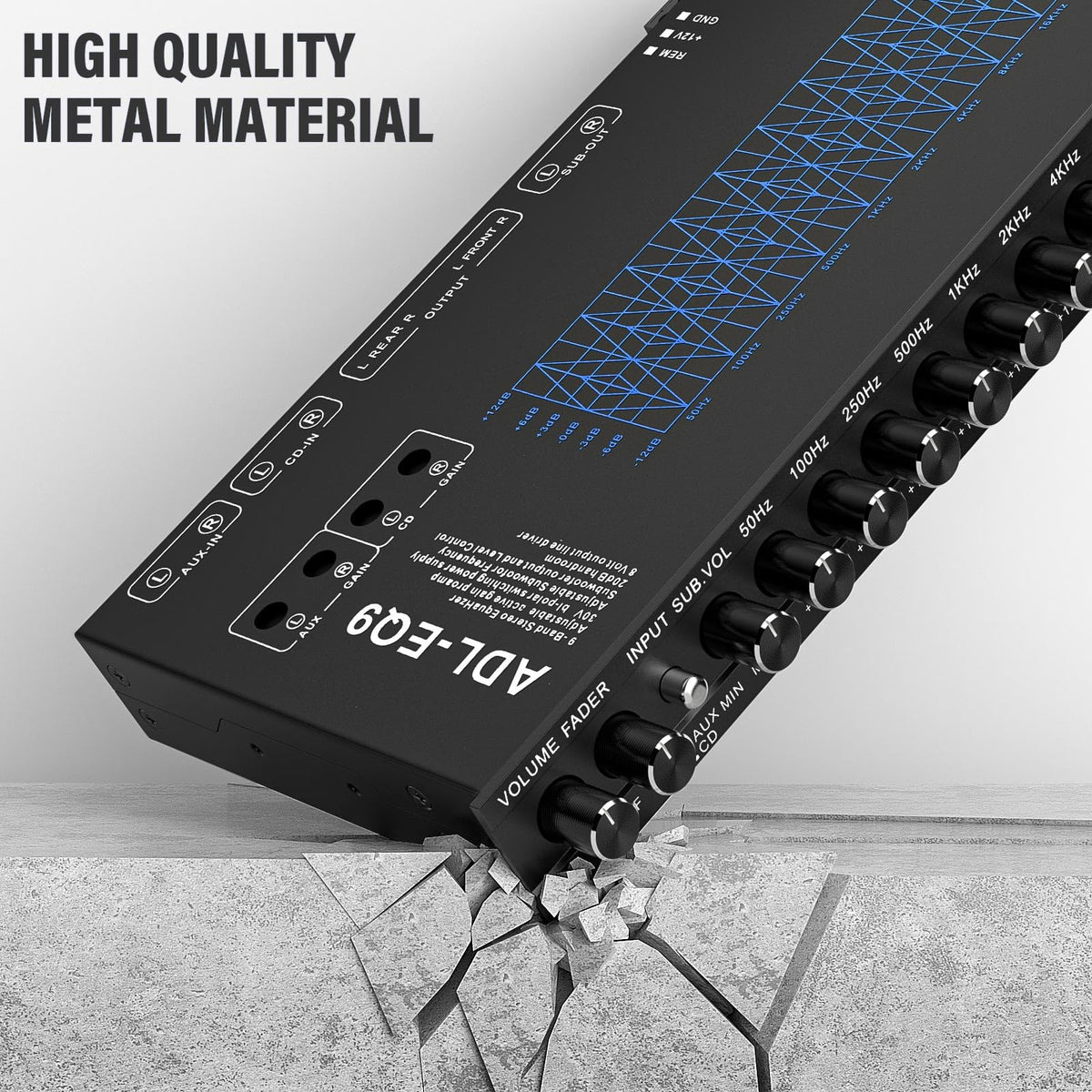

• Metal chassis and durable rotary controls for long service life.
• Includes fader and gain controls to fine-tune balance between channels.

What technical specs matter when matching this to my system?

Key specs to check are the band center frequencies, subwoofer frequency range, the line driver output level and the six-channel output arrangement. These determine how the EQ integrates with your head unit and amplifiers and whether it can drive clean signals without noise or distortion.

• 9 adjustable bands from 50 Hz to 16 kHz, ±12 dB per band.
• Subwoofer adjustable 30–120 Hz and dedicated sub level control.
• 8V RMS line driver for strong, low-noise outputs.
• Six outputs: front, rear and dual subs to feed multiple amps.

Who is this for? The Suacopzar 9-band equalizer is built for car and boat owners, audio hobbyists and installers who want hands-on tonal control, a separate sub adjustment, and a robust line-level output to drive aftermarket amplifiers. It’s a practical upgrade for anyone wanting clearer mids, better vocal presence, or tighter bass without replacing speakers or head units.
