SpeedyCables OM4 LC-LC Fiber Patch Cable 50m Magenta

SpeedyCables OM4 LC-to-LC 50m multimode duplex fiber patch cable delivers high-capacity 10G/40G/100G connectivity with a low-smoke zero-halogen magenta jacket for safe, reliable indoor installations.

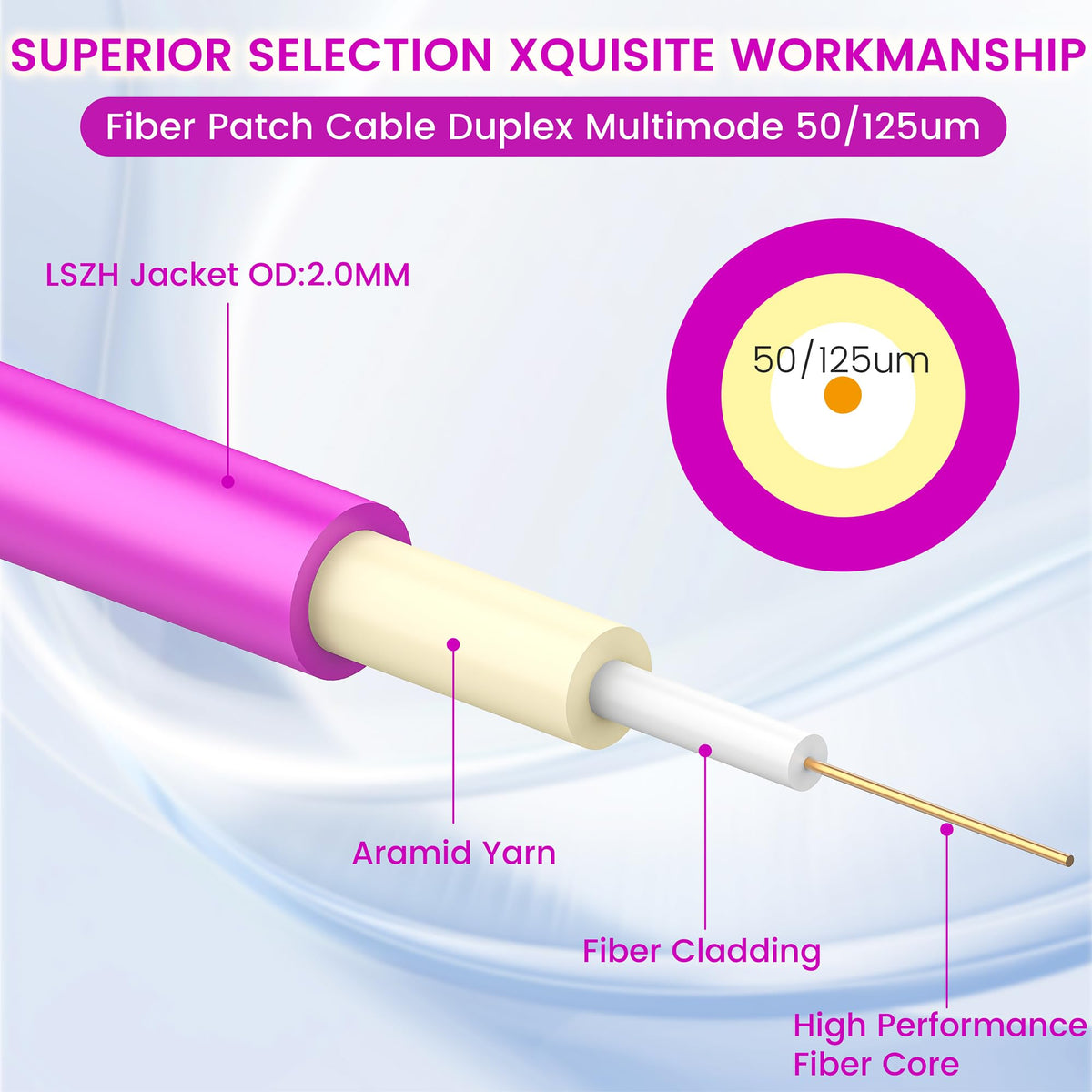

This OM4 multimode fiber cord is engineered for modern data networks that require high bandwidth and consistent signal quality. Built with 50/125µm fiber and LC duplex connectors, it supports short-distance high-speed links commonly used in data centers, server rooms, and telecom closets. The cable’s magenta LSZH jacket makes identification simple while reducing hazardous emissions in confined indoor spaces.

How fast and far can this OM4 LC-LC cable transmit data?

The cable is optimized for contemporary Ethernet standards across a range of distances depending on the link speed. OM4 multimode fiber increases bandwidth and extends reach compared with OM3, making it suitable for demanding network segments.

• Supports 10GbE up to approximately 400 meters.
• Supports 40GbE up to approximately 350 meters.
• Supports 100GbE up to approximately 125 meters.
• Bandwidth rated around 4700 MHz·km at 850nm for improved modal performance.

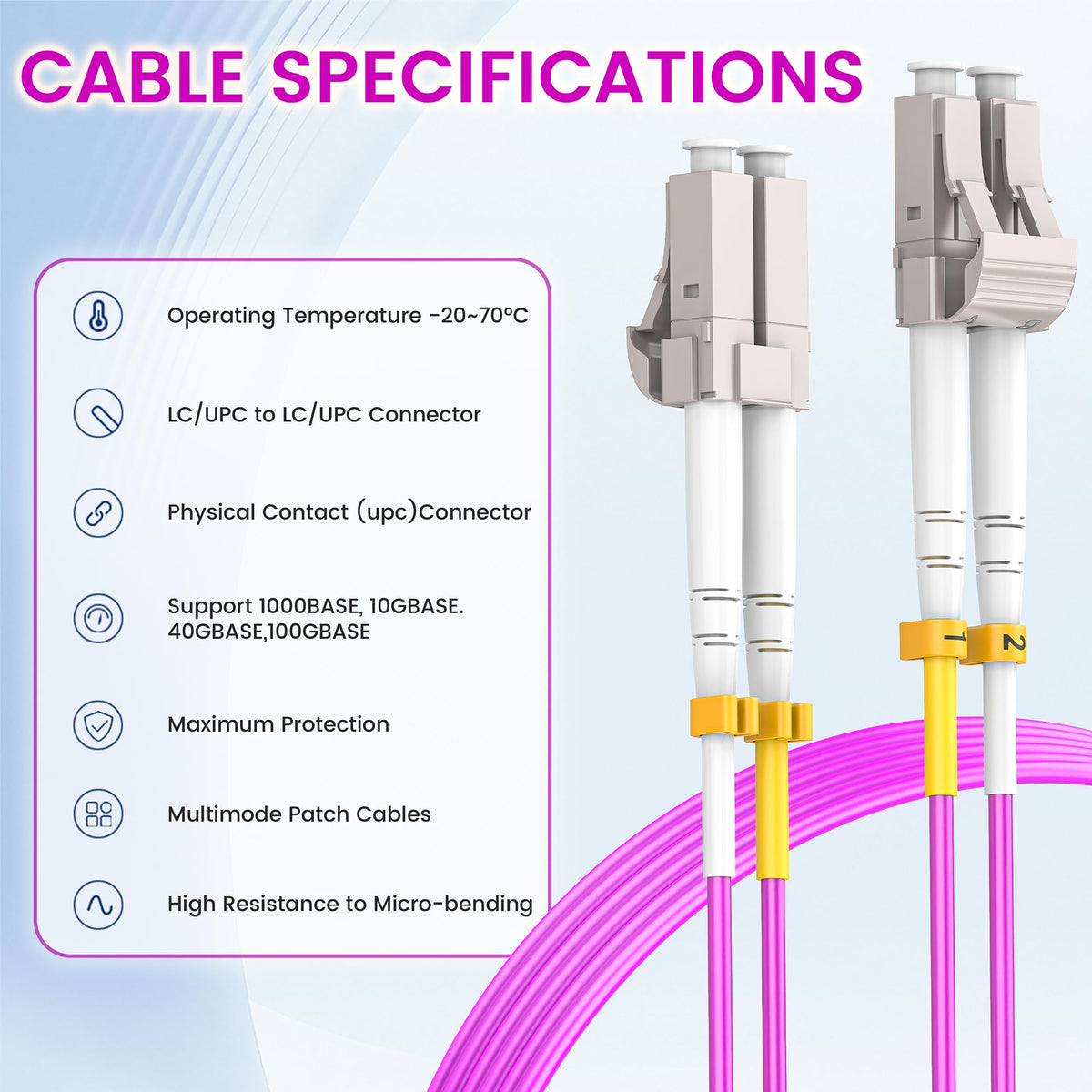

What connectors and performance specs does this patch cord use?

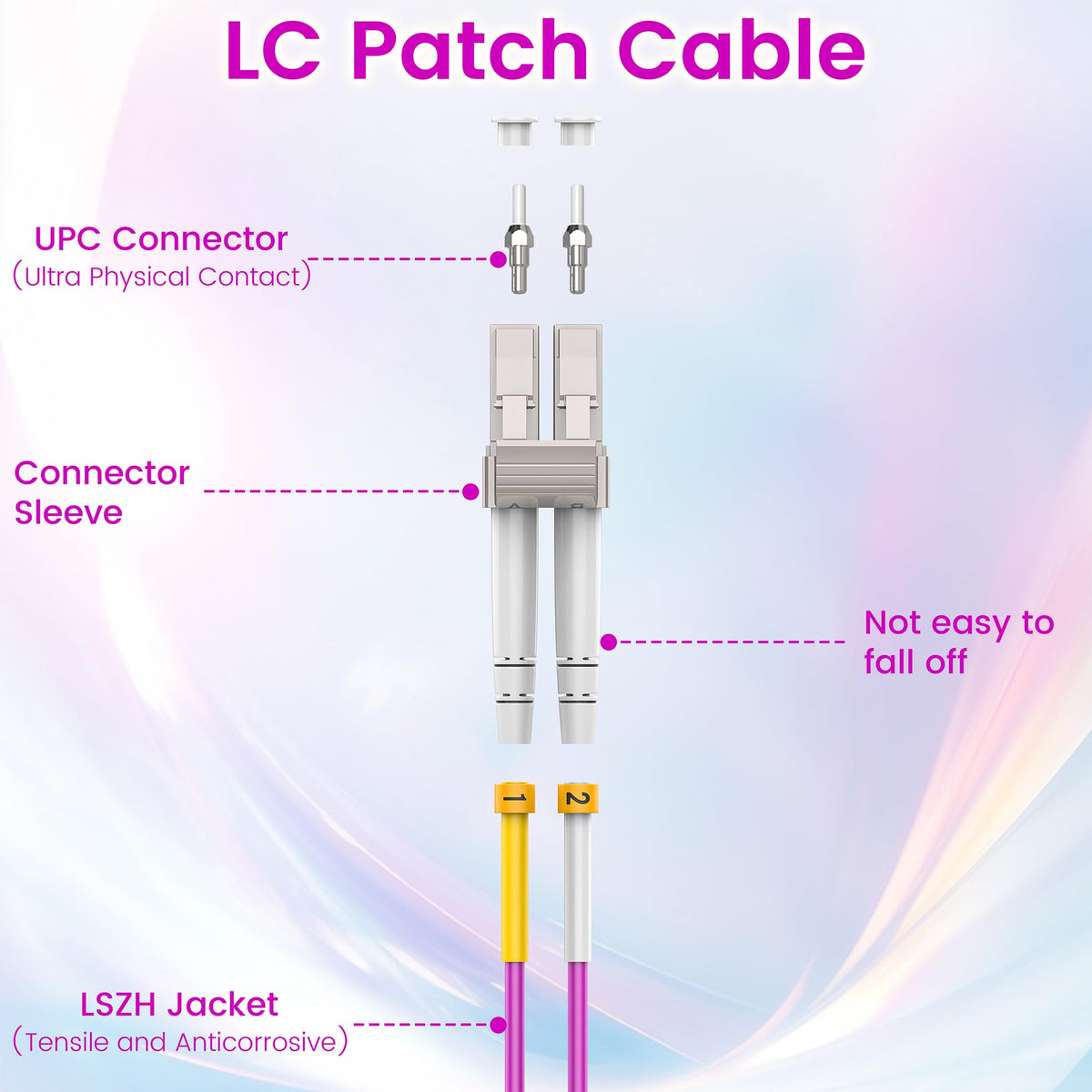

This SpeedyCables unit uses LC-to-LC duplex terminations with precision ceramic ferrules to maintain consistent optical alignment. Performance characteristics are tuned for low loss and strong return loss to preserve signal integrity in dense installations.

• LC/LC duplex connectors for compact port density.
• Zirconia ceramic ferrules; typical insertion loss ≤0.3 dB.
• Return loss performance ≥30 dB, suitable for SFP+, QSFP+ links and similar transceivers.
• 7.5 mm minimum bend radius for routing in tight trays and racks.

Is the magenta LSZH jacket important for my deployment?

The Low Smoke Zero Halogen jacket reduces toxic gas release and dense smoke during a fire, supporting safer indoor use—especially in populated or enclosed technical spaces. The magenta color also provides quick visual identification for OM4 fiber runs among other cabling.

• LSZH material minimizes halogen emissions under heat exposure.
• Bright magenta color denotes OM4 grade for easier cable management.
• Suitable for indoor plenum-adjacent routes where low-smoke materials are preferred.

How easy is it to install and integrate this cable into my network?

The cable’s flexibility and standard LC connectors make installation straightforward in high-density environments. It is compatible with common transceiver modules and patch panels, so it integrates into existing equipment without special adapters.

• Standard LC connectors plug into most modern switches, transceivers, and patch panels.
• Duplex wiring simplifies polarity and duplex pairing for quick setup.
• 7.5 mm bend radius and flexible jacket ease routing through cable management hardware.

Who is this for: Network engineers, data center technicians, and IT teams upgrading backbone or server-to-switch links will find this SpeedyCables OM4 LC-LC 50m patch cable useful when they need high throughput, clear OM4 identification, and safer indoor jacket materials. It’s geared toward environments that require reliable multimode performance for 10G/40G/100G Ethernet and compatibility with standard SFP+/QSFP+ transceivers without sacrificing installation convenience.
