Skar Audio SDR-2X8D4 Dual 8-Inch Loaded Vented Subwoofer Enclosure – 1,400W Peak / 700W RMS

Overview

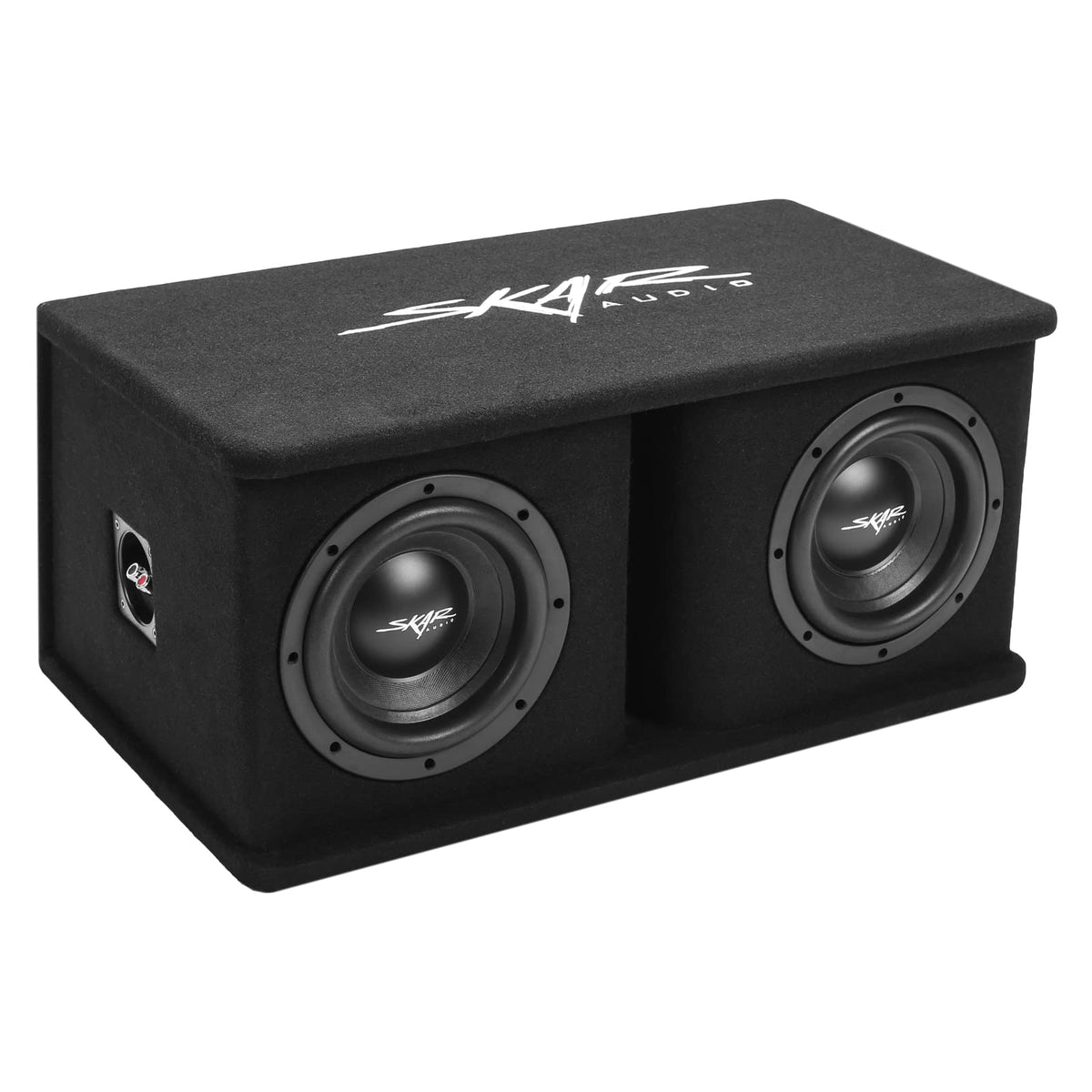

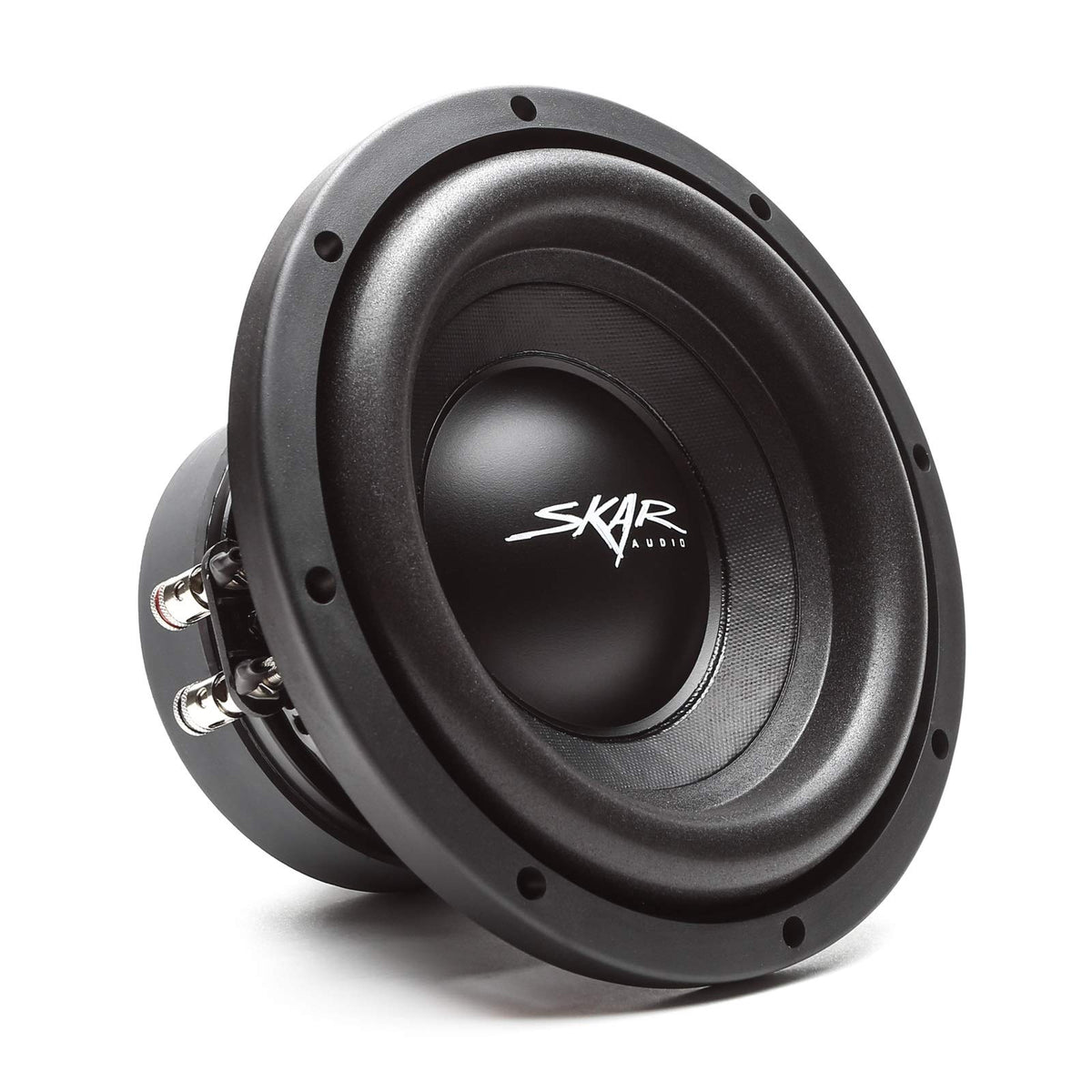

The Skar Audio SDR-2X8D4 is a dual-8-inch loaded, vented subwoofer enclosure designed for listeners who want solid, competition-grade bass without building a system from the ground up. It pairs two SDR-8 D4 subwoofers with a purpose-built enclosure to deliver powerful low-end response in a compact footprint. The design emphasizes efficiency, ease of installation, and a clean, integrated appearance in a variety of vehicles.

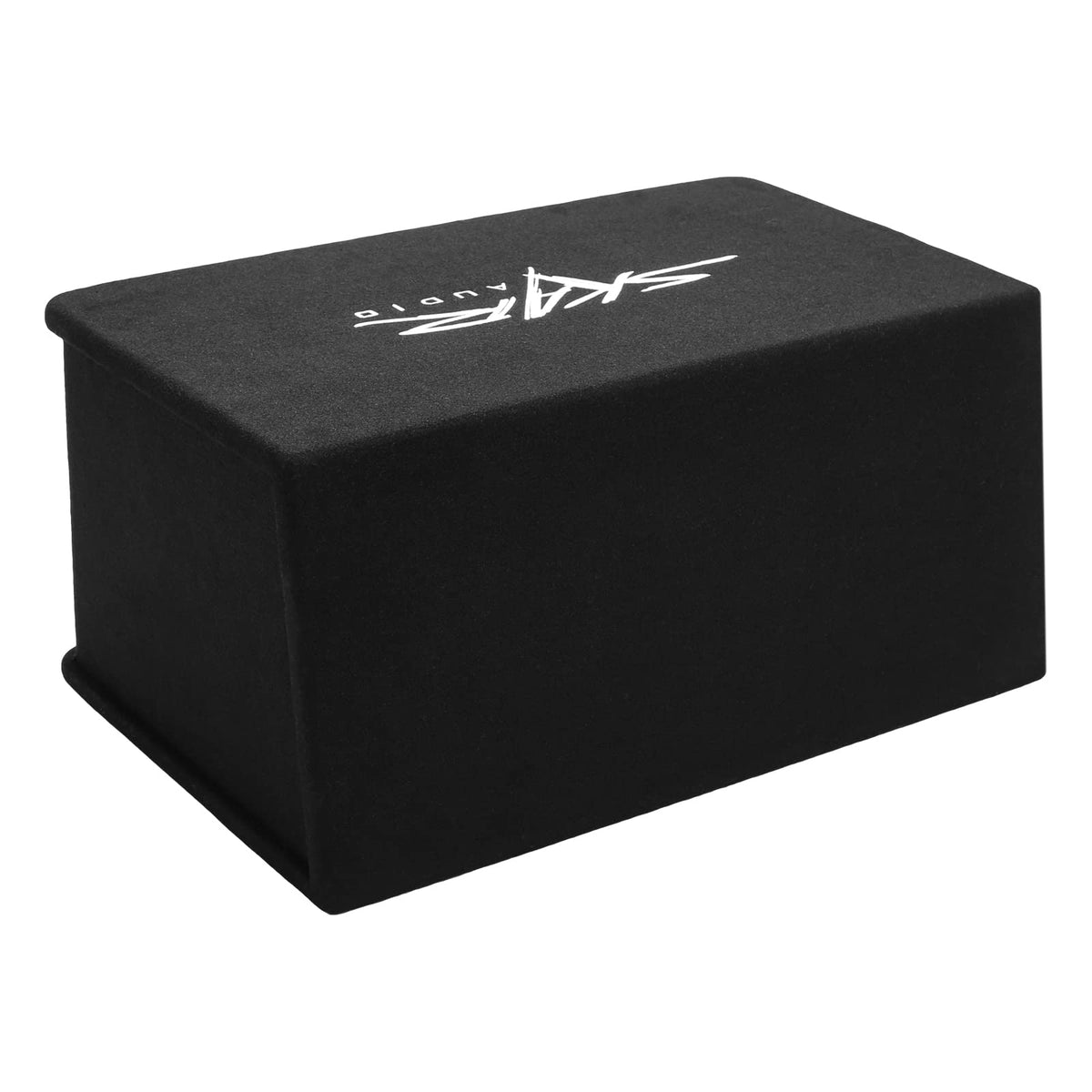

With a thoughtful combination of a kerf middle port and a split chamber woofer configuration, the enclosure aims to balance deep bass with midrange clarity. The enclosure is finished in premium black carpeting and features the Skar Audio logo on the top surface for a subtle, refined look that fits most dashboards and trunks.

Key design features

• SDR Series 8-Inch Dual 4-ohm Loaded Vented Subwoofer Enclosure
• Peak Power: 1,400 Watts | RMS Power: 700 Watts
• Pre-wired Internally for a 1 Ohm Final Impedance Load at the Terminals for an Easy Installation

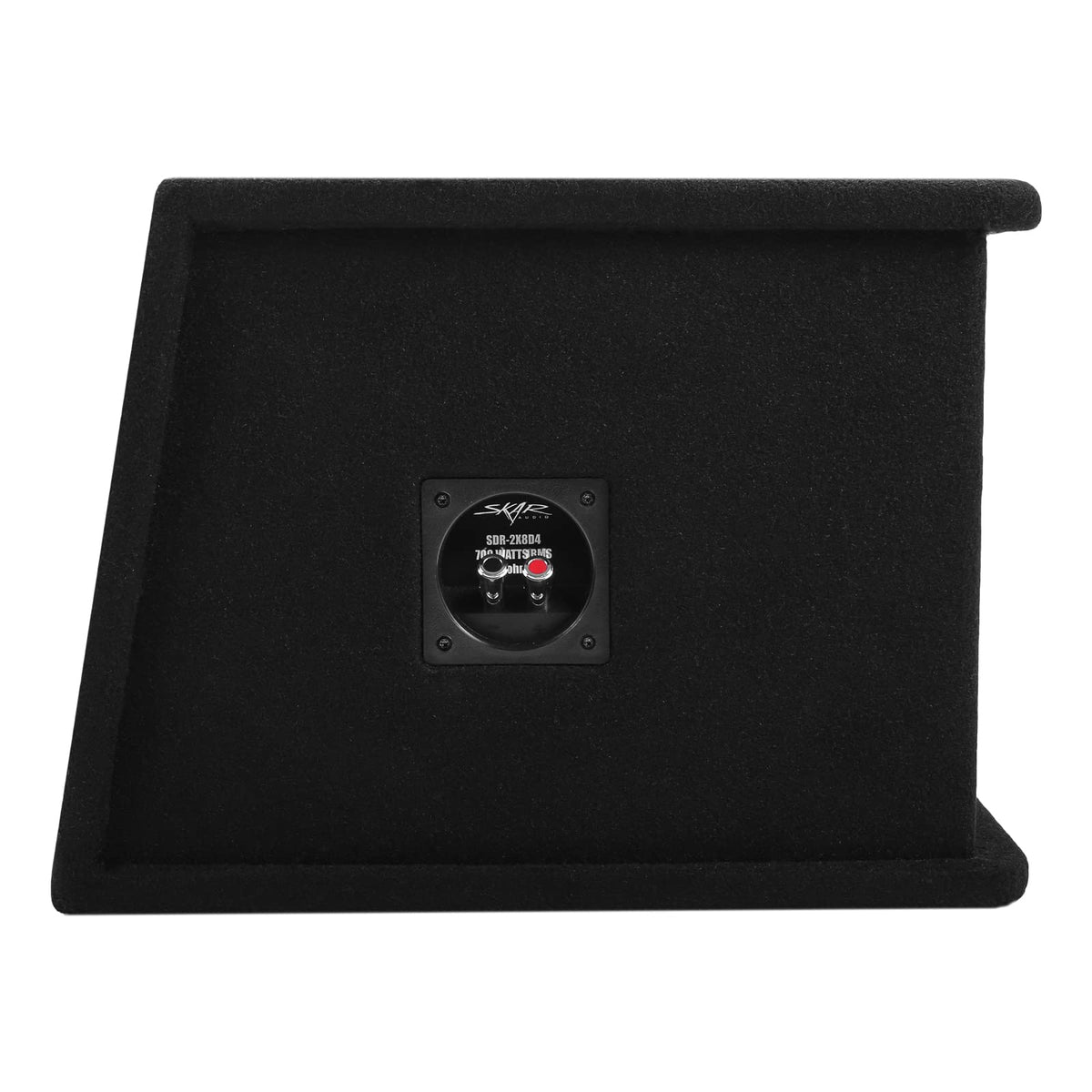

• Premium 5/8" MDF Enclosure Finished in Black Carpeting
• Double Front Baffle (1.25") with Countersunk Subwoofer Design for Flush, Attractive Appearance
• Compact in Size with Superior Bass Output | Frequency Response: 30 Hz - 350 Hz

Practical use and installation

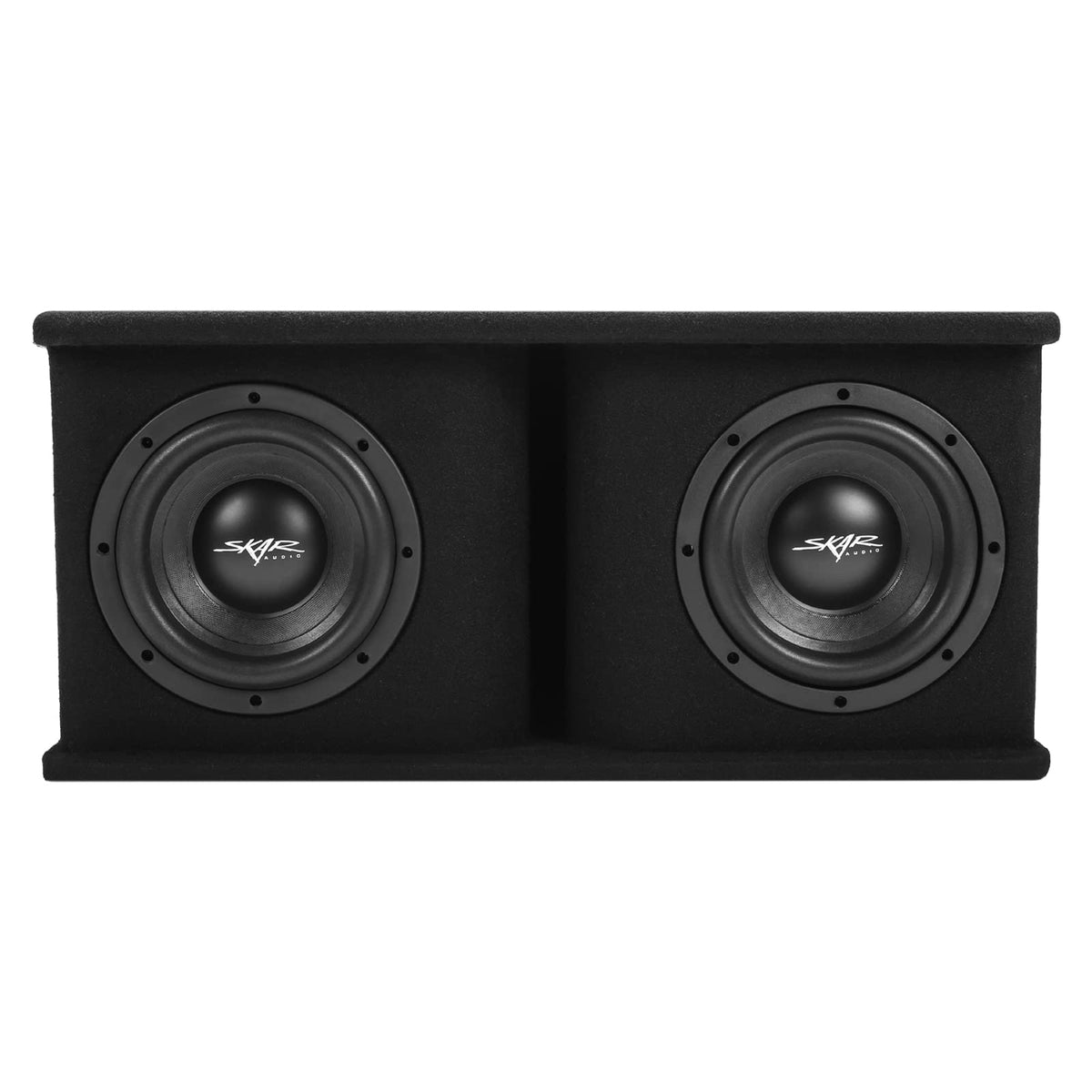

• Pre-wired internal configuration simplifies wiring, presenting a straightforward, plug-and-play experience for capable amplifiers
• Enclosure width of 25.75" and two 8" drivers provide a balanced footprint that can fit many trunk or cargo spaces

In real-world use, this setup can enhance bass presence across genres—from punchy hip-hop and electronic tracks to cinematic soundscapes. The combination of a robust MDF enclosure, a black carpet finish, and a clean top surface logo helps the unit integrate with a variety of vehicle interiors while remaining rugged for road use. While outcomes depend on your amplifier, enclosure sealing, and vehicle acoustics, the SDR-2X8D4 is designed to offer a dependable platform for solid low-end extension.

Optimization tips

To maximize performance, pair this enclosure with a compatible amplifier and ensure good enclosure sealing and secure mounting. Also consider the rest of your system’s impedance matching to maintain stable electrical load and dynamic response.
