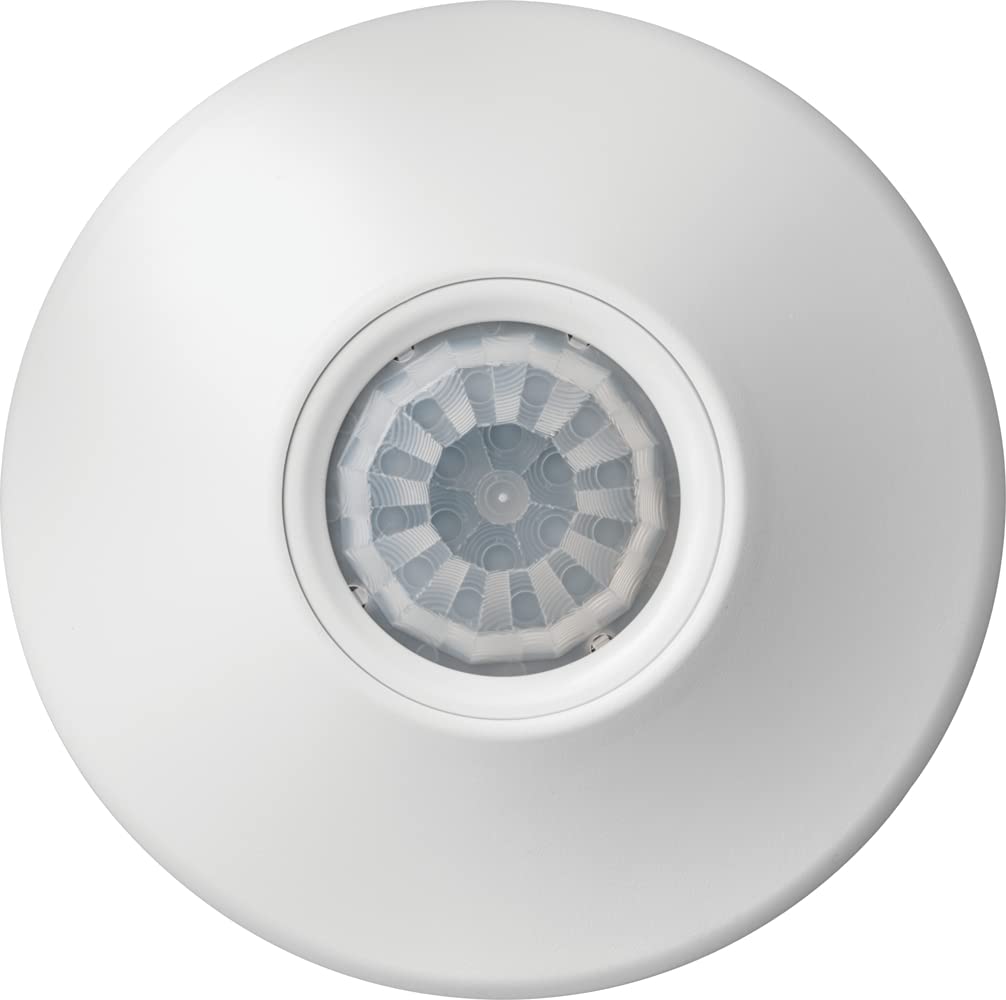

SensorSwitch CM Ceiling Motion Sensor — 360° PIR, 12–24V

Overview

The SensorSwitch CM Series Ceiling Motion Sensor is a compact, low-voltage PIR detector designed for indoor use in commercial spaces. When mounted on ceilings in offices, classrooms, or retail areas, it quietly senses motion and informs lighting controls with a 360° coverage pattern. Its ability to detect small movements, such as a hand gesture, helps keep spaces comfortable while minimizing unnecessary lighting.

Key capabilities

• 360° PIR detection delivers broad coverage for open layouts
• Optimized for small motions within a 12 ft radius when mounted at about 9 ft
• 12V to 24V compatibility allows easy integration with existing lighting networks

Control and customization

• Time delay adjustable from 30 seconds to 20 minutes for flexible operation
• Push-button pairing and a green LED indicator for quick setup and status checks
• Supports up to 14 sensors per power pack with no minimum load requirement

Installation and form factor

• Easy ceiling installation compatible with ceiling tiles, metallic grids, 3.5" octagon boxes, or single gang boxes
• Detects motion from 8 to 15 ft ceiling heights and blends discreetly with ceiling finishes
• Compact size: 4.55" diameter, 1.55" deep

Durability and compliance

• CSA certified to US and Canadian safety standards
• Operating temperature range from -10°C to 85°C supports varied indoor environments
• Backed by a 5-year limited warranty and long-term reliability

Real-world use and benefits

In workplaces, classrooms, and retail spaces, the CM Series enables lights to respond to occupancy naturally, without manual switches. The result can be a calmer lighting rhythm and potential energy-use alignment with activity levels, depending on your system configuration.

Users may notice smoother transitions and reduced need for manual switching, particularly in common areas with frequent, subtle motion. This sensor is designed to integrate with standard lighting setups, helping you modernize control without large hardware changes.
