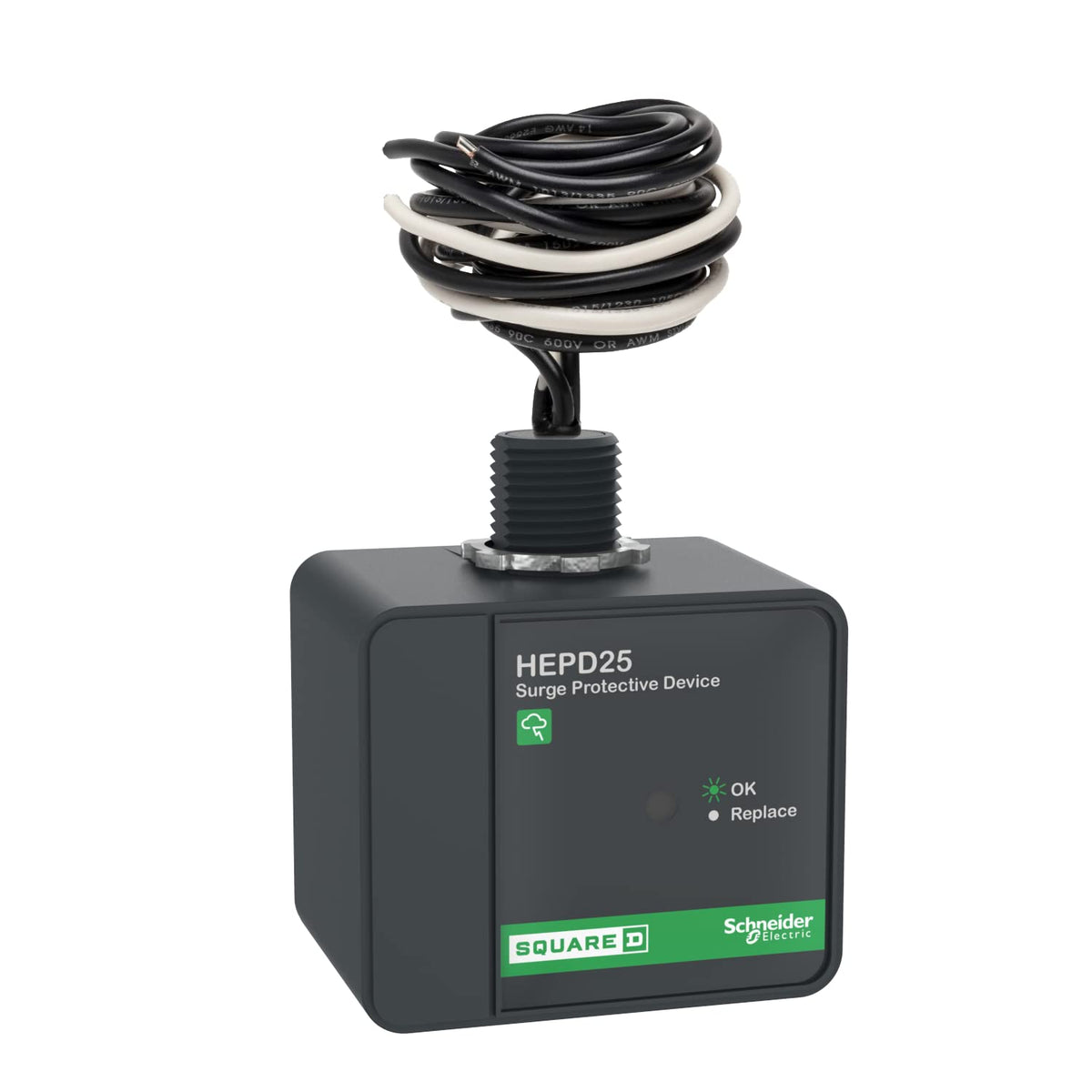

Schneider Electric Whole-House Surge Protector HEPD25

The HEPD25 from Square D by Schneider Electric is a Type 1 residential surge protective device designed to intervene at the electrical panel. It is built to work alongside point-of-use surge strips and protects appliances and branch circuits that plug strips can’t, helping limit the energy of incoming surges before they travel into home wiring. Rated for 25,000 amps surge current and NEMA 4X, the unit provides a visible LED status indicator and a manufacturer warranty for added peace of mind.

How does the HEPD25 protect my home’s electronics and appliances?

The HEPD25 clamps high-energy transients at the load center so fewer surges reach downstream circuits and devices. It’s not a replacement for point-of-use protectors but reduces the magnitude of surges that branch-level devices must handle.

• 25,000 amp surge current rating to absorb large transient events

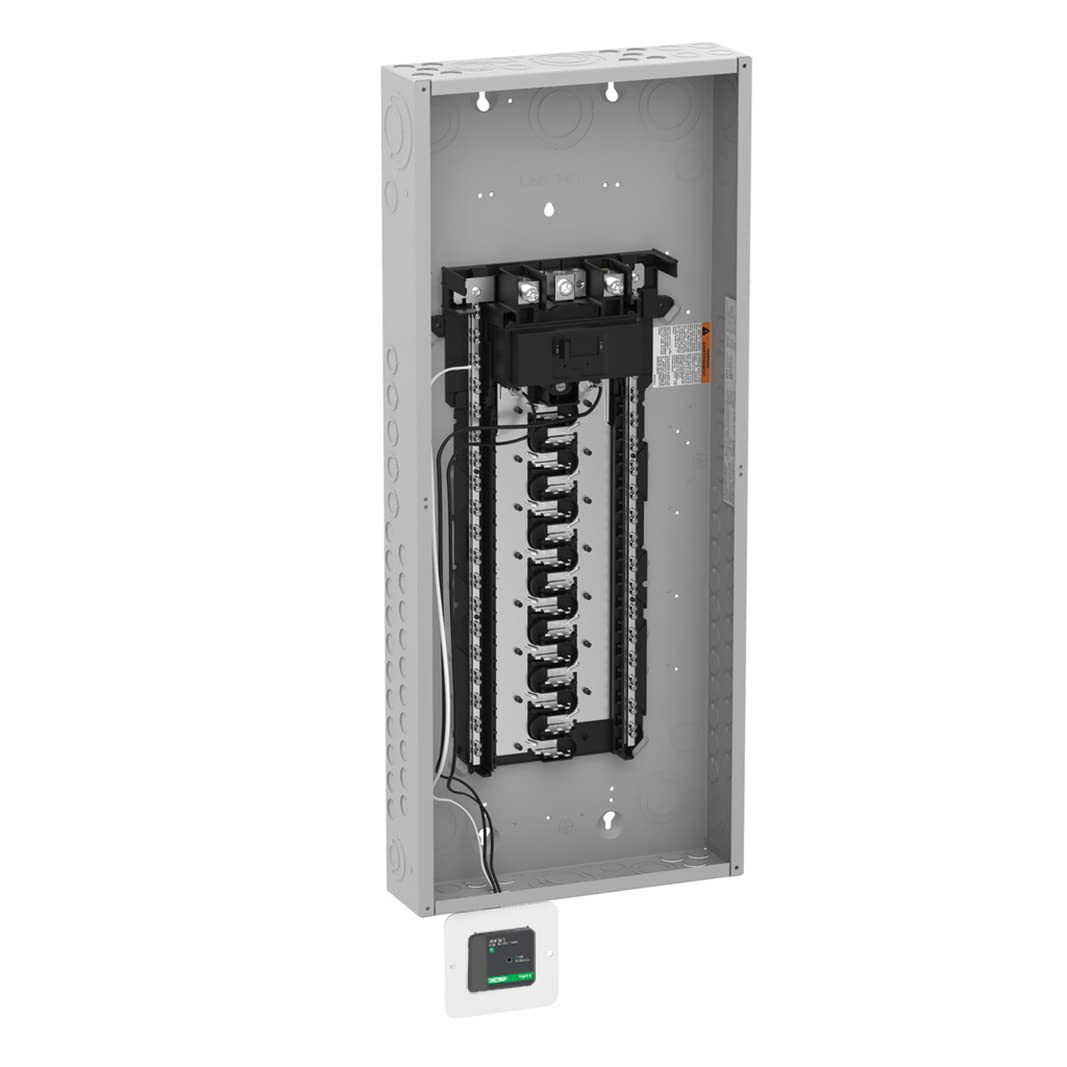

• Installed at the main or sub-panel to protect multiple circuits
• Works in tandem with plug-in surge strips for layered protection
• Helps protect hardwired appliances that cannot use plug strips

What are the key specifications and safety certifications?

The HEPD25 meets recognized industry standards for residential surge protectors and is built for indoor or outdoor service locations. Specifications focus on durability, performance, and ease of verification through a visible status LED.

• Type: Single-phase, 3-wire for 120/240V residential systems
• Surge capacity: 25,000 amp surge current rating; 25,000 amp short-circuit current rating (SCCR)
• Standards: CSA and UL 1449 3rd Edition Type 1 SPD
• Enclosure: NEMA 4X rated for indoor or outdoor installations

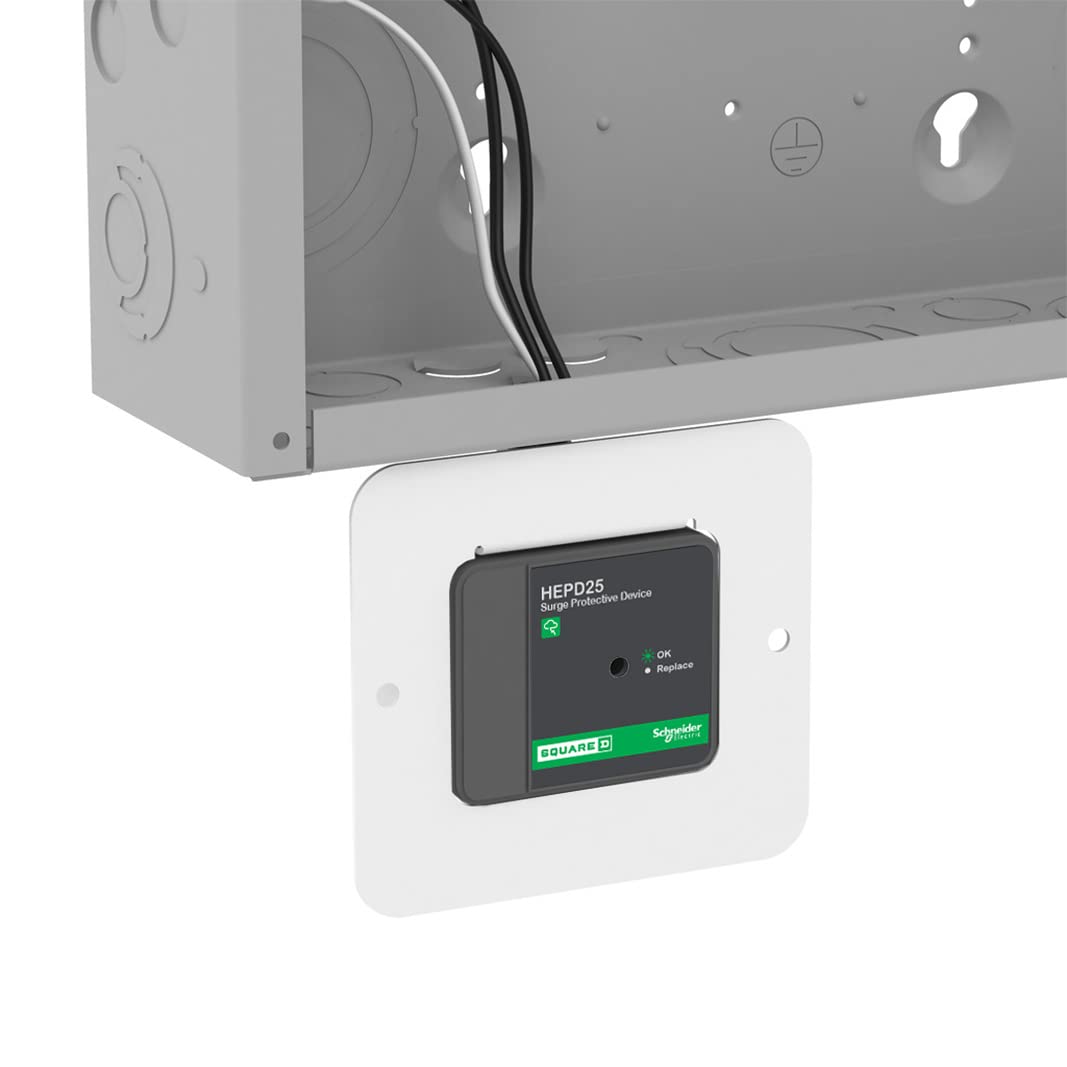

• Status: Green LED indicator shows protection health

How is the HEPD25 installed and maintained?

Installation is by a qualified electrician who connects the SPD to the residential load center. The device is designed for straightforward mounting and routine status checks via its LED; replace the SPD if the indicator shows a fault.

• Connects to any brand residential load center at the main or sub-panel
• Requires a licensed electrician for proper installation and code compliance
• Green LED indicates active protection; loss of LED indicates replacement needed
• Weather-resistant NEMA 4X enclosure supports outdoor mounting near the panel

Who is this for? The Square D HEPD25 is suited for homeowners, electricians, and residential installers who want a panel-mounted surge protective device to supplement point-of-use protection. It’s ideal for houses with valuable electronics or hardwired appliances that need upstream surge mitigation, for properties requiring a NEMA 4X-rated SPD, and for anyone seeking a recognized-brand solution with clear status indication and manufacturer-backed warranty coverage.
