RTL-SDR Blog Wideband LNA with Bias Tee Powered | 50 MHz–4 GHz, 0.6 dB NF @ 900 MHz, 18.7 dB Gain

Overview

The RTL-SDR Blog Wideband LNA with Bias Tee Powered is a compact, front-end preamplifier designed for versatile wideband reception. Built around a SPF5189Z based amplifier, it covers a broad spectrum from 50 MHz up to 4 GHz, delivering a clean, low-noise path for your SDR setup. The module ships with a ready-to-use SMA adapter, so you can connect quickly to most RTL-SDR dongles, receivers, or test rigs and begin exploring a wider range of signals right away.

Designed for hobbyists and experimenters, this LNA emphasizes a careful balance of noise, gain, and linearity. When placed in front of your SDR, it can help reveal weak or distant signals that might otherwise be buried in front-end noise, especially during band-rich tests like VHF/UHF scanning, airband reception, or general spectrum analysis. While individual results vary with antenna, weather, and local interference, the device is built to offer a higher signal-to-noise environment across the band you care about.

Key specs at a glance

• Frequency range: 50 MHz to 4000 MHz
• Noise figure: 0.6 dB at 900 MHz
• Gain: 18.7 dB at 900 MHz
• OIP3: 39.5 dBm at 900 MHz
• P1dB: 22.7 dBm at 1960 MHz
• Bias Tee Powered: requires 3–5 V bias-tee power

What’s in the box

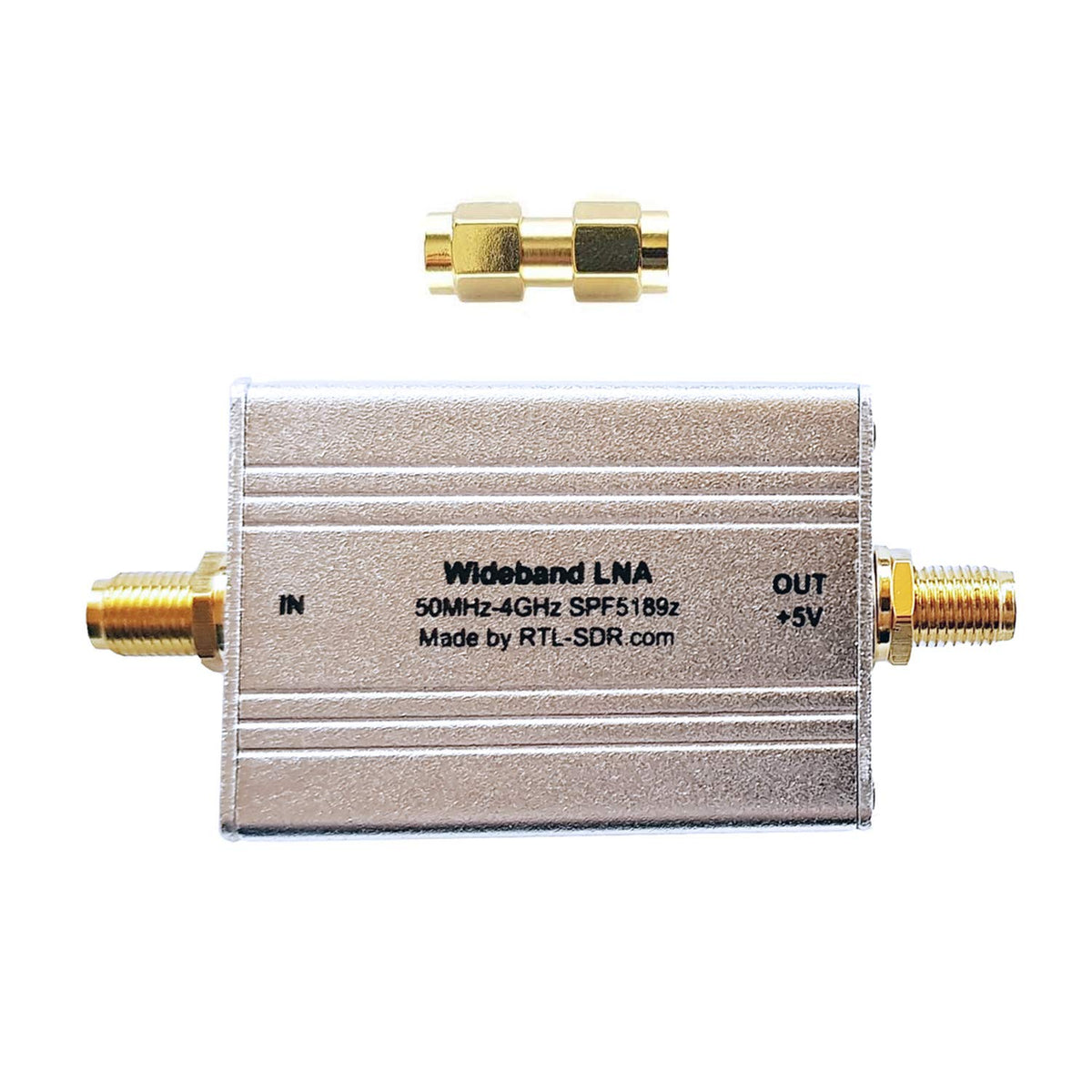

• 1x RTL-SDR Blog Wideband LNA with Bias Tee Powered
• 1x SMA male to SMA male adapter

Power and installation notes

• Bias tee power: 3–5 V required for operation

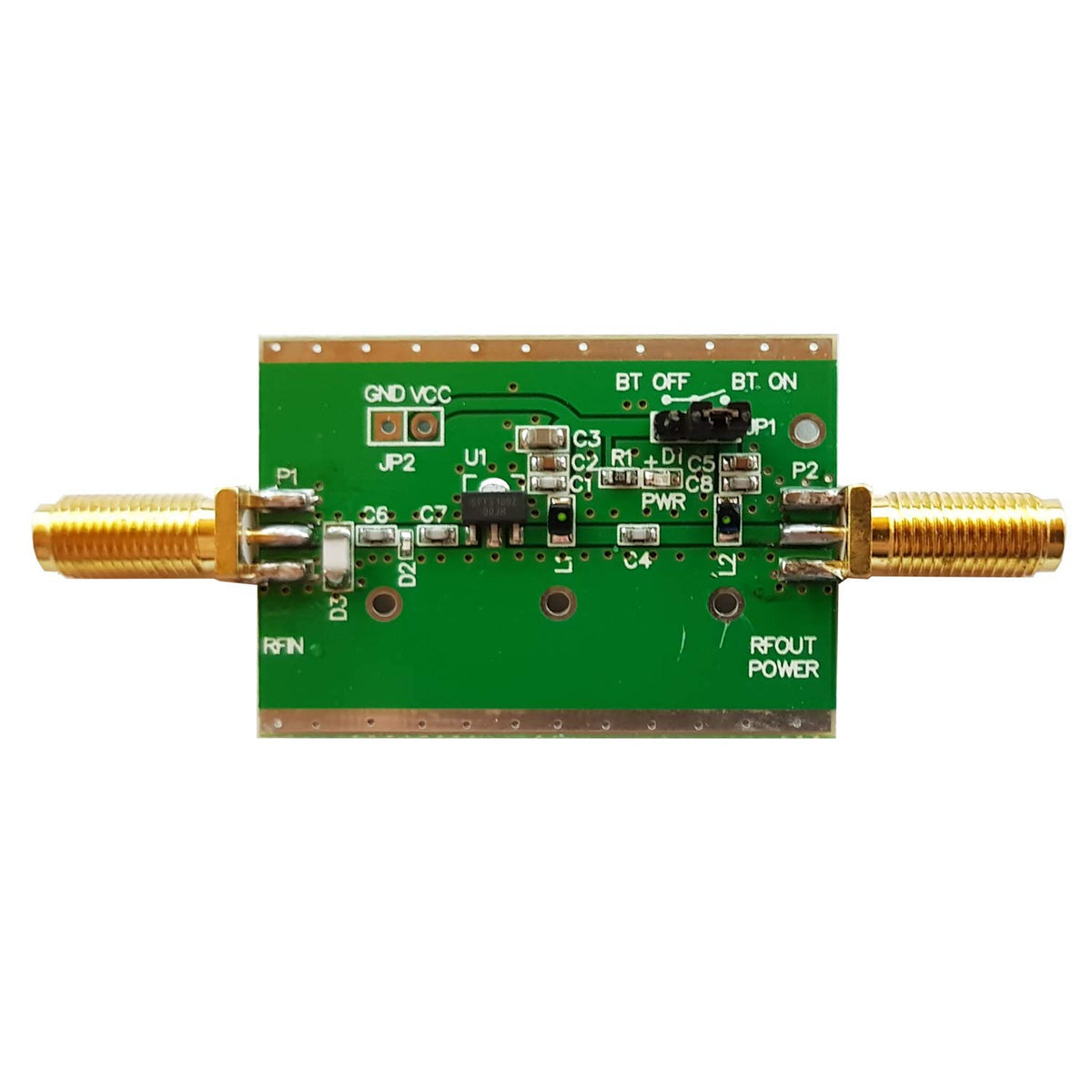

• Internal header option to switch to external power (may affect enclosure use)
• RTL-SDR V3 users typically provide around 4.5 V, which is suitable for many setups

Important safety and usage guidance

If you place the LNA near an outdoor antenna, ensure the antenna is properly grounded. The board includes protective ESD components, but grounding helps maintain protection effectiveness and reduces risk to the unit in surge events.

Real-world use and recommendations

This LNA is a versatile front end for broad-spectrum experiments and signal spotting. You may notice clearer reception of weak signals across the 50 MHz to 4 GHz range, especially when paired with a suitable antenna and a bias tee power source. For specific use cases such as ADS-B, consider the Triple Filtered ADS-B LNA for targeted improvements in that band, as recommended by RTL-SDR Blog.

Summary

If you’re building or upgrading an SDR test rig, this bias-tee powered wideband LNA offers a compact, low-noise path with solid gain across a wide frequency range. It’s a practical starting point for experiments, testing, and real-time spectrum exploration, with flexibility to adapt to external power options and ground safety considerations.
