REVODATA 2.5G PoE Splitter 12V/2A DC 5.5×2.5mm

REVODATA's PoE splitter converts 48V PoE into a regulated 12V/2A DC output while passing up to 2.5Gbps Ethernet data for non‑PoE devices like IP cameras and smart home gear.

If you need to power a 12V device where only Power over Ethernet (PoE) is available, this compact REVODATA splitter separates power and data from a single RJ45 PoE feed and delivers a clean 5.5×2.5mm DC plug output. It complies with IEEE802.3af/at, includes multiple protections, and is plug‑and‑play—ideal for installations that require both reliable power and faster-than‑gigabit network throughput when your infrastructure supports 2.5G Ethernet.

How fast will my network run with this splitter?

The REVODATA splitter supports 10/100/1000Mbps and up to 2.5Gbps transfer rates when used on compatible 2.5G network equipment. If your switch, cable and endpoint support 2.5G, expect near‑wire speed data throughput; otherwise it will fall back to the highest mutually supported speed.

• 2.5Gbps maximum with 2.5G-capable switch and cabling
• Backward compatible with 10/100/1000Mbps links
• Transparent data pass-through via RJ45 ports

What power does it provide and which devices can use it?

The unit extracts PoE power (44–57V input) and outputs a regulated DC 12V/2A (24W) through a 5.5×2.5mm barrel plug suitable for many IP cameras, access points and other 12V non‑PoE devices. It auto-detects the PSE (PoE switch or injector) and draws the correct power under IEEE802.3af/at rules.

• Output: 12V DC at up to 2A (24W)
• Compatible with non‑PoE devices using 5.5×2.5mm DC jack
• Works with PoE injectors or PoE switches (IEEE802.3af/at)

Is the splitter safe to use in installations exposed to electrical issues?

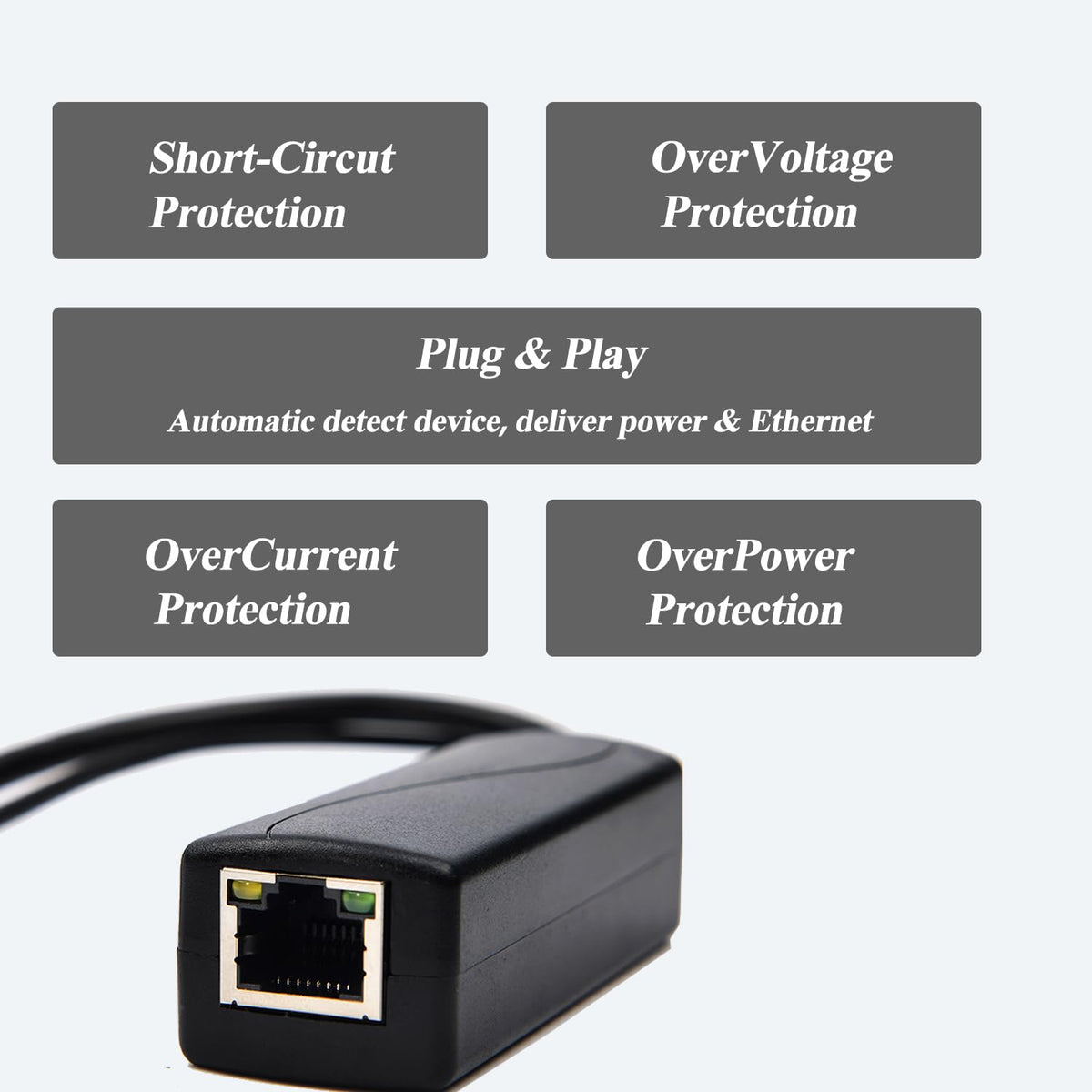

REVODATA built the splitter with isolation and multiple protections to safeguard connected equipment. It includes short‑circuit and overvoltage protections plus a 1500V high voltage isolation specification to reduce risk of damage during faults or noisy electrical environments.

• Short‑circuit and overvoltage protection
• Isolation circuit and 1500V high voltage isolation
• Auto power negotiation with PSE sources

How simple is installation and what are the physical specs?

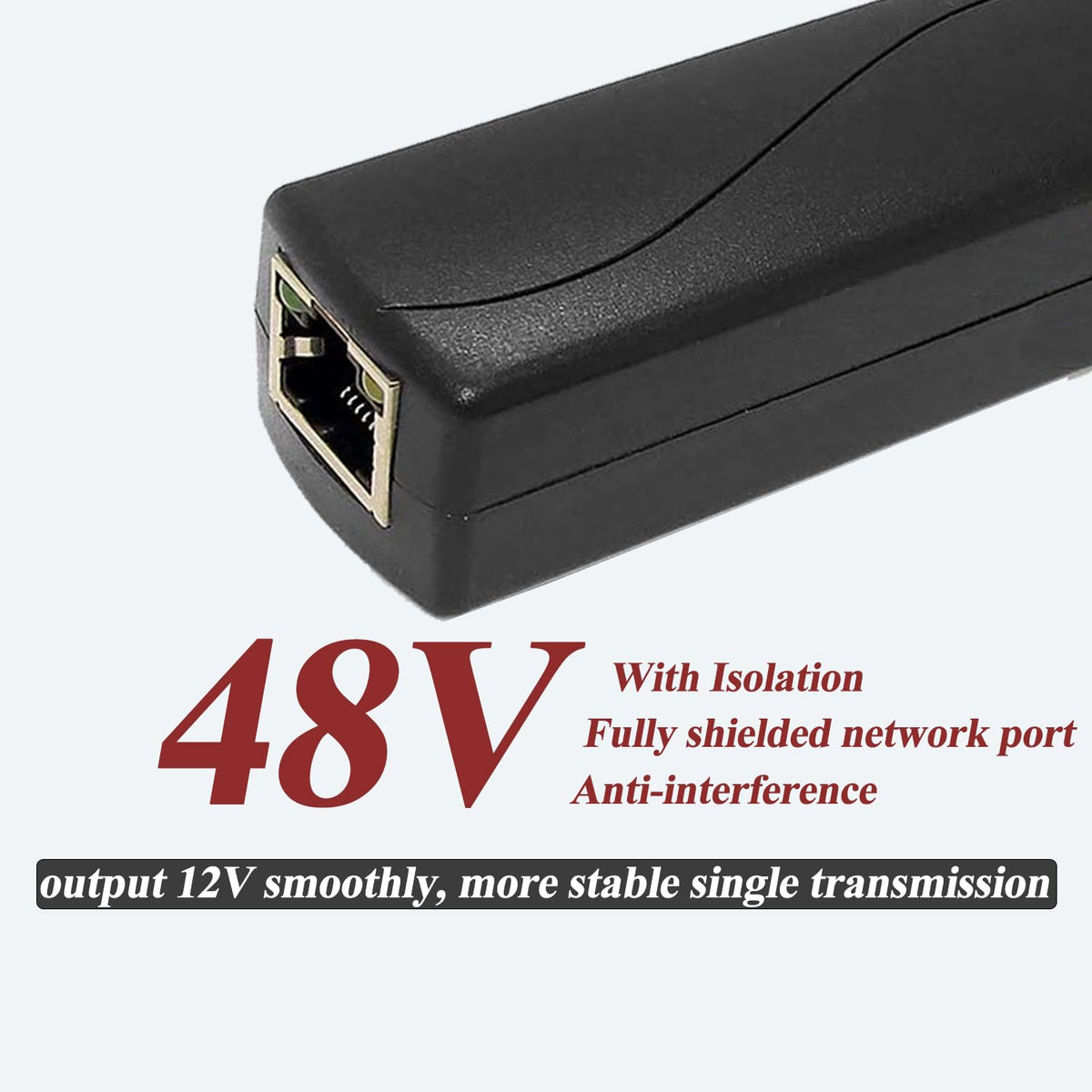

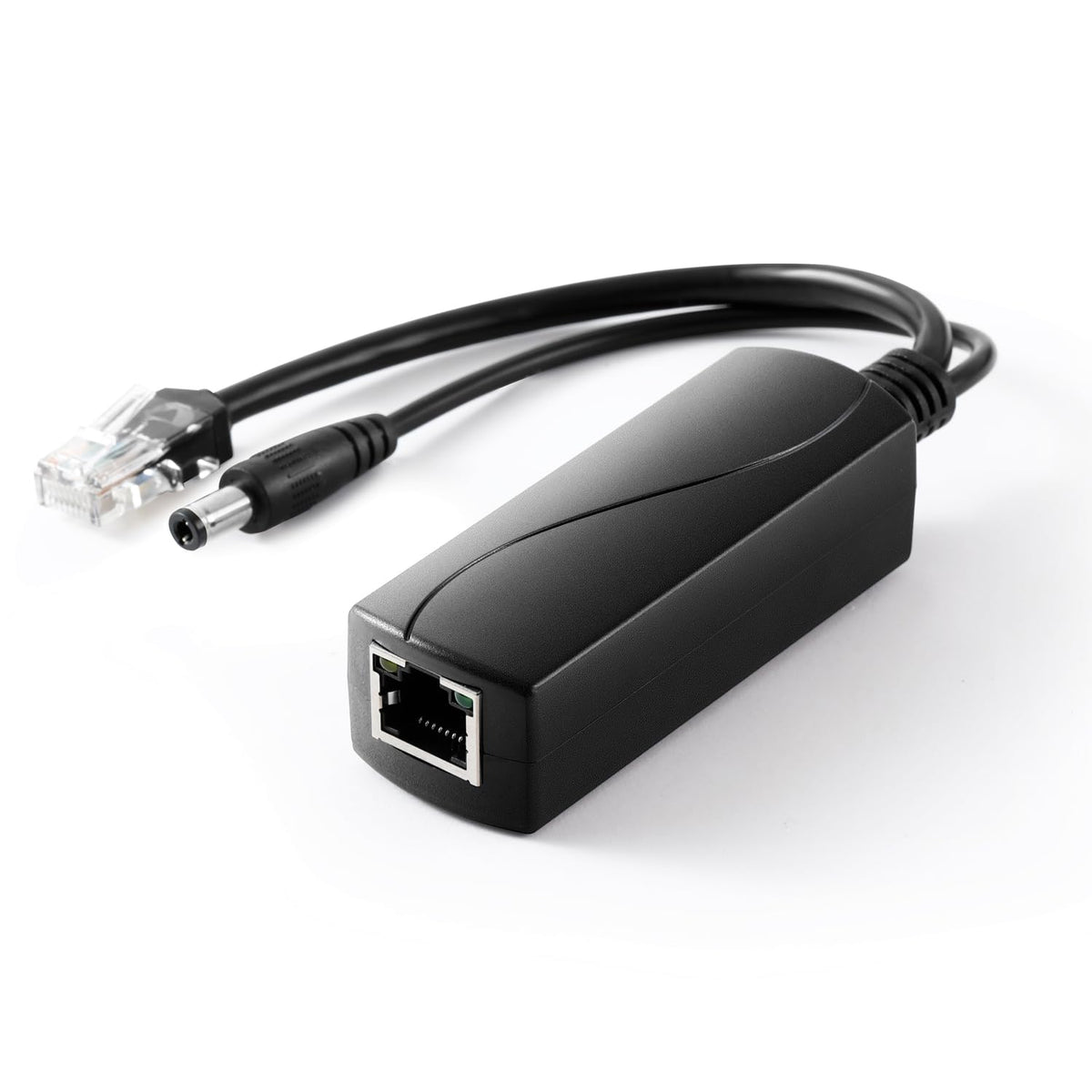

Installation is plug-and-play: connect the PoE feed to the splitter's RJ45 input, plug the DC barrel into your device, and connect the data RJ45 output if needed. The compact unit (27.5 × 2.8 × 2.3 cm, 50 g) fits easily in camera mounts, junction boxes or near endpoints.

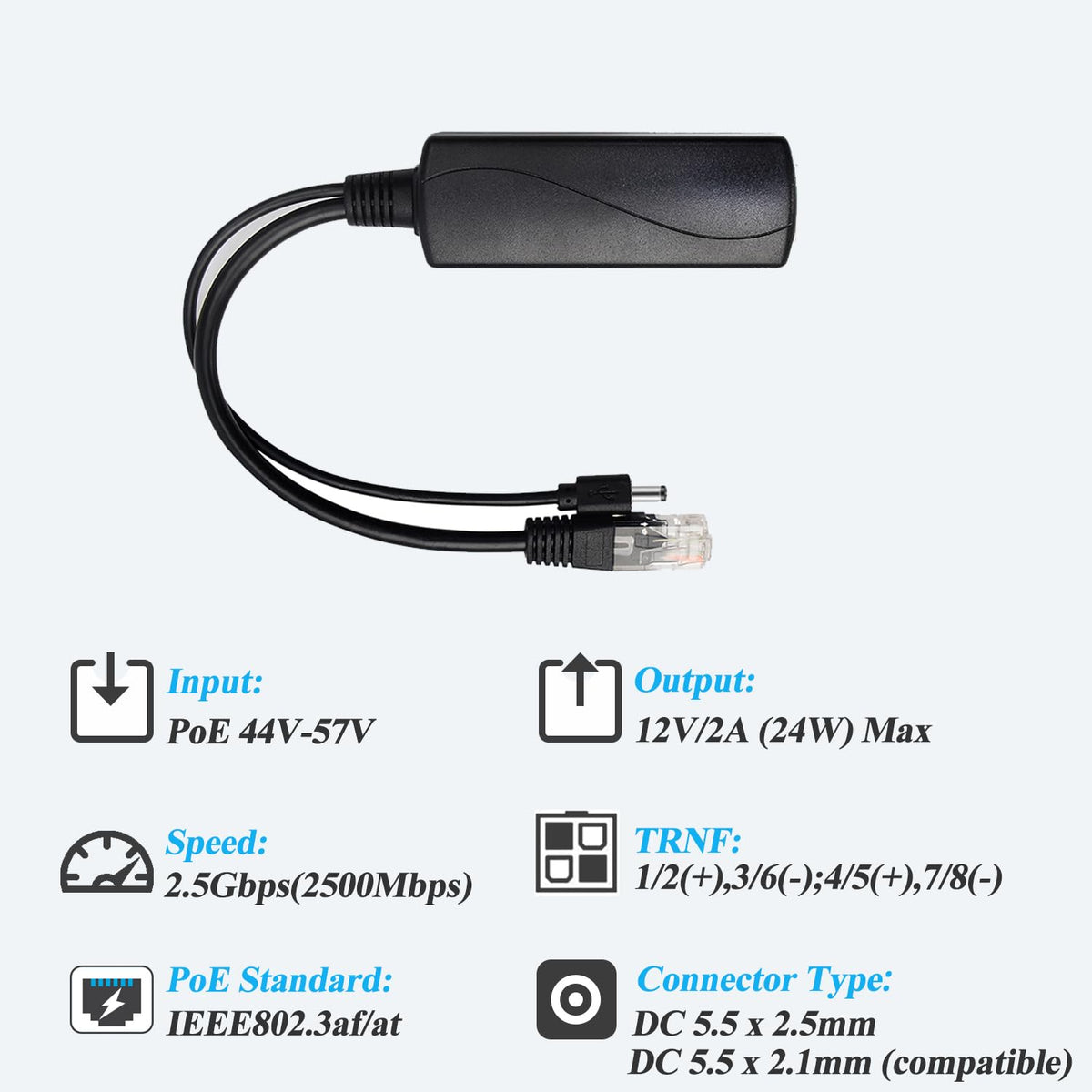

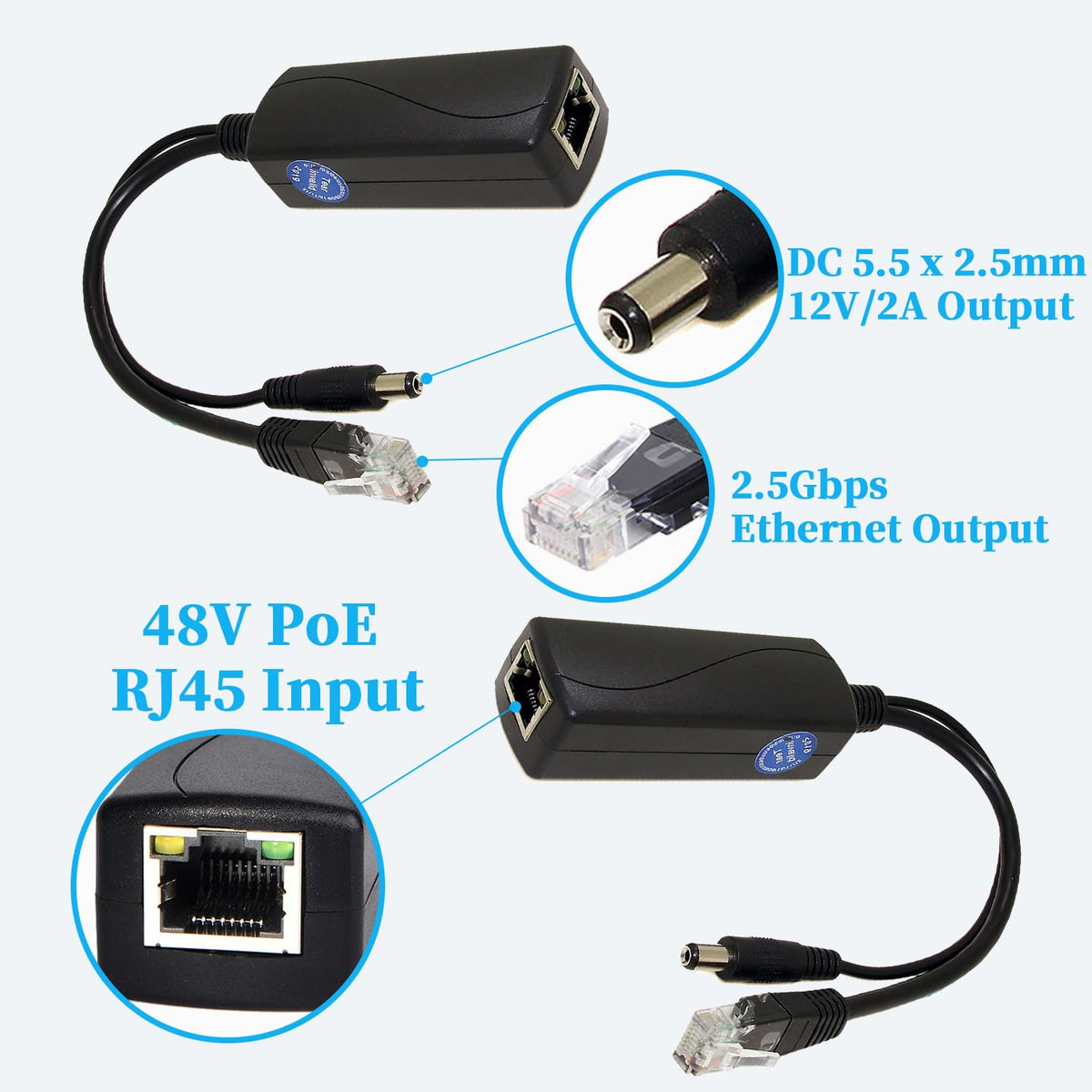

• One PoE input RJ45, one RJ45 data output, one 5.5×2.5mm DC output
• LED PoE indicator (yellow) for status
• Working temp: -20° to 50° C, storage: -30° to 60° C

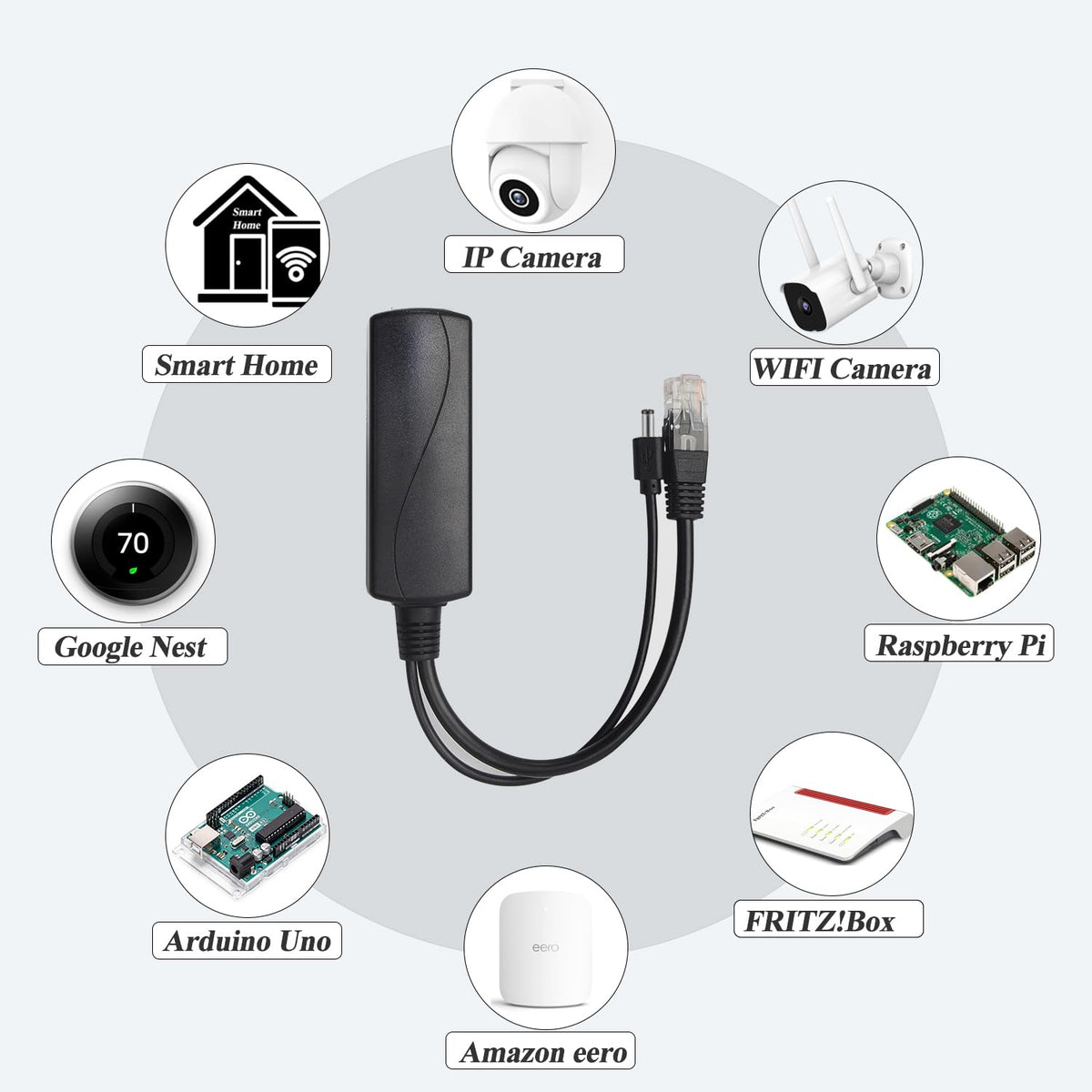

Who is this for: The REVODATA PS5712TG-25-X PoE splitter is aimed at installers, integrators and DIY smart‑home users who need to power 12V devices where only PoE is available, and who want higher-than-gigabit data rates when their network supports 2.5G. Choose this if you require a small, protected, standards‑compliant PoE-to-DC solution for IP cameras, access points or other 12V non‑PoE endpoints.
